Easyfill PWD series Aseptic Processing
Machine overview
Delivering powder dosing excellence

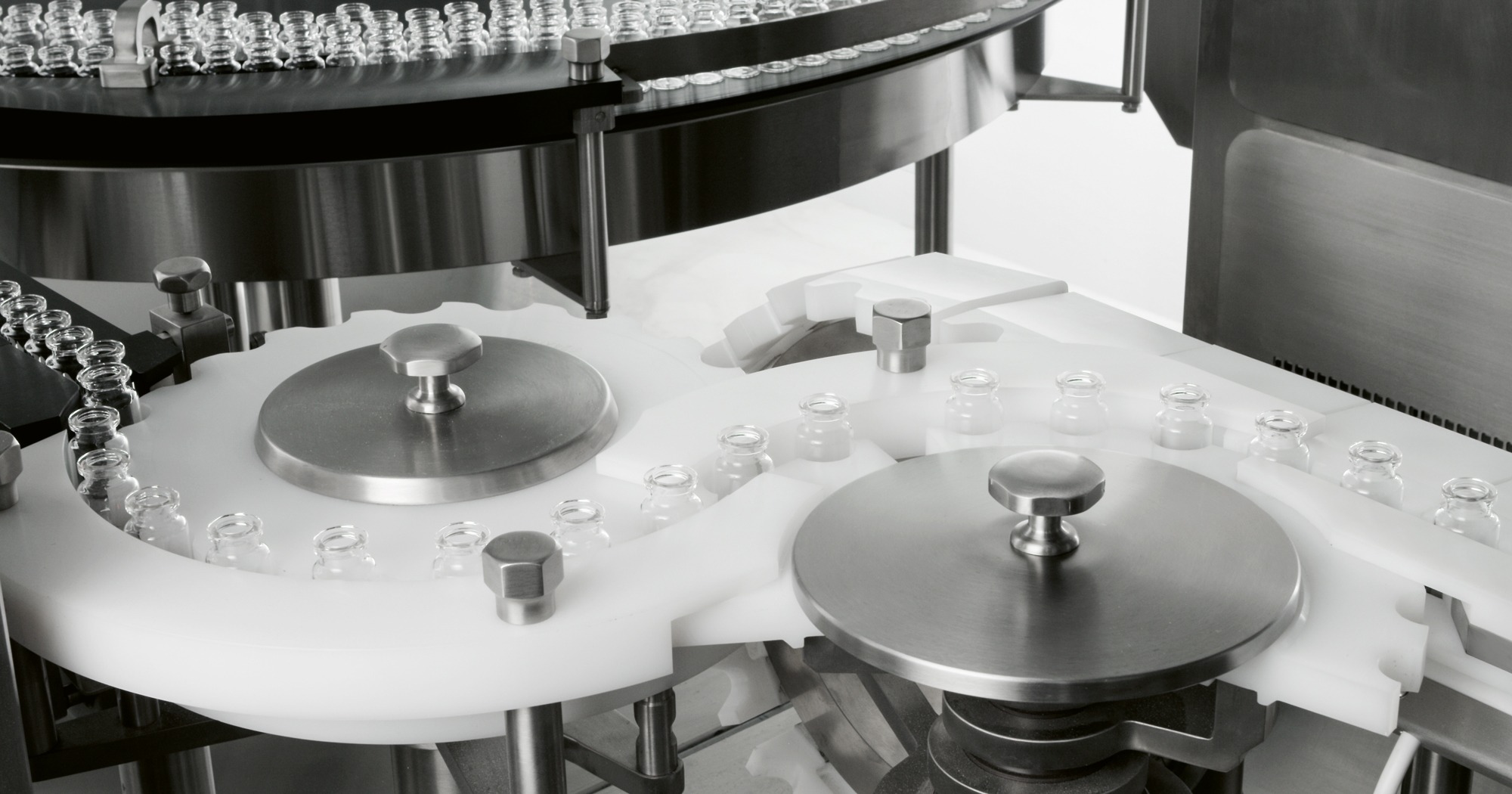

Easyfill PWD is a powder dosing and stoppering machine for vials, with an intermittent-motion, in-line positive transport system. Available in two models, it covers low and medium-speed requirements.

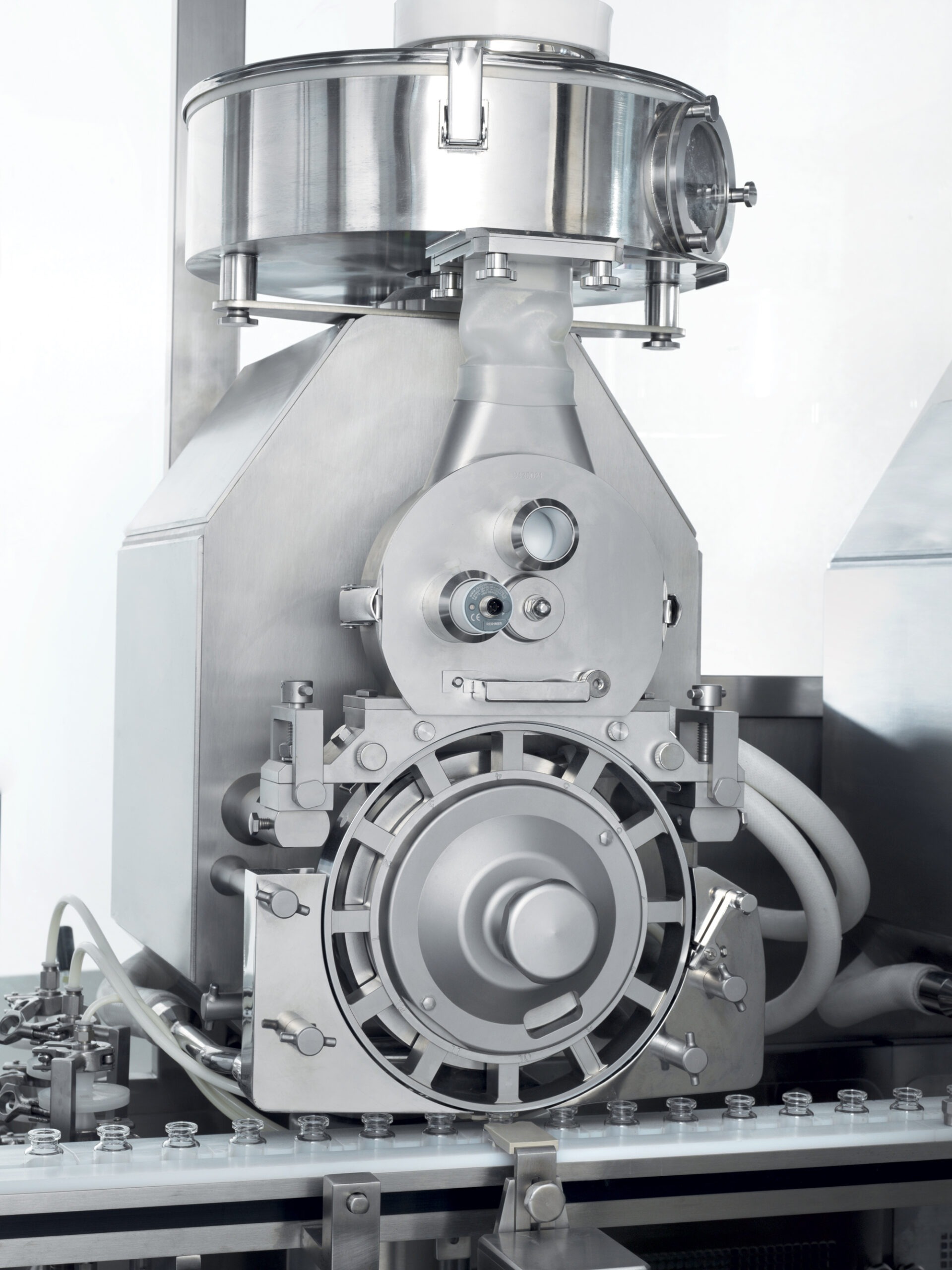

The dosing system with vacuum pressure technology offers extreme precision and versatility during the process where accuracy and low particle generation levels are required. The use of servomotors ensures the vacuum can be easily adjusted for correct slug creation, holding, ejection and chamber cleaning.
Able to perform multiple dosing, Easyfill PWD can be fitted with one or two dosing groups and can be equipped with 100% IPC without affecting machine speed.
Production plant
IMA Life
Machine highlights
-
Efficient processing

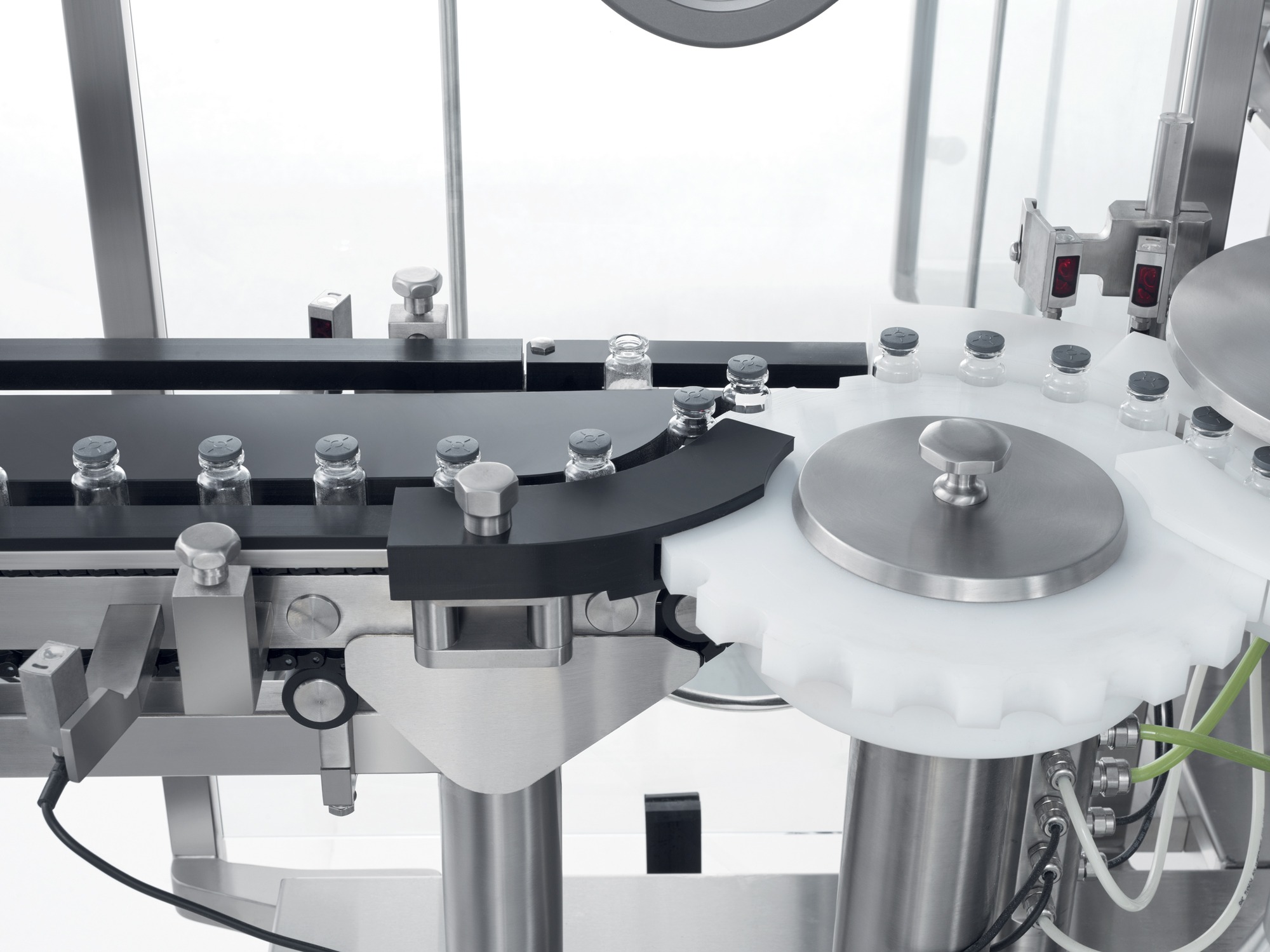

No vial – no fill – no stoppering control device.
-
Multiple dosing
Can dose up to two different powders in the same vial.
-
100% IPC
Suitable for integration with 100% In-Process Control.
-
Ergonomic design
Ergonomic and with a compact footprint to facilitate protection with unidirectional airflow.
-
Easy integration in sterile environments
Can be installed inside a conventional sterile room, integrated with any type of RABS.
-
Easy maintenance
Excellent visibility of the whole process and great accessibility to the working area for immediate maintenance.
-
Fast size changeover
Quick size changeover and easy cleaning.
Precision you can measure

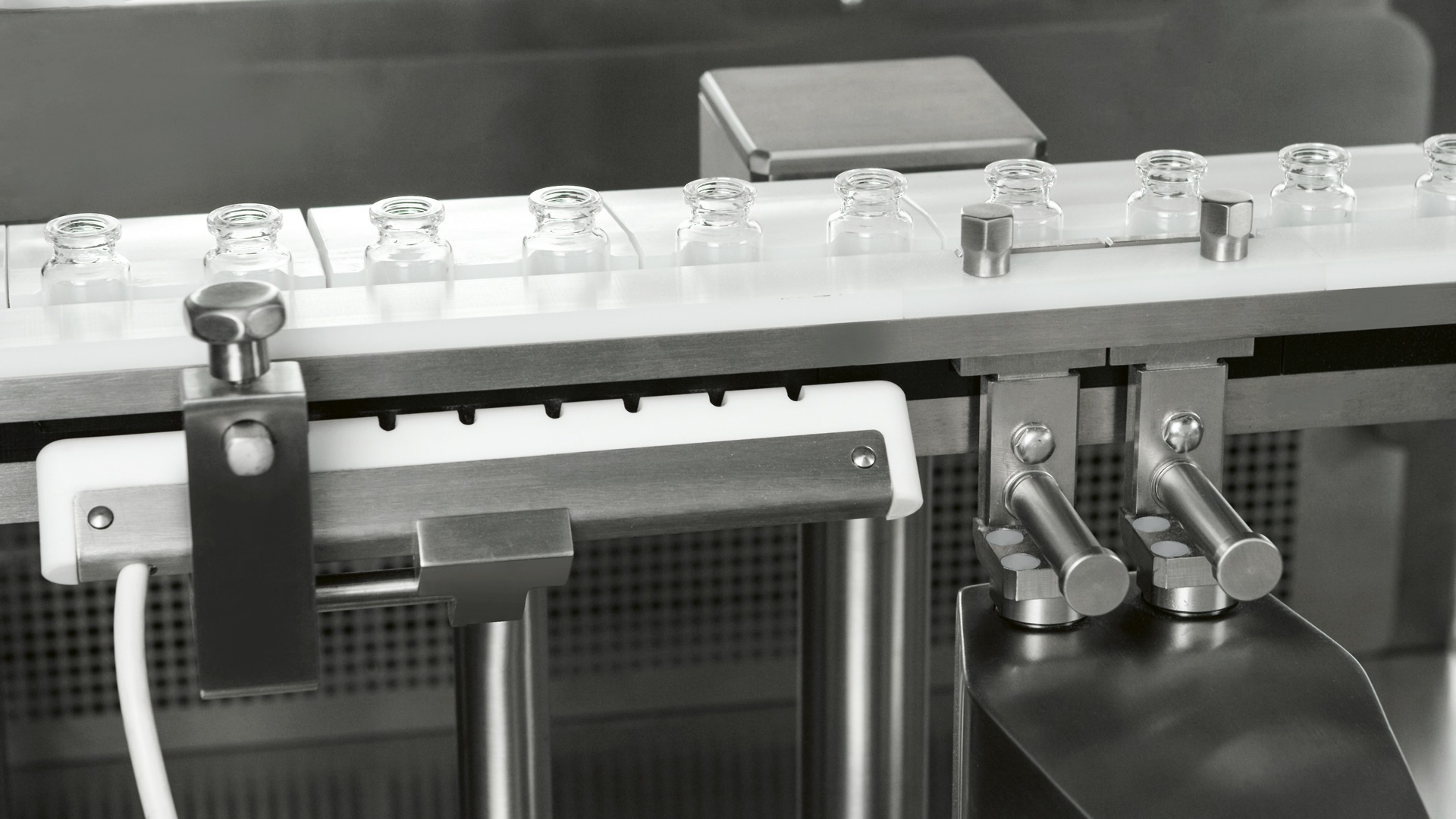

As an option, the machine can be fitted with load cells to detect the tare before powder dosing and the gross weight after dosing. In case of split fill, it is also possible to fit the load cell between the two dosing groups to detect the weight of the powder dosed by the first group.
Machine details
Technical information
| TECHNICAL DATA EASYFILL PWD | |||
| MODEL | EASYFILL PWD 150 | EASYFILL PWD 300 | |
| Output (vials/minute)* | 150 | 300 | |
| Filling range (mg) | From 50 | From 50 | |
| Vial diameter (mm) | 14-54 | 14-54 | |
| Vial height (mm) | 35-110 | 35-110 | |
| Standard voltage | 400 V – 50 Hz | 400 V – 50 Hz | |
| Installed power (kW) | 20 | 20 | |
| Weight (kg) | 2000 | 2200 | |
* Depending on vial size. Output Guaranteed even with 100% IPC.
