E-CO FLEX SEALMATIC Case Closing
Machine overview
100% self-driven

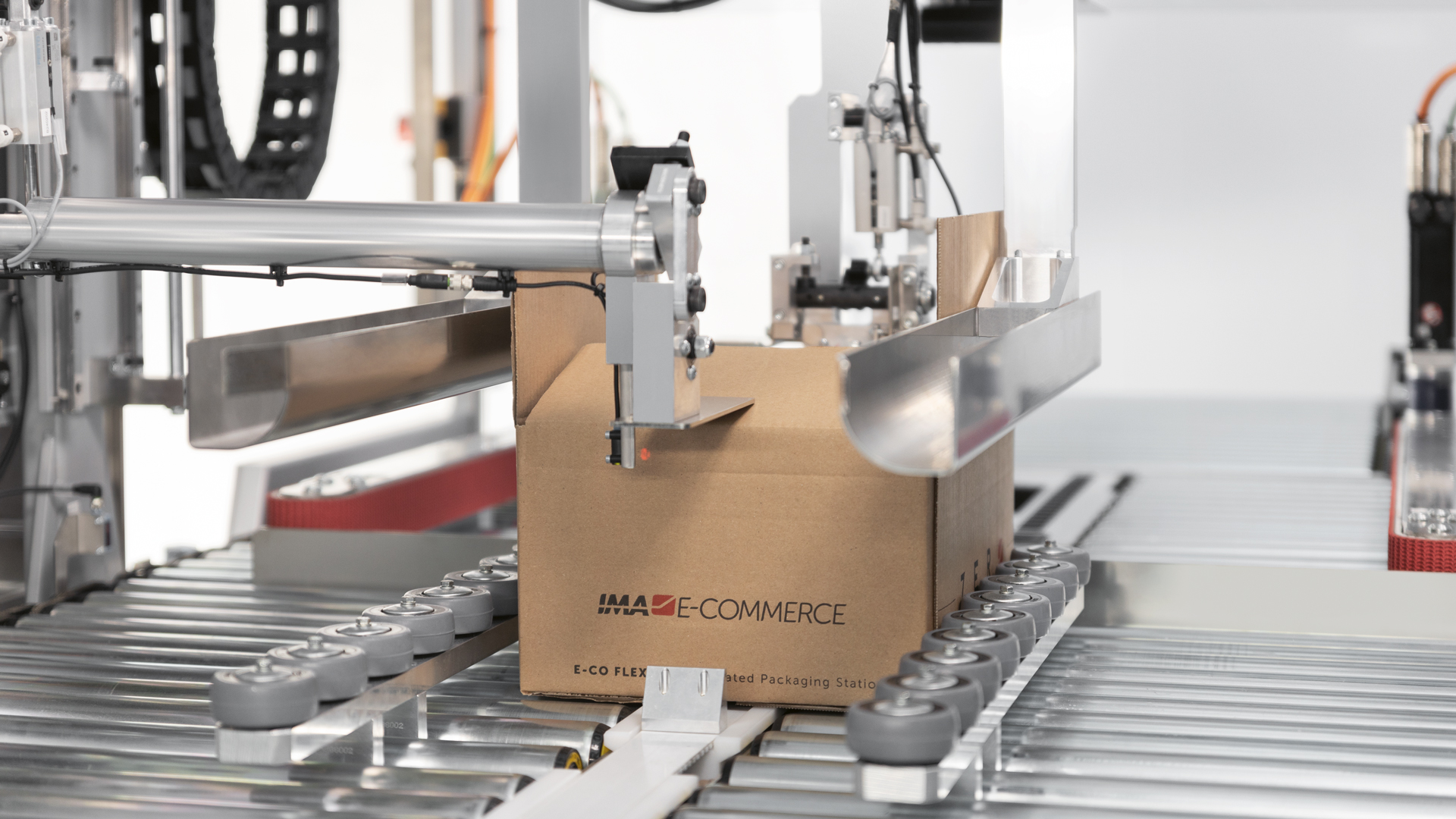

The E-CO Flex SealMatic is an automated random case sealing solution that seamlessly integrates with IMA’s portfolio for e-tailers. Engineered for efficiency, this machine closes and seals FEFCO 201 boxes across a wide spectrum of sizes, with no need for human intervention.
E-CO Flex SealMatic streamlines the process by automatically folding the top flaps and securely sealing both the top and bottom of each case employing eco-friendly water-activated tape technology, and it can seal up to 20 boxes per minute autonomously, eliminating the need for manual intervention. Additionally, when a Ships-In-Own-Container (SIOC) case is detected, the machine can bypass it without applying tape.
E-CO Flex SealMatic perfectly integrates into the Scan Label Apply Manifest (SLAM) stations.
Production plant
IMA E-Commerce
Machine highlights
-
1.
SIOC cases are automatically bypassed.
-
2.
The machine can process a wide range of case sizes.
-
3.
Cases can be taped with water-activated tape, pressure sensitive tape or glued.
Technical information
| E-CO FLEX SEALMATIC TECHNICAL DATA | ||
| Throughput in cases/minute | Box: 11-18 case/minute Ships In Own Container (SIOC): up to 20 case/minute | |
| Box type | Taping function: pre-formed box with flaps open in the upper side Bypass function: for SIOC and cases already taped | |
| MIN | MAX | |
| Case size (internal dimensions) | 7″ x 6″ x3″ (18 cm x 15 cm x 8 cm) | 40″ x 28,5″ x 16″ (102 cm x 72 cm x 40 cm) |
| Case size SIOC | 7″ x 6″ x3″ (18 cm x 15 cm x 8 cm) | ∞” x 29,2 x 19″ (∞ cm x 74 cm x 48 cm) |
| Bypass feature | Yes | |
| Case weight | Max 35″ | |
