E-CO FLEX Box Forming Module Case Forming
Machine overview
Automatically selects the right-sized box
The E-CO Flex standalone case erecting and forming module is designed to kick-off the packaging process seamlessly. In its standard configuration, the machine boasts a 12-cassette magazine, the widest available in the market, capable of accommodating various case formats.

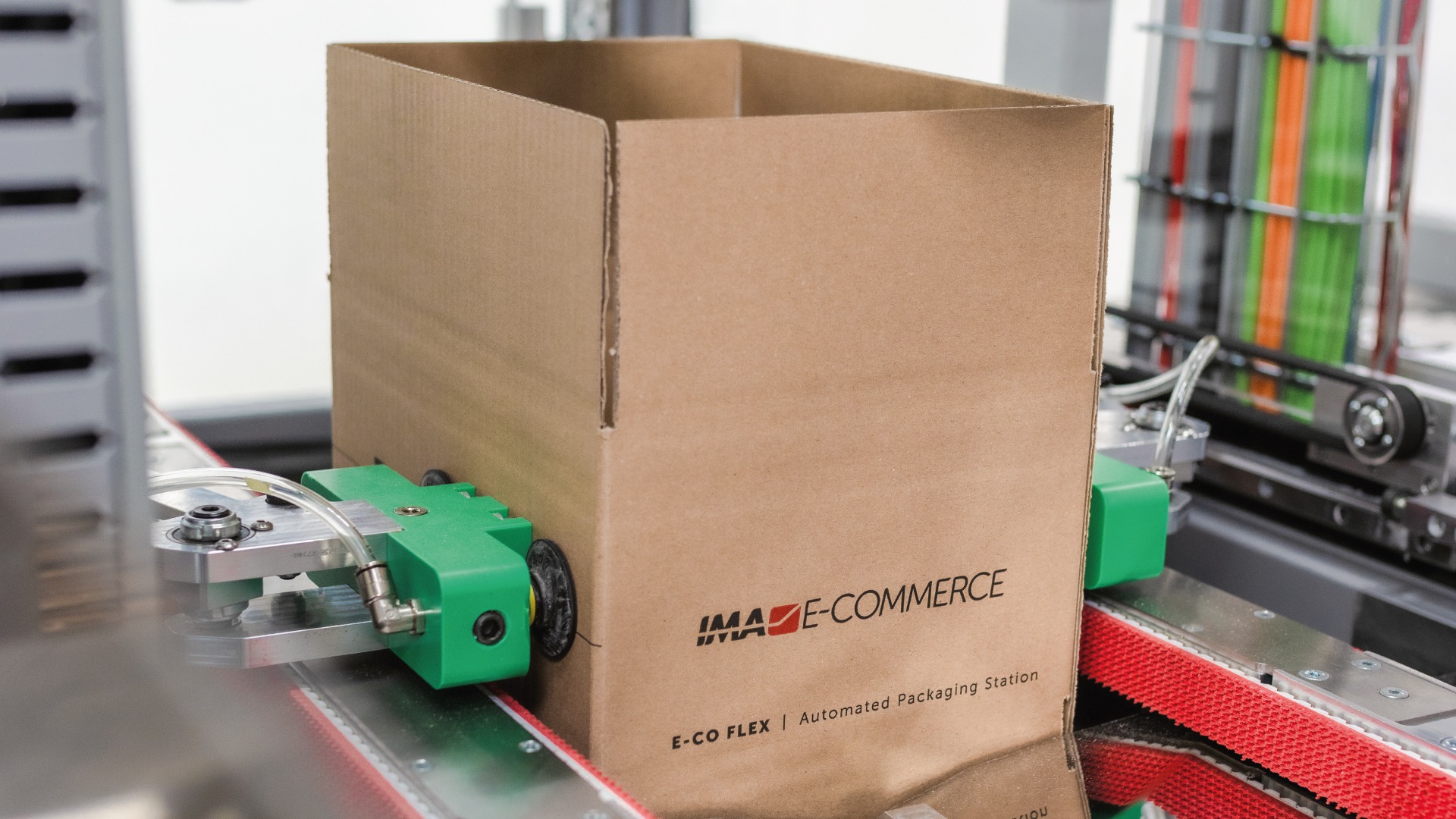

The packaging process is streamlined by the automatic box erector, which automatically selects the optimal box size, erects it, forms it, and securely tapes it at the bottom. This results in the operator being presented with an open-faced box ready for product insertion.
Bottom taping can be carried out with sustainable Water-Activated Tape (WAT).
The E-CO Flex carton erector machine offers a sustainable and reliable option for modern packaging needs.
Production plant
IMA E-Commerce

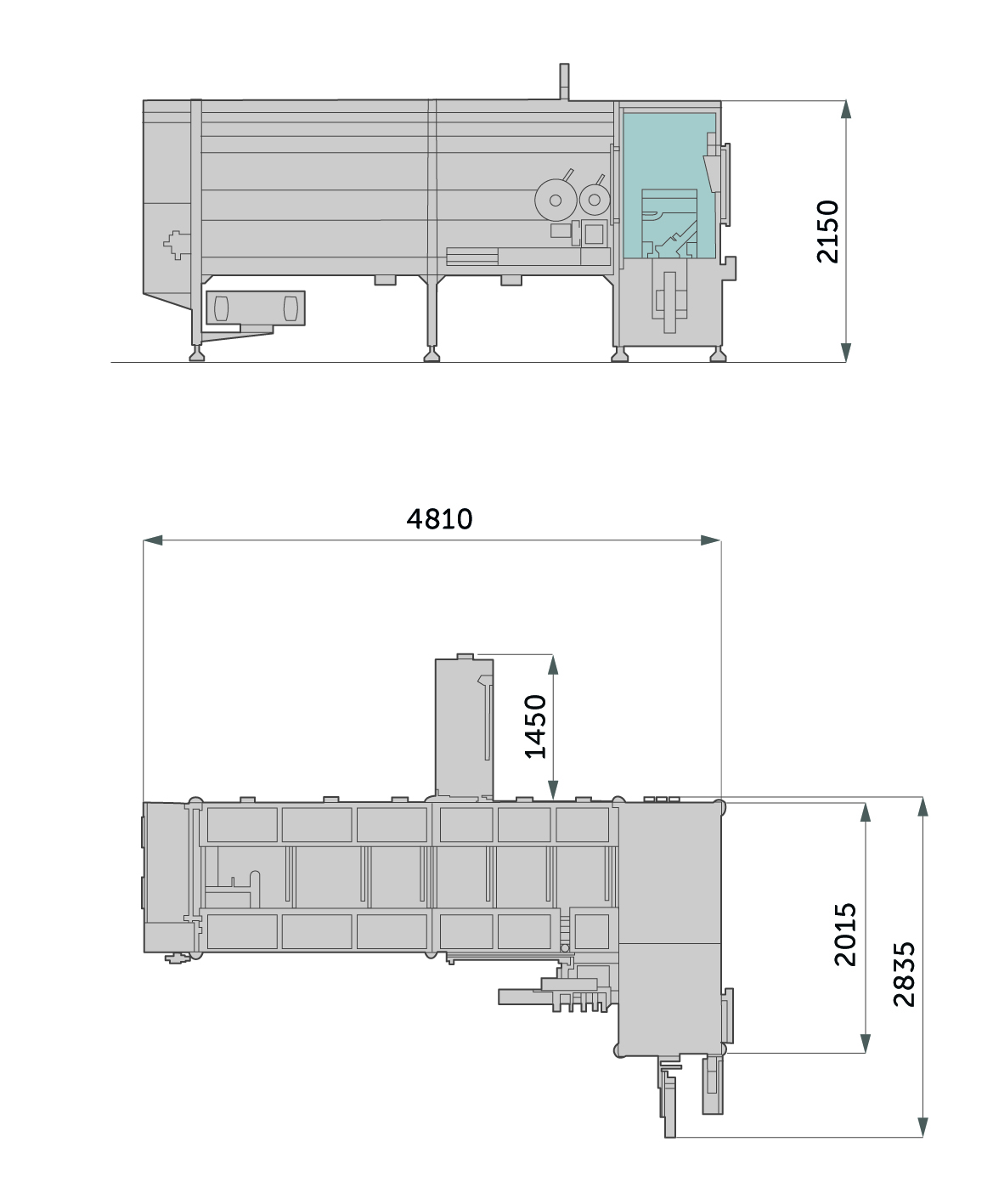

Technical information
| E-CO FLEX FORMING | ||
| Box type | Standard RSC (FEFCO 201) and HSC (FEFCO 200) | |
| Adehesive technology | Water-activated (WAT) or gummed tape | |
| Box range (internal dimensions) | MIN | MAX |
| 7” x 6” x 3” (178 mm x 152 mm x 76 mm) | 21” x 15” x 13” (533 mm x 381 mm x 330 mm) | |
| ID label application | Yes, as machine option | |
Two modules, one machine: endless configurations.
Wms Integrated Put-to-Wall Configuration
The E-CO Flex Forming case magazine offers versatile erecting capabilities in various formats, allowing for the provision of different box sizes to slipways. These boxes are then made accessible for pick-to-box operations, where operators gather multiple boxes onto a cart, promptly placing each picked product into the corresponding shipping box.

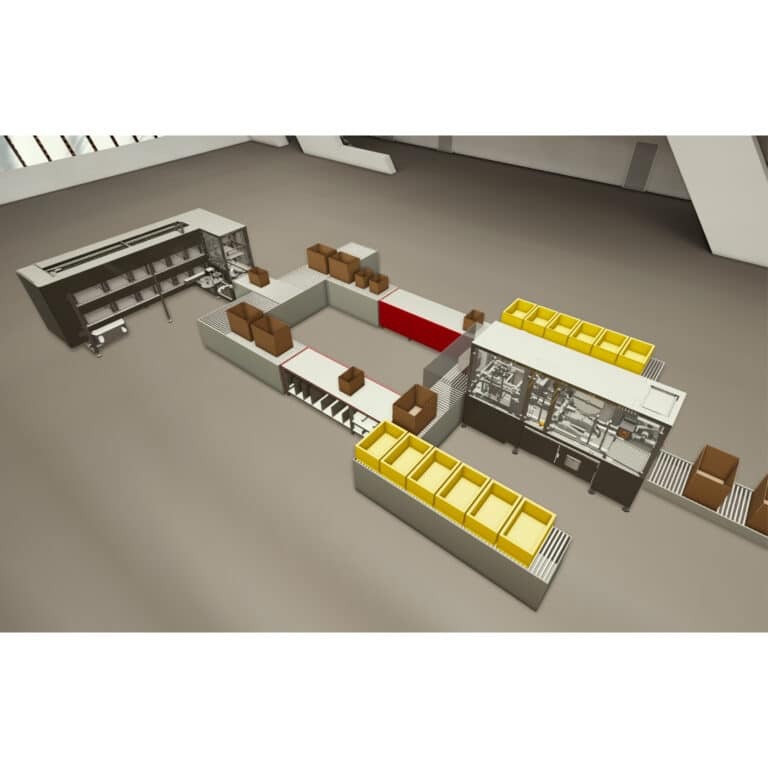

Wms Integrated Tote-based Configuration
The E-CO Flex Forming module forms, closes and divertes to the two manual packing stations.
The right-size box for the order can be selected using the customer’s WMS or measuring the volume required for the products with a dimensioning system.
After the boxes are filled, both packers take advantage of the E-CO Flex Closing module with down-sizing capabilities.

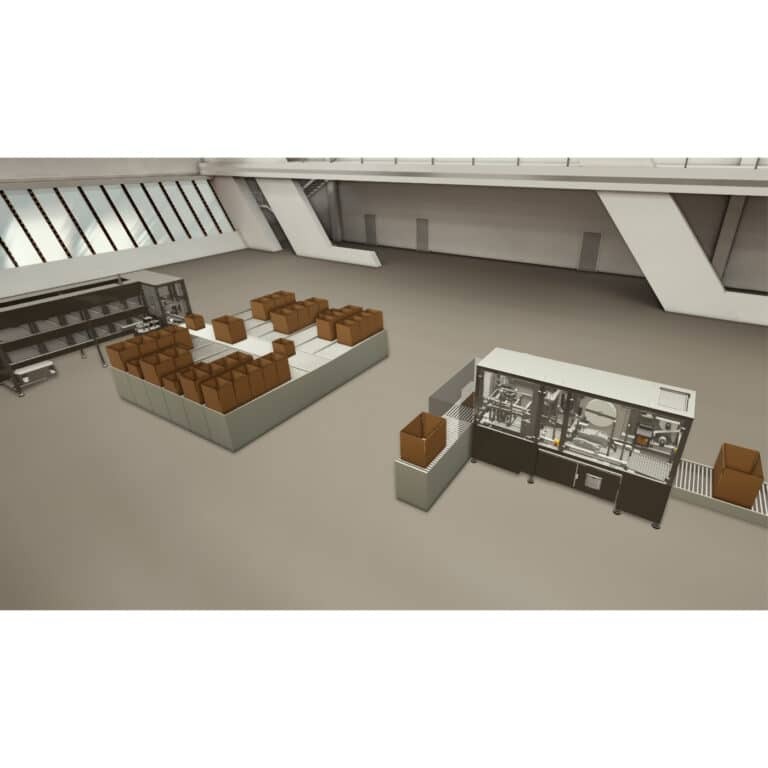

Case Erecting For Pick-to-box Configuration
The E-CO Flex Forming case magazine offers versatile erecting capabilities in various formats, allowing for the provision of different box sizes to slipways. These boxes are then made accessible for pick-to-box operations, where operators gather multiple boxes onto a cart, promptly placing each picked product into the corresponding shipping box.

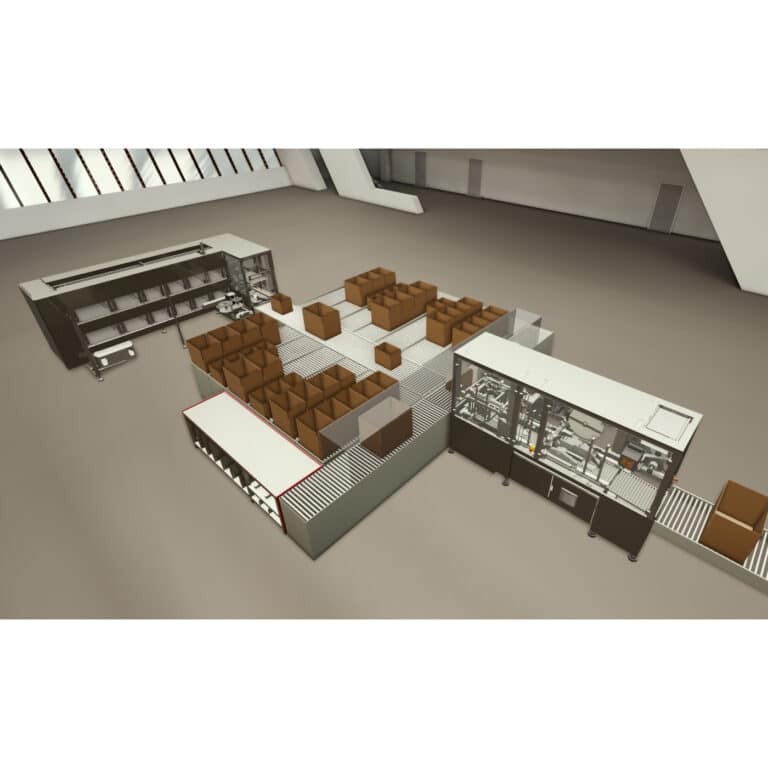

Case Erecting For Right-size Box Selection by Operator
If the customer’s WMS does not have precise product cubing data or if the process requires operator involvement in electing the right-size box, the E-CO Flex proves highly beneficial.
Utilizing the carton magazine, various box sizes are pre-assembled and directed onto separate slipways. Each slipway corresponds to a different box size, allowing operators to visually select the most appropriate case for each incoming order.
