Dynamica Series Cartoning
Machine overview
Beyond the limit of the maximum flexibility.
The Dynamica series of multipurpose continuous-motion cartoners is available in different versions, according to the product specifications, carton sizes and speed. This grants maximum versatility in terms of applications, infeed systems and carton sizes.
Flexibility as key feature: this series covers the widest range of products to be packed, carton dimension range and applications. Moreover, the Dynamica S version is able to combine both continuous and intermittent motion depending on the product fed.

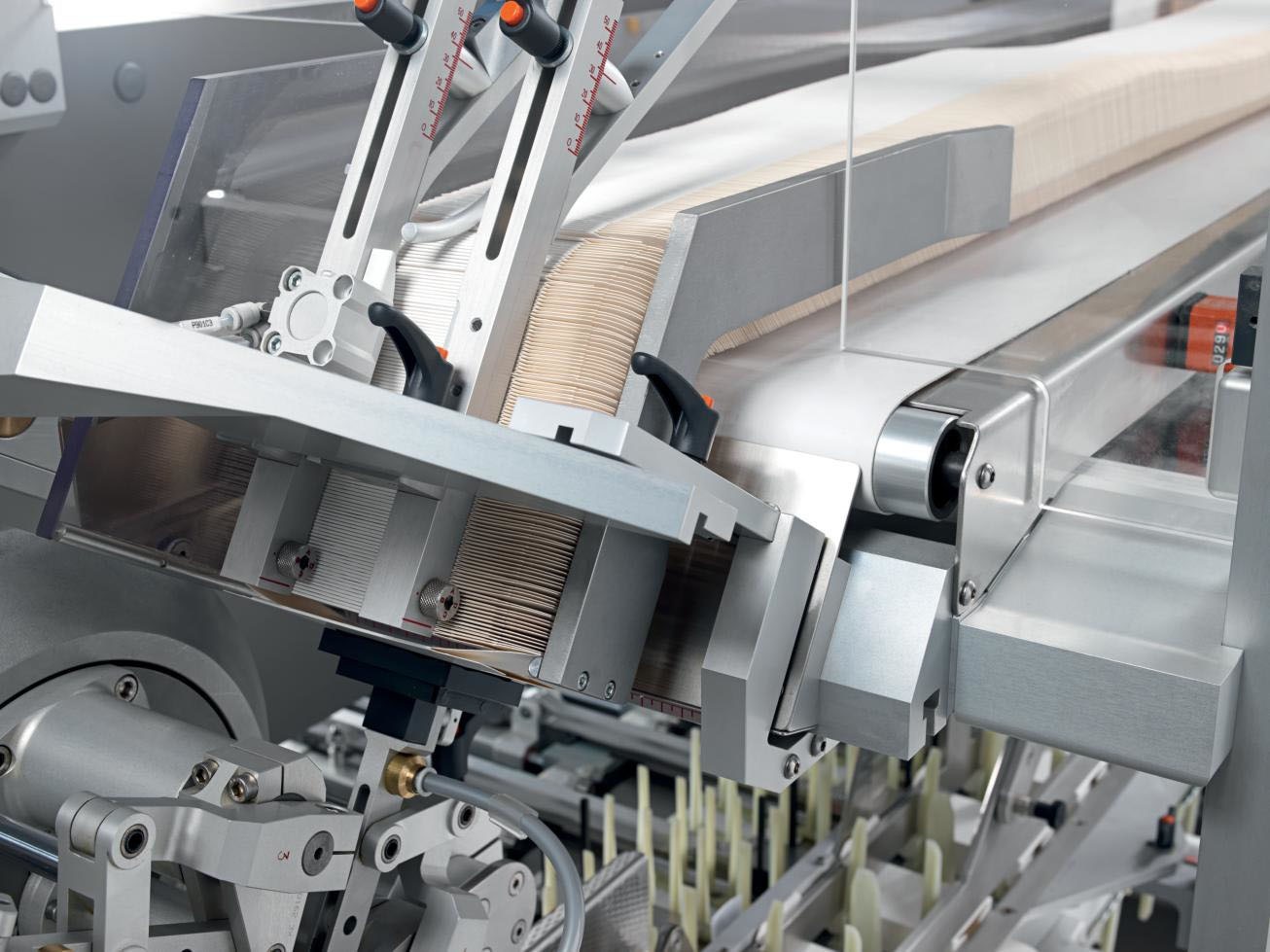

Carton magazine, product flow and leaflet-folding unit heights provide maximum ergonomics. Last but not least, Dynamica is also compact, easy to manage and intuitive to set up.
Production plant
IMA Safe
Machine highlights
-
Flexibility
Multi-purpose solution.
-

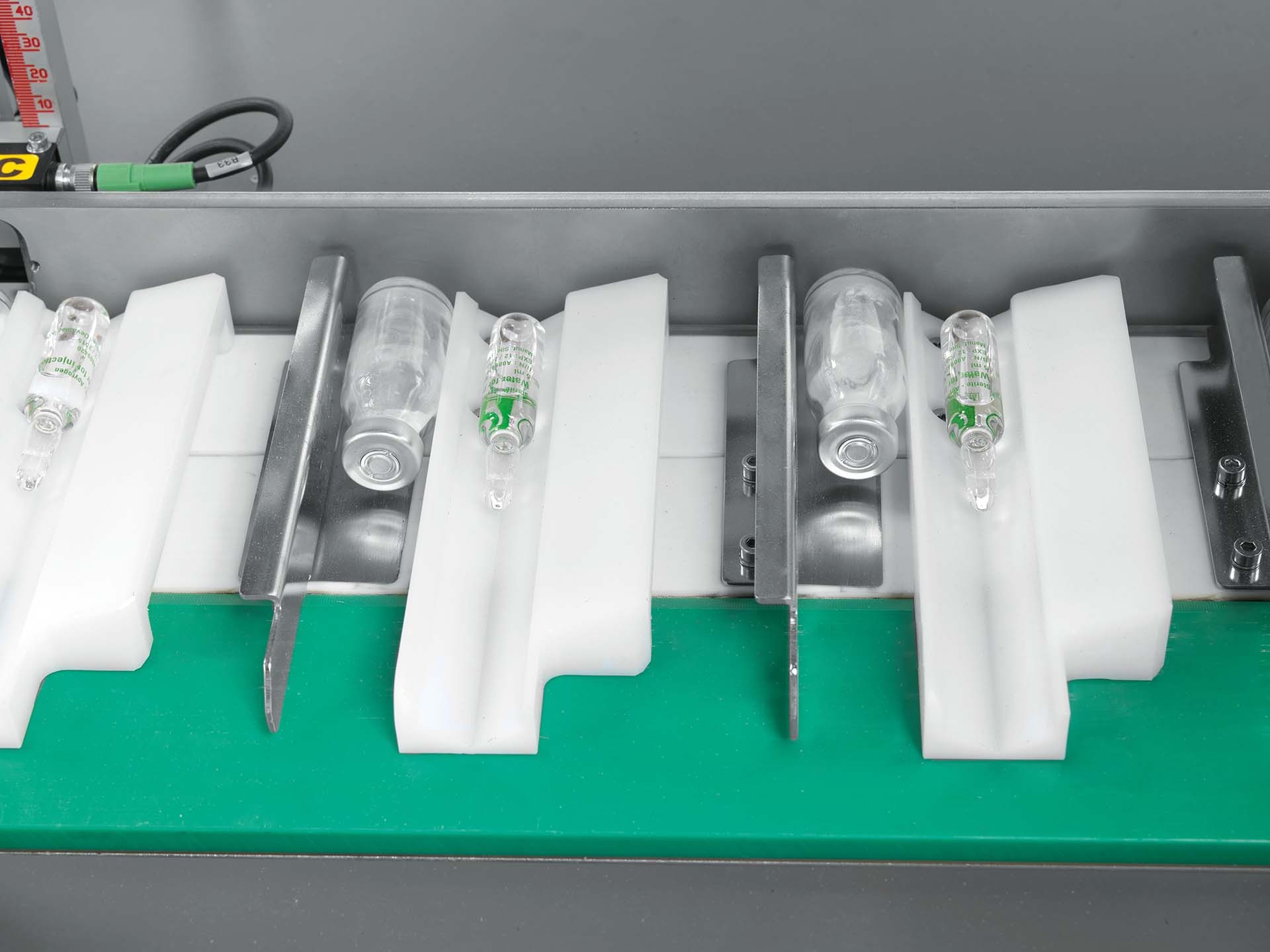

Feeding systems
Wide range of solutions to pack different products.
-
Versatility
Very wide carton size range.
-
Leaflet folding
IMA Safe Roll-One, leaflet-folding unit.
-
Ergonomics
Ergonomic design.
-
User-friendly
Very easy to manage and intuitive.
Cost effective
& flexible feeding systems
We provide cost-effective and flexible feeding systems, ensuring a wide range of solutions for both the pharma and non-pharma sectors.

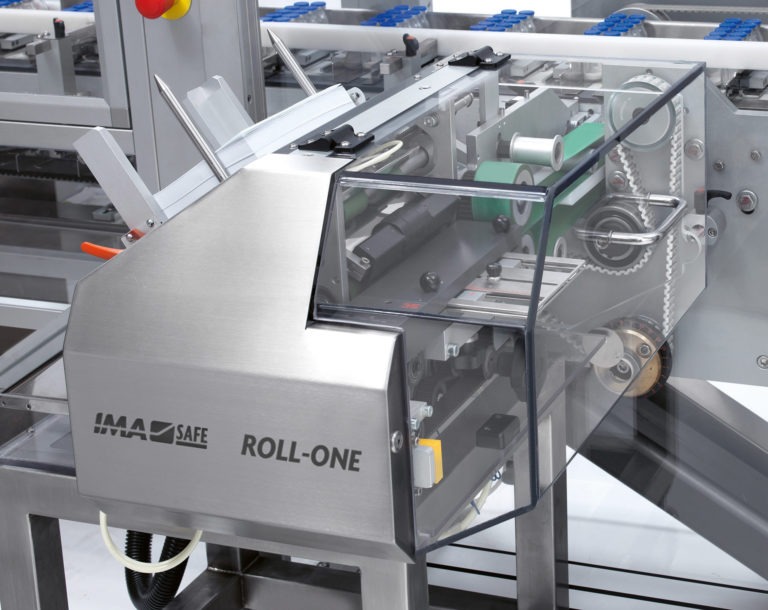

Roll-One
The IMA patented leaflet folding unit is designed to fold flat sheets using a simple but innovative technology indipendent from the leaflet thickness. To change the leaflet size is just a matter of one simple and fast part replacement.

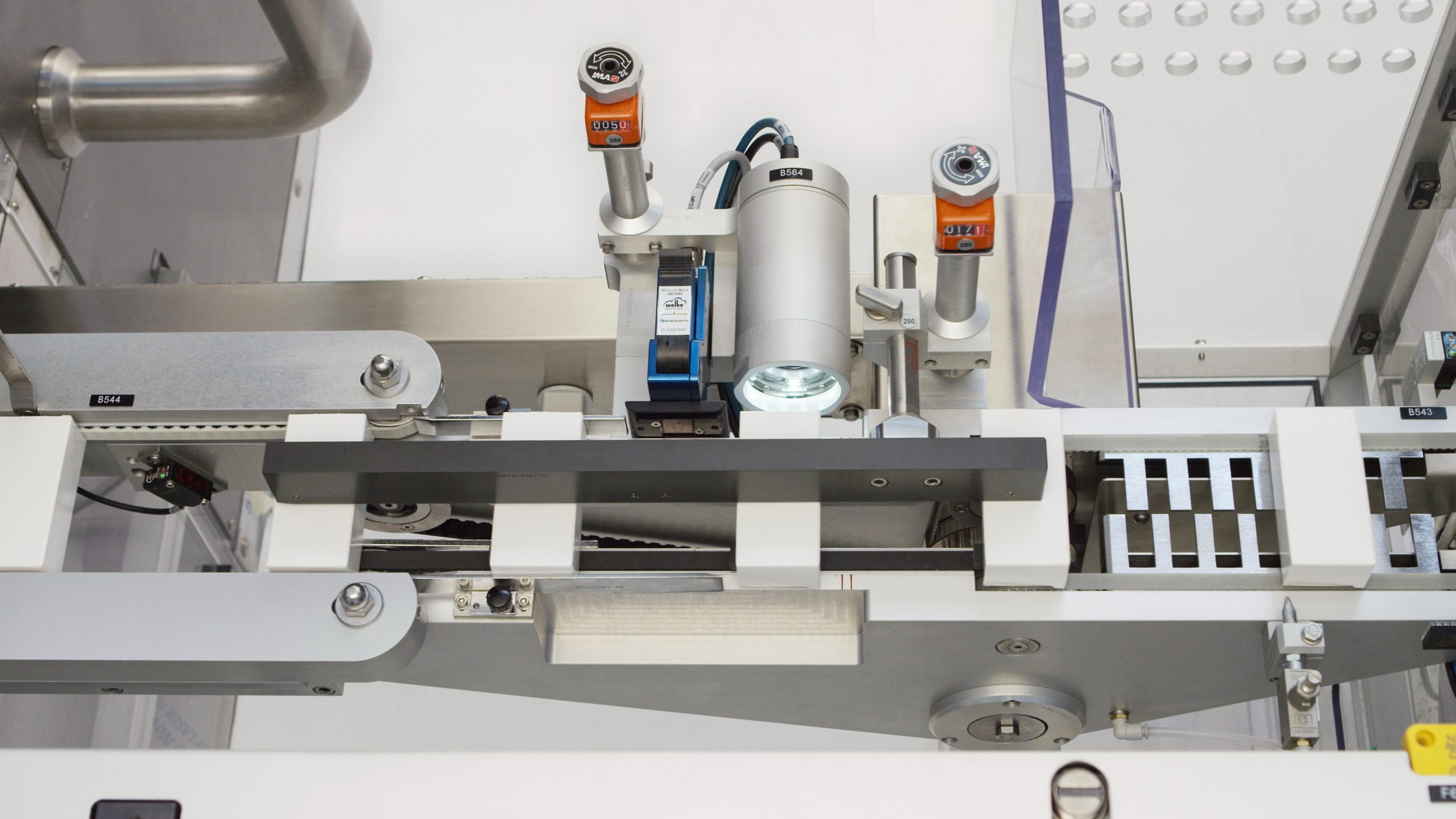

Track & Trace
The integrated module to the cartoner, to apply camera and ink-jet system, is the ideal solution for cartoning serialization having a shorter line and higher efficiency.

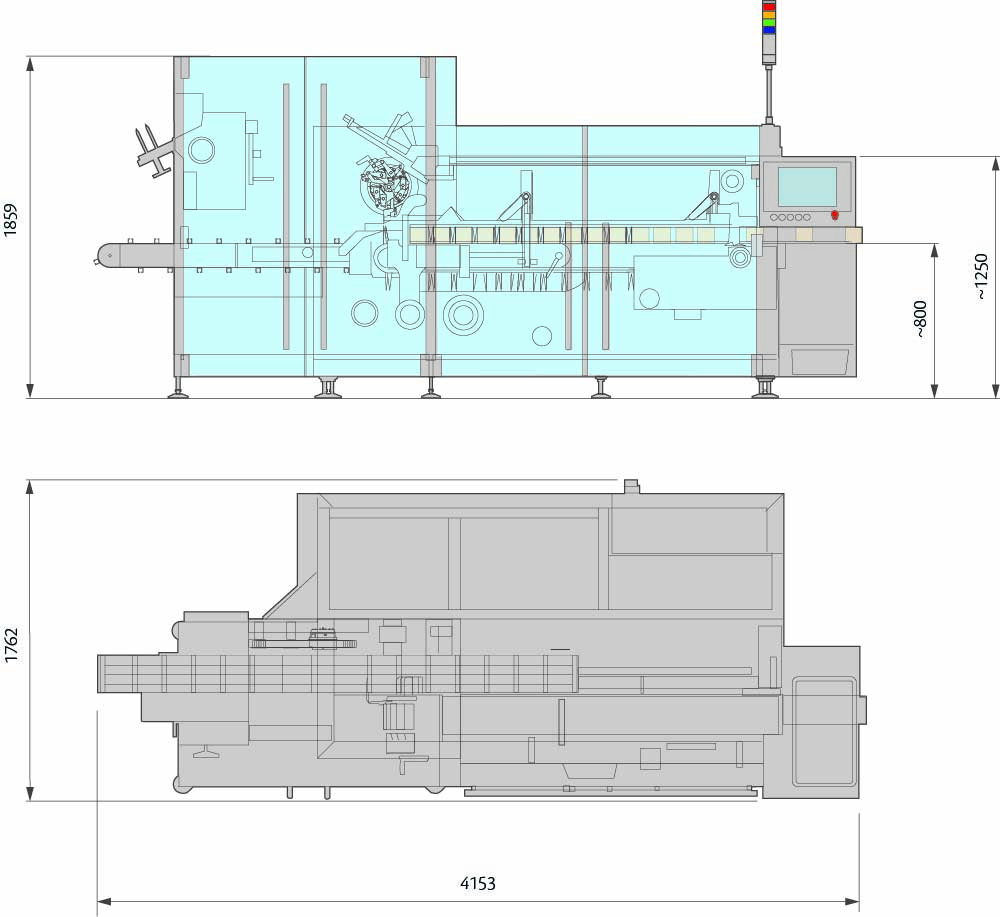

Machine details
Technical information
| TECHNICAL DATA DYNAMICA | ||||
|---|---|---|---|---|
| Width | Height | Lenght | Production output | |
| Dynamica L | min 25 – 130 max | min 12 – 90 max | min 65 – 200 max | Up to 250 cartons/min. |
| Dynamica E | min 30 – 90 max | min 15 – 65 max | min 100 – 250 max | Up to 300 cartons/min. |
| Dynamica SLEEVE* | min 48 – 90 max | min 8 – 15 max | min 65 – 106 max | Up to 350 cartons/min. |
| Dynamica S | min 25 – 95 max | min 12 – 90 max | min 65 – 200 max | Up to 350 cartons/min. |
| Dynamica V | min 25 – 95 max | min 12 – 90 max | min 65 – 150 max | Up to 400 cartons/min. |
*Version for carton sleeve style
