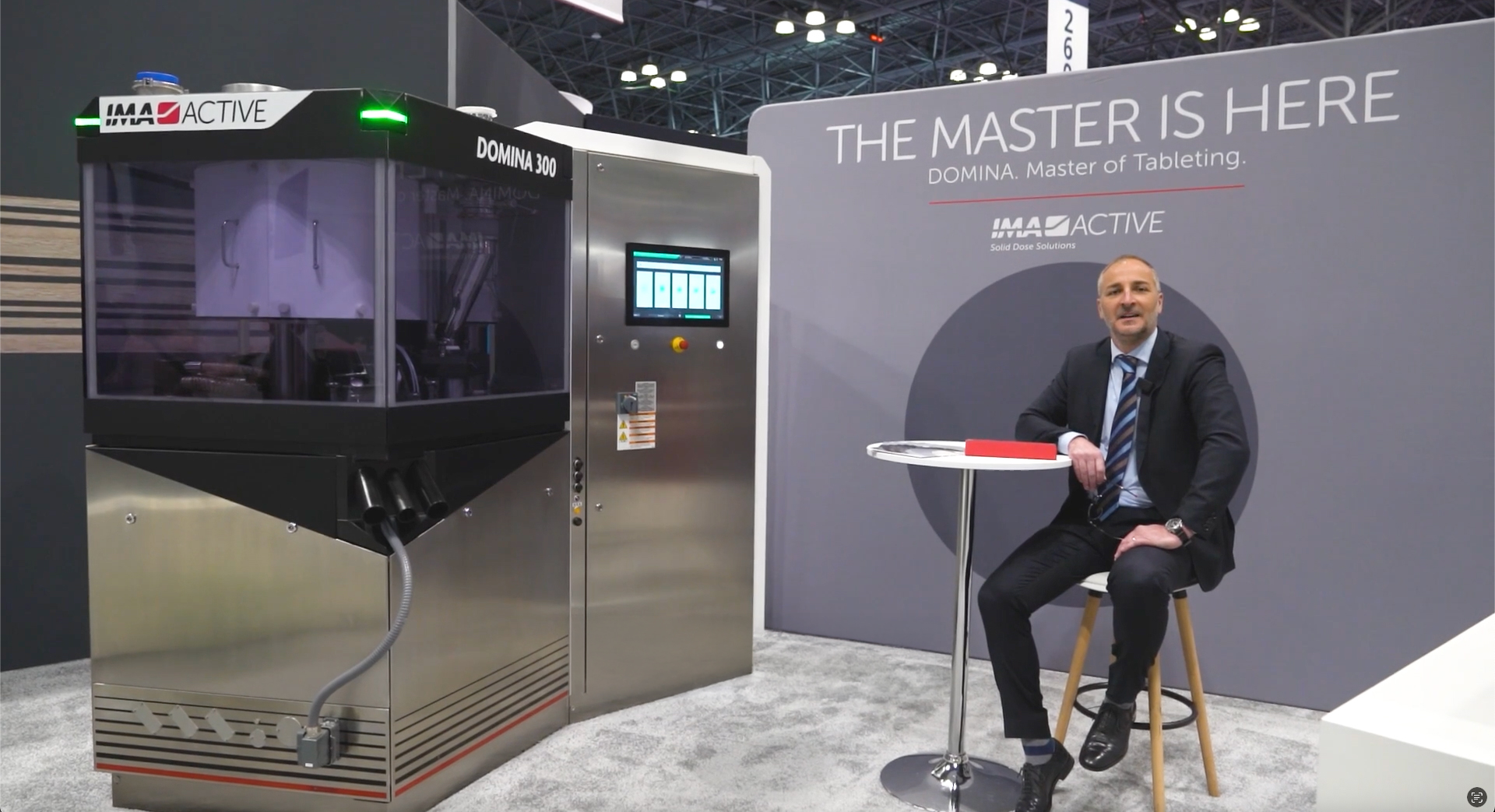

Domina Tableting

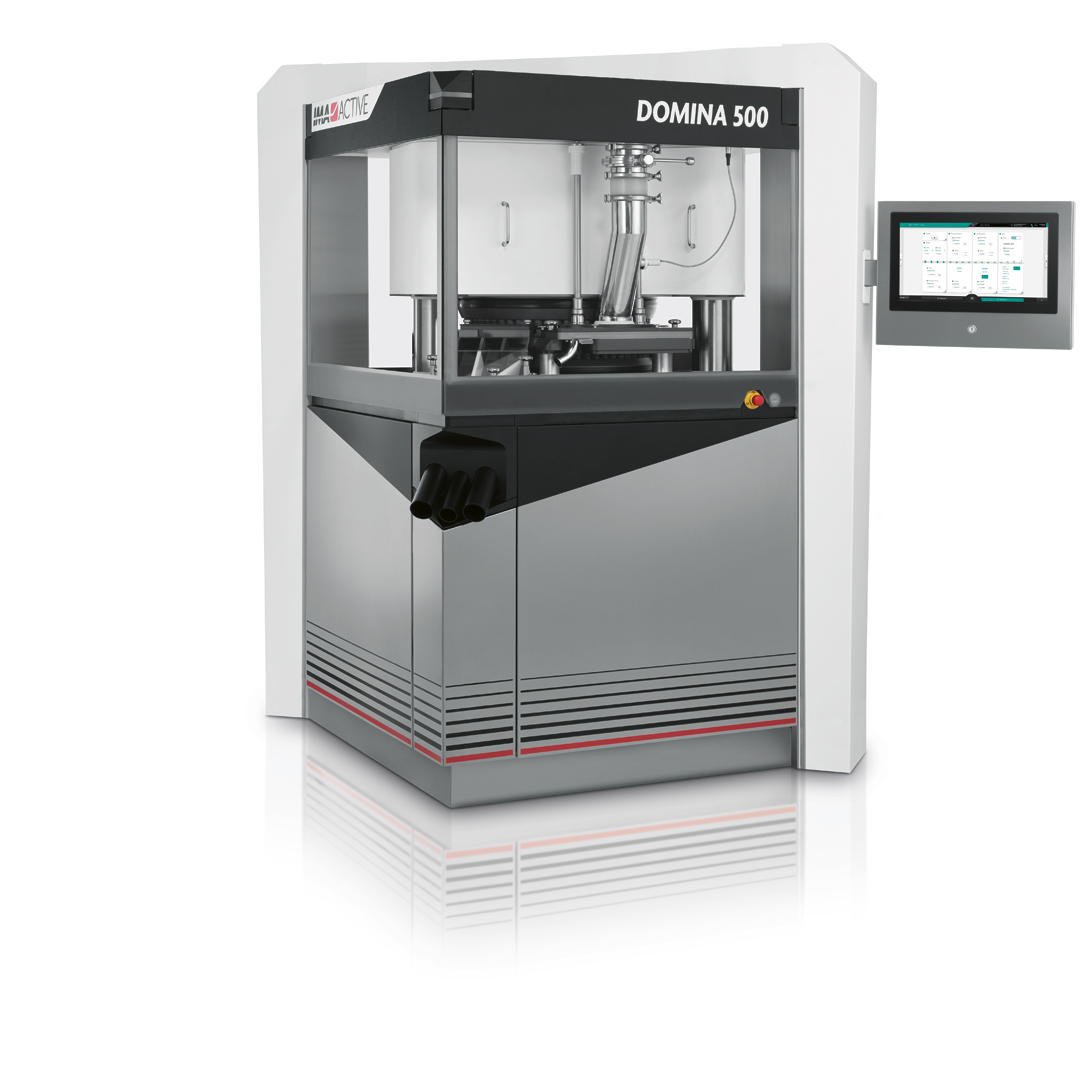

Machine overview
Better, faster, stronger.
Domina is a modular technological platform, where all the functional blocks are easily removable and interchangeable, allowing a plug-and-play shift among different machine configurations. Domina automation is a step ahead of other machines by helping to maximise production and minimise errors.
Domina applies brushless motorisation to ensure energy efficiency while granting high machine performance. Moreover Domina guarantees waste reduction. Advanced machine learning functions are used for more efficient self-adjustment of process parameters: less waste, better product quality. All this maximises machine functionality, keeping the machine performance on target and allowing the single rejection of products out of specification.
Production plant
IMA Active
Machine highlights
-
Flexible
Domina is a modular technological platform that makes possible to build an ideal configuration to perfectly compress any powder into any tablet.
-
Versatile
Designed with an eye to Pharma 4.0, Domina is easily adaptable to state-of-the-art production environments.
-

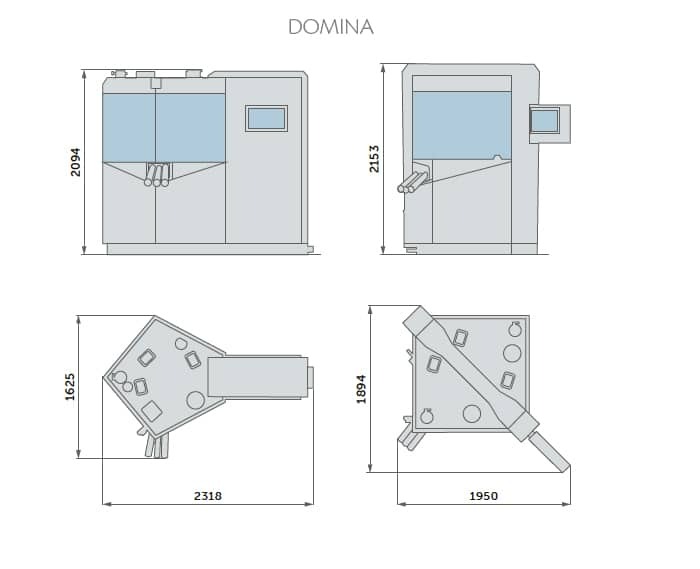

Small footprint
Thanks to its small footprint, Domina can be perfectly integrated in existing product environments.
-
Built to last
Based on the proven Prexima concept, Domina is designed with an extremely robust structure.
Dynamicam: precision in motion

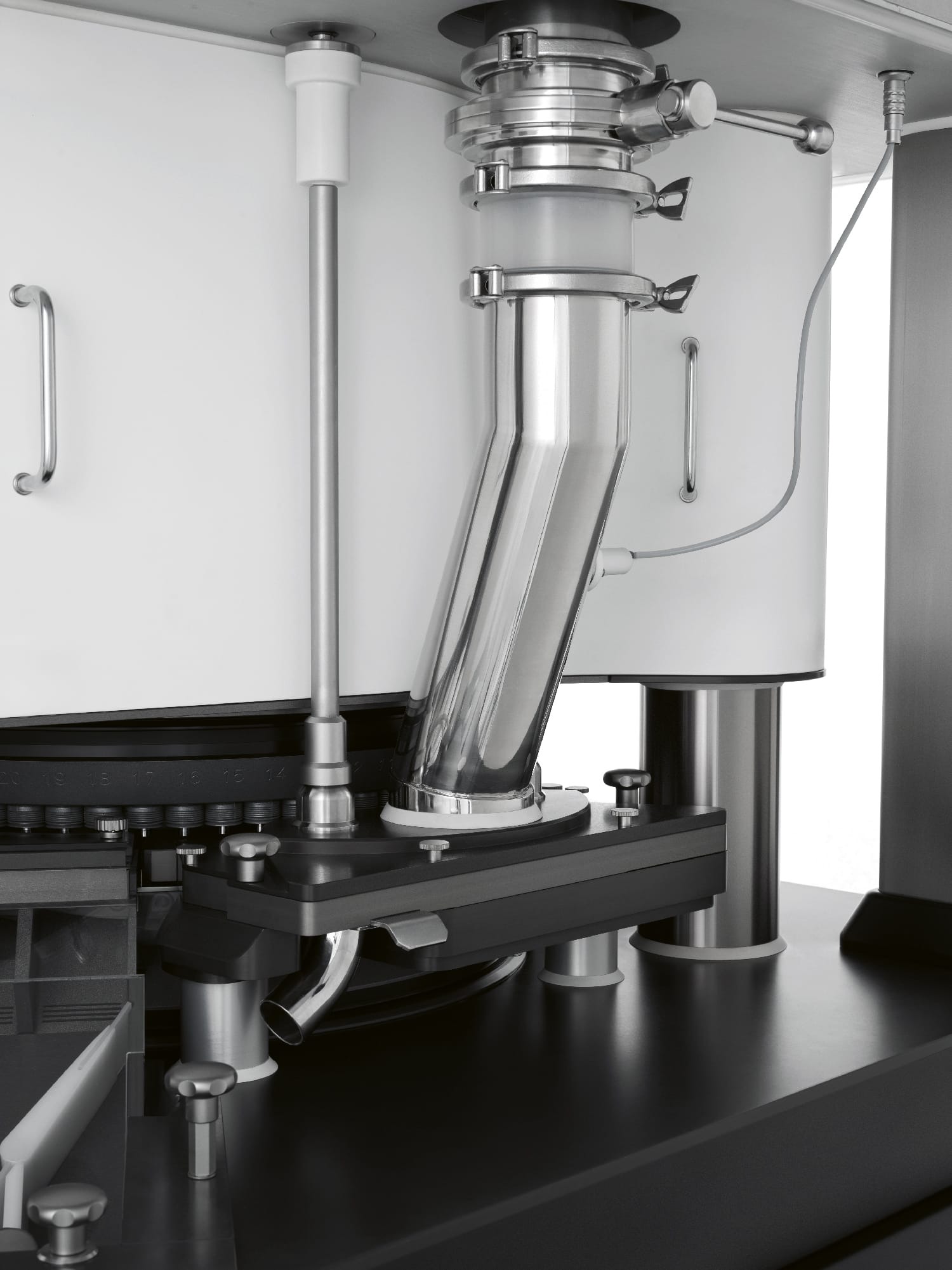

The Dynamicam, a unique filling cam, covers the entire filling range: this innovative solution, combined with motorisation of the independent paddles, is the best for product-centric fine tuning.
Machine details
Technical information

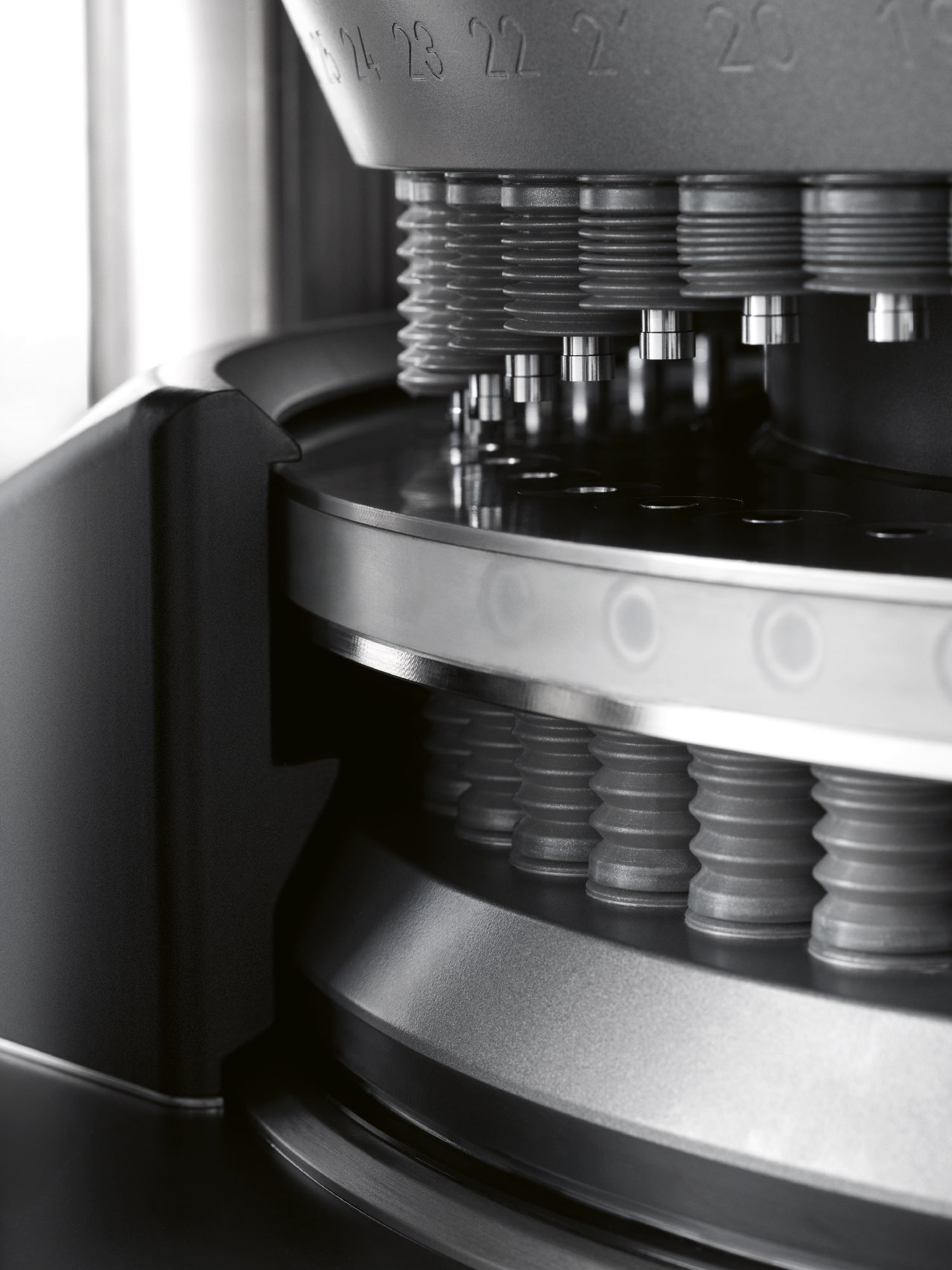

| TURRET & TOOLING STANDARDS | Domina 300 | Domina 500 | ||||
| Turret Design | Tooling Type | Max Tablet Ø | Compressions Stations | Max Speed | Compression Stations | Max Speed |
| Die-table | EU/TSM-D or EU-441 | 25 mm | 27-M | 194,400 Tab/h | 40-M | 288,000 Tab/h |
| EU/TSM-B B-dies | 16 mm | 33-M | 237,600 Tab/h | 49-M | 352,000 Tab/h | |
EU/TSM-B | 13 mm | 41-M | 295,200 Tab/h | 60-M | 432,000 Tab/h | |
| IMA 8 | 11 mm | 55-M | 396,000 Tab/h | 80-M | 576,000 Tab/h | |
| Segments | EU/TSM-D | 25 mm | 33-S | 237,600 Tab/h | 48-S | 345,600 Tab/h |
| EU-441 | 25 mm | 30-S | 216,000 Tab/h | 44-S | 316,800 Tab/h | |
| EU/TSM-B | 16 mm | 42-S | 302,400 Tab/h | 64-S | 460,800 Tab/h | |
| IMA 8 | 11 mm | 54-S | 388,800 Tab/h | 80-S | 576,000 Tab/h | |
