Dogaseptic Series Cup & Tub Filling and Sealing
Machine overview
Completely enclosed machine, with sterile air overpressure.

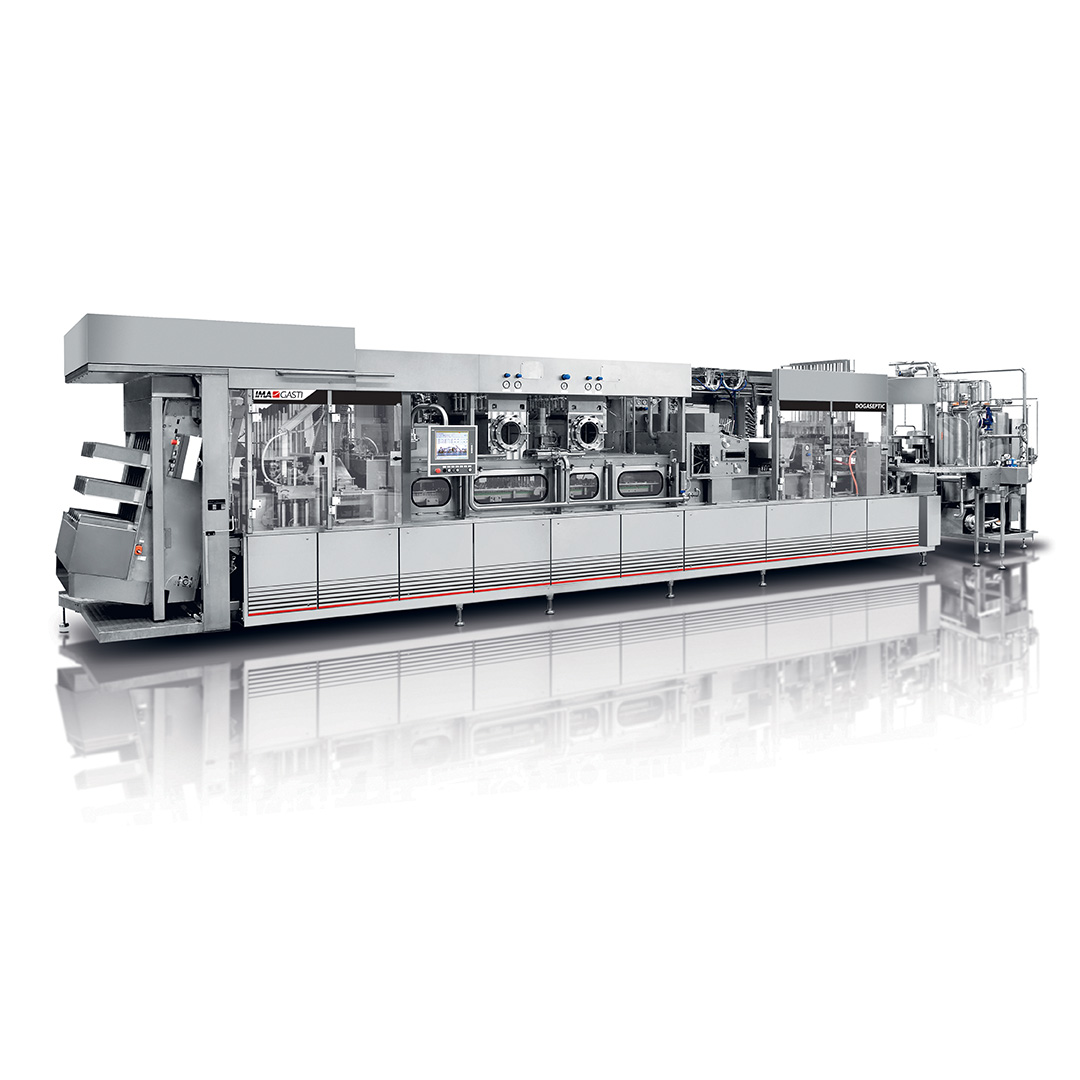

Providing the safest levels of hygiene with germ reduction up to log 6 bacillus subtilis, the aseptic filling and sealing machine DOGASEPTIC for pre-formed cups completes the process thanks to a conveyor inside an enclosed tunnel with sterile air overpressure. The filling & sealing machine DOGASEPTIC is ideal for fermented milk products, desserts, aerated products, cream, fruit preparations/sauces, soft drinks, etc. Maximum filling volume reaches 700 ml and output ranges between 19,200 and 24,000 cups/h.
Production plant
IMA Gasti
Machine highlights
-
1.
Completely enclosed machine.
-
2.
Conveyor in an enclosed tunnel with sterile air overpressure.
-
3.
Ultra-clean or Aseptic execution, according to specific needs.
-
4.
Divided product hopper for assorted filling as an option.
Machine details
Technical information
| TECHNICAL DATA DOGASEPTIC | |||
| Round cup max. Ø | 95 mm | Filling volume main filler | 25 – 250 ml or 50 – 500 ml |
| Min./max. cup height | 50/130 mm | Filling volume pre-/post-filler | 12,5 – 125 or 25 – 250 ml |
| MATERIALS | |||
| Cups | Pre-made stackable cups made of PP, PS, Plastic cup with cardboard sleeve (e. g. K3®, Desto) | ||

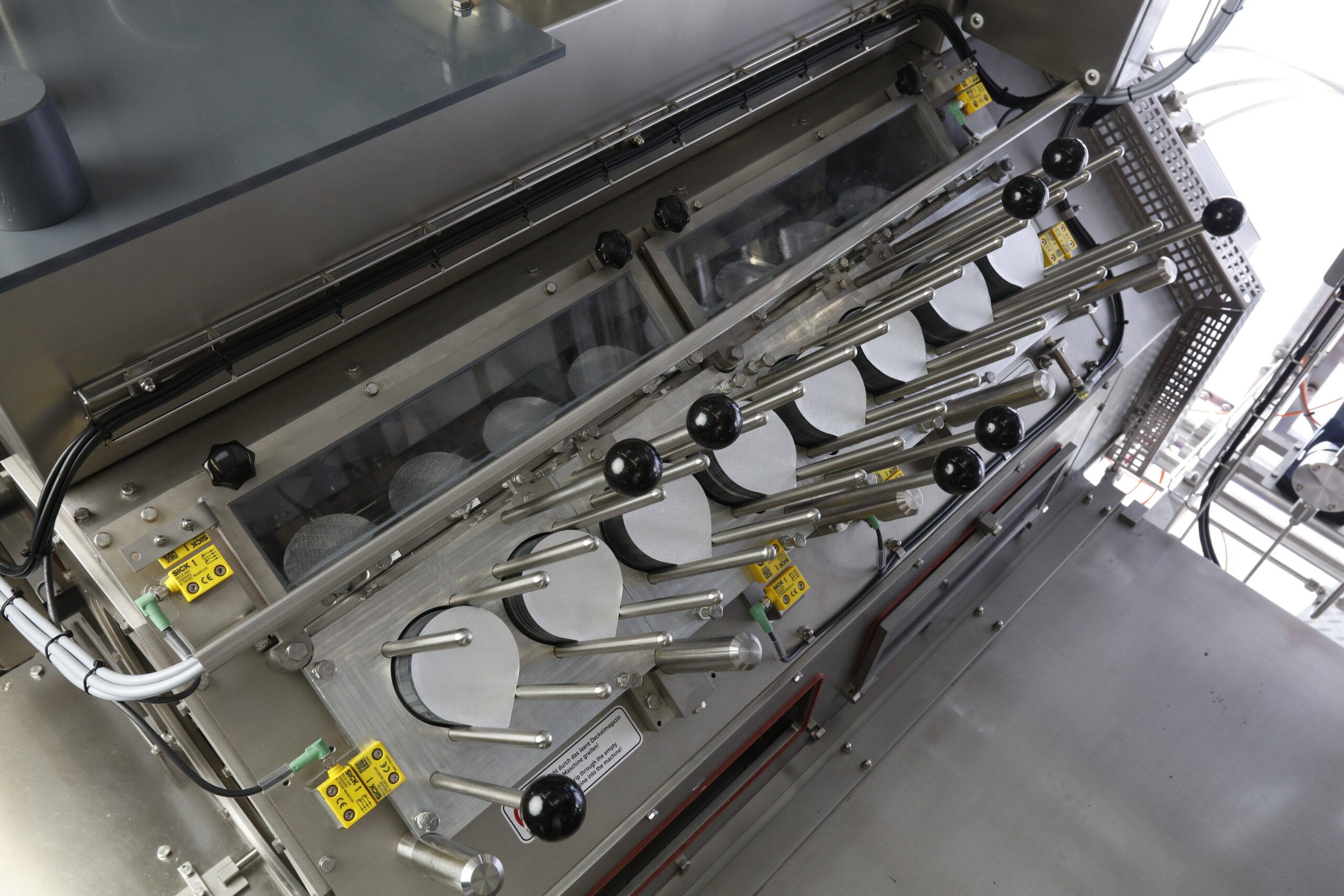

| Lids | Pre-cut lids made of PET, PP, Alu compound, Alu with coex layer (e. g. ComforLid) | ||
| Snap-on lids | Pre-made, stackable snap-on lids made of PET, PP or PS | ||
| OUTPUT | |||
| DOGASEPTIC 82P | 24,000 cups/h | ||
| DOGASEPTIC 82PS | 19,200 cups/h | ||
| STANDARDS | |||

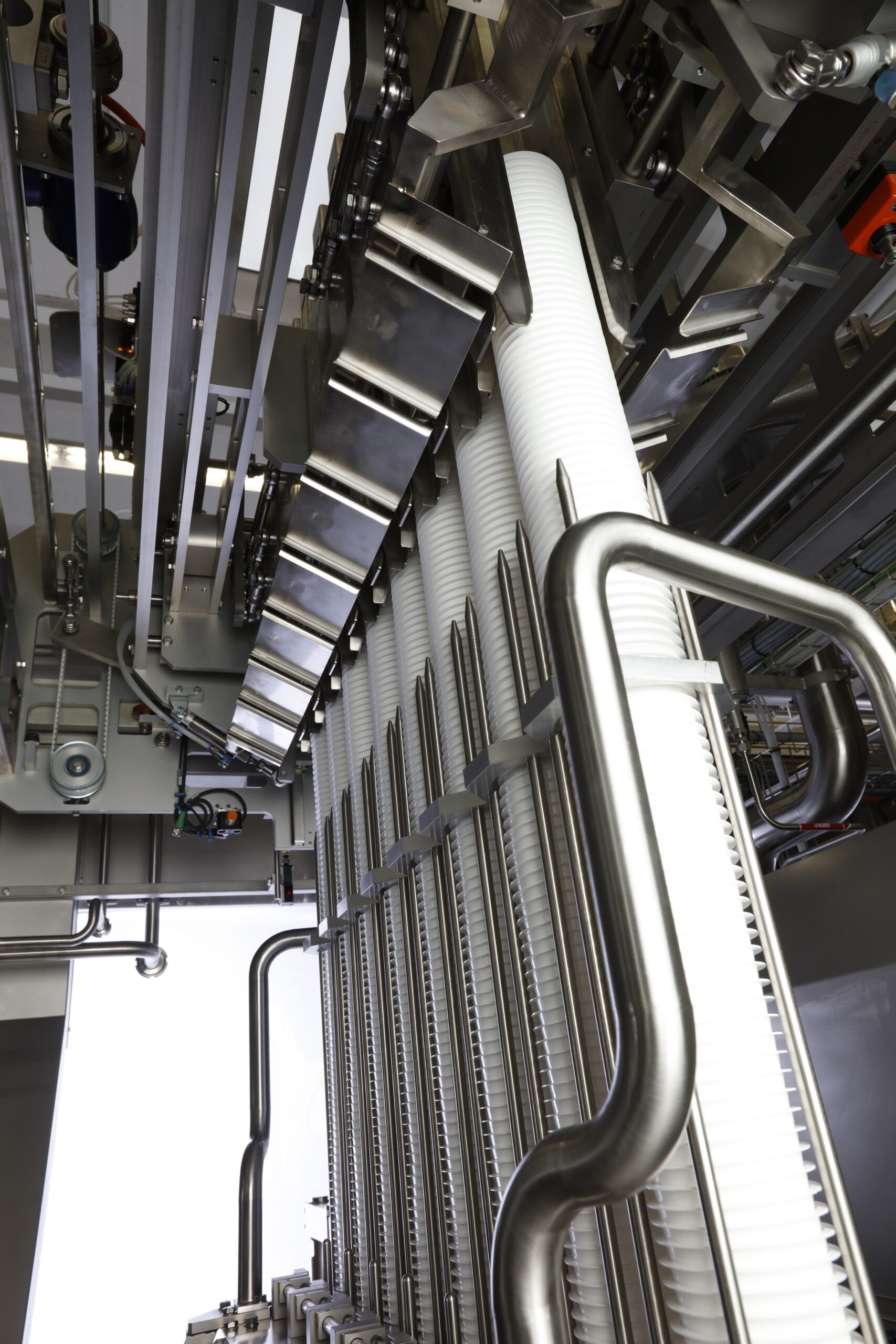

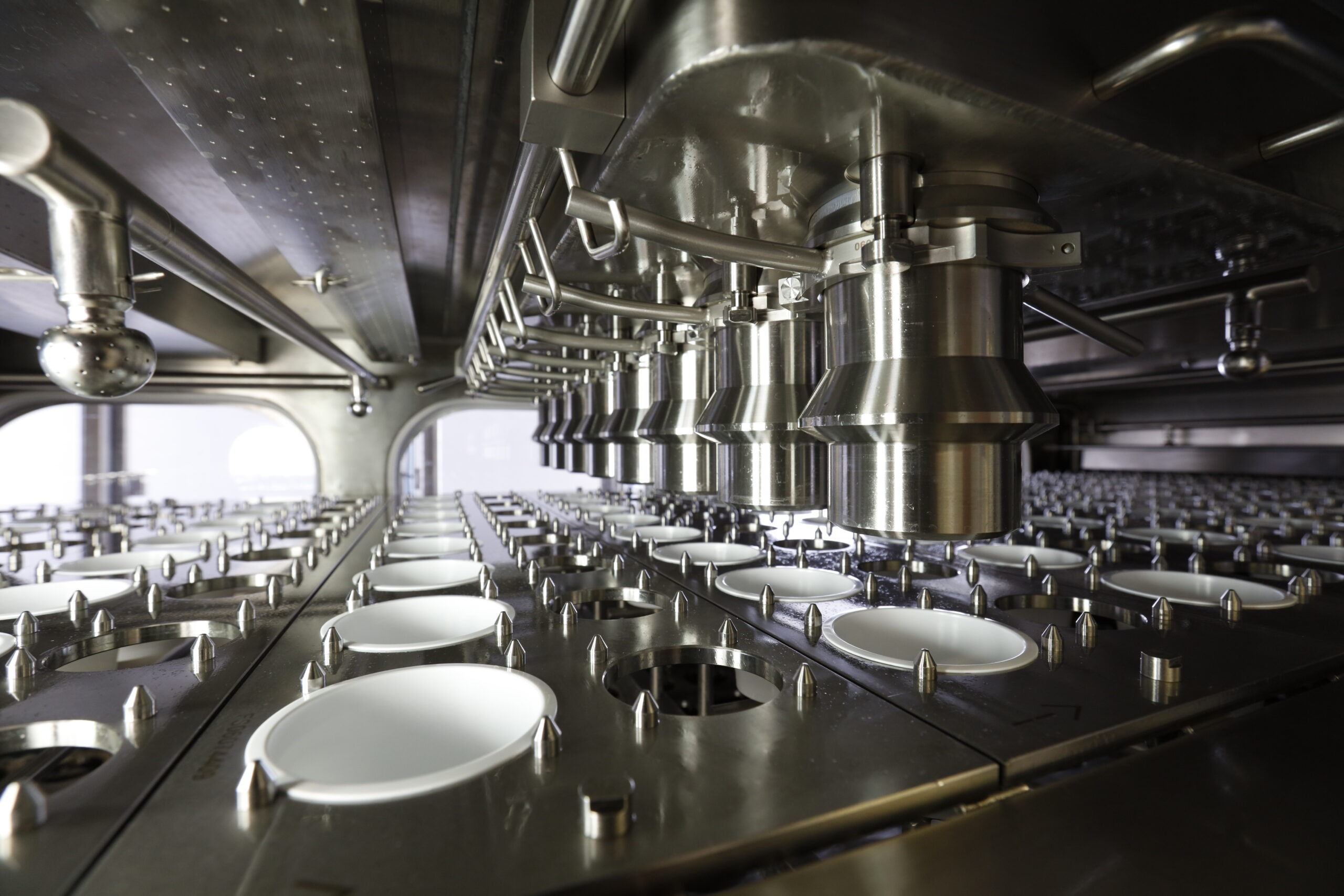

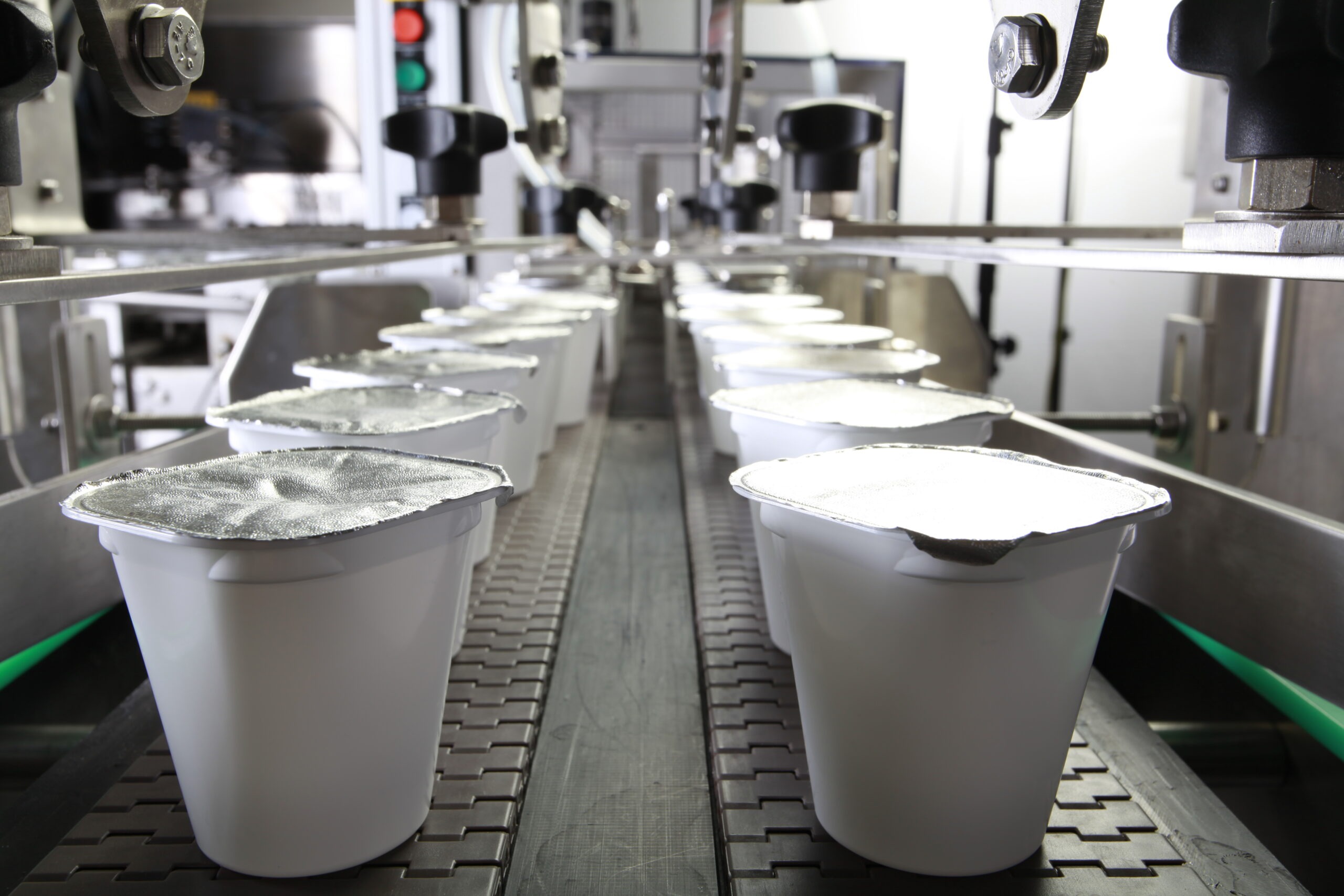

| Standard configuration | Vertical cup destacker, filling station (CIP), incl. nozzles & capacitive level control, sealing lid applier, heat sealing, cup lifting out | ||
| Hygiene class | Aseptic (VDMA V) | ||
| OPTIONS | |||
| Filling | Pre- and post-filler | ||

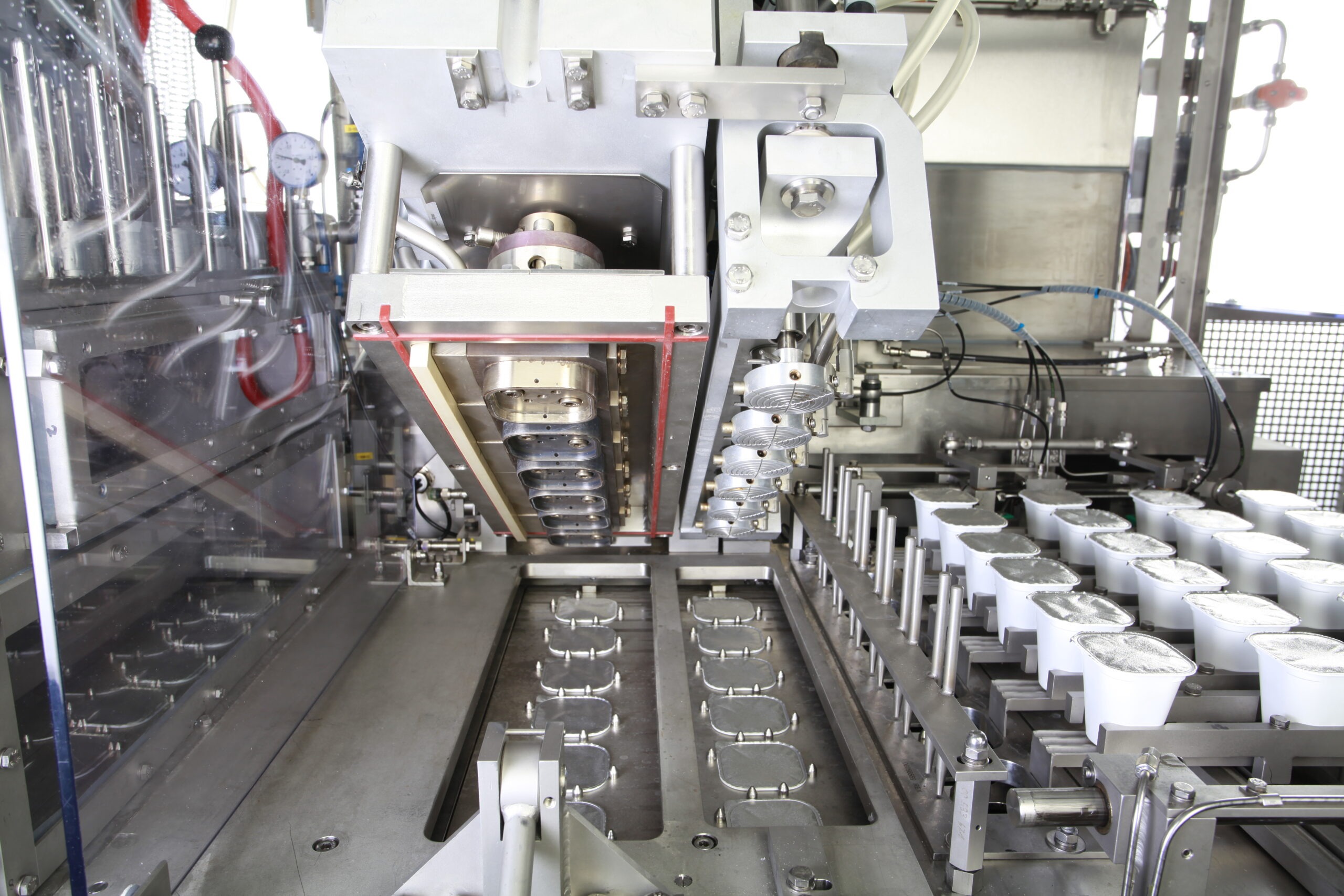

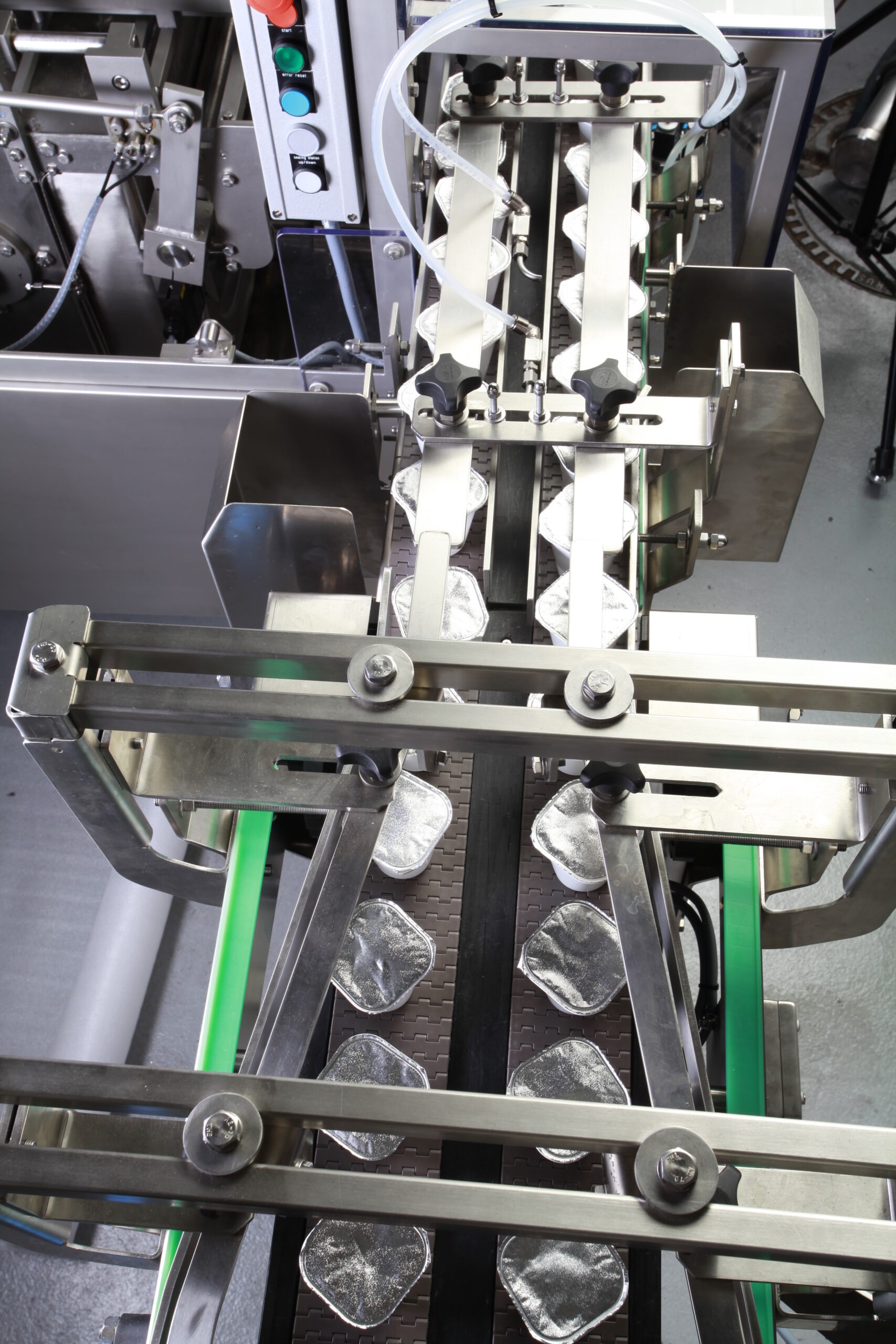

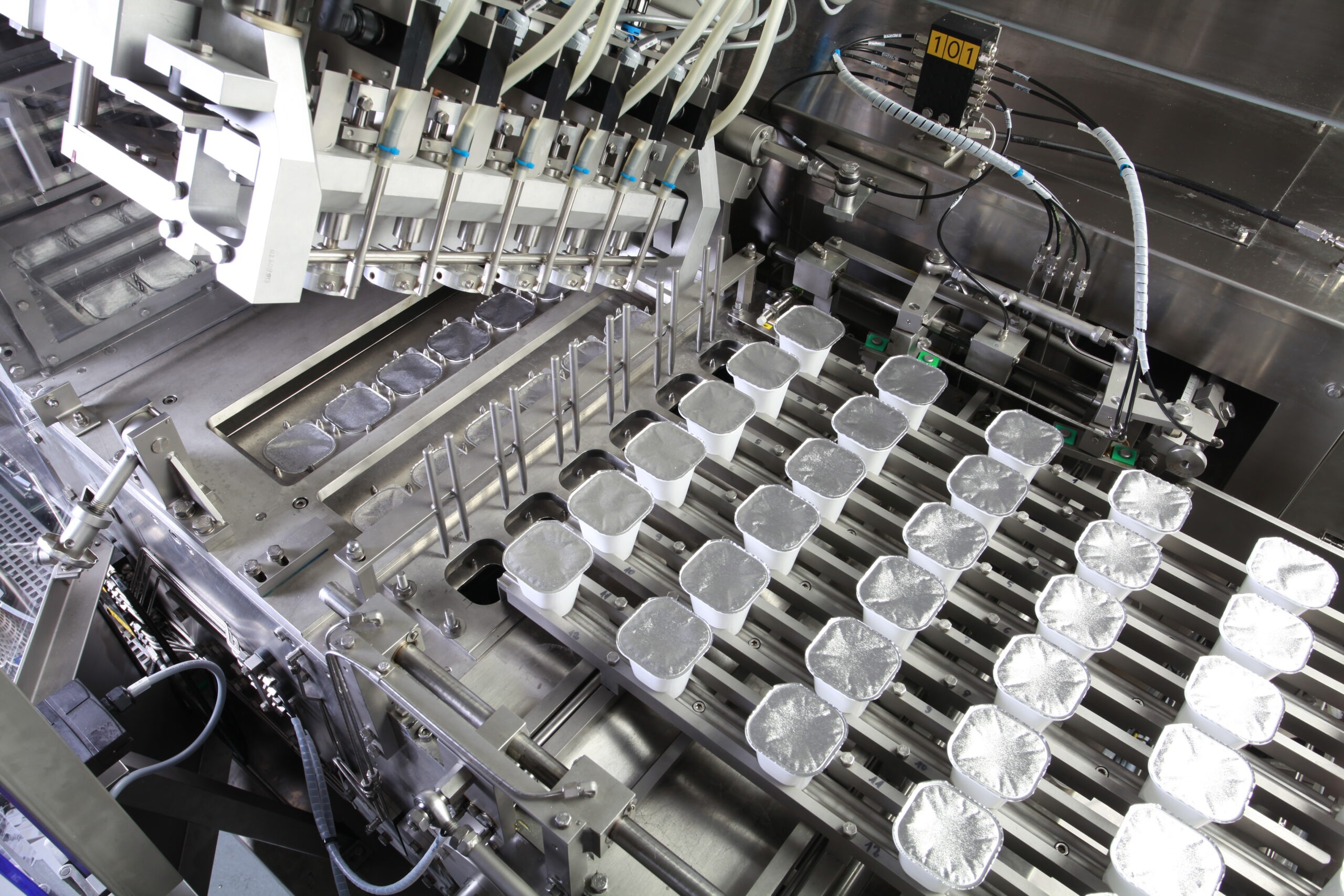

| Others | Cup stack buffer magazine, particle remover, leakage test, inkjet printing, snap-on lid, format flexibility, STERIMATIC, servo driven | ||
| Decontamination | H2O2 | ||
