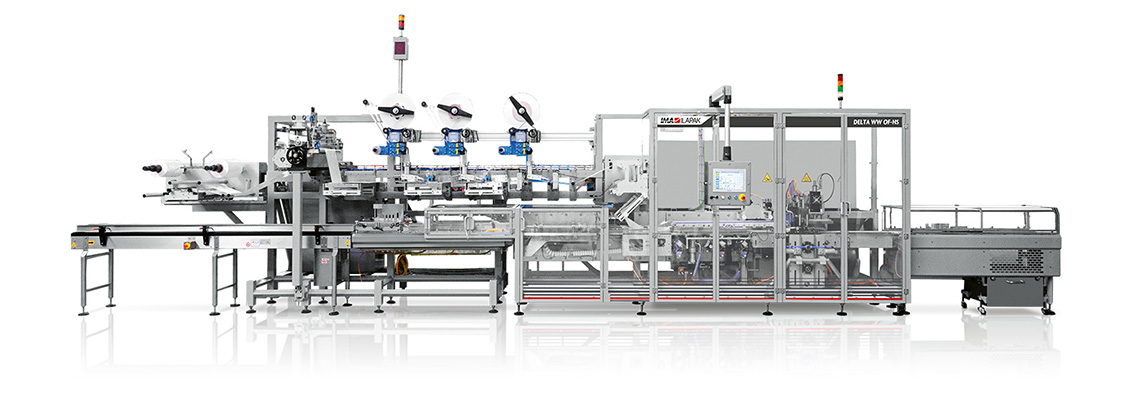

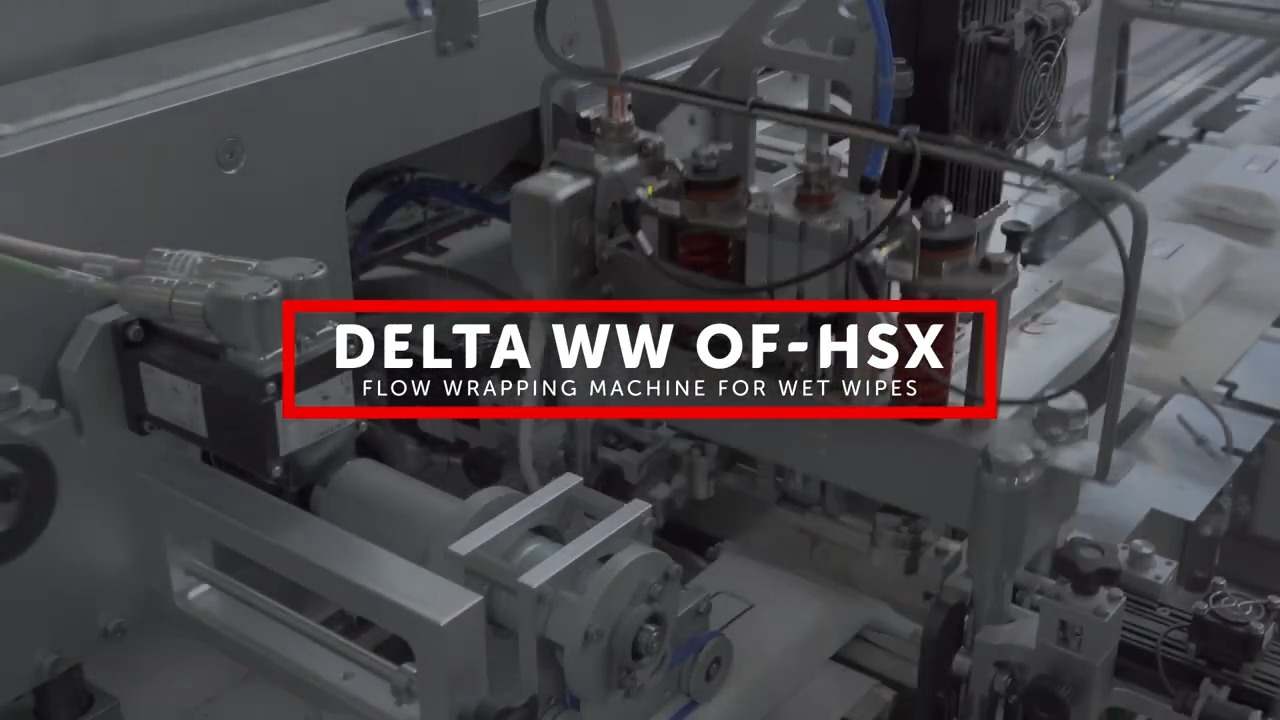

DELTA WW OF HSX Horizontal Form Fill and Seal
Machine overview
First-class flow wrapper platforms for wipe industry
High-speed flow wrapping platform with Open frame structure specially designed to meet the wet wipes industry needs. The range includes two models, Delta WW OF-HS and HSX with ultrasonic longitudinal sealing system, where the HS version can also be upgraded and implemented at a later stage.
The Delta WW OF-HSX is also available in an ATEX version, making it fully compliant for use in environments that require ATEX certification. It offers ISO cleanroom compatibility and can be configured as a fully electric machine, with no pneumatic components. The HSX is equipped with an ultrasonic longitudinal sealing system and features a next-generation sealing head with specially profiled jaws, engineered for use with new sustainable and recyclable materials.
Energy saving, thanks to less heating, and sustainability are the key aspects of this cutting-edge solution, capable to ensure with the same configuration of the sealing elements, up to 170ppm with traditional laminated films and up to 130ppm with fully recyclable materials.
Production plant
Ilapak International SA
Machine highlights
-
Fully electric configuration
No pneumatics for reduced energy use and cleaner operation.
-

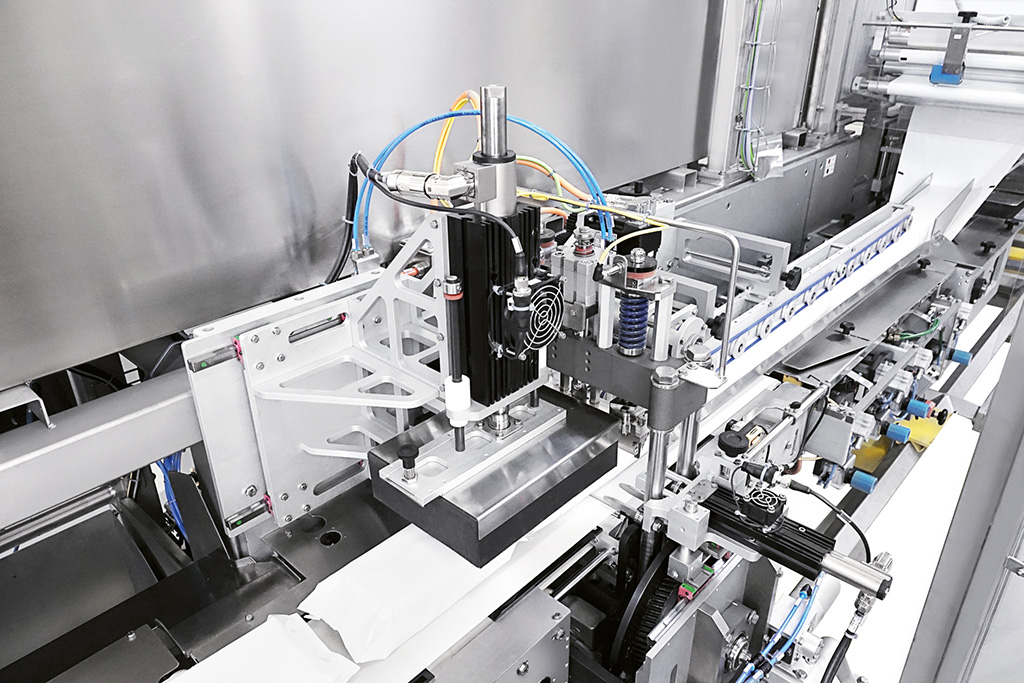

Ultrasonic sealing system
Precise, low-heat sealing ideal for wet wipes with alcohol-based lotions.
-
Compatible with recyclable films
Runs next-gen sustainable materials without compromising performance. Up to 170 ppm with standard films and 130 ppm with recyclable materials.
-
ATEX-certified version available
Safe operation in explosive or flammable environments.
-
Cleanroom compliant
ISO-ready design for hygiene-critical environments.
-

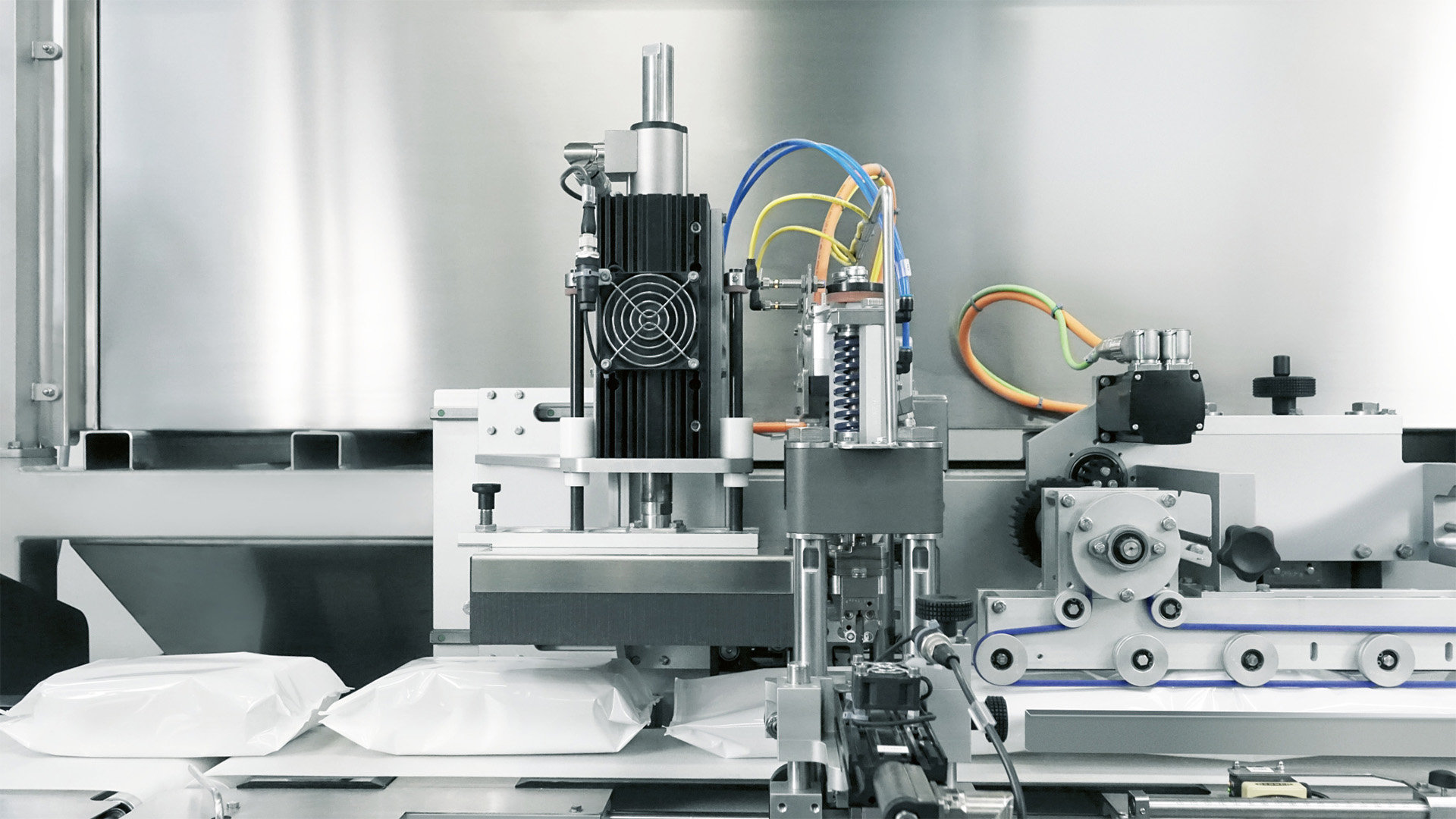

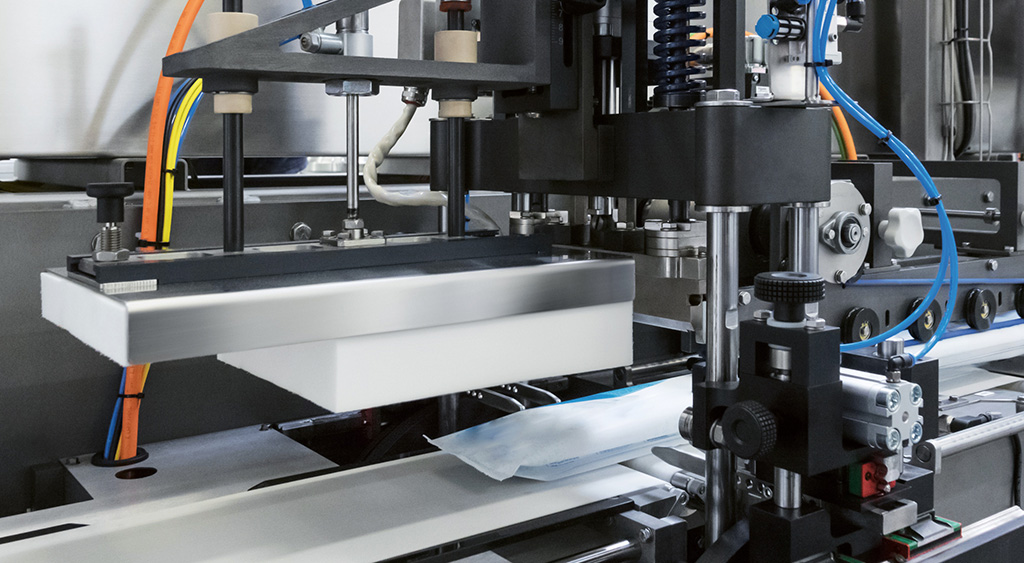

Next-gen sealing head
Specially profiled jaws designed to optimize seal quality on all substrates.
-
Open-frame structure
Maximizes accessibility, cleanability, and line integration.
Machine details
Technical information
| Machine Speed | Up to 170 ppm, single jaw Production output dependent upon product, film and machine specifications |
|---|---|
| Film Cut-Off | Min 100 mm (4.0″) / Max 500 mm (47″) Depending on film and product characteristics |
| Wrapping Materials | Laminated, recyclable materials (mono-material), co-extruded and all sealable films |
| Film Reel Max Weight | 40 kg (88 lbs) |
| Electronic Platform | Industrial PC Other electronic control platform on request (e.g., Allen Bradley) |
| Power Requirement | From 220 to 480 V, 50/60 Hz, 3-phase, 2 kW |
| Compressed Air | 6 bar, 200 nl/min |
| Machine Weight | 1400 kg (3100 lbs) |
| PRODUCT DIMENSIONS | |
| Length | Up to 400 mm (15.7″) standard |
| Width | Up to 150 mm (5.9″) (jaws 190 mm / 7.5″) |
| Height | Up to 100 mm (4.0″) standard |
| FILM REEL DIMENSIONS | |
| Core Ø | 76 mm (3″) |
| Outer Ø | 400 mm (15.7″) for film reel web width up to 500 mm (19.7″) |
| Width | 500 mm (19.7″) |
