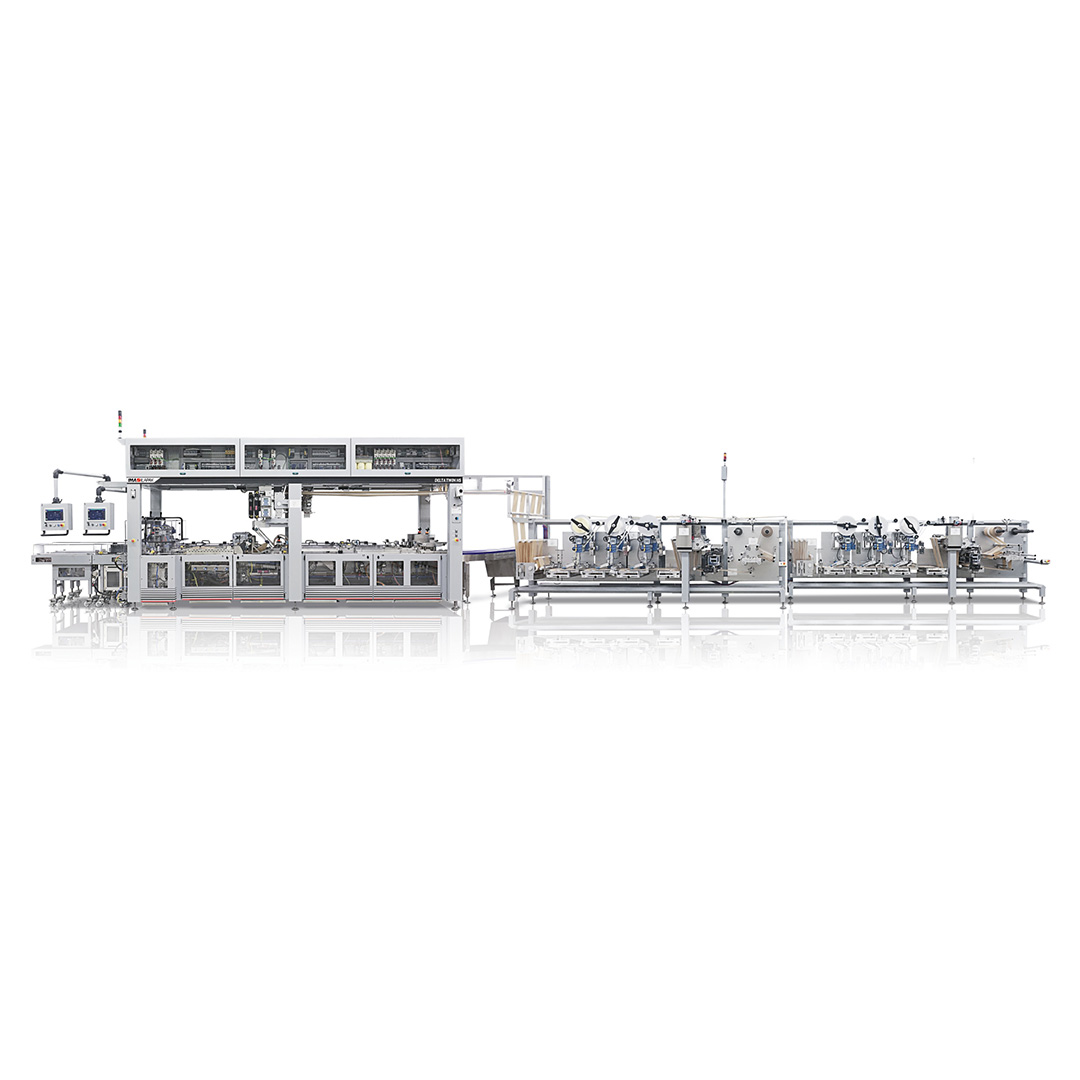

Delta TWIN HS Horizontal Form Fill and Seal
Machine overview
Double the Output, Half the Space

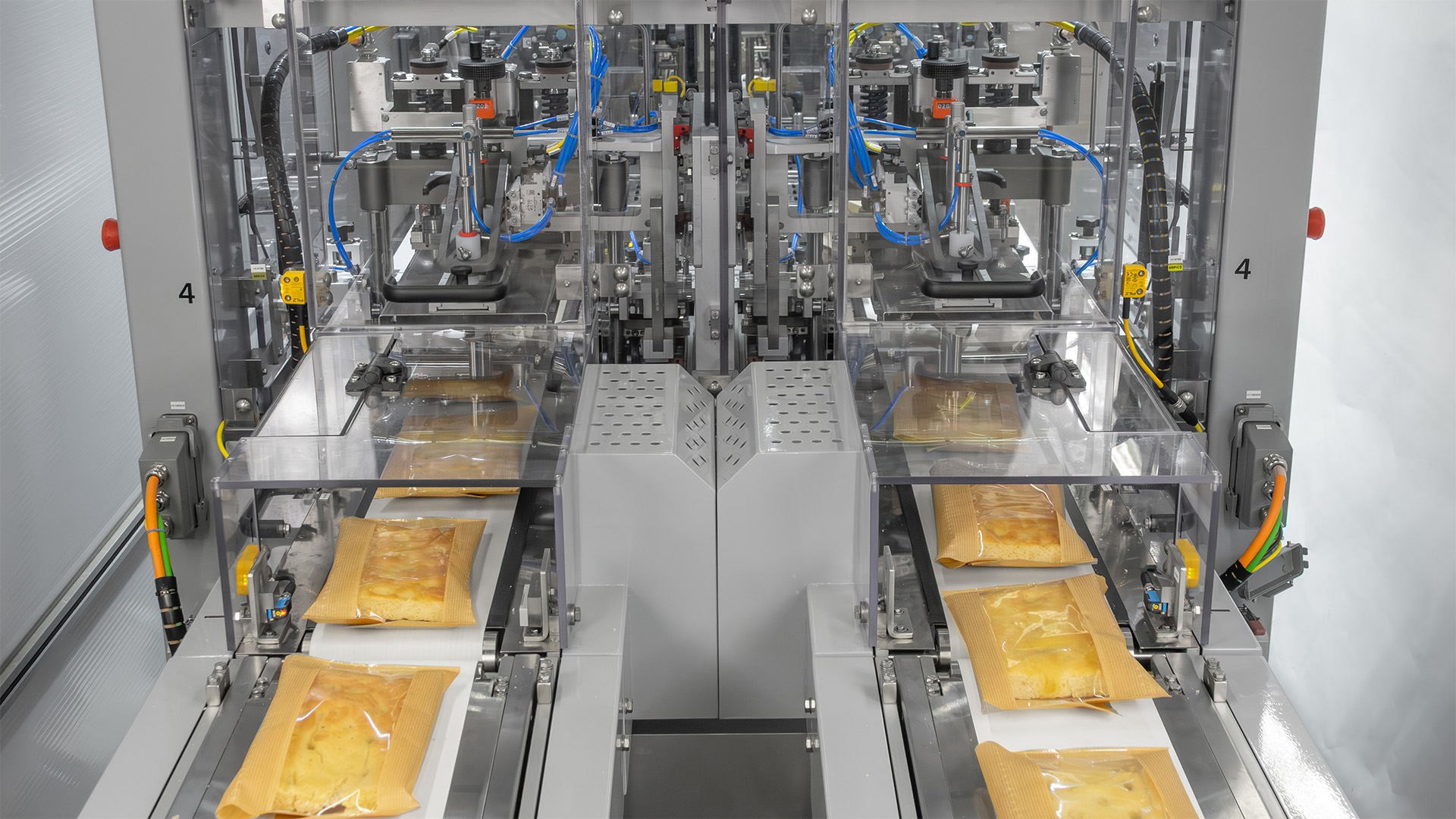

The Delta TWIN HS is a twin-lane horizontal flow wrapper engineered for high-speed hermetic packaging, initially developed for wet wipes and now widely adopted in bakery applications. Thanks to its Long Dwell sealing technology and dual independent lanes, it is the only solution on the market capable of reaching 250 ppm with hermetic seals while occupying a footprint comparable to a standard single-lane machine.
Its in-line film unwind at operator level simplifies access and makes the Delta TWIN HS particularly suitable for handling mono-materials like PE. Each lane can be operated independently, allowing continued production even when one lane is paused — maximizing flexibility and uptime.
Production plant
Ilapak International SA
Machine highlights
-
Twin-lane design
Two independent lanes in the space of one machine for maximum output with minimal footprint.
-

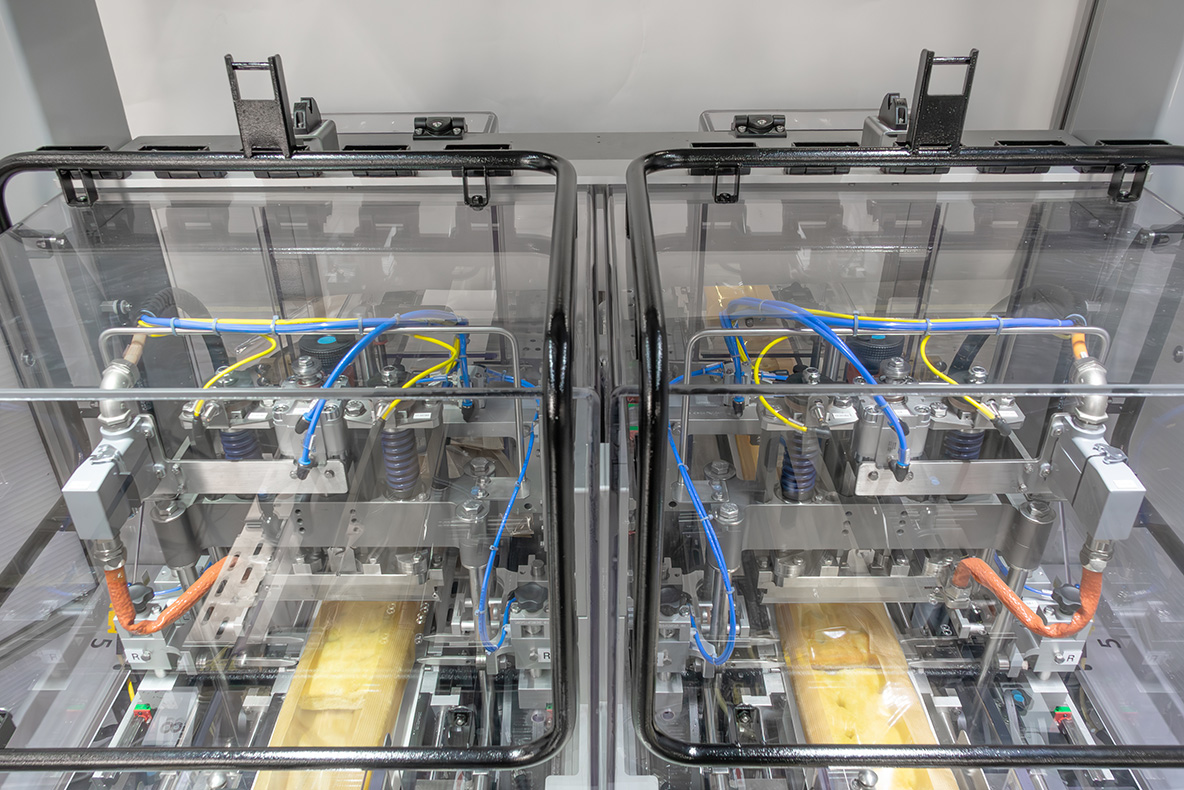

High-speed Long Dwell sealing
Delivers hermetic seals up to 250 ppm.
-
Independent lane control
One lane can run while the other is idle, enhancing flexibility and efficiency.
-

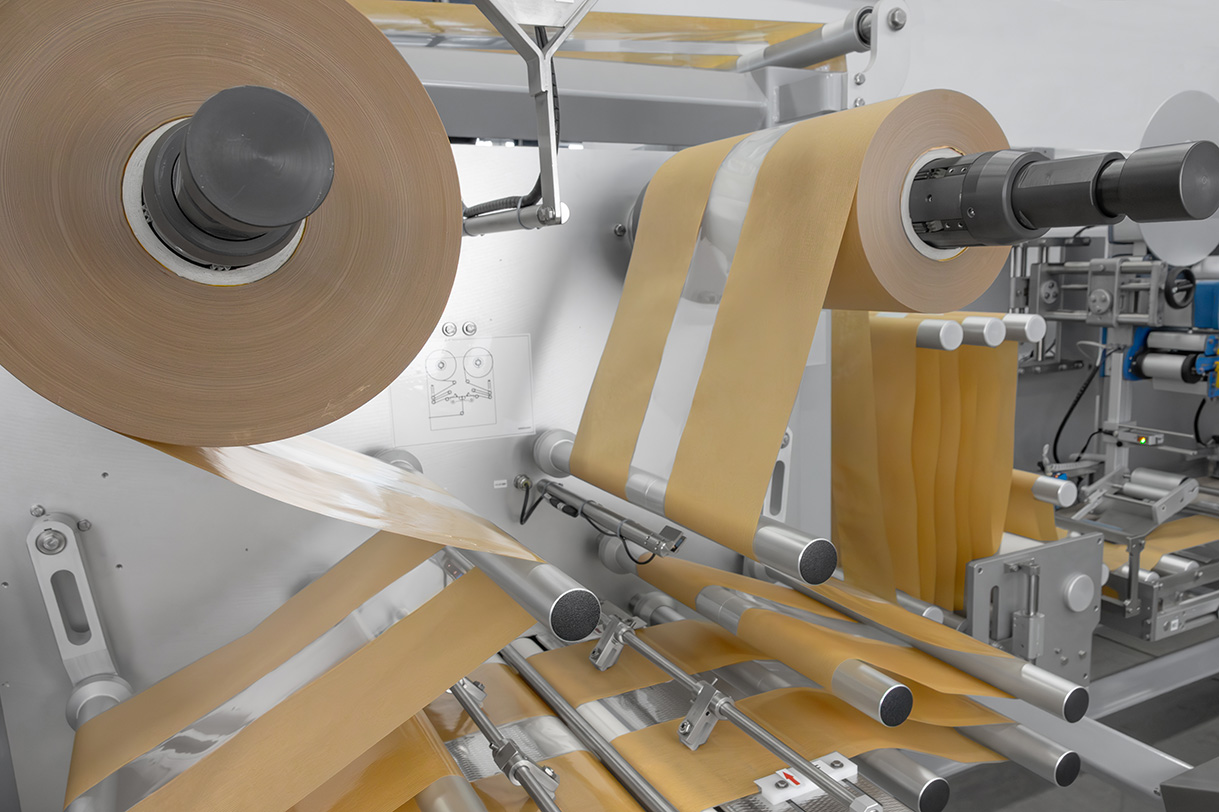

Unwind design
Suitable to run mono PE materials and granting an easy access for operators.

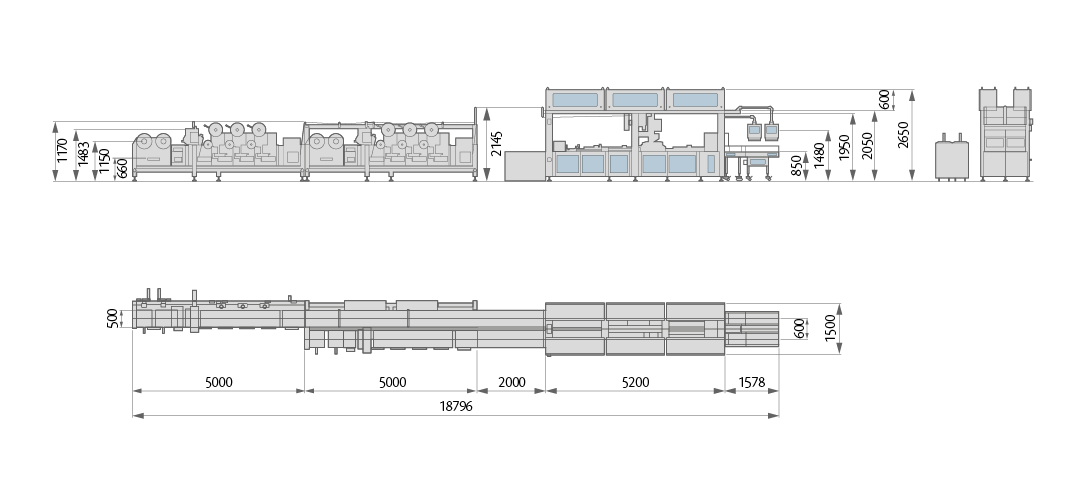

Machine details
Technical information
| DELTA Twin HS | |
|---|---|
| Machine Speed | Up to 250 ppm Production speed depending on film sealing capacity, to be validated with testing |
| Wrapping Materials | Laminated, recyclable materials (mono-material), co-extruded and all sealable films |
| Electronic Platform | Industrial PC Other electronic control platform on request (e.g., Allen Bradley) |
| Power Requirement | From 220 to 480 V, 50/60 Hz, 3-phase, 2 × 17 kW |
| Compressed Air | 2 × 6 bar, 200 nl/min |
| PRODUCT DIMENSIONS | |
| Length | Up to 300 mm |
| Width | Up to 150 mm |
| Height | Up to 100 mm |
| FILM REEL DIMENSIONS | |
| Core Diameter | 76 mm |
| External Diameter | 400 mm |
| Width | 500 mm |
