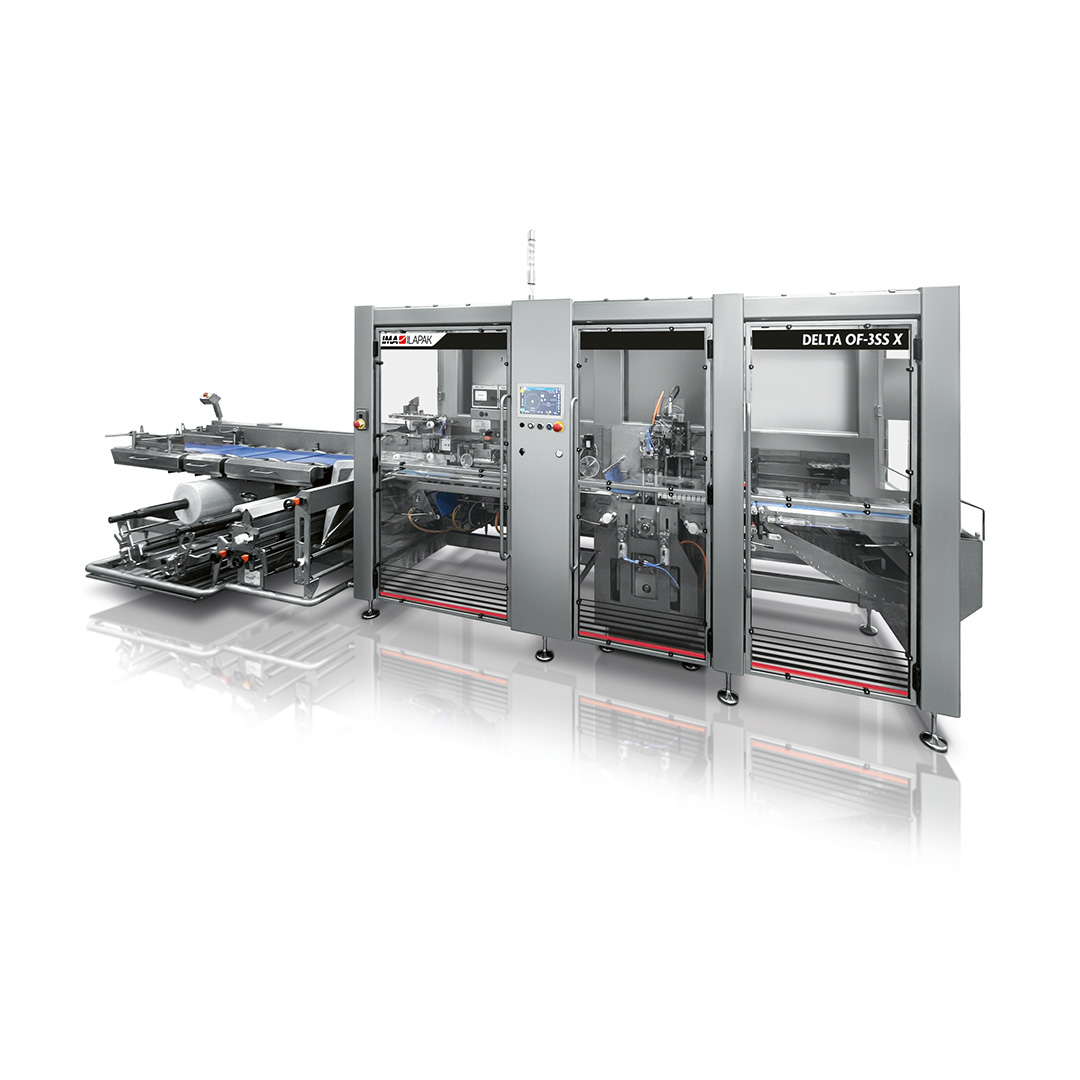

DELTA OF 3SS Horizontal Form Fill and Seal
Machine overview
3-Side Seal & Pillow Pack Flexibility in a Sanitary Open-Frame Flow Wrapper
The Delta OF-3SS is IMA Ilapak’s open-frame horizontal form-fill-seal flow wrapper developed to meet the highest hygienic standards while offering ultimate packaging flexibility. Designed for high-speed hermetic sealing, this ultra-sanitary solution supports both pillow and 3-side seal formats, with or without zipper, and is fully compatible with modified atmosphere packaging (M.A.P.).
Thanks to servo-driven operation, long dwell sealing technology, and PC control, format changes and pack style conversions can be executed quickly and reliably — even automatically. With full washdown capability and an open-frame structure, the Delta OF-3SS ensures unrestricted access for fast cleaning and maintenance, making it ideal for hygiene-critical environments and a wide range of food applications.
Production plant
Ilapak International SA
Machine highlights
-
Open-frame, hygienic design
Ensures washdown capability and easy access for maintenance.
-
Convertible pack styles
Seamlessly switches between pillow pack and 3-side seal formats.
-

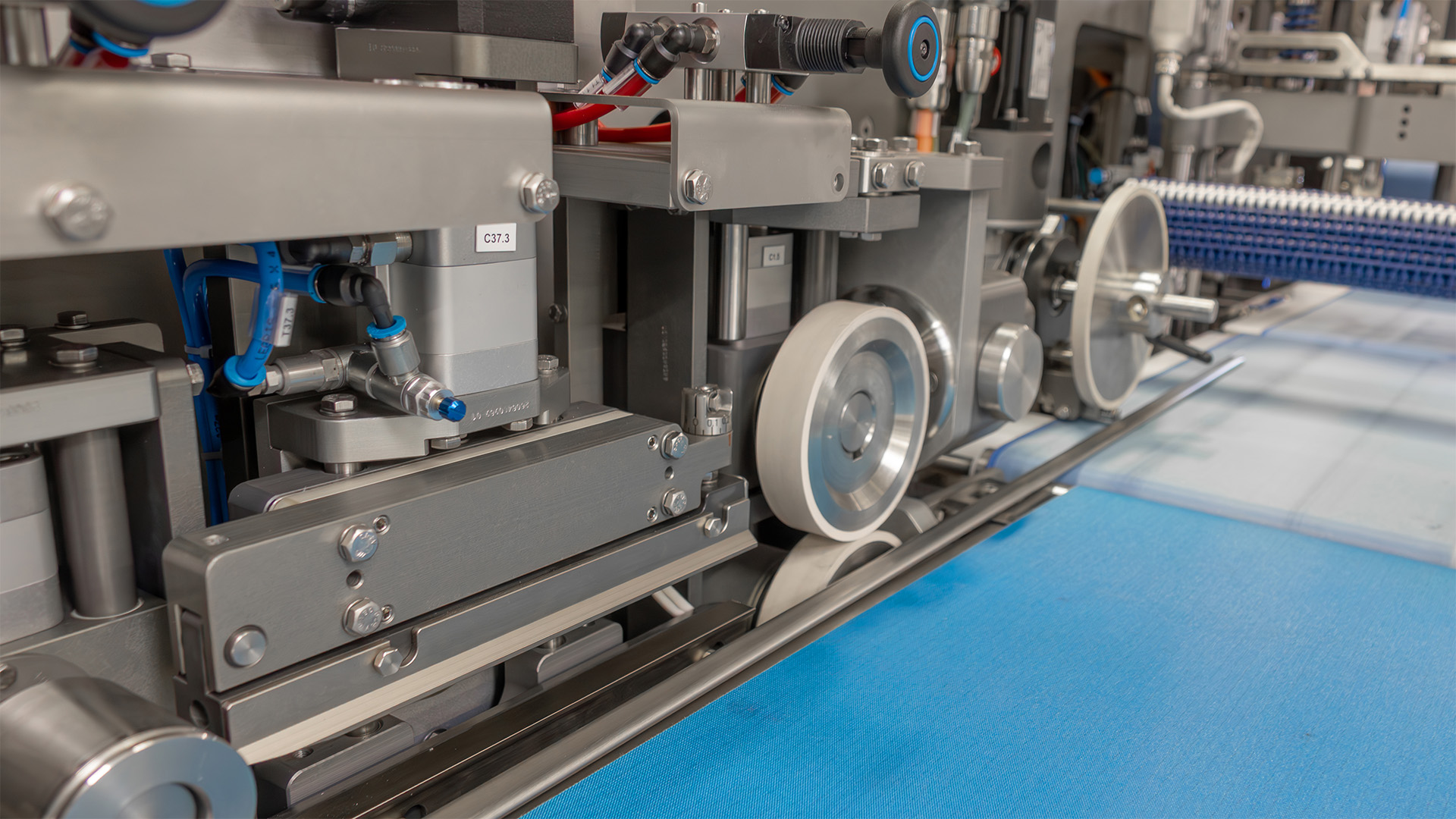

High-speed sealing head
Delivers hermetic seals with or without MAP, even with zipper closure.
-
Ideal for sanitary environments
Stainless steel construction and full washdown execution.
Technical information
| DELTA OF 3SS X | |
|---|---|
| Speed | Up to 150 ppm |
| Wrapping Materials | Heat sealable materials |
| Electronic Platform | Industrial PC or alternatively Rockwell PLC platform |
| Machine Weight | 1500 kg depending on specific configuration |
| Power Requirements | From 220 to 480 V, 50/60 Hz |
| Compressed Air | 200 l/min @ 6 bar |
| PRODUCT DIMENSIONS | |
| Length | Up to 500 mm |
| Width | Up to 300 mm |
| Height | Up to 100 mm |
| FILM REEL DIMENSIONS | |
| Width | Up to 900 mm |
| Outer Diameter | Up to 400 mm |
