DELTA OF-360 X Horizontal Form Fill and Seal
Machine overview
The first variable geometry flow wrapper for next-generation packaging
A true breakthrough in HFFS packaging, the Delta OF-360 X is the world’s first variable geometry flow wrapper, offering unmatched flexibility in film handling and sustainability. Built on IMA Ilapak’s full-electric platform, it consumes 37% less energy on average compared to conventional machines, thanks to the replacement of pneumatic components with linear actuators.

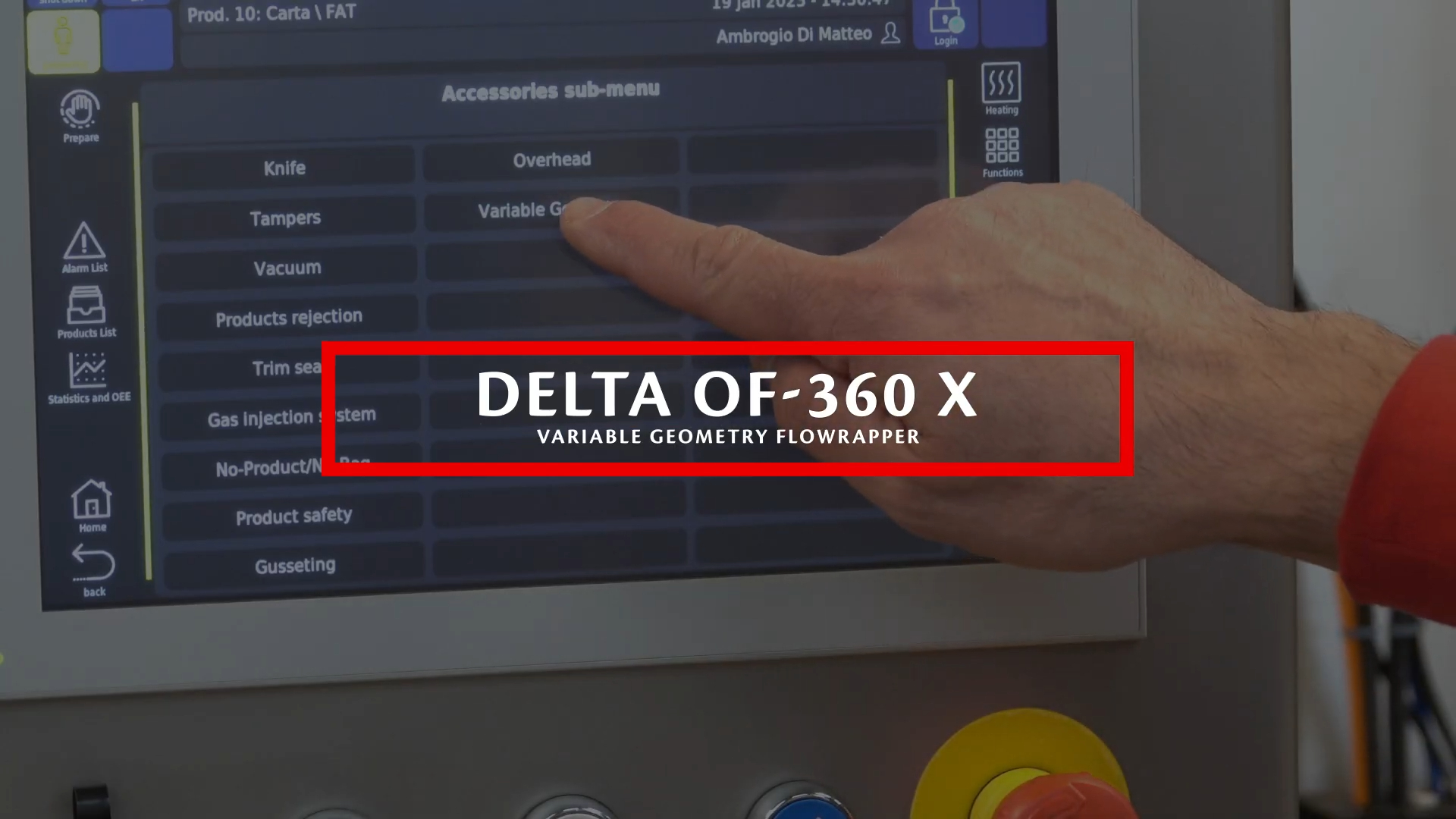

The Delta OF-360 X can run any film — paper-based, laminated, or recyclable mono-material — with fully automatic changeovers at the touch of a button on the machine’s HMI. Designed to adapt in real time to different substrates, it includes a patented universal folding box and offers up to three selectable sealing technologies: heated rollers, linear sealing bars, and ultrasonics. This platform empowers producers to meet evolving sustainability requirements, reduce energy costs, and minimize film stress — all while maintaining top sealing integrity and speed.
Production plant
Ilapak International SA
Machine highlights
-

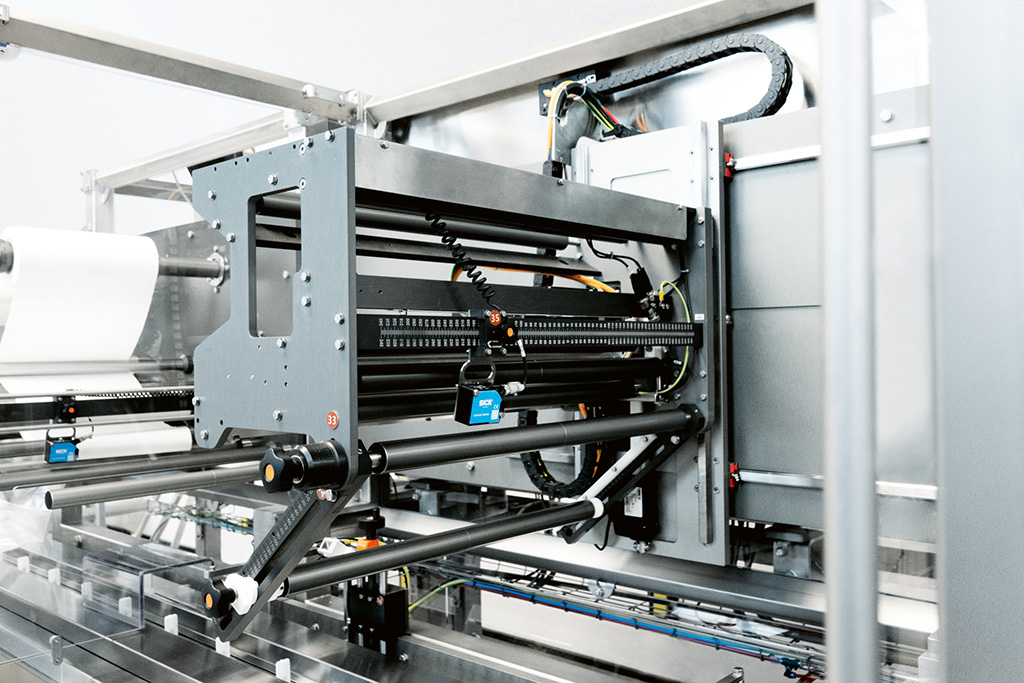

Variable geometry film path
Adapts automatically to any film type at the push of a button.
-
Full-electric platform
Reduces energy consumption by up to 37%.
-
Universal folding box system
Prevents tearing in paper films and ensures control with plastics.
-

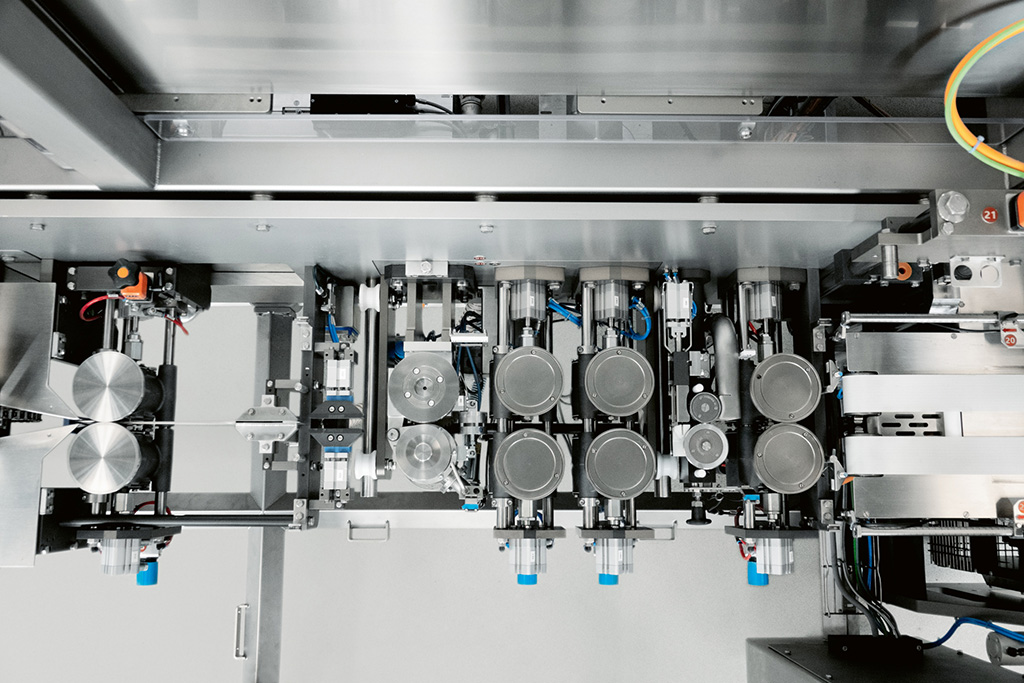

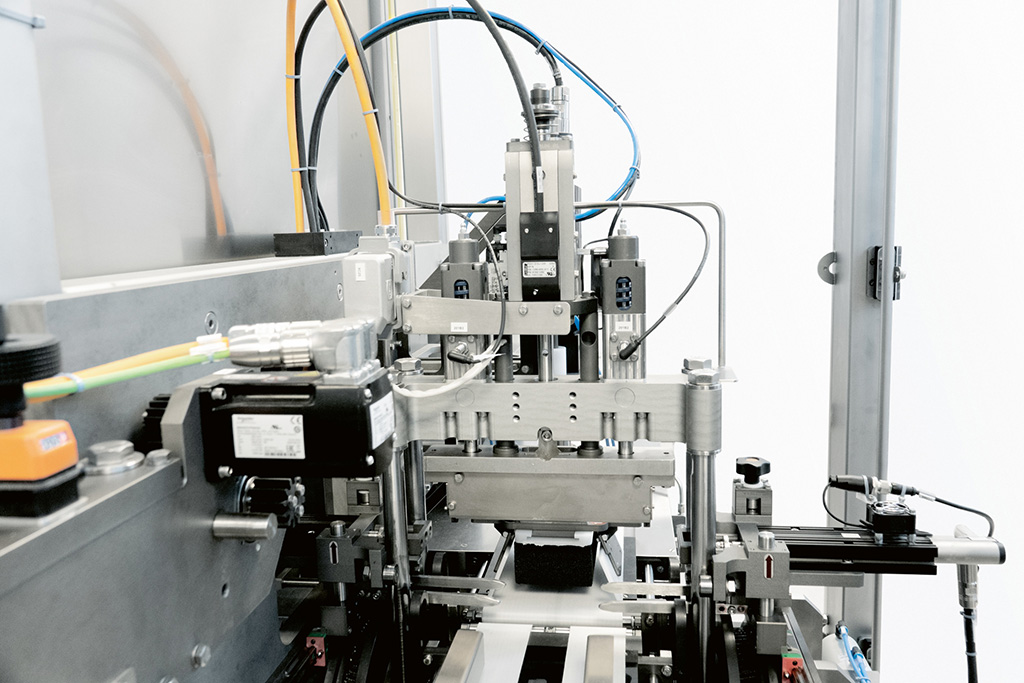

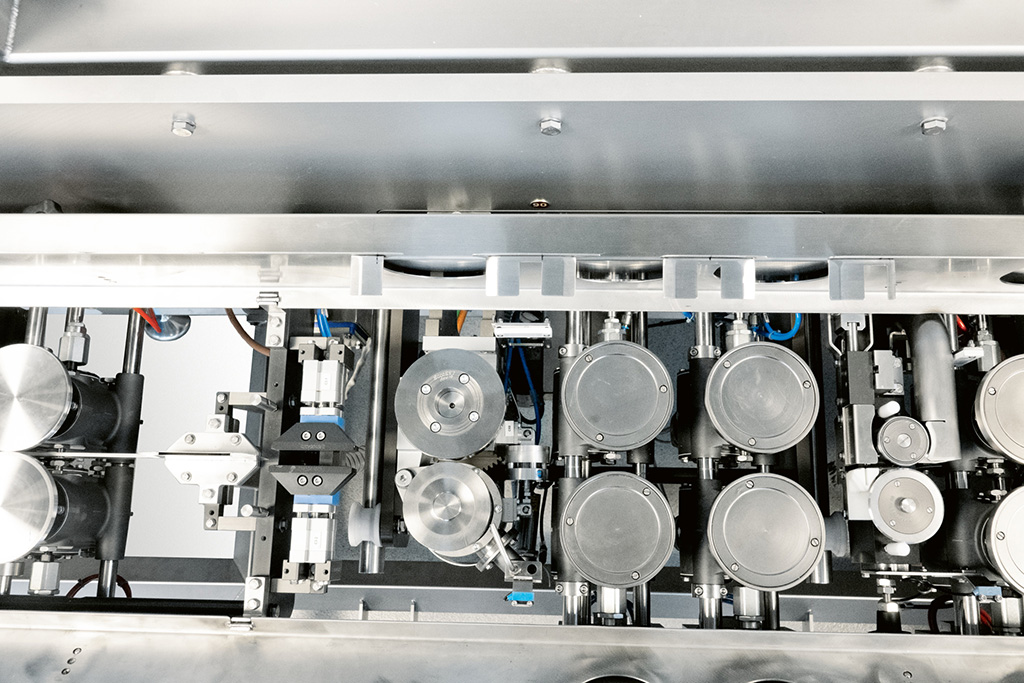

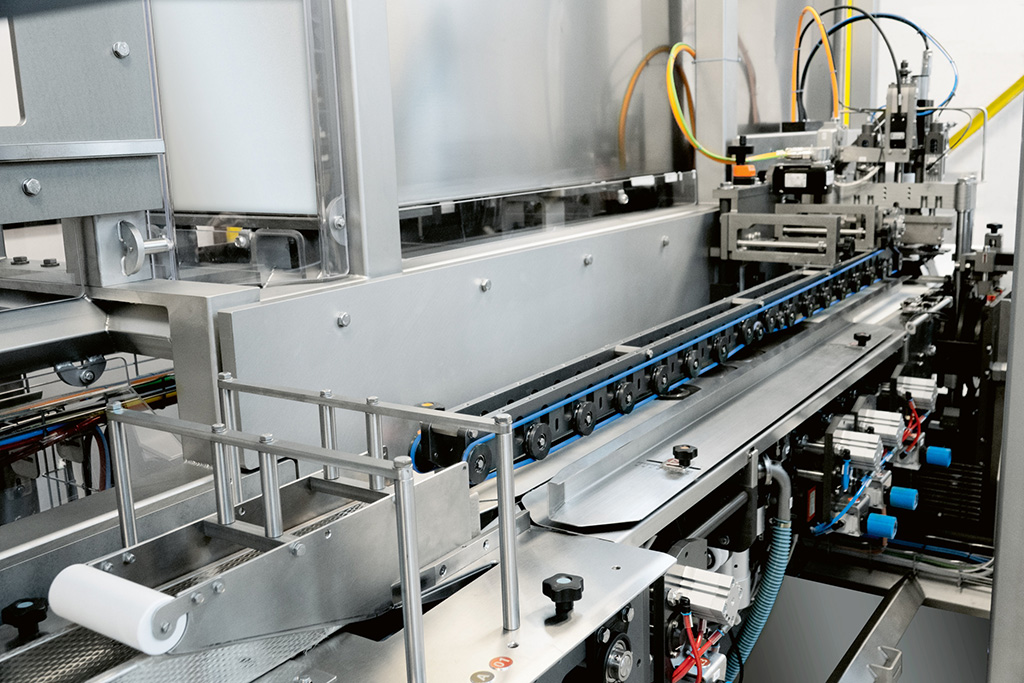

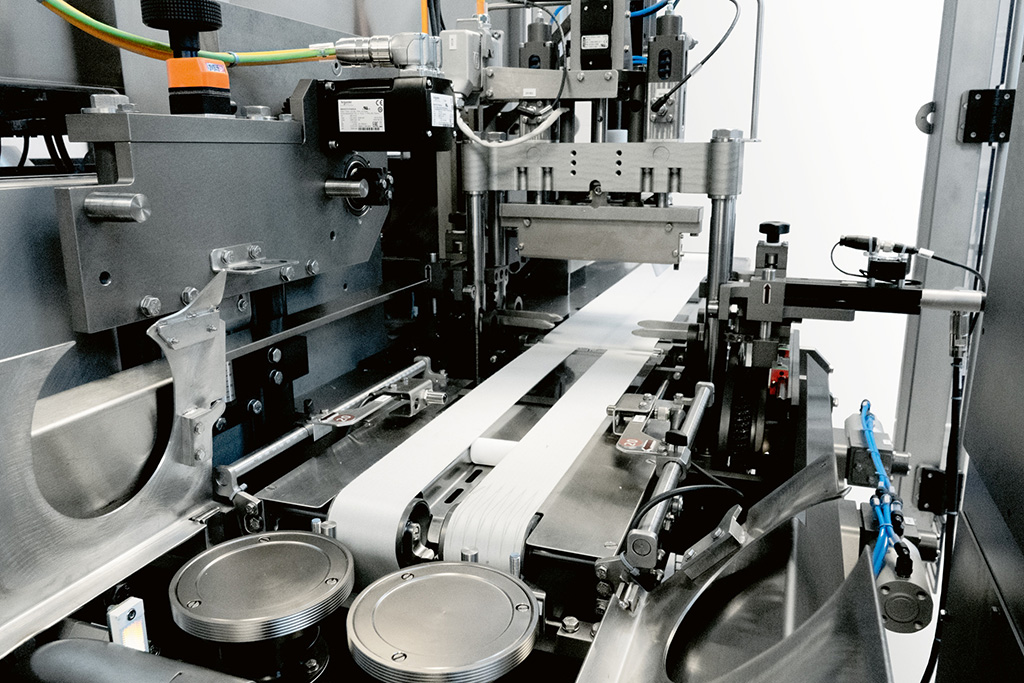

Three sealing technologies

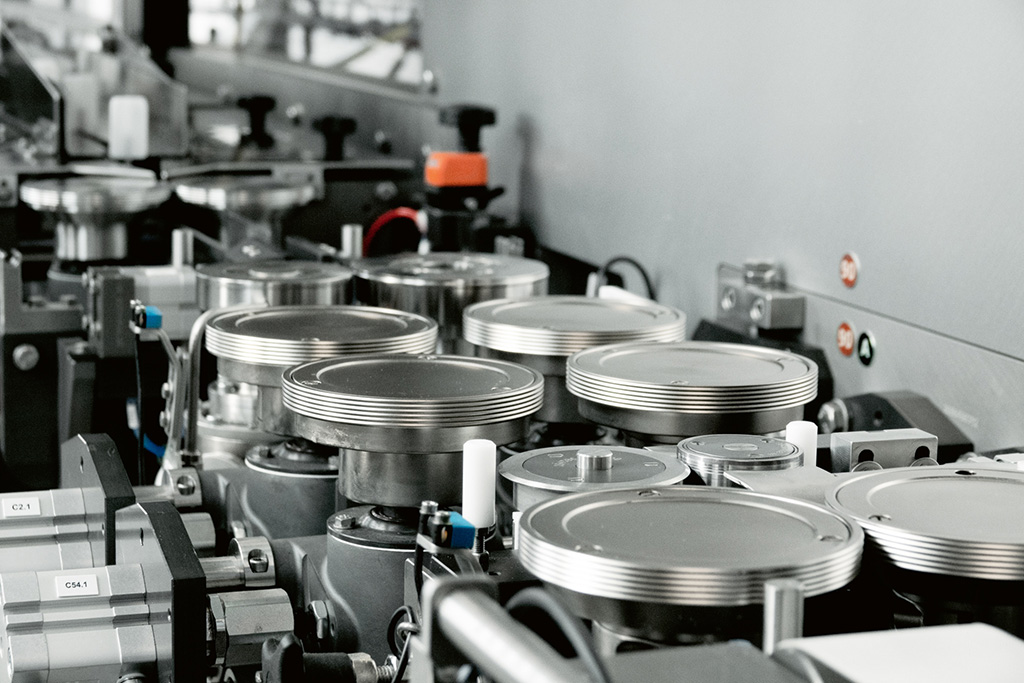

Heated rollers, linear bar, and ultrasonics selectable per film type.
-

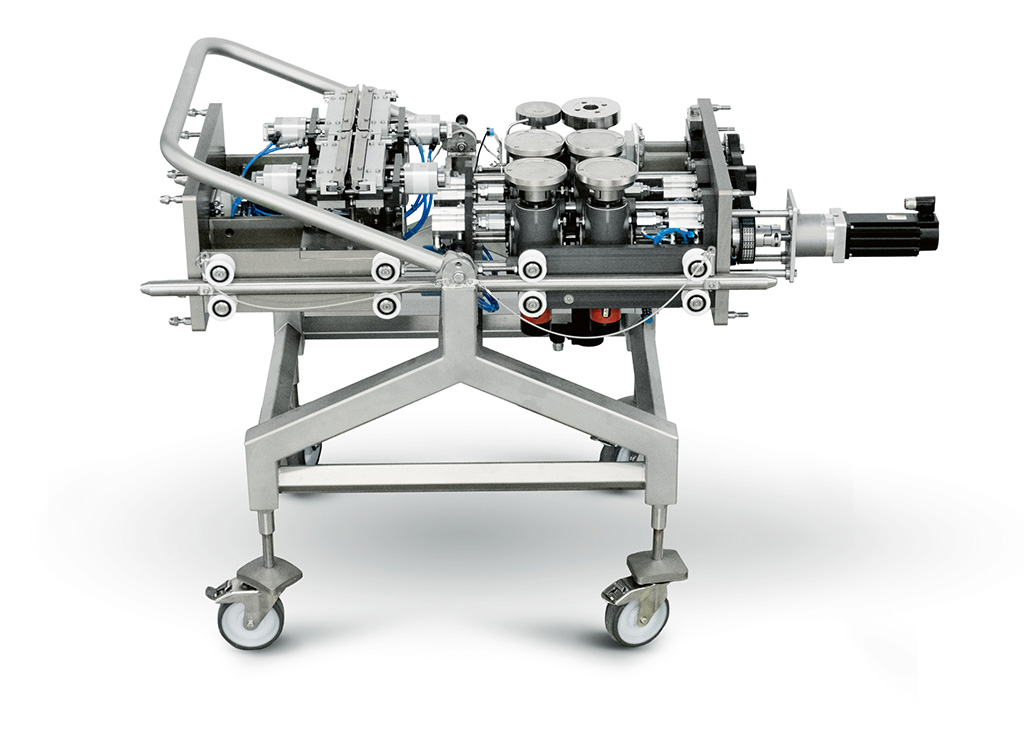

Modular, plug-and-play design
Enables fast format changeovers and system integration.
-

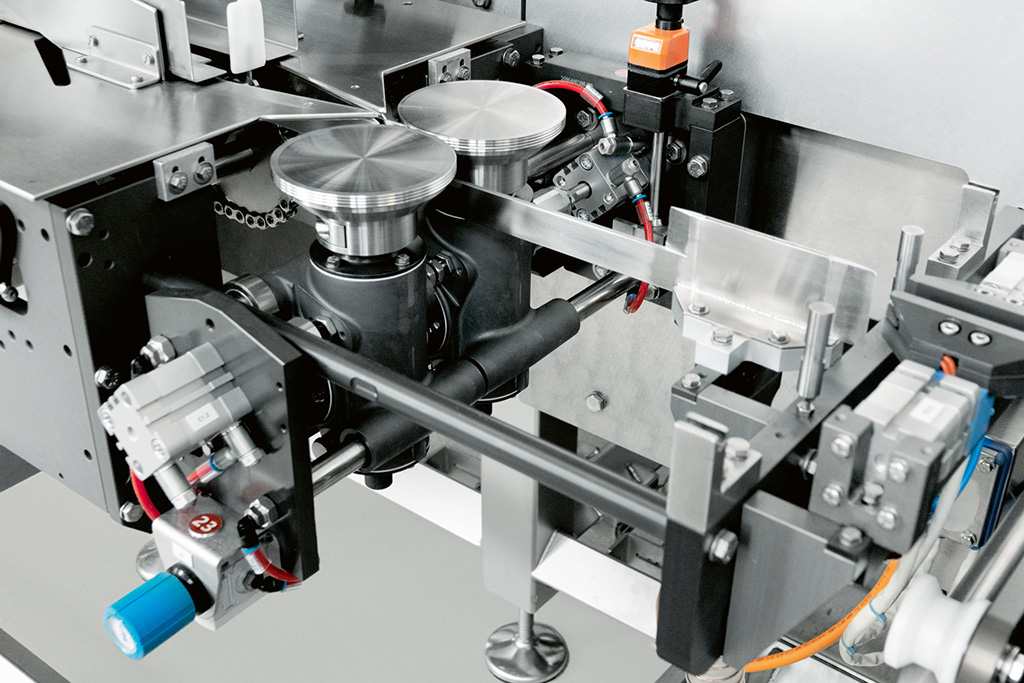

Film path adjustment
Precisely controls tension to protect delicate or stiff materials.
-
Future-ready flexibility
Compatible with existing and next-gen sustainable films.
-
High cycle accuracy
Maintains speed and seal quality with minimal waste.
Machine details
Technical information
| DELTA OF 360X | |
|---|---|
| Machine Speed | Up to 170 ppm, single jaw Production output dependent upon product, film and machine specifications |
| Film Cut-Off | Min 100 mm (4.0″) / Max 500 mm (47″) Depending on film and product characteristics |
| Wrapping Materials | Paper, laminated, recyclable materials (mono-materials), co-extruded and all sealable films |
| Film Reel Max Weight | 40 kg (88 lbs) |
| Electronic Platform | Industrial PC Other electronic control platform on request (e.g., Allen Bradley) |
| Power Requirement | From 220 to 480 V, 50/60 Hz, 3-phase, 2 kW |
| Compressed Air | Not required; full electric machine |
| Machine Weight | 5100 kg (11,244 lbs) |
| PRODUCT DIMENSIONS | |
| Length | Up to 600 mm (23.6″) standard |
| Width | Up to 180 mm (7.1″) |
| Height | Up to 100 mm (4.0″) standard |
| FILM REEL DIMENSIONS | |
| Core Ø | 76 mm (3″) |
| Outer Ø | 400 mm (15.7″) for film reel web width up to 500 mm (19.7″) |
| Width | 650 mm (25.6″) |
