DELTA Flobag Horizontal Form Fill and Seal
Machine overview
Fill in the form and let IMA sales experts reach out to you

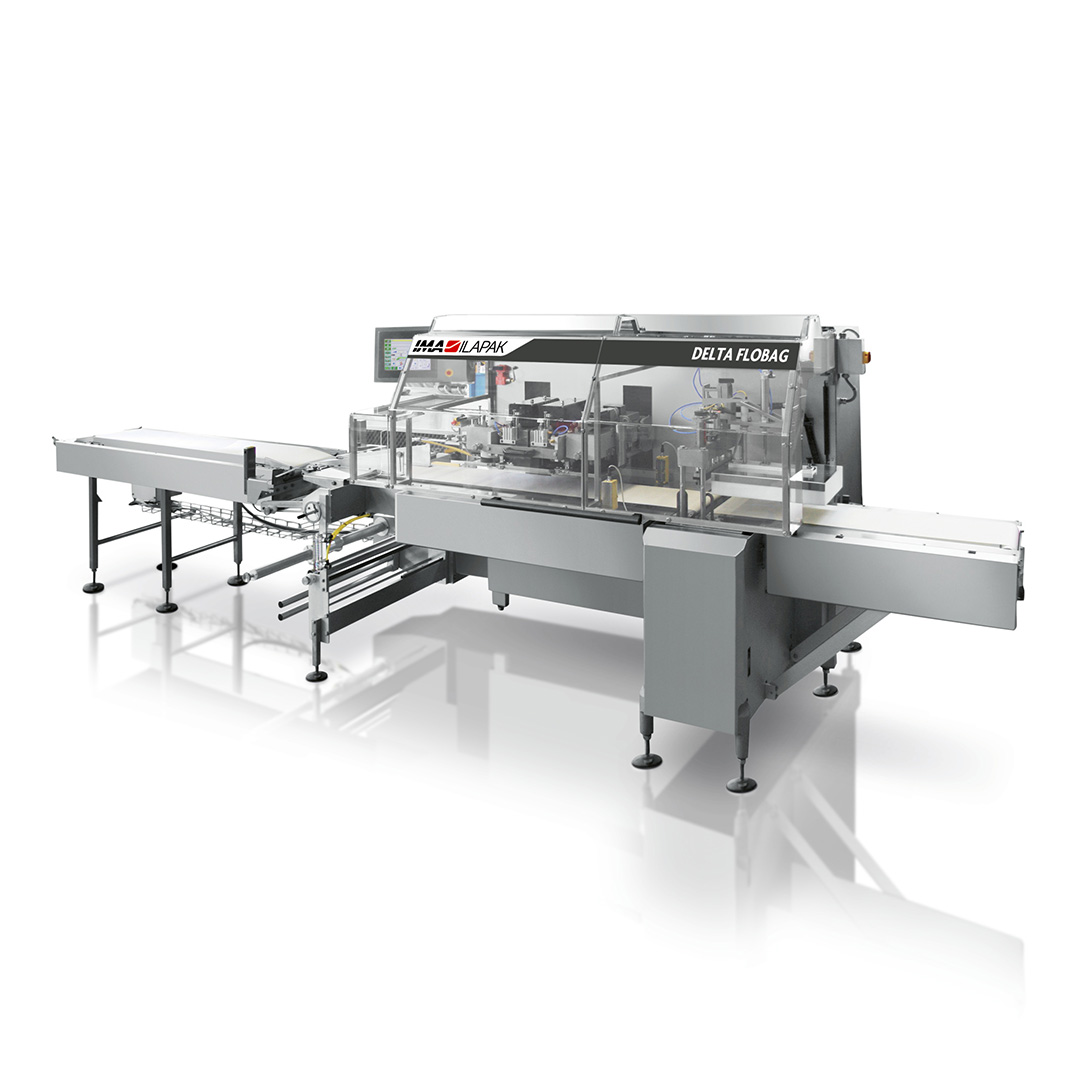

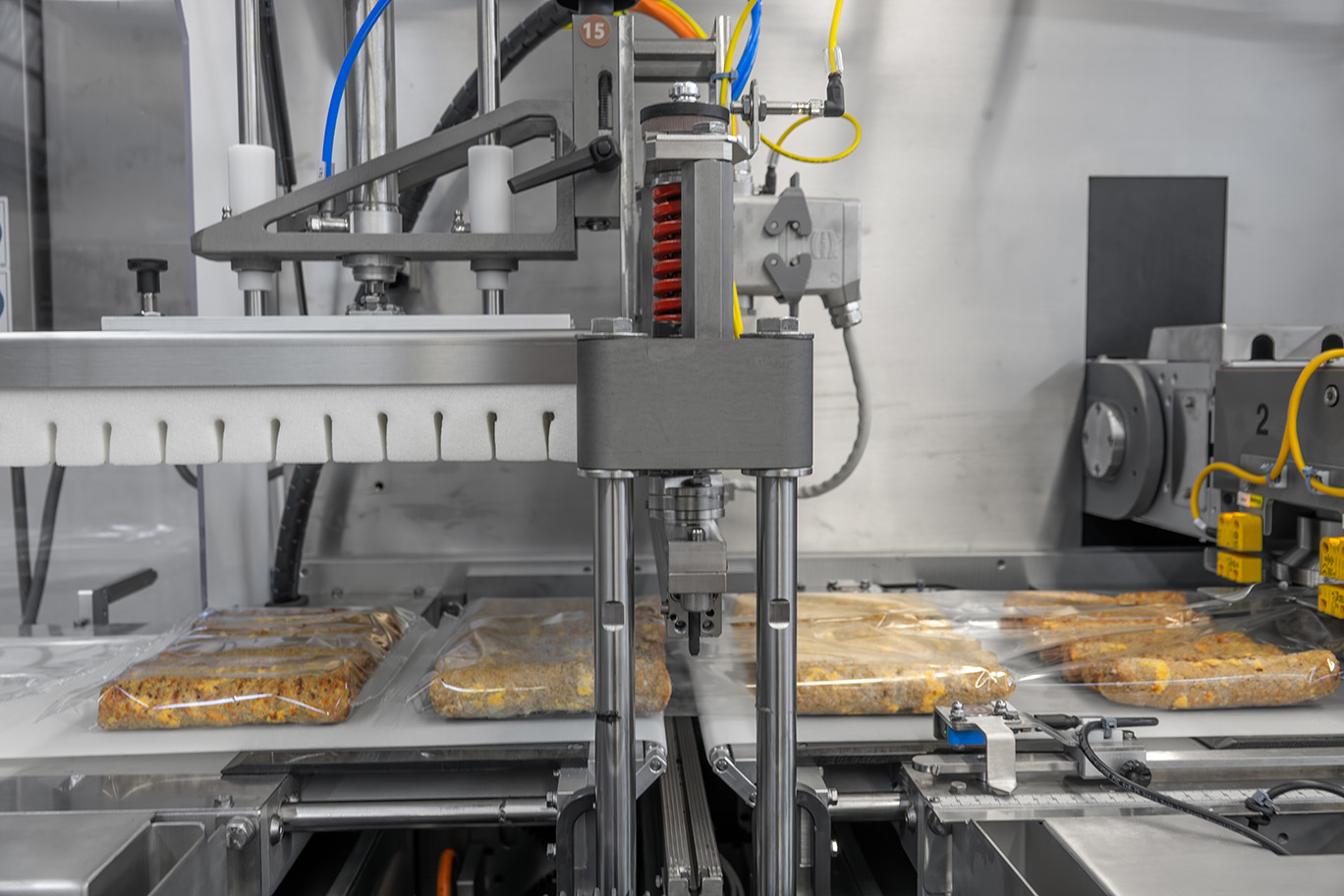

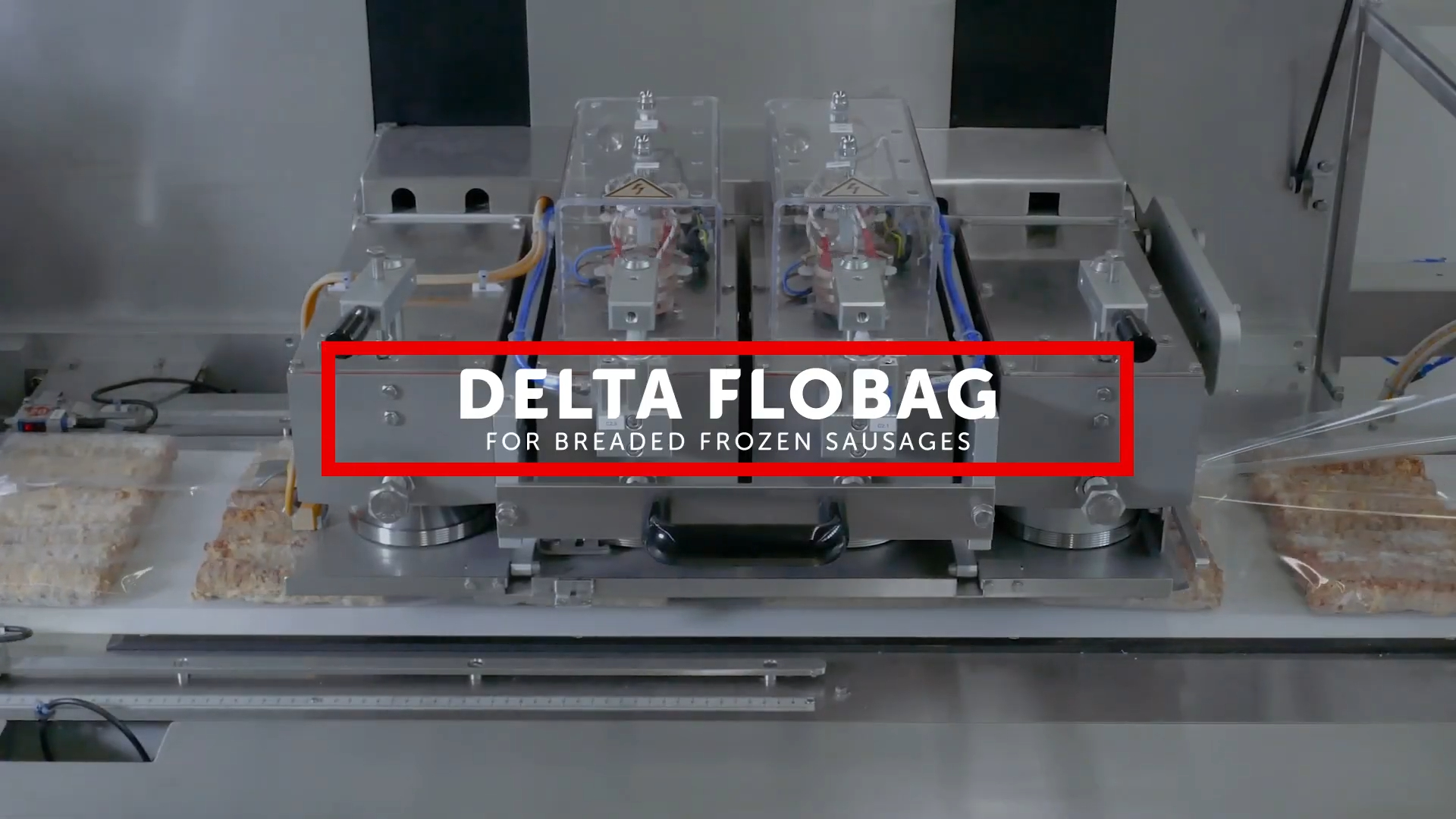

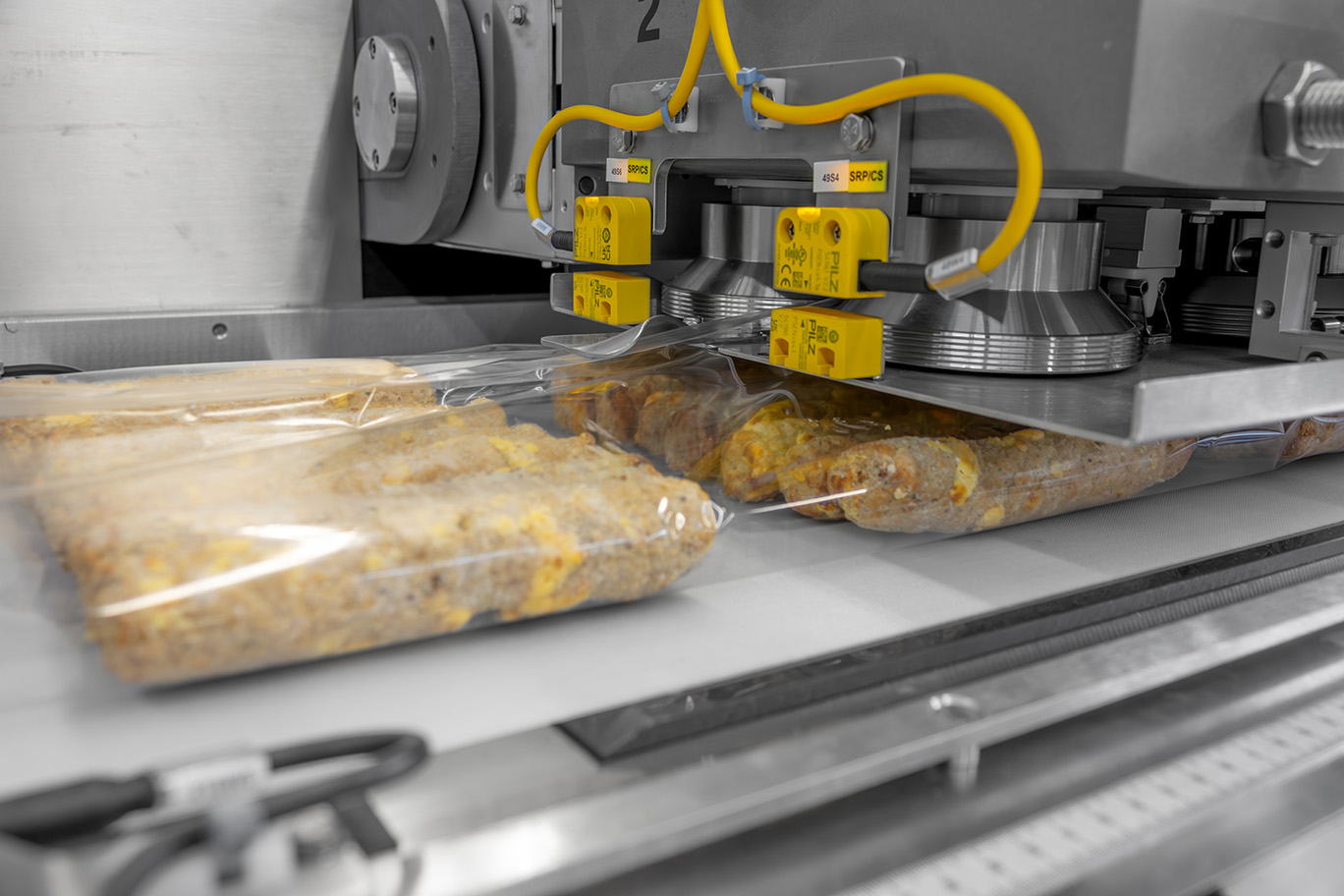

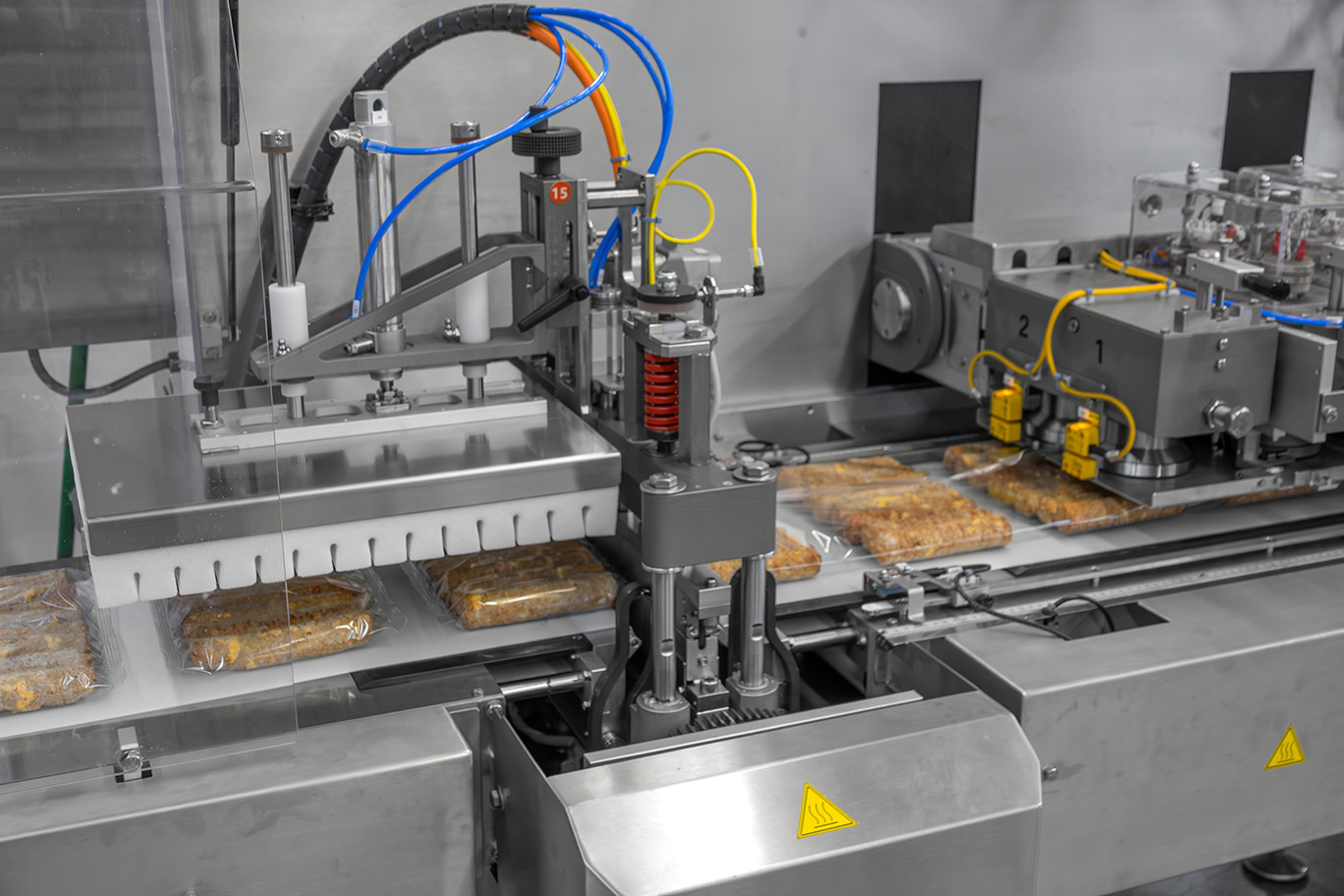

The Delta Flobag is IMA Ilapak’s dedicated horizontal flow wrapping solution for replacing traditional shrink bags in the packaging of processed meat and cheese. Available as a standalone HFFS system or as part of a complete packaging line, the Delta Flobag features long dwell sealing technology, variable cut-off length control, and electronic operation to ensure consistent seal integrity and optimal film efficiency.
Its stainless-steel construction and hygienic design make it ideal for use in harsh, washdown environments. With smart features like no product–no bag and misplaced product detection, the Flobag ensures high reliability, minimized waste, and superior line efficiency.
Production plant
Ilapak International SA
Machine highlights
-
Vacuum and shrink-ready HFFS system
A true alternative to shrink bags for processed meat and cheese.
-

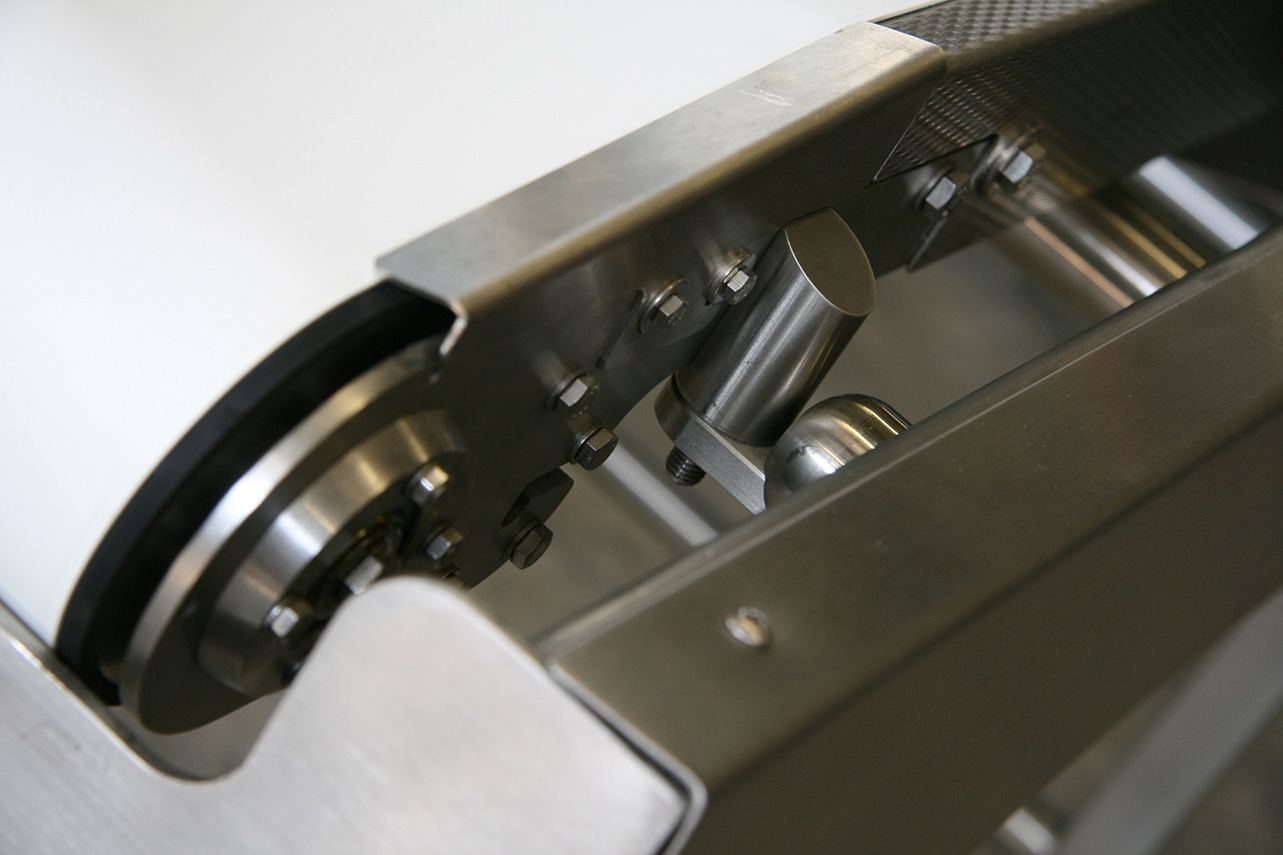

Hygienic stainless-steel design
Washdown-ready and built for harsh environments.
-
Variable cut-off control
Minimizes film waste while adapting to product length.
-
No product–no bag function
Reduces empty packs and optimizes film usage.
-
Misplaced product detection
Prevents sealing on misplaced items and avoids stoppages.
-
Electronic control with standard components
Reliable performance and simplified maintenance.
Machine details
Technical information
| DELTA Flobag | |
|---|---|
| Machine Speed | Up to 60 cycles per minute Production output depends on film sealability and product characteristics |
| Film Cut-Off | Min 150 mm (6″) / Max 800 mm (31.5″) Depending on film and product characteristics |
| Wrapping Materials | Shrink barrier films, laminated, co-extruded and all sealable films |
| Film Reel Max Weight | Depending on film reel width, up to 75 kg (165 lbs) |
| Electronic Platform | Industrial PC |
| Power Requirement | From 220 to 480 V, 50/60 Hz, 7 kVA |
| Compressed Air | 6 bar, 200 l/min |
| Machine Weight | 1500 kg (3300 lbs) |
| PRODUCT DIMENSIONS | |
| Length | Up to 650 mm (25.6″) standard |
| Width | 300 mm (11.8″) standard (jaws 345 mm / 13.6″) 320 mm (12.6″) on request (jaws 445 mm / 17.5″) |
| Height | Up to 180 mm (7.0″) standard Up to 160 mm (6.3″) with small product traps |
| FILM REEL DIMENSIONS | |
| Core Ø | 76.2 mm (3″) standard 152.4 mm (6″) on request |
| Outer Ø | 350 mm (13.8″) standard |
| Width | 800 mm (31.5″) standard 1000 mm (39.4″) on request |
