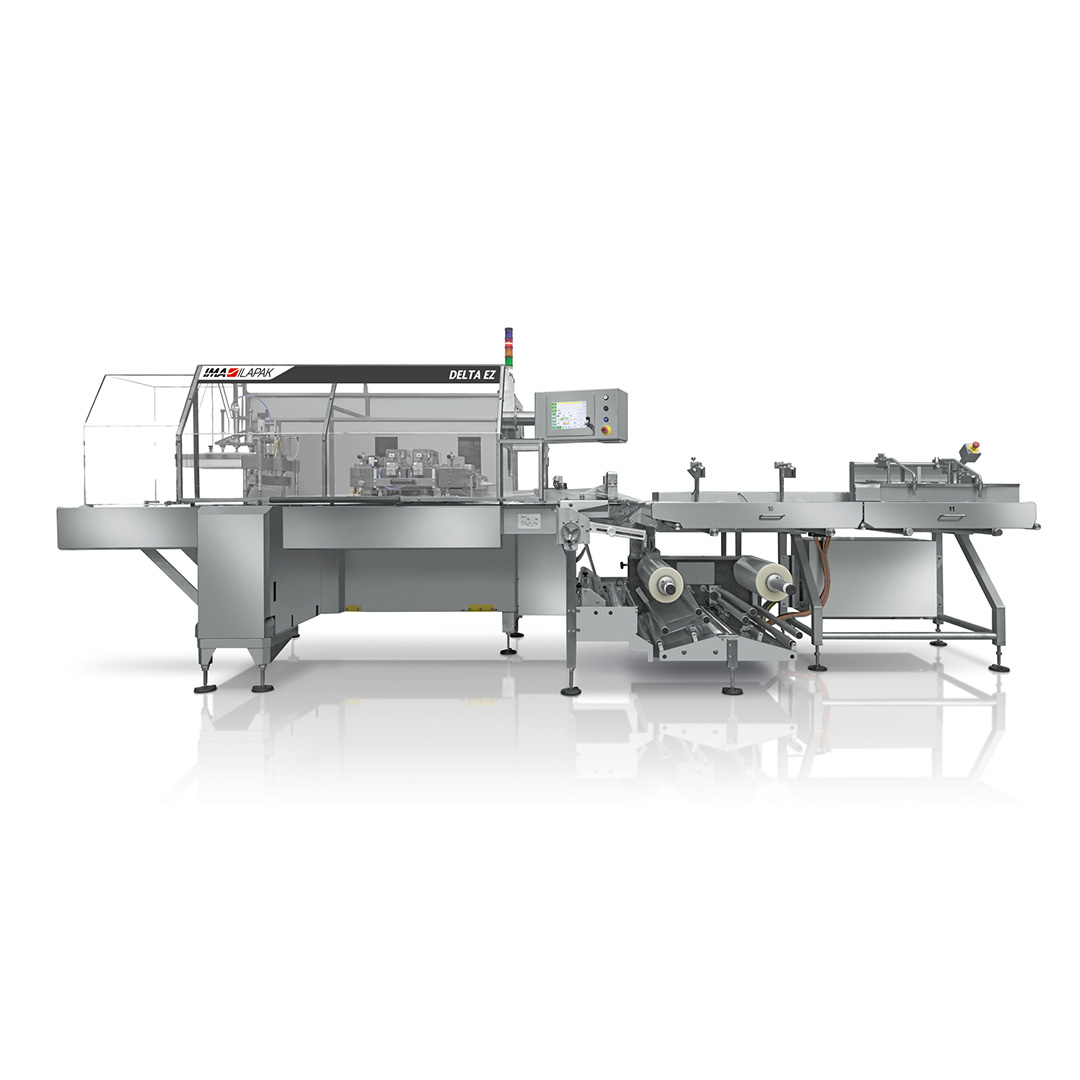

DELTA EZ Horizontal Form Fill and Seal
Machine overview
Efficient, Hygienic Flow Wrapping for Hermetic Sealing and M.A.P.
Bridging the gap between entry-level and high-spec machines, the Delta EZ delivers hermetically sealed, extended shelf-life packs at speeds up to 100 ppm. Designed for mid-sized bakeries, it combines cost-effectiveness with robust MAP capabilities and advanced longitudinal sealing technology.

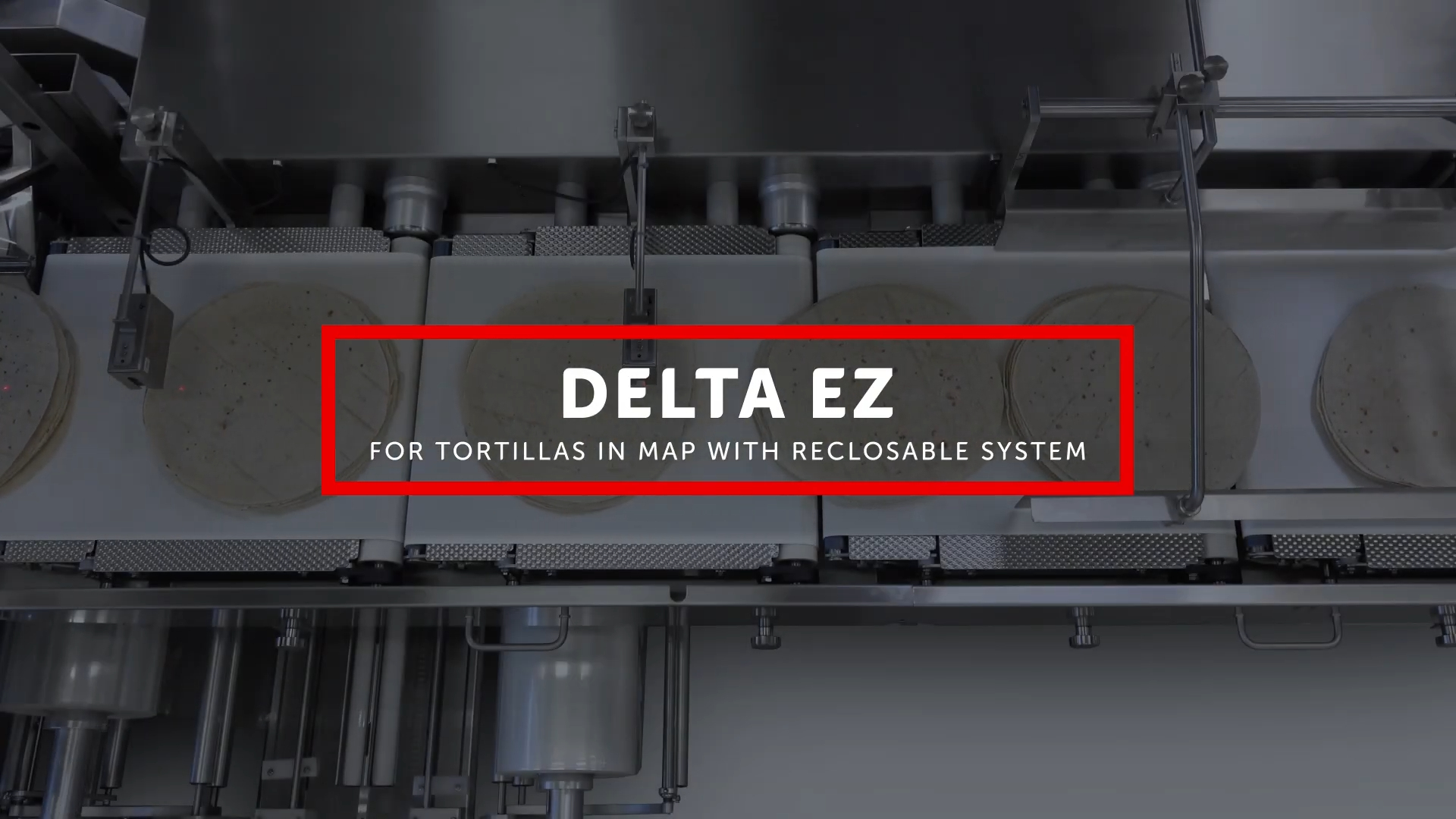

Adapted from the high-performance Delta 6000, the longitudinal sealing system ensures excellent sealing on a wide range of substrates—from co-extruded foodservice films to PET-based barrier materials. The Delta EZ also features multi-belt infeed for automatic product phasing, rapid reel change with auto-splicing, and adjustable folding box for diameters from 6″ to 14″, making it ideal for tortillas, flatbreads, and other bakery products. Its modular platform supports future upgrades like reclosable features and double reel mounting.
Production plant
Ilapak International SA
Machine highlights
-
Advanced longitudinal sealing
Reliable hermetic seals on multiple film types for shelf-life extension.
-
Speeds up to 100 ppm
Ideal throughput for mid-range production lines.
-
Integrated MAP capabilities
Gas flushing system included as standard.
-

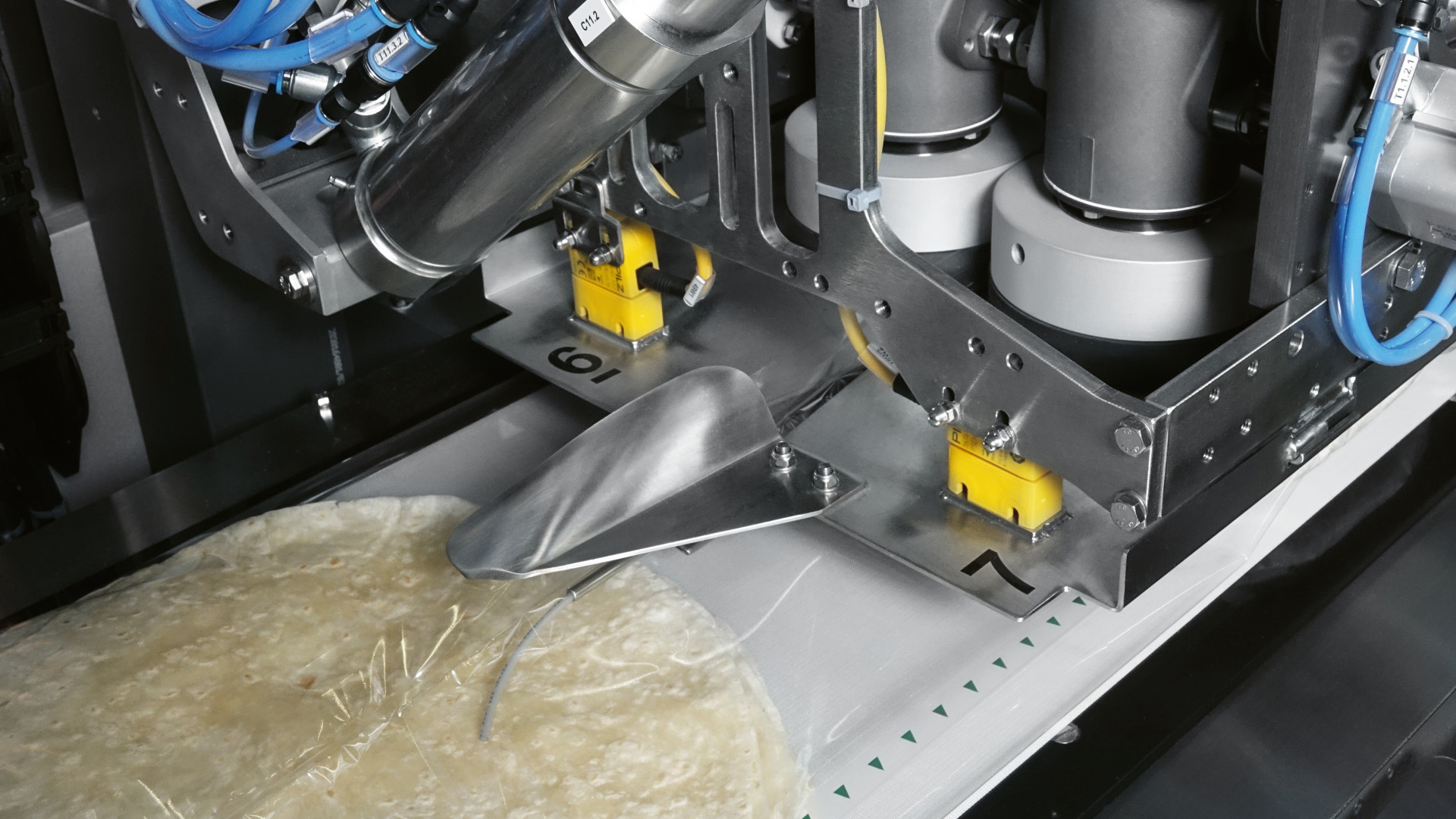

Multi-belt infeed & adjustable folding box
Automatic product phasing for consistent pack quality.
-
Auto-splicing & optional double reel
Fast reel change and extended autonomy.
-
Hygienic design
Minimised cleaning time, ideal for food safety standards.
-
Misplaced detection / No product – no bag
Reduced film waste, no product jams or damage.
-
Modular platform
Upgradable with advanced options like reclosable systems.
Machine details
Technical information
| TECHNICAL SPECIFICATIONS | |
|---|---|
| Machine Speed | Up to 100 cycles per minute Production output depends on film sealability and product characteristics |
| Film Cut-Off | Min 150 mm (6″) / Max 800 mm (31.5″) Depending on film and product characteristics |
| Wrapping Materials | Shrink barrier films, laminated, co-extruded and all sealable films |
| Film Reel Max Weight | Depending on film reel width, up to 50 kg (110 lbs) |
| Electronic Platform | Industrial PC |
| Power Requirement | From 220 to 480 V, 50/60 Hz, 10 kW |
| Compressed Air | 6 bar, 200 l/min |
| Machine Weight | 1500 kg (3300 lbs) |
| PRODUCT DIMENSIONS | |
| Length | Up to 650 mm (25.6″) standard |
| Width | 300 mm (11.8″) standard (jaws 345 mm / 13.6″) 360 mm (14.2″) on request (jaws 445 mm / 17.5″) |
| Height | Up to 100 mm (4.0″) standard |
| FILM REEL DIMENSIONS | |
| Core Ø | 76.2 mm (3″) standard 152.4 mm (6″) on request |
| Outer Ø | 350 mm (13.8″) standard |
| Width | 900 mm (35.5″) standard |
