DELTA 3000 Horizontal Form Fill and Seal
Machine overview
Flow Wrapping Excellence for MAP Applications

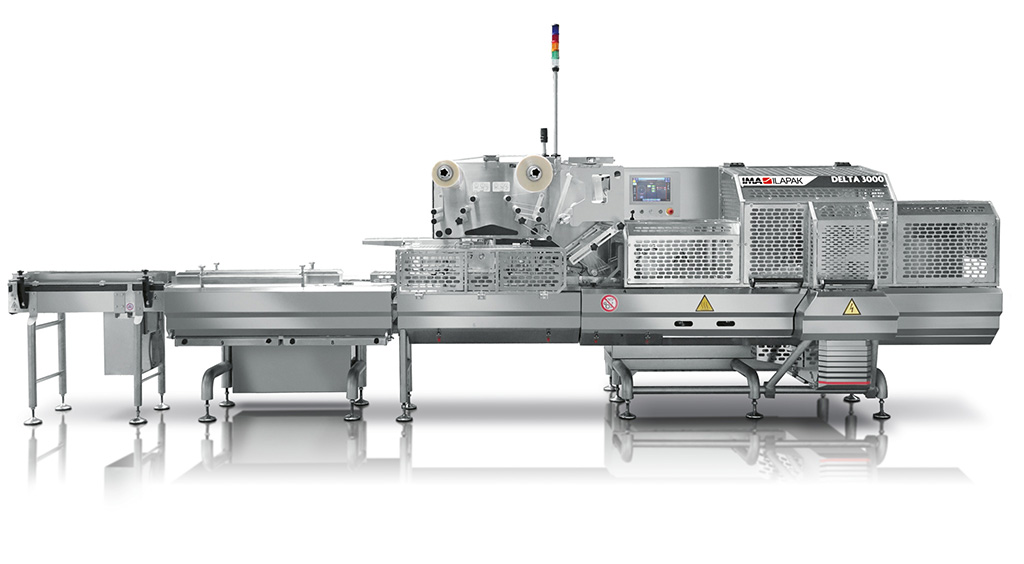

The Delta 3000 is IMA Ilapak’s horizontal flow wrapping machine designed to meet the highest standards in hermetic sealing and modified atmosphere packaging (MAP). Equipped with long dwell sealing jaws and advanced PC control, it guarantees outstanding performance on a wide range of recyclable wrapping materials — even under high-speed production requirements.

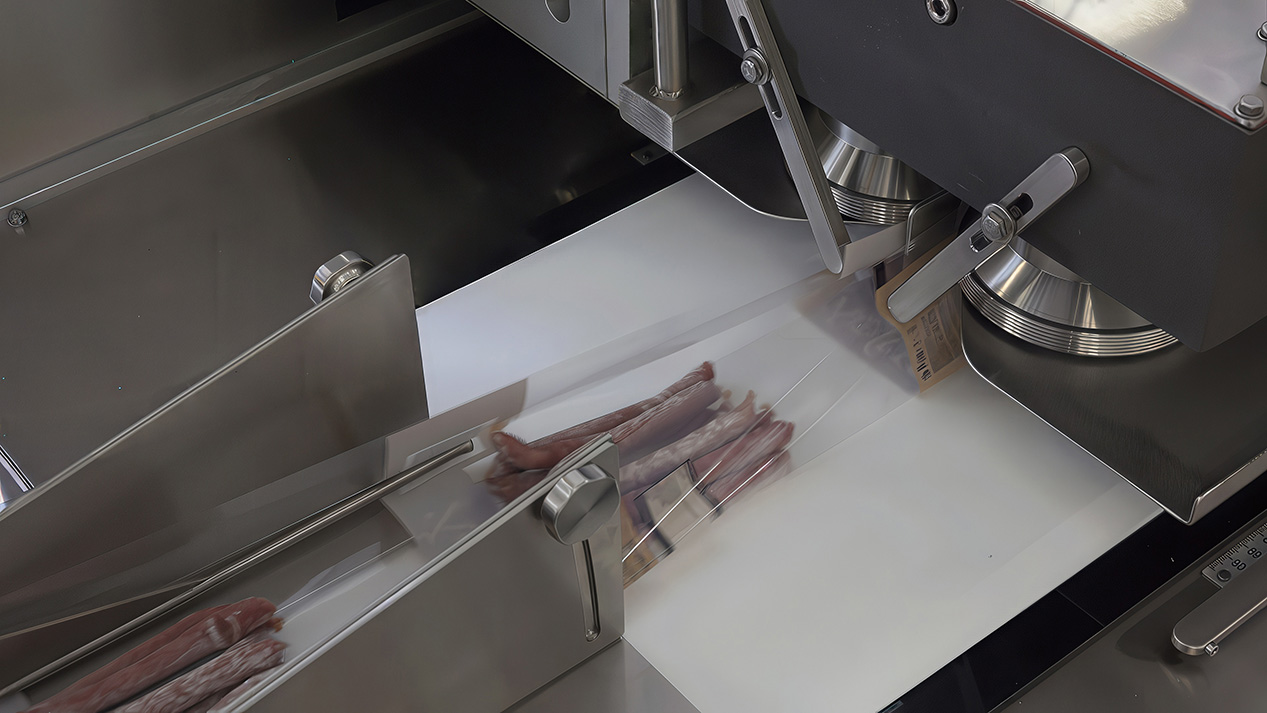

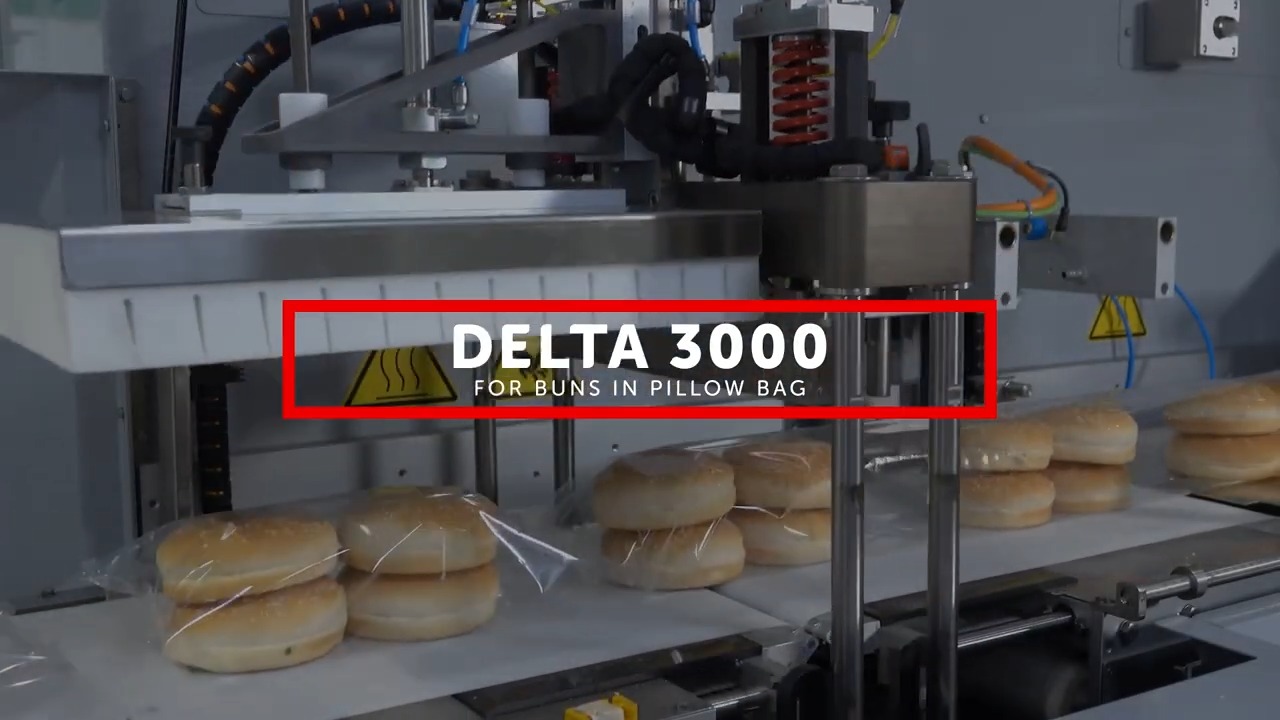

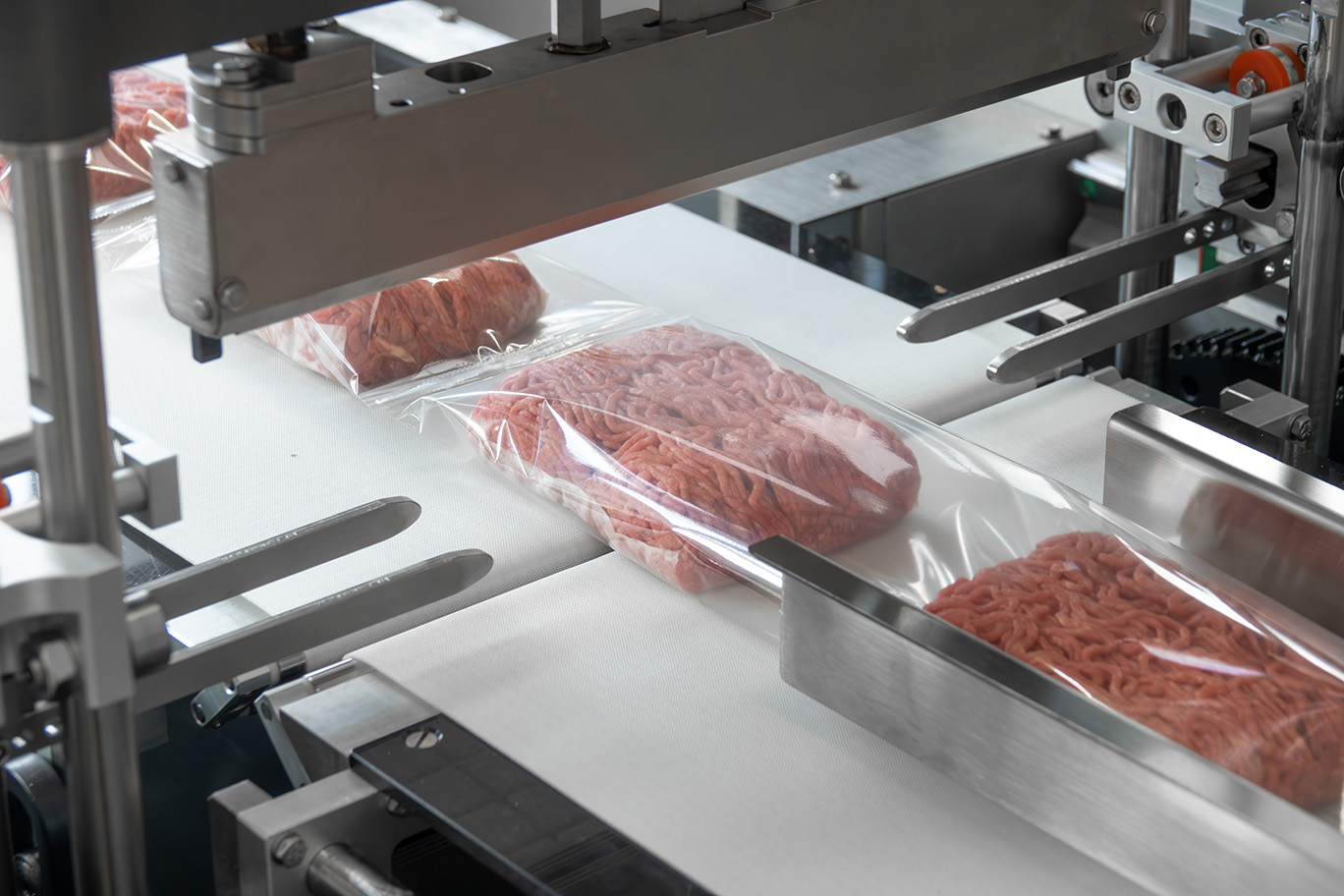

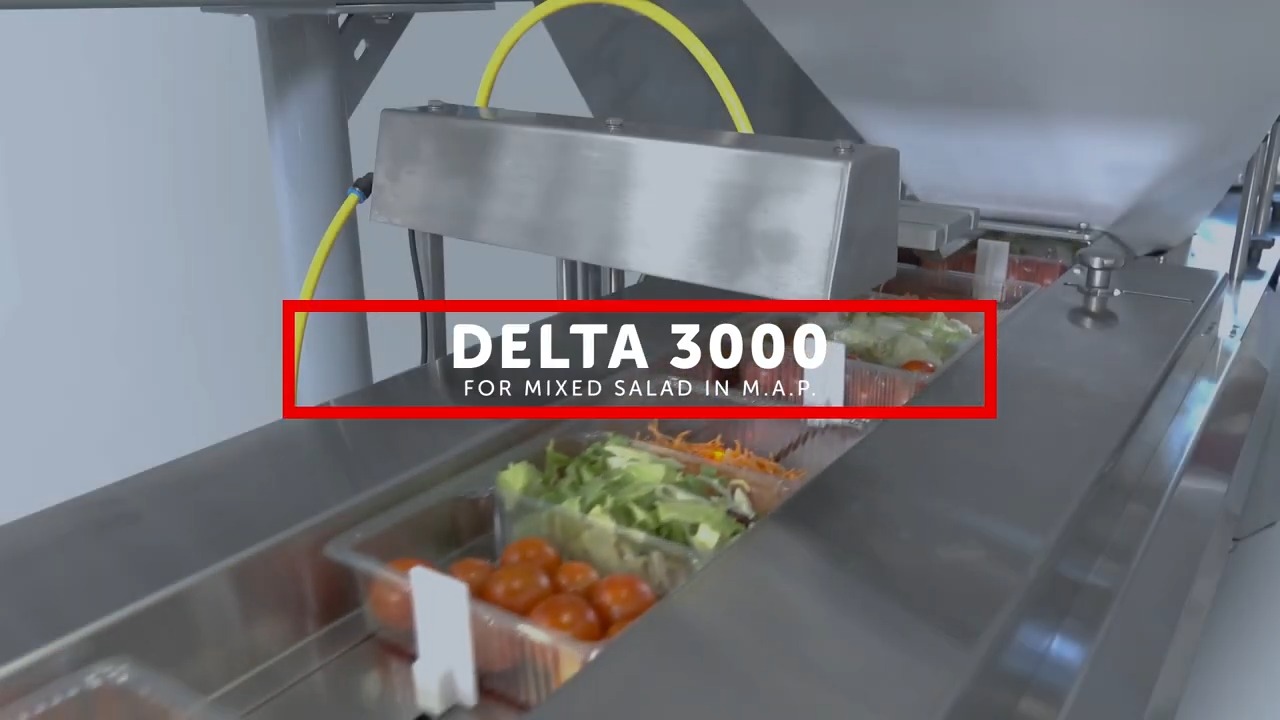

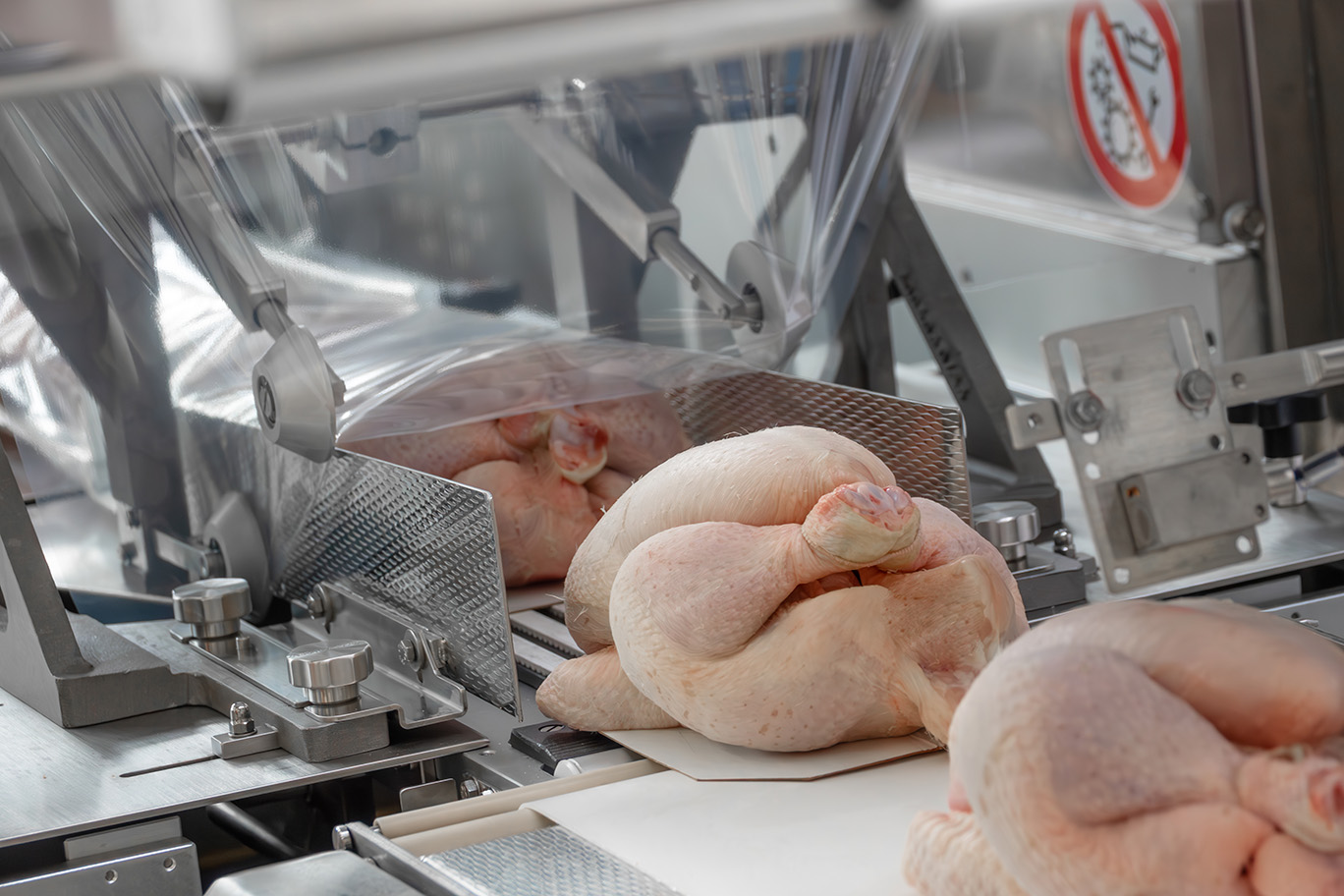

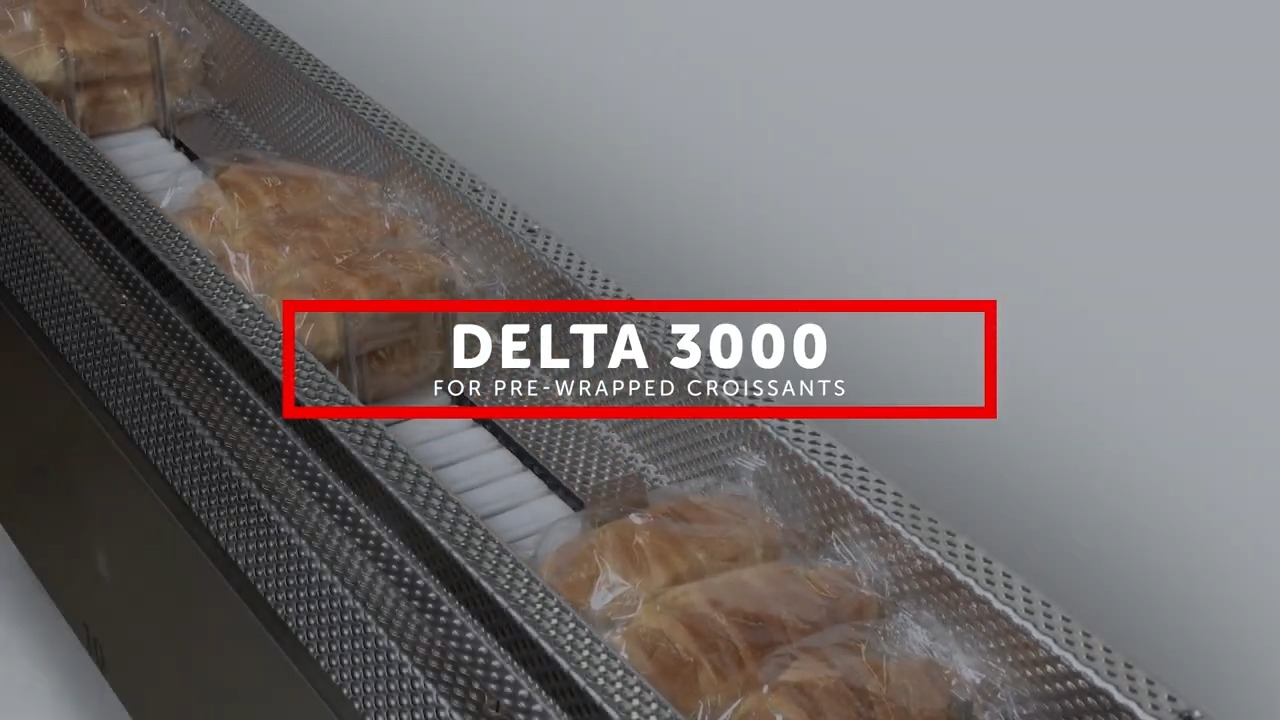

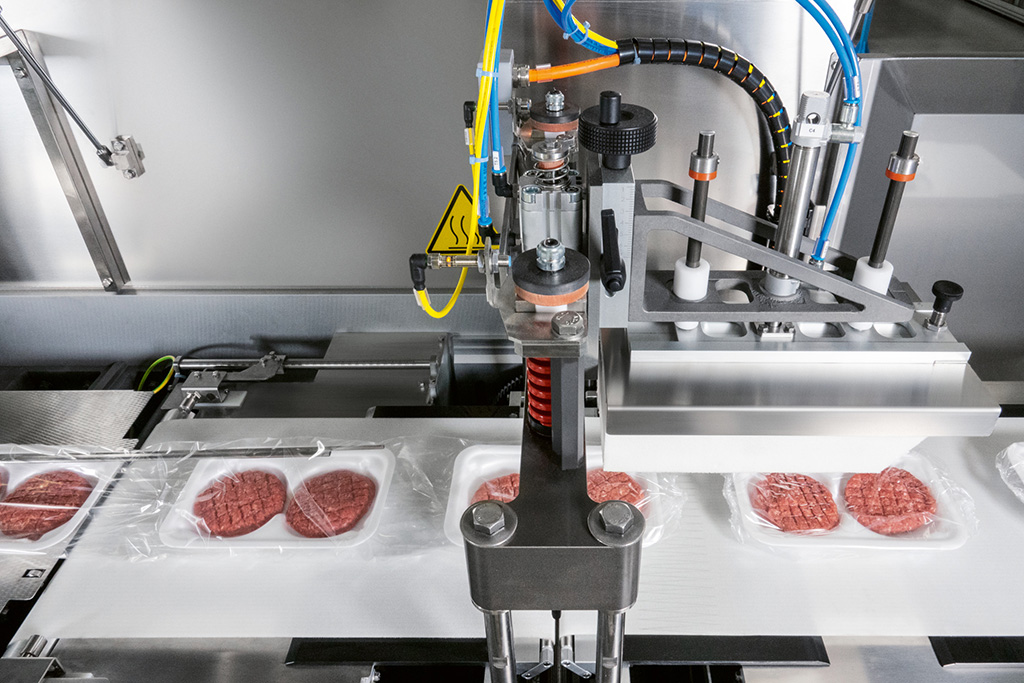

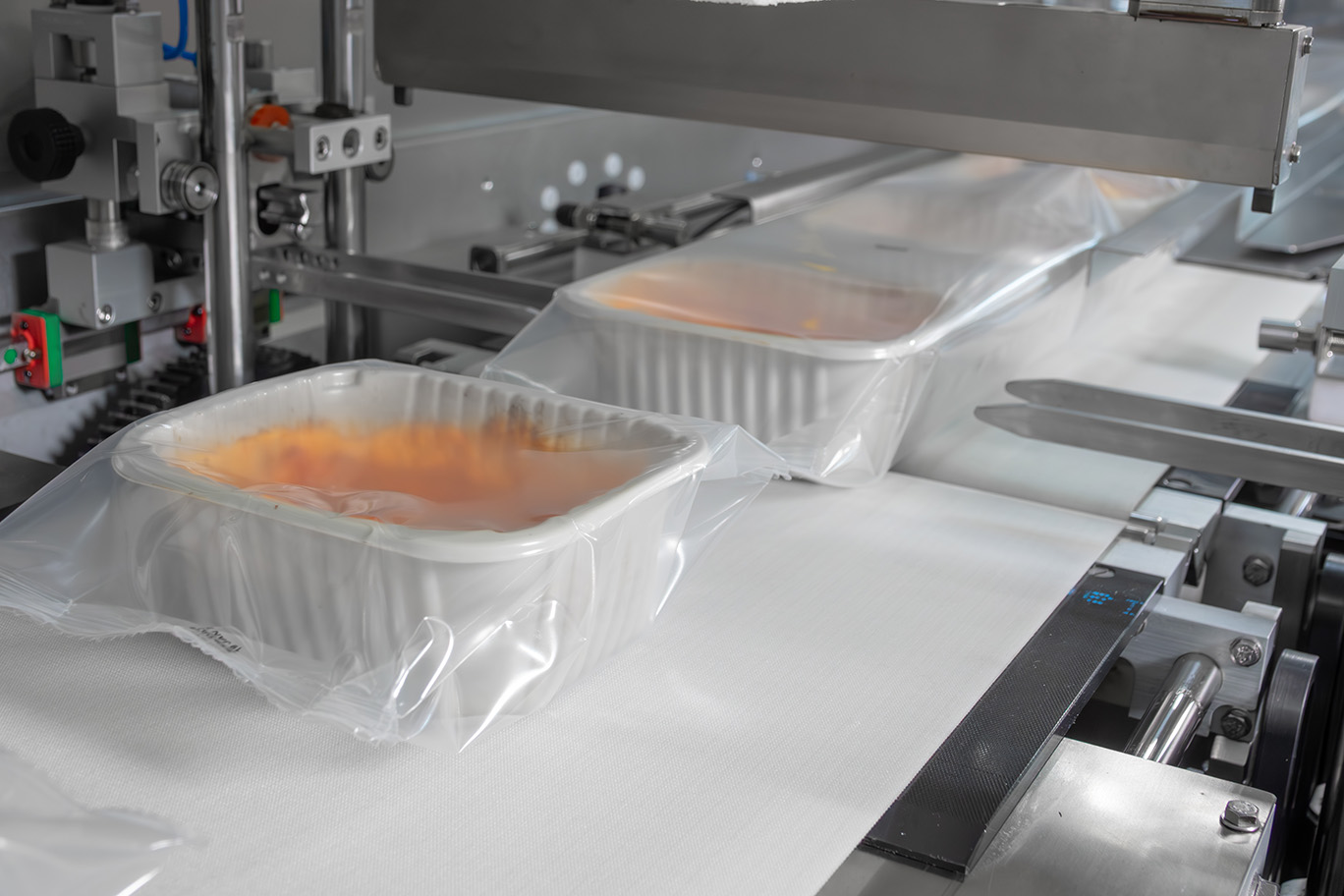

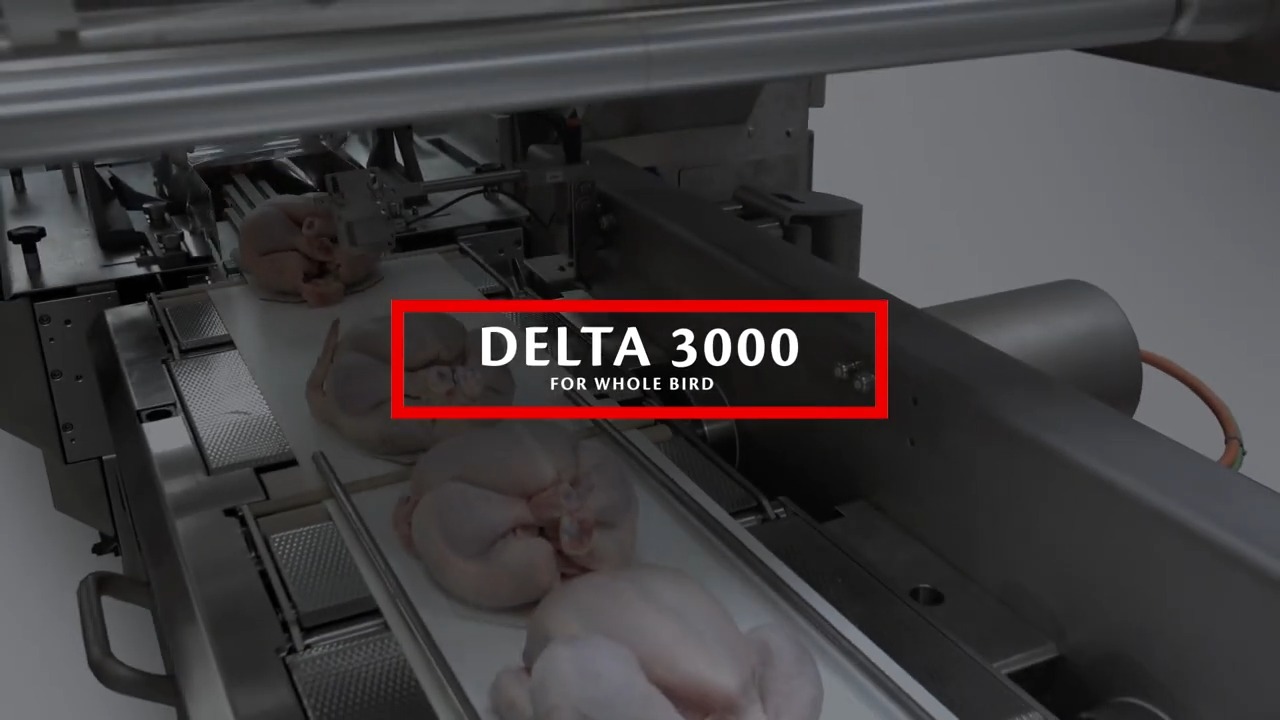

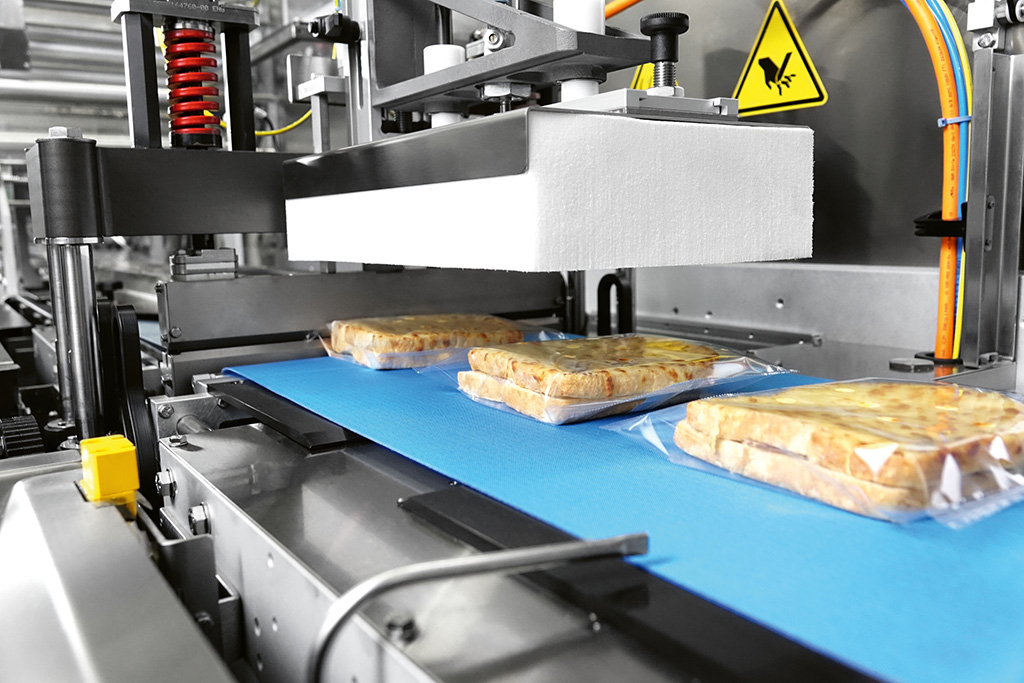

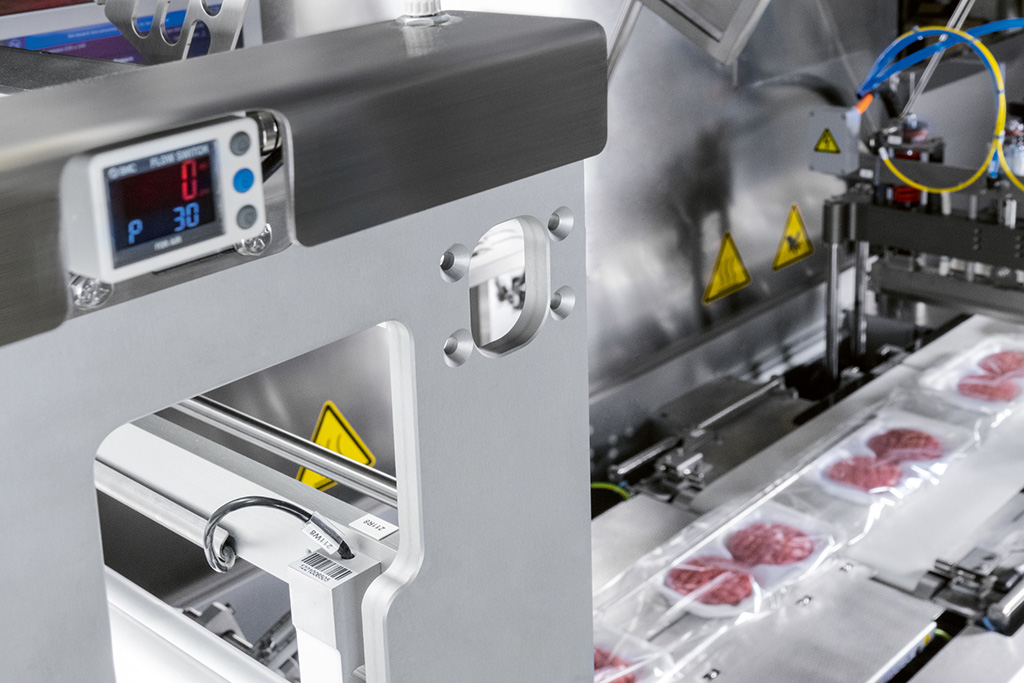

Robust, reliable, and highly versatile, the Delta 3000 is ideal for fresh and processed meat (sausages, minced meat, burgers), sliced or portioned cheese, bakery products in MAP, and ready meals. Its modular design allows easy integration into automated lines and ensures gentle handling of delicate or irregular products.
Production plant
Ilapak International SA
Machine highlights
-

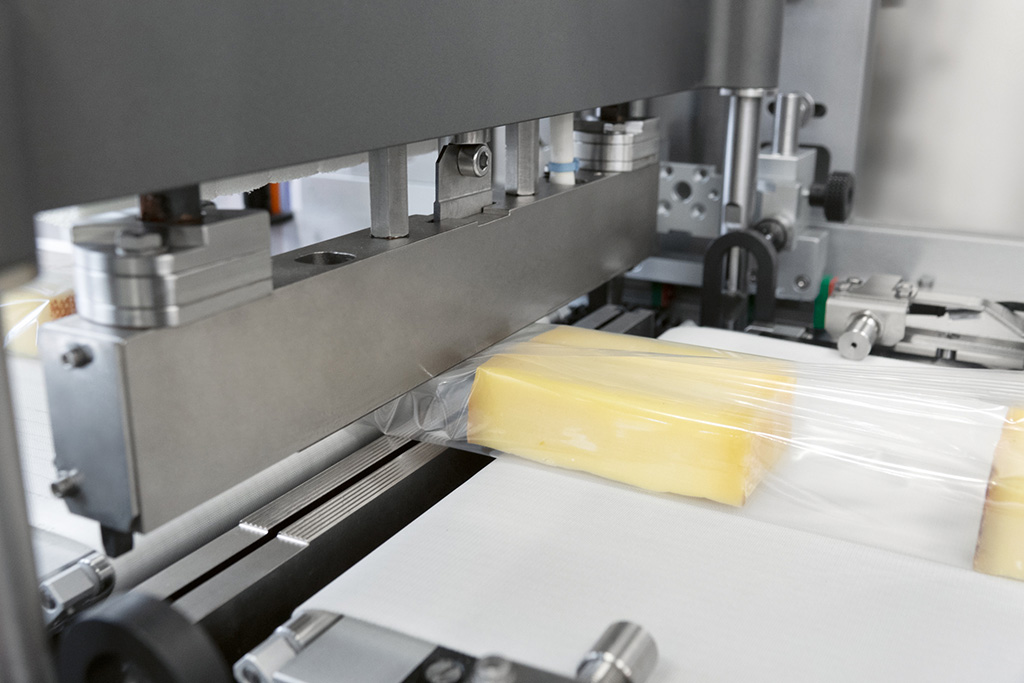

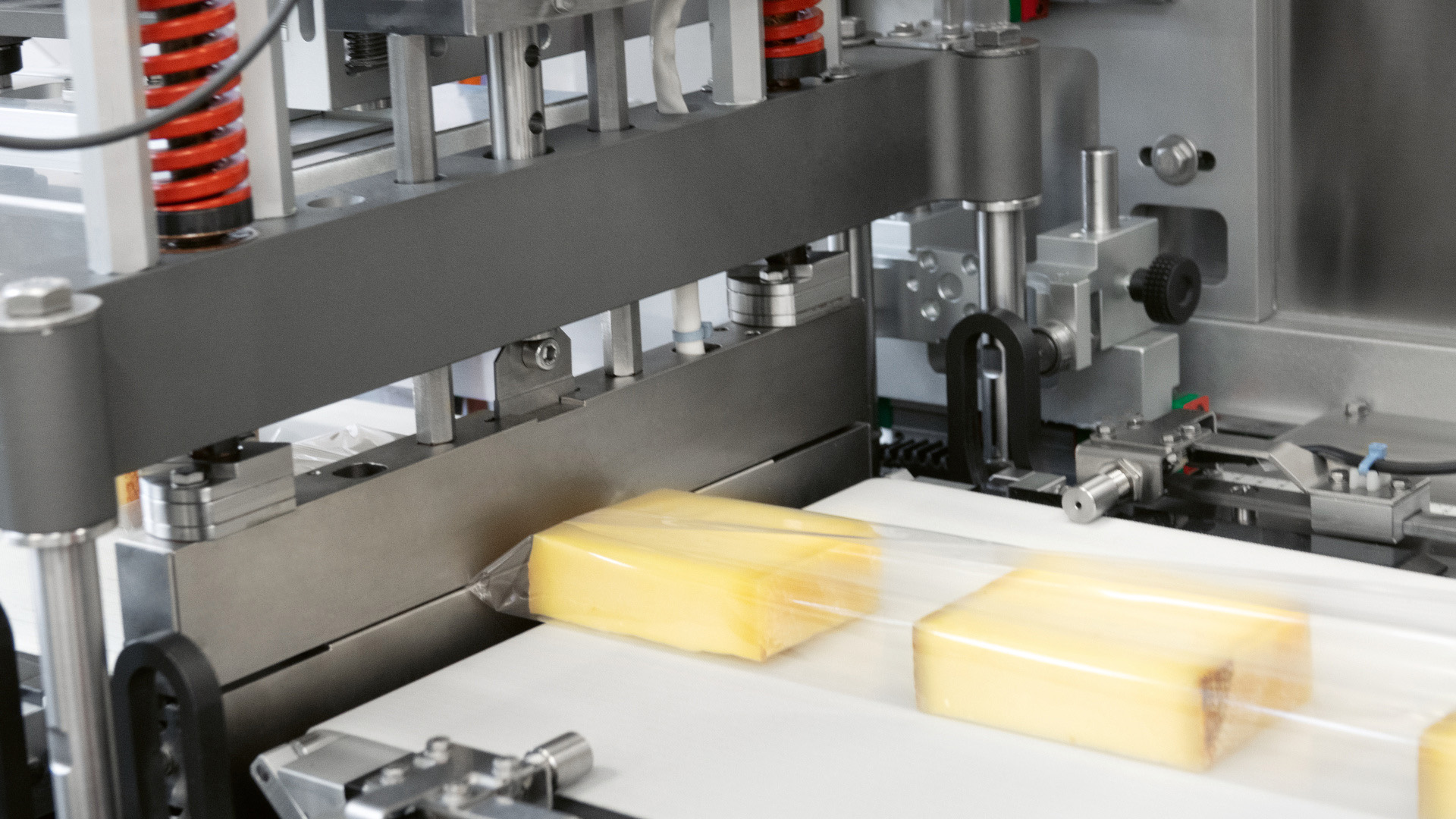

Long dwell sealing jaws
High-integrity hermetic seals, ideal for MAP and shelf-life extension.
-
Recyclable film compatibility
Sustainable packaging with no compromise on performance.
-
Modular & upgradable configuration
Easily connects to various feeding systems and automation modules.
-

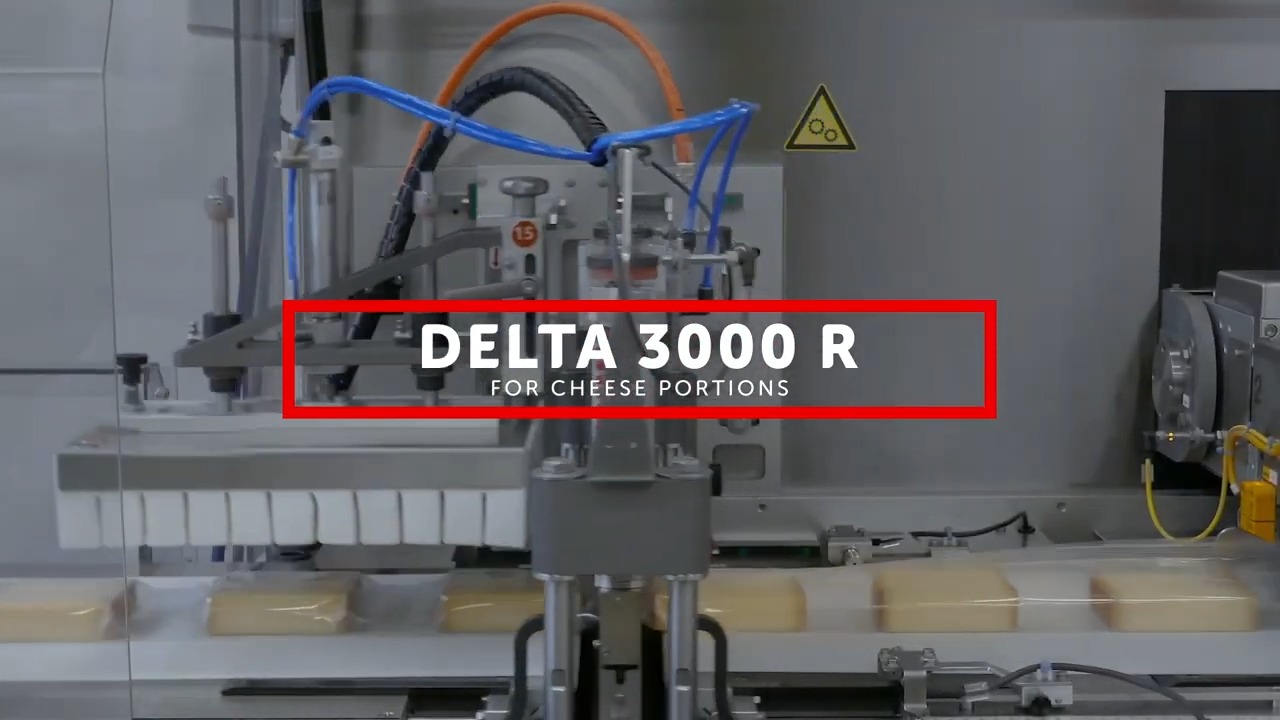

Delta 3000 R version
Optimized for delicate and irregularly shaped products.
-
Stainless steel & bottom film feed options
Hygiene and versatility for demanding production environments.
-
PC control with commercial components
Reliability, availability, and ease of maintenance.
-
Separated electrical cabinet
Enhanced maintenance and access.
Machine details
Technical information
| Machine Speed | Up to 100 cycles per minute Production output depends on film sealability and product characteristics |
|---|---|
| Film Cut Off | Min 100 mm (4″) / Max 1200 mm (47″) Depending on film and product characteristics |
| Wrapping Materials | Shrink barrier films, laminated, co-extruded and all sealable films |
| Film Reel Max Weight | Depending on film reel width, up to 75 kg (165 lbs) |
| Electronic Platform | Industrial PC |
| Power Requirement | From 220 to 480 V, 50/60 Hz, 7 kVA |
| Compressed Air | 6 bar, 200 l/min |
| Machine Weight | 1400 kg (3100 lbs) |
| PRODUCT DIMENSIONS | |
| Length | Up to 650 mm (25.6″) standard Up to 1000 mm (39.4″) on request |
| Width | 300 mm (11.8″) standard (jaws 365 mm / 14.3″) 320 mm (12.6″) on request (jaws 445 mm / 17.5″) |
| Height | Up to 110 mm (4.3″) standard (centre axle 180) Up to 150 mm (5.9″) on request (centre axle 225) Up to 60 mm (2.4″) on request (centre axle 140) |
| FILM REEL DIMENSIONS | |
| Core Ø | 76.2 mm (3″) standard 152.4 mm (6″) on request |
| Outer Ø | 350 mm (13.8″) standard 400 mm (15.7″) on request (auto-splicer only) |
| Width | 800 mm (31″) standard 500 mm (19.7″) standard (wet wipes only) 650 mm (25.6″) on request 900 mm (35.4″) on request |
