D-Bund Bundling
Machine overview
The perfect diaper bundler you need.
D-BUND is a high-speed bundler for baby & adult diapers; this machine is completely automatic and includes all features to transfer, collate and overwrap diaper bags in neat, tight, completely sealed bundles for transport and distribution.
D-BUND is able to cover a great range of formats thanks to its flexibility and accommodates a huge number of bundle configurations with high performance and bundle tightness, in different dimensions enough to cover all current and future requests that come from the worldwide market.

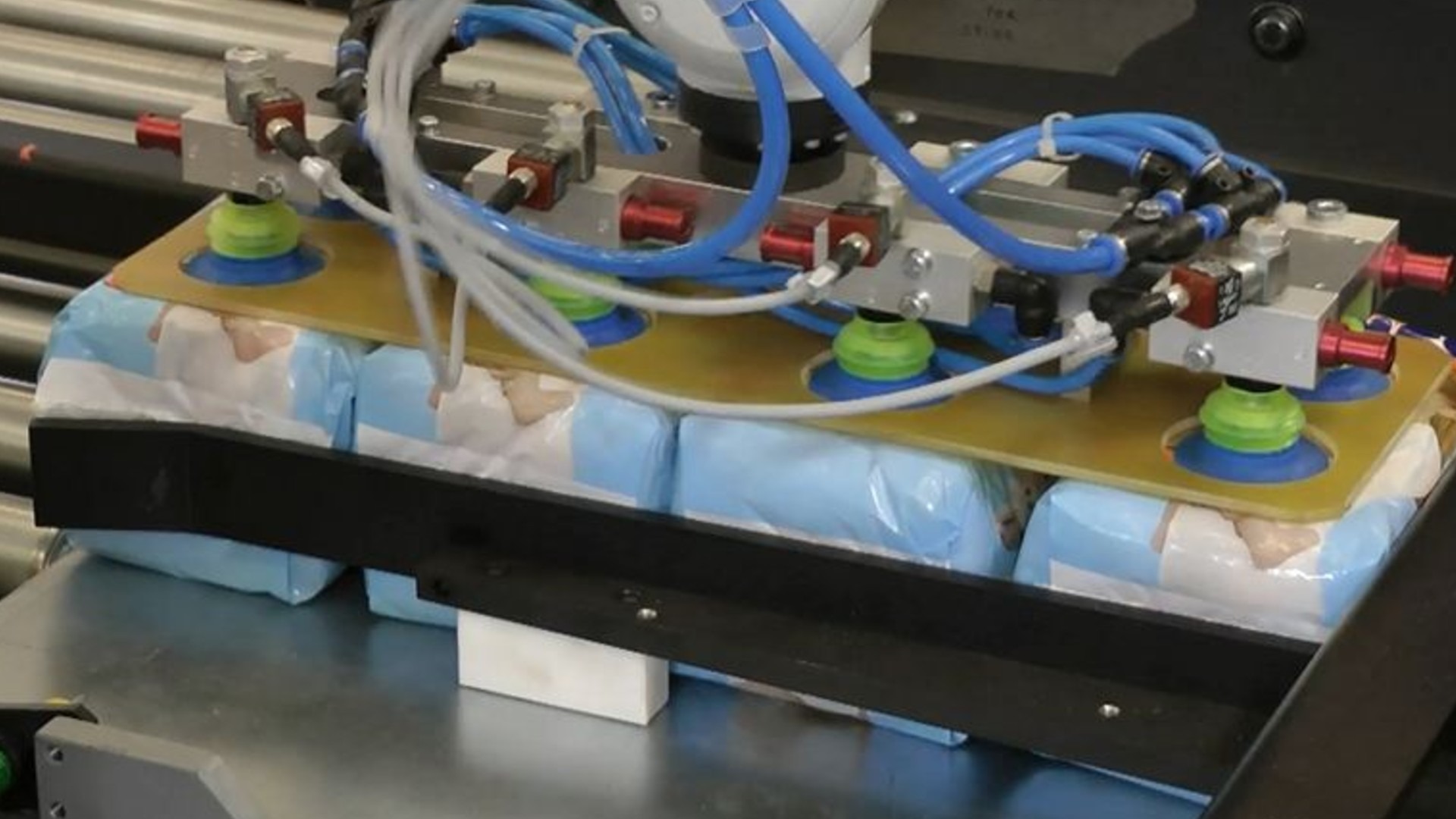

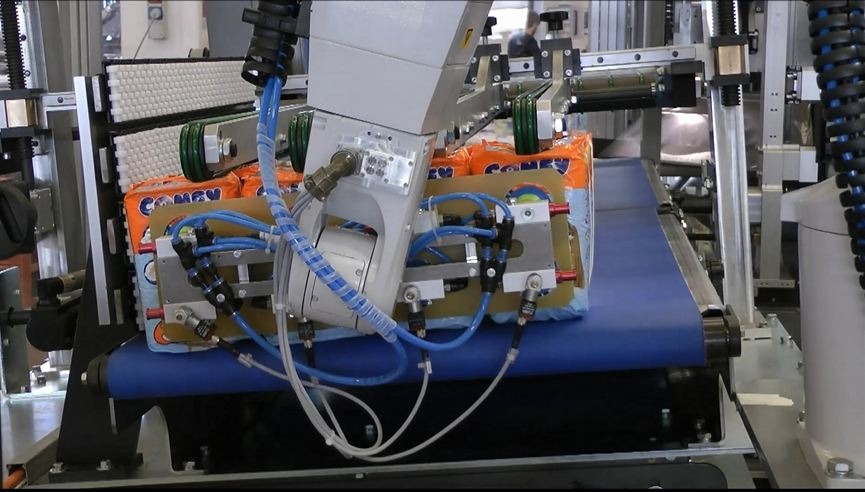

This machine can be equipped with an innovative robot system designed to pick up packs, either individually or in small groups depending on their sizes, and then place the products on the bundler infeed, correctly oriented as required by the bundle configuration.
Mechanical precision design along with latest electronic technologies, are used to develop this bundling machine.
Production plant
IMA TMC
Machine highlights
-
1
High number of bundle configurations for maximum format flexibility.
-
2
Full size adjustments stored in recipes for fast, accurate and repetitive setting.
-
3
Easy management and guided change-over operation through touch screen control panel.
-
4
5 Operator access areas for easy maintenance.
-
5
Robot-system ready.
Automatic operations

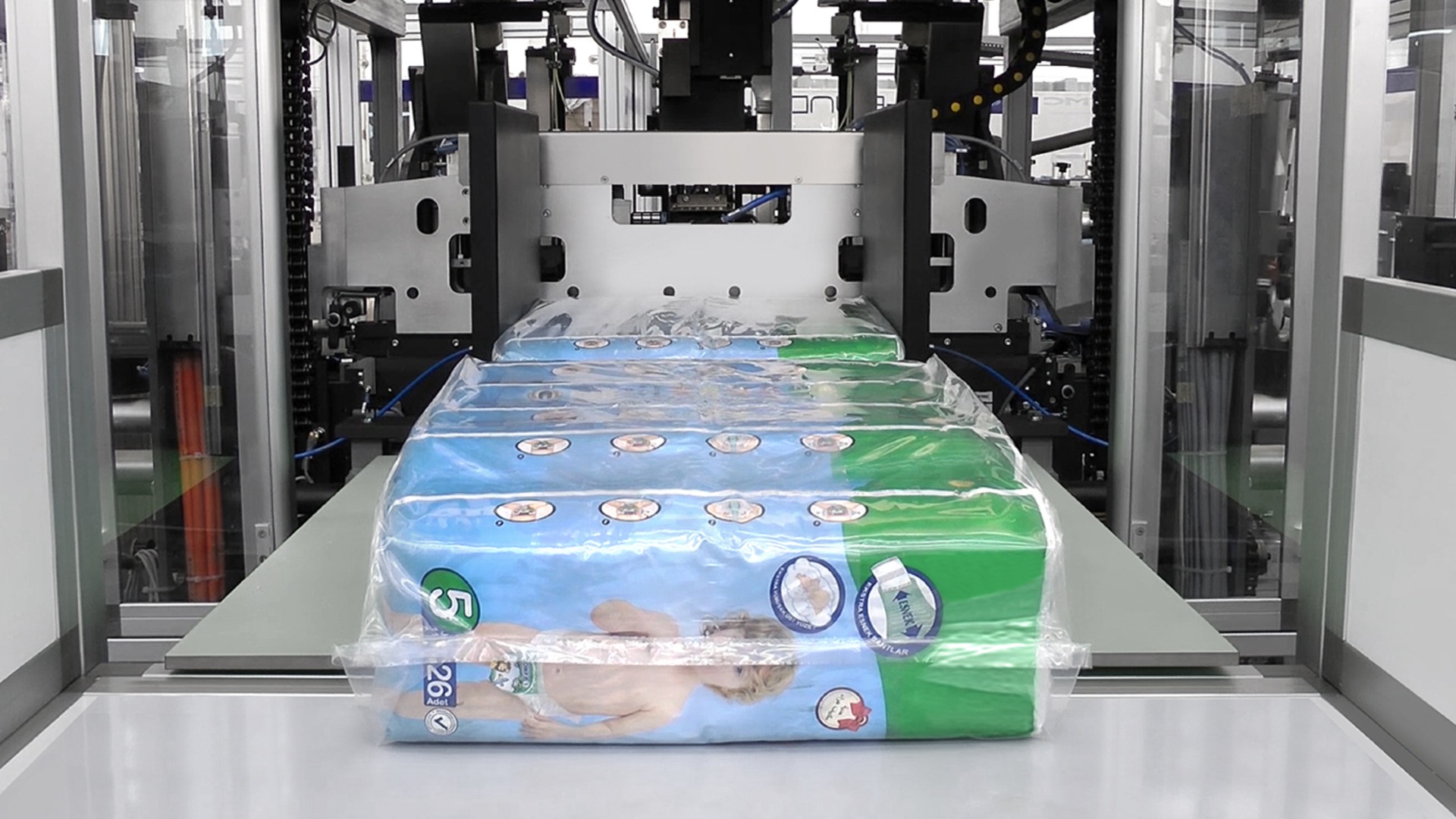

The operations of the D-BUND flexible high speed bundler are completely automatic and include all features to transfer, collate and overwrap diaper bags in neat, tight, completely sealed bundles for transport and distribution.
Machine details
Technical information
| D-BUND TECHNICAL DATA | ||
| Production Speed | Up to 12 cy/1’ | |
| Bag infeed dimensions | MIN | MAX |
| Width | 90 mm (3,5”) | 400 mm (15,7”) |
| Lenght | 160 mm (6,3”) | 680 mm (26,7”) |
| Height | 90 mm (3,5”) | 230 mm (9”) |
| Final bundle dimensions | MIN | MAX |
| Width | 200 mm (7,8”) | 600 mm (23,6”) |
| Lenght | 200 mm (7,8”) | 1200 mm (47,2”) |
| Height | 100 mm (3,9”) | 400 mm (15,7”) |
| Changeover Time | approx 30/45 min. max | |
| Poly Capability | MIN | MAX |
| Reel Diameter | – | 400 mm (15,7”) |
| Reel Width | 850 mm (33,4”) | 2450 mm (96,4”) |
