CT11 Tea bag packaging

C-Through – Visibly the best quality

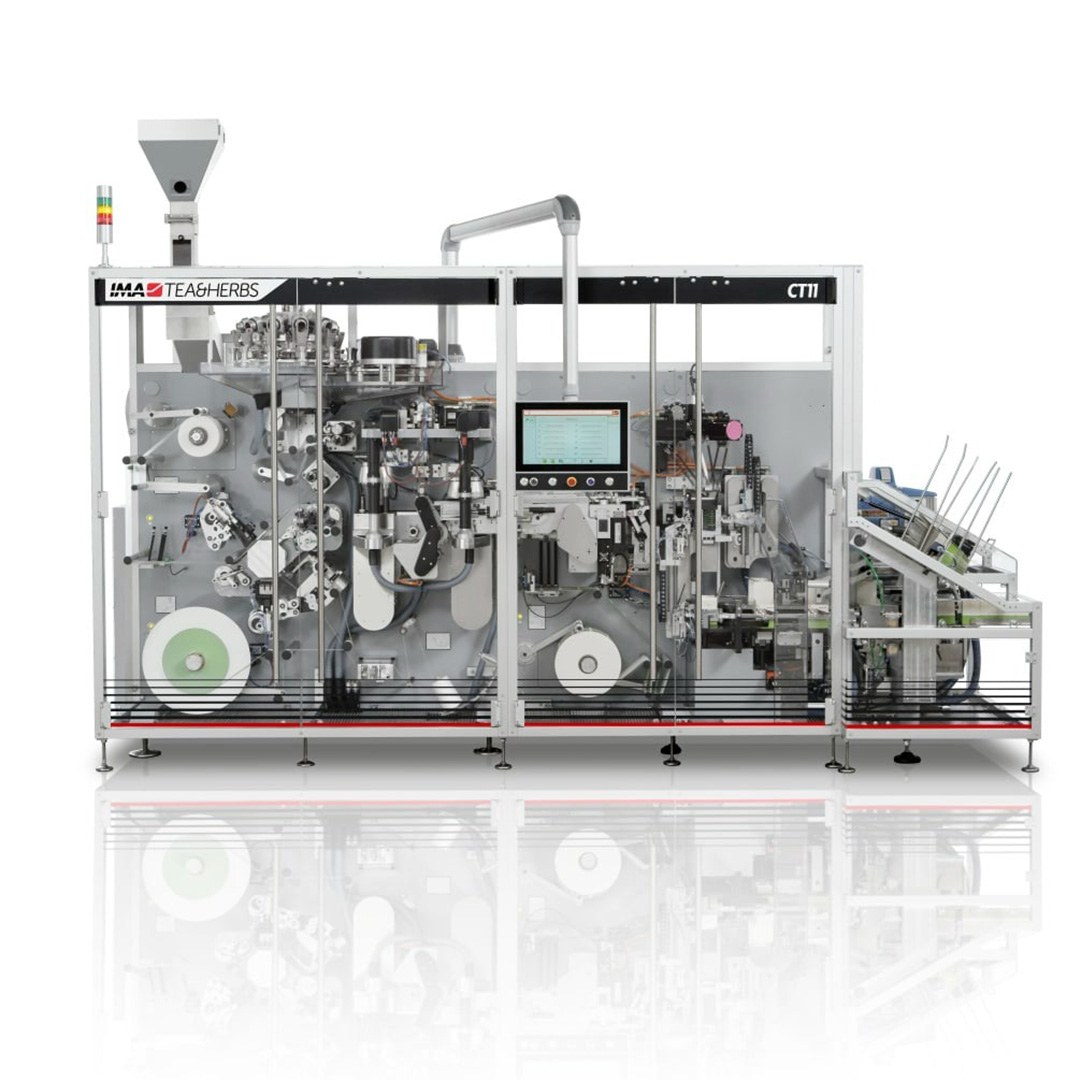

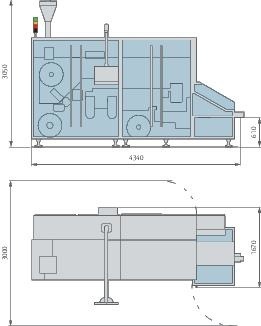

Based on a modular structure the CT11 encompasses the highest level of currently available technology in a complete line boasting an exceptionally reduced foot-print even in its complete version including sealed outer envelope and cartoning stations. Responding to the latest no-plast market trends, the new machine is able to handle compostable and/or recyclable packaging materials, from filter material to paper cardboard.

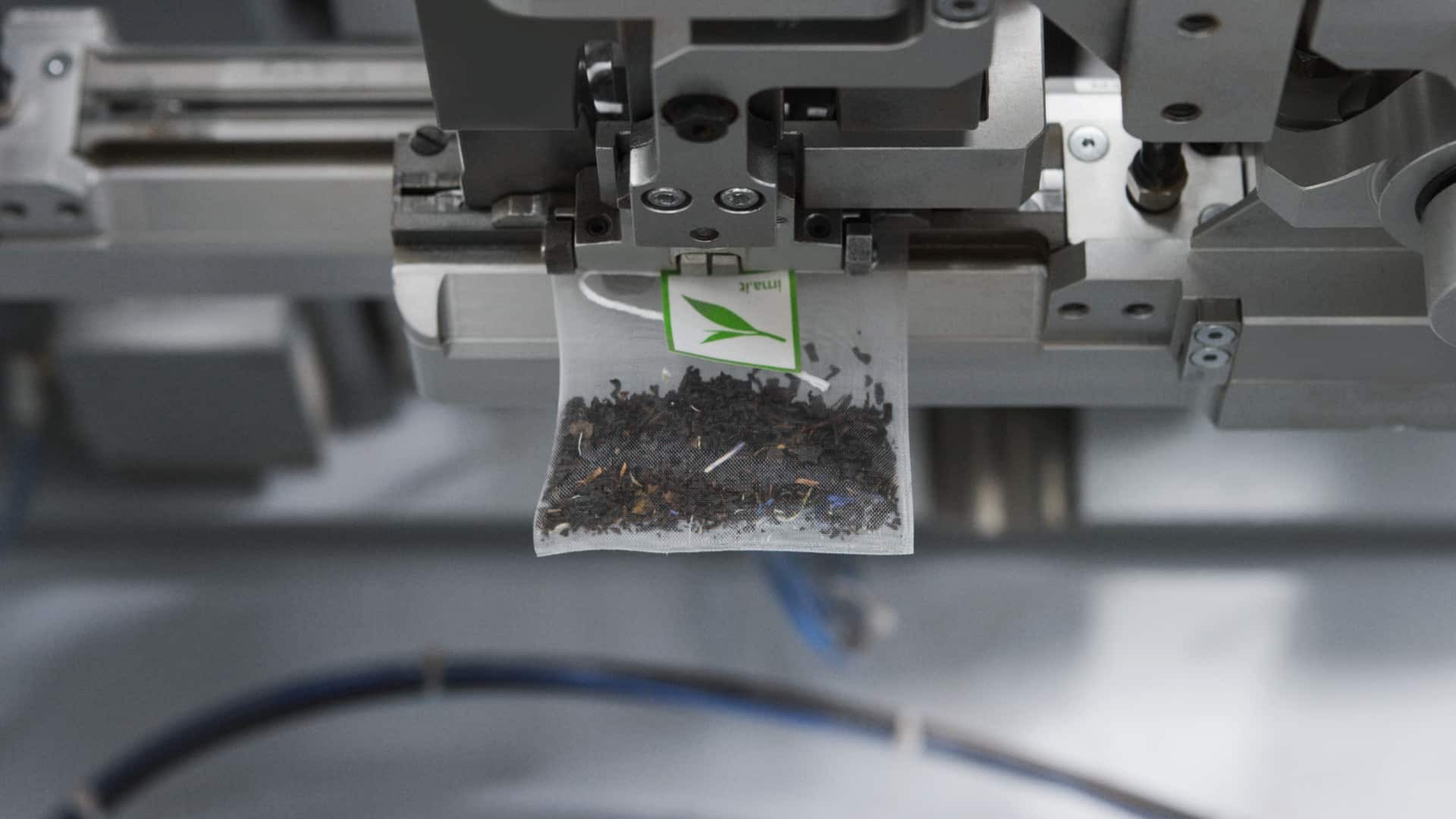

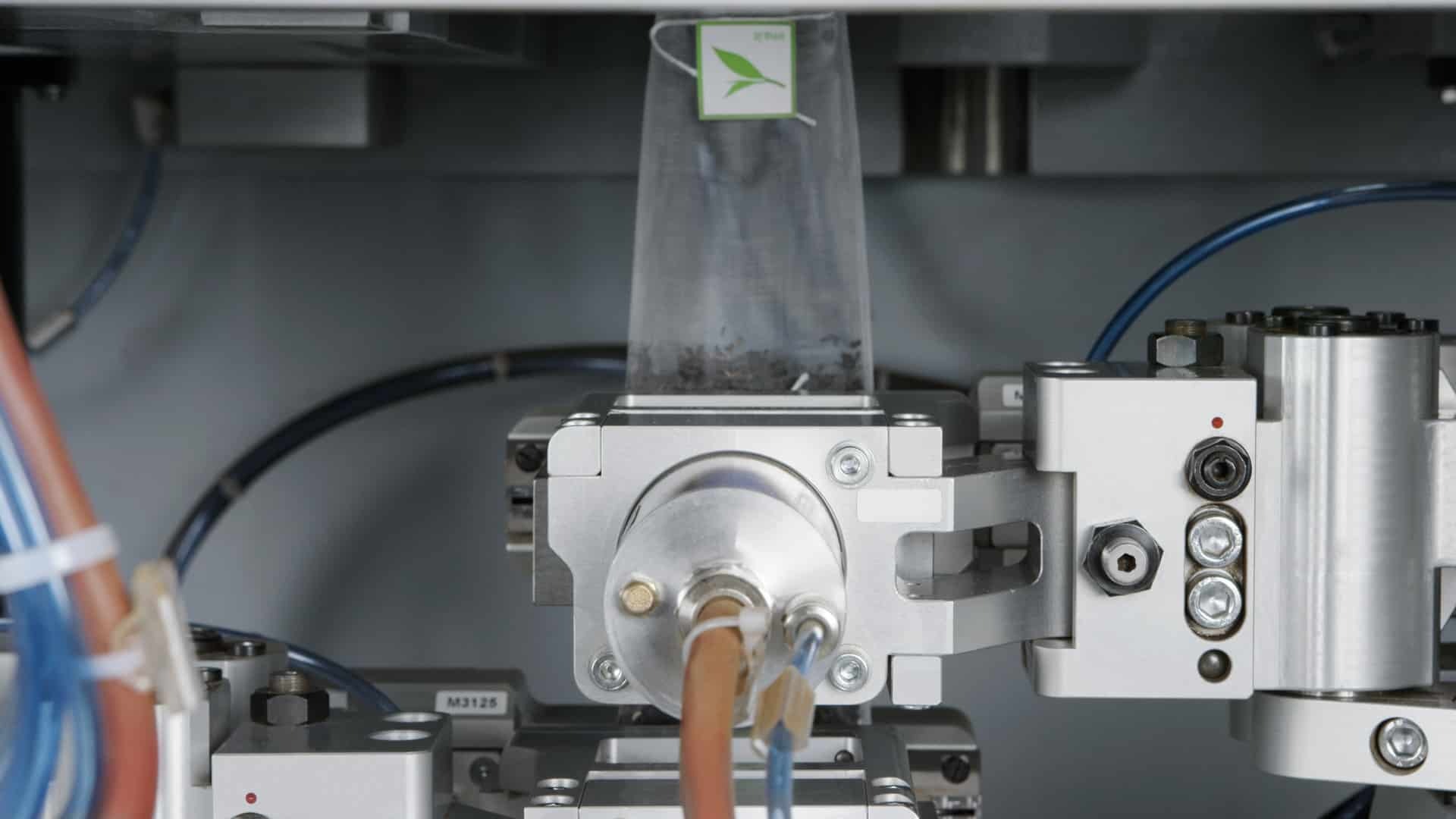

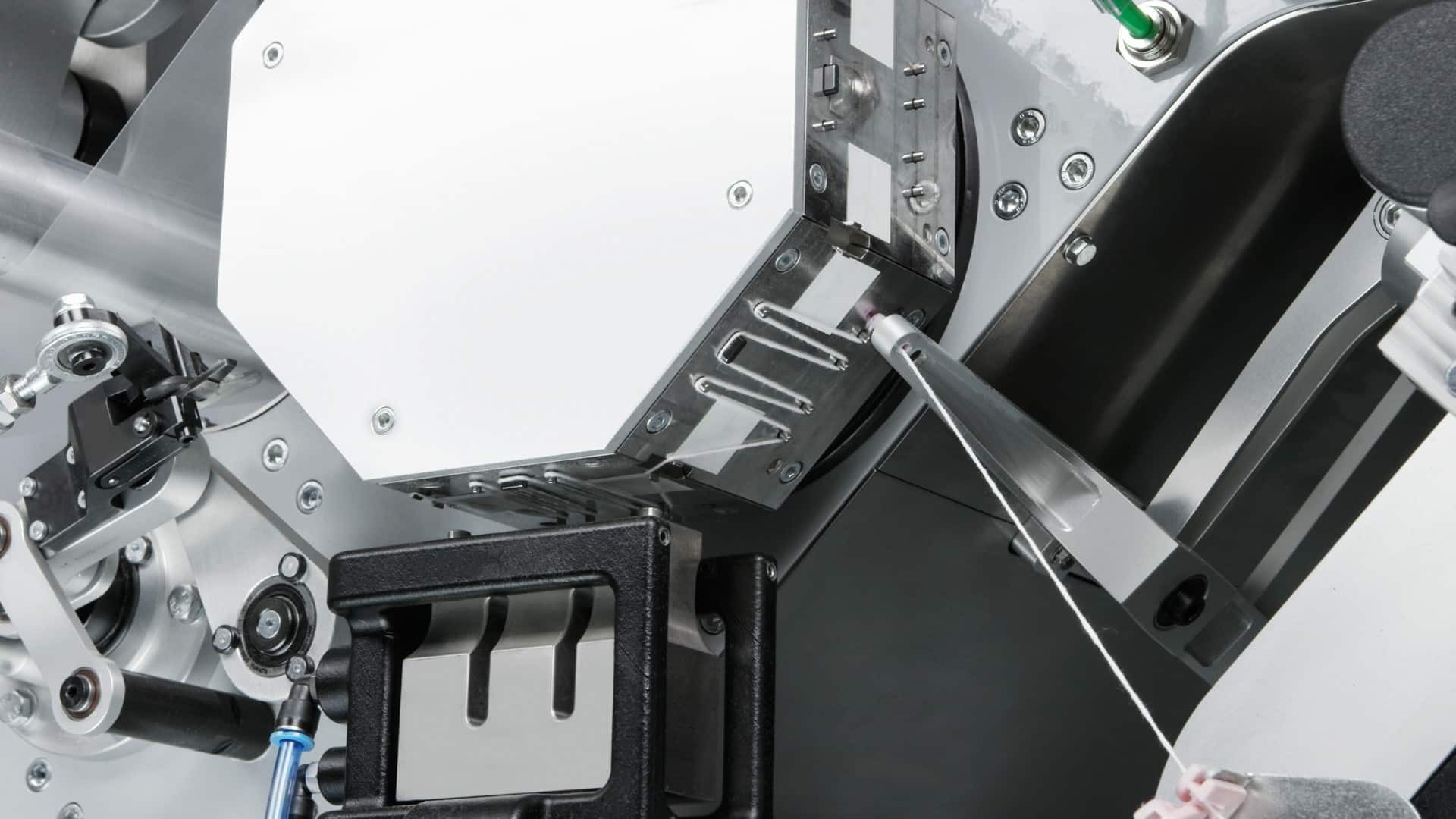

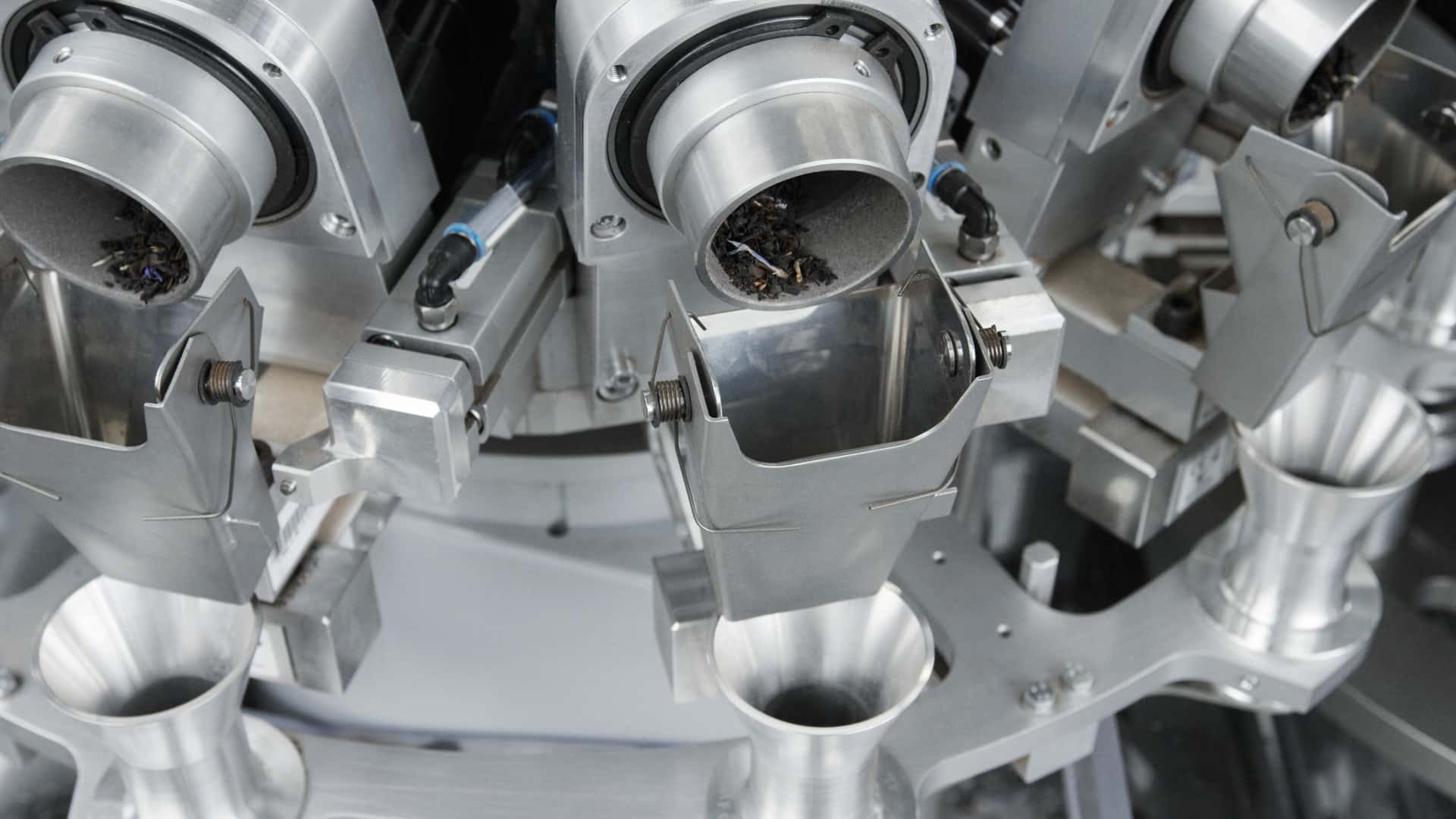

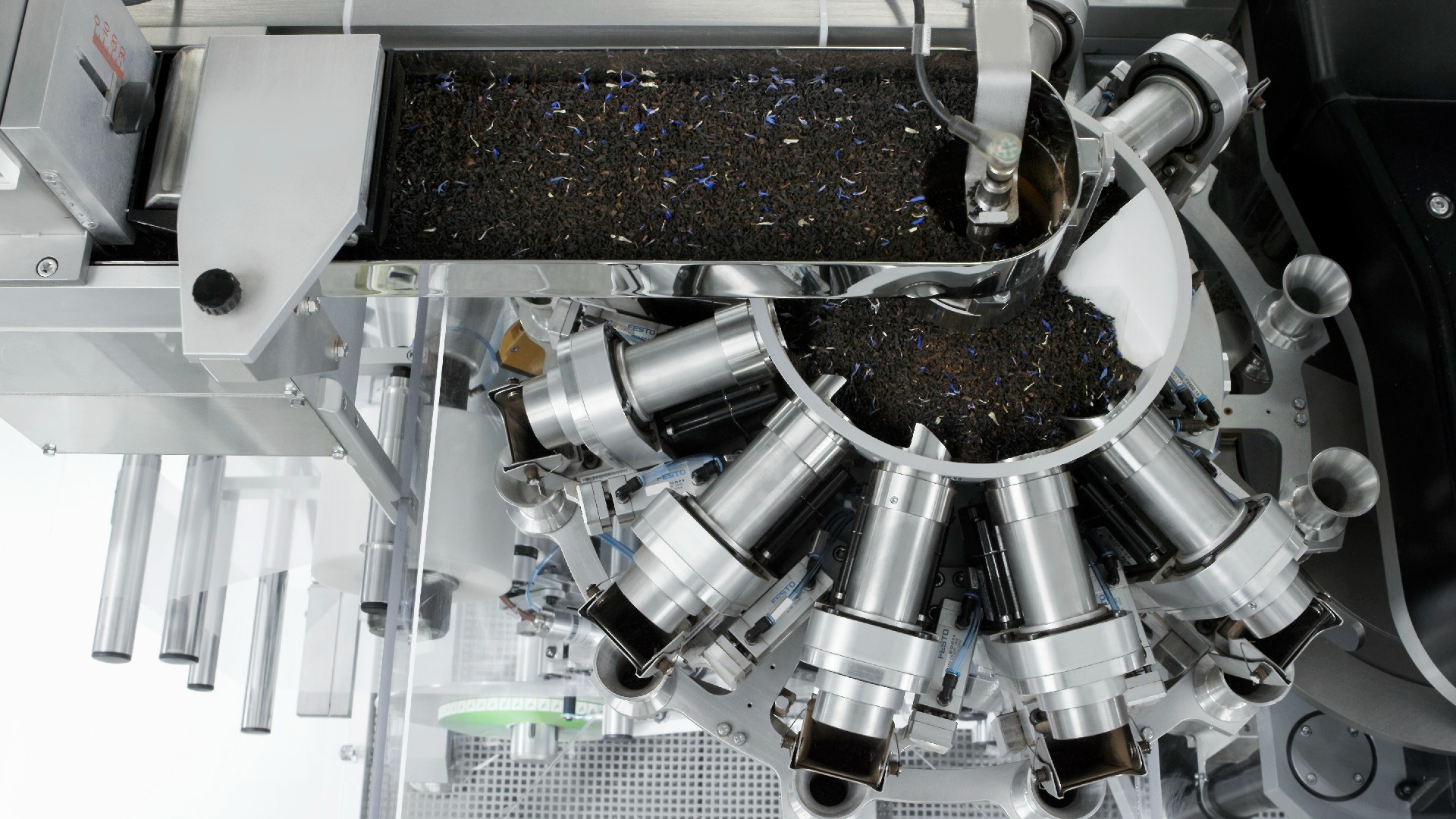

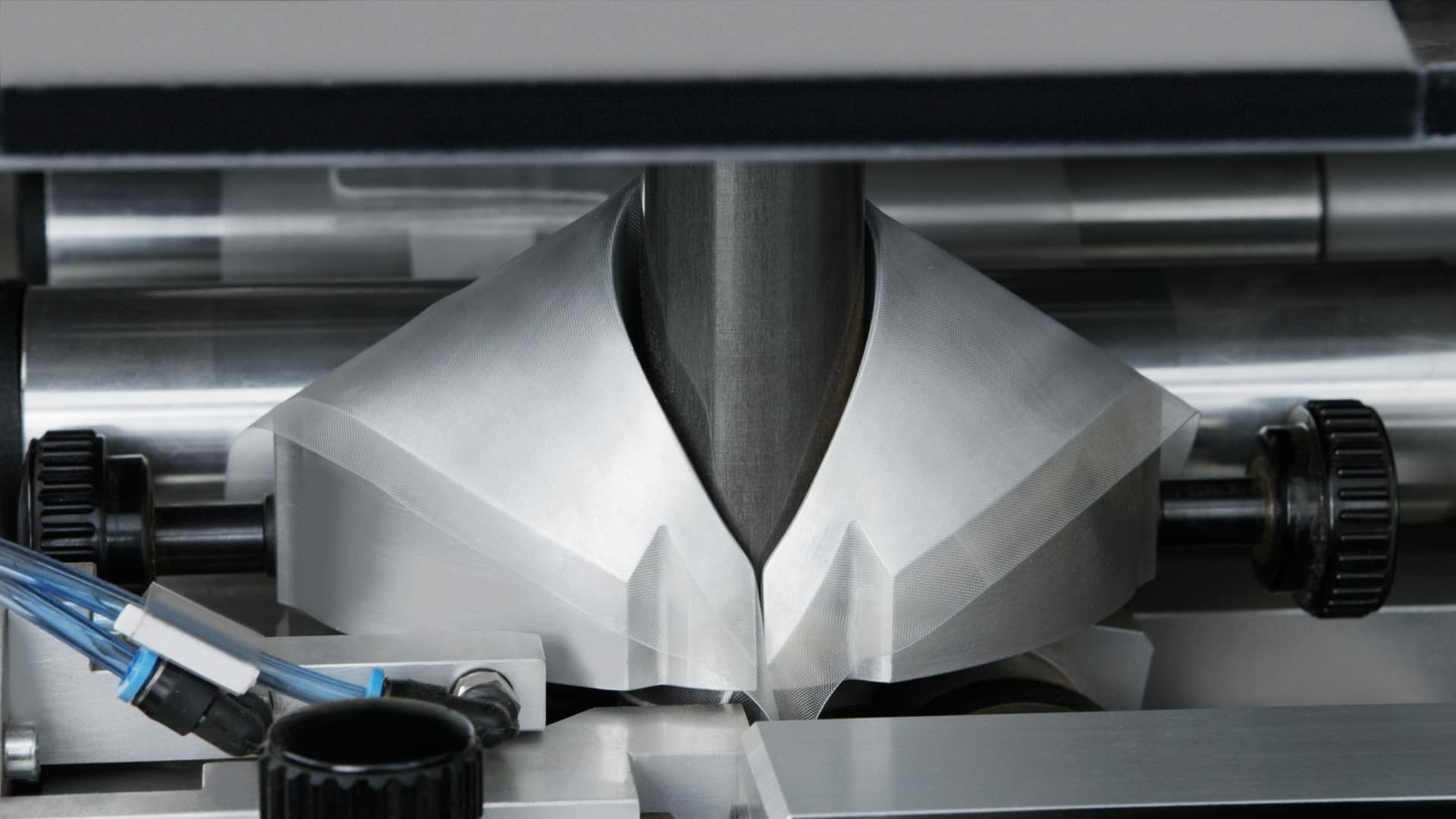

The production cycle of the CT11 filter bag has been specifically designed with the precise aim of following the forming of each single bag, phase by phase, beginning with the use of individual packaging material reels such as tag, filter material and cotton thread, resulting in a very linear structure for easy accessibility. Starting from the forming of the filter bag material tube complete with tag and cotton thread and passing through a first transversal sealing & cutting station, a subsequent filling one and to end with, through a second sealing & cutting operation, each filter bag takes shape step by step and is ready to be processed in the next packaging station.

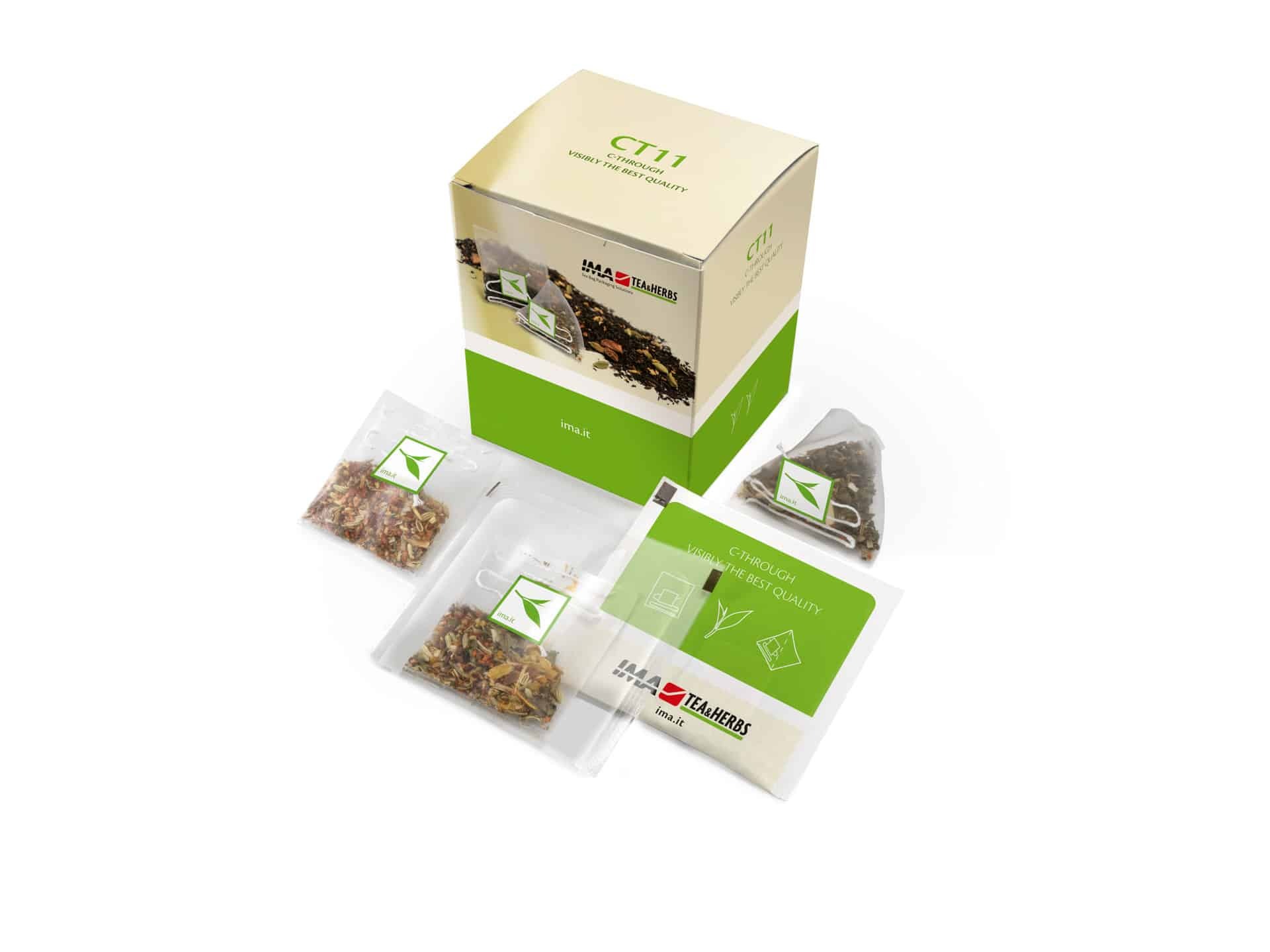

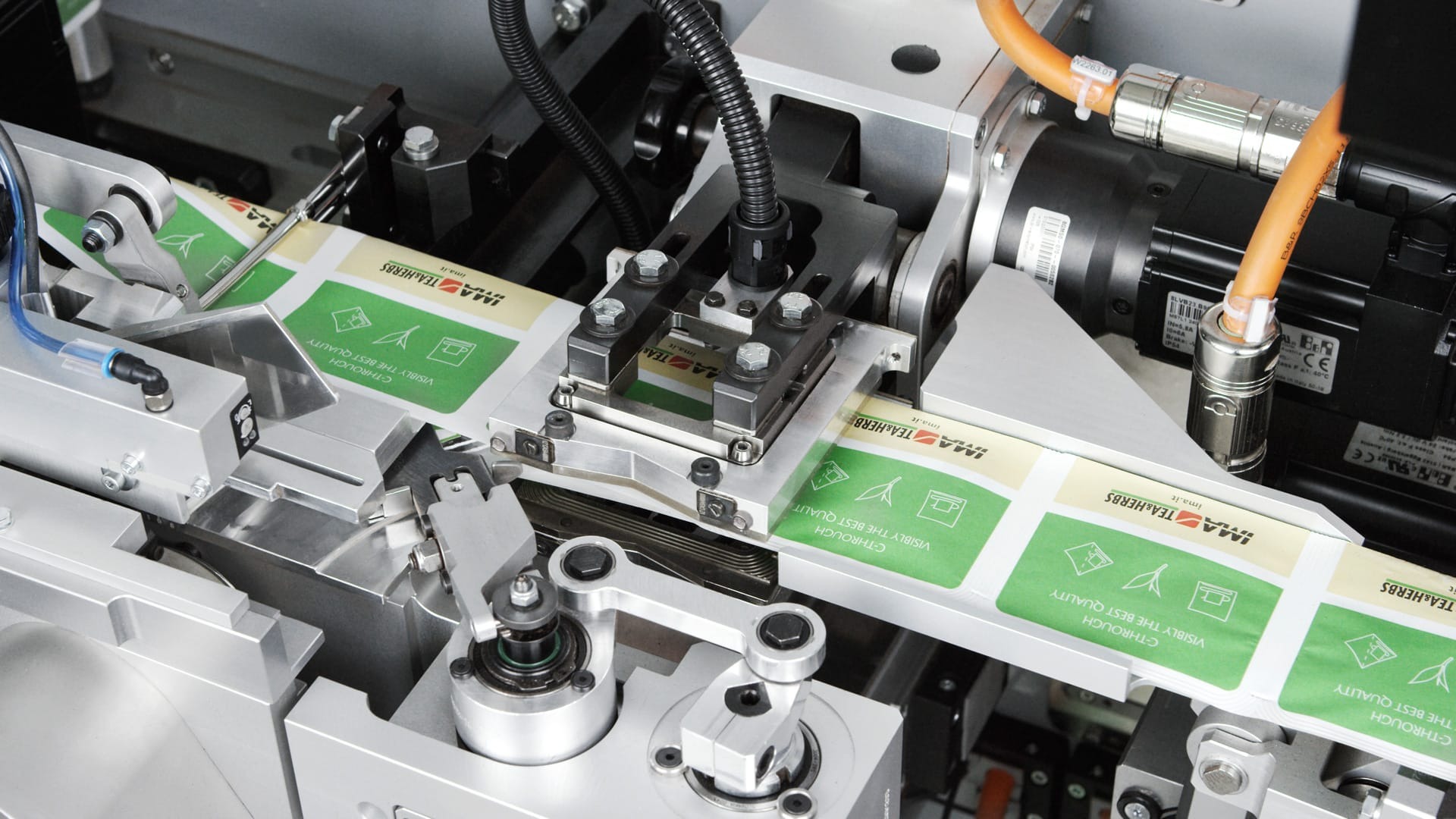

The unique modular structure of the CT11 allows the integration of a compact outer envelope sealing unit available for either tetrahedral or pillow bags and guaranteeing maximum protection against oxidisation. The enevelope sealing profile is continuous and performed on a single station.

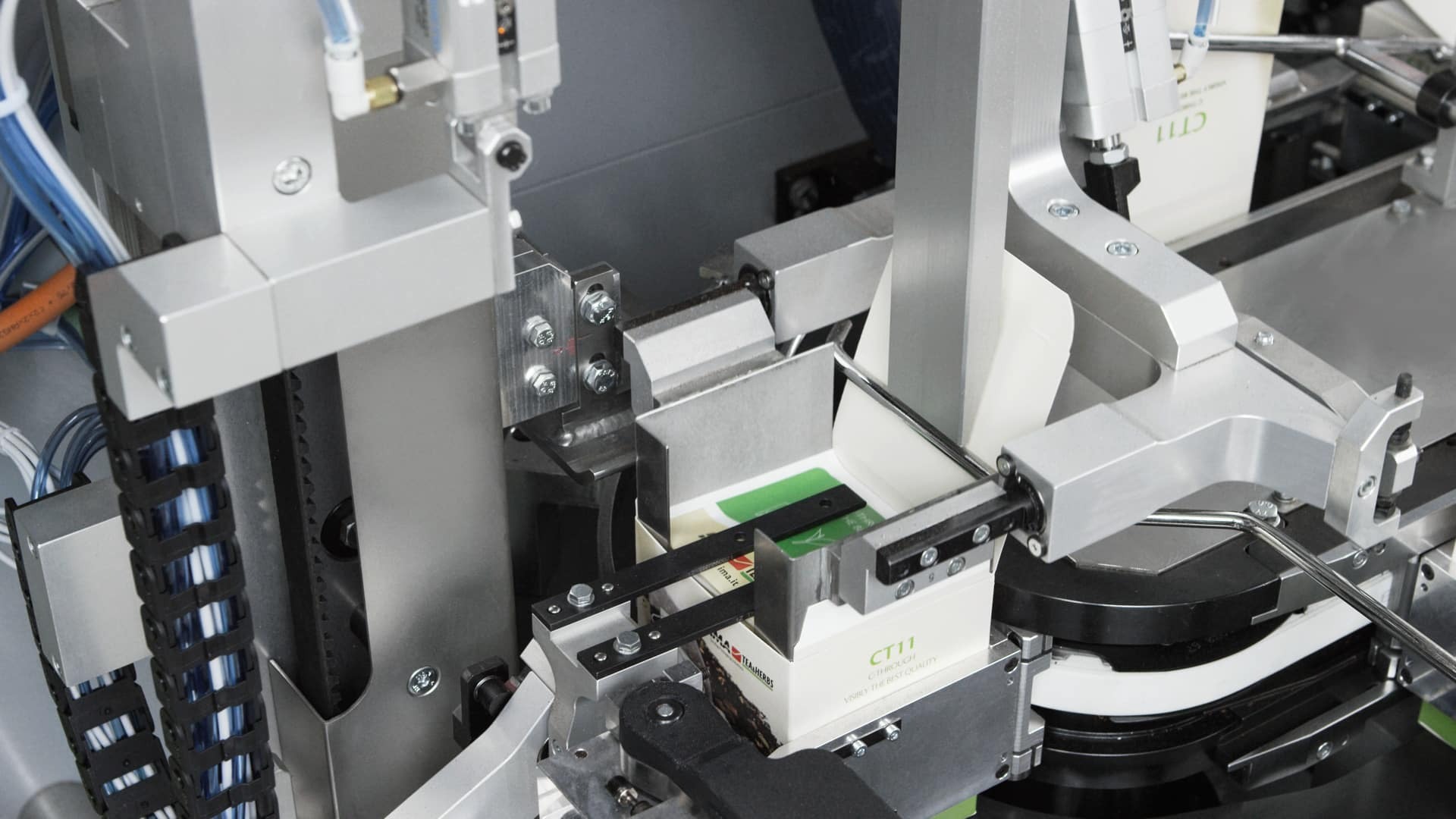

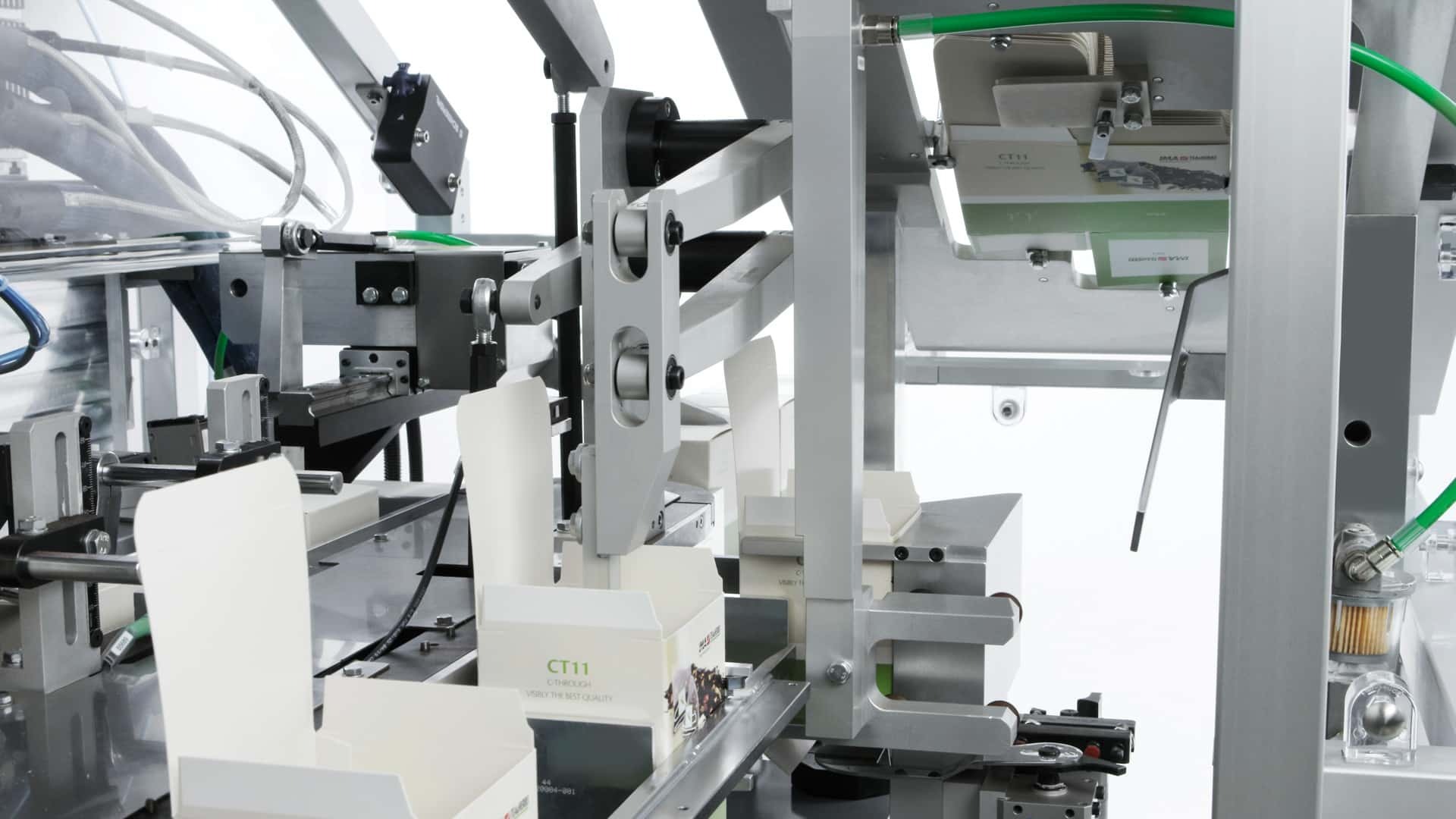

The cartoning attachment fitted on the CT11 machine allows the packaging of cartons from a minimum of 10 to a maximum of 25 bags. The cartoning attachment automatically forms the cartons, fills them with a pre-determined quantity of bags and finally closes them. Its versatility allows the packaging of enveloped bags stacked either vertically or horizontally according to the marketing needs.
