CPV15 Series Case Packing
Machine overview
Products case packed to perfection
Maximum attention to ergonomics is a hallmark of this case packer.
In order to be as operator-friendly as possible, the case erecting mechanism is designed to ensure low positioning of the horizontal case magazine, which also ensures increased autonomy. Machine parts can be reached without operators needing to move from one side of the machine to the other.
The infeed system is equipped with worm screws (for loose products) for the correct orientation of the containers and a comb which moves sideways to collate the products.

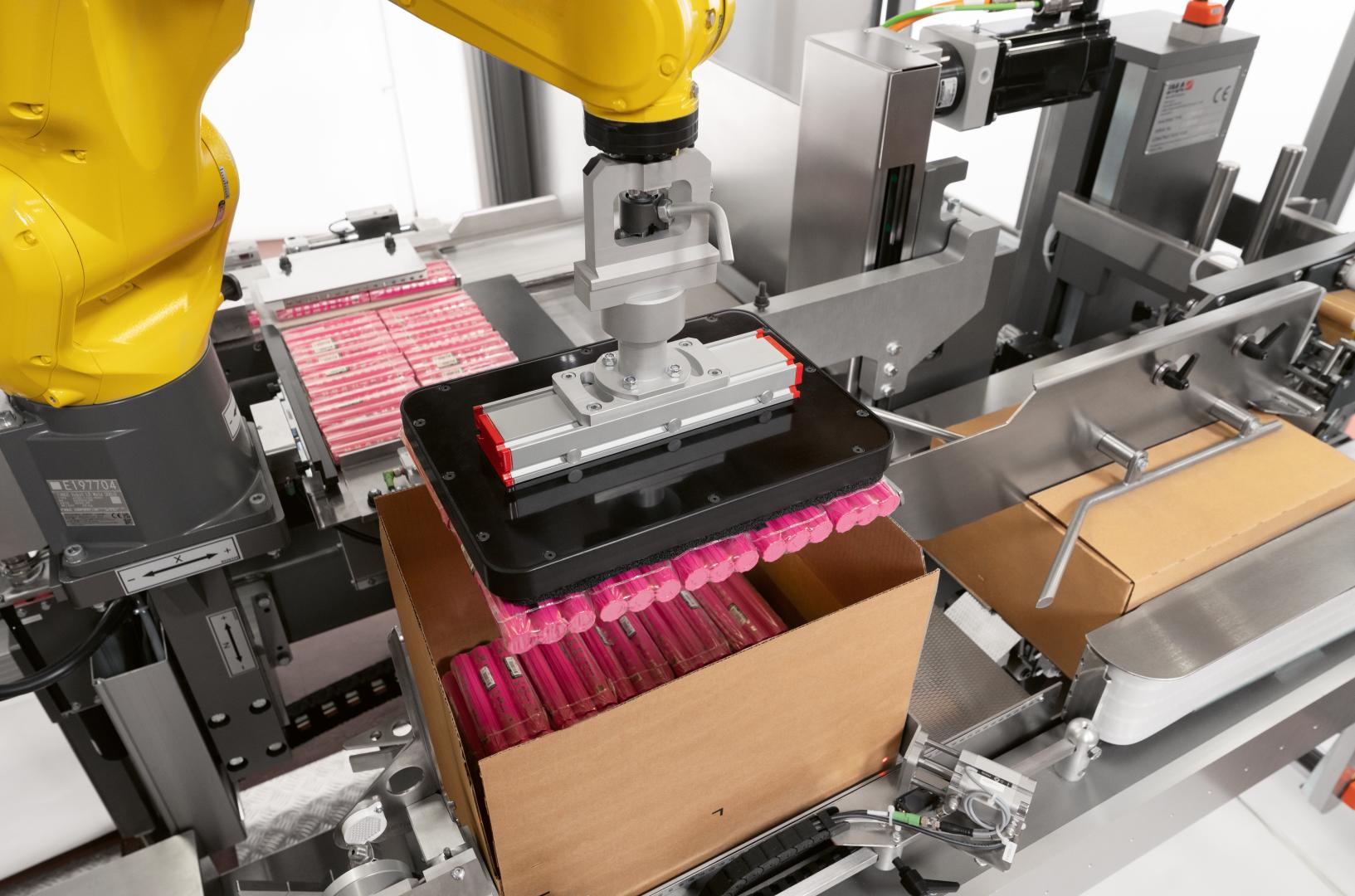

Equipped as standard, the CPV15 features a 2-axis robot to insert the collation into the case.
Production plant
IMA BFB
Machine highlights
-
Ergonomic design

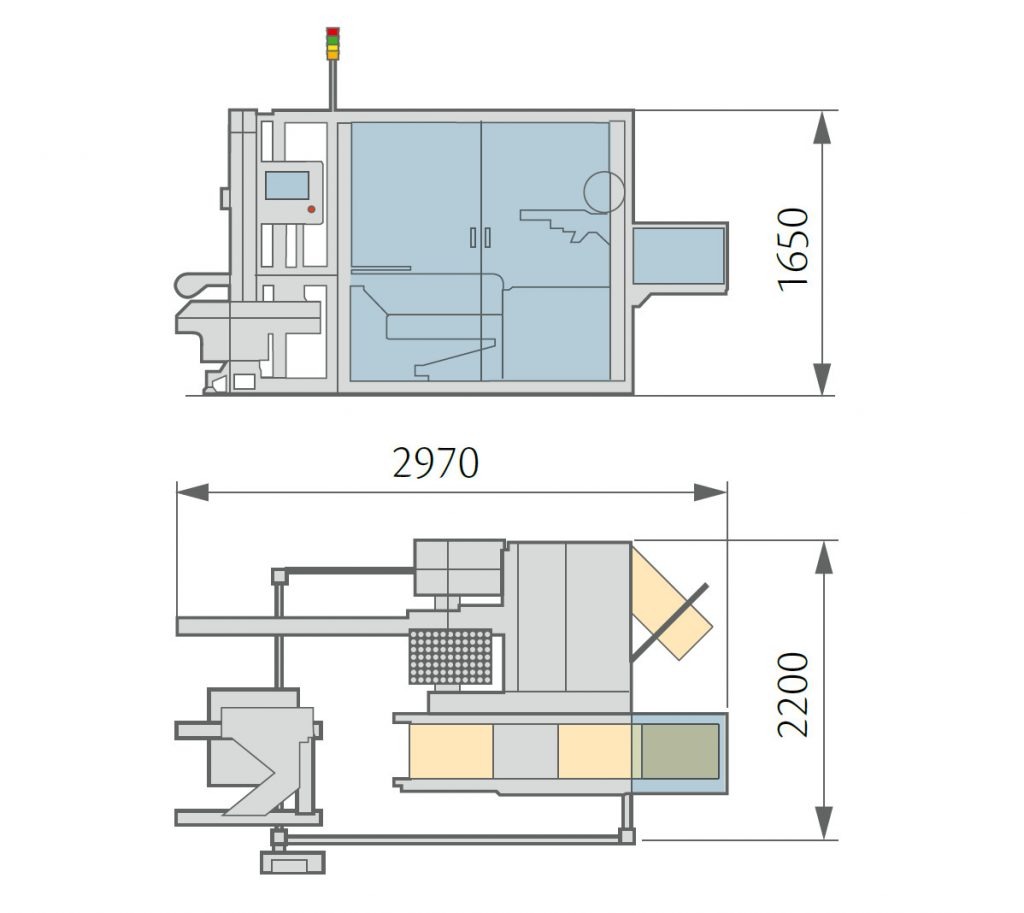

Cantilever design, compact footprint. Great emphasis has been given to machine accessibility, easy cleaning and ergonomic position of all components.
-
Wide range of products
Servo technology and innovative solutions allow the smooth handling cartons or difficult and unusually shaped products: bottles, bags, tubes.
-
Servo technology
Entirely driven by servo-motors which means dedicated strokes and motions for each specific application.
-
Case loading and feeding

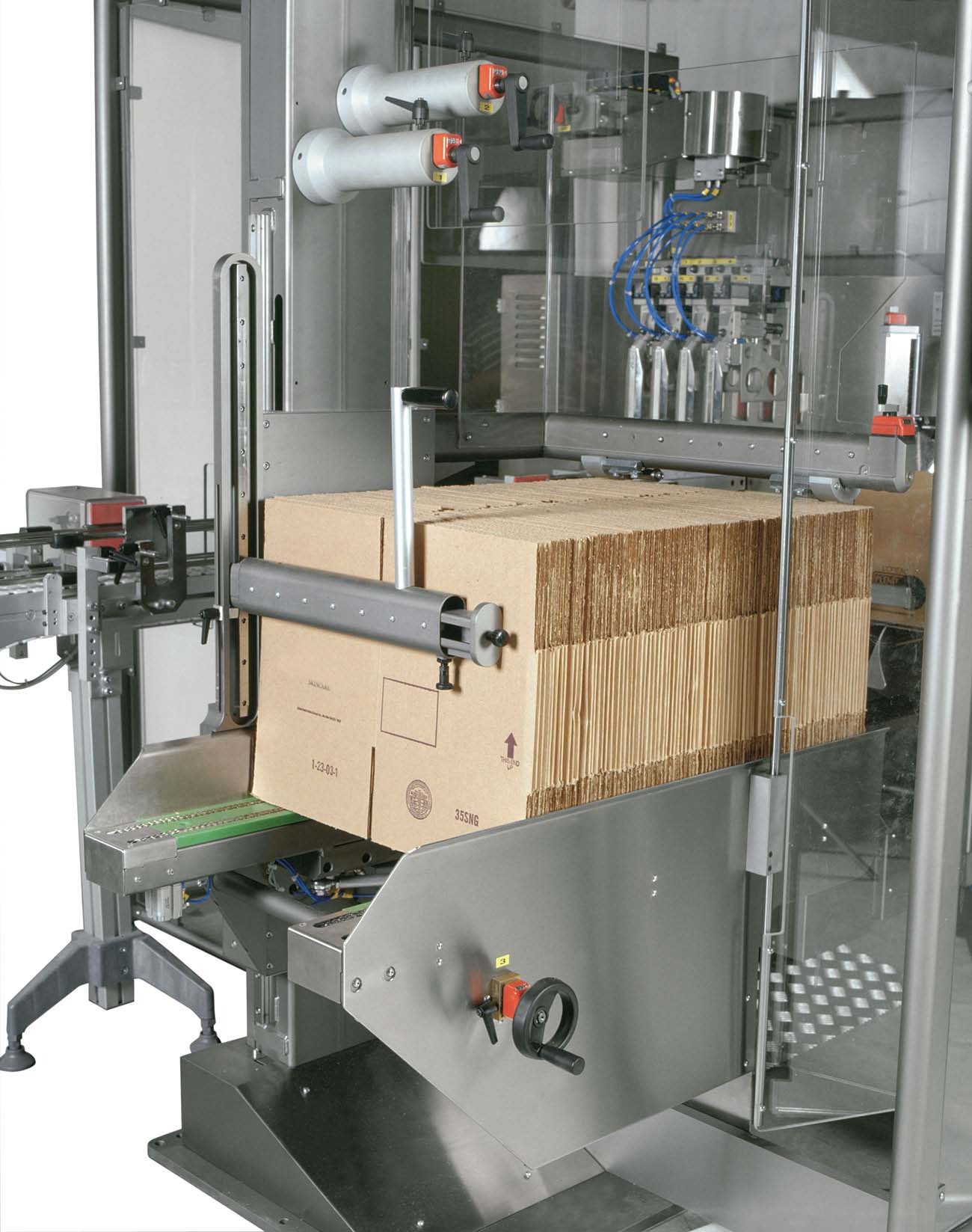

The horizontal magazine allows good accessibility for easy loading. Cases feeding to the picking area is ensured by bottom driven toothed belts.
-
Accurate case forming

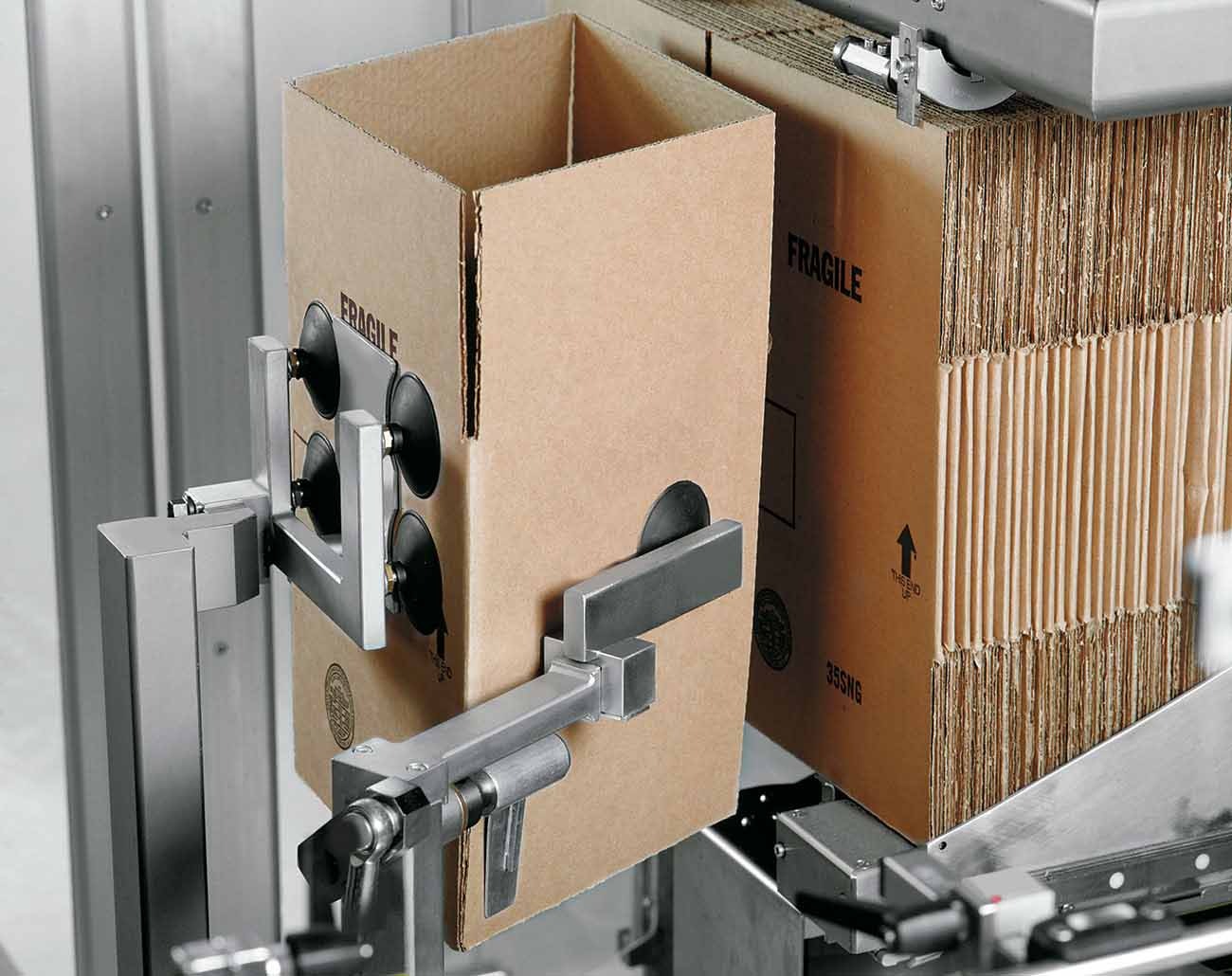

Forced opening of the case carried out by means of two arms equipped with suction cups keeping the case erect during product insertion for reliable operations.
-
Product collation

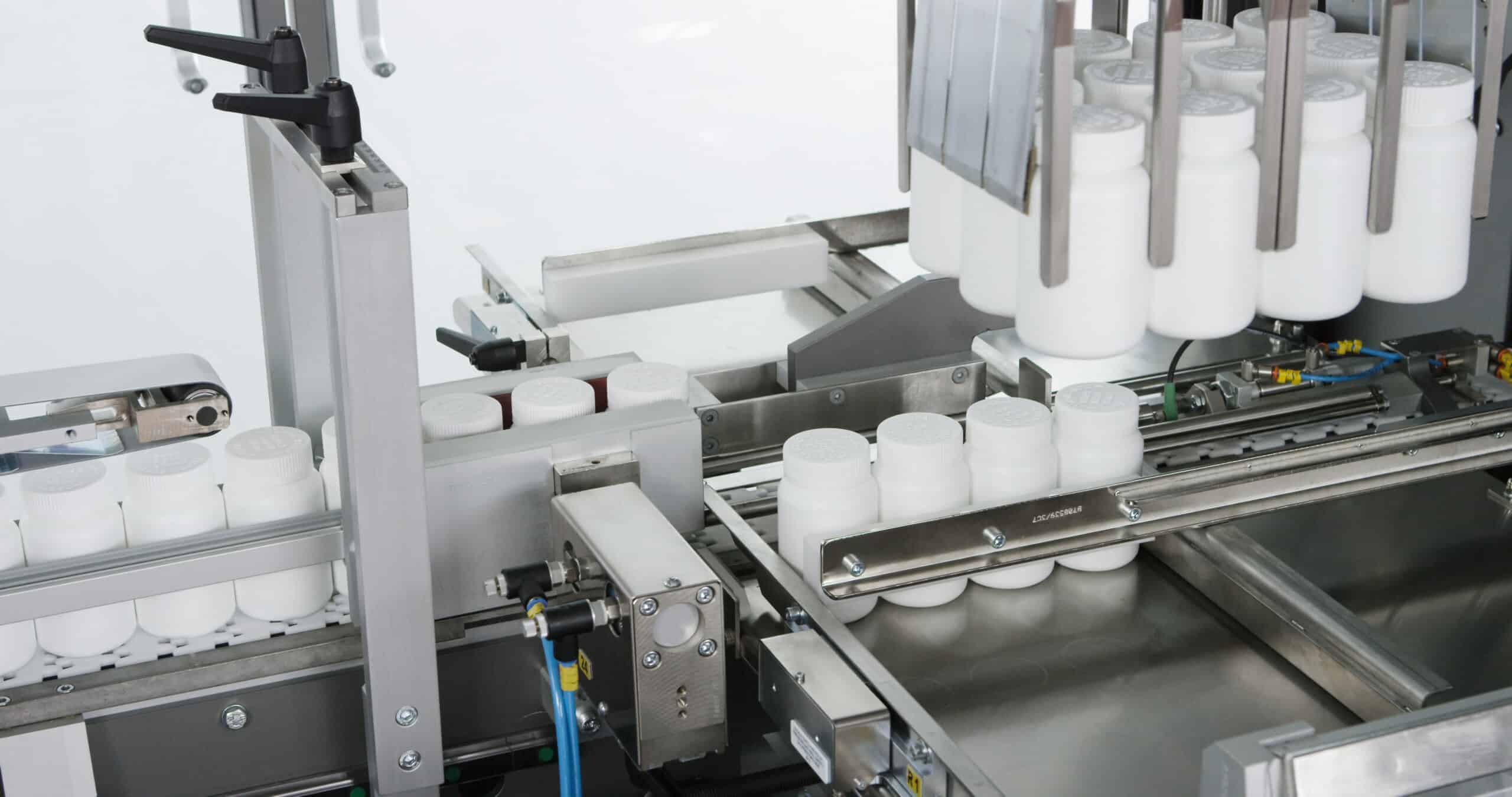

Different servo driven collation methods are available according to the kind of product to be handled even at high infeed speed.
-
Layer introduction

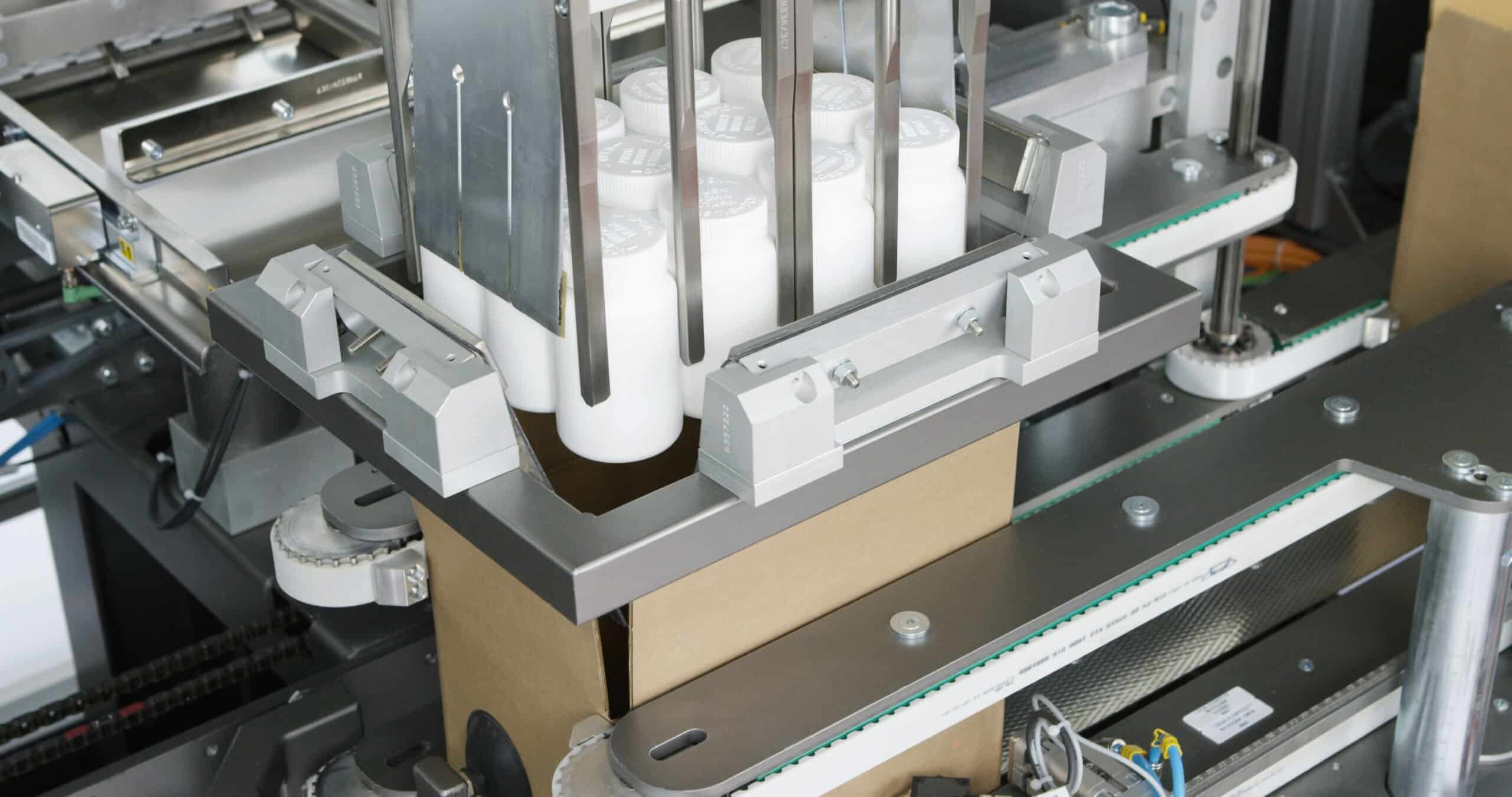

A driven movable hopper follows the products collation up into the case and ensures the correct layer introduction inside the case.
-
Palletizer integration
It can be integrated with the new Palletizers: RP2, with two pallet stations or RP4, with four pallet stations within a compact frame.
Machine details
Technical information

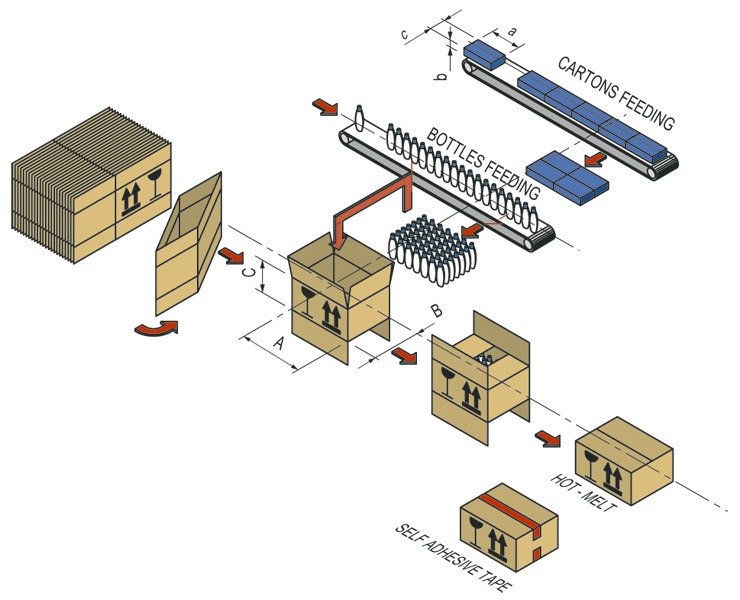

| CPV15 TECHNICAL DATA | ||||||||
| Product dimensions | A | B | C | |||||
| CPV15 | Min. | 190 | 80 | 100 | ||||
| Max. | 600 | 400 | 350 | |||||
| Max. speed | 15 | |||||||
Machine versions
CPV15-RP2
With automatic replacement of the full pallet and case buffering during pallet replacement or with two pallet stations; once one pallet is complete, the robot starts loading the second pallet
CPV15-RP4
With 4 pallet stations for greater autonomy. When the pallet is complete, the automatic transport moves the pallet to the exit area and replaces it with an empty one.
