CPH2 Series Case Packing

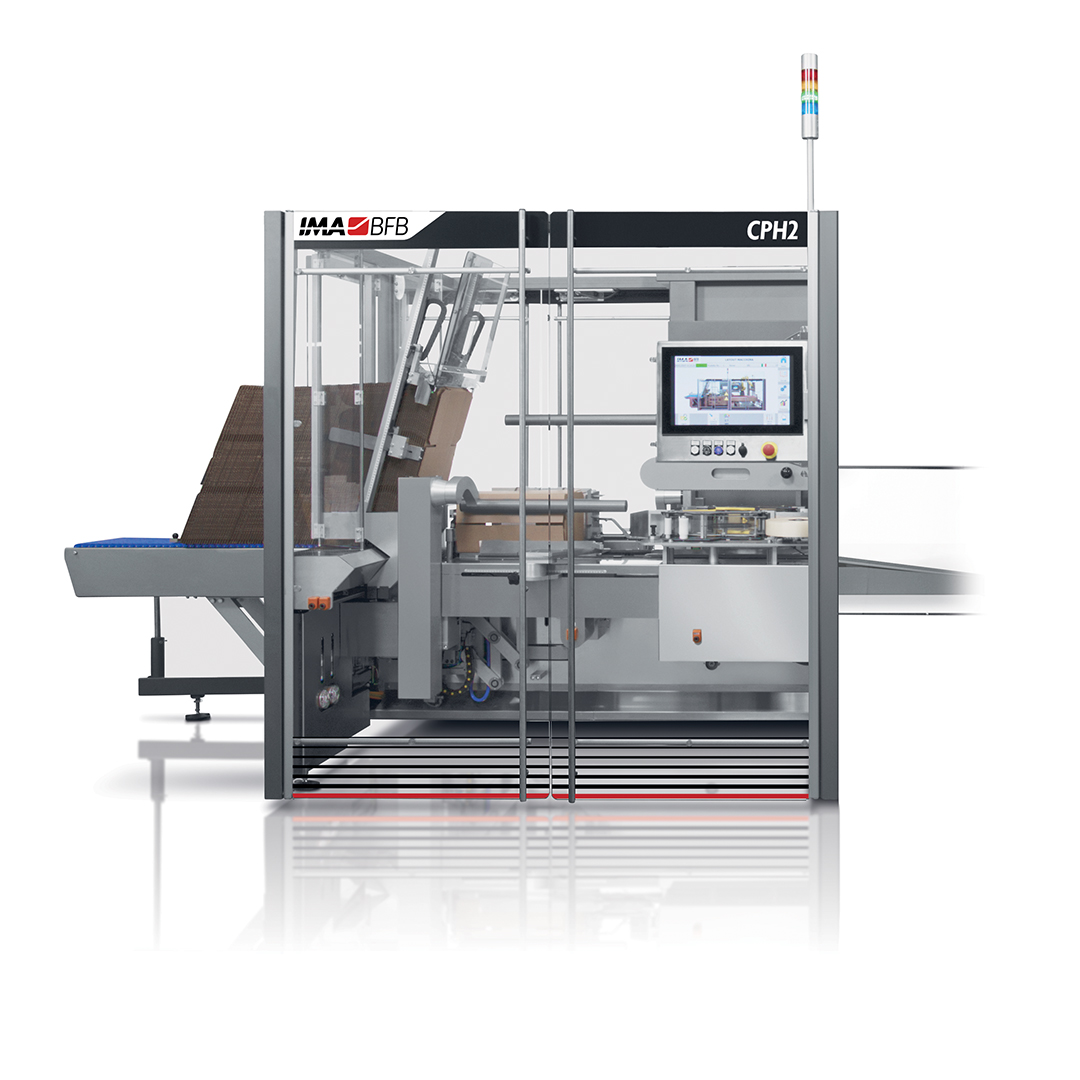

Machine overview
Fit for the future.
This fully automatic side-loading case packer runs at medium speeds and is designed to handle the widest range of products and materials used in the pharmaceutical industry, satisfying current and future requirements.
The machine has been built to maximize efficiency and ease of use in an increasingly demanding work place, to guarantee complete line clearance and to ensure total access to all modules.
The CPH2 also ensures total control throughout all stages of the serialization process. Flexibility, maximum efficiency, total access and total control make CPH2 a new-generation case packer.
Production plant
IMA BFB
Machine highlights
-
Case handling

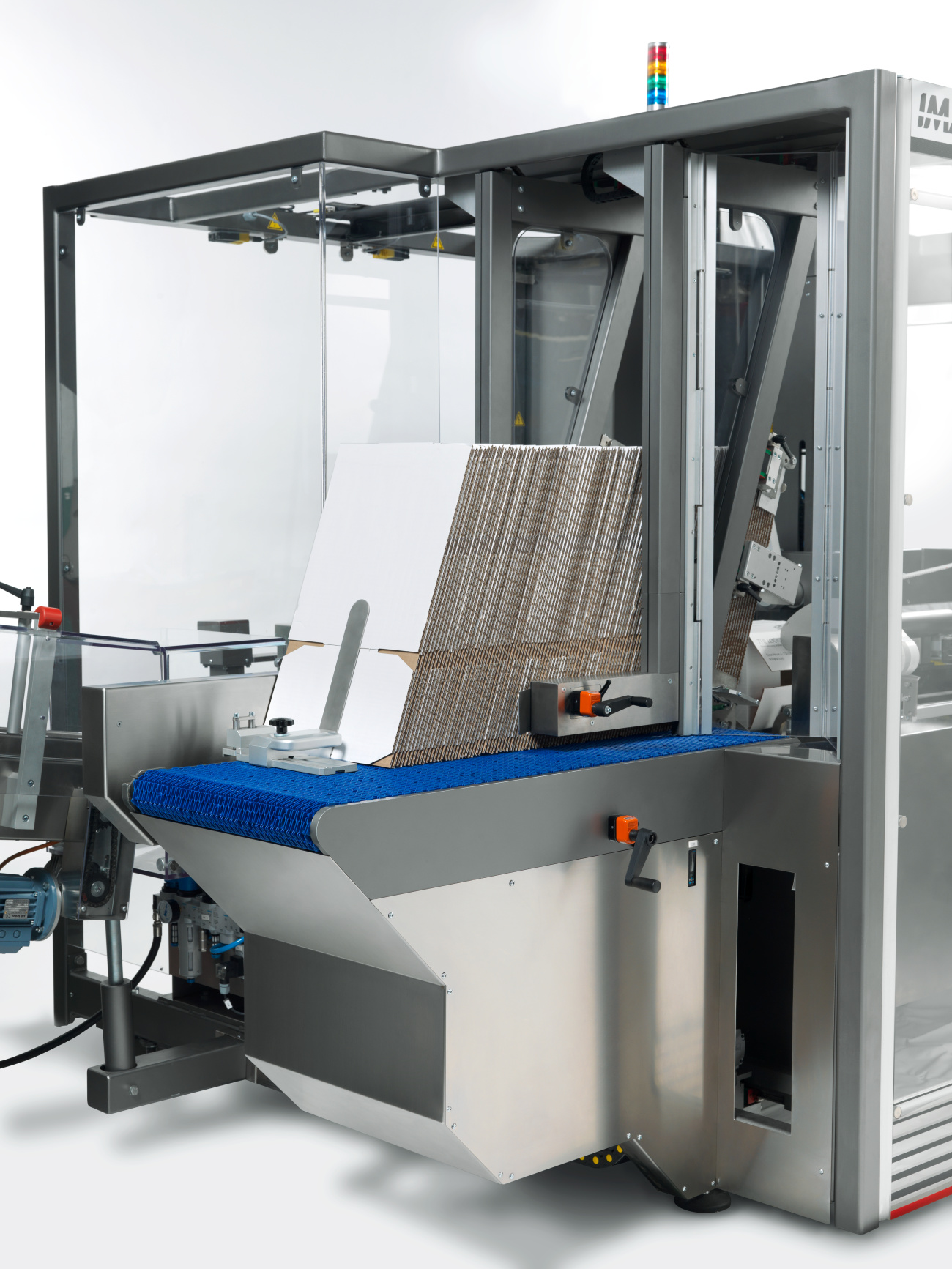

The new 830 mm tall case magazine ensures easy case loading. Correct case feeding to the picking area is guaranteed by a bottom-driven belt.
-
Easy operator access
Designed to ensure total access to all machine modules, all machine parts can be reached from the operator’s side.
-
Reliable operations

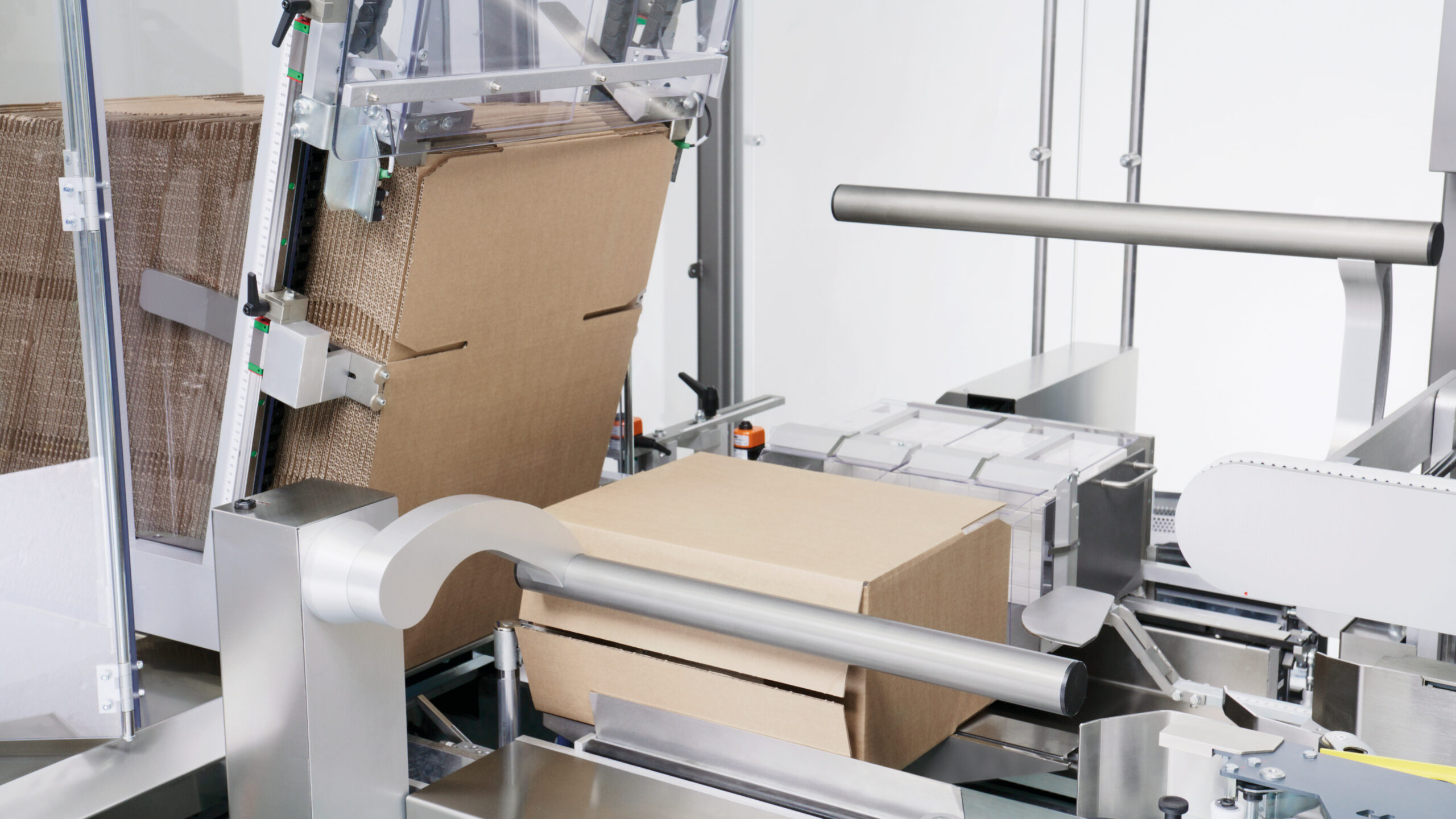

Forced case opening performed by two arms allows reliable operations, even in the case of square shippers or low quality material.
-
Secure case content

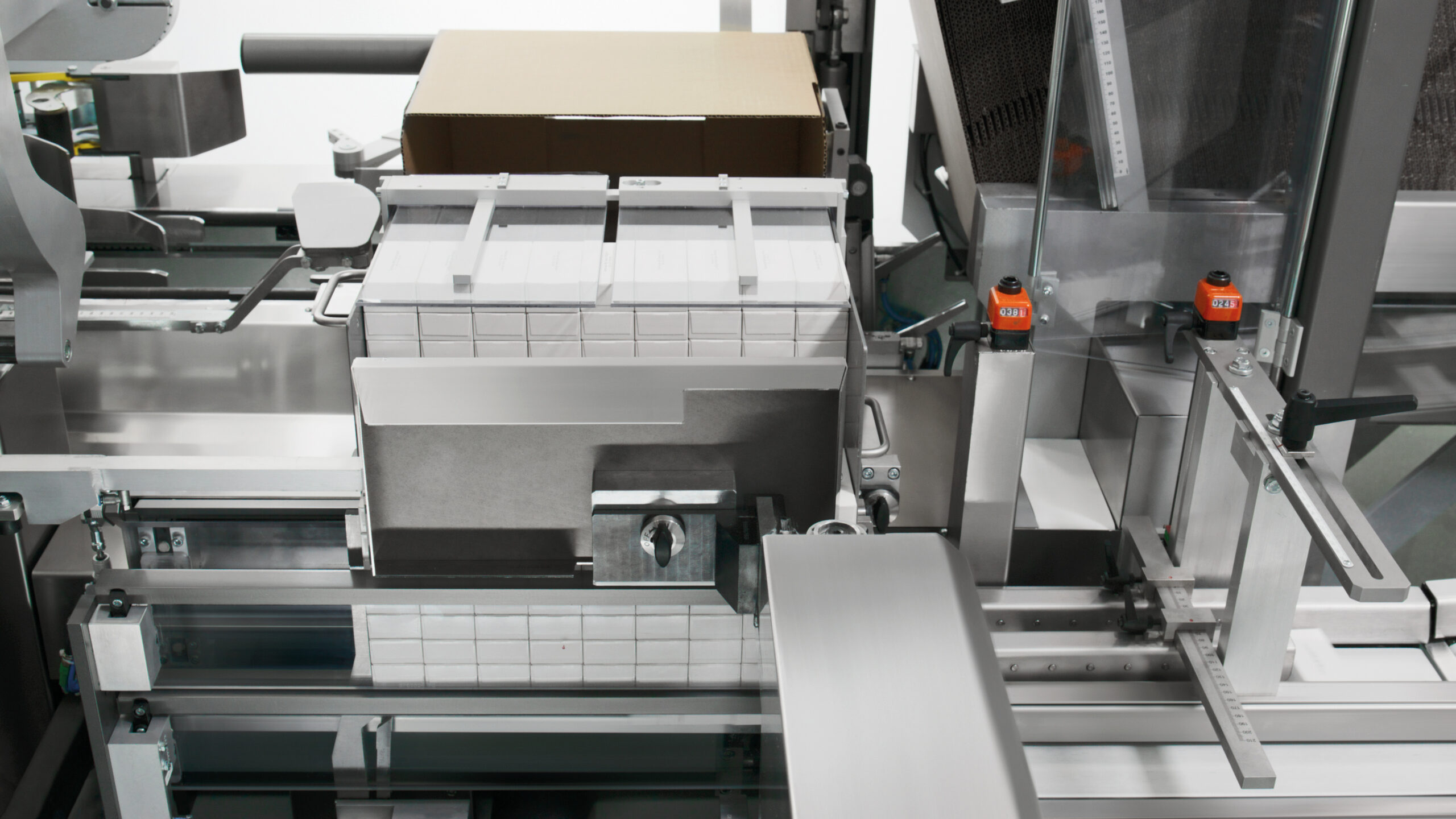

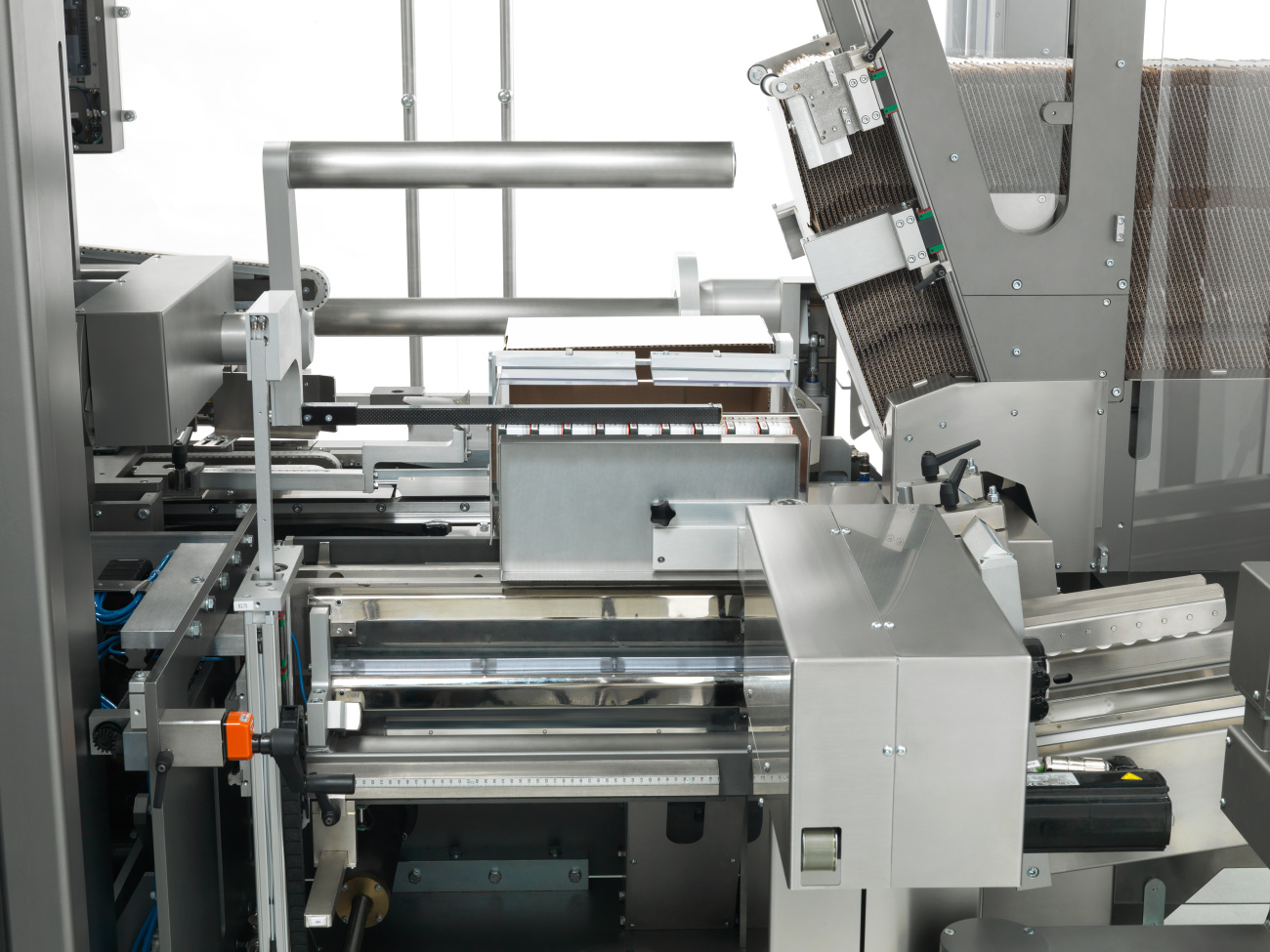

A servo-driven movable hopper follows carton collation up into the case and guarantees security of case content.
-
Fast size changeover
Quick tool-free size changeover with limited adjustments. Fast release system by means of clip switches (on/off): no parts need to be unscrewed with keys.
Aggregation module

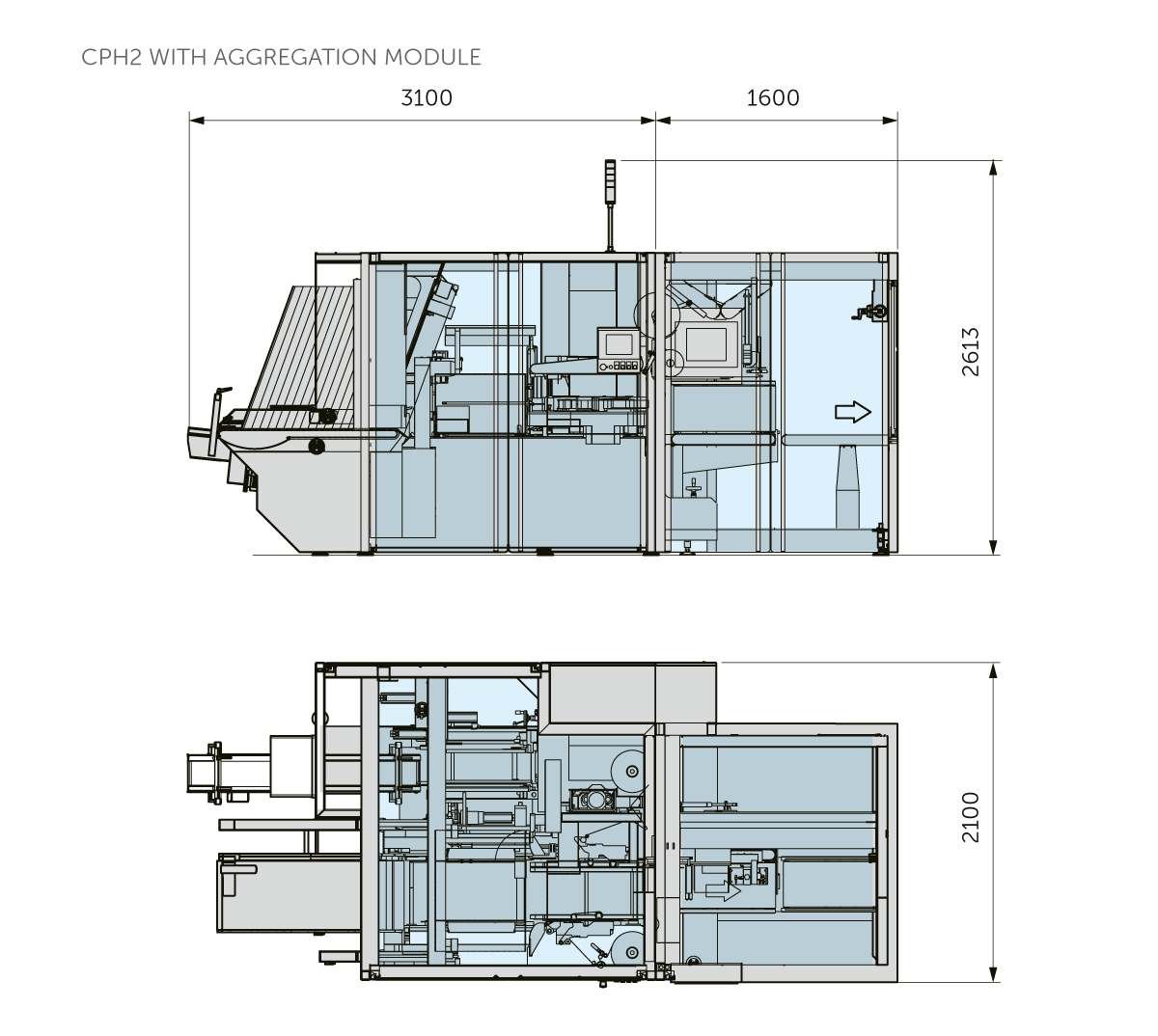

The overall minimal footprint and the cantilever design for improved accessibility ensure total control throughout all stages of the serialization process. The machine can be equipped with a compact module housing labelling units and cameras for aggregation purposes.

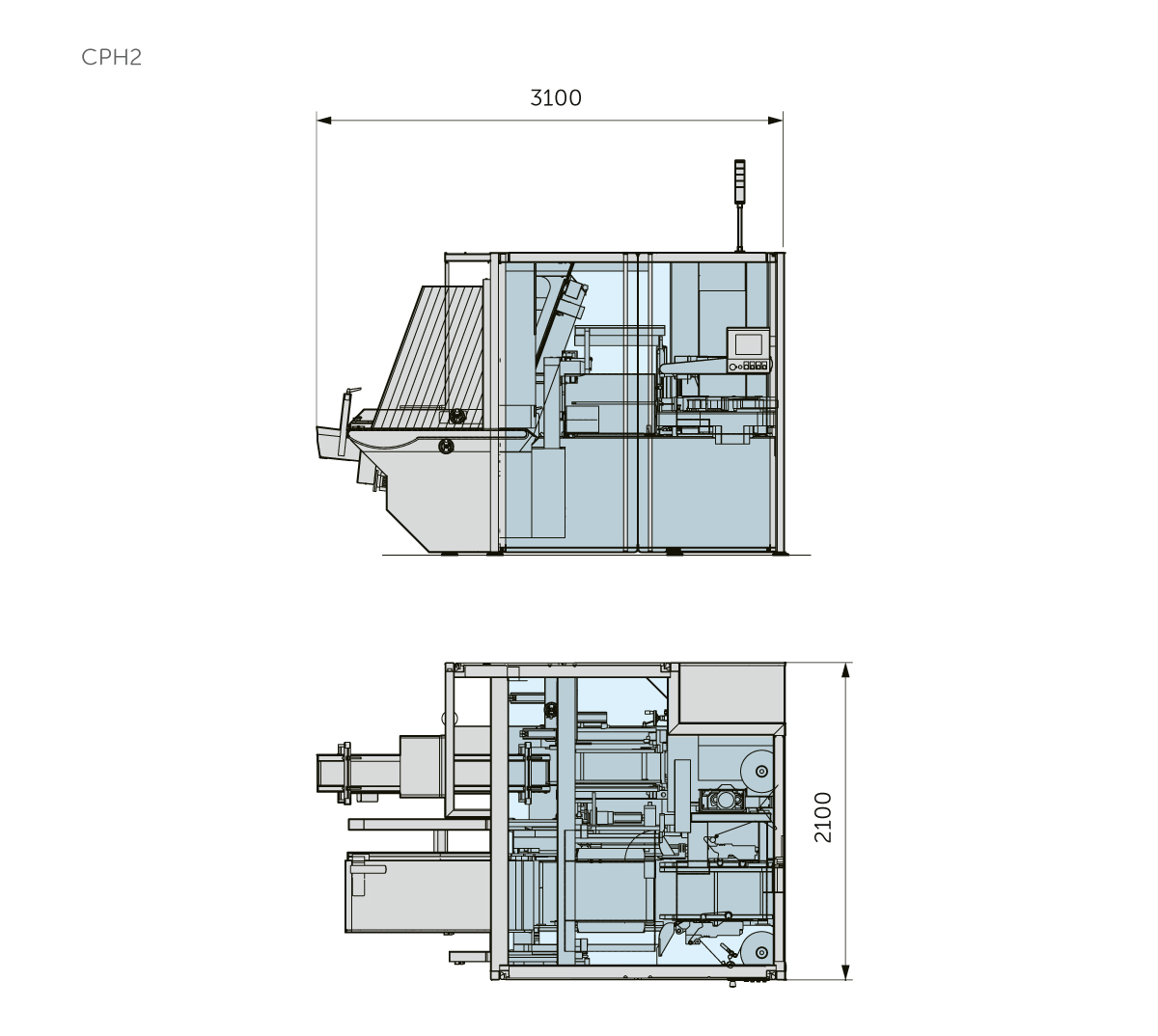

Machine details
Technical information
| CPH2 TECHNICAL DATA | |||
| Case dimensions | A | B | C |
| Min. (mm) | 220 | 100 | 90 |
| Max. (mm) | 600 | 400 | 400 |
| Product dimensions | a | b | c |
| Min. (mm) | 25 | 22 | 60 |
| Max. (mm) | 590 | 70/150 | 220 |
| Speed | 10 cases/min. | ||

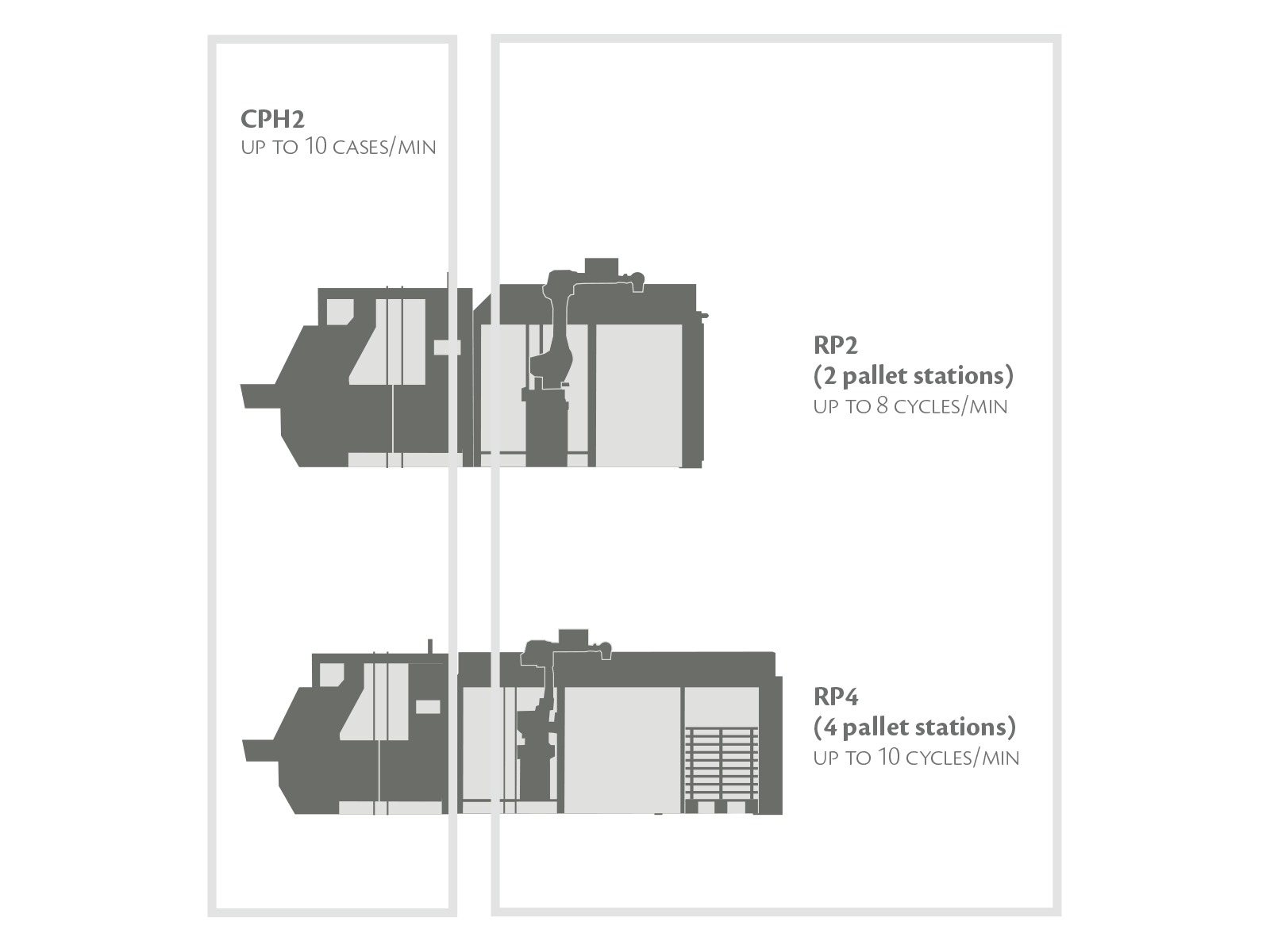

Machine versions
Case Packer
Palletizer-integrated versions
CPH2 is available in different palletizer-integrated versions, according to the output required:
CPH2-RP2: With automatic replacement of the full pallet and case buffering during pallet replacement or with two pallet stations; once one pallet is complete, the robot starts loading the second pallet

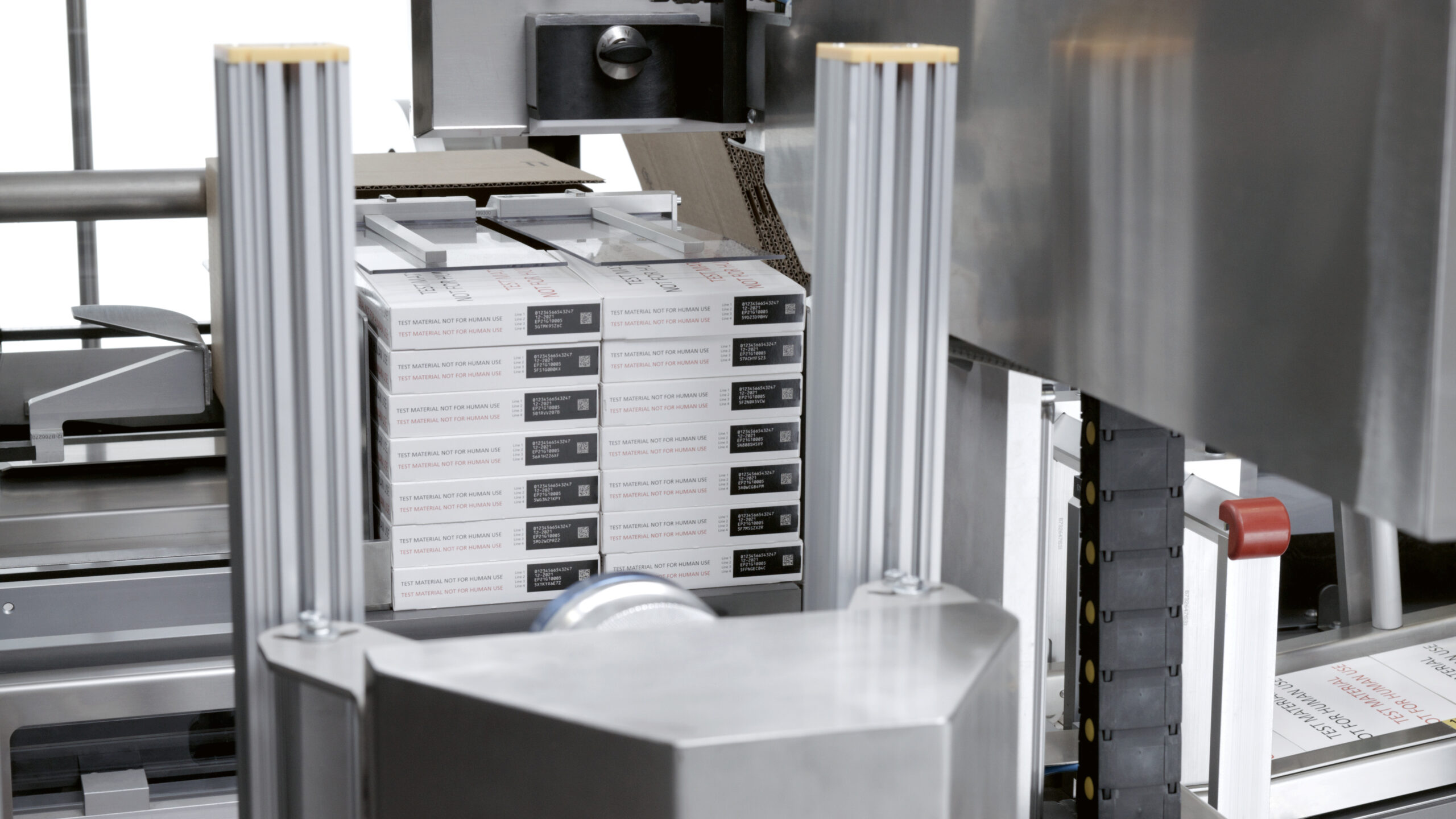

CPH2-RP4: With 4 pallet stations for greater autonomy. When the pallet is complete, the automatic transport moves the pallet to the exit area and replaces it with an empty one.
