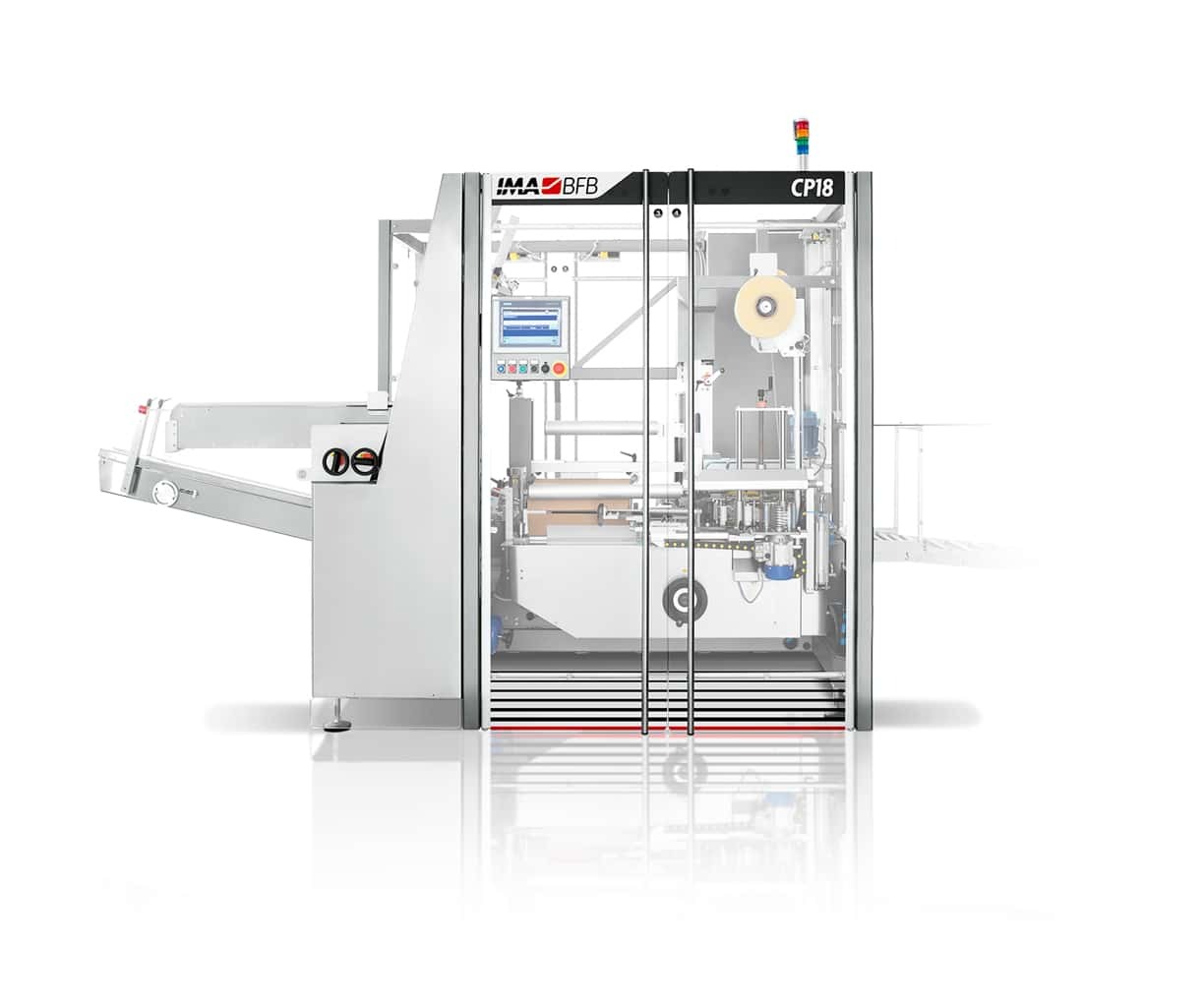

CP Series Case Packing

Machine overview

Quality case packing with palletizing option: we make it simple.

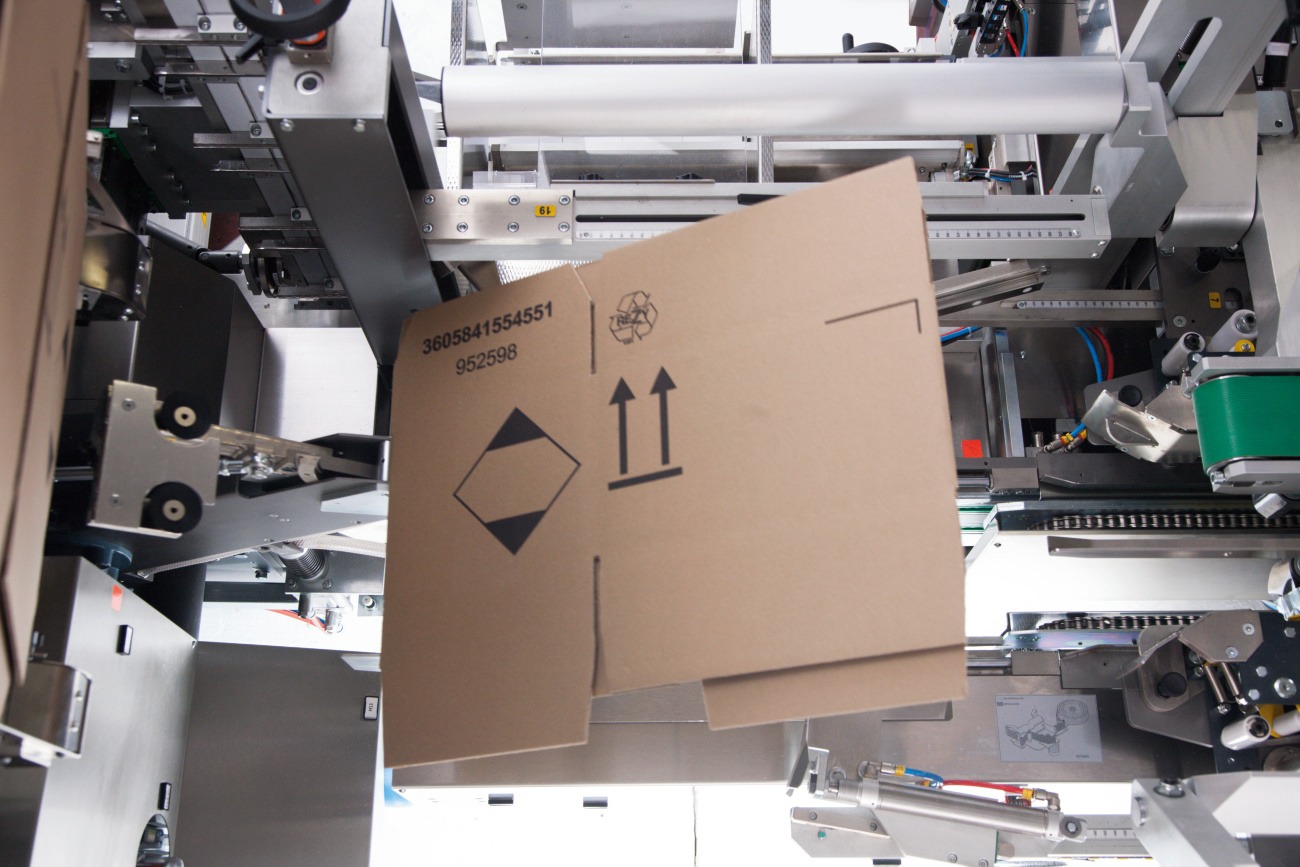

Ideal for packaging products such as pharmaceutical items, the machine is suitable for different production needs. Equipped with a horizontal case magazine for easy loading, the machine keeps the case erect during product insertion with the aid of suction cups fitted to the pick-up and forced opening arms. All the parts of the machine can be reached from the operator’s side without having to walk to the opposite side to reach the carton stacking unit. The machine can be fitted with the following optional groups and features: case overturning, product tracking and camera detection devices, integrated labellers and markers, and can also be fully servo-driven.

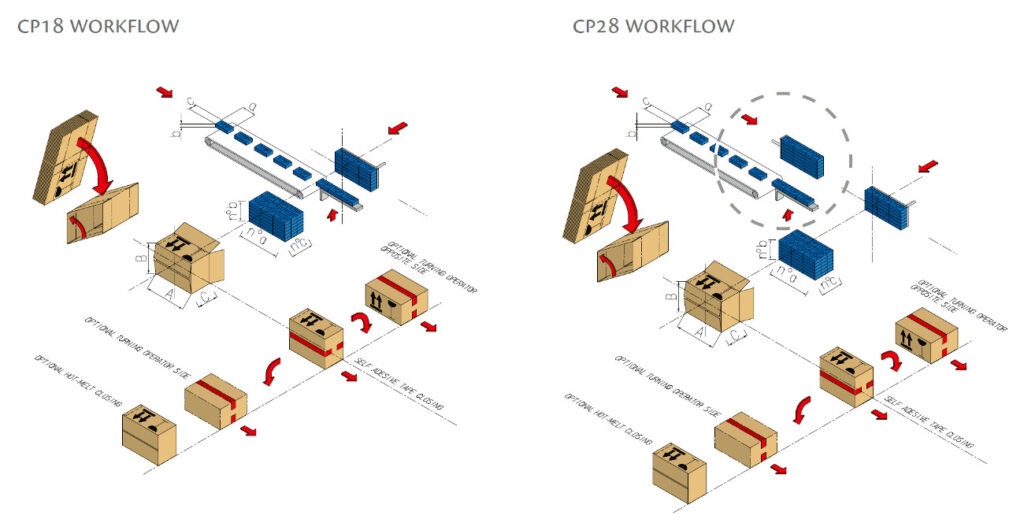

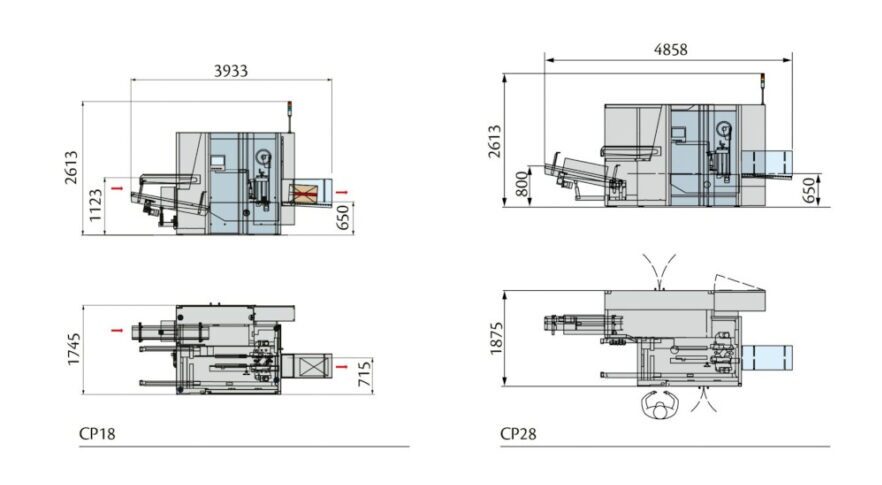

The CP Series is available in 2 different versions:
• CP18: extremely compact footprint
• CP28: able to absorb high incoming speeds thanks to the pre-stacking unit

Production plant

IMA BFB

Machine highlights

Ergonomic magazine

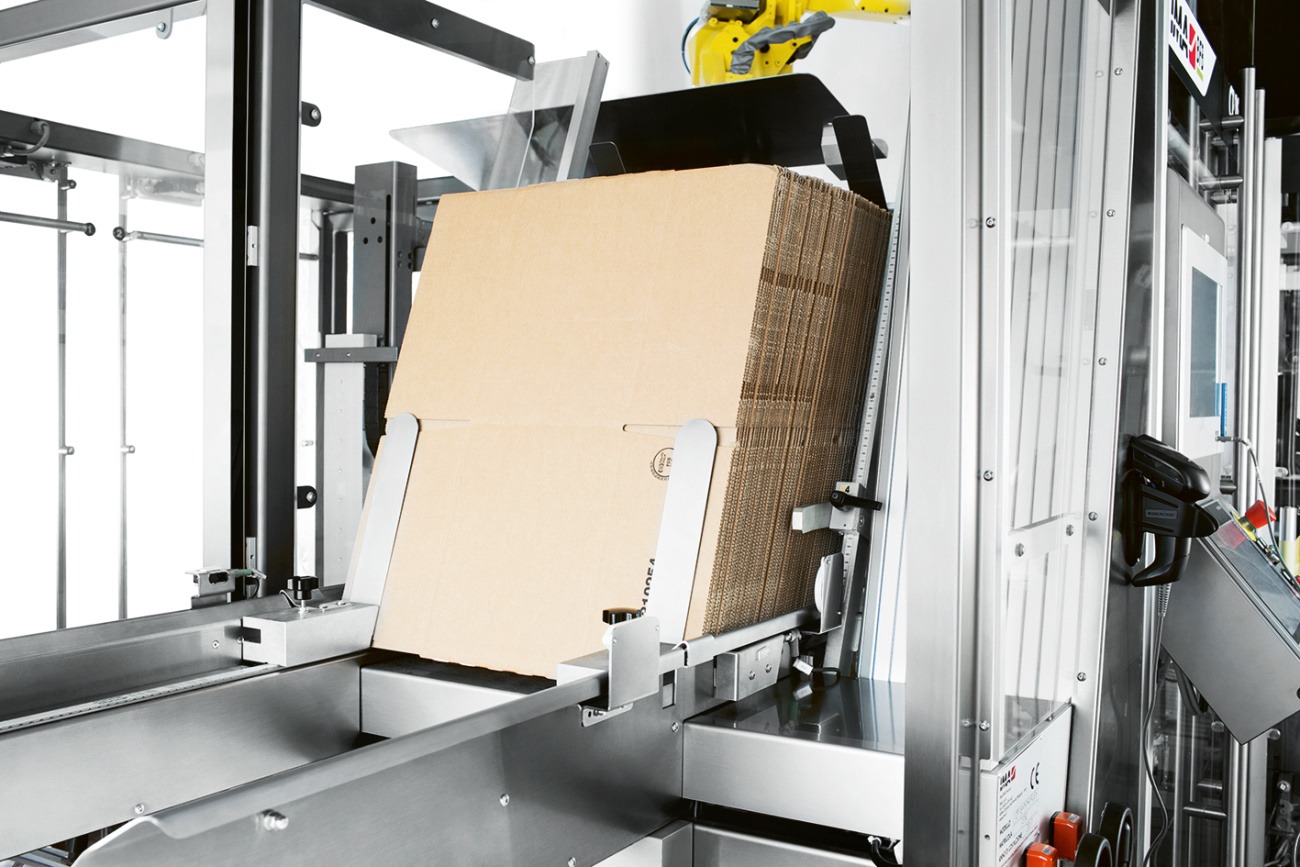

Horizontal case magazine for easy loading.
Positive flaps closure

All case flaps are positively closed and verified.
Safe transport

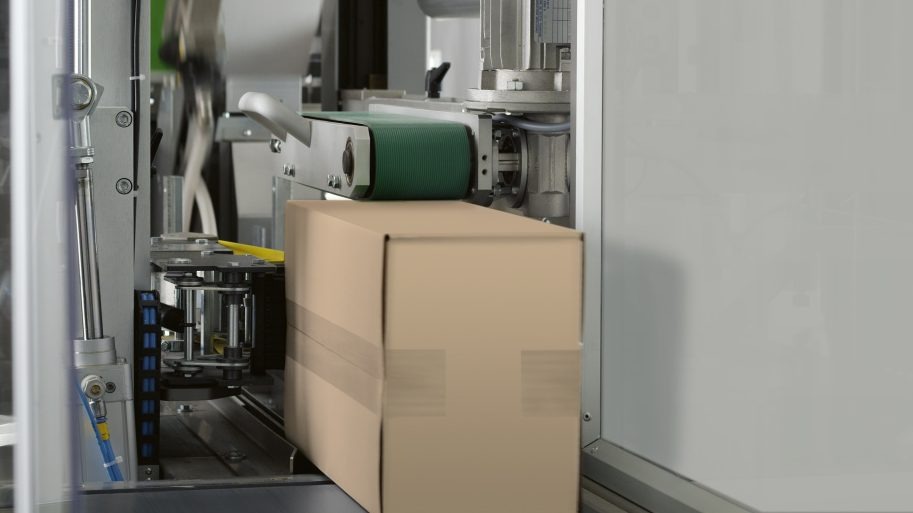

Case fully closed before transportation and taping.
Movable hopper

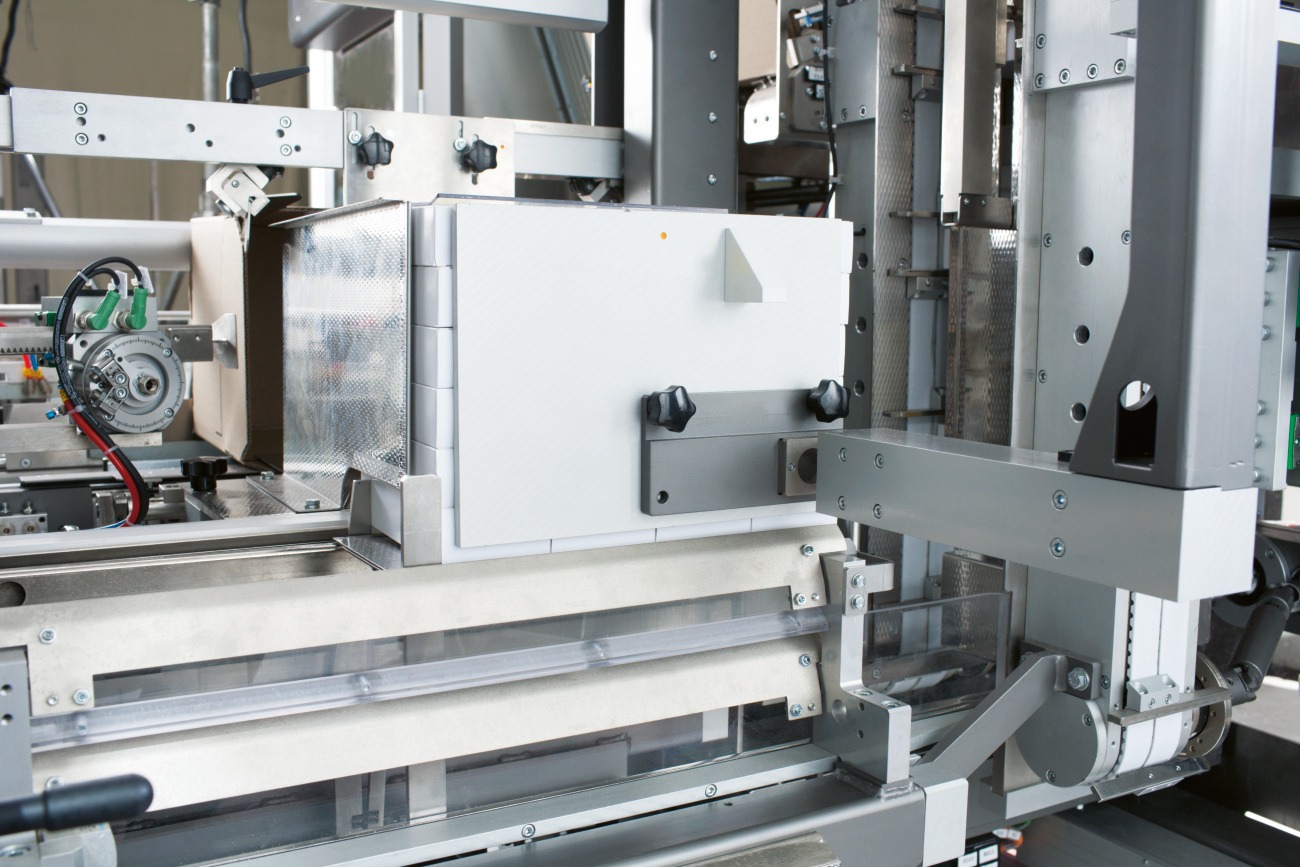

Movable hopper to follow the cartons collation up into the case.
Pre-stacking station

Cartons pre-stacking station to collate layers of product during the pusher strokes (on CP28).
Track & Trace

Suitable for Track & Trace purposes.
Range of options

Further optional groups like liftable pusher to give total visibility of carton layer, labelling module, rejection system.
Integration with palletizer

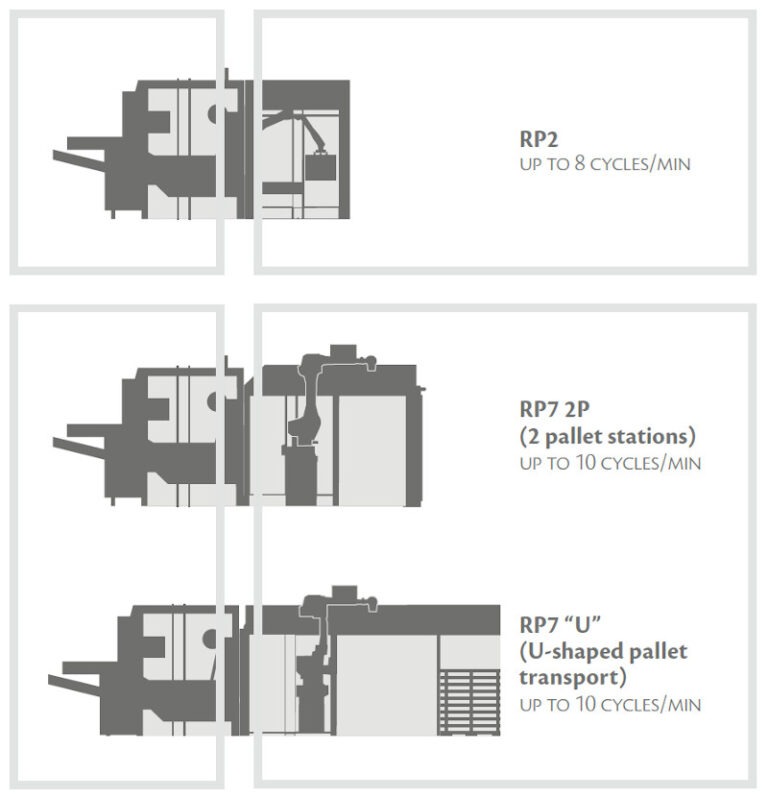

Possible integration with RP Palletizers.
