Cottoner Counting/Dosing
Machine overview
The perfect handling for your cotton

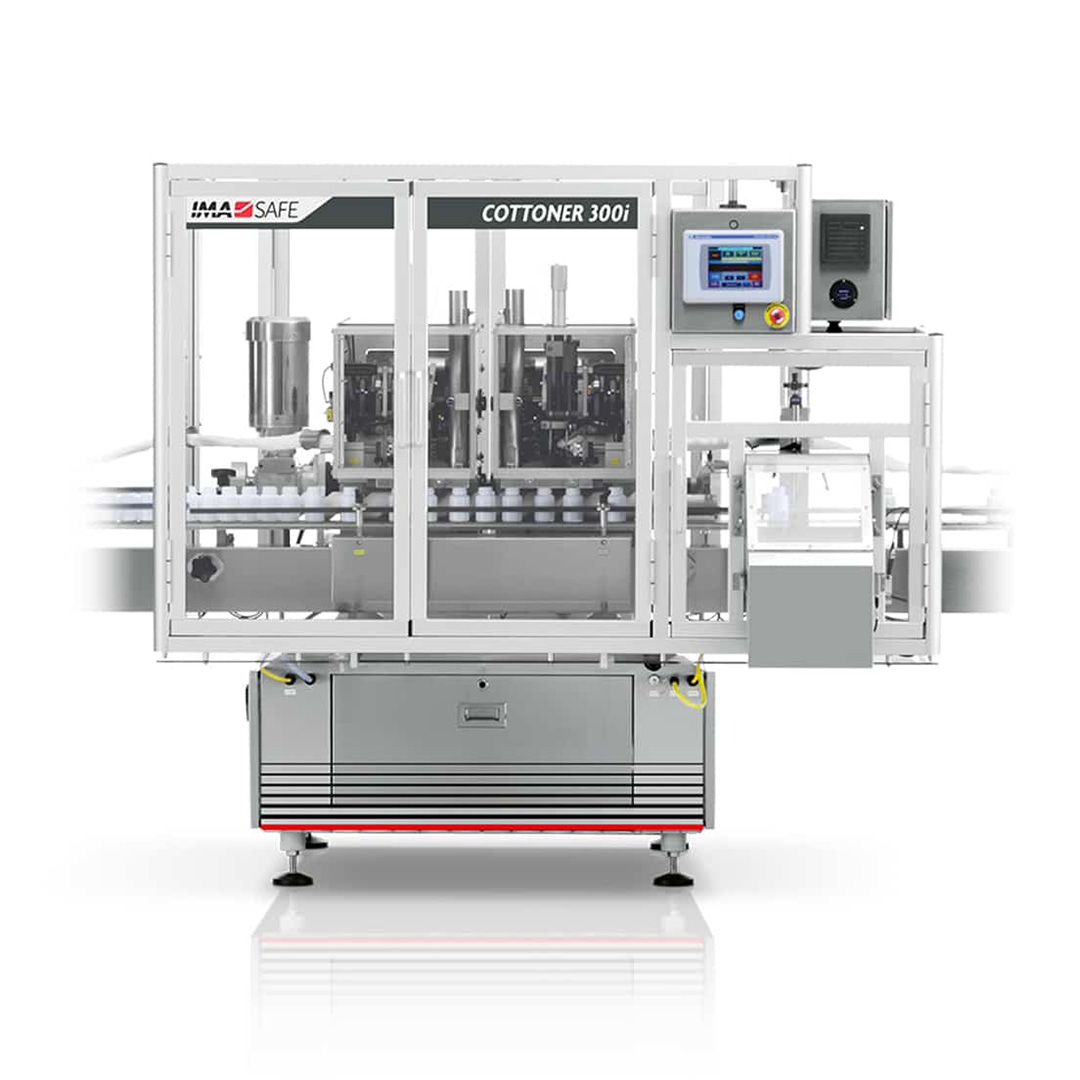

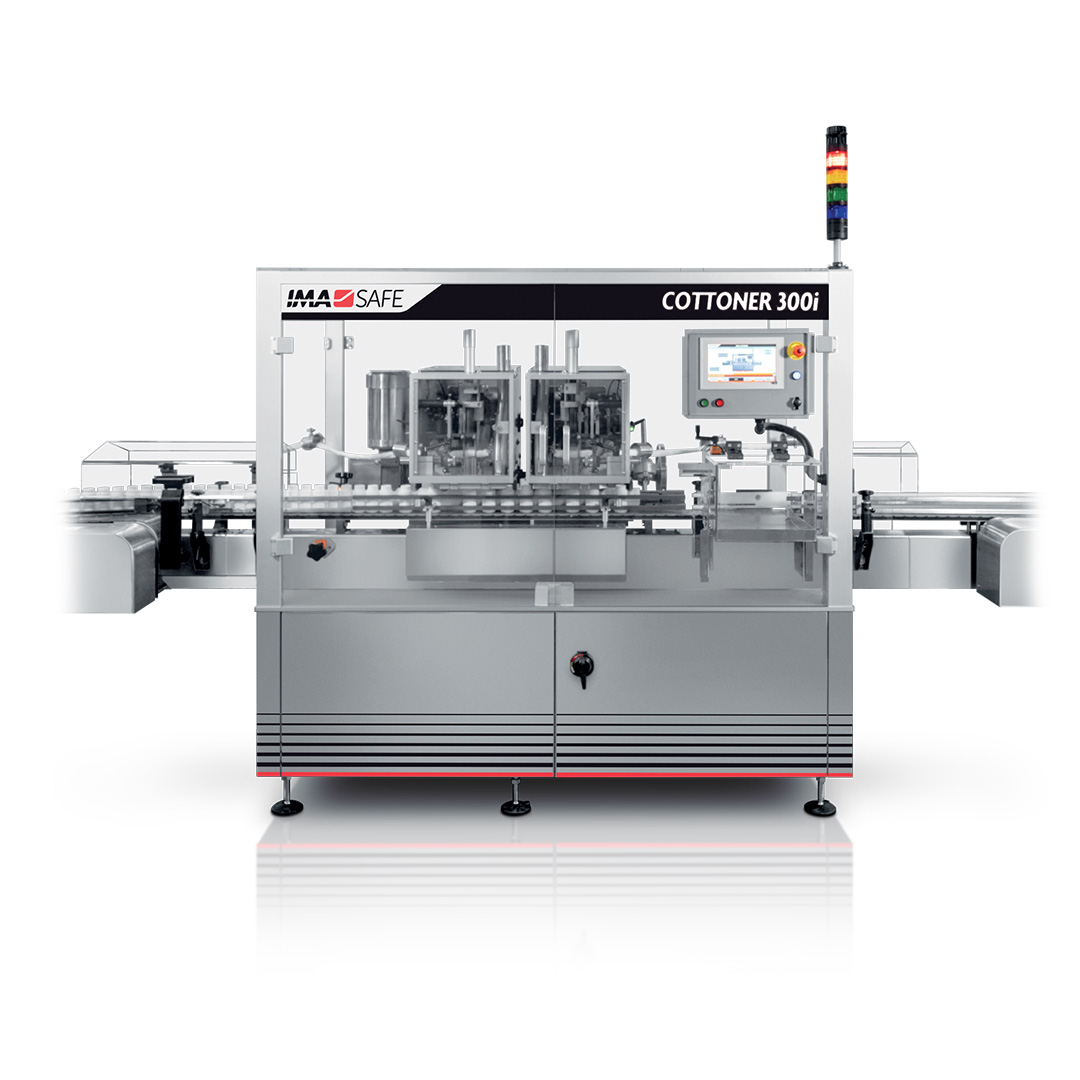

The COTTONER Series is fully automatic cGMP and user friendly machine. It is equipped with specially angled shears that cut coil cleanly and uniformly each time to remove any potential for tails or wisps.
Moreover, cotton inspection systems are available to detect high or missing cotton, either as an integrated add-on to an existing machine, or as a separate stand-alone inspection station.
Production plant
IMA North America
Machine highlights
-
Coil-cutting
Specially angled shears cut coil cleanly and uniformly, eliminating tails and wisps.
-
Lengths and weights
Cut lengths from 2″ to 7″ (50 mm to 178 mm); weights up to 26 grams per yard.
-
Materials
Functionally designed to handle pharmaceutical cotton, rayon, polyester, polypropylene or other types of coil.
-
Fast changeover
Only two basic insertion parts allows for changeover of different bottleneck diameters in minutes.
-
Cycle speed adjustment
Variable speed drive regulates cycle speed.
-
Sturdy build
Rugged heavy-duty construction reduces noise and vibration, wear and tear.
-
Multiple insertion
Multi-insertion capabilities to place multiple pieces of cotton in a single bottle, for large containers.
-
Safety guard
Enclosed polycarbonate guard for optimal operator safety.

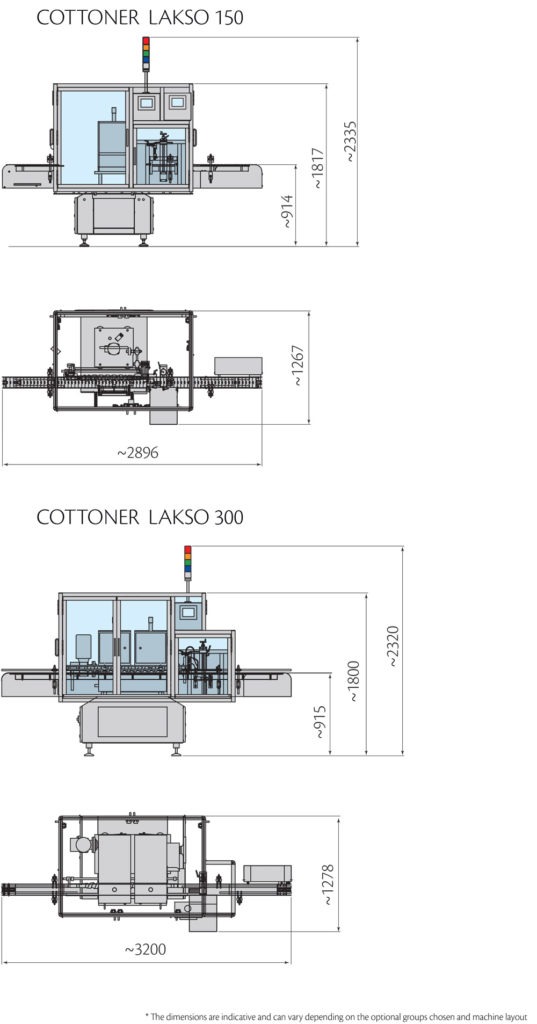

Technical information
| TECHNICAL DATA COTTONER | ||
| COTTONER 150 | COTTONER 300 | |
| Production output | Up to 150 bottles/min. | Up to 300 bottles/min. |
| Bottle diameter | 38-115 mm | 38-115 mm |
| Bottle height | 41-228 mm | 41-228 mm |
