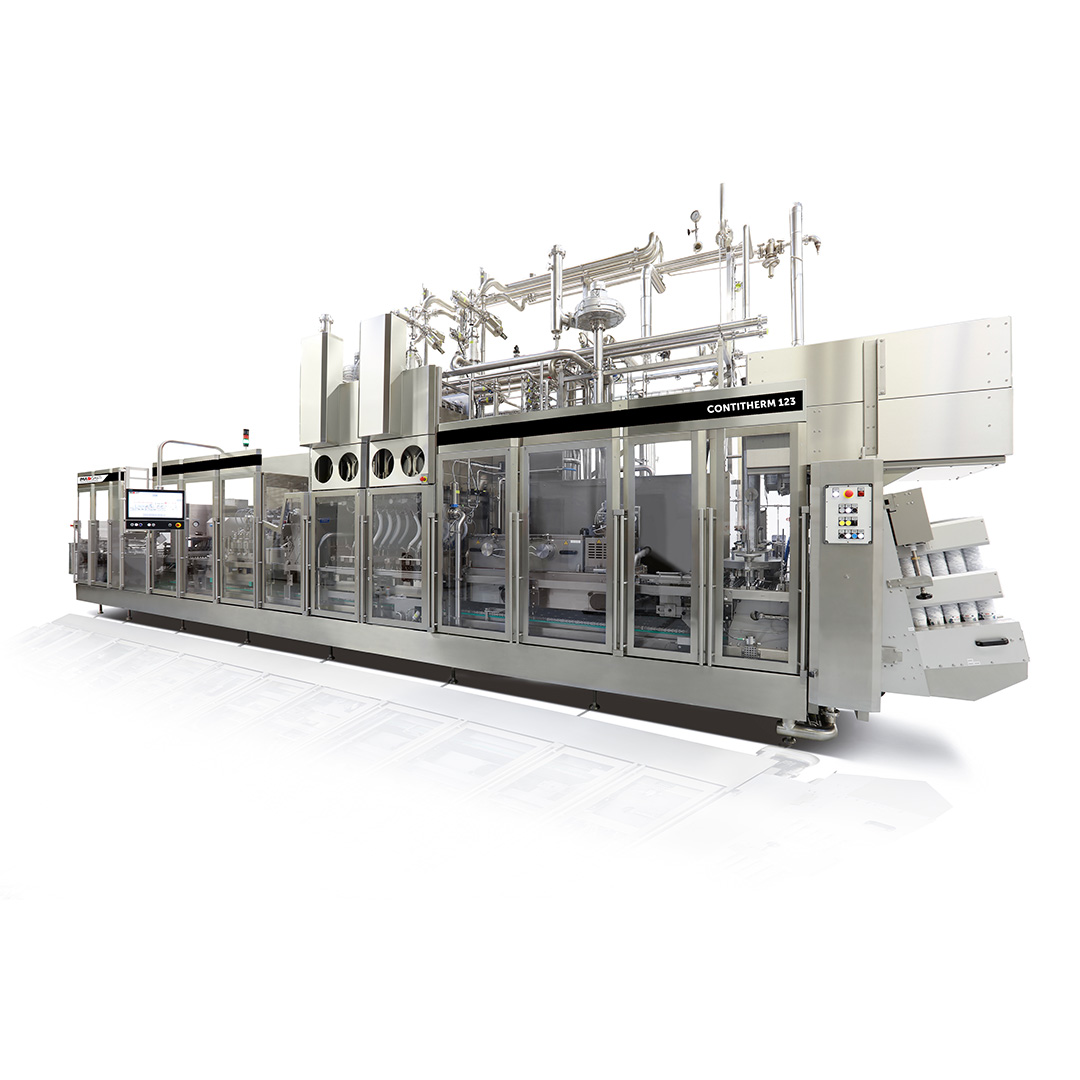

Contitherm Series Cup & Tub Filling and Sealing
Machine overview
Compact and ergonomically optimised. Minimum operating personnel. Short set-up times.

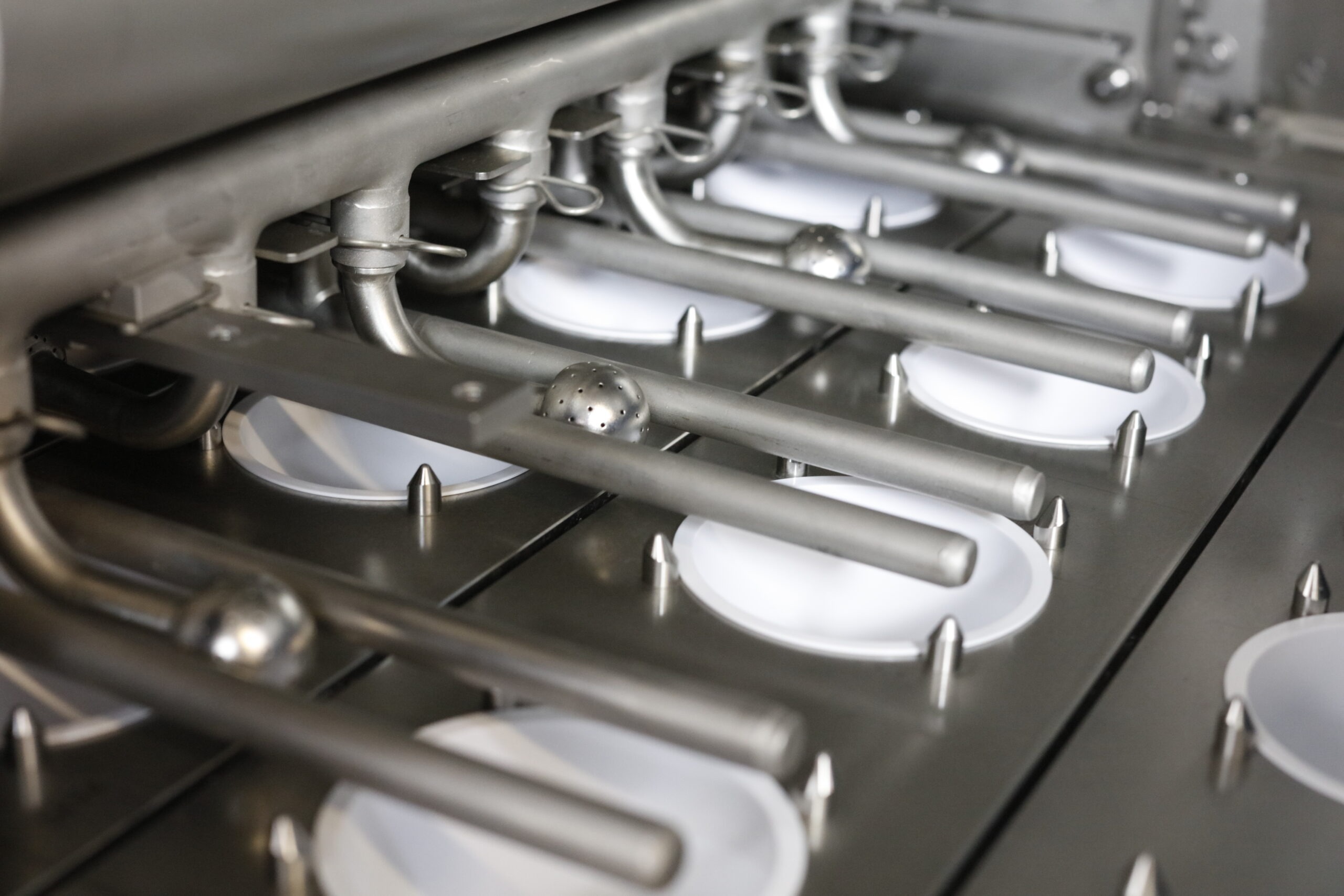

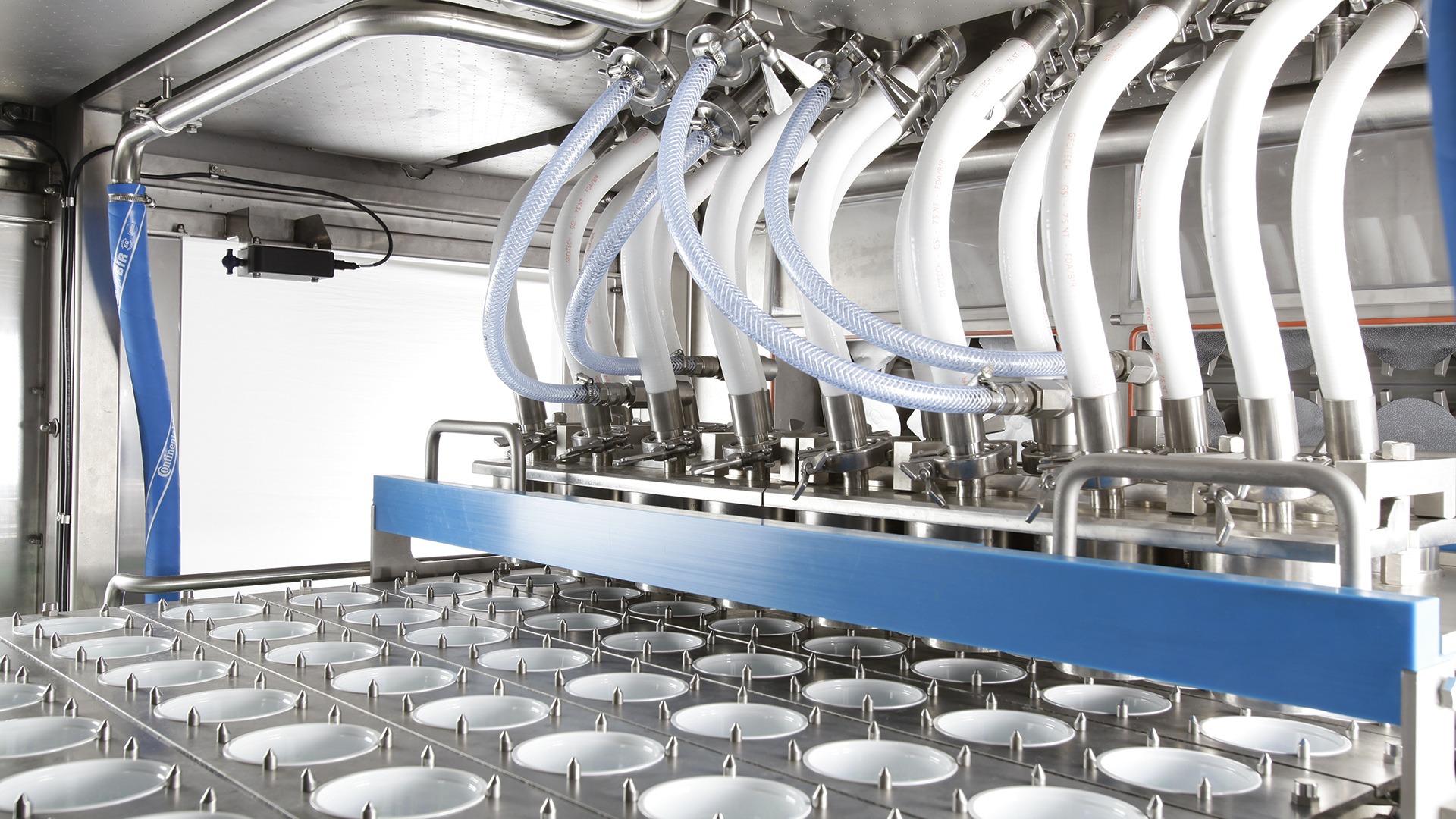

The advantages of the continuous motion principle of the CONTITHERM become particularly clear when filling liquid products. The filling nozzles and the sealing station move synchronously with the cup transport during the filling and sealing process.
Products such as set or plain yoghurt (with or without fruit pieces), milk shakes, quark, fresh cheese, desserts, mousse, jam etc. can be filled problem-free, at high outputs.
In addition assorted filling and packing are expanding your possibilities.
Thanks to exact and gentle filling, easy operation, versatility and minimum wear the fill & seall machine CONTITHERM meets the filling requirements of today and tomorrow.
Production plant
IMA Gasti
Machine highlights
-
1.
Continuous motion principle for cup transport without start-stop and without danger of spilling liquid products.
-
2.
High capacity.
-
3.
Ideal for low viscous products.
-
4.
Multifill options.
Machine details
Technical information
| Round cup max. Ø | 95 mm | Fill volume main filler | 30 – 300 ml or 50 – 500 ml |
| Cup height min./max. | 50/130 mm | Fill volume pre- or post filler | 12,5 – 125 ml or 30 – 300 ml |
| MATERIALS | |||
| Cups | PP, PS, Plastic cup with cardboard sleeve (e. g. K3®, Desto), glass | ||

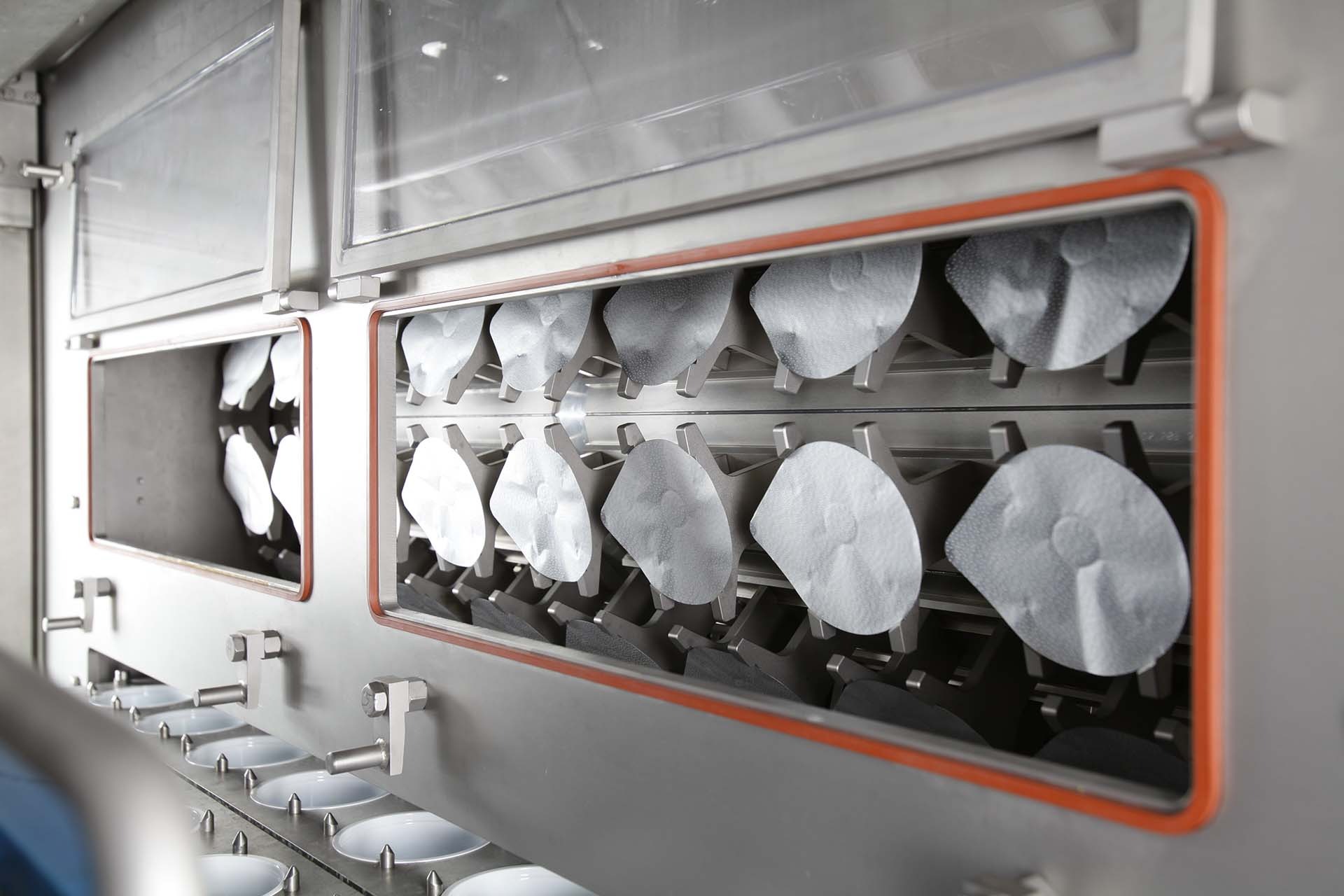

| Lids | Pre-cut lids made of PET, PP, Alu compound, Alu with coex layer (e. g. ComforLid) | ||
| Snap-on lids | Pre-made, stackable snap-on lids made of PET, PP or PS | ||
| OUTPUT | |||
| CONTITHERM 123 | up to 28.800 cups/h | ||
| STANDARDS | |||
| Hygiene class | Clean (VDMA I + II) | ||

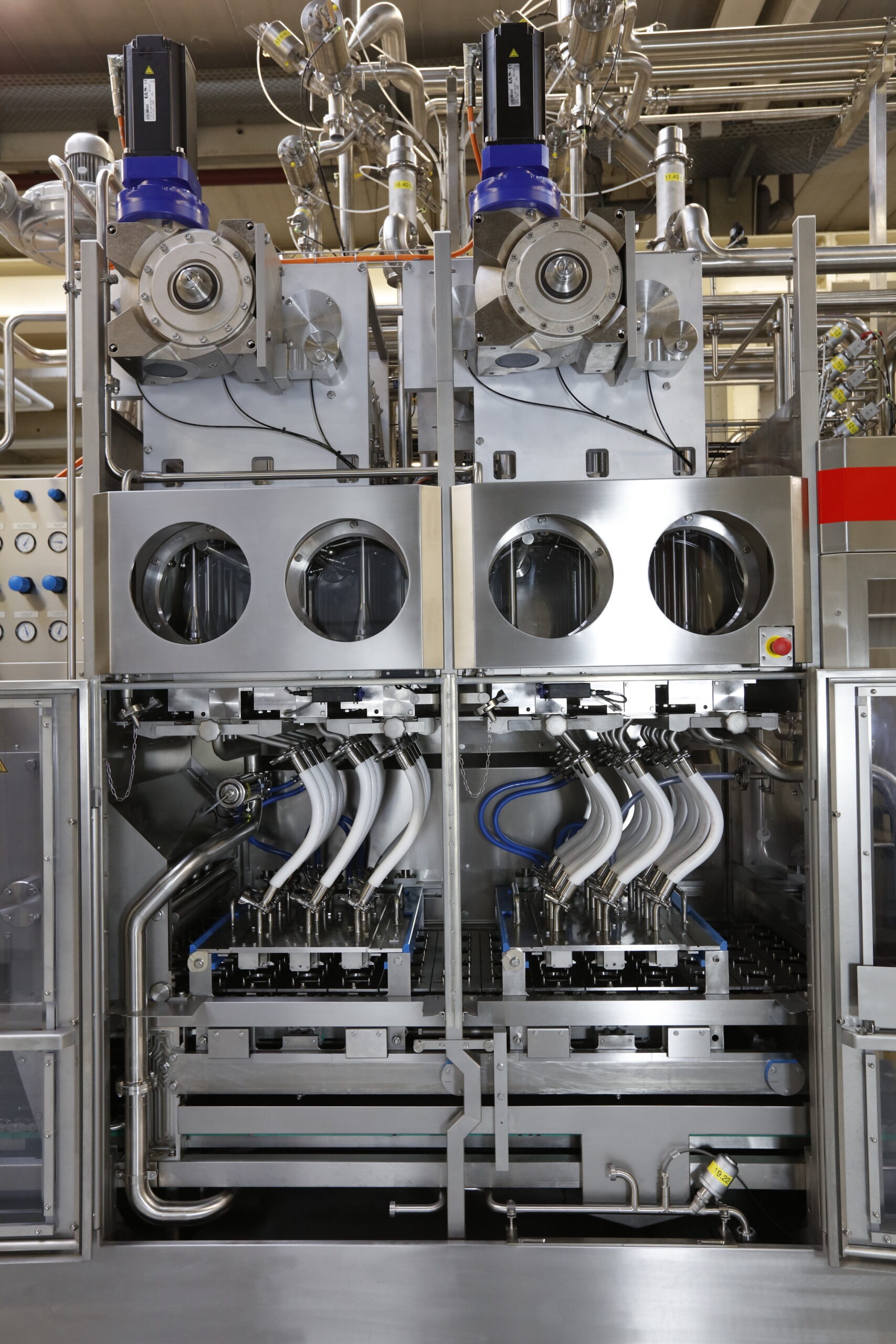

| Standard configuration | Servo-driven, vertical cup destacker, filling station (CIP-capable), incl. nozzles & capacitive level control, sealing lid applier, heat sealing, cup lifting out | ||
| OPTIONS | |||
| Hygiene class | Ultra-clean (VDMA III) | ||
| Filling | Pre-filler, pre- and post filler | ||

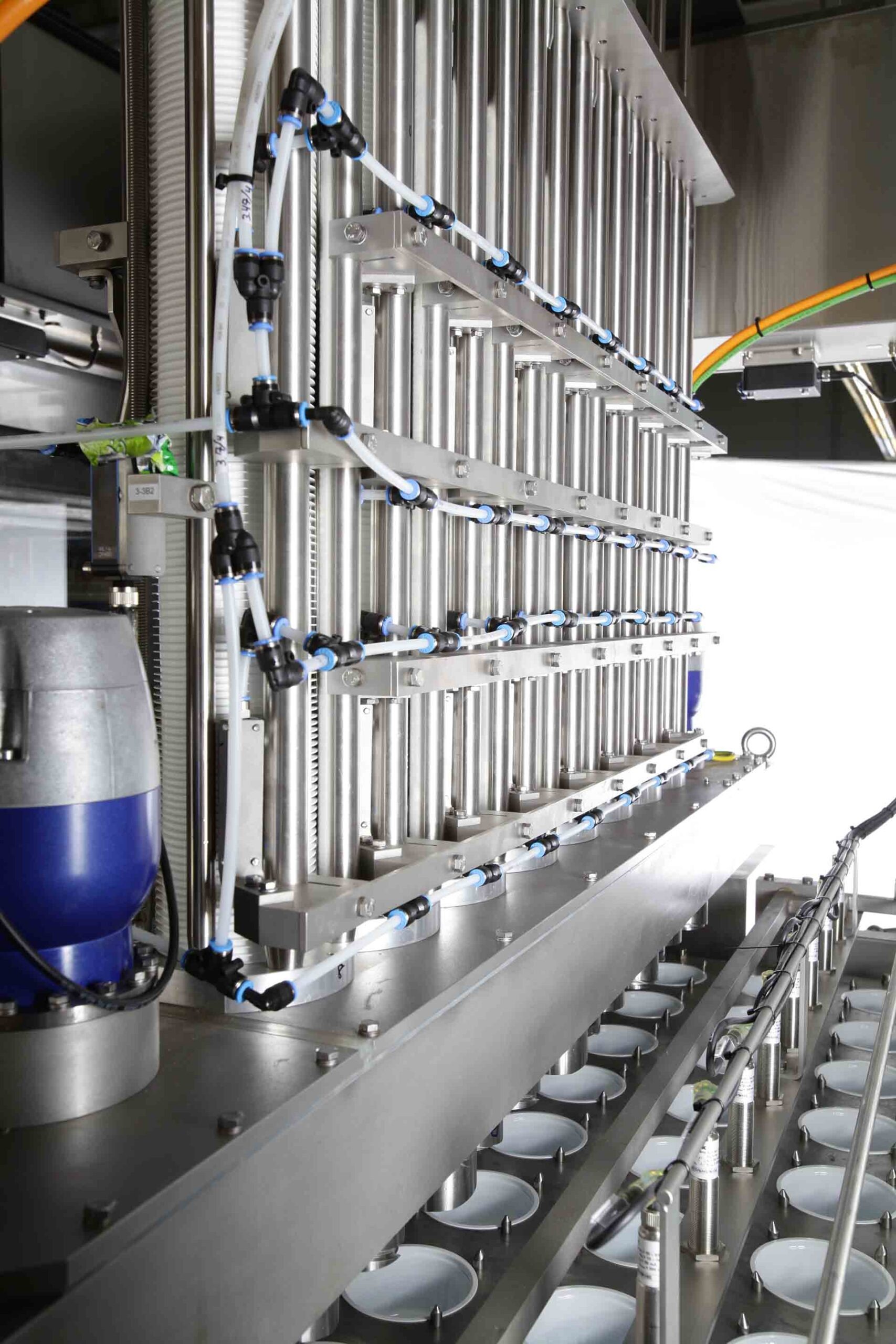

| Others | Cup stack buffer magazine, particle remover, leakage test, inkjet printing, snap-on lid, servo driven, AIRMATIC | ||
