Comprima Tableting
Machine overview
Leading the way in tableting.
Designed around a highly innovative compression system and launched in 1995, Comprima is a state-of-the-art tableting solution, ensuring yields up to 99.5% with maximum tablet quality.

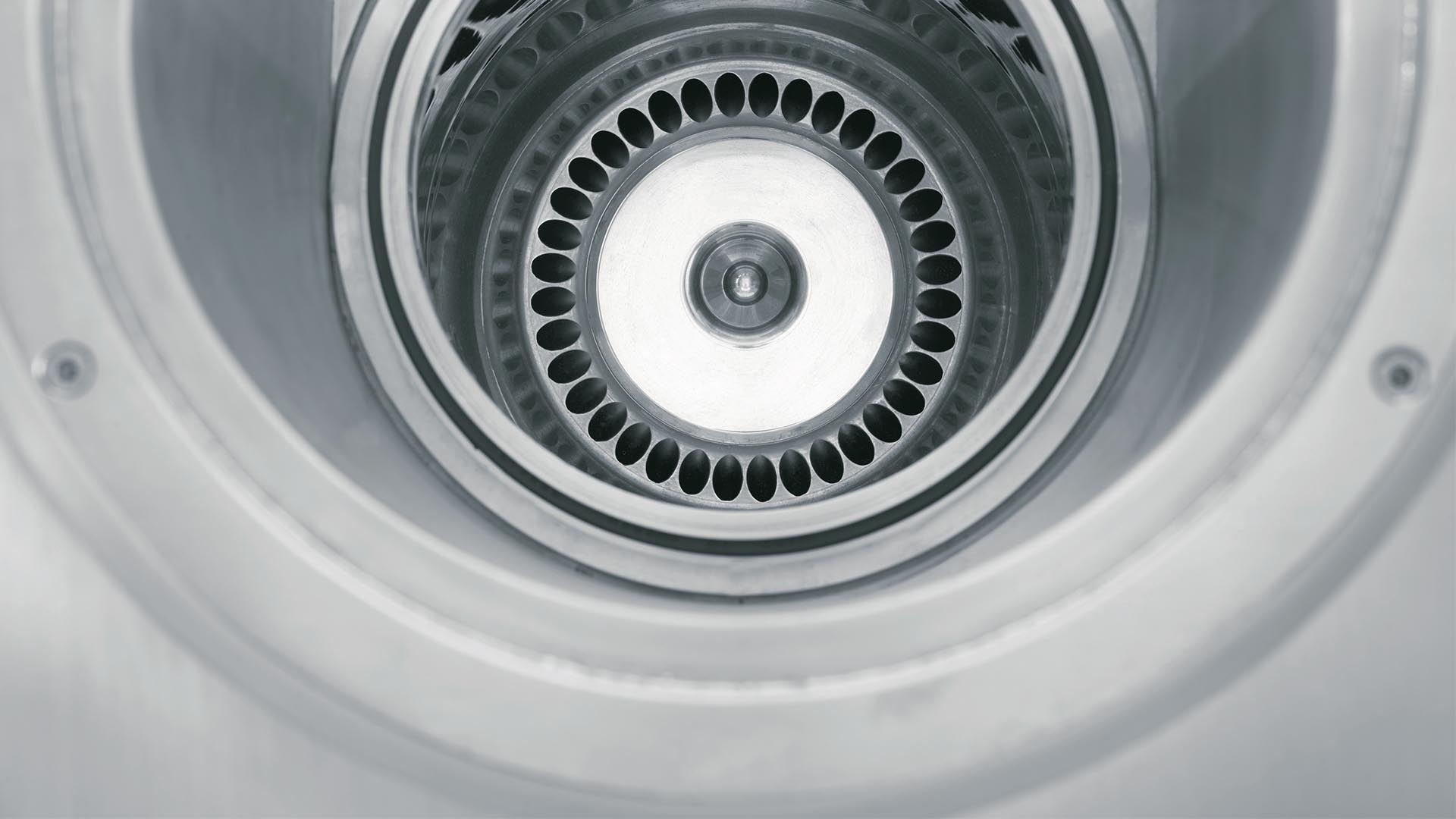

Comprima implements a breakthrough system for powder feeding, using the centrifugal force generated by the rotation of the turret. This guarantees accurate feeding of the dies without risk of powder mix segregation. Centrifugal die-filling ensures maximum production speeds, even with oblong or shaped tablets.
Production plant
IMA Active
Machine highlights
-
Feeding accuracy
Accurate feeding of the dies through specially shaped radial channels: the powder is always contained in a closed path, minimising product loss.
-
Zero contamination

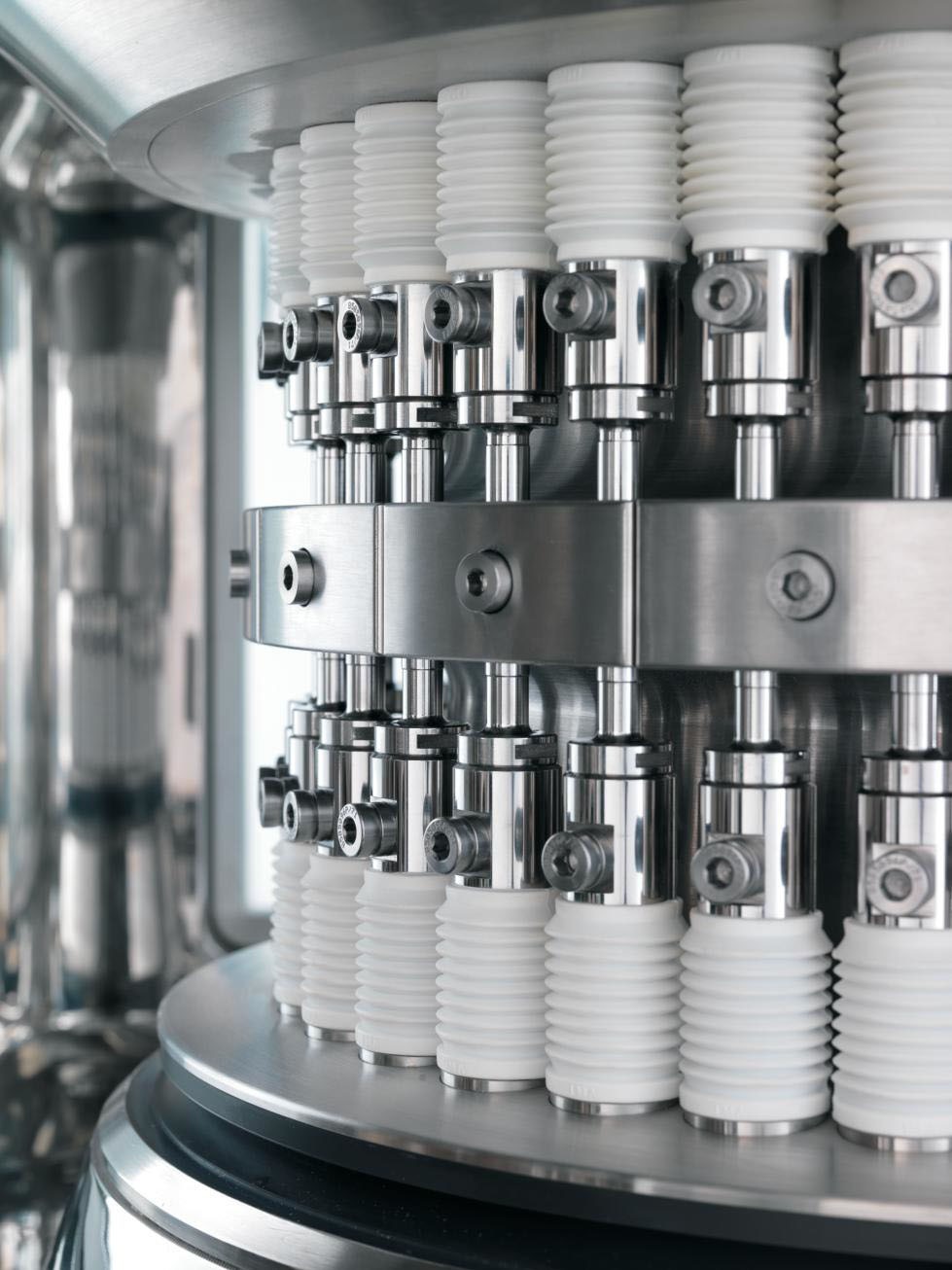

Isolation of the processing area, thanks to the use of seals and bellows: no risk of powder contamination.
-
Cleaning cycle
Clean-In-Place system for a fully automatic and validatable cleaning cycle.
-
Isolation technology
Available for high containment (OEL 5) thanks to isolation technology and glove ports.
Engineered for safety: full containment and automatic cleaning

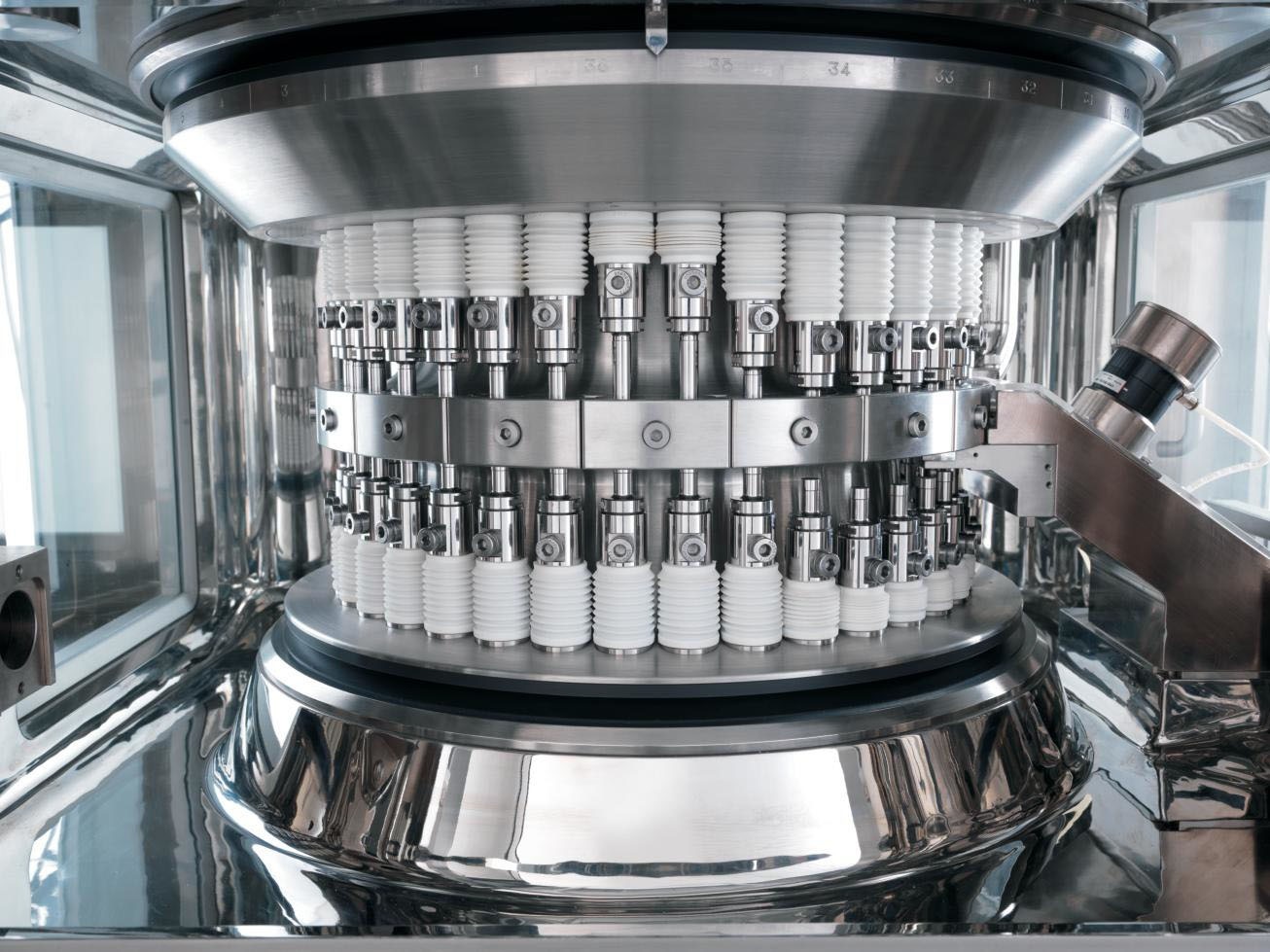

Sealed doors and negative pressure inside the processing area ensure both operators’ and environmental safety. At the end of WIP for Health & Safety decontamination, Comprima can perform a fully automatic cleaning cycle.
Machine details
Technical Information
| Comprima technical data | |||
| Model | Comprima 150 | Comprima 250 | Comprima 300 |
| Maximum output (tablets/hour) | 150,000 | 250,000 | 300,000 |
| Maximum turret speed (RPM) | 138 | 138 | 138 |
| Number of stations | 18 | 30 | 36 |
| Round tablet dimensions (mm) | 5÷17 | 5÷17 | 5÷16 |
| Oblong tablets dimensions (mm) | 5÷21.5 | 5÷21.5 | 5÷17 |
| Compression force (kN) | Up to 80 | Up to 80 | Up to 80 |
| Standard voltage | 400 V (±10%) – 50 Hz | 400 V (±10%) – 50 Hz | 400 V (±10%) – 50 Hz |
| Maximum installed power | 25 kW (50 Hz) – 27 kW (60 Hz) | 25 kW (50 Hz) – 27 kW (60 Hz) | 25 kW (50 Hz) – 27 kW (60 Hz) |
| Compressed air | 300 l/minute at 6 bar | 300 l/minute at 6 bar | 300 l/minute at 6 bar |
| Minimum water delivery | 70 l/minute – 3 bar – 60° | 70 l/minute – 3 bar – 60° | 70 l/minute – 3 bar – 60° |
| Weight (kg) | 3,400 | 3,400 | 3,400 |
