Cinque Bundling
Machine overview
Bundle any kind of roll, quickly

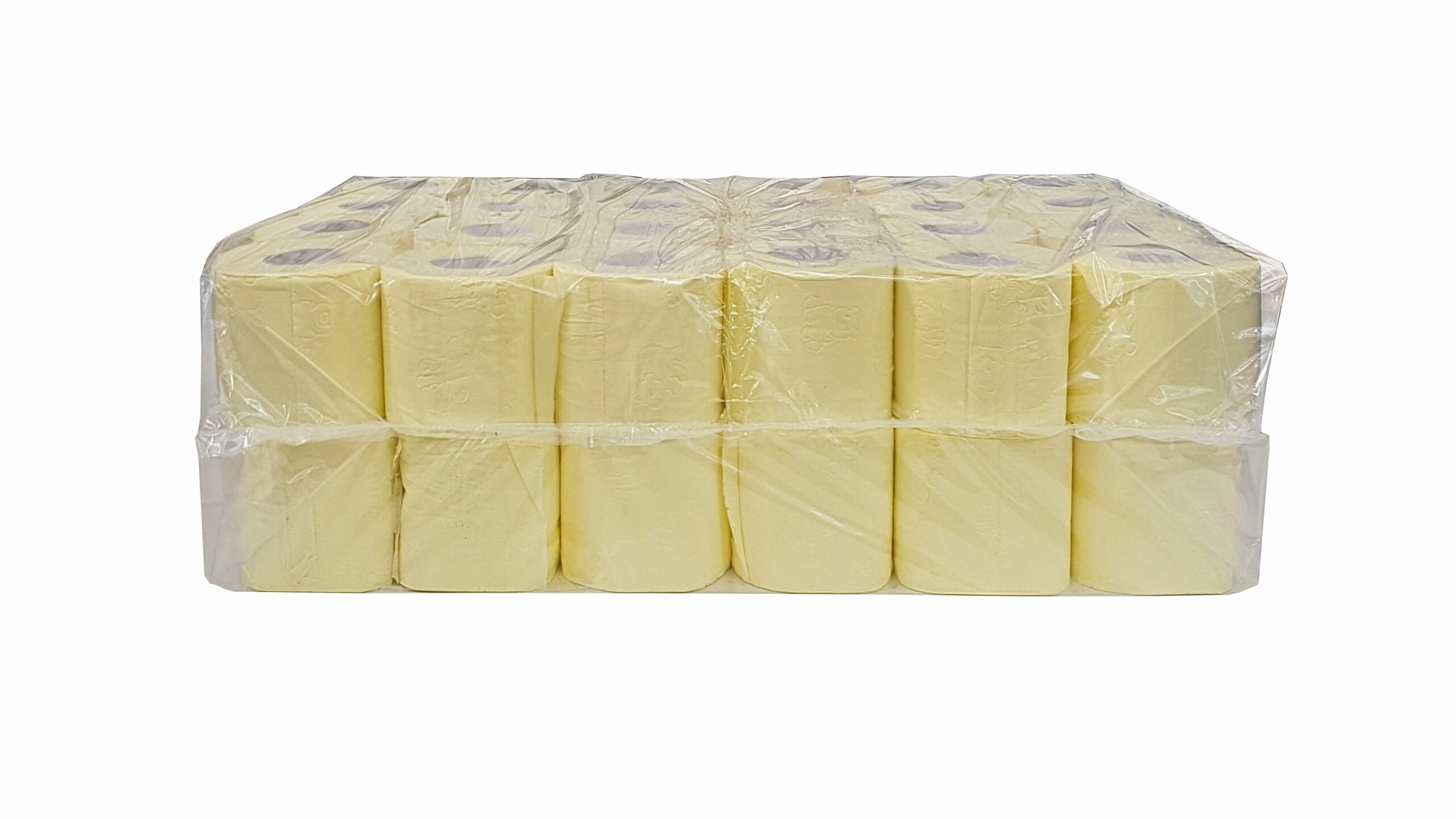

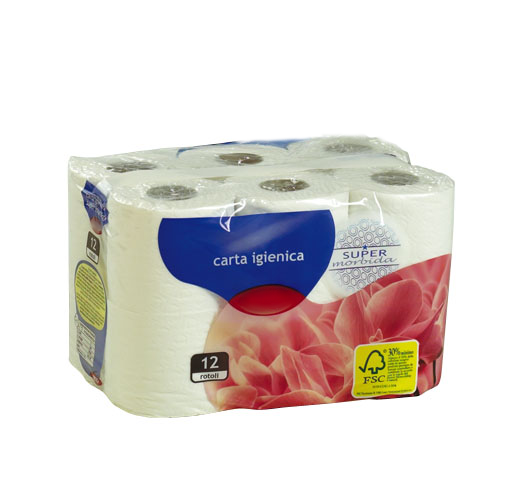

CINQUE is the top range of automatic TMC bundlers, designed for single or any other multi-roll configuration, for bathroom and kitchen products, and with any flexible plastic packaging material, both transparent or printed.

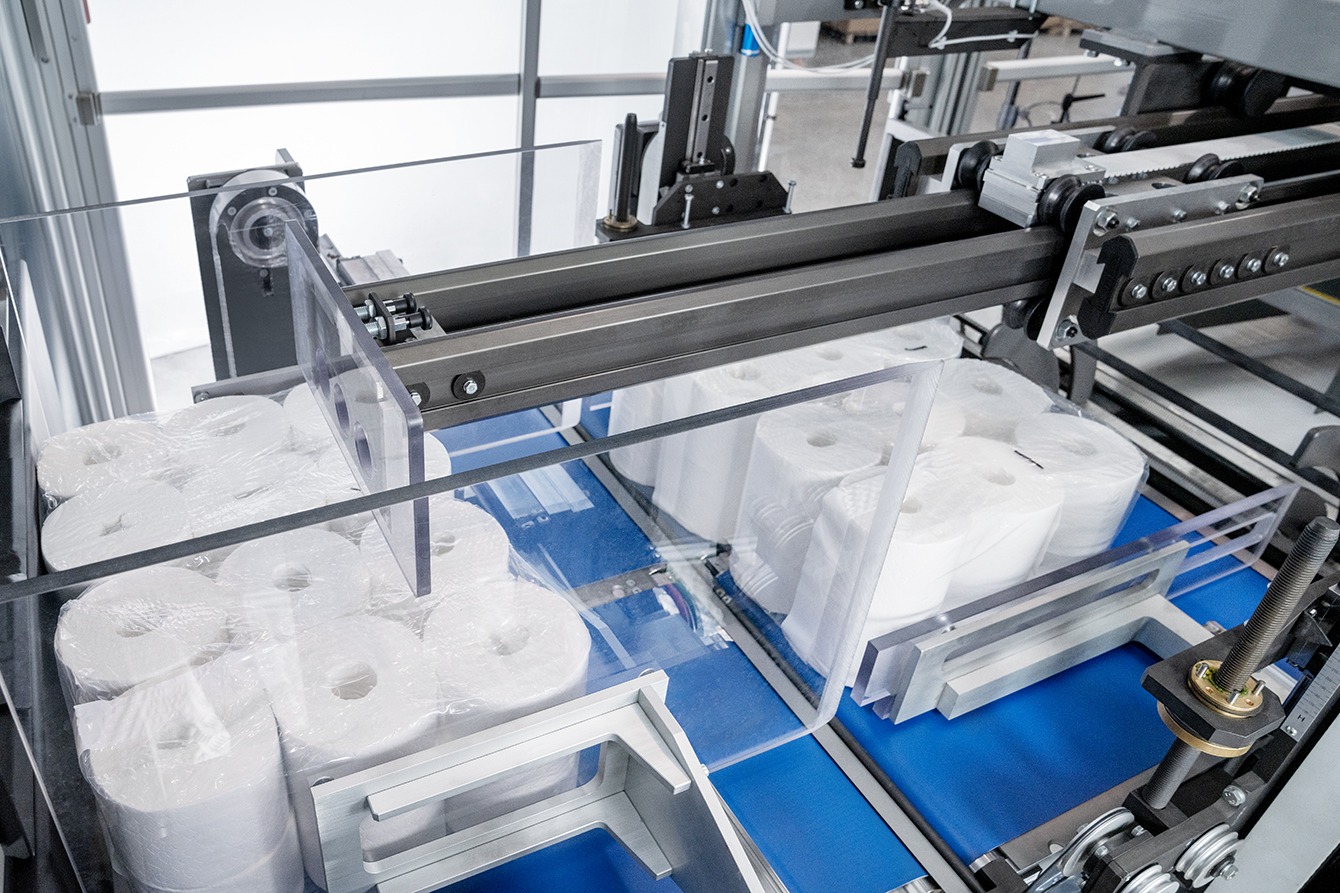

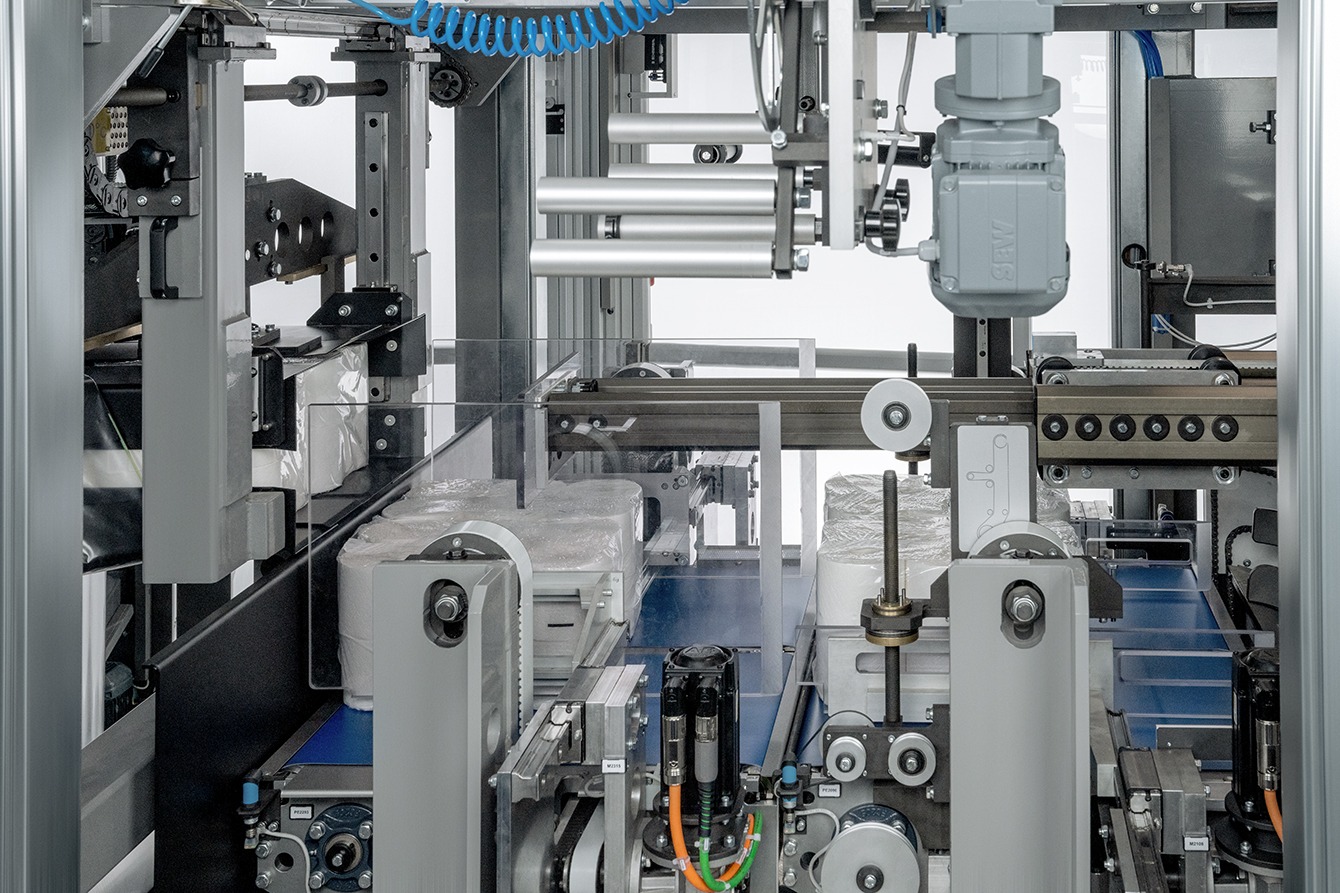

The continuous motion of the production process is guaranteed from the beginning: CINQUE features a pack distributor that sorts the packs as they arrive inside channels, bordered by guides, into the number of rows set by the bag size currently being processed.

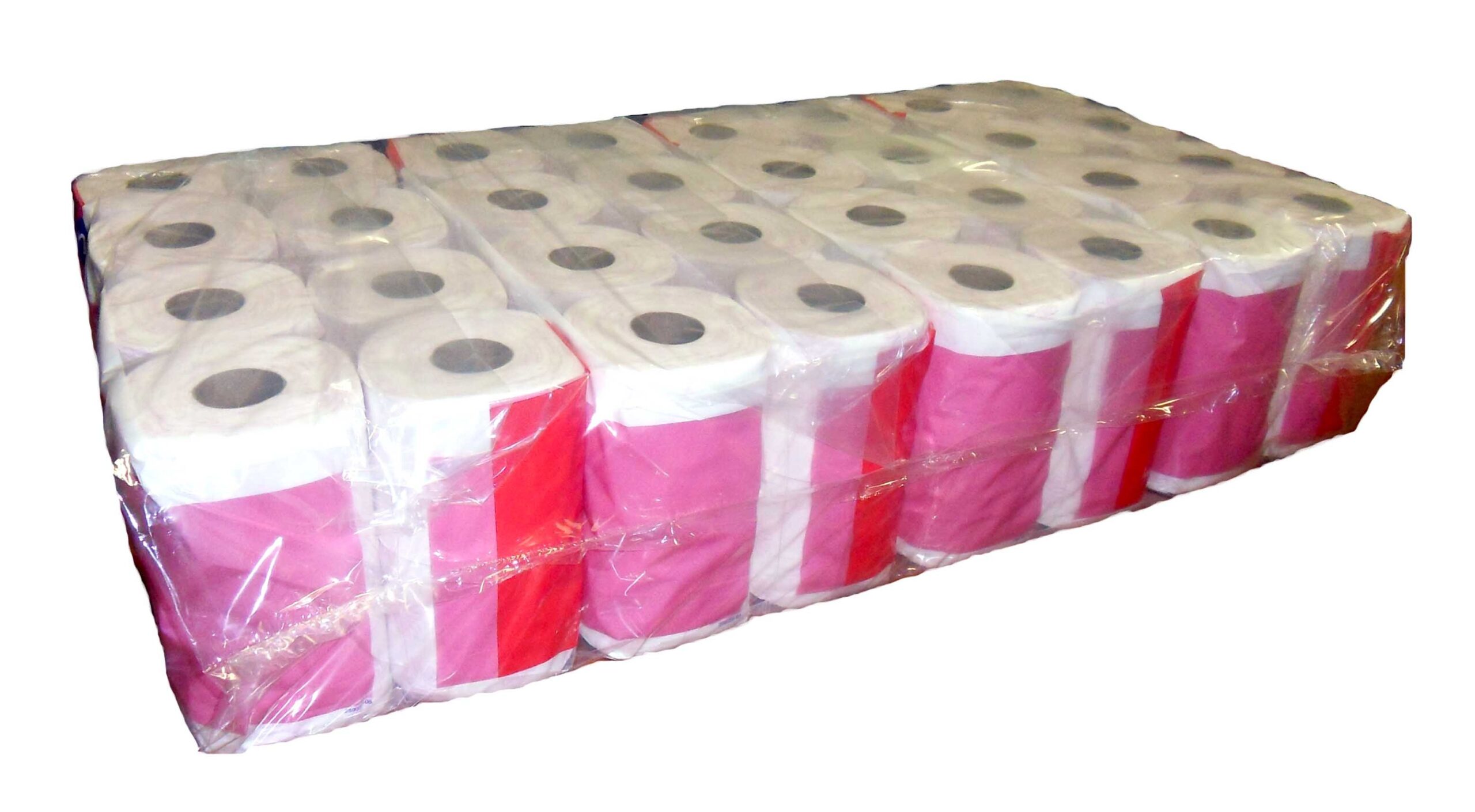

CINQUE improves the production capacities of every existing format, while maximising performance in the requested product dimensions. This extremely flexible machine is capable to treat all pack typologies, from single BRT/KT roll to triple layer configurations.

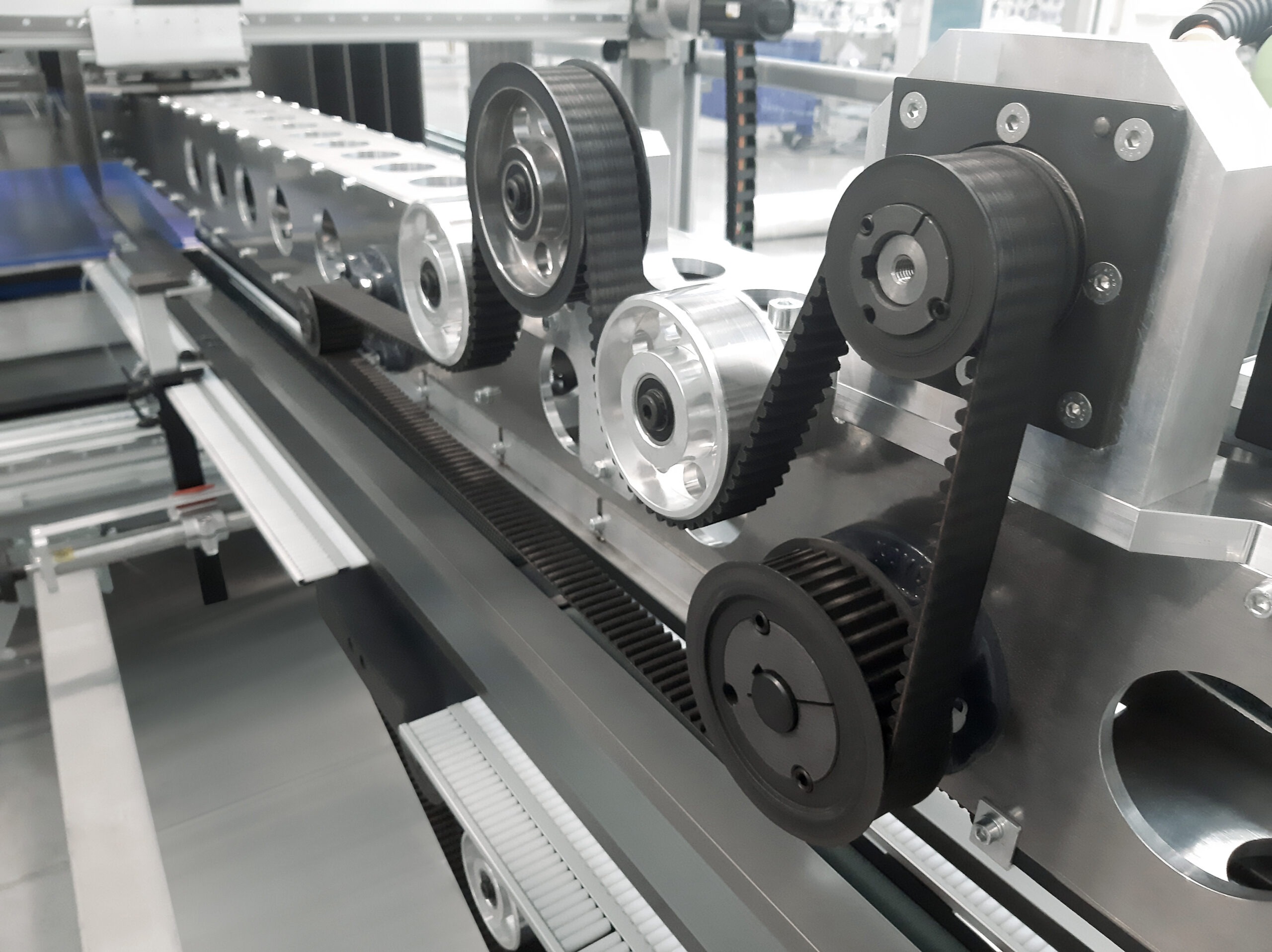

The management of all movements “in electrical axis” is the key to achieve a great level of flexibility and precision of the movements, reducing drastically changeover downtime.

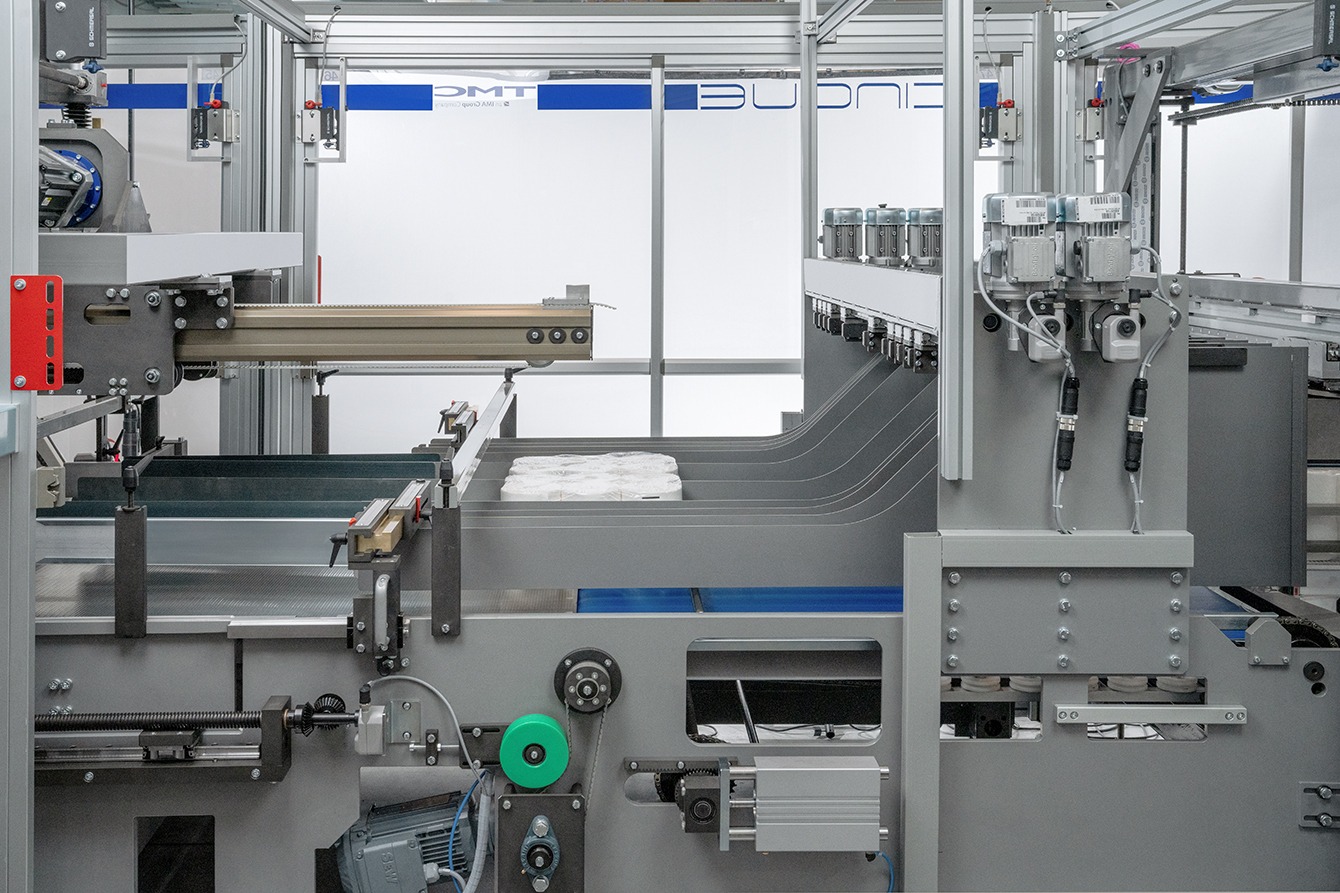

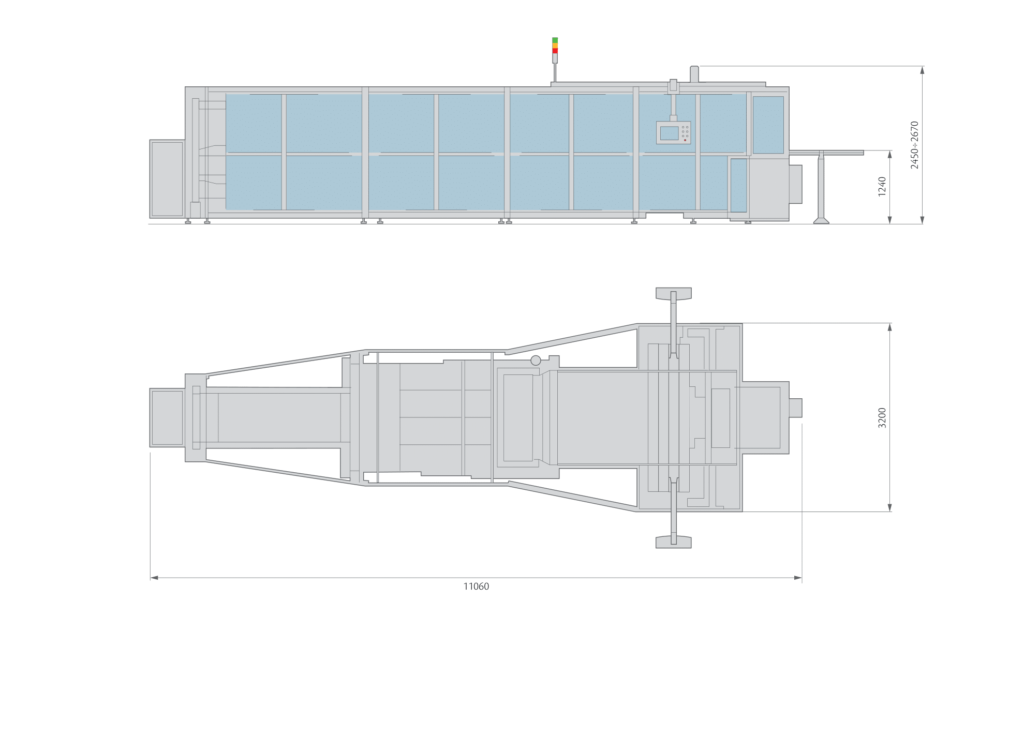

Thanks to its “in line” layout, CINQUE is capable to minimise the footprint space, and to optimise product flow process.
Production plant
IMA TMC
Machine highlights
-
1.
CINQUE is the top range of series of automatic TMC bundlers.
-
2.
Able to treat all pack typologies, from single BRT/KT roll to triple layer configurations.
-
3.
All packs are positive controlled during the accumulation cycle.
-
4.
Thanks to its “in line” layout, CINQUE minimises the footprint space and optimises product flow processes.
-
5.
Mechanical speed up to 26 cycles/minute.
-
6.

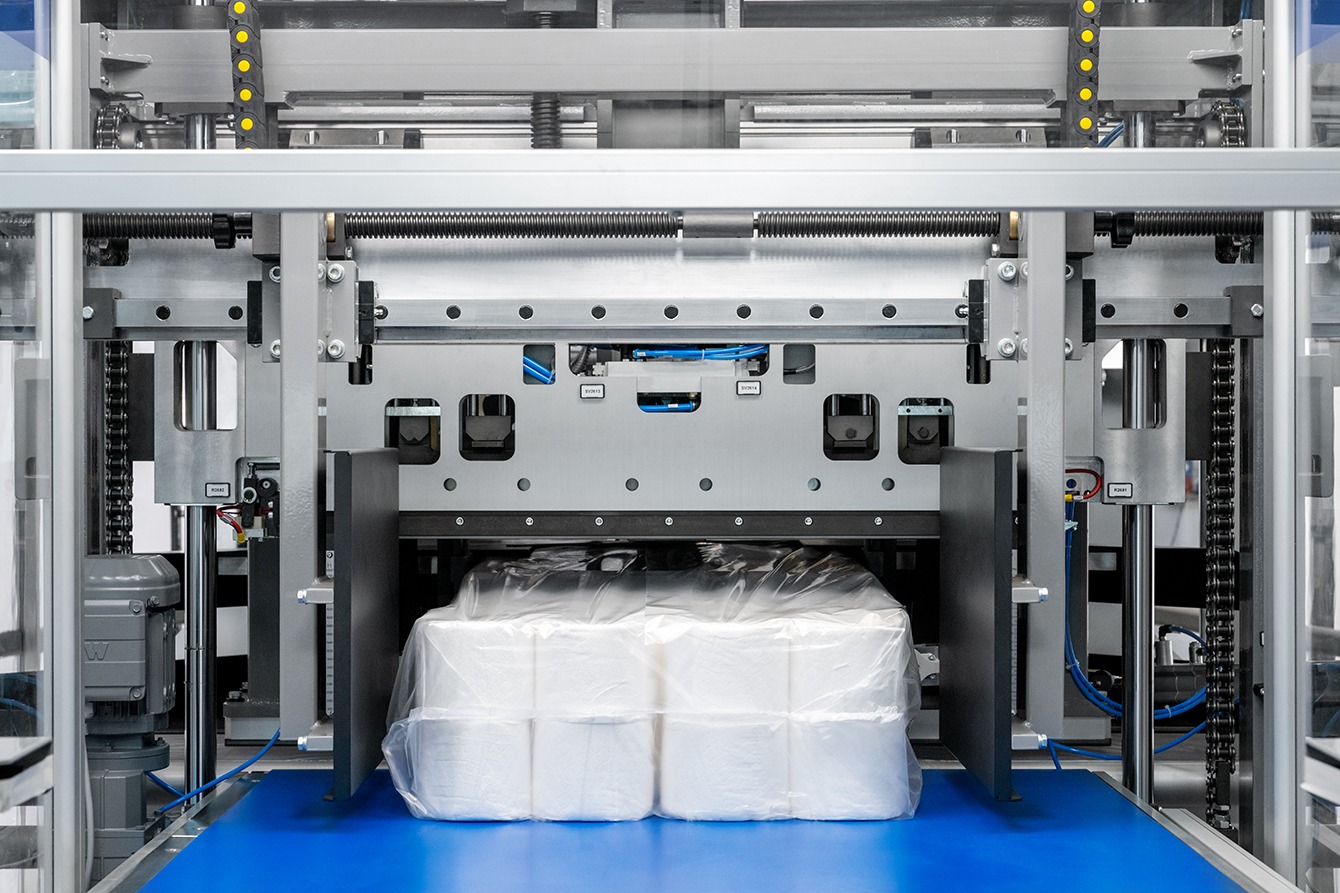

The forming ties unit features a rounded form patented by TMC.
Machine details
Technical information
| Max mechanical speed | 26 cy/1′ | |
| Servo motors | from 12 to 16 | |
| Aut. Adjustments | 8 | |
| Infeed Product Range | MIN | MAX |
Width | 90 mm | 370 mm (for 380 mm optional required) |
Depth | 90 mm | 600 mm |
Height | 90 mm | 500 mm |
| Outfeed Product Range | MIN | MAX |
Width | 350 mm 300 mm optional | 850 mm |
Length | 180 mm | 1250 mm (max 2400 mm with double push) |
Height | 180 mm | 500 mm |
| Poly Capability | MIN | MAX |
| Reel Diameter | 400 mm | |
| Reel width | 1100 mm | 2500 mm |
