CD180 Tube Filling

Machine overview

An effective, accessible, twin-nozzle tube filler based on a sturdy mechanical structure.

Comadis CD180 is a robust tube filler designed for the most demanding production scenarios. Built to fulfil different expectations – from large-volume bulk production to reduced batches – and marked by its efficiency, it represents excellent value for money.
Available from basic to individually tailored configurations (including a fully robotized tube feeder), Comadis CD180 is able to adapt to a variety of production environments. Based on our experience, gained in the field, it will respond to all customer needs.
Comadis CD180 is now also available with a fully servo-driven dosing pump for maximum performance.

Production plant

IMA Comadis

Machine highlights

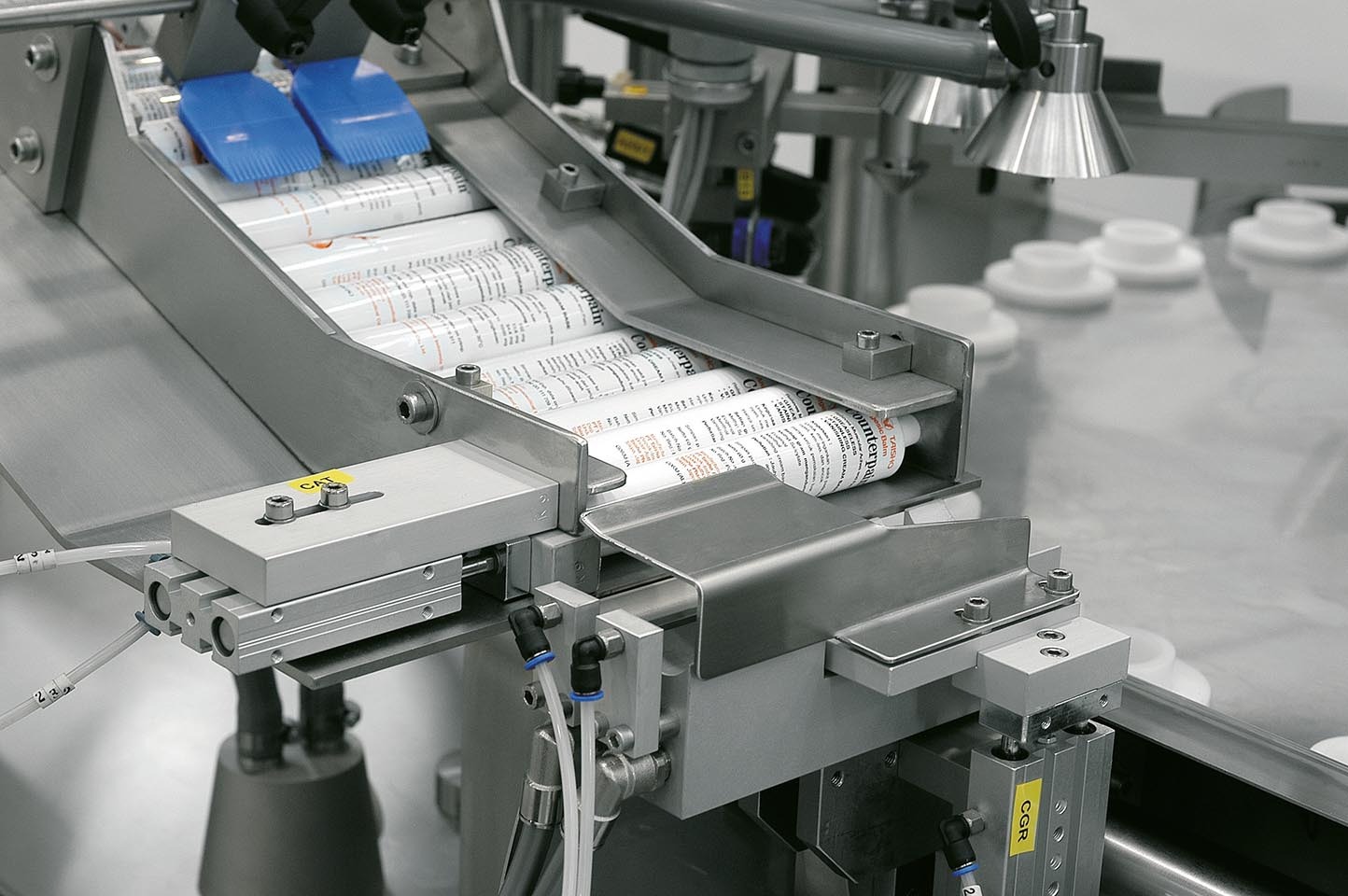

Tube feeders

Choice of automatic/robotized tube feeders.
Dosing pump

Easy-to-disassemble dosing pump.
Nozzle type

Servo-controlled diving (or stationary) nozzle, with positive shut-off valve and air-blow cleaning.
Special seals

Customized “designer seals” on request.

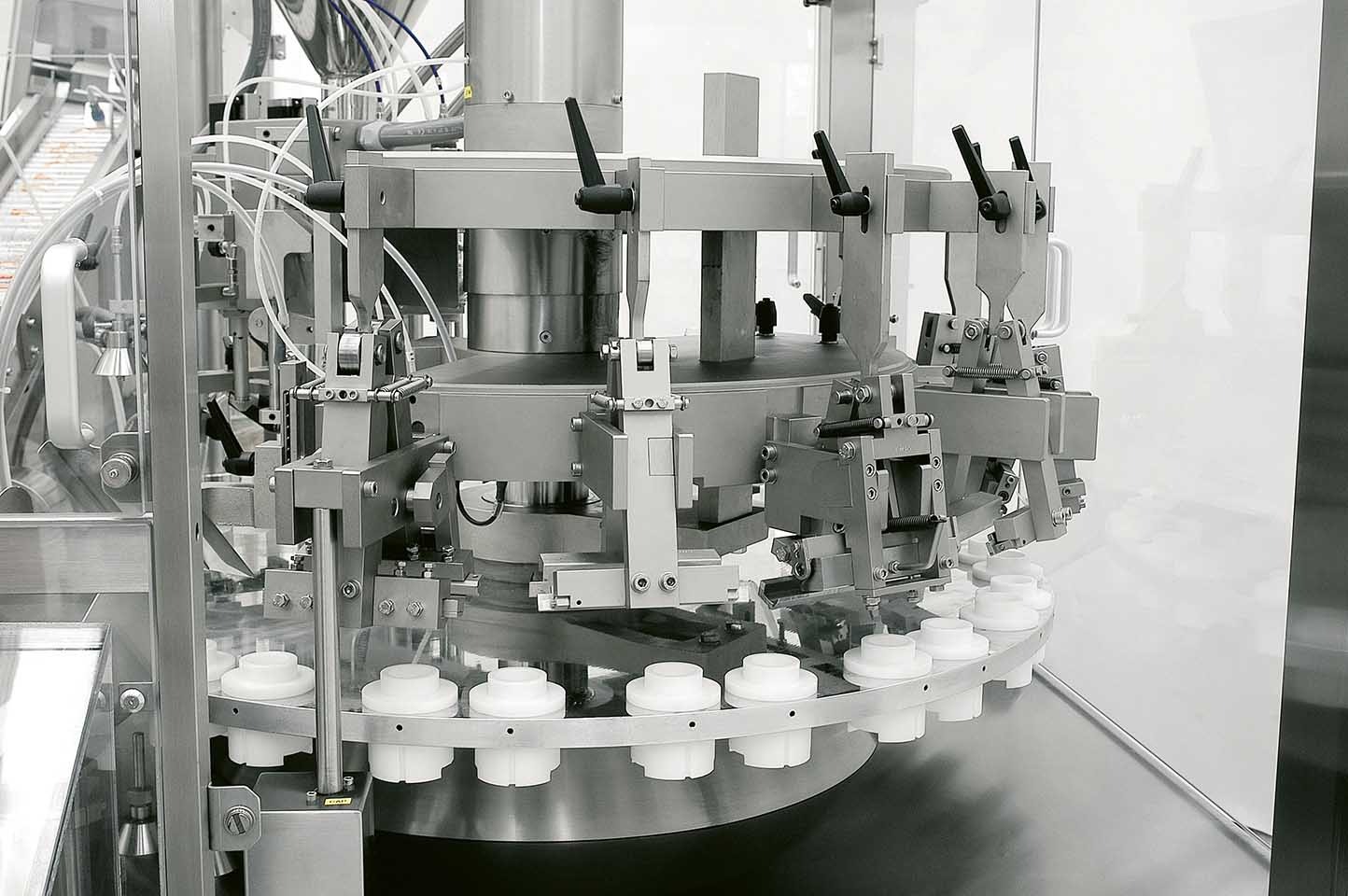

Closing heads

Quick interchangeability of closing heads.
Tool-free intervention

Simplified and easy change of size parts, without tools.
Electrical cabinet

Electrical cabinet integrated within machine footprint.

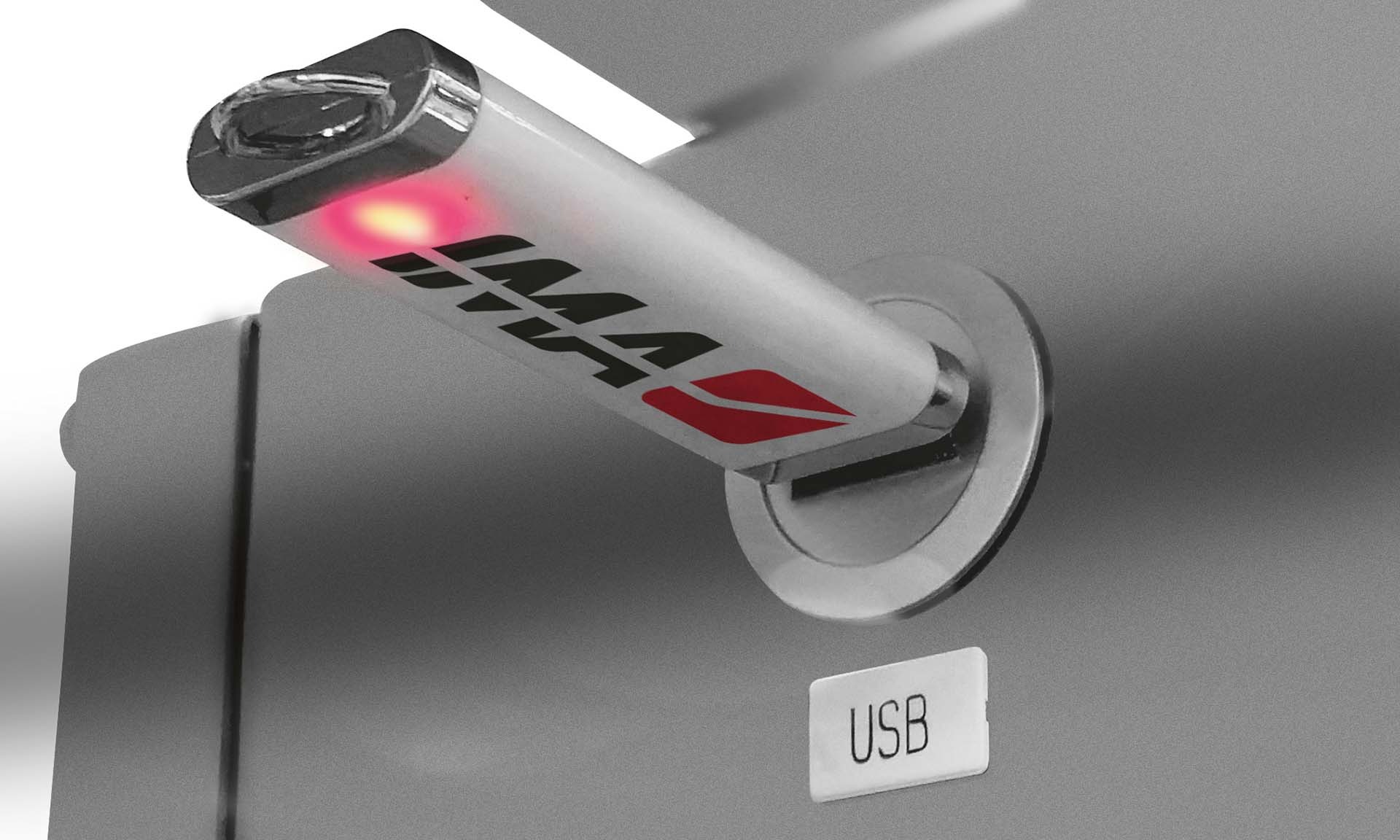

Data collection

Batch data collection – by pen drive – via USB port.

CD180: versatility combined with user-friendly programmability

With its fully servo-driven dosing pump, CD180 can be set up conveniently via HMI: stroke, acceleration and deceleration for both independently driven dosing pistons. All of this is in combination with servo-controlled, 3-way valves and diving injectors.
