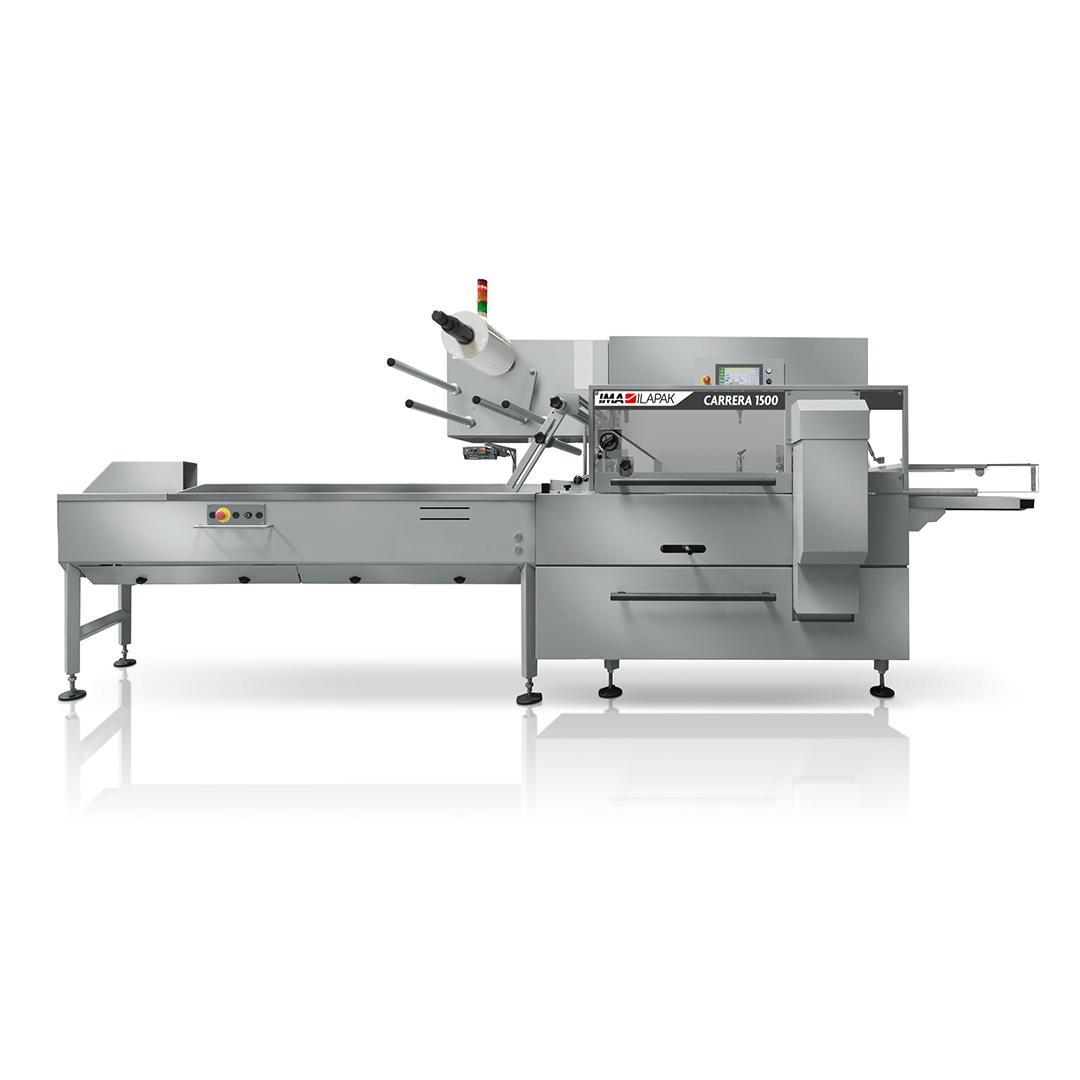

Carrera 1500 Horizontal Form Fill and Seal
Machine overview
Built for mid-range. Powered for more

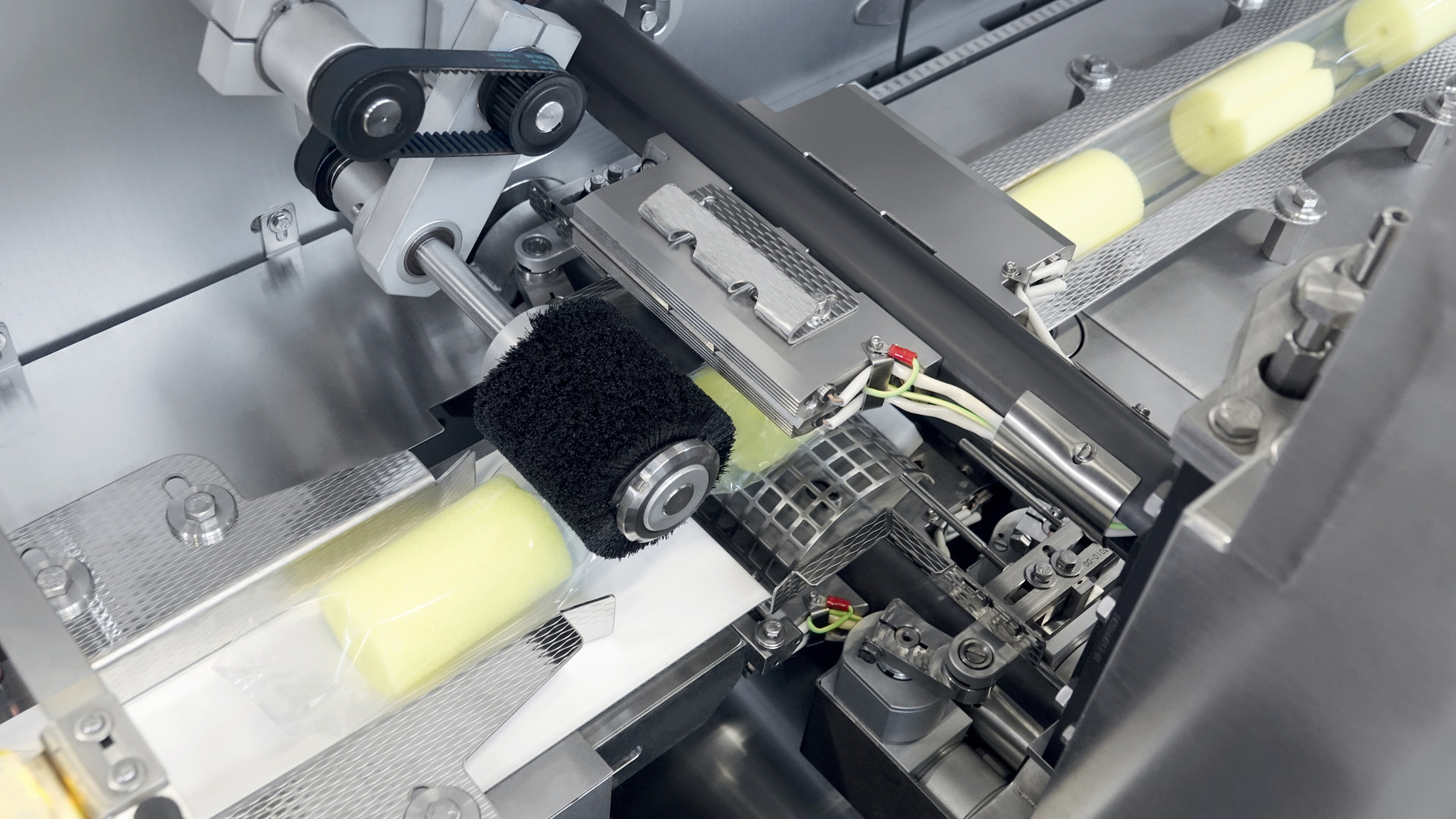

The Carrera 1500 is designed to meet the budget, build quality, and flexibility requirements of mid-range food and non-food operations. It features a newly engineered tubular frame that enhances robustness, combined with a heavy-duty sealing system equipped with improved jaw profiles to ensure superior seal quality and consistency.

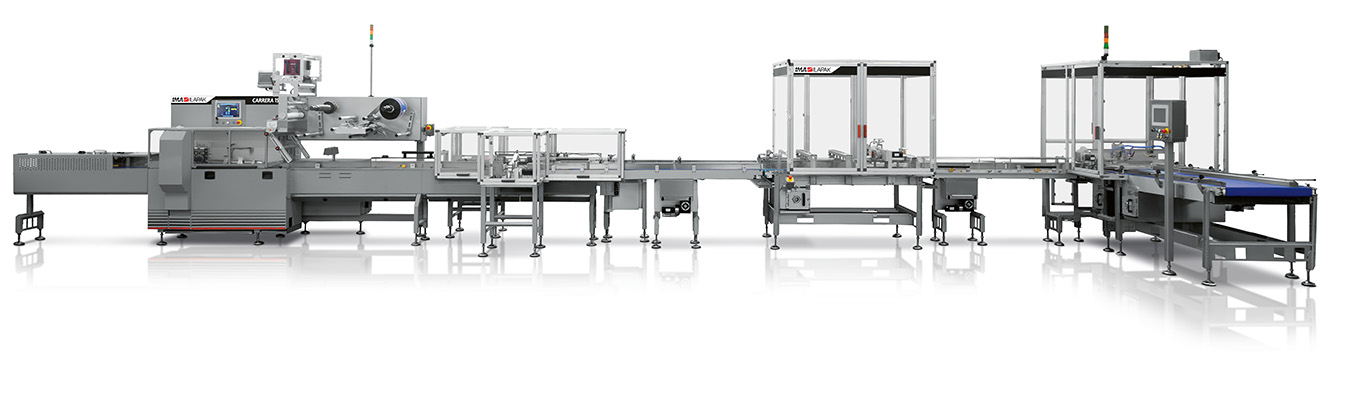

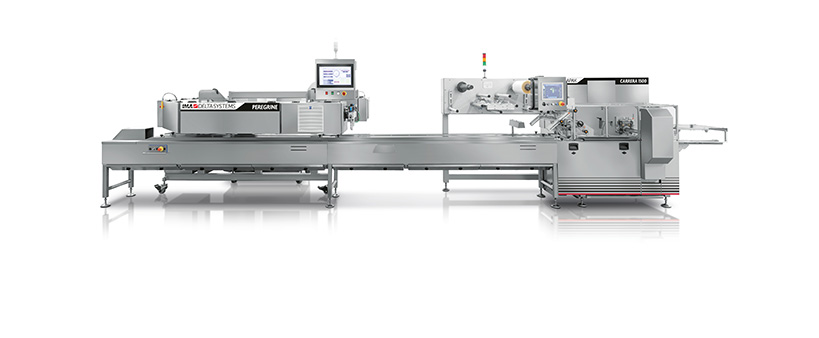

The machine can be configured with manual or automatic feeding, allowing seamless integration into fully automated workflows. Optional extras such as dual film reel holders and automatic film splicing further enhance overall line efficiency, making the Carrera 1500 a reliable and versatile choice for diverse production needs.

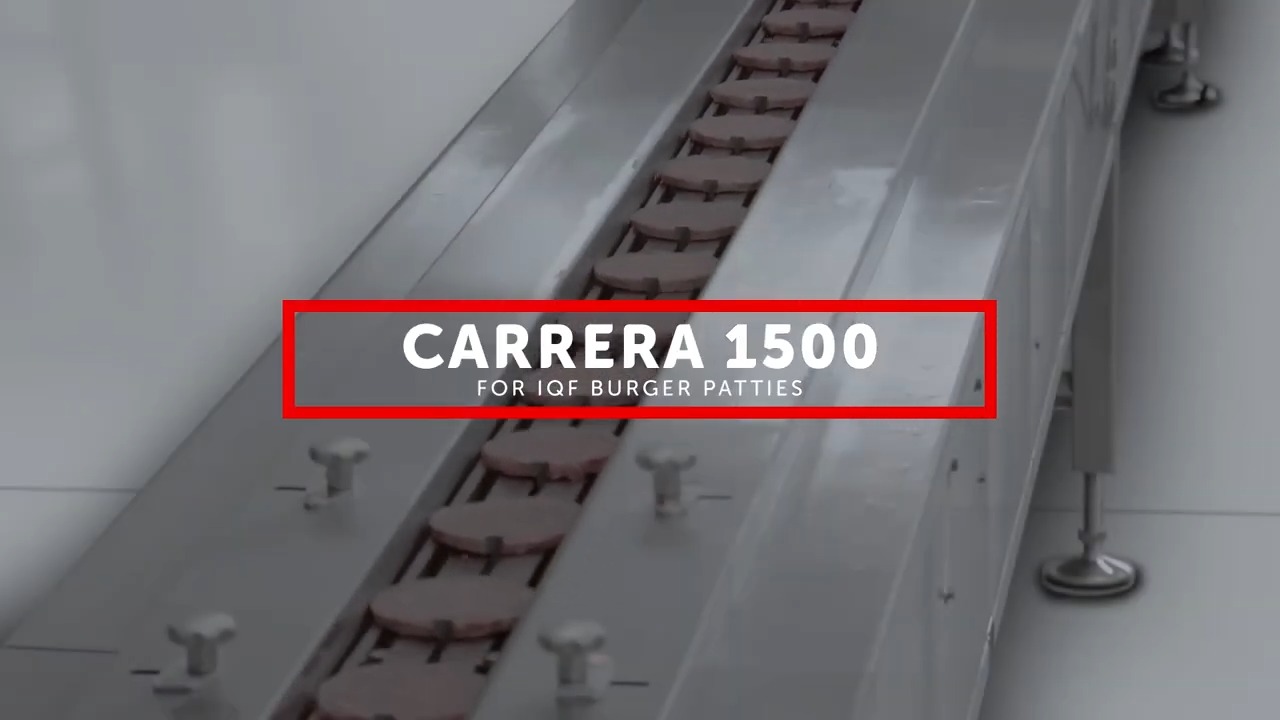

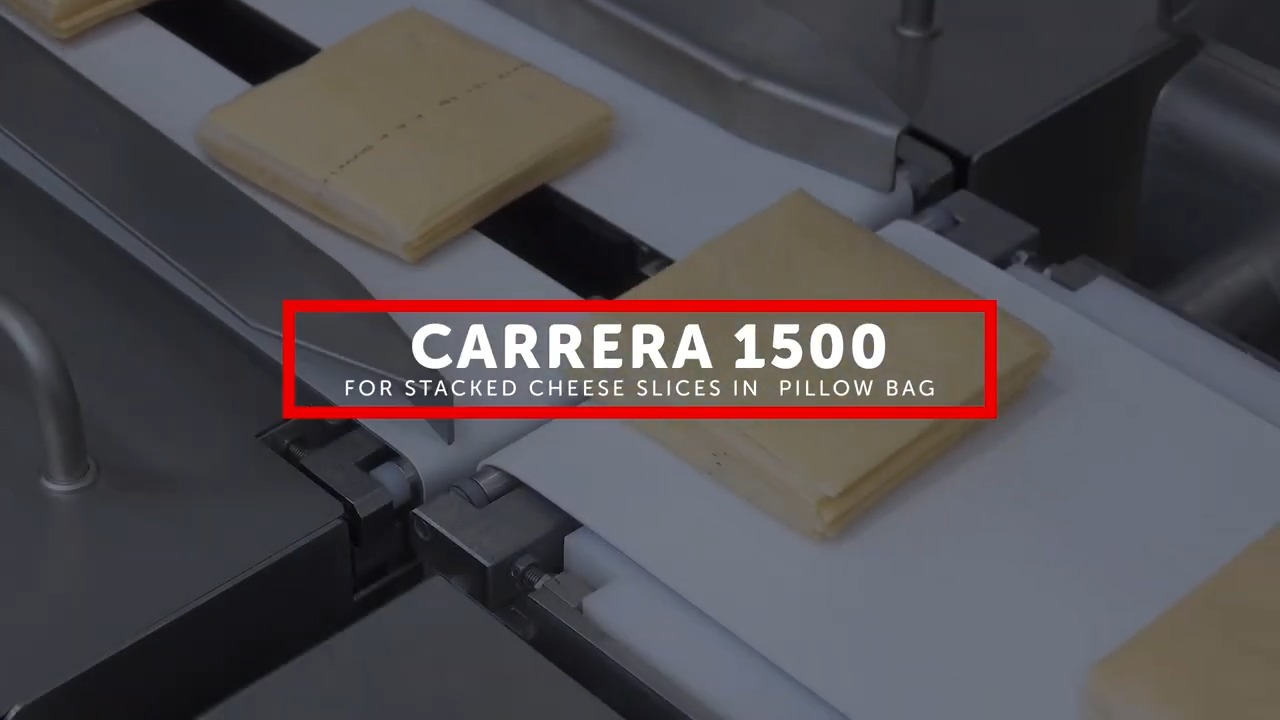

Ideal for bakery products, snack cakes, frozen items such as IQF burgers, and pre-wrapped cheese slices.
Production plant
Ilapak International SA
Machine highlights
-
Upgradable and connectable configuration
Easily expandable to integrate with various feeding systems for greater flexibility.
-
Commercially available electronic components
Ensures higher reliability, simplified maintenance, and fast part replacement.
-
Intuitive colour touch screen HMI
Icon-based interface enables easy, intuitive operation and faster training for operators.
-
Fully electronic control architecture
Facilitates quicker size changeovers and enhances overall machine efficiency.
Machine details
Technical information
| Carrera 1500 | |
|---|---|
| Machine Speed | Up to 130 cpm, single jaw. Higher speeds with multiple jaws. Production output dependent upon product, film and machine specifications. |
| Film Cut-Off | Up to 630mm – 24.8” Cut-off defined as: product length+(height x 1.2)+28mm (1.1”), depending on product characteristics. |
| Wrapping Materials | Suitable heat-sealable films, such as plain, or co-extruded polypropylene (PP), laminate films (e.g. OPP+PE), polythene films (PE) as well as cold sealable films of suitable quality |
| Film Reel Max Weight | 40kg – 88 lbs |
| Electronic Platform | PLC Controlled machine |
| Power Requirement | 3 Phase, 415V, 50Hz, 3-phase, 5kVA |
| Compressed Air | 6 bar, 10mm with air guzzlers |
| Machine Weight | Up to 1000kg – 2205 lbs |
| Product Dimensions | |
| Length | 50/550 mm – 2/21.6″ with jaw centre and length |
| Width | 20/300mm – 0.8/11.8″ with jaw length 250mm – 9.8″ 20/400mm – 0.8/15.7″ with jaw length 350mm – 13.7″ |
| Height | Up to 90mm – 3.5″ with jaw length 250mm – 9.8″ Up to 120mm – 4.7″ with jaw length 350mm – 13.7″ |
| Film Reel Dimensions | |
| coreø | 76mm – 3” |
| outerø | 350mm – 13.8” |
| width | 500mm – 19.7” |
