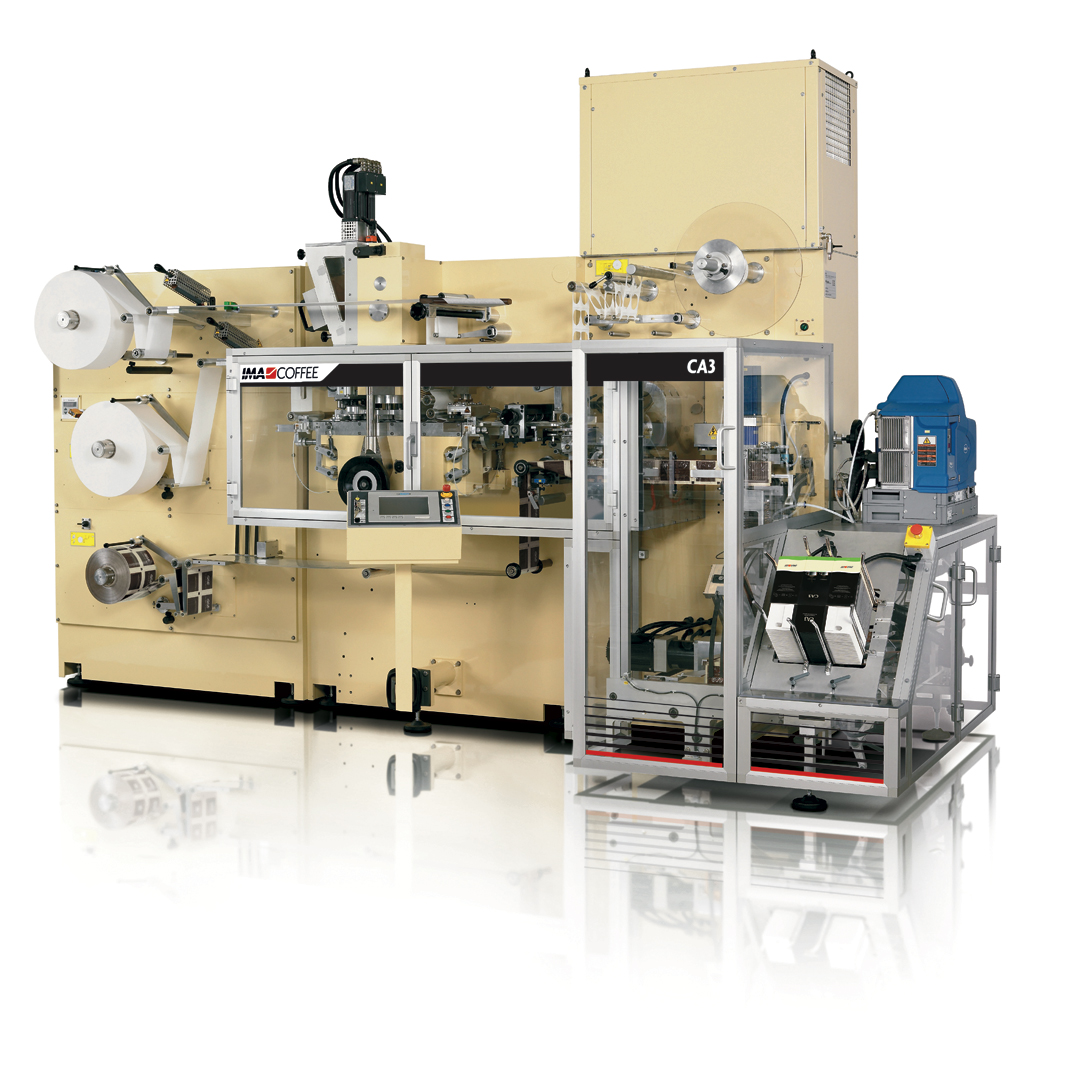

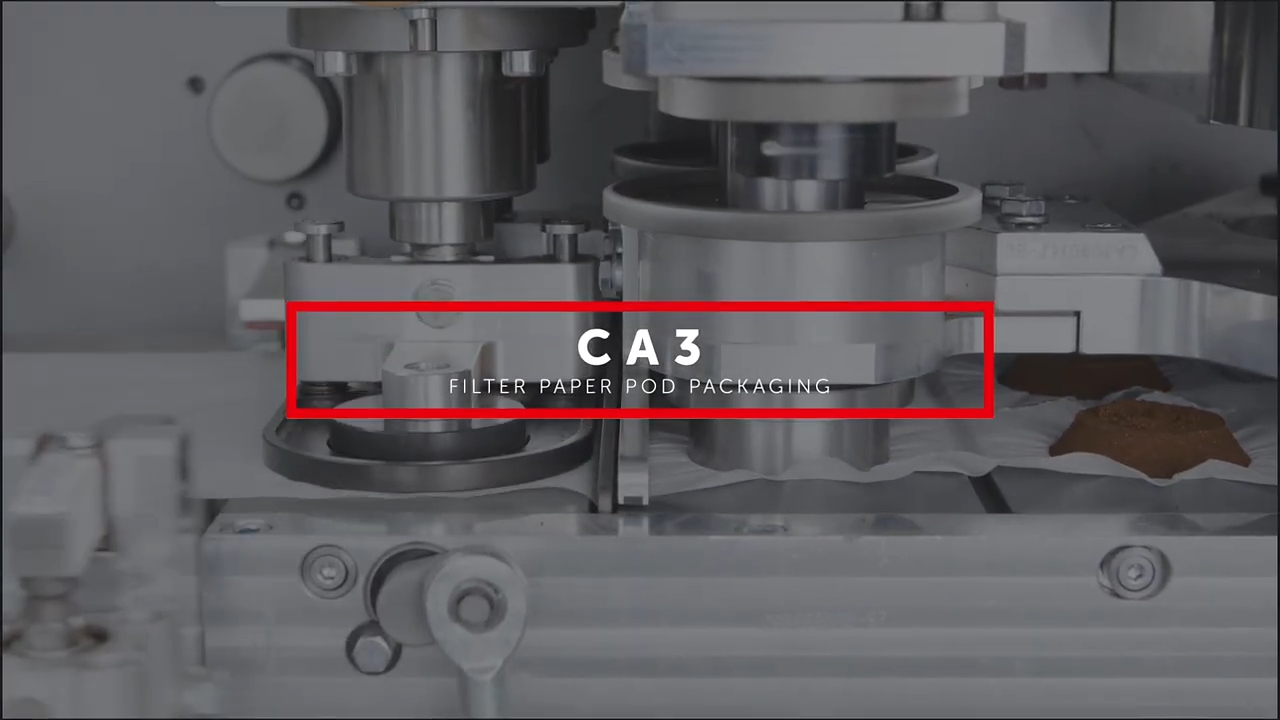

CA3 Paper pods packaging
Machine overview
Makes the difference

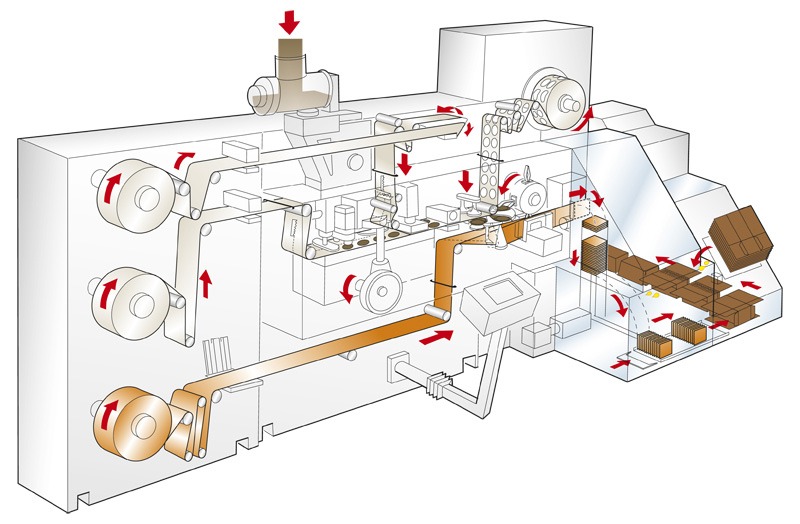

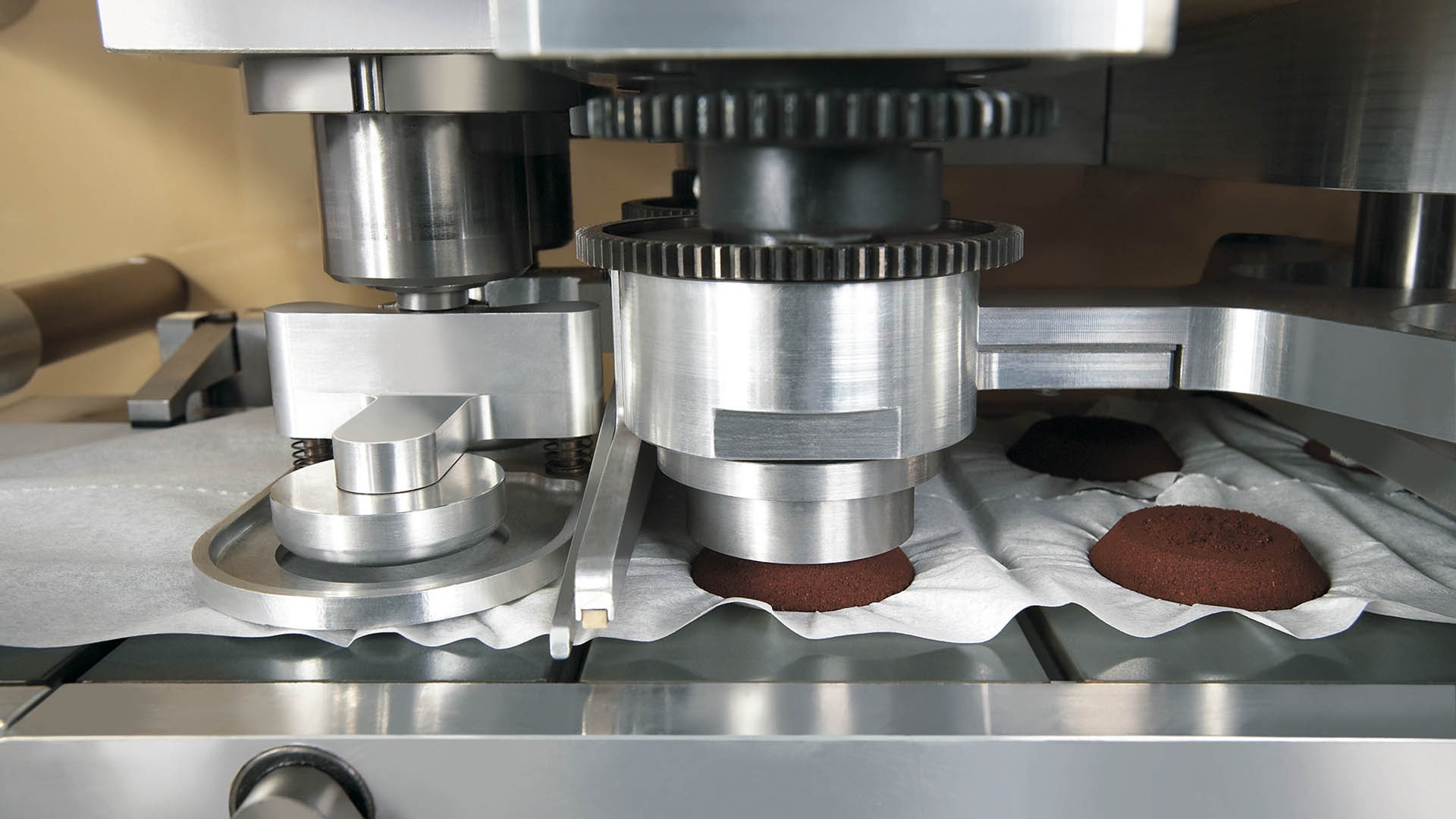

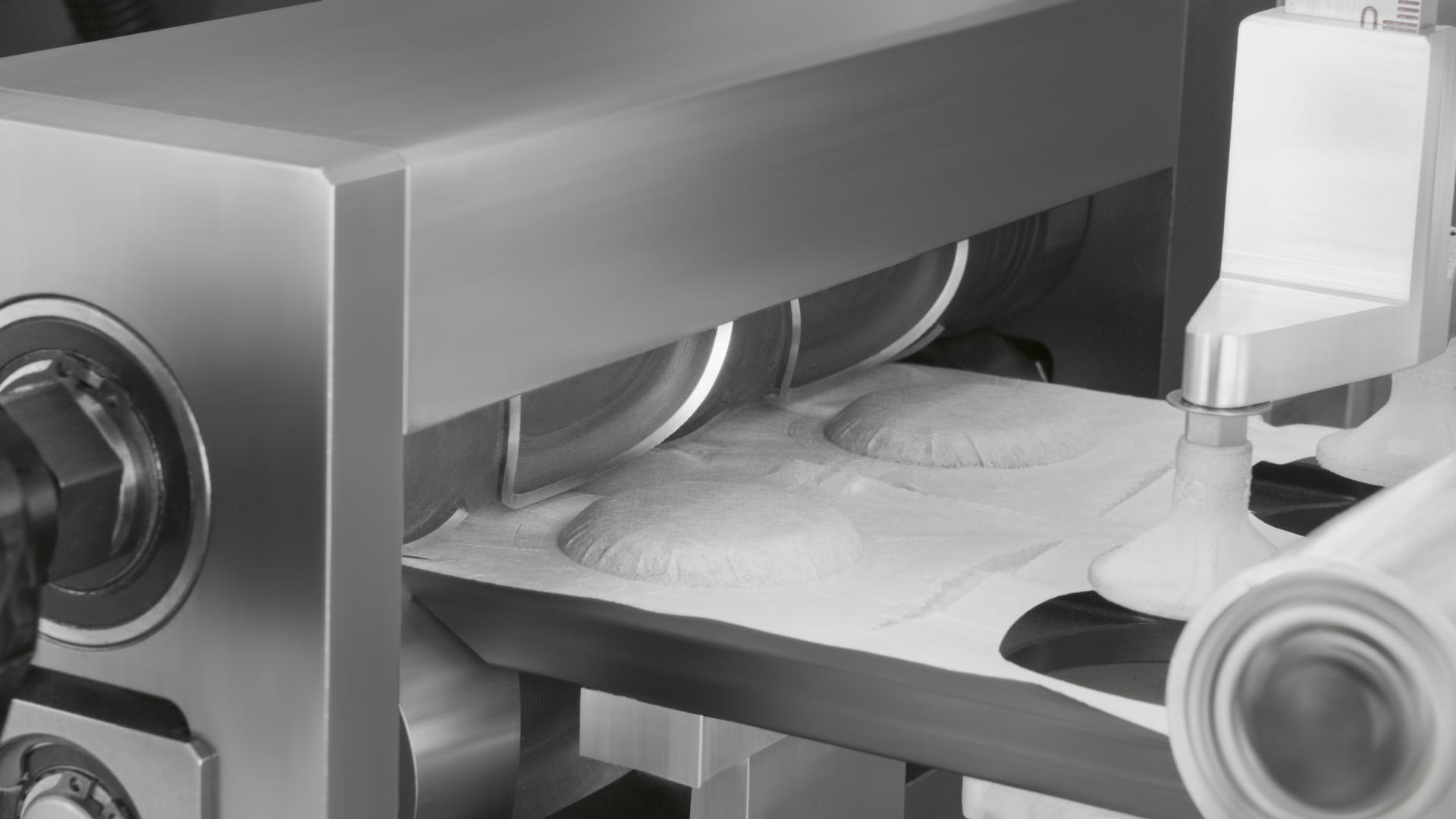

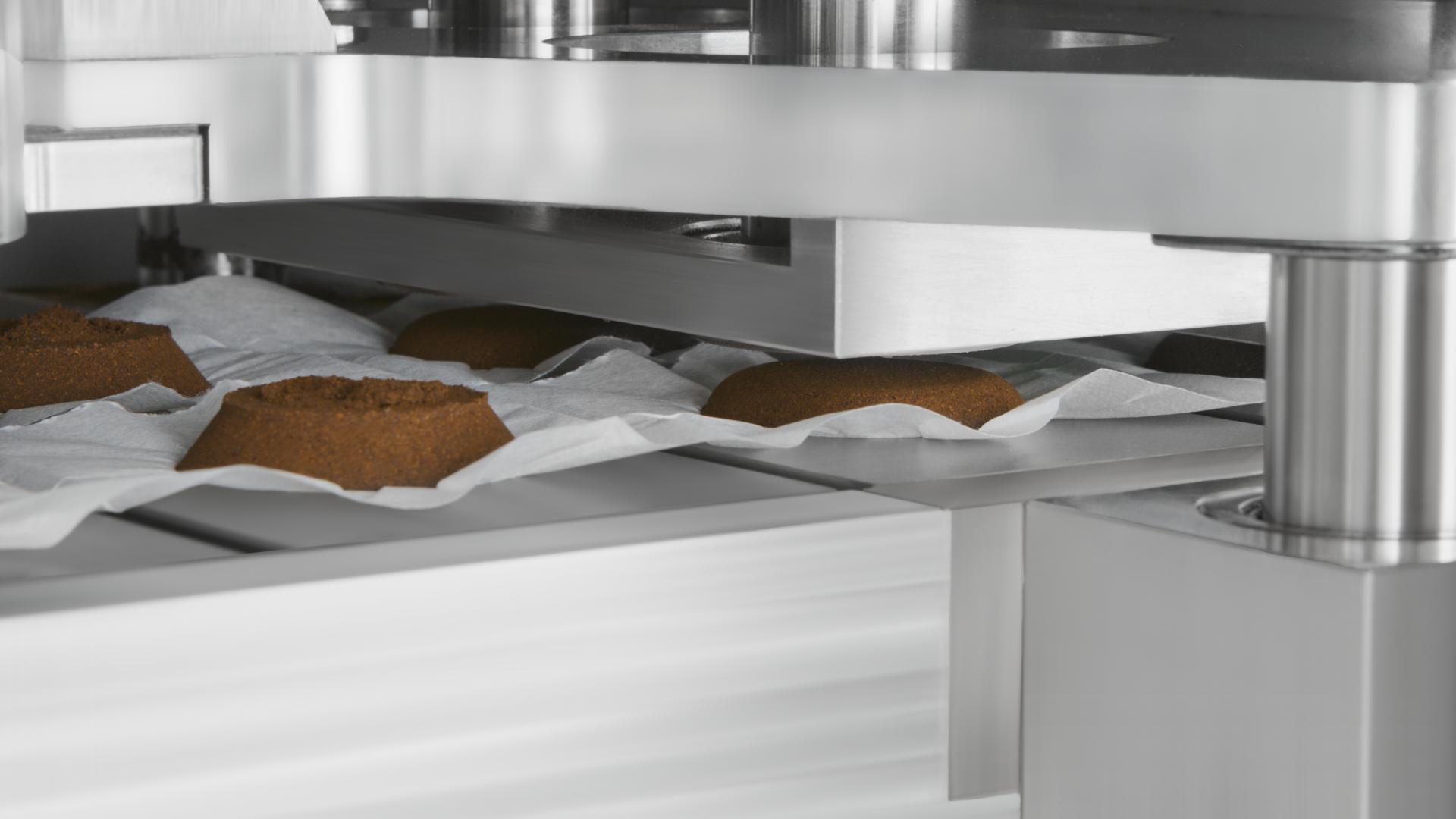

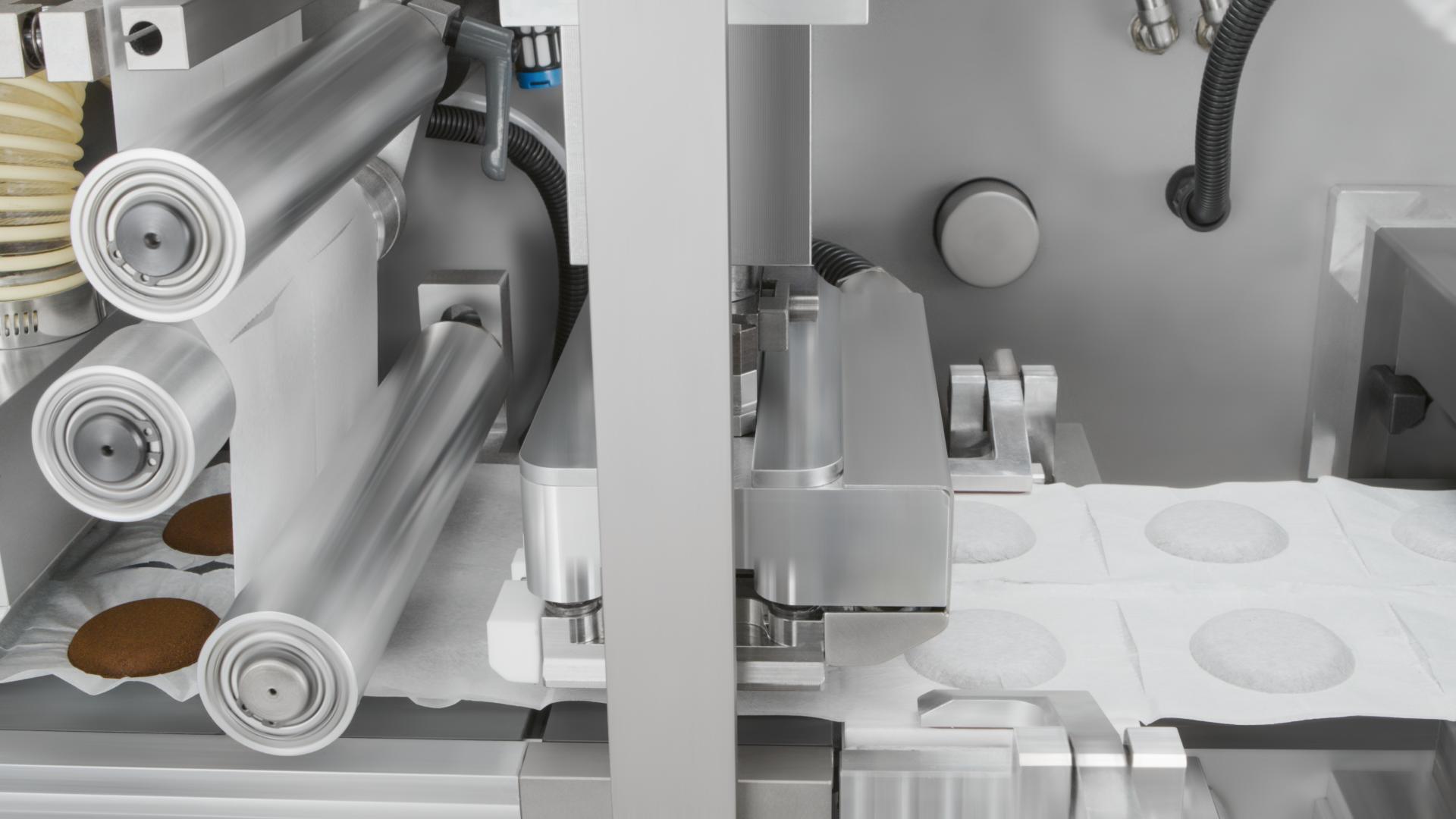

The CA3 packs both soft and hard coffee pods in a modified and conditioned atmosphere, heat-sealing them in a protective outer envelope and finally packing them into cartons at a production speed of 250 pods/minute.

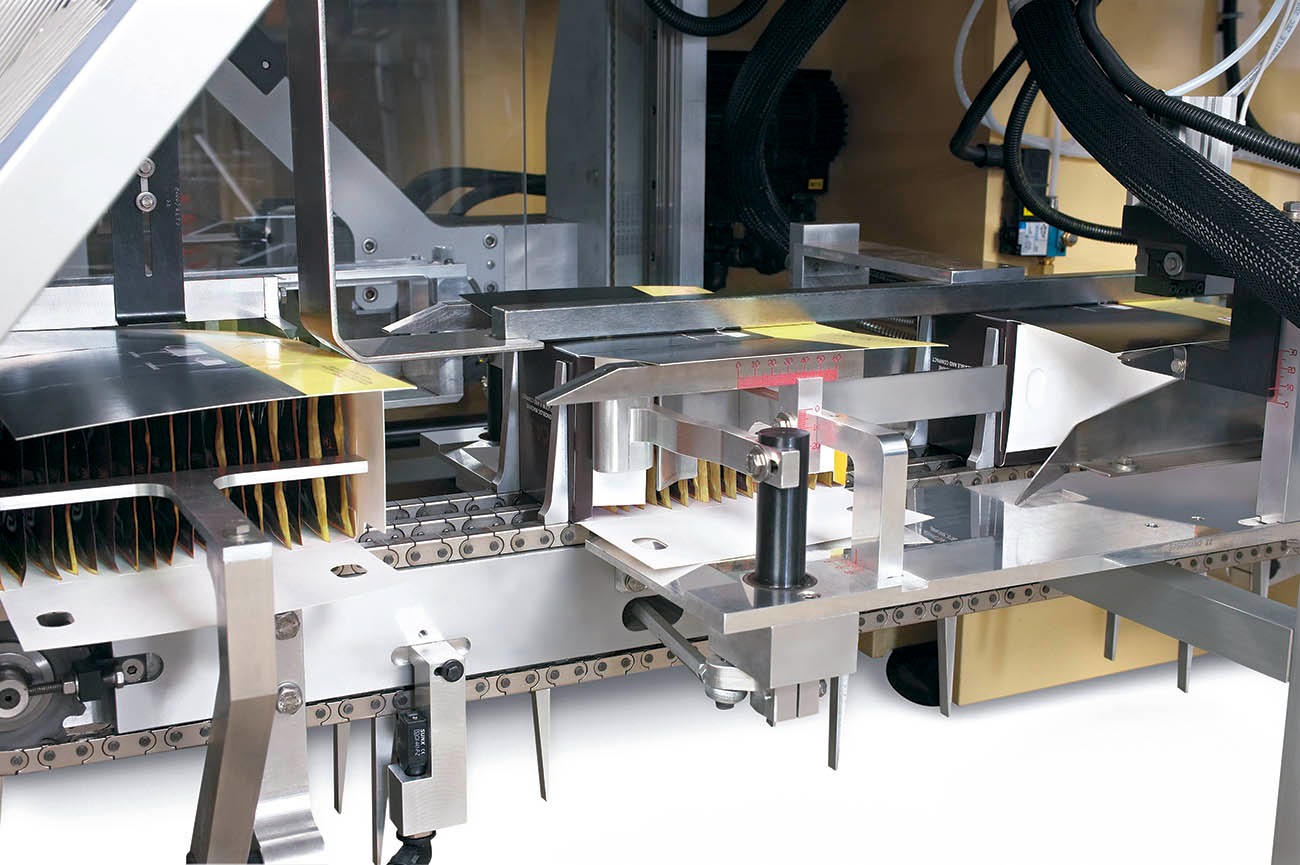

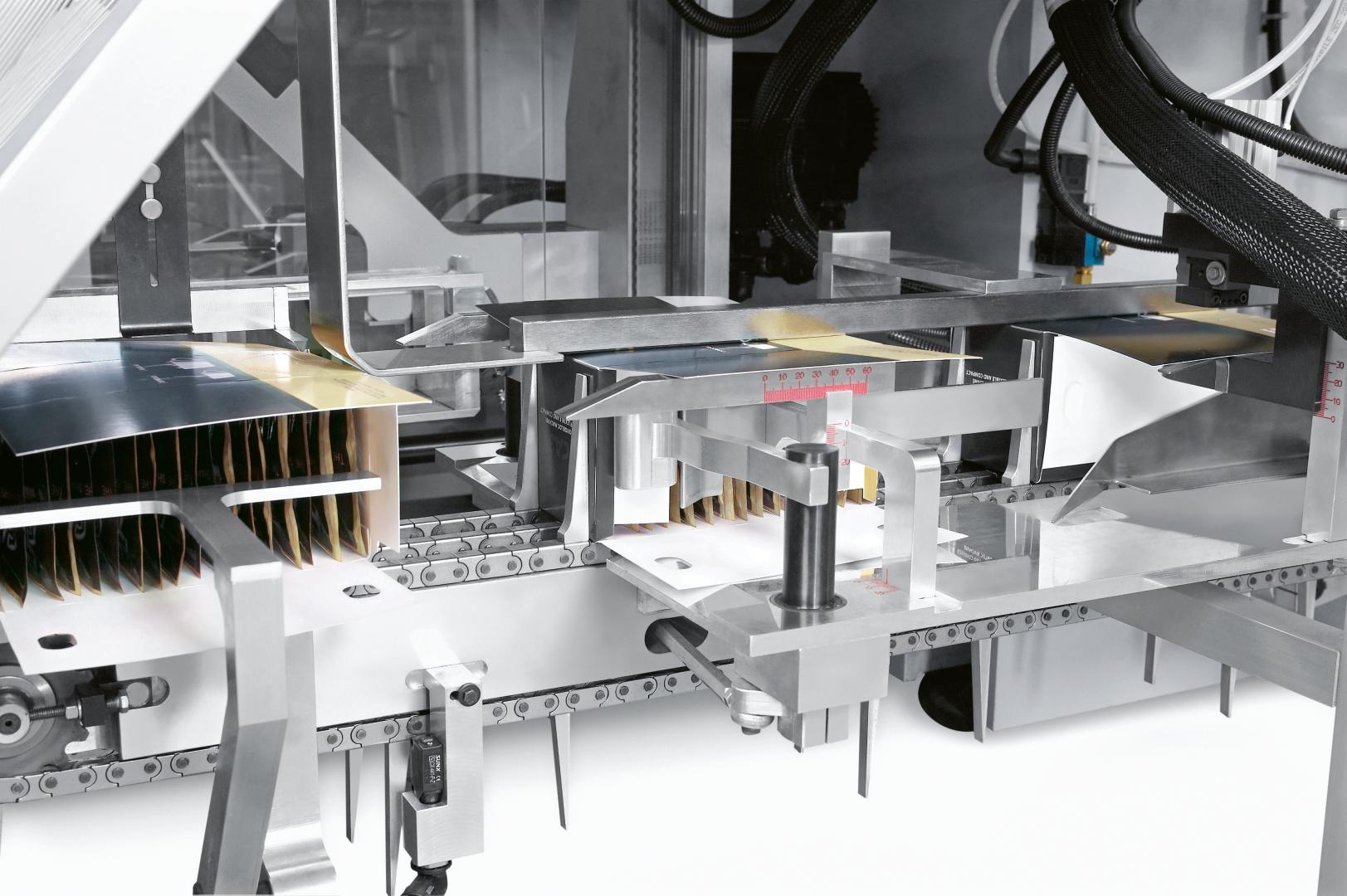

The production cycle of the machine is completed by an integrated, fully automatic, accessible and adjustable cartoning unit.

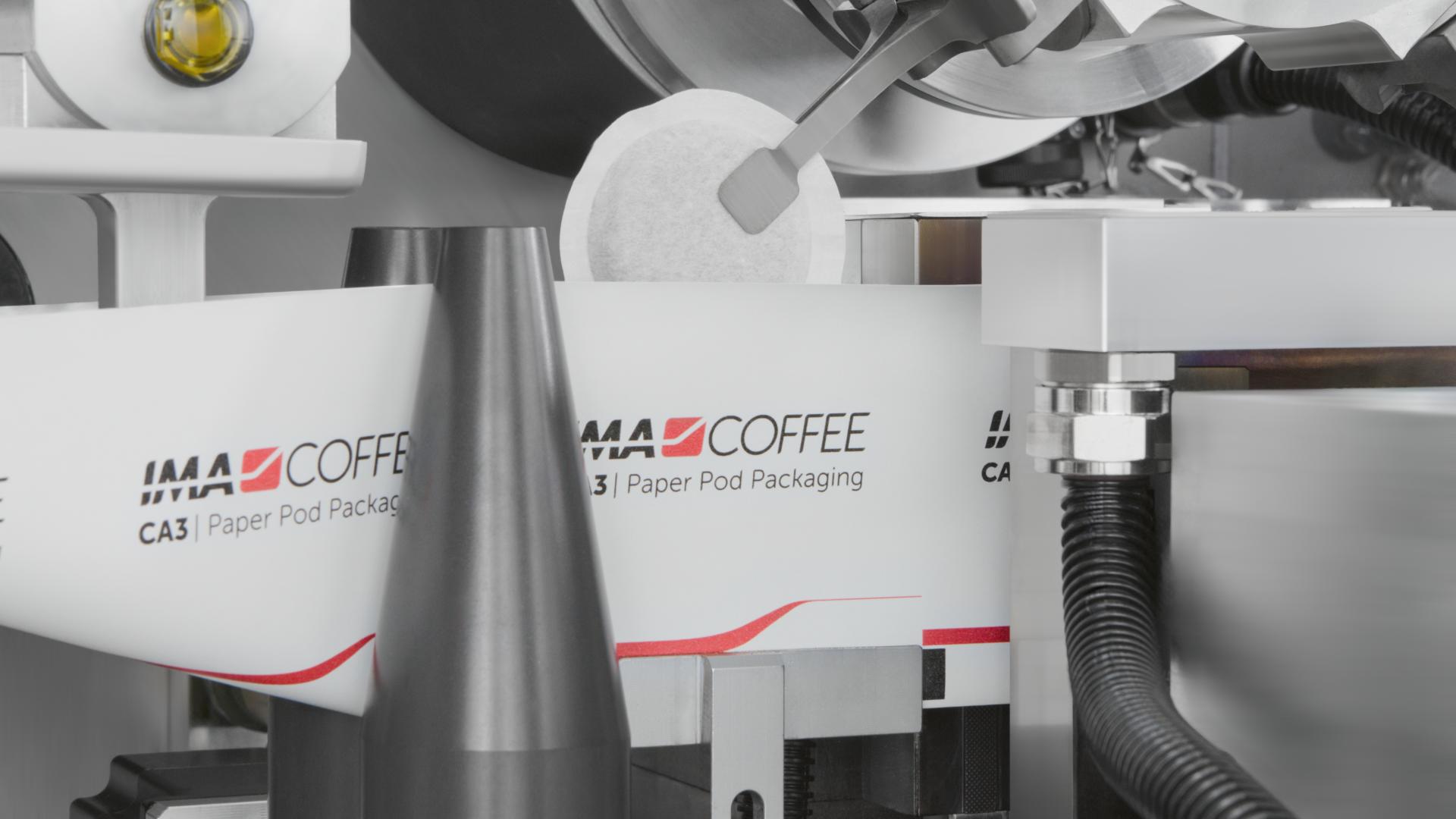

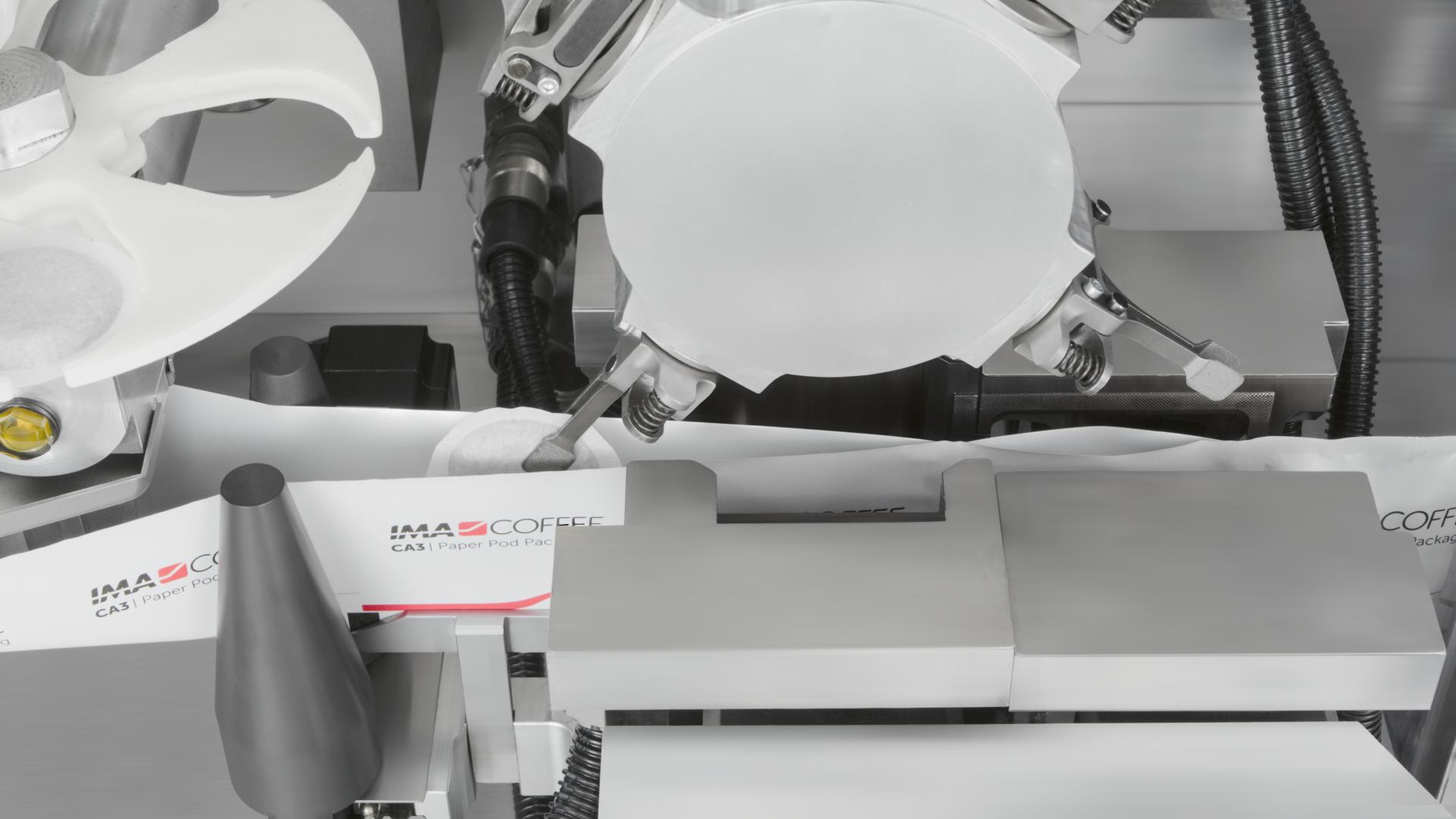

Prior to being inserted into a heat-sealed outer envelope, a controlled supply of nitrogen is introduced into a protective hood, where humidity and temperature are kept unvaried to guarantee optimum product quality.
Production plant
IMA Coffee
Machine highlights
-
Pre-assembled size changeover units
Enabling faster format switches and reduced downtime thanks to minimal on-machine adjustments.
-
Production cycle controlled by an integrated PC
Ensuring reliable operation, process stability, and consistent final product quality. -
CA3 features a lubrication-free design
Delivering cleaner processing and lower maintenance requirements.
-
Full integration with a coffee grinder
Allowing a complete and seamless production cycle from grinding to packaging.
Flexible packaging solutions
The machine flexibility allows alternative packaging solutions:

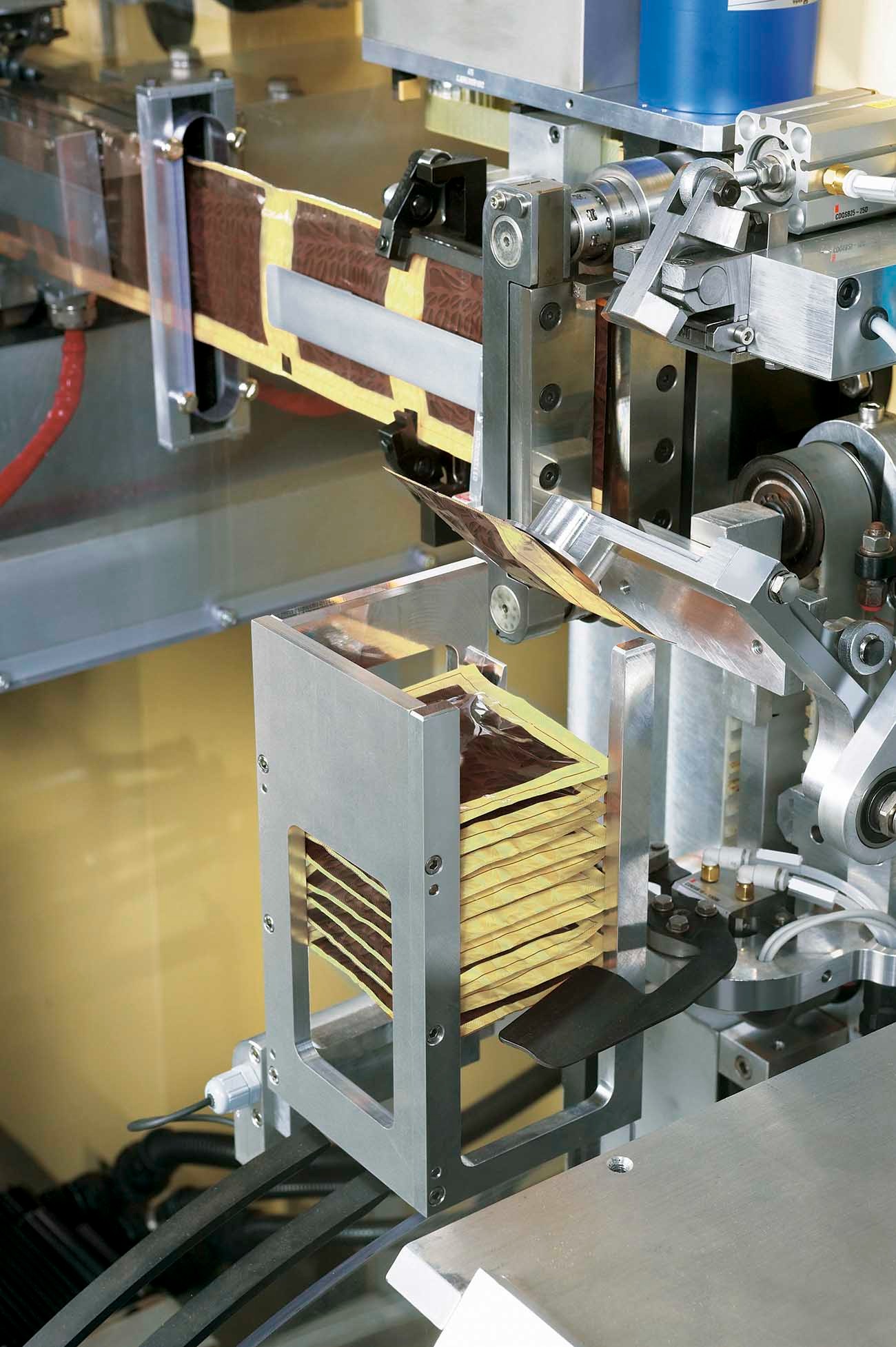

• Hand removal for counted and stacked pods with outer envelope;
• Exit belt for pods without outer envelope for end of line packaging;
• Exit belt complete with flip-flop and programmable count for random pod packaging in cartons or bags.
Machine details
Technical information
| CA3 TECHNICAL DATA | |
| Machine speed (Coffee pod/minute) | Up to 250 |
| Pod capacity | Up to 14 grams of coffee |
| Power required | Total installed power max. 20 kW |
| Power consumption | 14 kW |
| N.b. Consumption depends on the thermics group fitted on the machine | |
| Compressed air | Duty pressure: 6 bar – consuption 250 Nl/min. |
| Machine net weight | Max. 4,000 Kg |
| Data subject to possible technical modification and not necessarily definitive | |
