C80 Series Blister Packaging
Machine overview
The blister machine, just the way you want.
The C80 series of blister-packaging machines offers the widest possible application range. C80R and C80-A81 lead the market for medium size production batches and in response to the most frequent demands, C80-A81 with its integrated cartoner-connection ensures high efficiency, while C80R Stand Alone is extremely flexible.
Available as double-lane, three-lane in the Stand Alone version, the machine grants high efficiency not only with the most common thermoforming materials, but also with the most difficult ones, including PP and Aclar.
The C80 series is the fastest blister machine in its class, delivering wide blisters, especially in Alu-Alu.

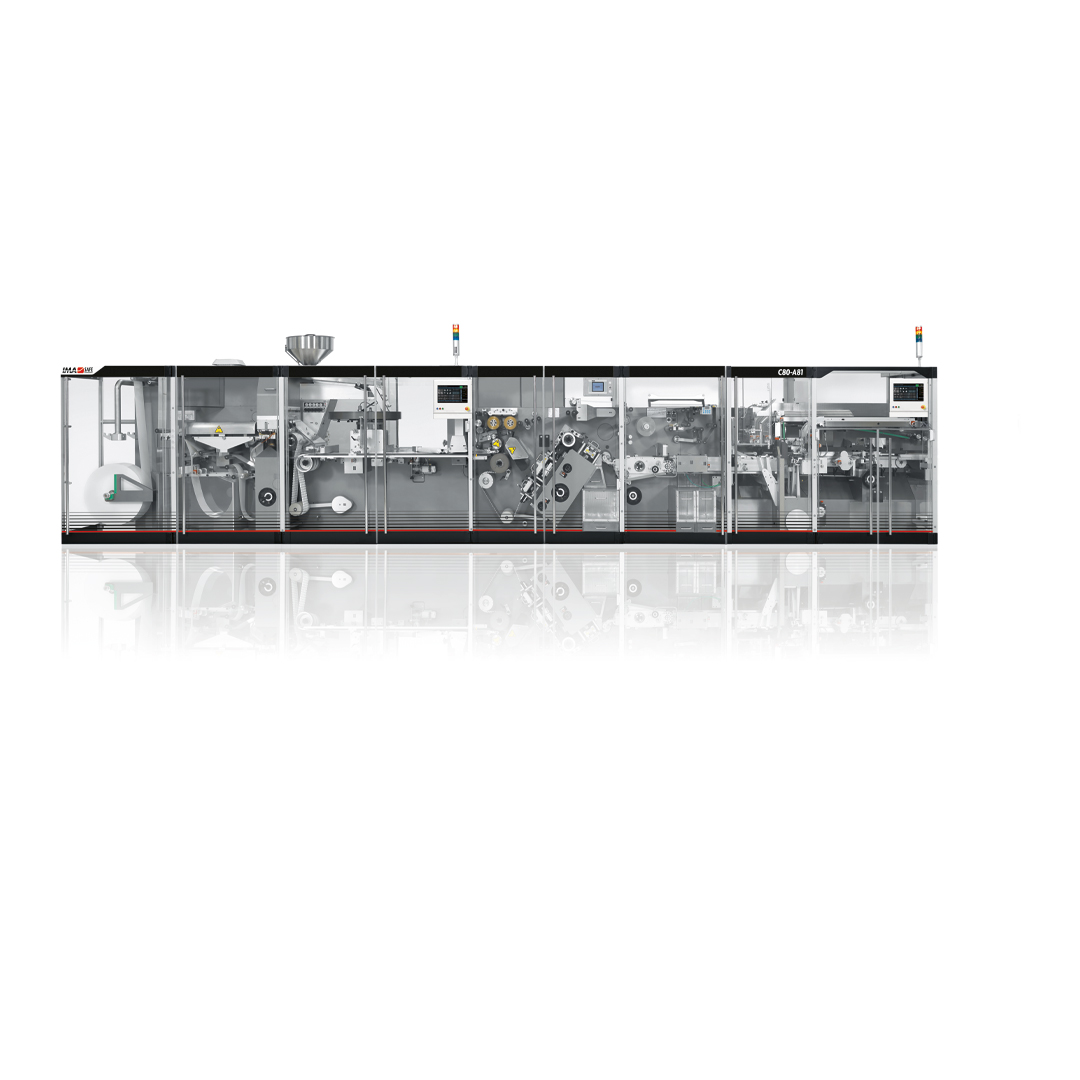

C80-A81, characterised by positive transport between the blister machine and the cartoner, is the ideal solution for medium size batches.

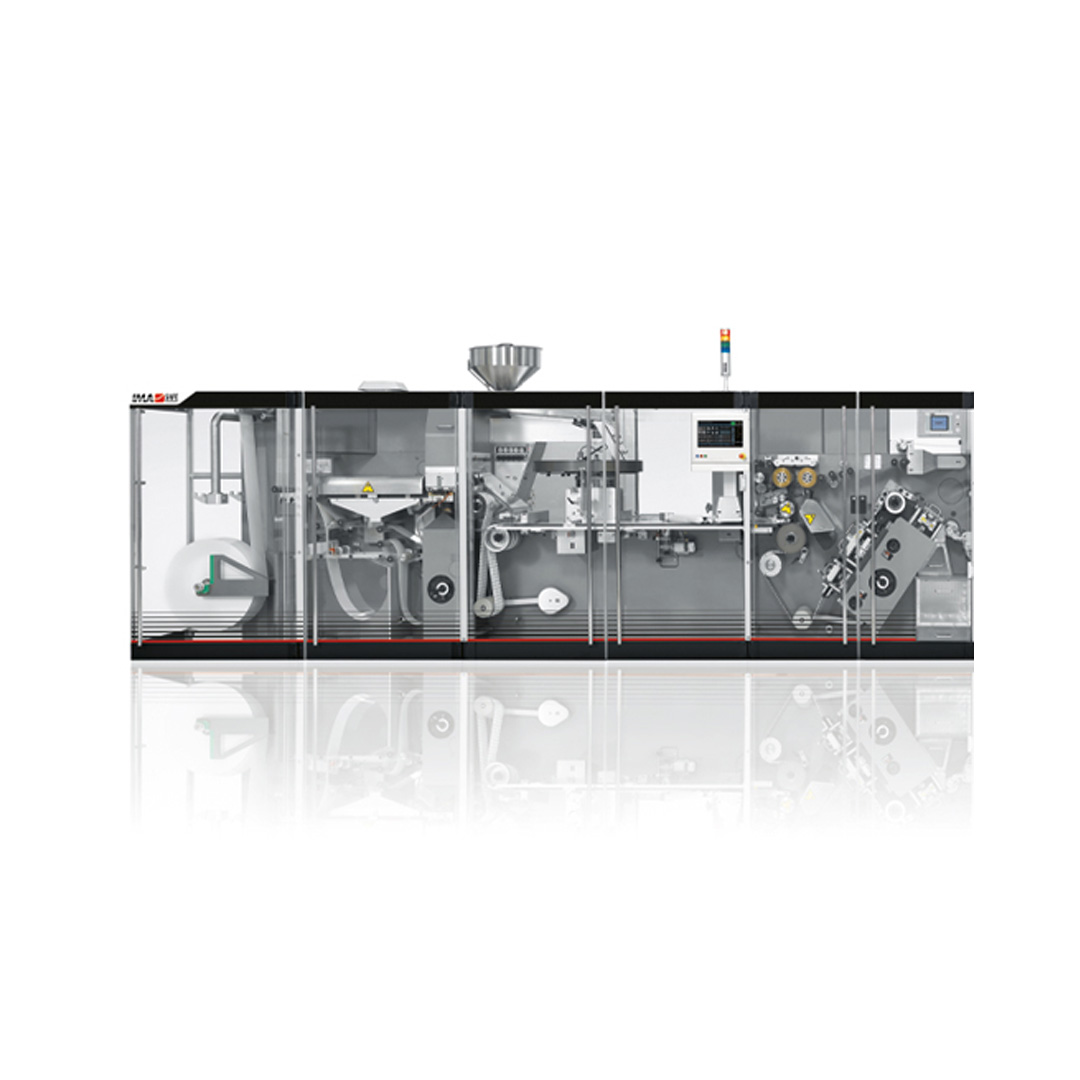

C80R, from double-lane to three-lane production speed, is the fastest stand-alone machine designed to be easily connected to any cartoner and wallet machine, providing maximum layout flexibility.
Production plant
IMA Safe
Machine highlights
-
Blister format
Wide blister format size range.
-

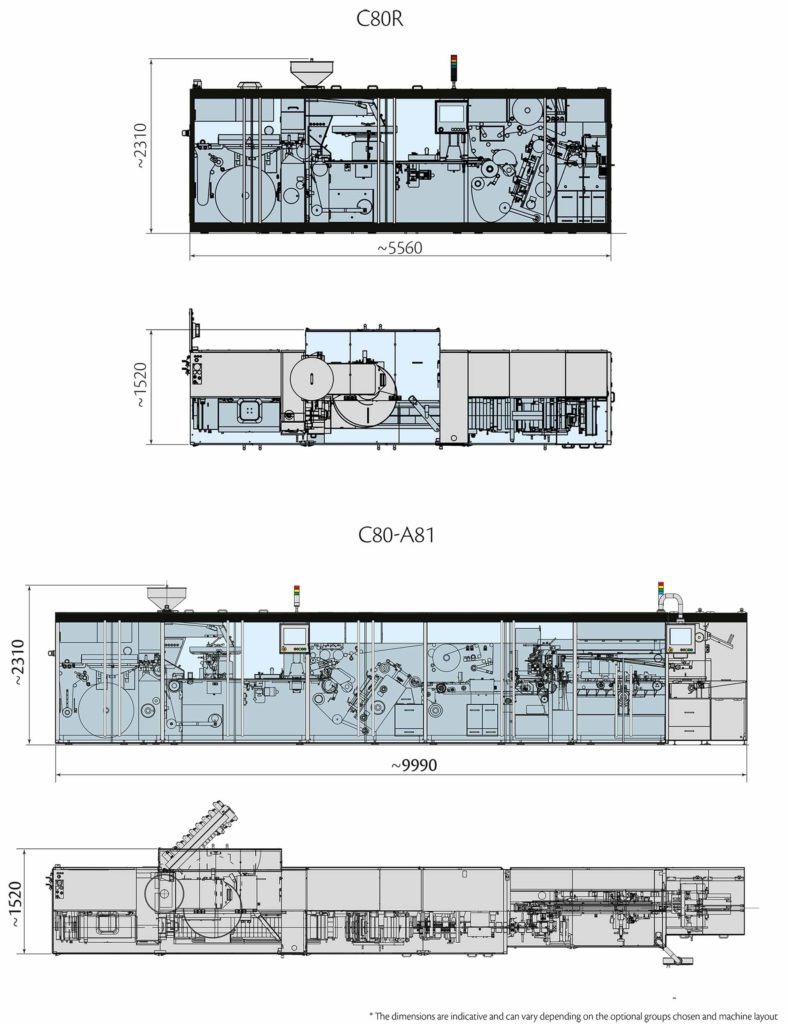

Layout
Maximum flexibility in layout.
-
Changeover
Fast and computer-guided changeover.
-
User-friendly
Easy to use.
-
Accessibility
Complete accessibility to the material workflow.
-
Ergonomics
Easy forming material loading thanks to the ergonomic position of the reel holder.
-
Automatic blister recovery magazine
ZERO rejection into the cartoner due to missing blisters
Special applications
C80 double-lane is the fastest machine able to pack hormone products. Thanks to the use of multiple feeding systems, it lets you feed different products for the same blister.
Good to know

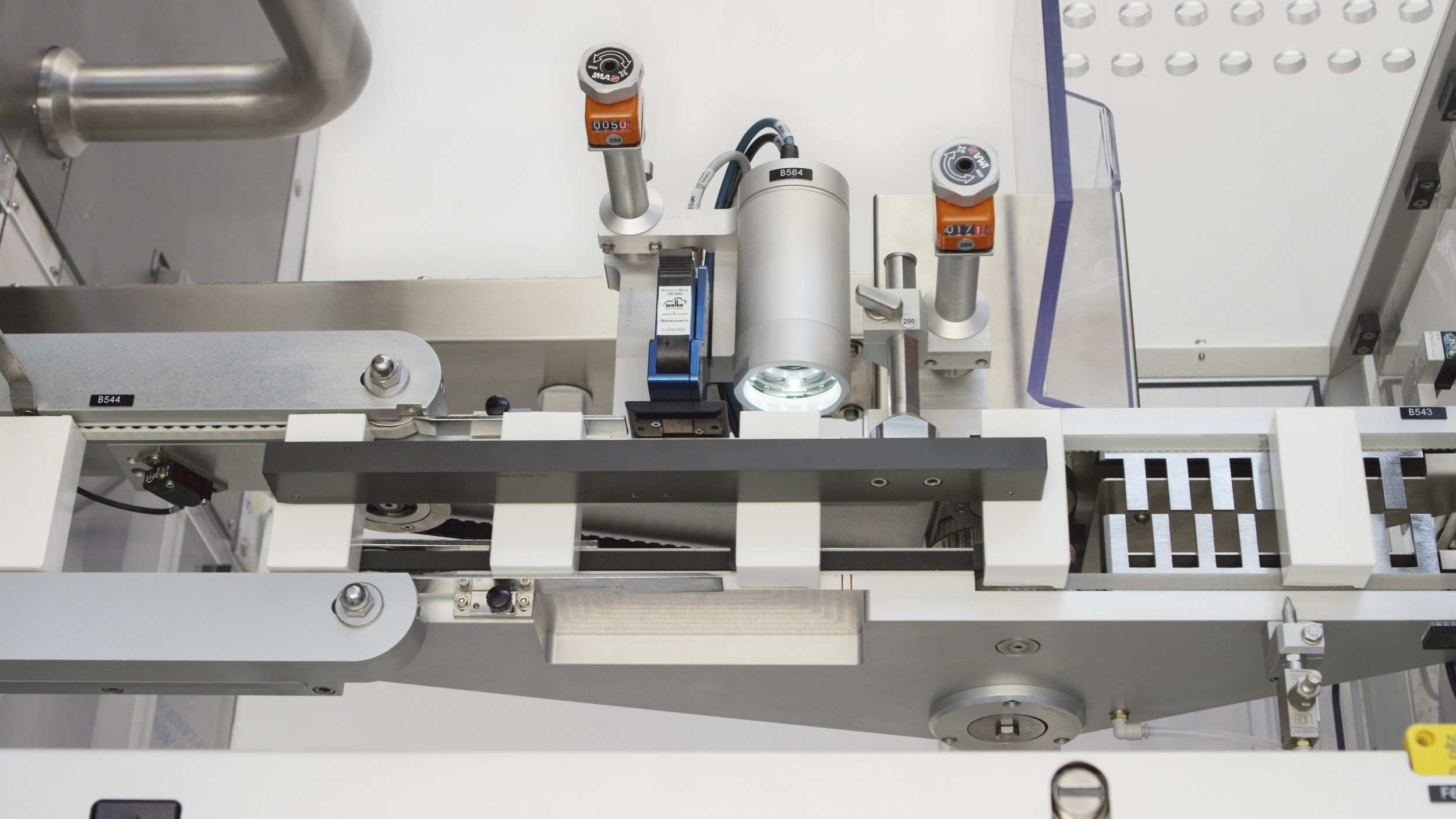

Track & Trace
The integrated module to the cartoner, to apply camera and ink-jet system, is the ideal solution for cartoning serialization having a shorter line and higher efficiency.
Machine details
Technical information
| C80 TECHNICAL DATA | ||
| Blister dimensions | Carton dimensions | |
| Width | 30-90 mm | 35-93 mm |
| Length | 60-150 mm | 70-155 mm |
| Depth/Height | 3-12 mm | 12-90 mm |
| Production output | ||
| Model | C80R STAND ALONE | C80-A81 |
| Blisters | up to 400 blisters/min. up to 600 blisters/min. | up to 400 blisters/min. |
| Cartons | – | up to 250 cartons/min. |
Machine versions
C80-A81
C80-A81 blister machine with integrated cartoner combines efficiency and flexibility in terms of blister and carton configurations.
• Blisters/min: up to 400
• Integrated transfer
• Cartons/min: up to 250
C80R
C80R stand-alone blister machine grants the maximum flexibility in line lay-out and applications.
The module of C80R stand-alone blister machine allows the maximum flexibility in connection with cartoners, wallet machines and flow pack machines, satisfying any kind of line layout needs.
• Blisters/min: up to 600
