C59 Tea bag packaging
Machine overview
Bag and pack. Inside out.
Conceived to enhance the look and feel of essential single-chamber bags, the C59 produces gusseted, string and tag-free, heatsealed filter bags. Reaching speeds of up to 900 bags/minute, it processes black tea and is an ideal choice for non free-flowing products.
Featuring an integrated flow pack unit as standard, the C59 completes the packaging process by inserting counted naked bags into heatsealed flow packs, which can be personalised by the customer.
A unique solution as of today, full integration of this unit enables single overall process control covering each step from bag forming to flow pack sealing, as well as enabling a surprisingly limited footprint.
Production plant
IMA Tea & Herbs
Machine highlights
-
Integrated flow wrapper
Full integration of flow pack unit enables total process control and extremely compact footprint.
-
Gusseted bags
Gusseted single-chamber bags give tea or herbs more room to move enabling better infusion.
-

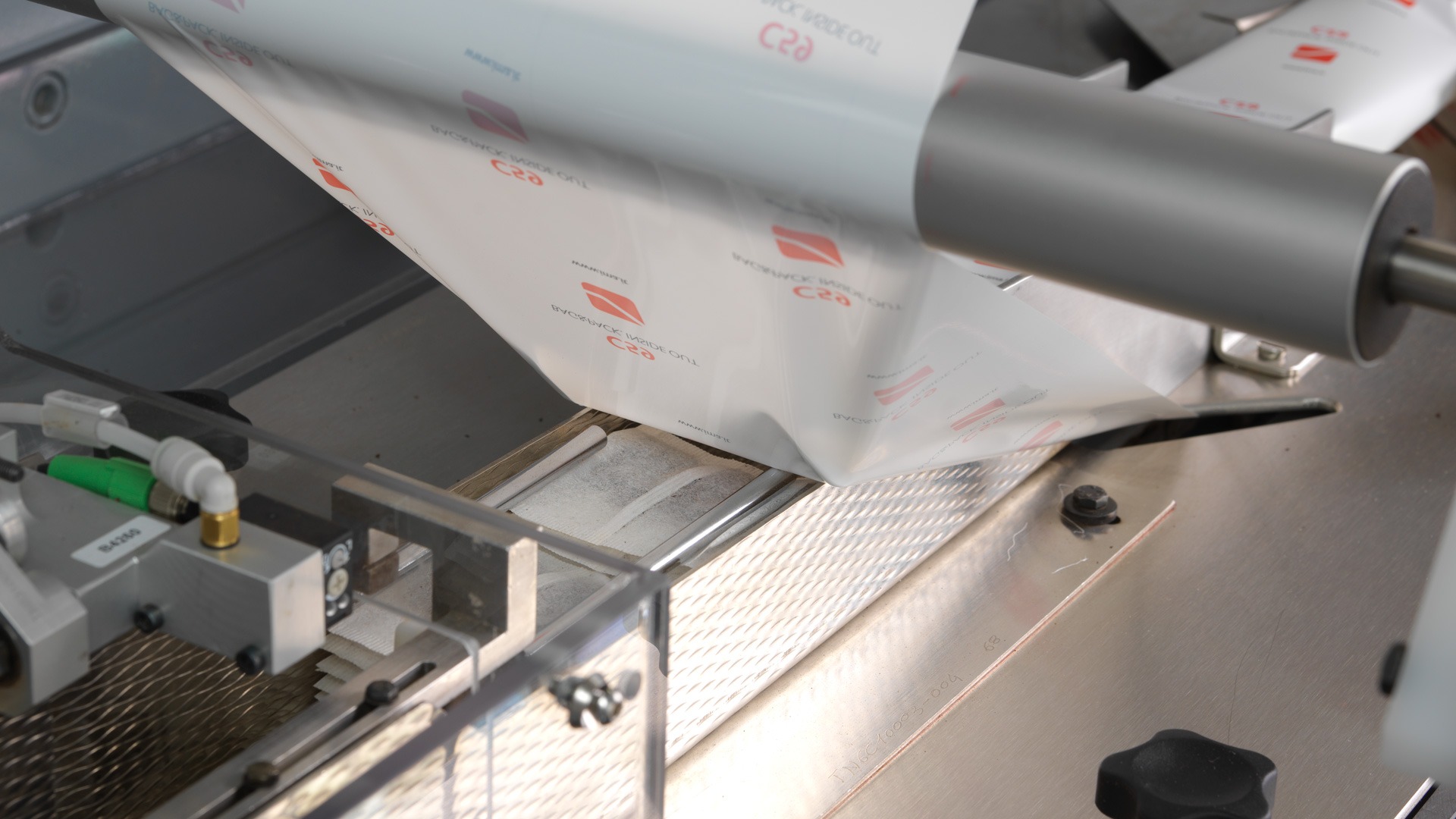

Flow pack
Flow pack, ideal to ensure product preservation for herbs, also avoids need for outer cellophane wrapping.
-
High production speed
Up to 900 bags/minute on integrated equipment, without efficiency loss usually due to separate inline processing.
-
Improved productivity
Continuous flow doser and forced filling mechanism to accelerate process and significantly enhance productivity.
-

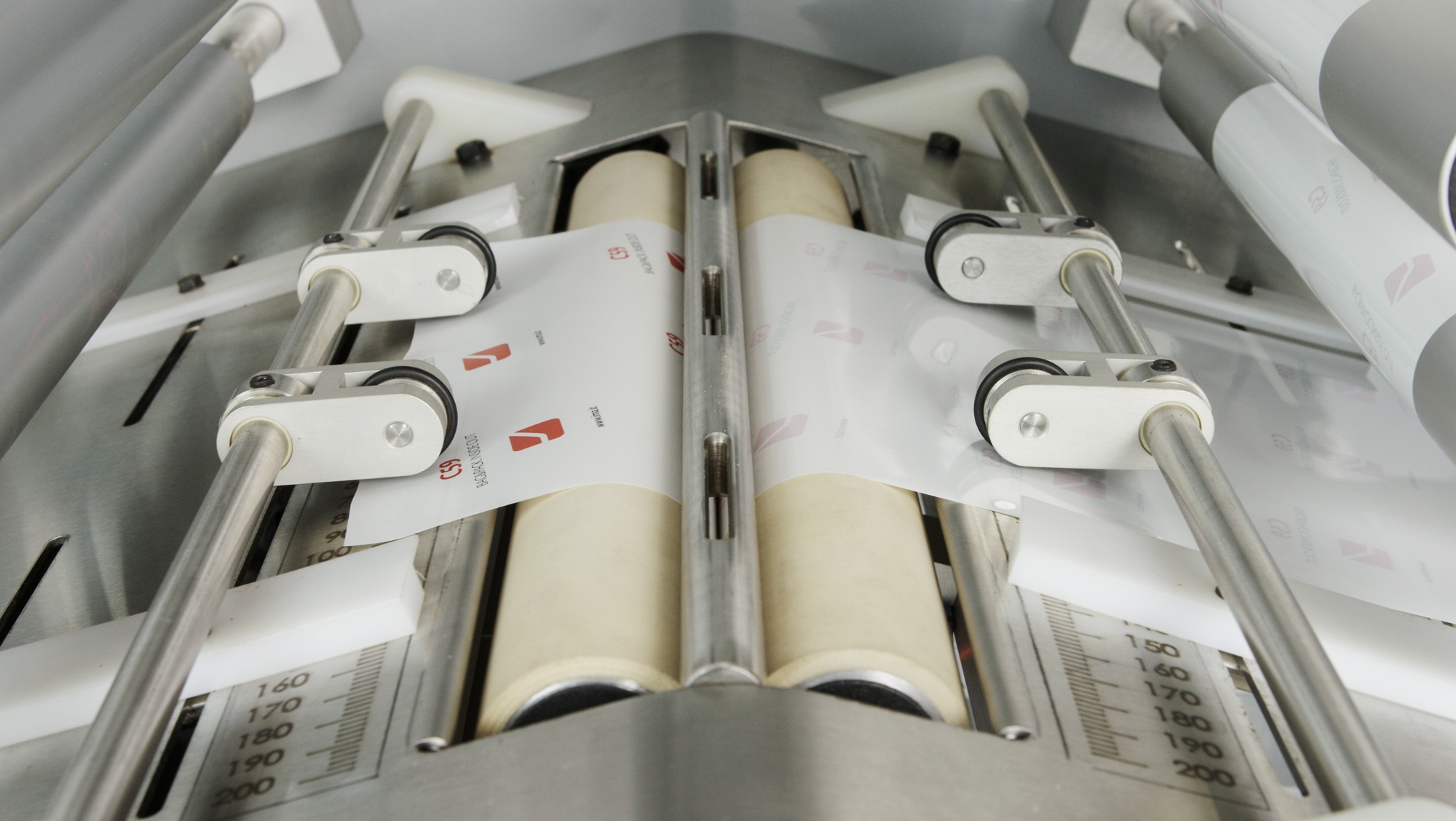

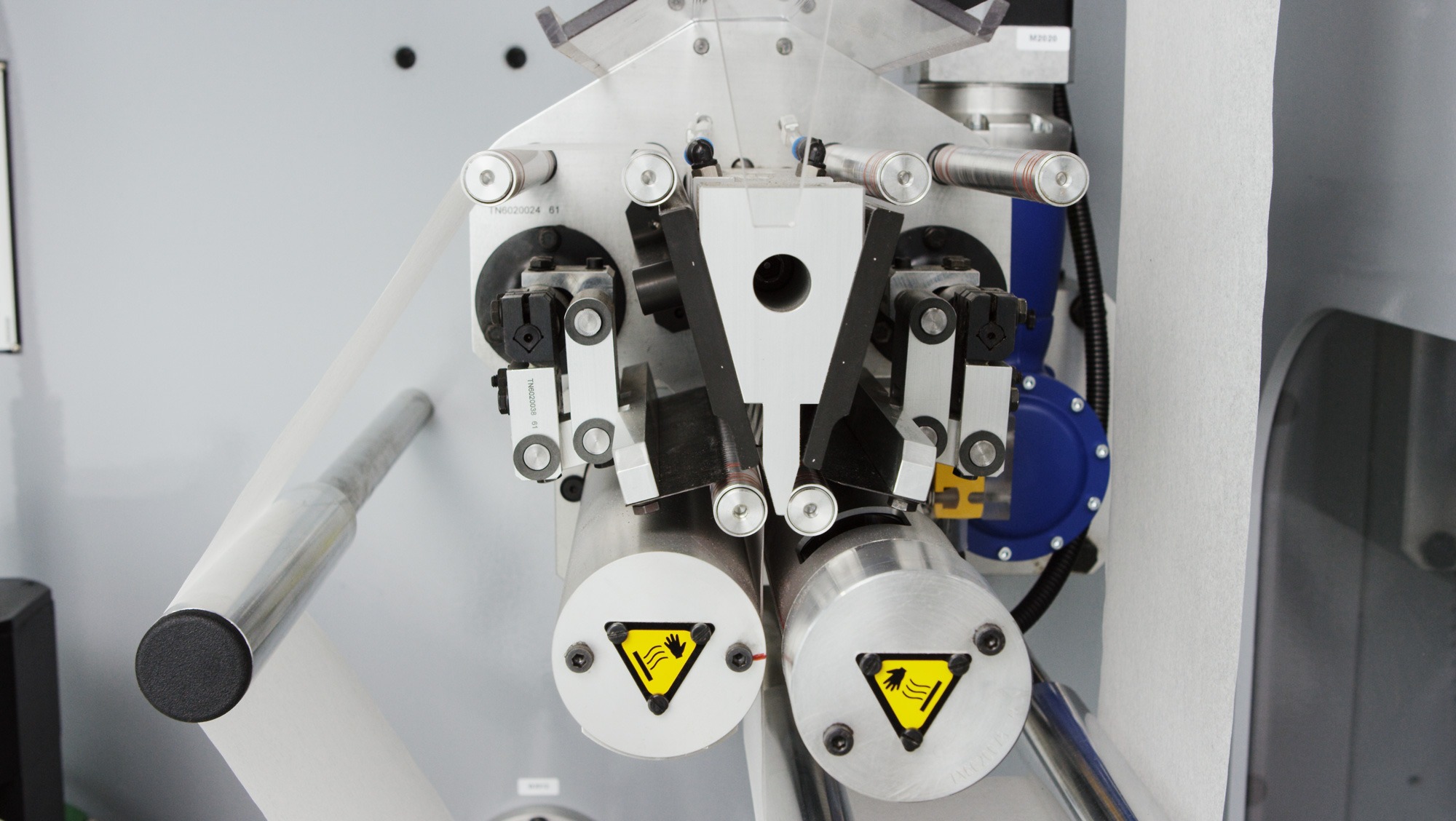

Automatic splicing
Automatic filter paper and film splicing units further enhance production efficiency.
-
Ultimate compatibility and efficiency
Single-source electronic componentry to ensure 100% compatibility and servicing efficiency.
-
Easy to connect
Easy connection to end-of-line equipment allows customers to benefit from final packaging diversification.
Integrated complete packaging solution
Bag and pack in one machine enables maximum process control over all aspects and provides customers with a highly efficient, space-saving solution for higher volume requirements for both black tea and herbs.

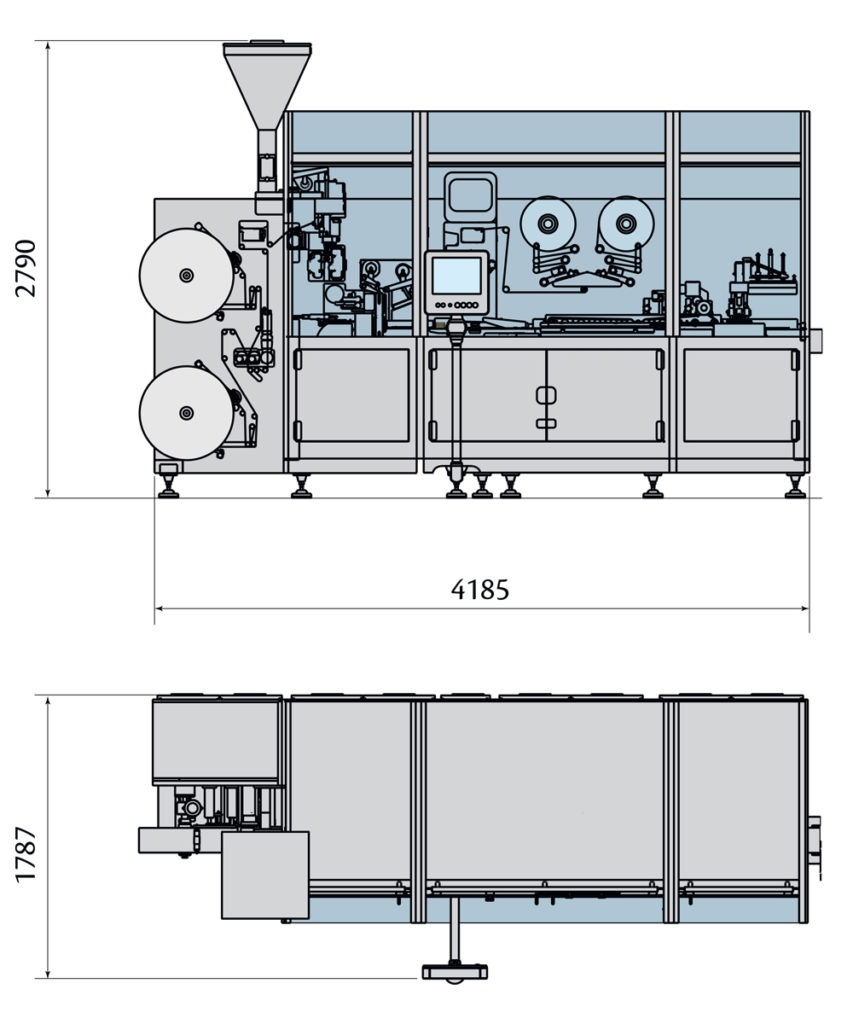

Machine details
Technical information
| TECHNICAL DATA C59 | |
| Machines speed | Up to 900 bags/minute |
| Teabag Capacity | Max 3,125 grams Filter bag maximum volume 9,5 cubic centimeters |
| Power required of basic machine | Total installed power: 38 kW Average power consumption: 4,5 kW Maximun power consumption: 8,6 kW Note: consumption depends on the thermic groups fitted on the machine |
| Compressed air | Exercise pressure: 6 bar Consumption: up to max. 235 Nl/min. |
| Machine net weight | Max 4580 Kg |
