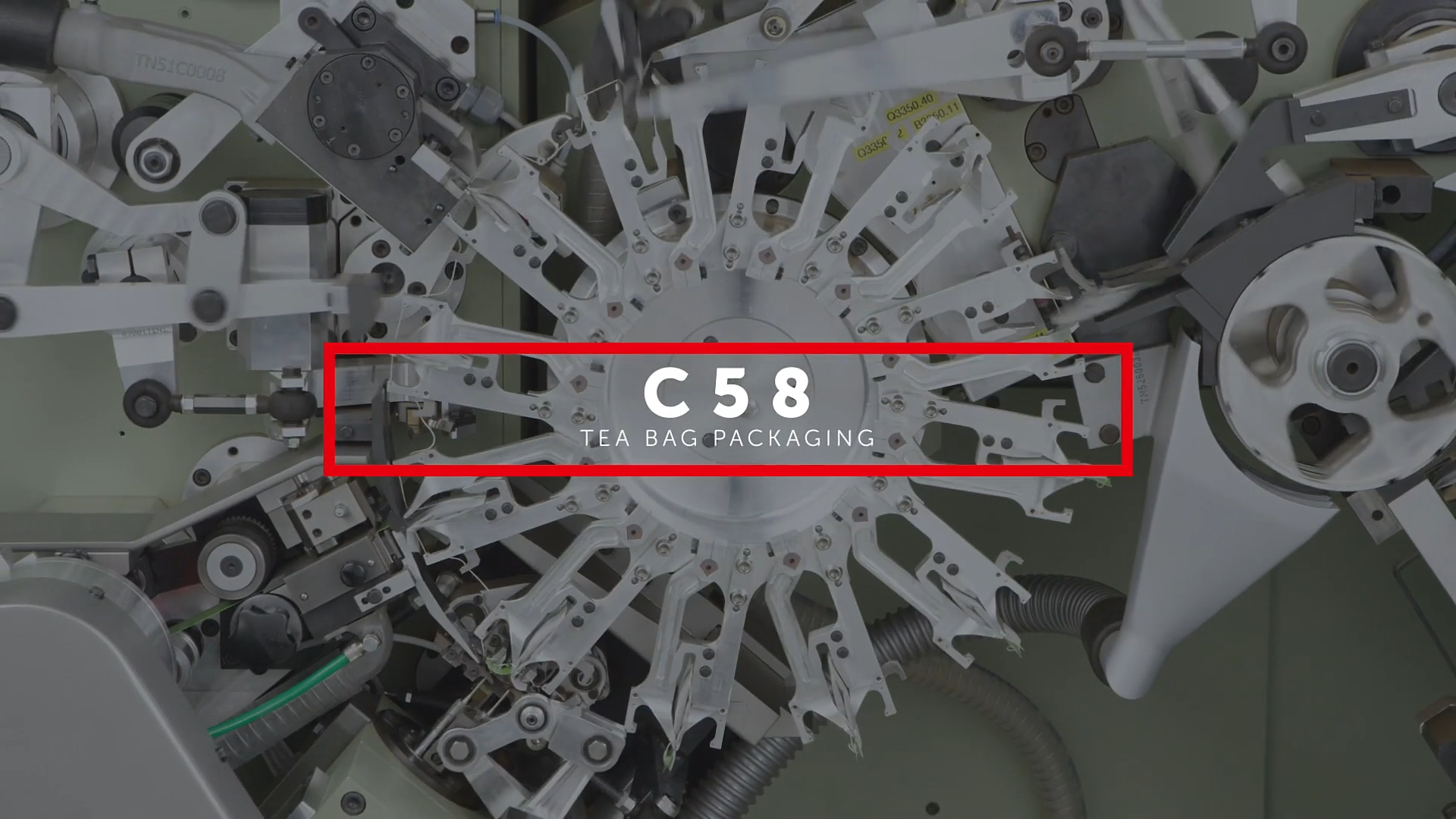

C58 Tea bag packaging

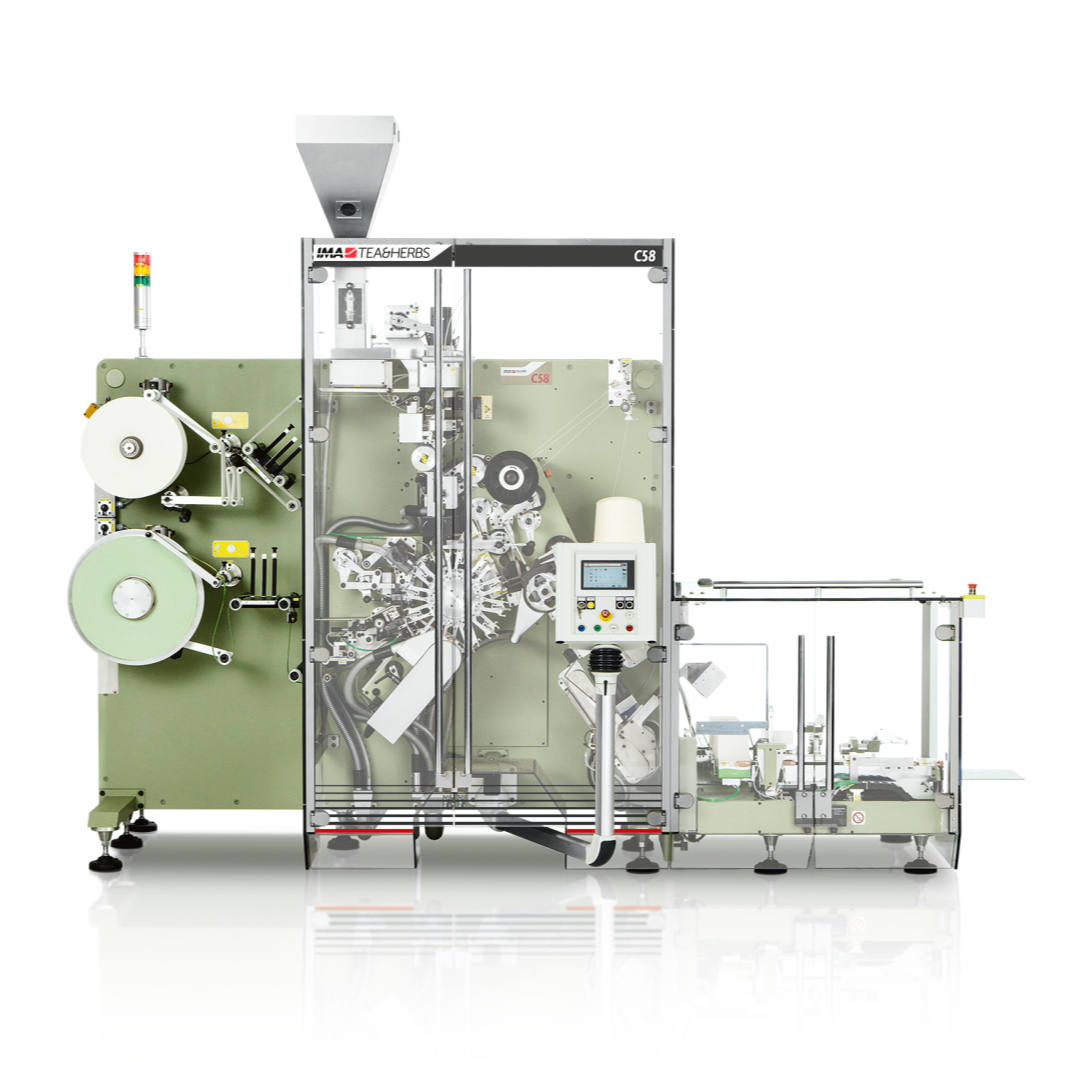

Machine overview
Single by choice
Designed to offer a new generation of single-chamber bags, the C58 benefits from our extensive experience in the tea packaging sector. Producing up to 300 bags/minute, the machine exploits an innovative vertical bag-forming process together with consolidated knot technology.
Lateral gussets on the new single-chamber bags give products more room to move, letting them infuse for a better brew.

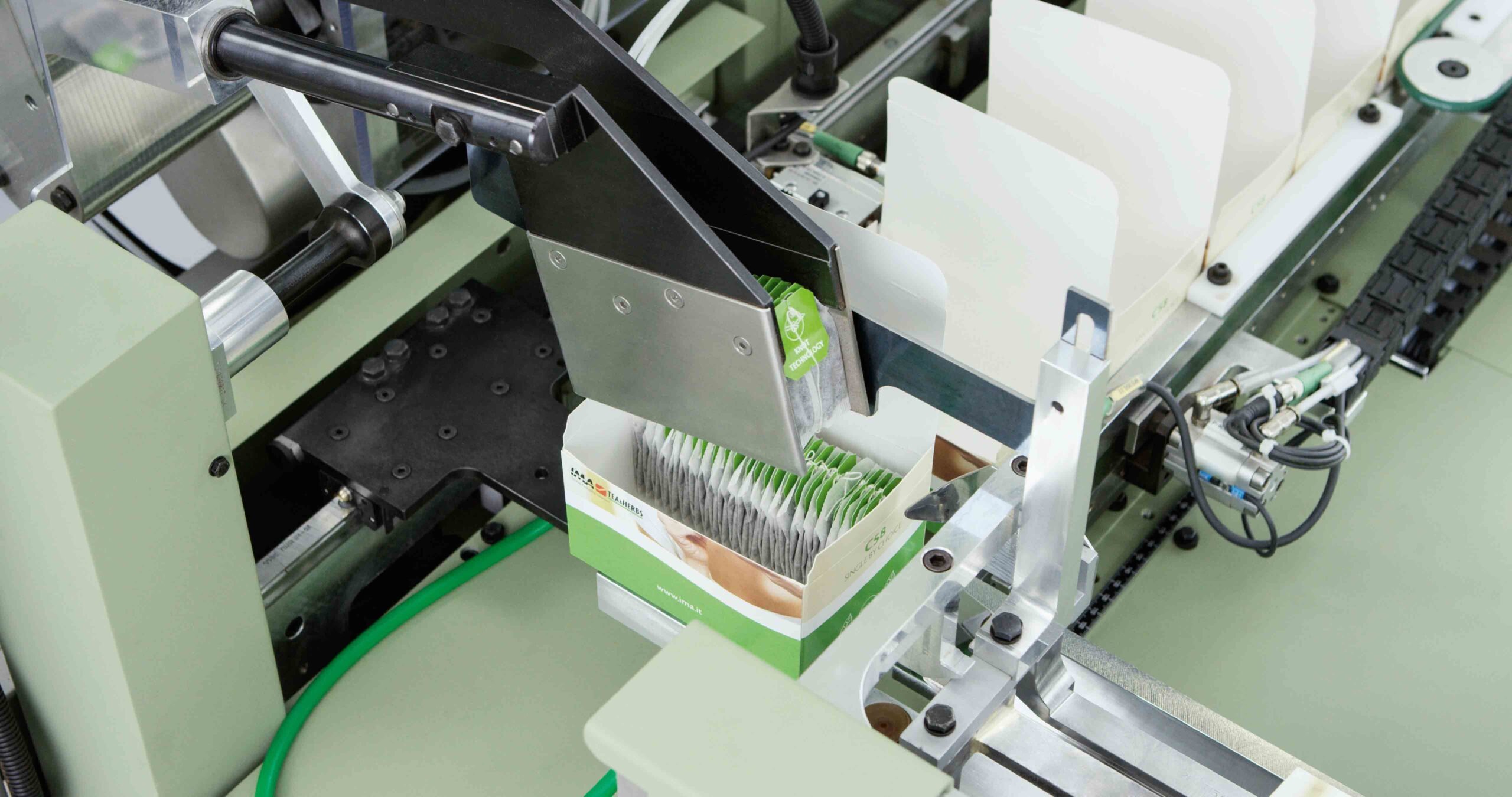

Naked, crimped and heatsealed bags are all possible, and ultimate flexibility is achieved with a host of final packaging solutions. Customers can choose to incorporate cartoning units from flat blanks, pre-formed cartons or pre-glued cartons. As an alternative, the C58 can integrate units allowing final packaging in flow-packs or pouches.
Working cycle is achieved by a fully integrated PC which also guarantees quality control together with further specific product control devices.
Production plant
IMA Tea & Herbs
Machine highlights
-

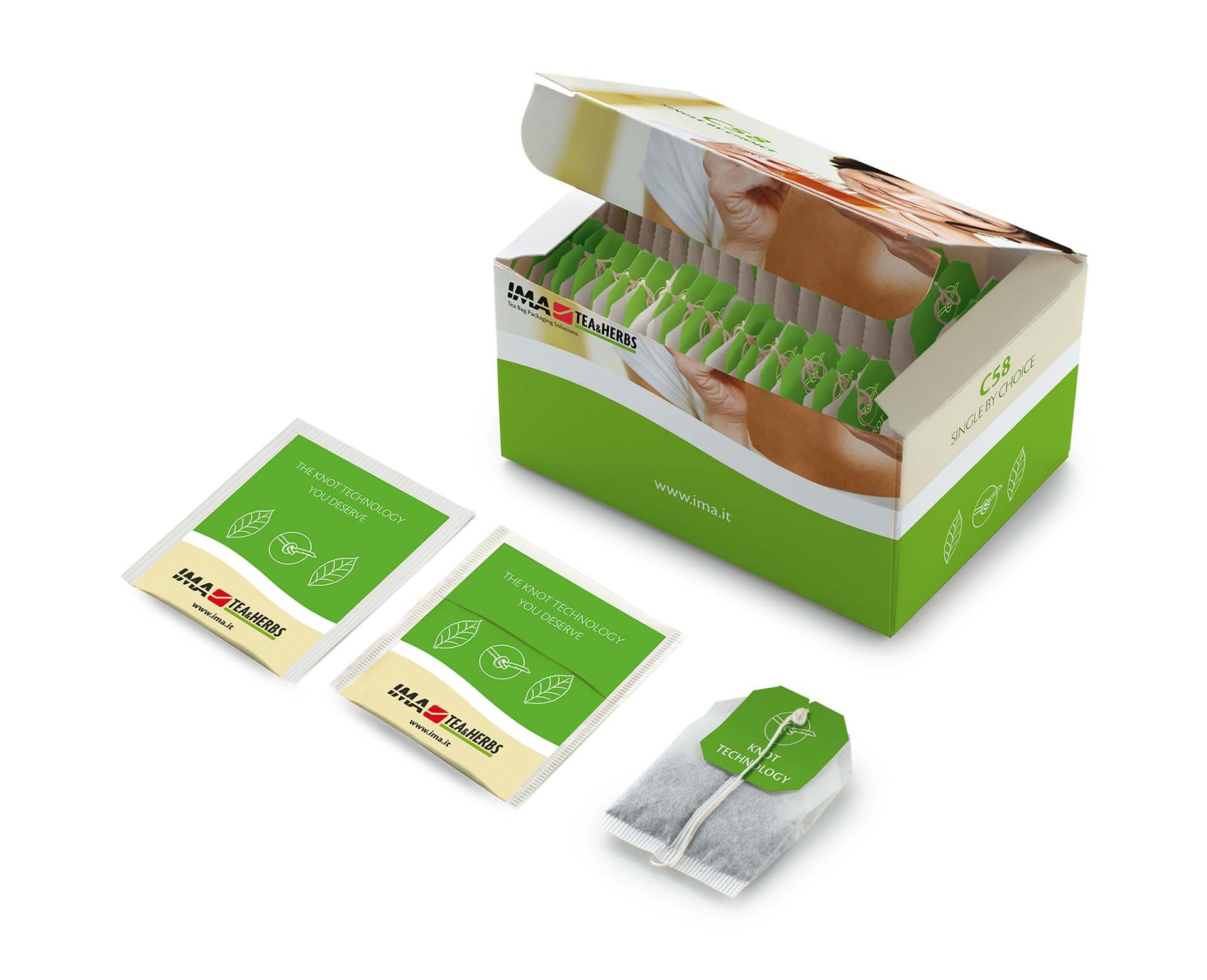

Gusseted bags
Gusseted single-chamber bags give tea or herbs more room to move enabling better infusion.
-
Reduced paper consumption
Absence of lateral sealing reduces paper consumption leading to material savings.
-

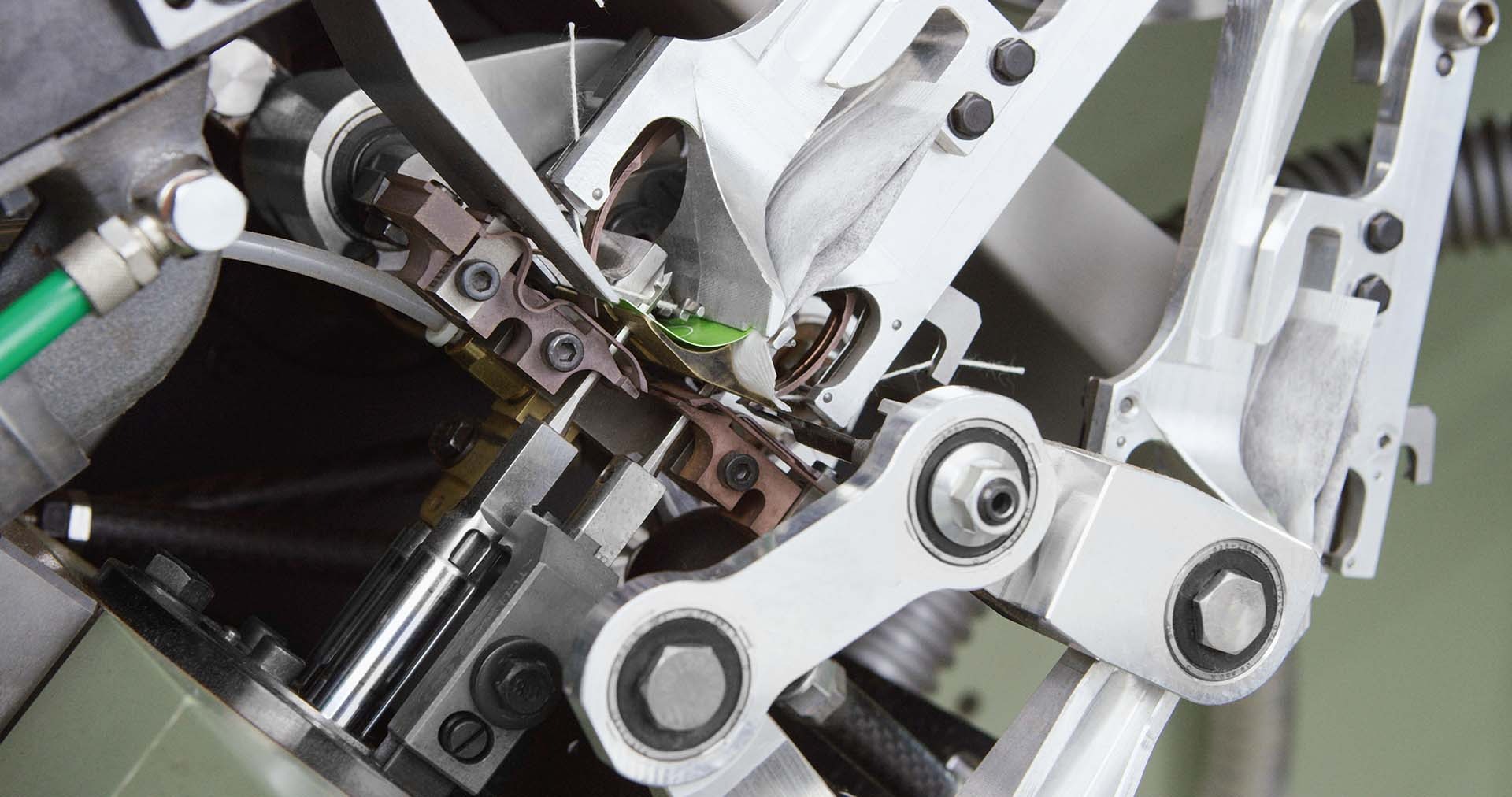

Knot technology
Environmentally friendly thanks to absence of metal staple.
-
High production speed
Up to 300 bags/minute.
-
Increased productivity
Continuous flow doser and forced filling mechanism to accelerate process and significantly enhance productivity.
-

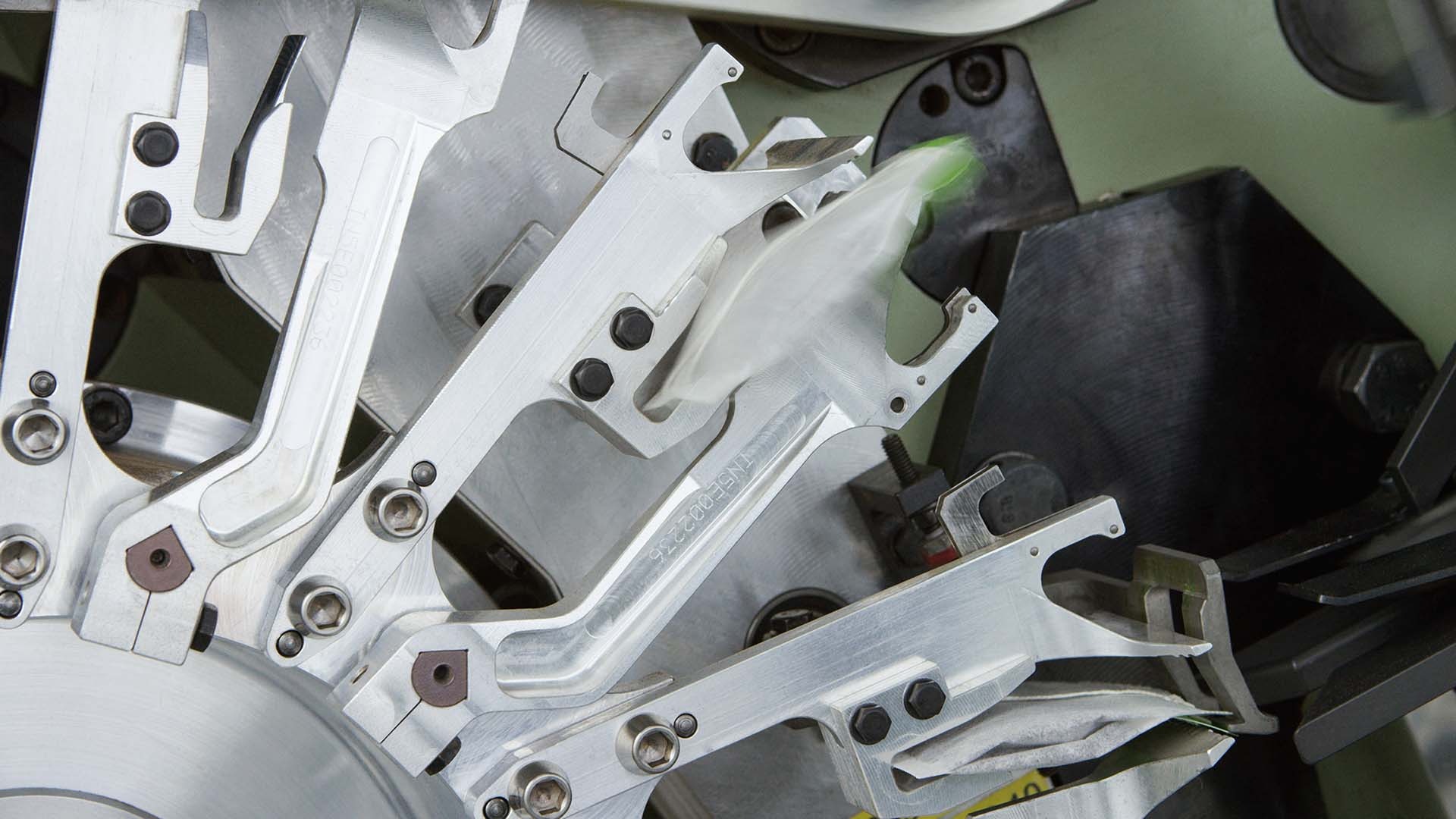

Single bag rejection
Single bag rejection to maximise production efficiency and quality.
-
Packaging flexibility
Naked, crimped and heatsealed bags as well as final packaging solutions including cartons, pouches and flow-packs.
-
Filter and envelope materials
Ample choice of filter materials and outer packaging without needing to make any adjustments to the machine.
Ultimate versatility
From filter material variety to sealing techniques, secondary and final packaging options, the C58 offers ultimate versatility to satisfy all market requirements. Integration enables total process control and provides a 360° solution with a compact footprint.

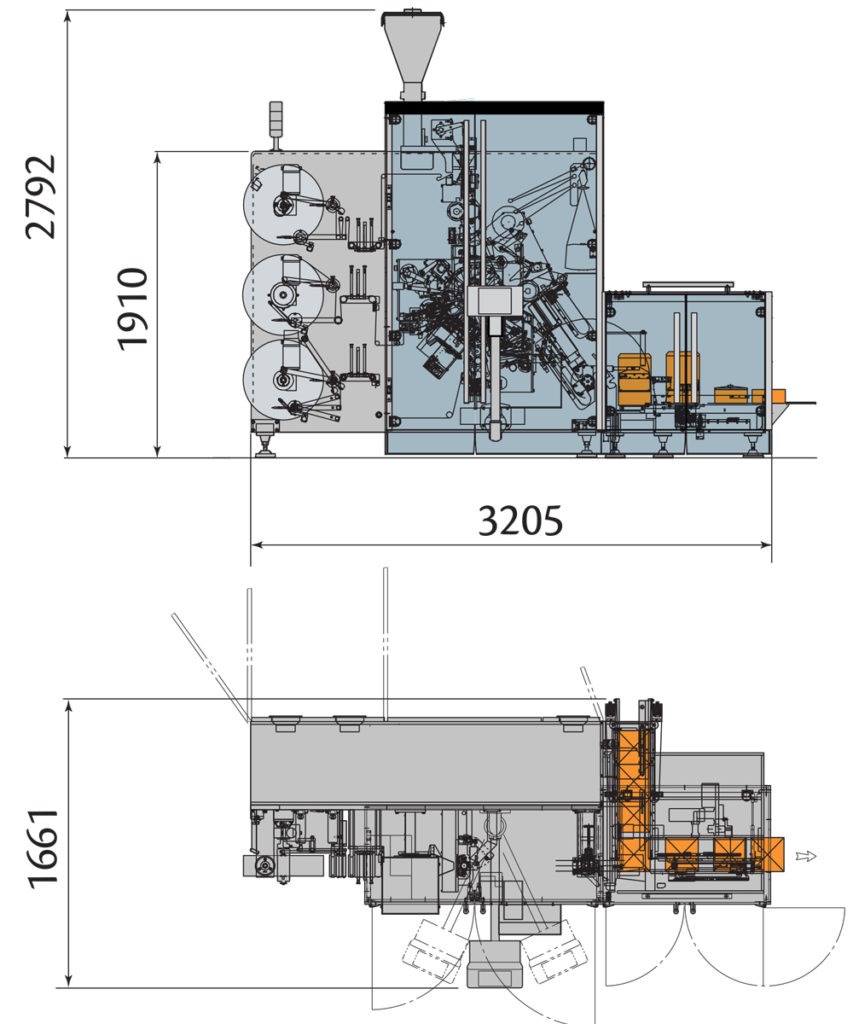

Machine details
Technical information
| TECHNICAL DATA C58 | |
| Machine speed (envelopes/minute) | Up to 300 bags/minute |
| Filter bag maximum volume | 8.7 cubic centimeters |
| Machine net weight | With hand removal max. 3,100 Kg |
