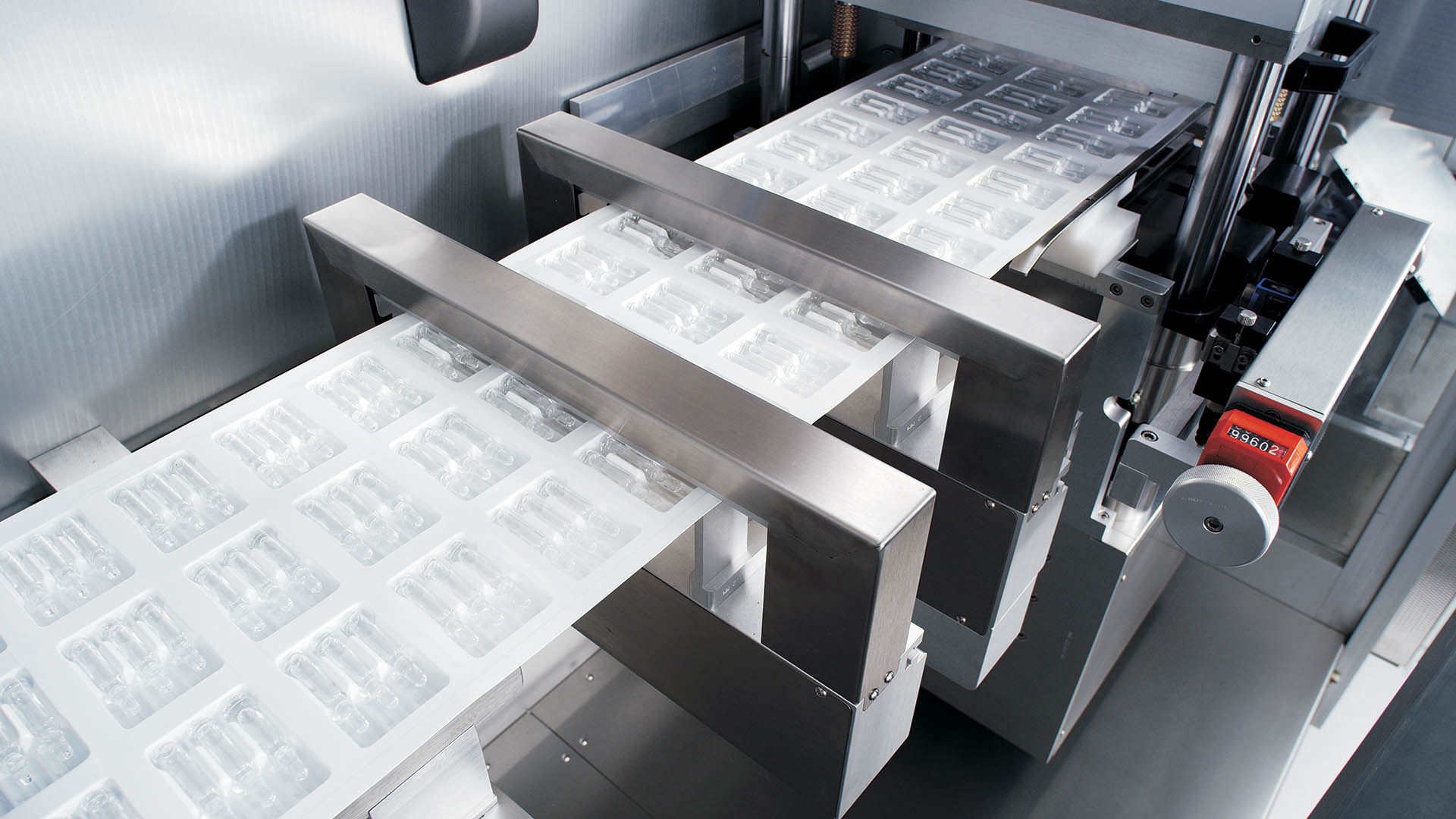

C360 Deep Draw Thermoforming

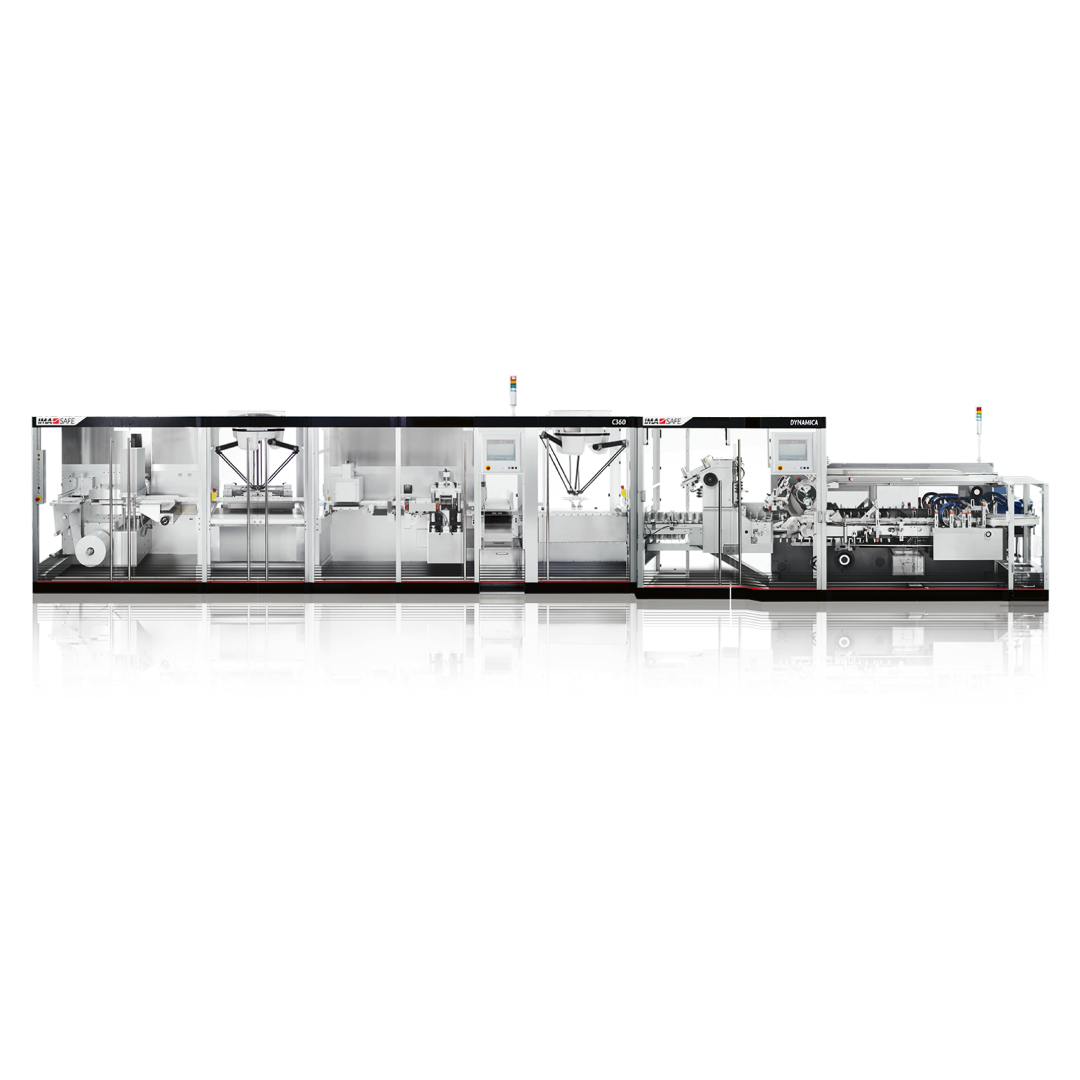

Machine overview
With all 360° in mind
C360 is the most compact deep draw thermoforming machines in their range keeping the maximum customisation that exactly meets the customer’s production requirements.
All this is possible thanks to the use of the IMA Safe technology which has developed robotized systems applied in the most critical areas: the product feeding area & the connection to the cartoner.
This machine is not only highly productive but also extremely efficient, size changeover operations are rapid thanks to a reduced number of size parts.

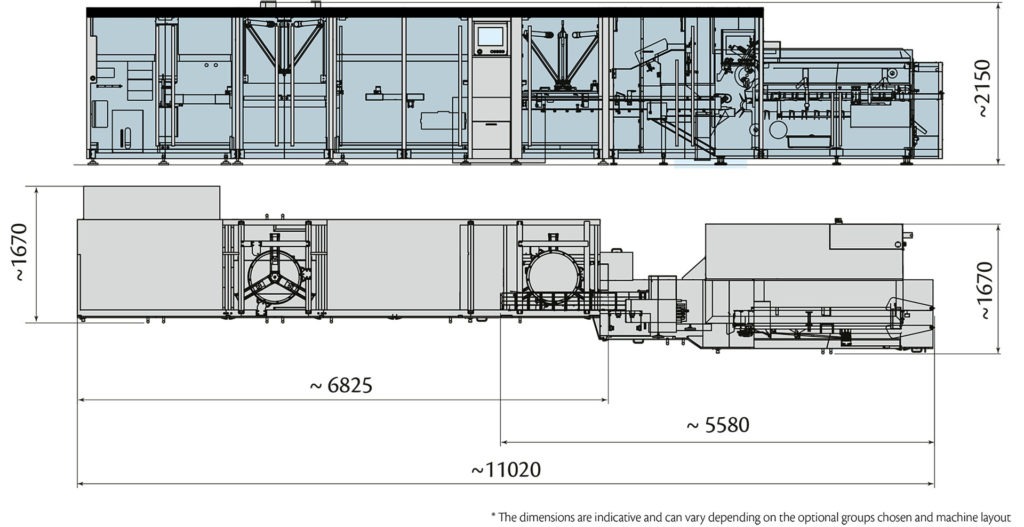

Production plant
IMA Safe
Machine highlights
-
Maximum product and tray variety
Designed to work with the maximum variety of product and trays both having different shapes and sizes.
-
High performance feeders
High performance feeders.
-
Flexible modularity
Possibility to integrate C360 with different cartoners.
-
Quick size changeover
Quick and simple size changeover.
-
Most compact footprint
Most compact footprint in its range.
-
Full GMP compliance
Fully GMP guidelines compliant for pharmaceutical packaging equipment.
Robotic systems

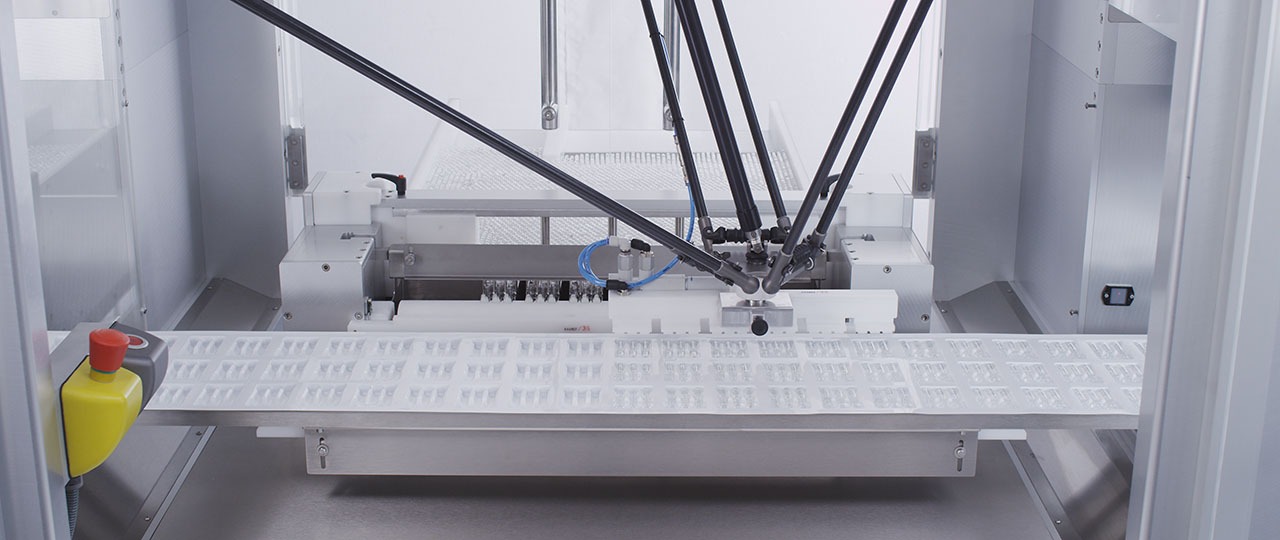

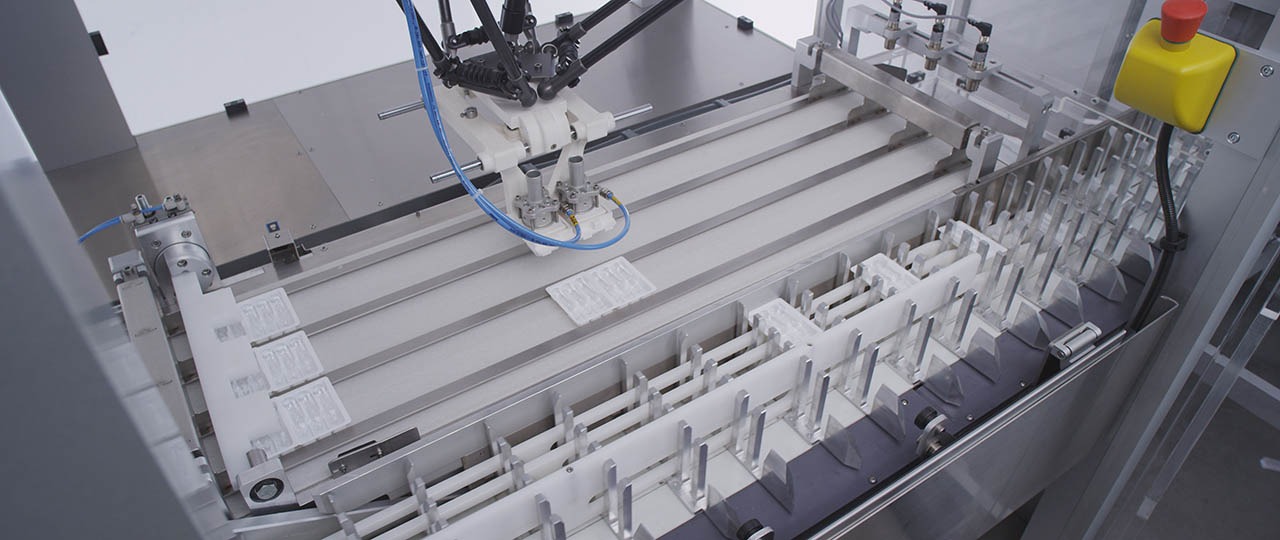

A wide range of products, also different in the same tray, can be packed thanks to the use of robotic systems applied to the feeding area. Last but not least is the application of robots in the connection area that guarantees the maximum flexibility in layout.

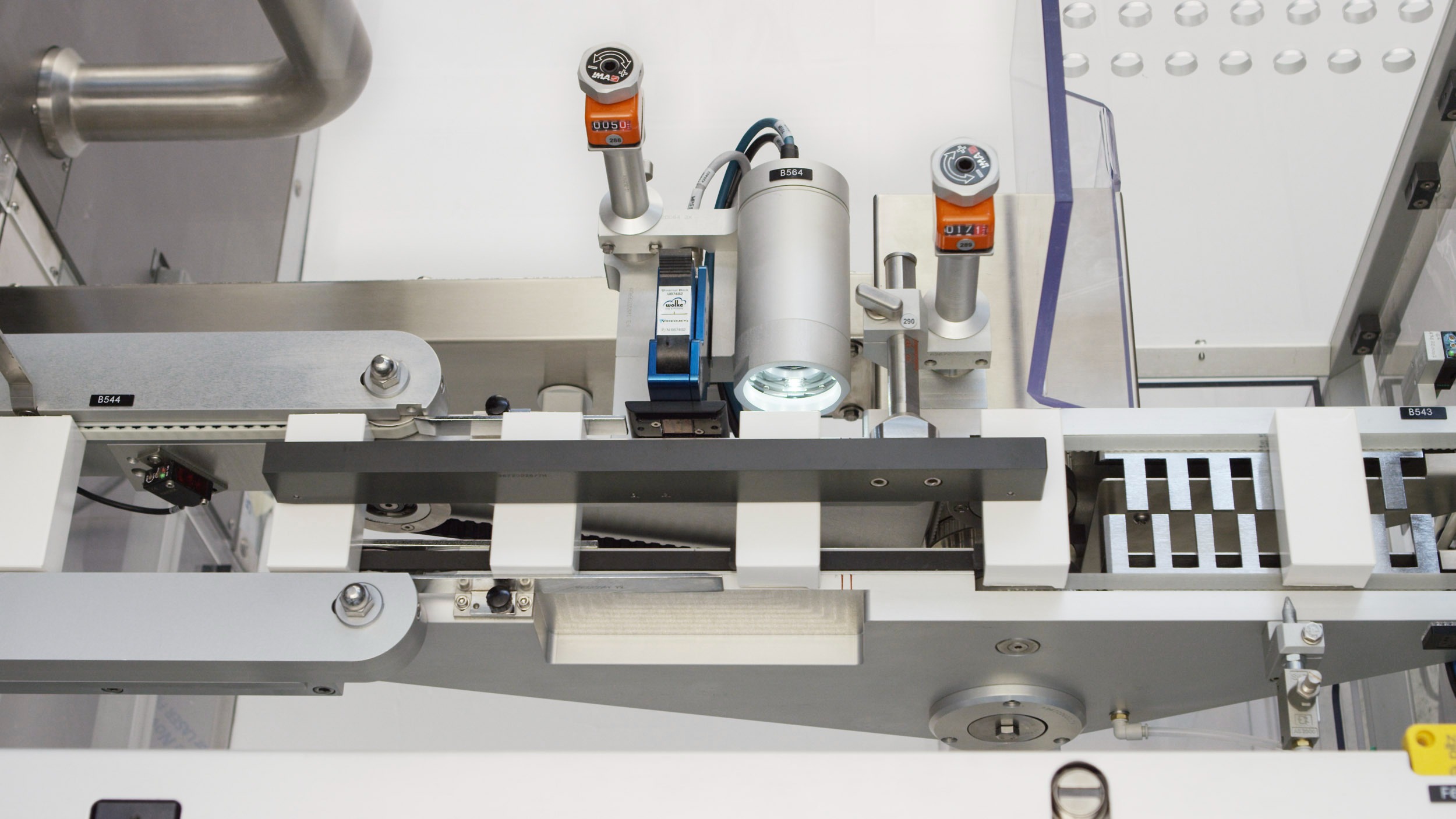

Track & Trace

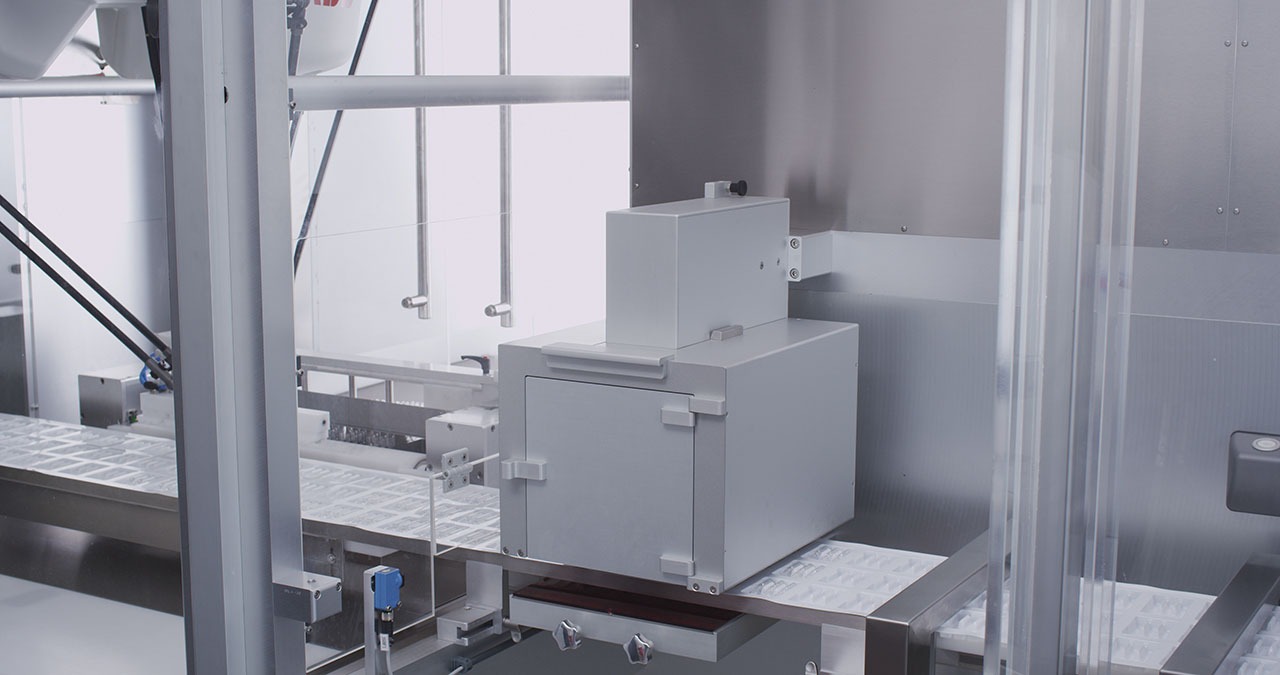

The integrated module to the cartoner, to apply camera and ink-jet system, is the ideal solution for cartoning serialization having a shorter line and higher efficiency.
Machine details
Technical information
| Model | C260 | C360 |
| Production output | up to 800 1-2 ml DIN ampoules/minute up to 400 1 ml syringes/minute | 600-1000 1-2 ml DIN ampoules/minute up to 600 1 ml DIN syringes/minute |
| Forming depth | 3 mm – 40 mm | 3 mm – 40 mm |
| CARTONERS | |
| X Series | up to 120 cartons/min.* |
| Flexa Series | up to 150 cartons/min.* |
| Dynamica Series | up to 250 cartons/min.* |
