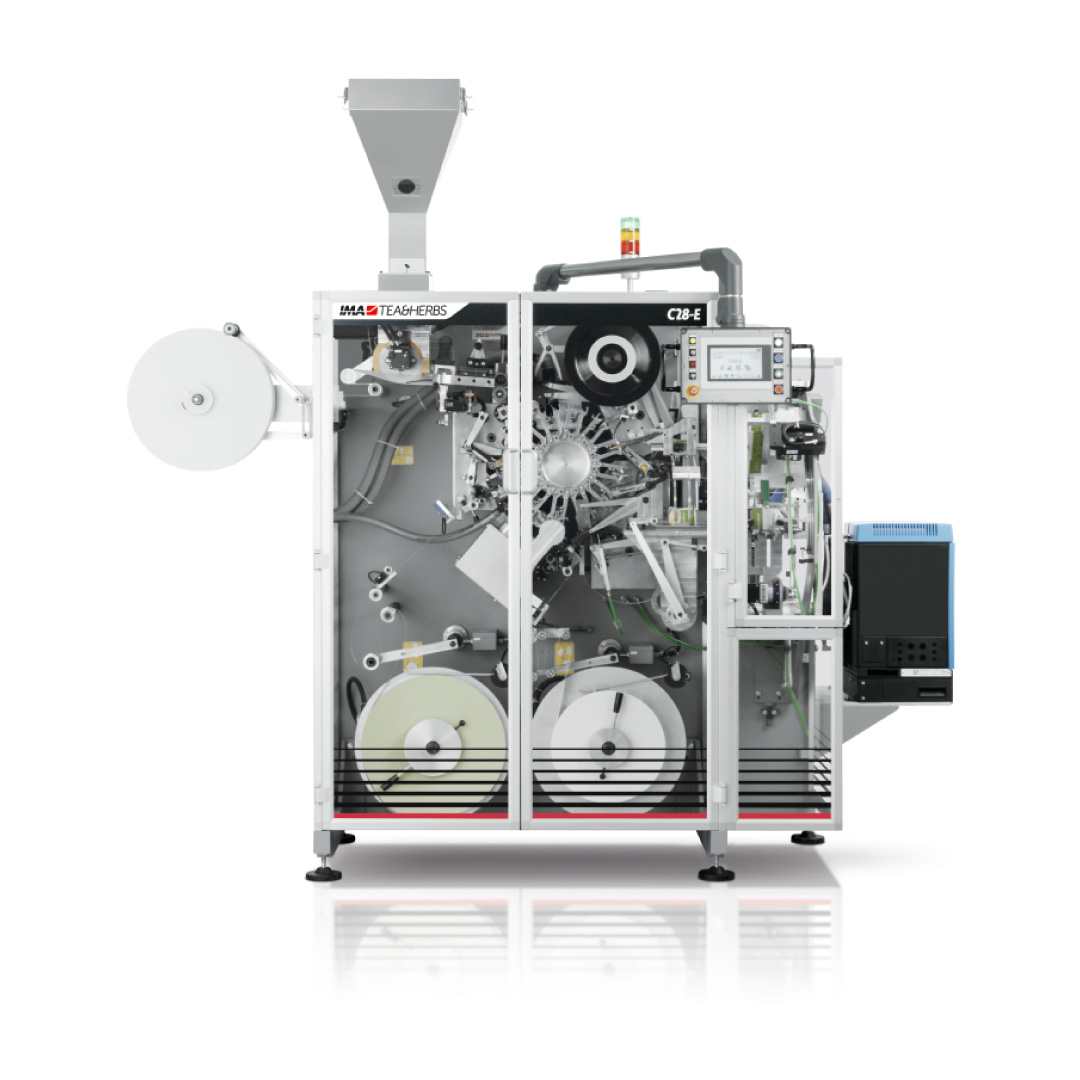

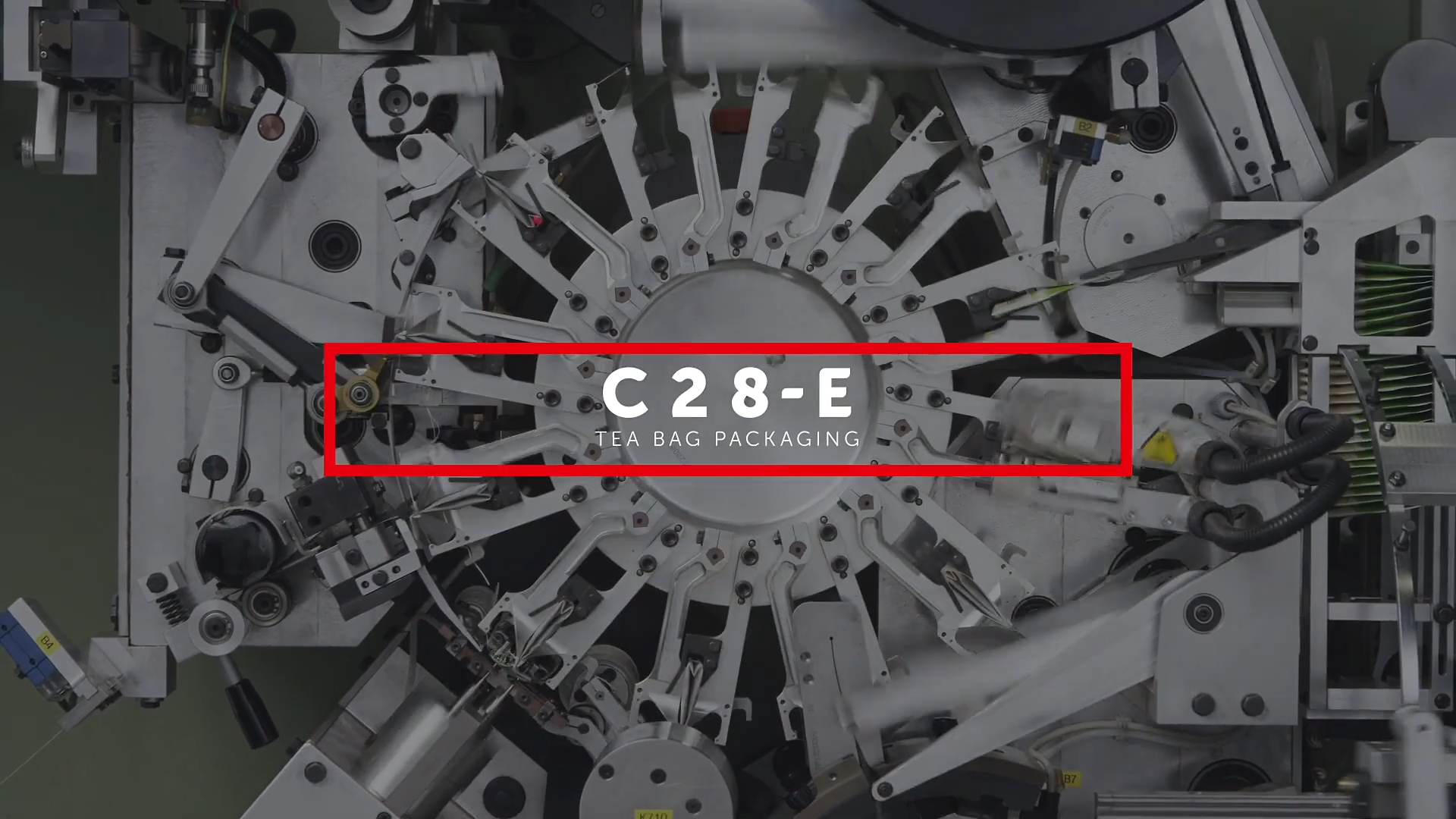

C28-E Tea bag packaging
Machine overview
Tailored to your taste
Tailored to your taste
The C28-E is suited to smaller production runs thanks to its reduced footprint and packaging speeds of up to 210 bags/minute. Based on IMA’s consolidated knotting technology, the C28-E processes naked bags, crimped and heatsealed outer envelopes for tea and non-free-flowing products.
In order to facilitate product flow and reduce degradation, the C28-E is equipped with a special vibrating feeding system for herbs. A simple automatic cartoning attachment for pre-glued cartons on one row can be fitted to complete the working cycle. Both tuck-in and Kurzlaschen styles are possible. Alternatively, the C28-E can be fitted with a hand removal unit for counted bags thanks to the machine’s lower production speed.
Product control devices including a video camera to check correct knotting, and warning signals contribute to ensuring maximum product quality.
Production plant
IMA Tea & Herbs
Machine highlights
-
Production speed
Up to 210 bags/minute.
-
Knot technology
Environmentally friendly thanks to absence of metal staple.
-

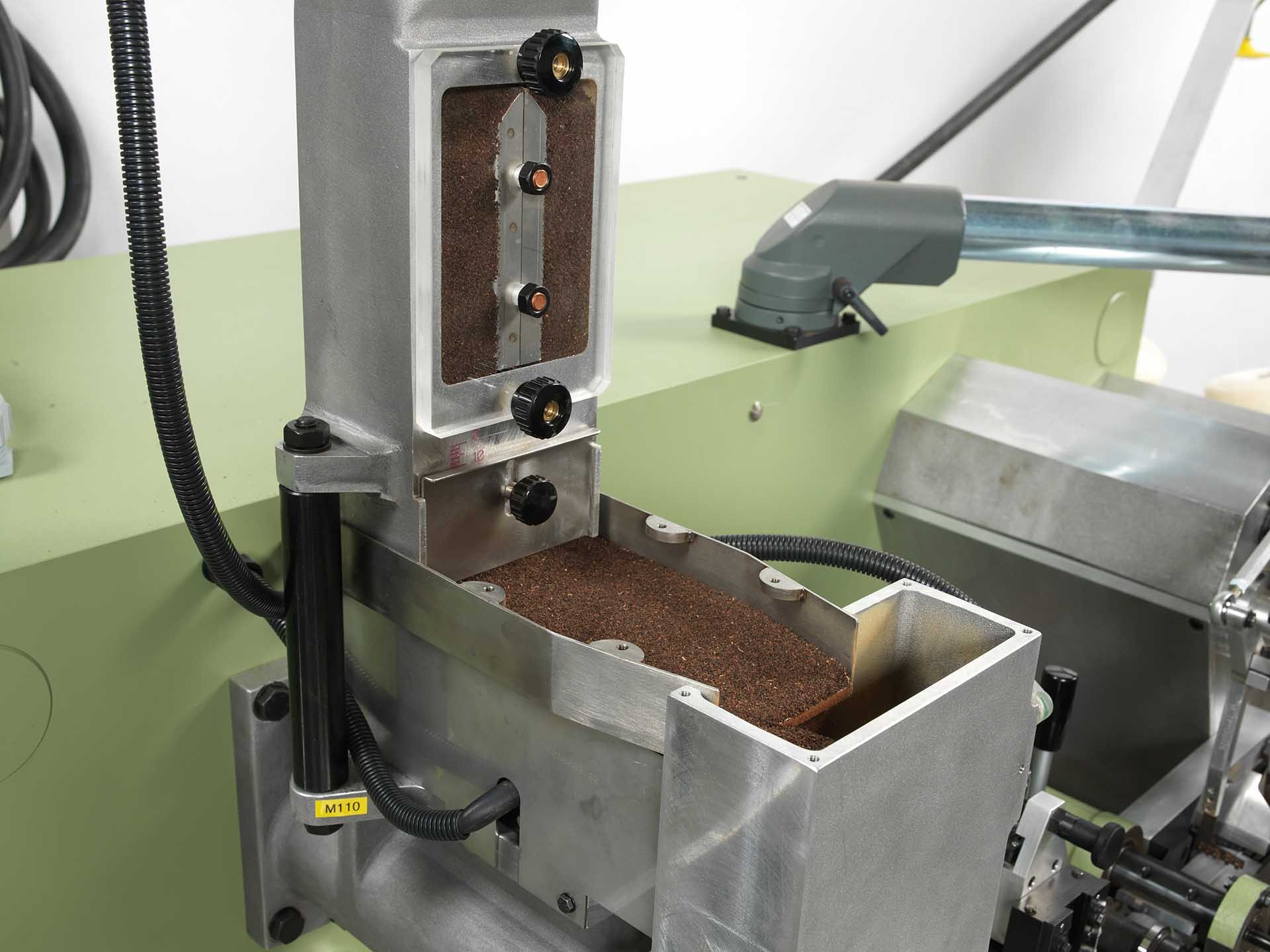

Feeding system
Vibrating product feeding system for non-free-flowing products: minimises product degradation.
-
Packaging versatility
Naked bags, crimped and heatsealed outer envelopes packed in one row.
-
Integrated PC
Integrated PC for working cycle logic and quality control.
-
Automatic cartoning
Can be equipped with an automatic cartoning attachment for pre-glued cartons in one row.
-

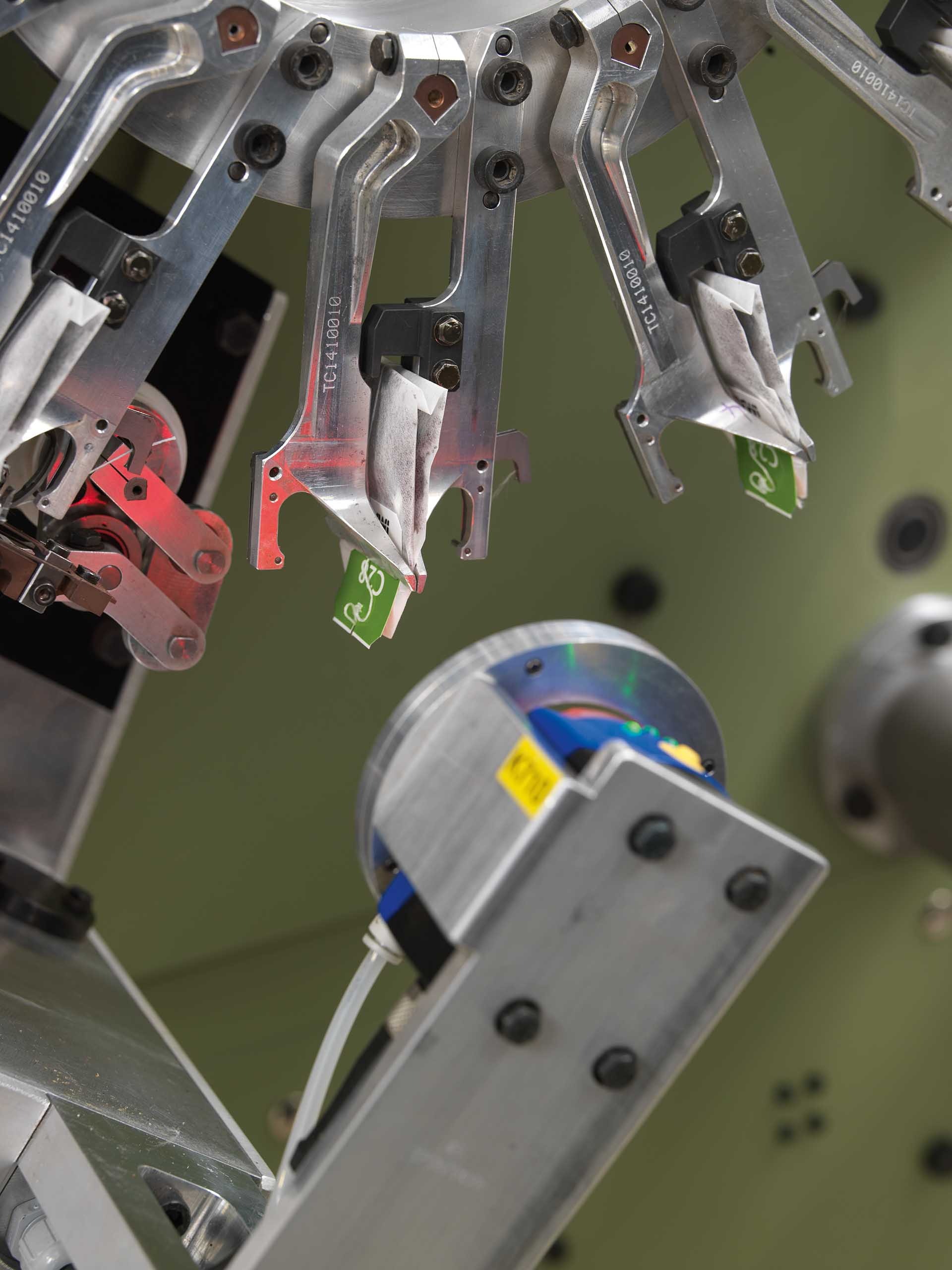

Video camera
Knot conformity constantly controlled via video camera with dedicated display.
-
Fast count changeover
Electronic counting and stacking unit for simple, fast count changeover without part replacement.

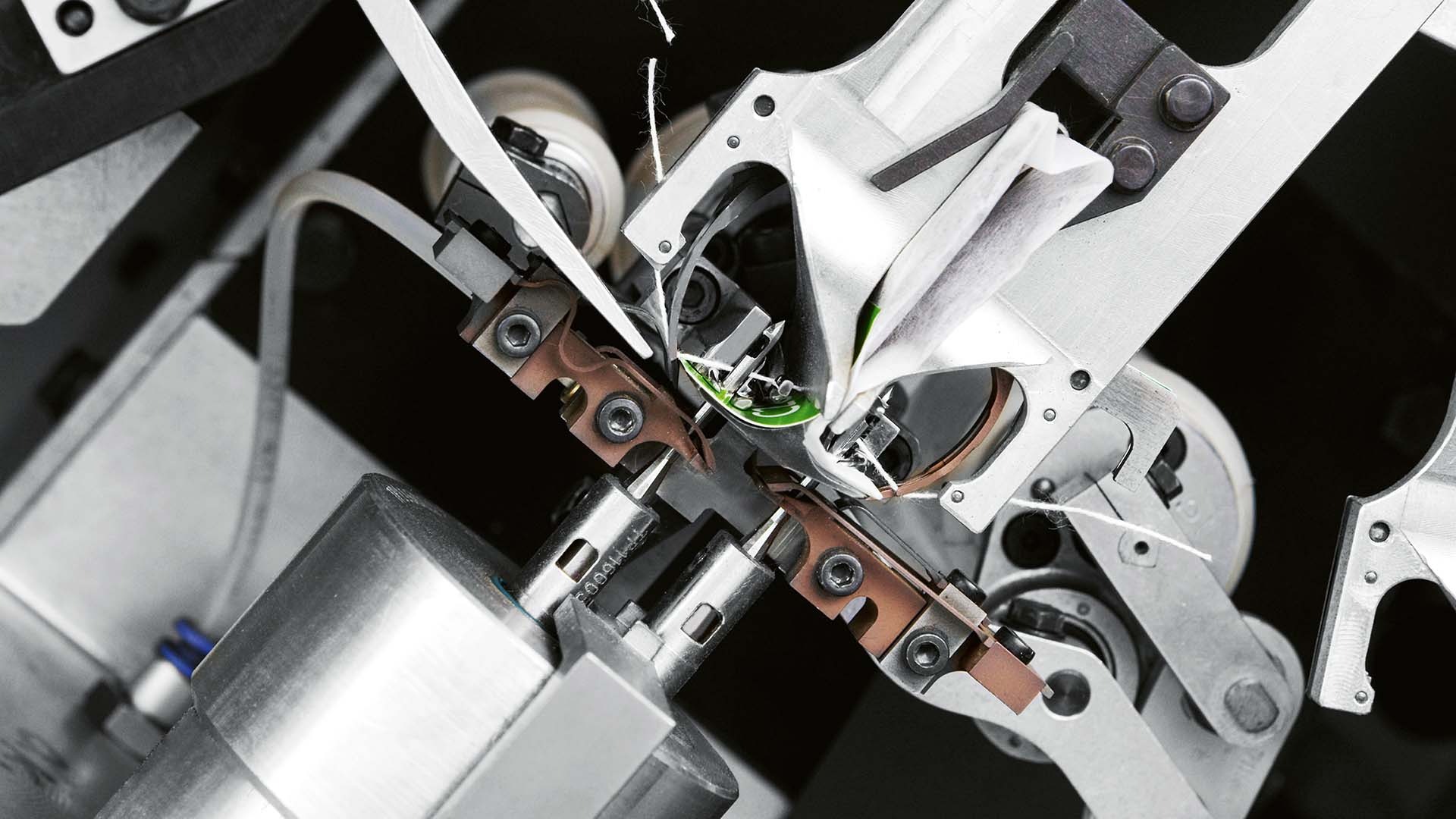

Total quality control
Simultaneous knotting of the filter bag and tag is achieved by 3 synchronised mechanical elements and constantly checked by a high-precision video camera connected to a dedicated display. This ensures total quality control at the heart of the packaging process

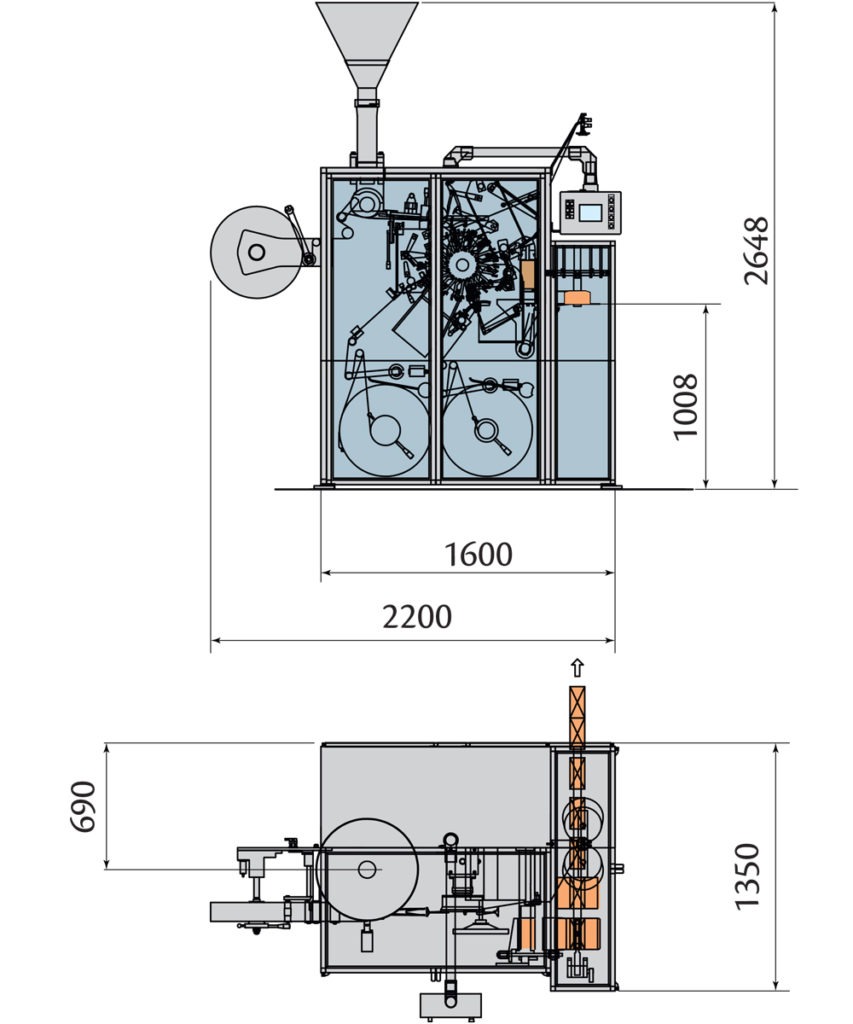

Machine details
Technical information
| TECHNICAL DATA C28-E | |
| Machine speed (Bags/minute) | Up to 210 (naked bags, crimped and heatsealed outer envelope) |
| Tea bag capacity | Up to aproximately 3.0 grams |
| Filter bag maximum volume | 9.0 cubic centimeters |
| Power required | Total installed power: 7 kW |
| N.b. Power consumption depends on the thermic groups fitted in the machine | |
| Compressed air | Exercise pressure: 6 bar |
| Machine net weight | Max. 2,200 Kg |
