C24-E Tea bag packaging
Machine overview
Evolving solution
The C24-E represents the latest generation of tea bag machines for knot technology, a unique machine able to produce knotted tea bags at a production speed of up to 400 bags/minute ensuring the highest degree of efficiency.
Ongoing technological evolution has improved several features to achieve top-level performance and respond to the increasing market demand for utmost flexibility and user-friendliness.

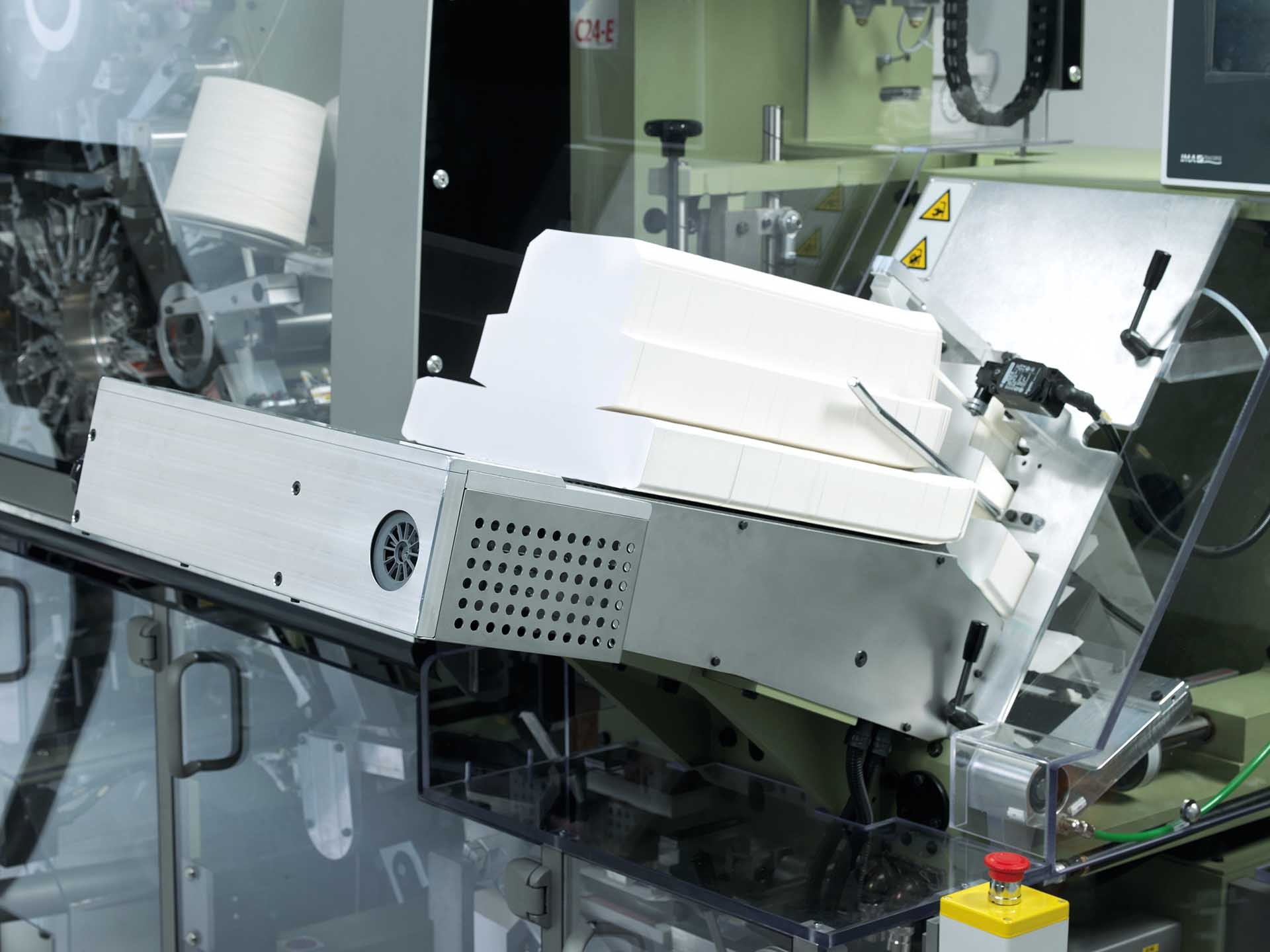

Equipped with a vibrating feeding system for herbs, facilitating product flow and drastically reducing degradation, the C24-E is the ideal solution for all tea and herb varieties whichever packaging method is required: naked bags, crimped and heatsealed outer envelopes, plus numerous cartons, which are all assembled conveniently from flat blanks.

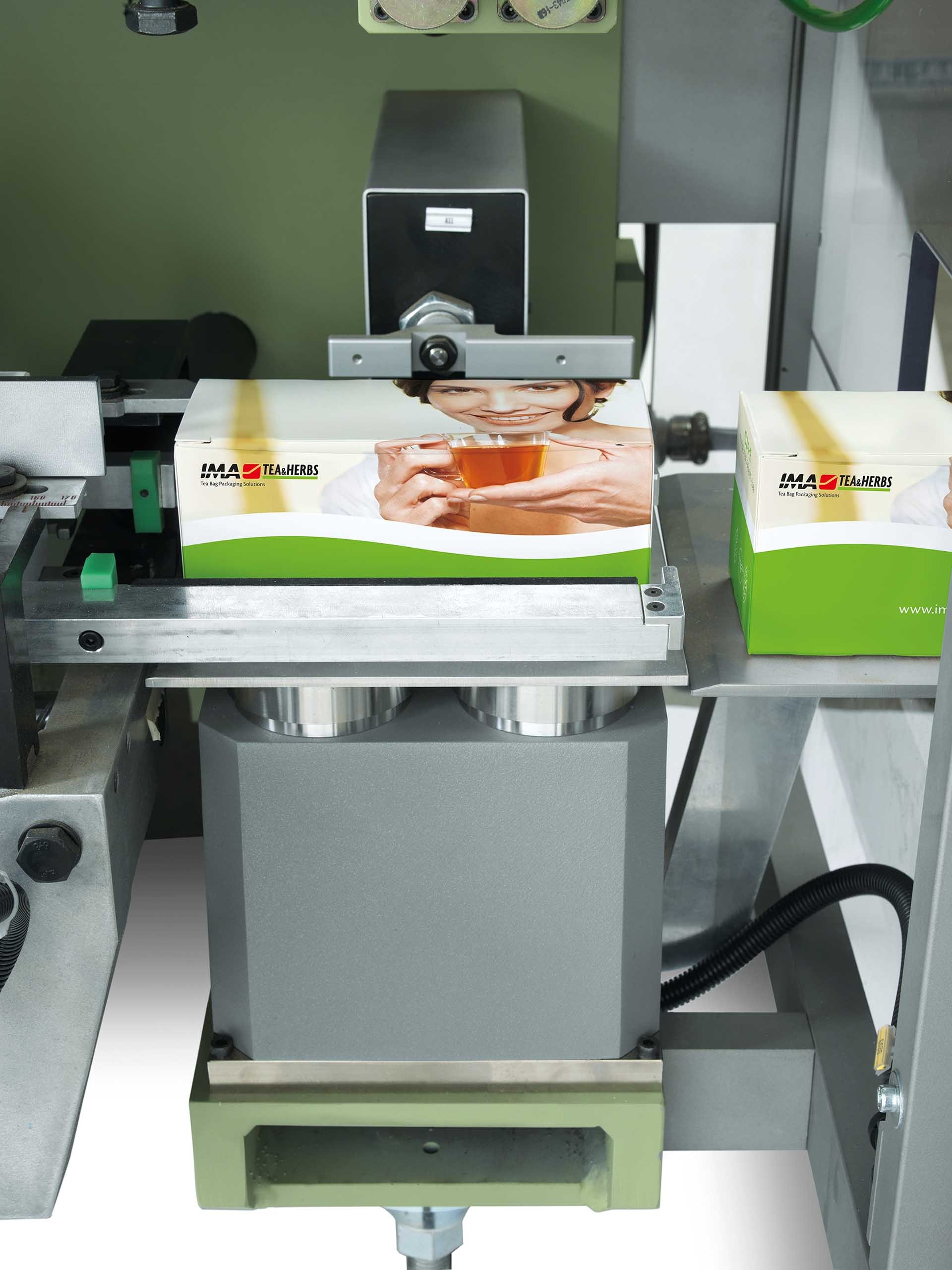

Ultimate efficiency is reached thanks to a series of mechanisms enabling non-stop processing such as an advanced automatic splicing system, single bag rejection, automatic weight control and adjustment. Furthermore, dedicated end-of-reel tag and envelope sensors, a video camera to check correct knotting and an on-board PC constantly monitor the process ensuring excellent productivity and product quality.
Production plant
IMA Tea & Herbs
Machine highlights
-
High speed
Up to 400 bags/minute.
-
Knot technology
Environmentally friendly thanks to absence of metal staple.
-
Feeding system
Vibrating product feeding system for non-free-flowing products: minimises product degradation.
-
Single bag rejection
Less compressed air consumption, less tea dust on machine.
-

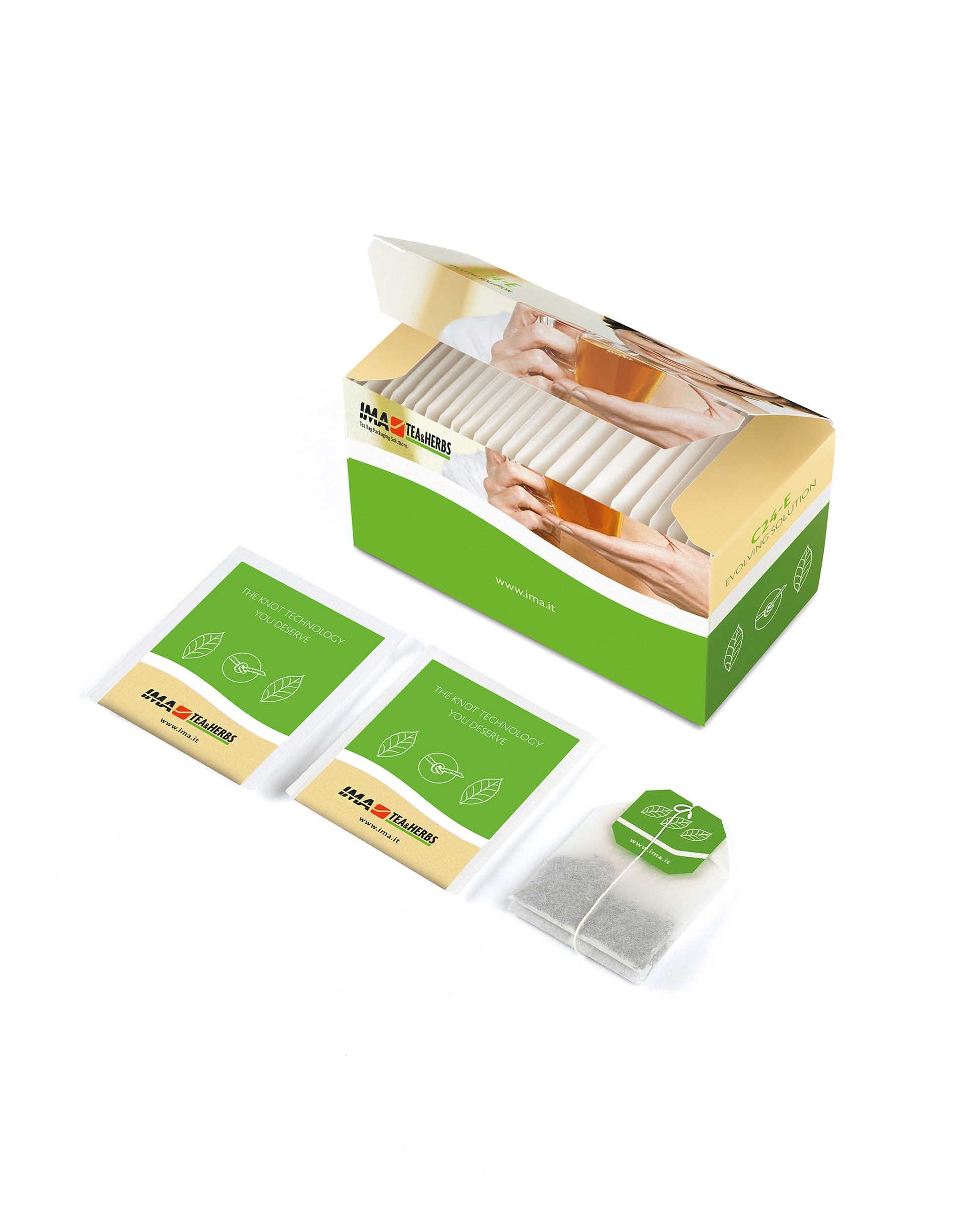

Packaging flexibility
Naked bags, crimped and heatsealed outer envelopes packed in 1 to 4 row cartons.
-

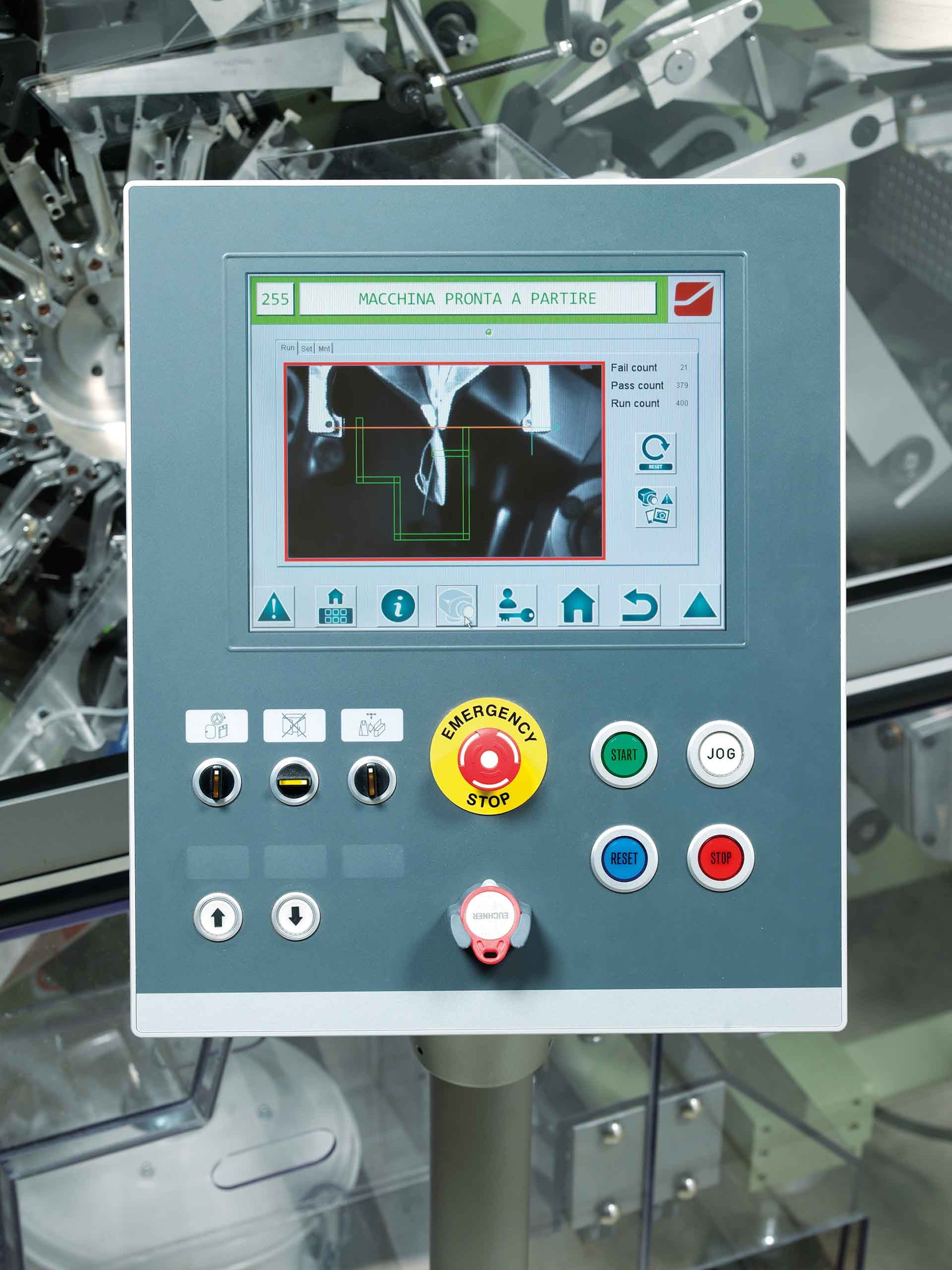

User-friendly HMI
Improved process control and monitoring.
-
Automatic splicing
No processing speed reduction, greater efficiency, one operator can manage up to 3 machines.
-
Motor-driven safety guards
Fast opening/closing to required height.
Total quality control

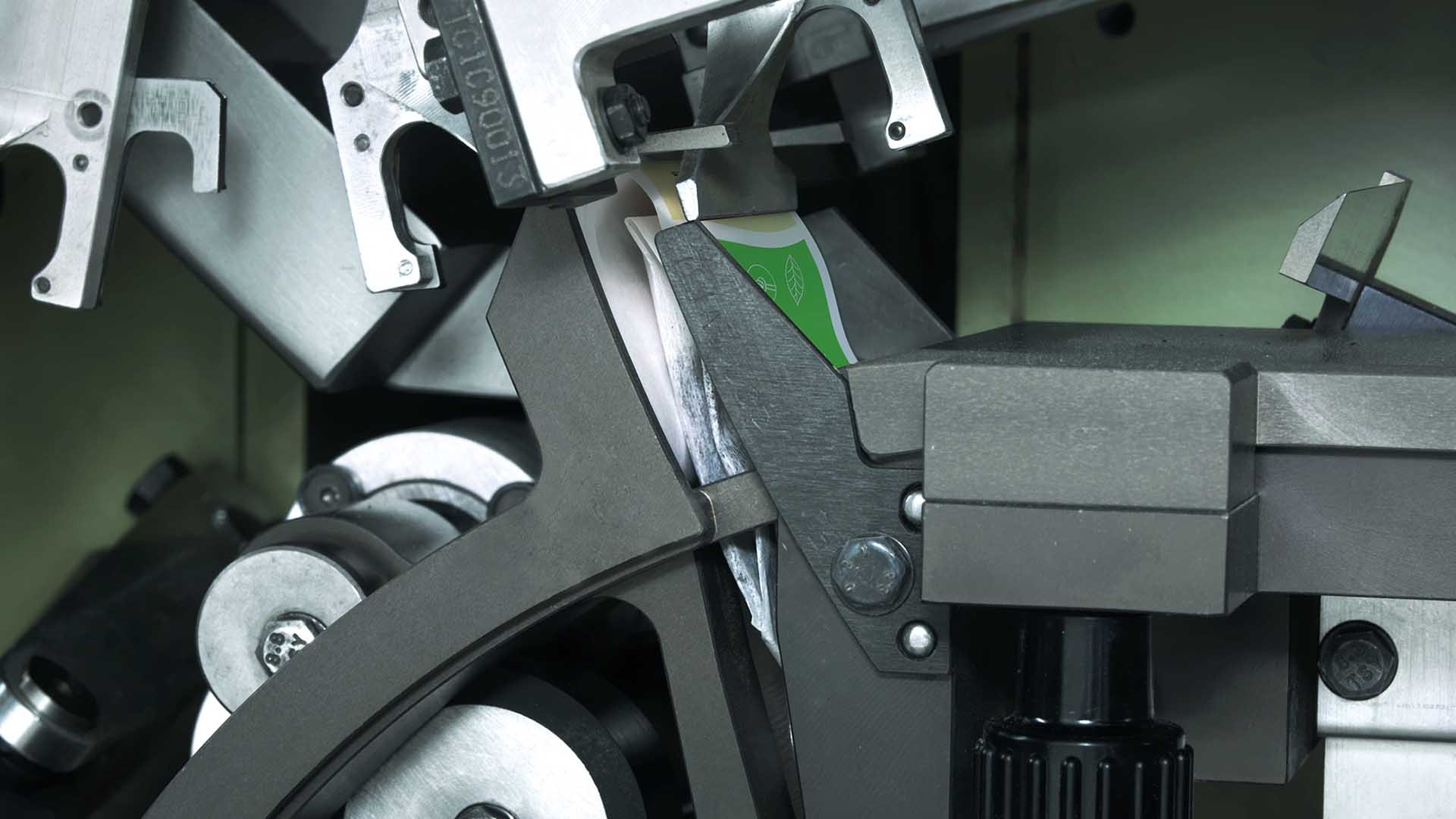

Simultaneous knotting of the filter bag and tag is achieved by 3 synchronised mechanical elements and constantly checked by a high-precision video camera connected to the on-board HMI. This ensures total quality control at the heart of the packaging process.

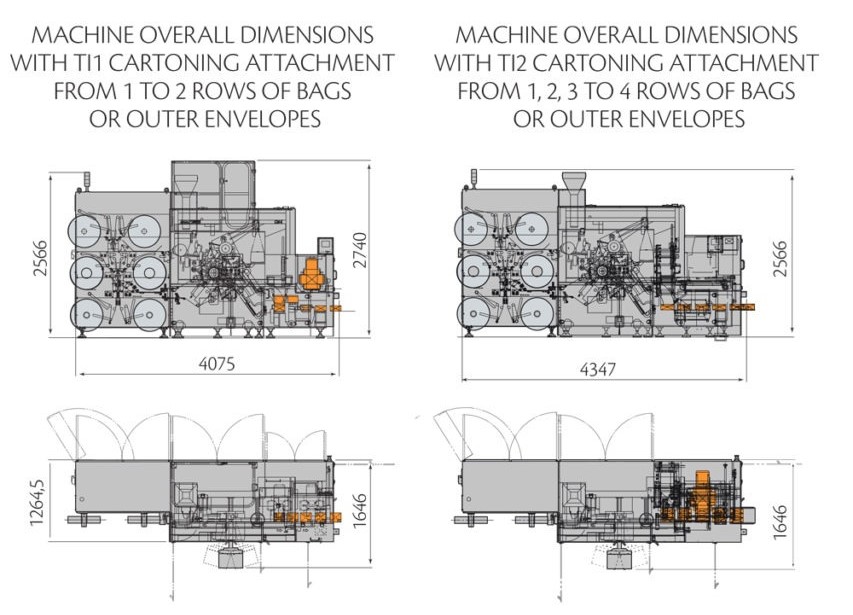

Machine details
Technical information
| Machine speed (Bags/minute) | With naked bag and crimped outer envelope up to 400 |
| Tea bag capacity | Up to aproximately 4.0 grams |
| Filter bag maximum volume | Max. 10.5 cubic centimetres |
| Power required | Total installed power 23 kW |
| N.b. Power consumption depends on the thermic groups fitted in the machine | |
| Compressed air | Exercise pressure: 6 bar |
| Machine net weight | Max. 4,250 Kg for crimped/heatsealeds outer envelope with cartoning attachment |
