C2002 Tea bag packaging

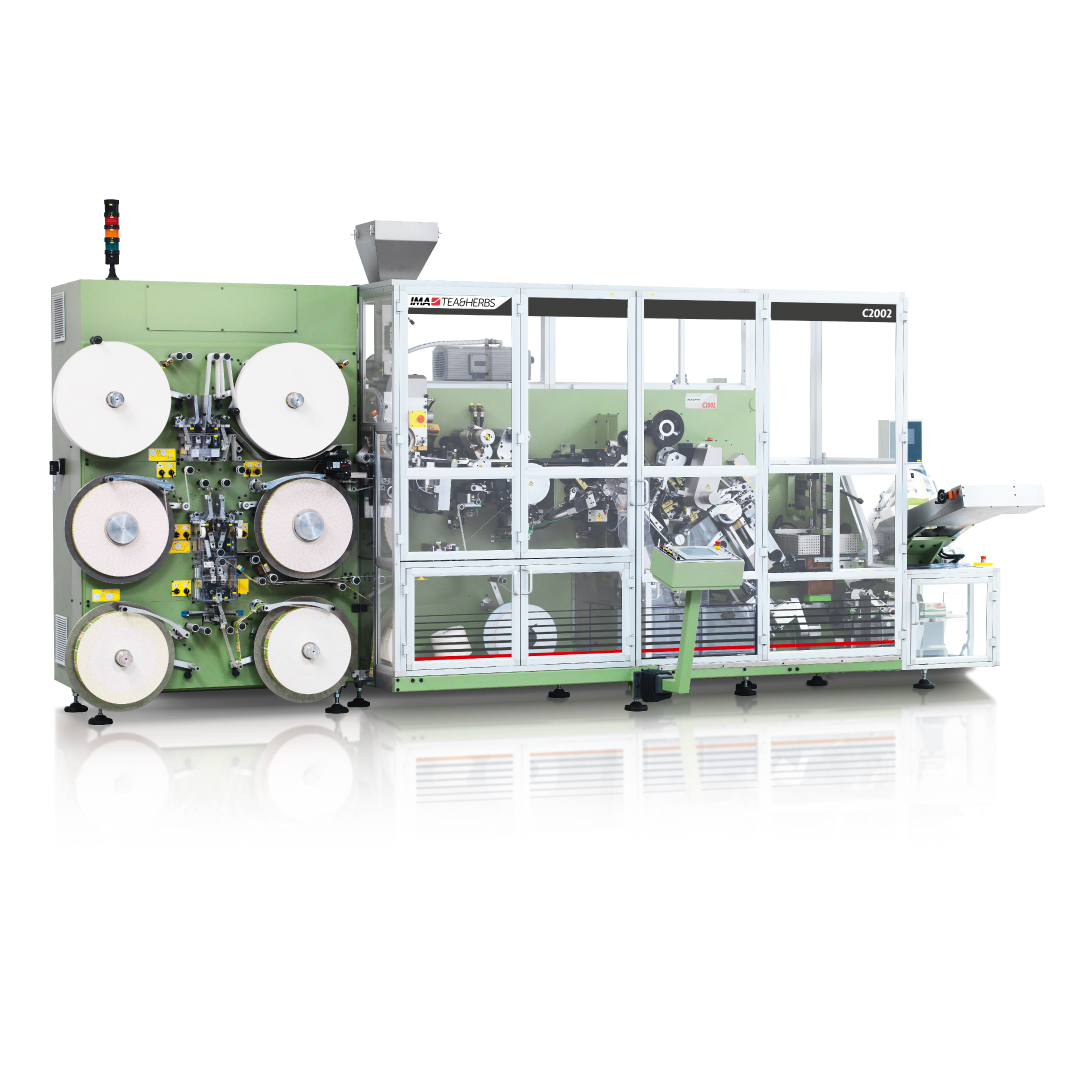

Machine overview
All-round efficiency
The C2002 is the ultimate solution for high-capacity, high-efficiency production of heatsealable, double-chamber filter bags with string, tag and without aluminium staple, reaching speeds of up to 600 bags/minute. The C2002 is the only solution available on the market to produce naked bags, crimped or heatsealed outer envelopes on the same machine. Configuration can be adapted quickly and easily to suit the packaging type required.
Fully integrated cartoning solutions allow for a variety of carton styles and sizes starting from flat blanks. Size changeover is carried out easily and quickly.
Ultimate efficiency is reached thanks to a series of mechanisms enabling non-stop processing such as an advanced automatic splicing system, single bag rejection, automatic weight control and adjustment.
Production plant
IMA Tea & Herbs
Machine highlights
-
High speed
High production speed: up to 600 enveloped bags/minute.
-

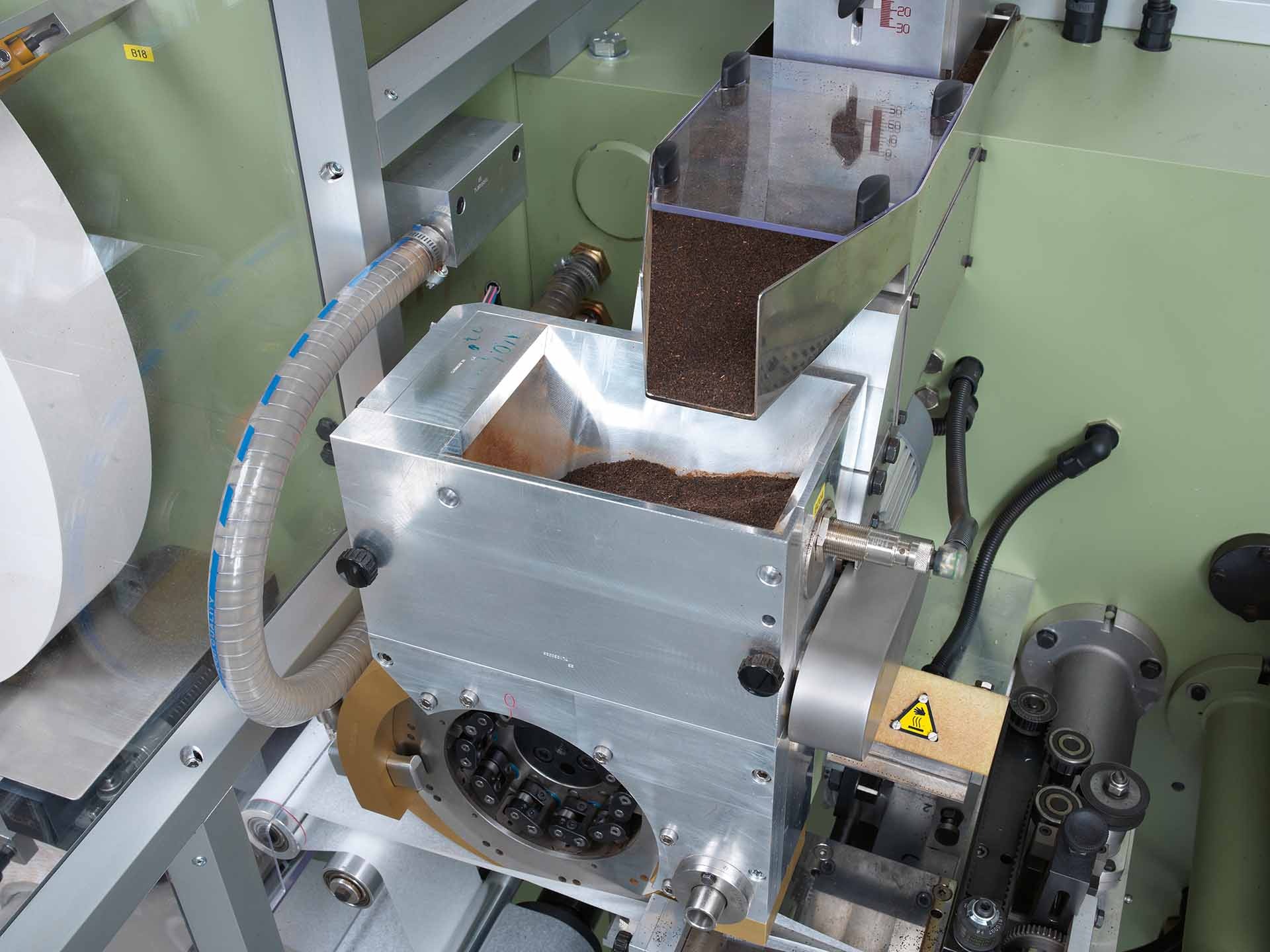

Product feeding
Special vibrating product feeding system.
-
Adhesive paper for fixing
Adhesive paper fixes tag and thread to bag to avoid use of aluminium staples.
-
Packaging flexibility
Naked bags, crimped and heatsealed envelopes all on the same machine.
-

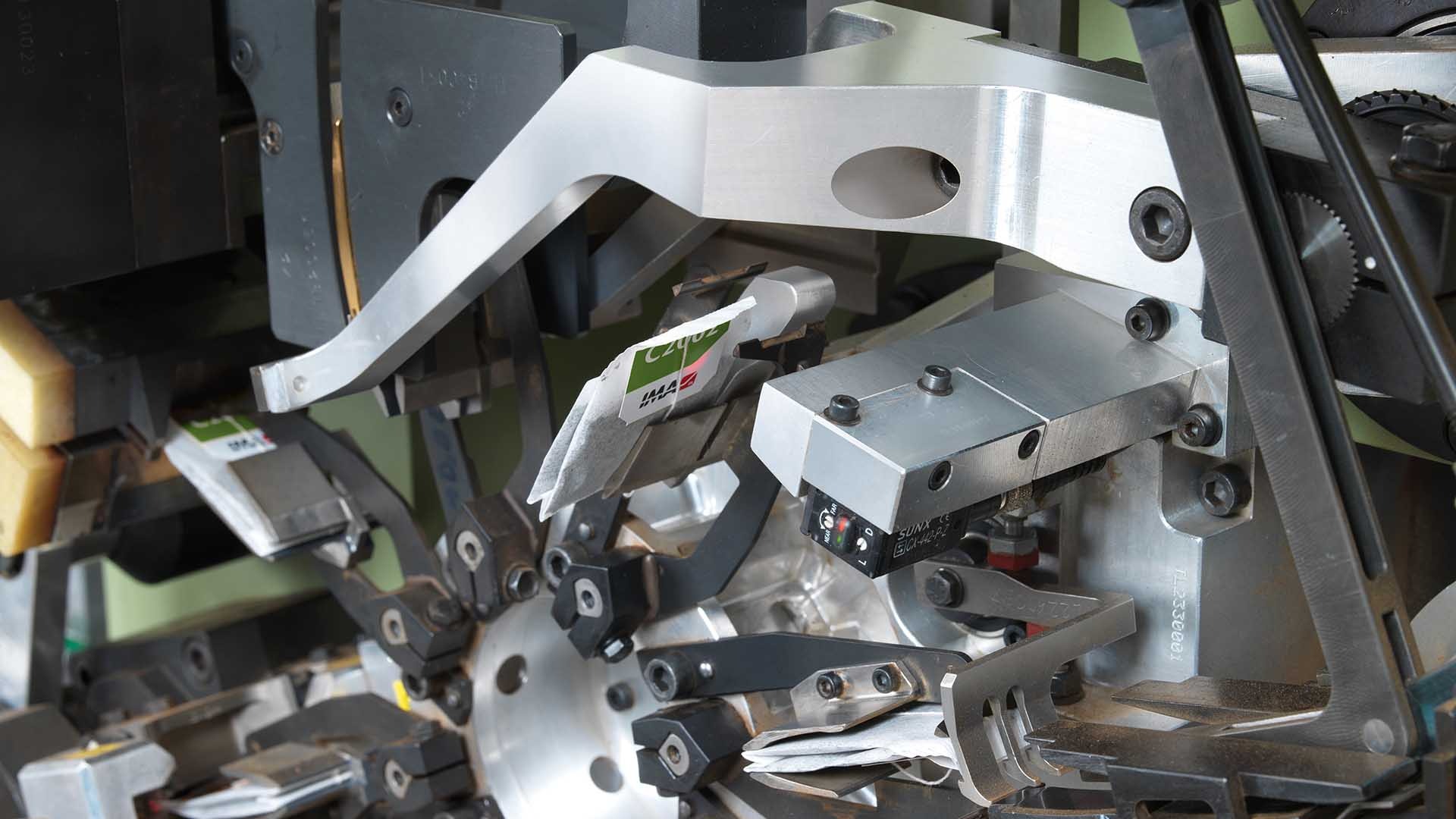

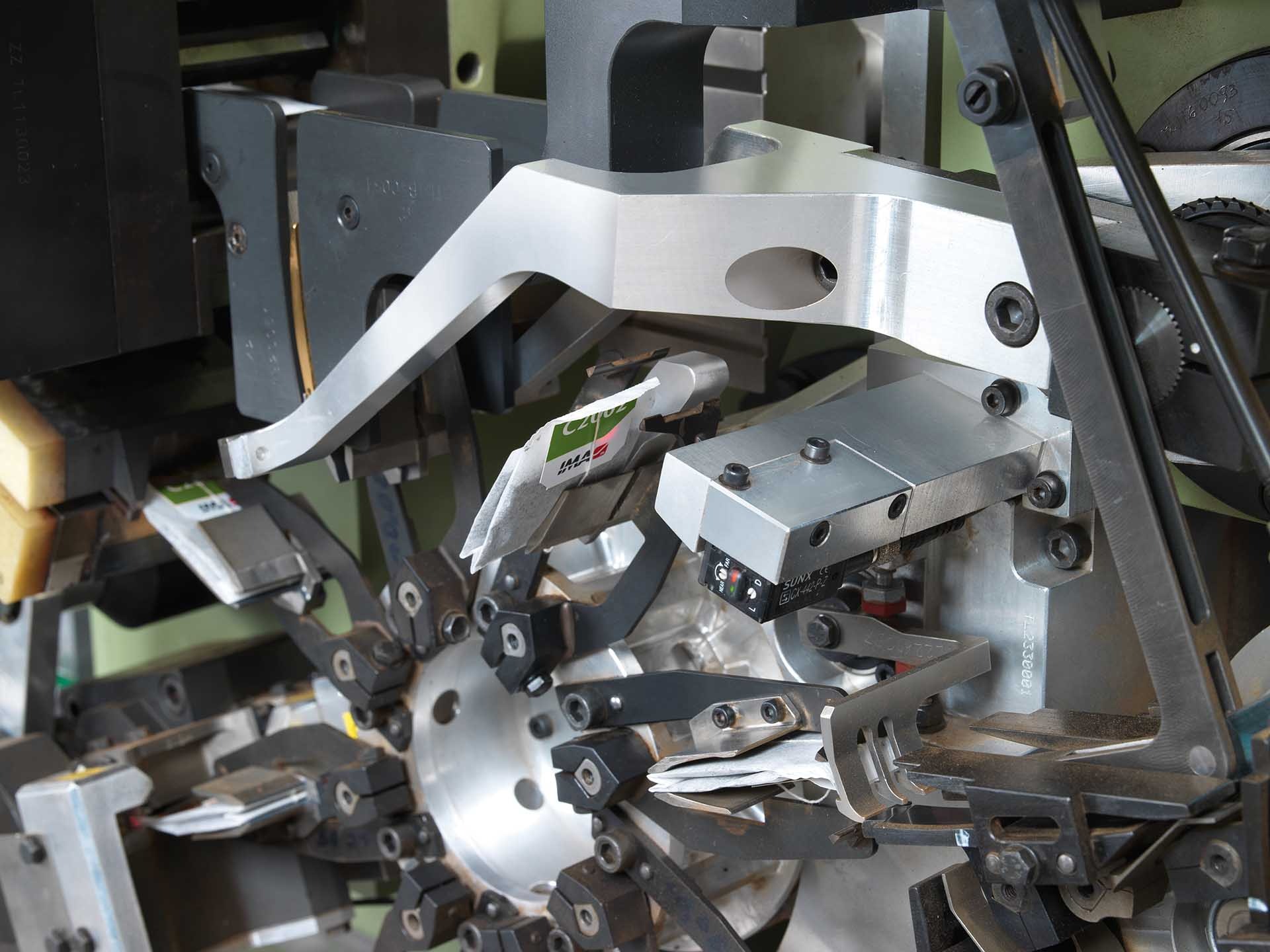

Rejection systems
Independent devices for single naked bag and single envelope rejection.
-

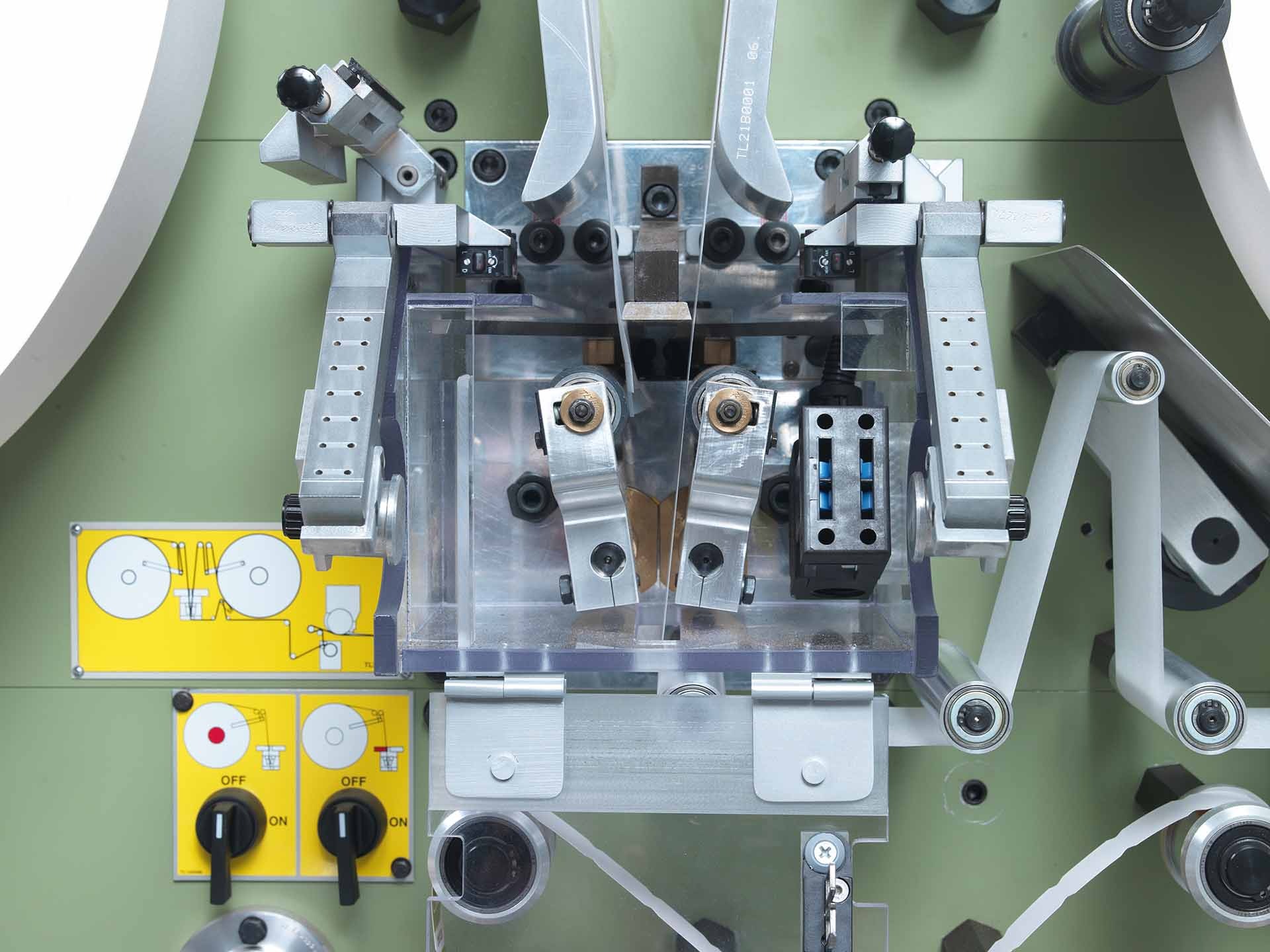

Automatic spicing
Packaging material automatic splicing: no processing speed reduction for increased efficiency.
-
Motorised magazine
Motorised flat blanks magazine.
-
Integrated PC
Integrated PC for working cycle logic and quality control.
Unrivalled flexibility
Enabling customers unrivalled flexibility on one single machine, the C2002 processes naked bags, as well as bags in crimped envelopes and heatsealed envelopes, without requiring complex set-up procedures between one production run and another.

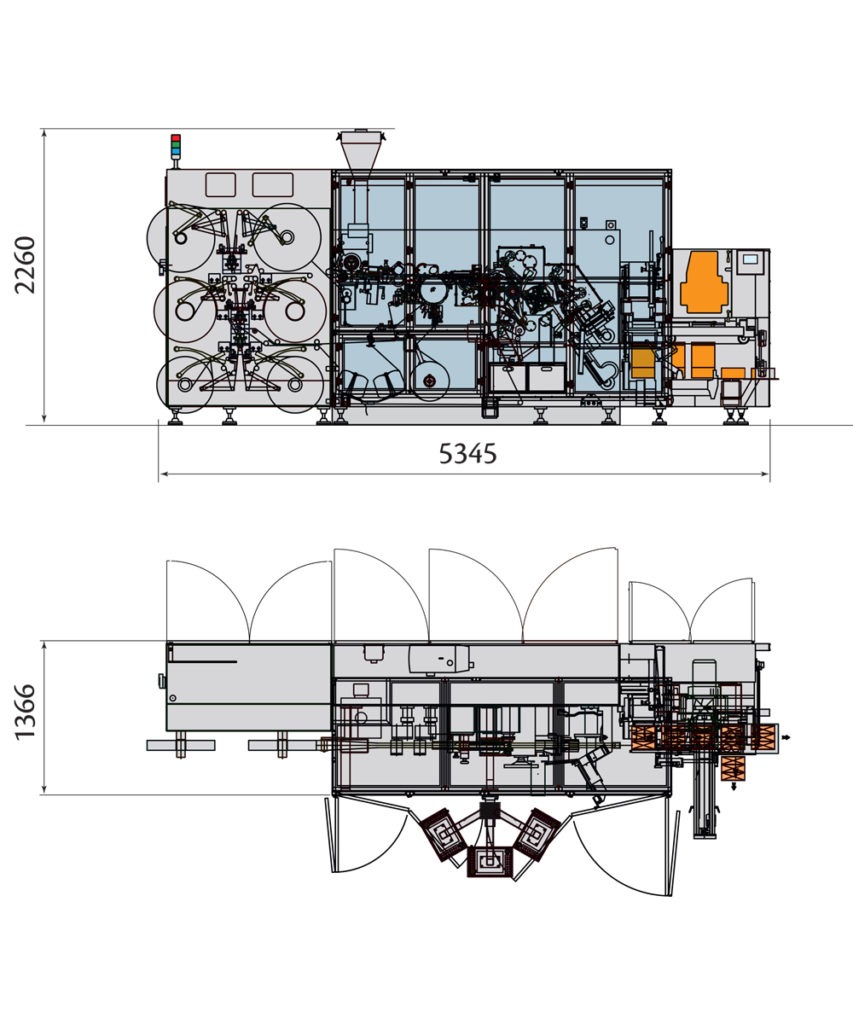

Machine details
Technical information
| TECHNICAL DATA C2002 | |
|---|---|
| Machine speed (Bags/minute) | Up to 600 |
| Tea bag capacity | Up to aproximately 3.0 grams |
| Filter bag maximum volume | 9.0 cubic centimeters |
| Power required | Total installed power: 23 kW |
| N.b. Power consumption depends on the thermic groups fitted in the machine | |
| Compressed air | Duty pressure: 6 bar |
| Machine net weight | Max. 6,000 Kg |
