C1290 Tube Filling

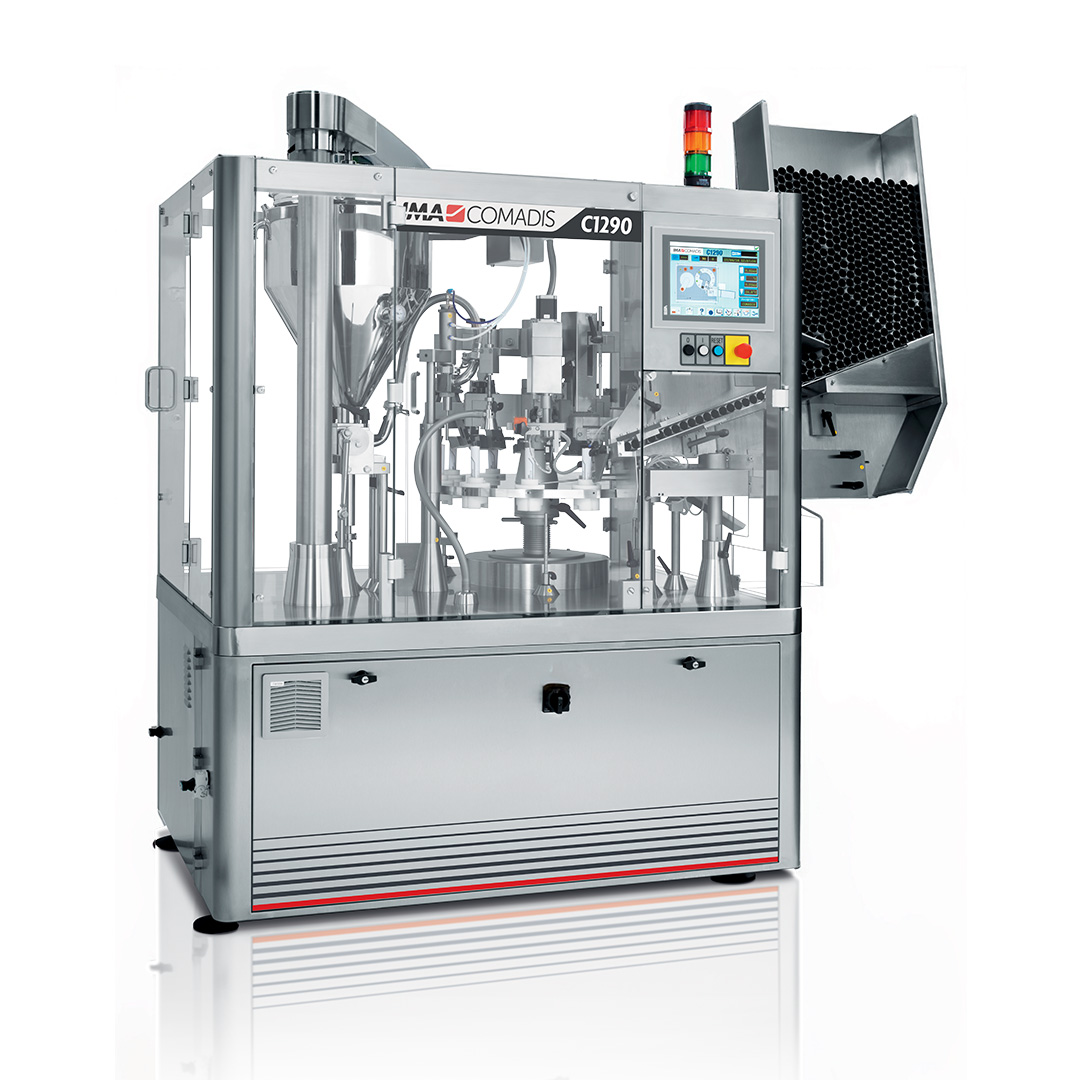

Machine overview
Complete, fast, easy to use
Comadis C1290 is the ultimate proposal coming from many years experience in tube filling industry.
Co.Ma.Di.S. C1290 is a major update of the successful “C1090”, the benchmark model sold worldwide in many different applications, which has proved to offer enough flexibility to be used in various configurations.
Improved in a number of details, it is now performing tube cleaning by dedicated station, batch data collection via USB port and continuous monitoring – on request – of tube folding and tube crimping areas.
Production plant
IMA Comadis
Machine highlights
-
Tube feeding system
Choice of automatic/robotized tube feeders.
-
Dosing pump
Easy-to-disassemble dosing pump.
-

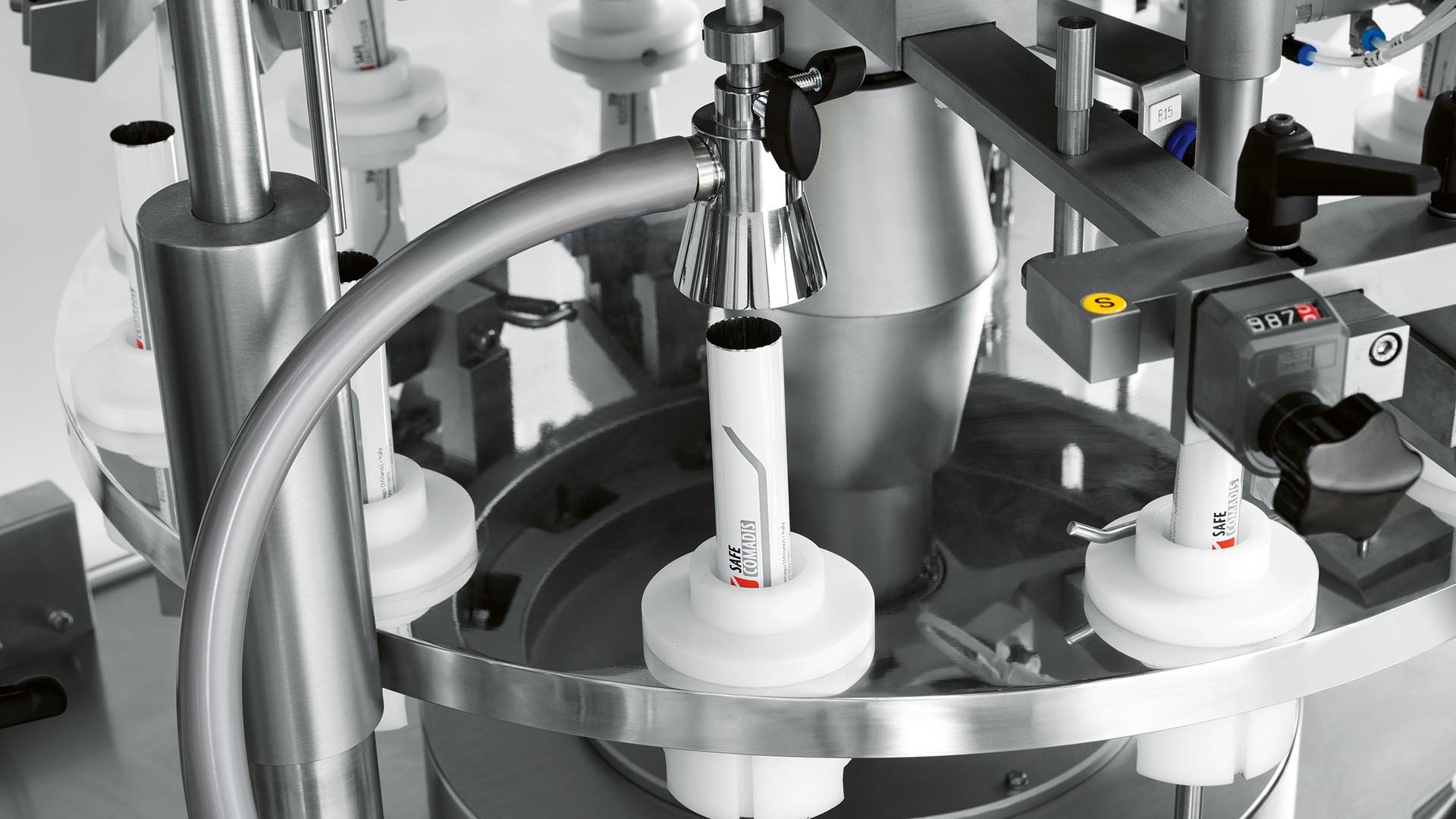

Diving nozzle
Servo-controlled diving nozzle, with positive shut-off valve and cleaning by air blow.
-
Interchangeability of closing heads
Quick interchangeability of closing heads.
-
Simplified changeover
Simplified and easy change of size parts, without tools.
-
Electrical cabinet
Electrical cabinet integrated within machine footprint.
-

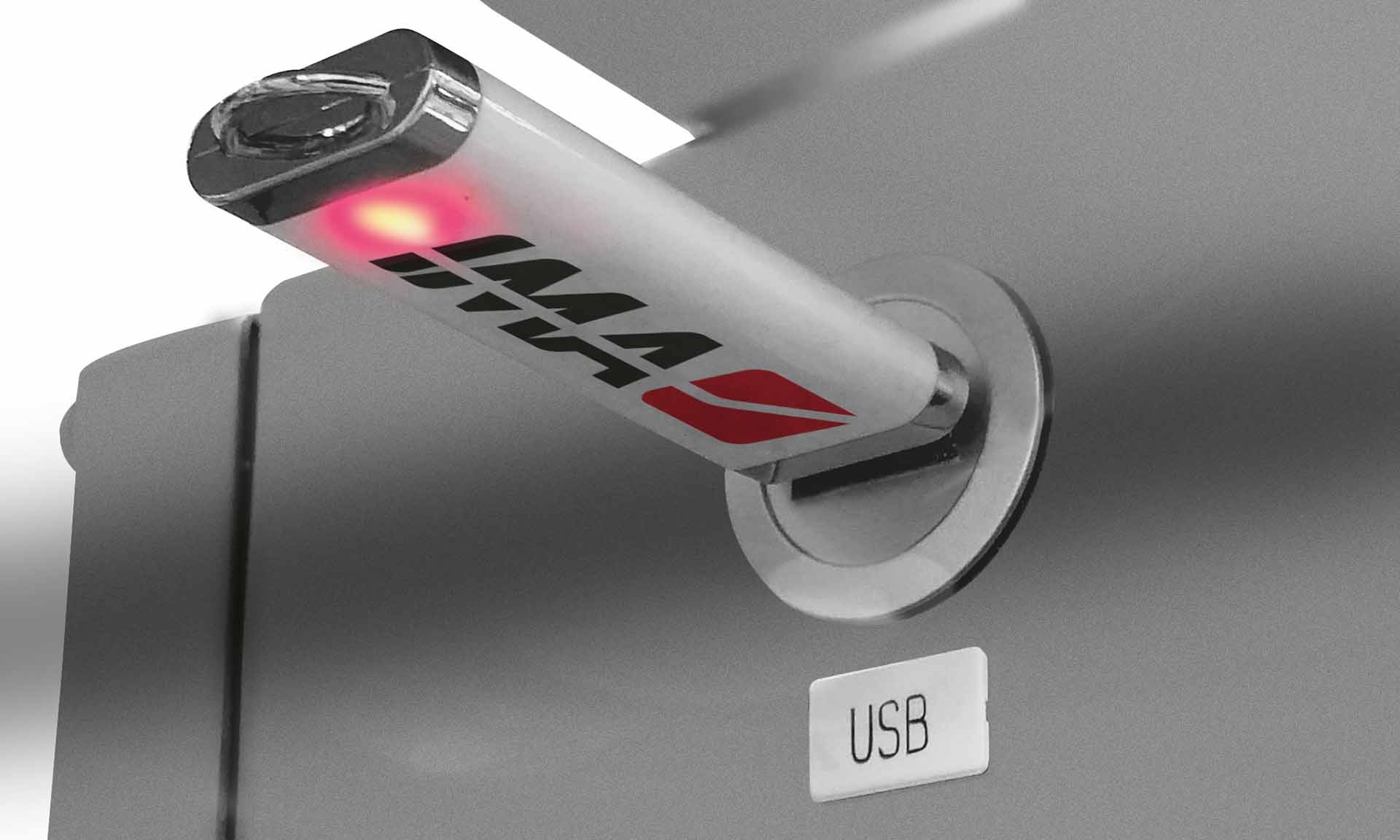

Easy batch data collection
Batch data collection – by pen drive – via USB port.
-
Flexibility in thermo-sealing
Thermo-sealing of plastic and laminate tubes by hot air or hot jaws technology.
Configurations

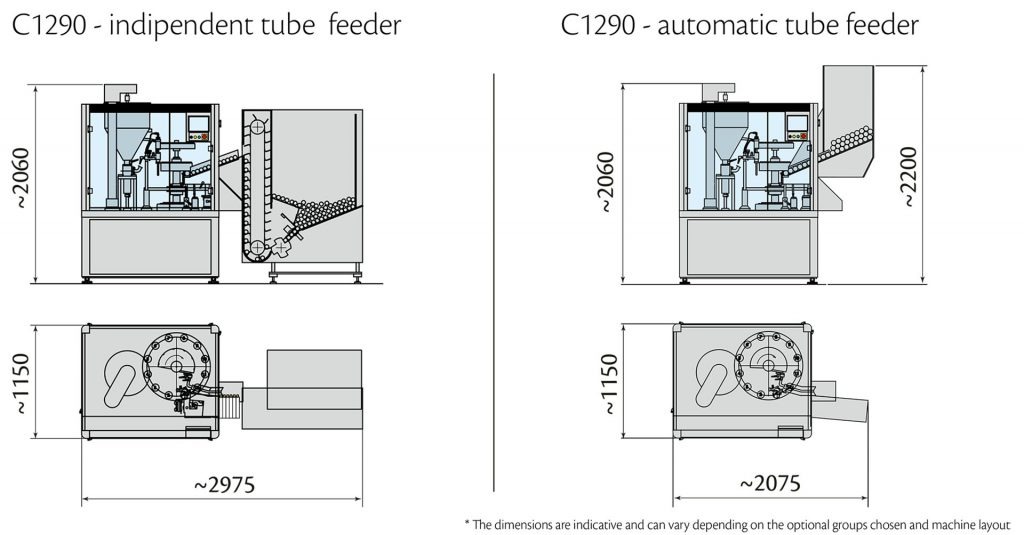

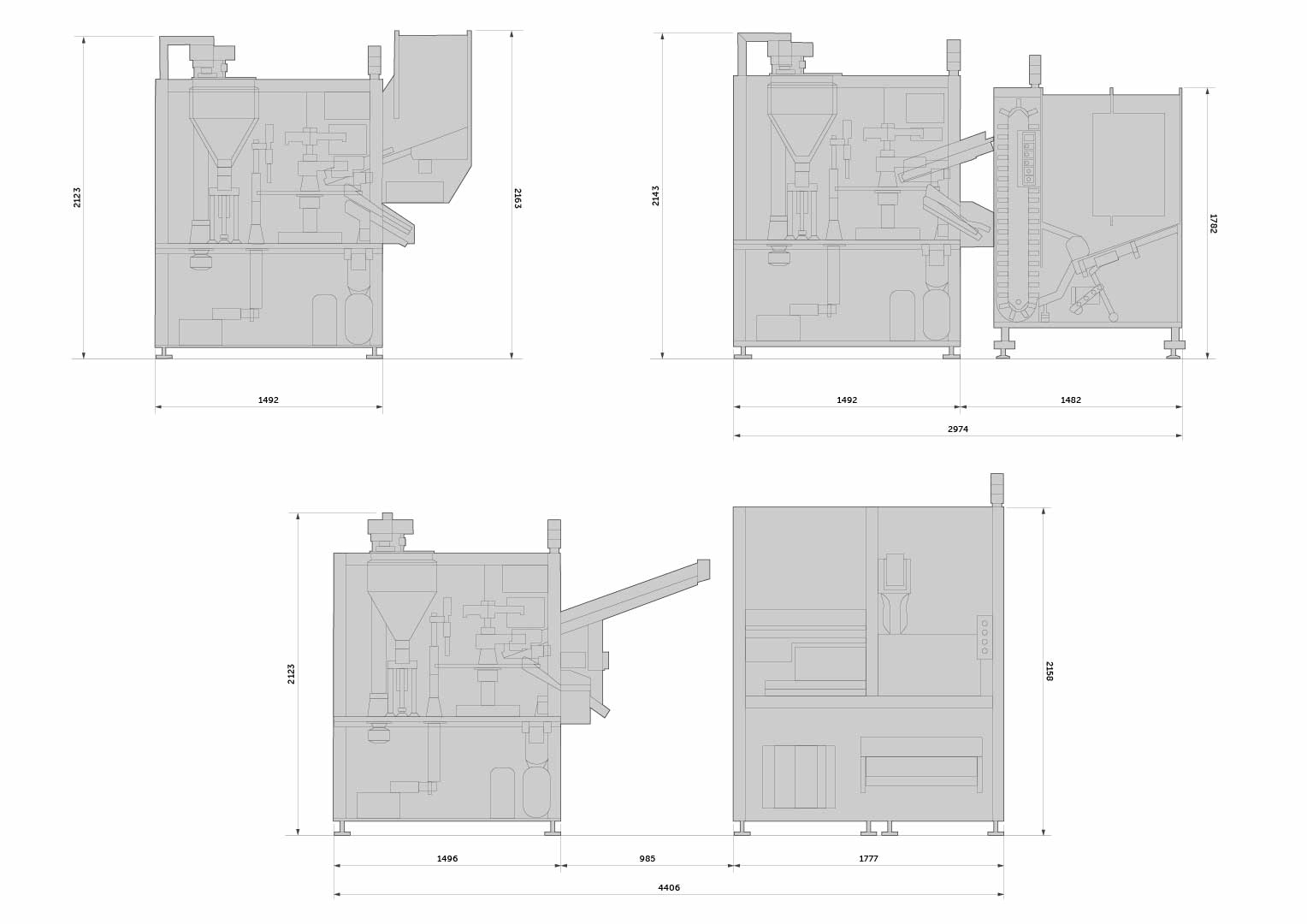

The wide range of configurations include a choice of tube feeding devices: cassette type, independent ergonomic and fully robotized. Outstanding sturdiness and considerable performance are smartly combined to intuitive operation: the dream of users comes true.
C1290T for multicolor toothpaste

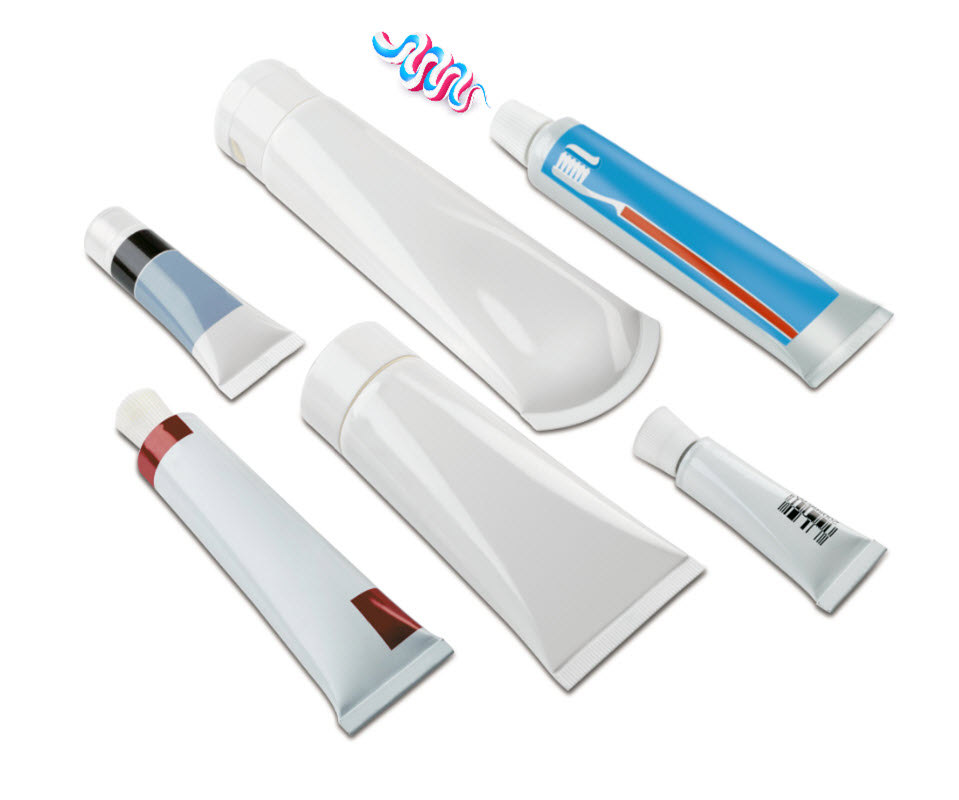

The C1290T is available for the tube filling of multicolour toothpaste and is suitable for both surface and deep stripes. Based on triple dosing pump and special nozzle collecting and dispensing all colours at the same time, it is available in different configurations to cover all needs.
Machine details
Technical information
| TECHNICAL DATA C1290/C12110 | |
| Mechanical speed | Up to 90 tubes/min. (C1290) |
| Up to 110 tubes/min. (C12110) | |
| Filling volume | 2-250 mL (on request up to 350 mL) |
| Tube diameter | 10-50 mm (on request polythene and aluminium tubes up to 60 mm) |
| Tube length | 60-250 mm |
| Working stations | 12 |
