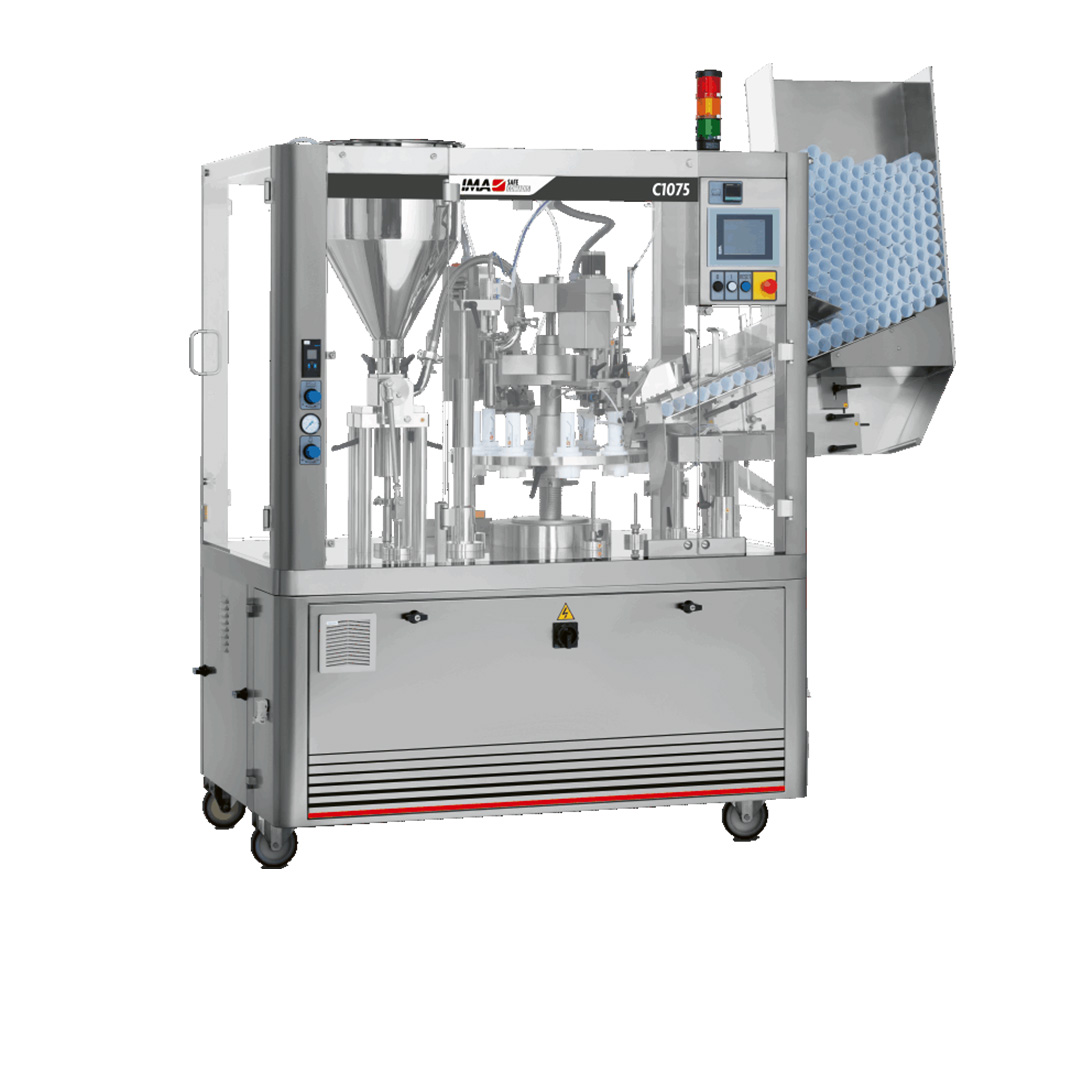

C1075 Tube Filling
Machine overview
Lorem Ipsum
The C1075 automatic tubefiller is a medium-speed tube filling machine designed for accurate and repeatable filling and sealing in personal care, pharmaceutical, and food production. Developed from proven Comadis tubefilling technology, it delivers stable performance across a wide range of tube formats, materials and filling volumes.
The machine features a compact footprint combined with a rational mechanical layout, supporting efficient use of floor space while maintaining consistent output during continuous operation. Engineered for operational efficiency, the C1075 offers ergonomic design, high accessibility and simplified format change and maintenance procedures to reduce downtime.
Despite its compact size, the C1075 integrates industrial-grade components derived from higher-capacity tubefillers, ensuring long-term reliability. Optimized mechanics also contribute to reduced noise and vibration, improving operator comfort and supporting sustainable production conditions.
Production plant
IMA Comadis
Machine highlights
-
Tube feeders
Automatic or robotized tube feeding options.
-
Dosing pumps
Easily removable dosing pump for fast cleaning and maintenance.
-
Diving nozzle
Diving nozzle with positive shut-off valve and air-blow cleaning system.
-
Special seals
Customizable sealing designs available on request.
-
Closing heads
Fast changeover of closing heads.
-
Tool-free intervention
Tool-free format change for size parts.
-
Electrical cabinet
Electrical cabinet fully integrated within the machine footprint.
-
Data collection
Batch data acquisition via USB interface.
Machine details
Technical information
| TECHNICAL DATA C1075 | |
| Mechanical speed | Up to 75 tubes/min. (C1075) |
| Filling volume | 2-250 mL (on request up to 350 mL) |
| Tube diameter | 10-50 mm (on request polythene and aluminium tubes up to 60 mm) |
| Tube length | 60-250 mm |
| Working stations | 10 |
