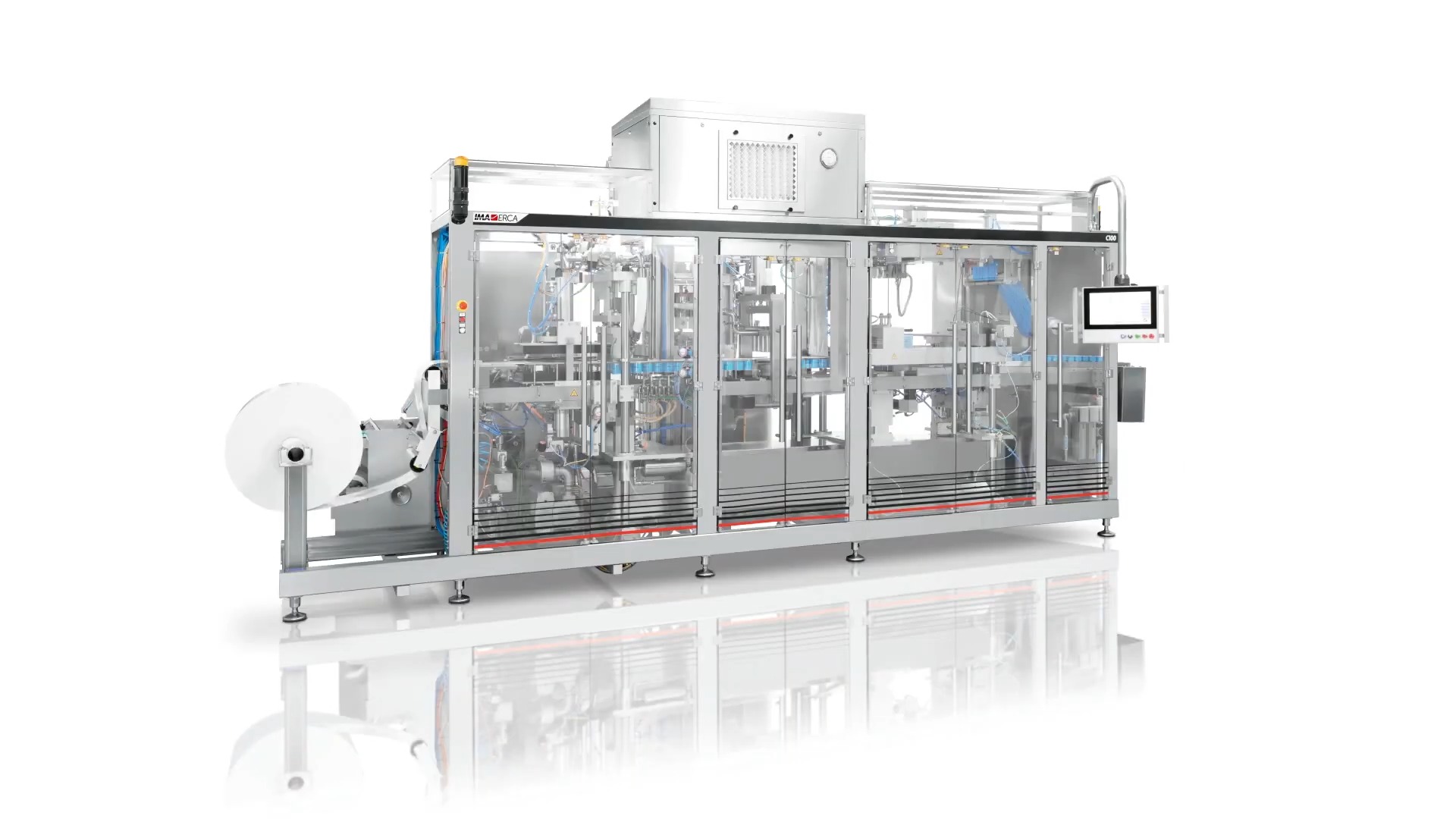

C100 Series Cup Forming, Filling and Sealing
Machine overview
Maximum accuracy, excellent accessibility
A low output category machine, the C100 handles up to 7,000 cups per hour for all kind of dairy products as well as liquid-to-pasty food products. With a minimal footprint and a modular structure for convenient handling, the C100 is a simple and cost effective solution with only one press.

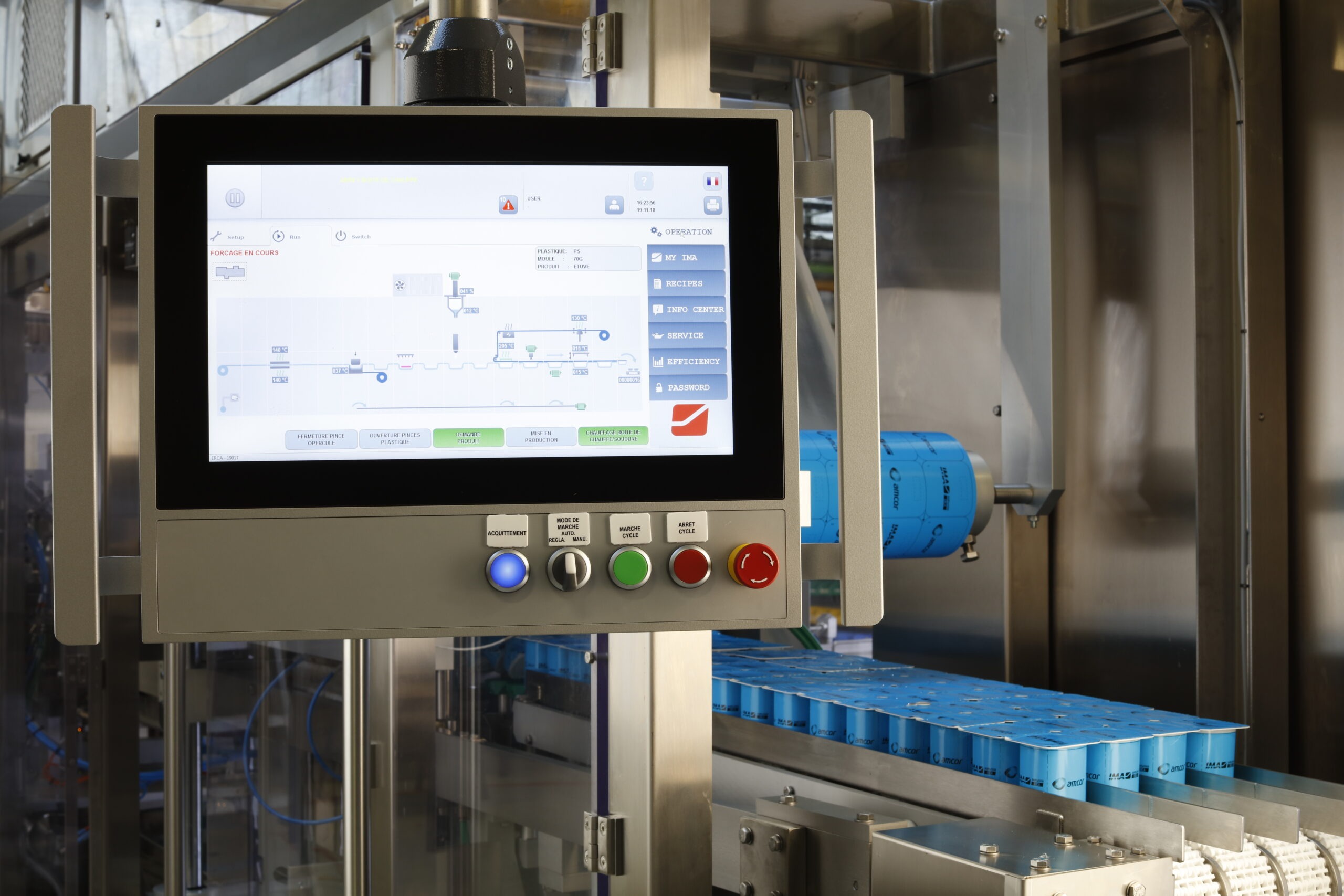

Thanks to optimised machine design and a simple, intuitive HMI, operational costs, as well as maintenance costs and downtime are kept to a minimum.
Production plant
IMA Erca
Machine highlights
-
Footprint
Small footprint.
-
Accuracy
Maximum accuracy, precise product cut-off and gentle product handling.
-
Easy adjustments

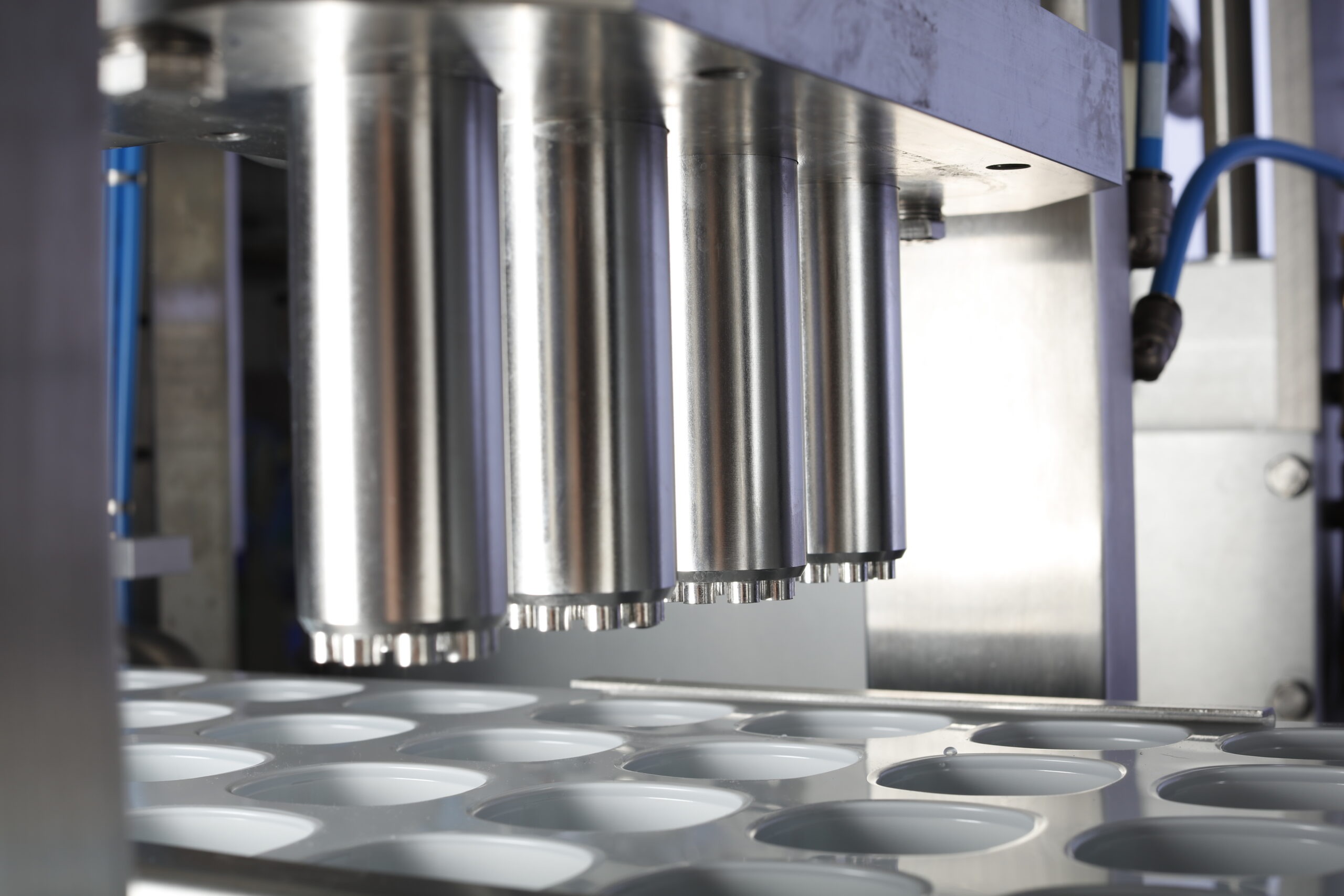

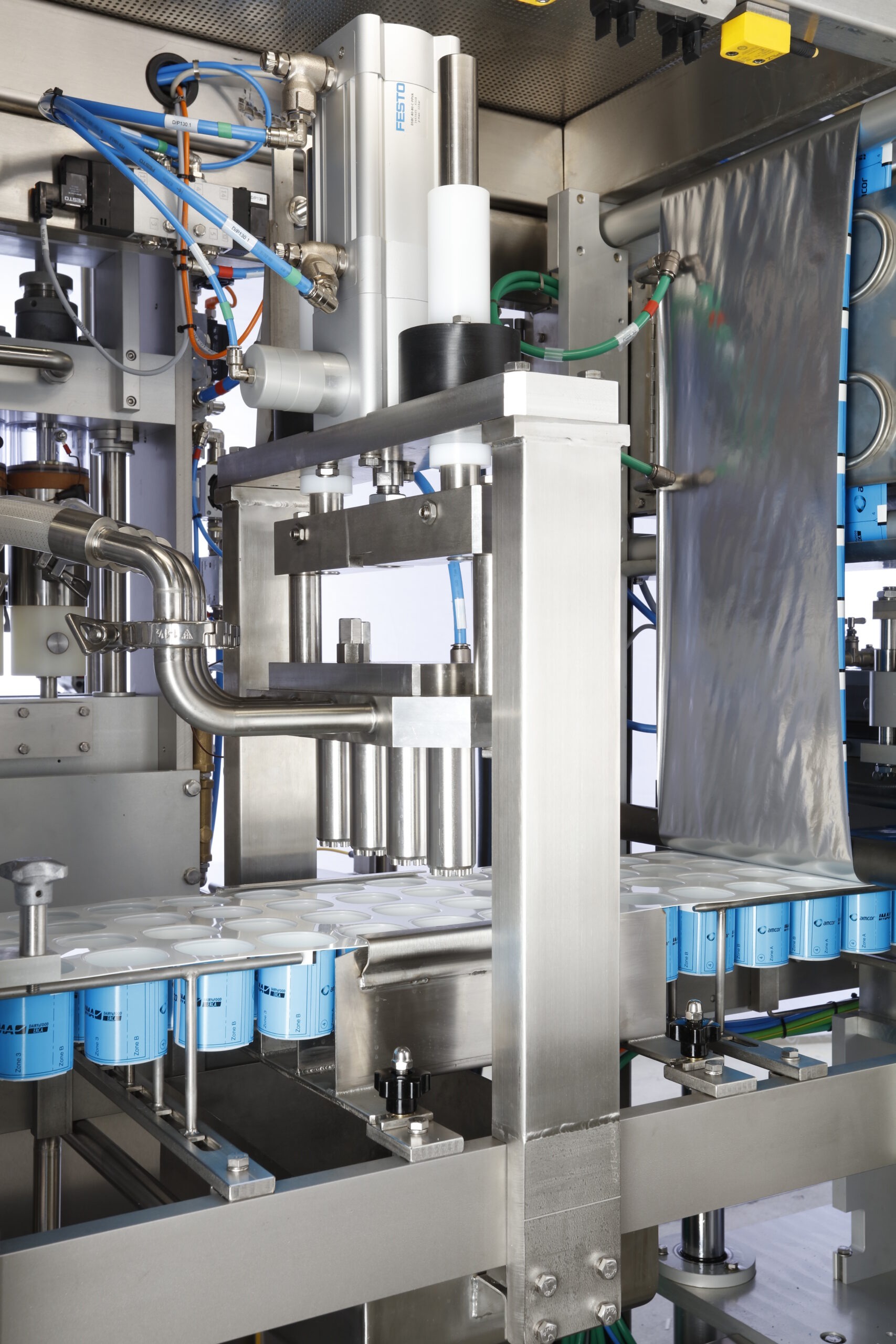

Servo driven dosing pistons for easy adjustments.
-
Shapes and design
Large variety of cup shapes and designs.
Machine details
Technical information
| TECHNICAL DATA C100 | |||
| Cup material width | 300 mm | Draw off length | max. 100 mm |
| Usable width | 286 mm | Forming depth | max. 100 mm |
| MATERIALS | |||
| All common packaging materials | |||
| Bottom web | PS and multilayers, PS/PE, PS/EVOH, PET (single cups only) | ||
| OUTPUT | |||

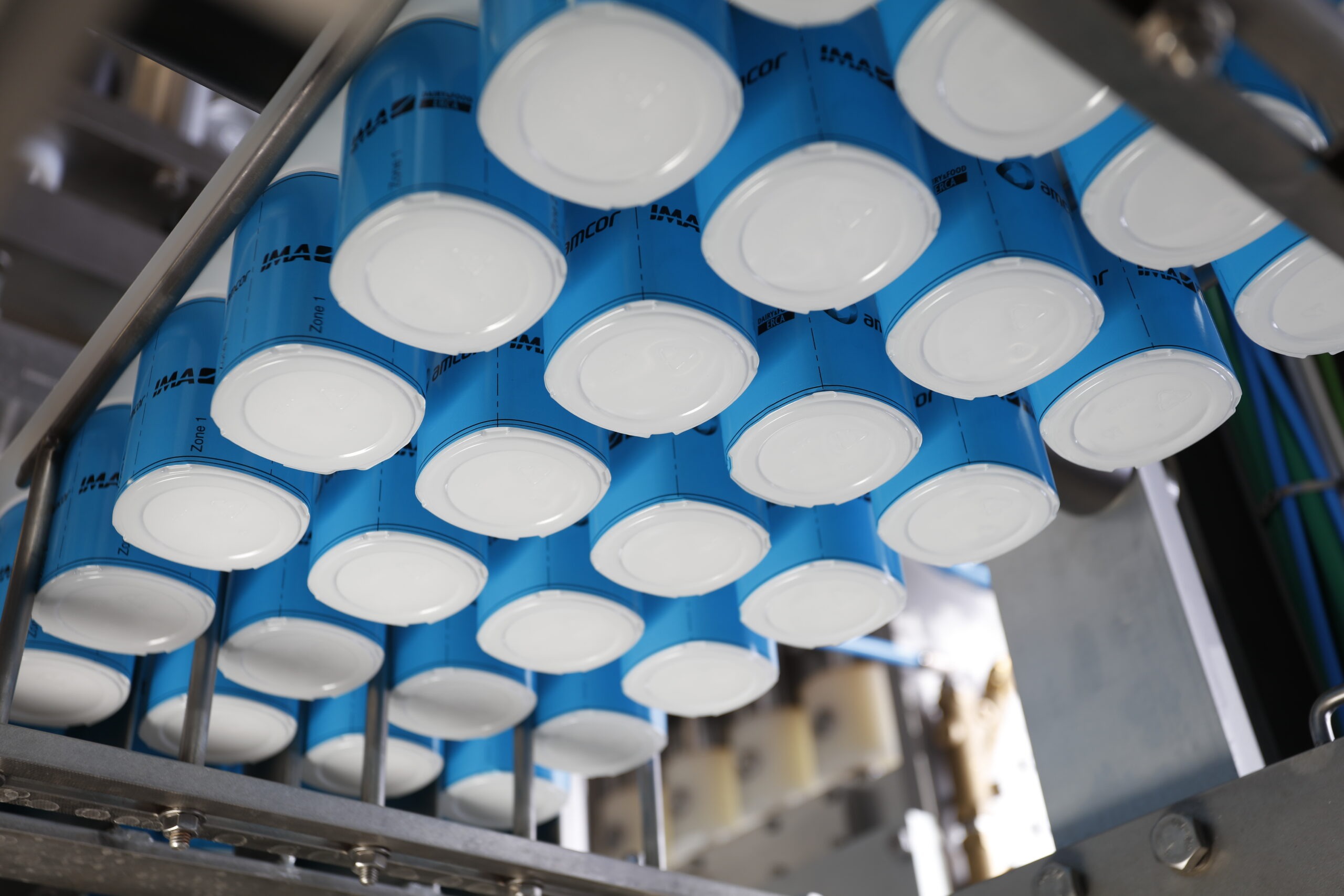

| Yoghurt cups 63 x 63 mm with wrap-around label 1 x 4 | 7,000 cups / h | ||
| STANDARD EQUIPMENT | |||
| Hygiene class | Clean | ||
| Components | Controller and servo motors ELAU, pneum. FESTO, HMI Magelis 10“ | ||

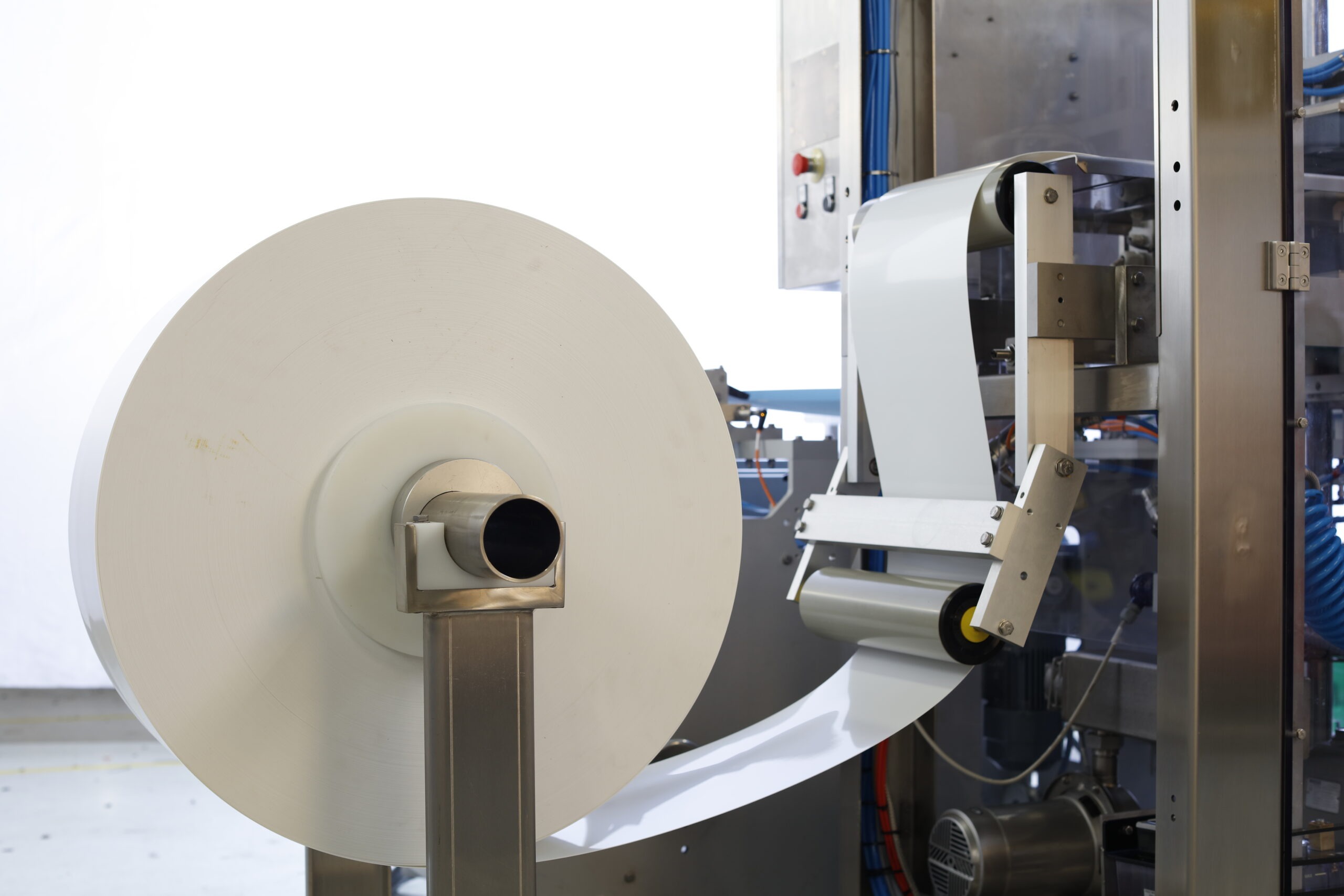

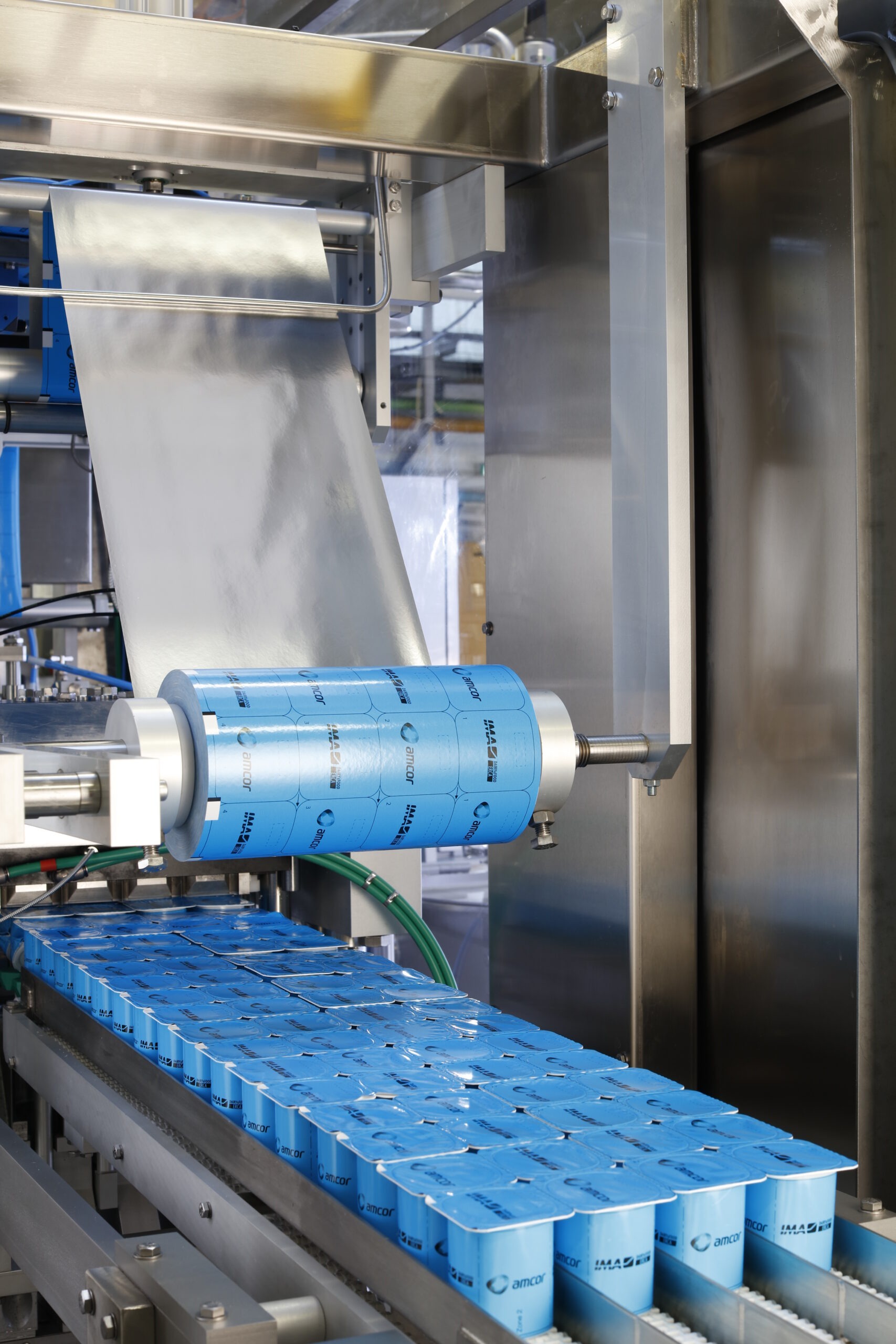

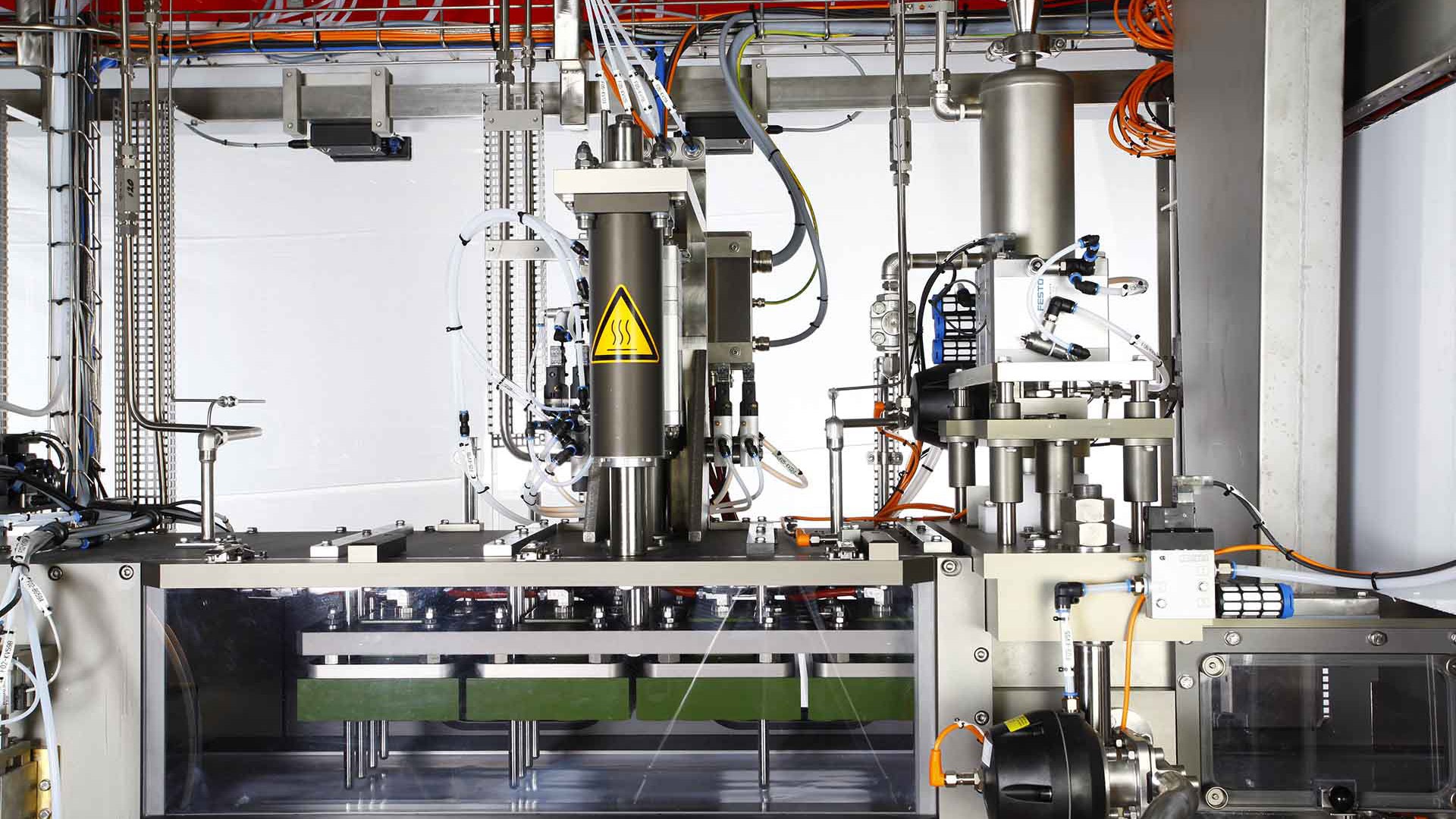

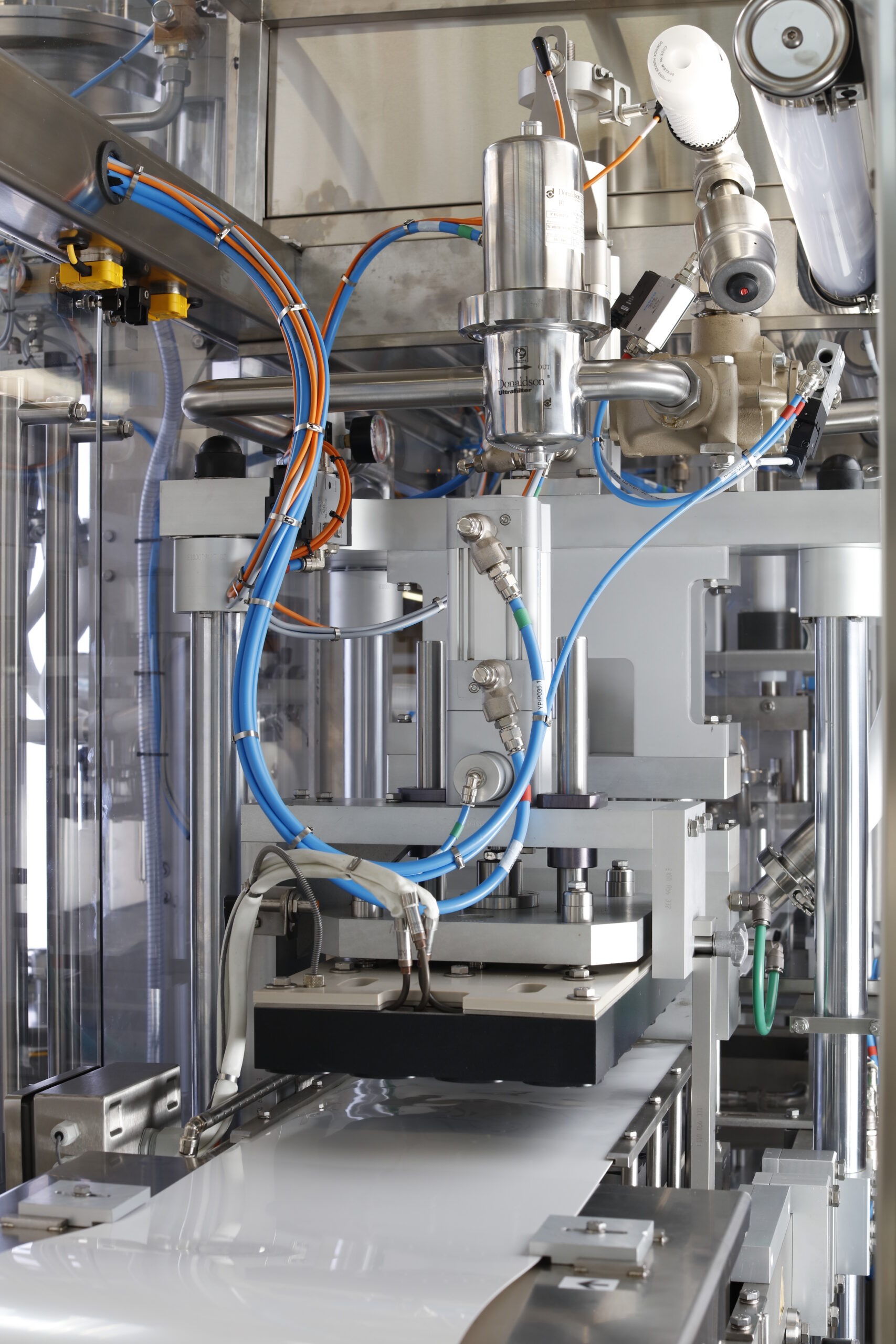

| Standard configuration | Bottom web reel Ø 1.000 mm / Lid web reel Ø 300 mm label reel N/A, plastic pulling by fixed an movable grippers, heating station: 6 pitches, dosing by membrane or piston filler (up to 2 units), semi-penetrant cutting tool: waste less punch for packs, exit conveyor with belt | ||
| OPTIONS | |||
| Hygiene class | Ultra-clean (depending on customer specification) | ||
| Fillers | Rotary valve filler, 2 fillers possible in 1×4 configuration | ||

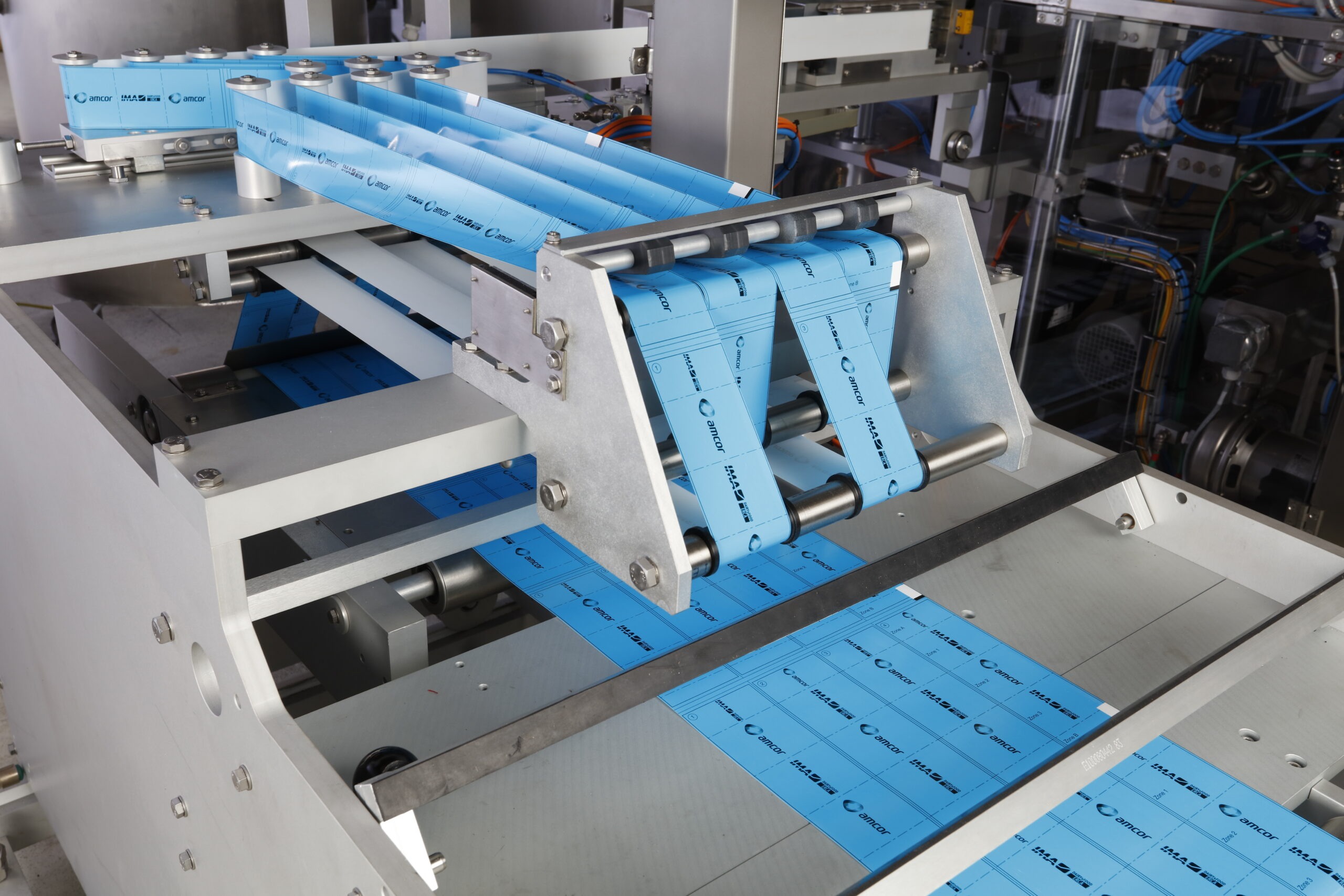

| Labelling | Labelling through the bottom | ||
| Cutting unit | Individual punching | ||
