Bottle blower Counting/Dosing
Machine overview
Take care of your quality.

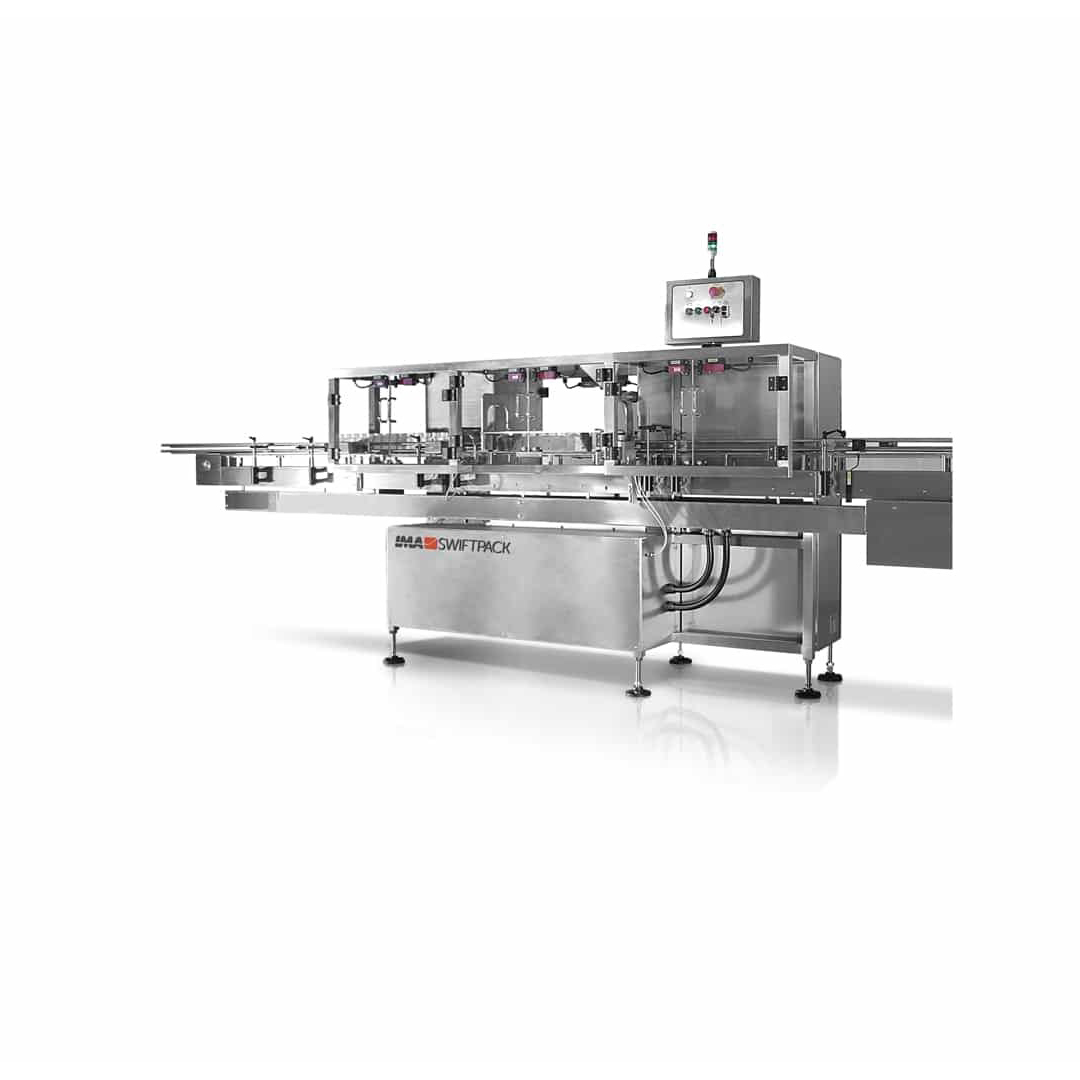

The IMA Swiftpack in-line bottle cleaner has been designed to meet the highest level of GMP in keeping with the stringent requirements set by the pharmaceutical industry.
Bottles enter the machine in line and are inverted over a set of oscillating air-jet nozzles that penetrate each bottle releasing a jet of clean air. A static elimination device is also in place to assist with the removal of any possible debris from within the bottle. Any debris particles are collected and guided to an extraction area for removal, via the customer’s extraction system. On completion of the rinse cycle, the bottles are re-inverted onto the conveyor and then exit the machine.
Bottle Blower is supported by validation documentation and can easily be installed and synchronised with other integrated IMA Swiftpack equipment on new or existing packaging lines.
Production plant
IMA Swiftpack
Machine highlights
-
GMP compliance
Designed to meet the highest GMP standards in line with pharmaceutical industry requirements.
-
In-line bottle handling
Bottles enter the machine in-line and are automatically inverted for efficient cleaning.
-
Air-jet cleaning technology
Oscillating air-jet nozzles penetrate each bottle, releasing clean air for thorough internal rinsing.
-
Static & debris removal
A static elimination device assists in removing particles, with debris collected and directed to an extraction system.
-
Controlled rinse cycle
After cleaning, bottles are re-inverted onto the conveyor for smooth and continuous line output.
-
Easy line integration
Supplied with validation documentation and designed for easy installation and synchronization with IMA Swiftpack packaging lines.
Technical information
| BOTTLE BLOWER TECHNICAL DATA | |
| Production output | Up to 180 bottles/min.* |
| Bottle Diameter | 25 mm – 90 mm |
| Bottle Height | 50 mm – 195 mm |
*Depending on container size and style.
