BKII Cup & Tub Filling and Sealing
Machine overview
The strength of experience

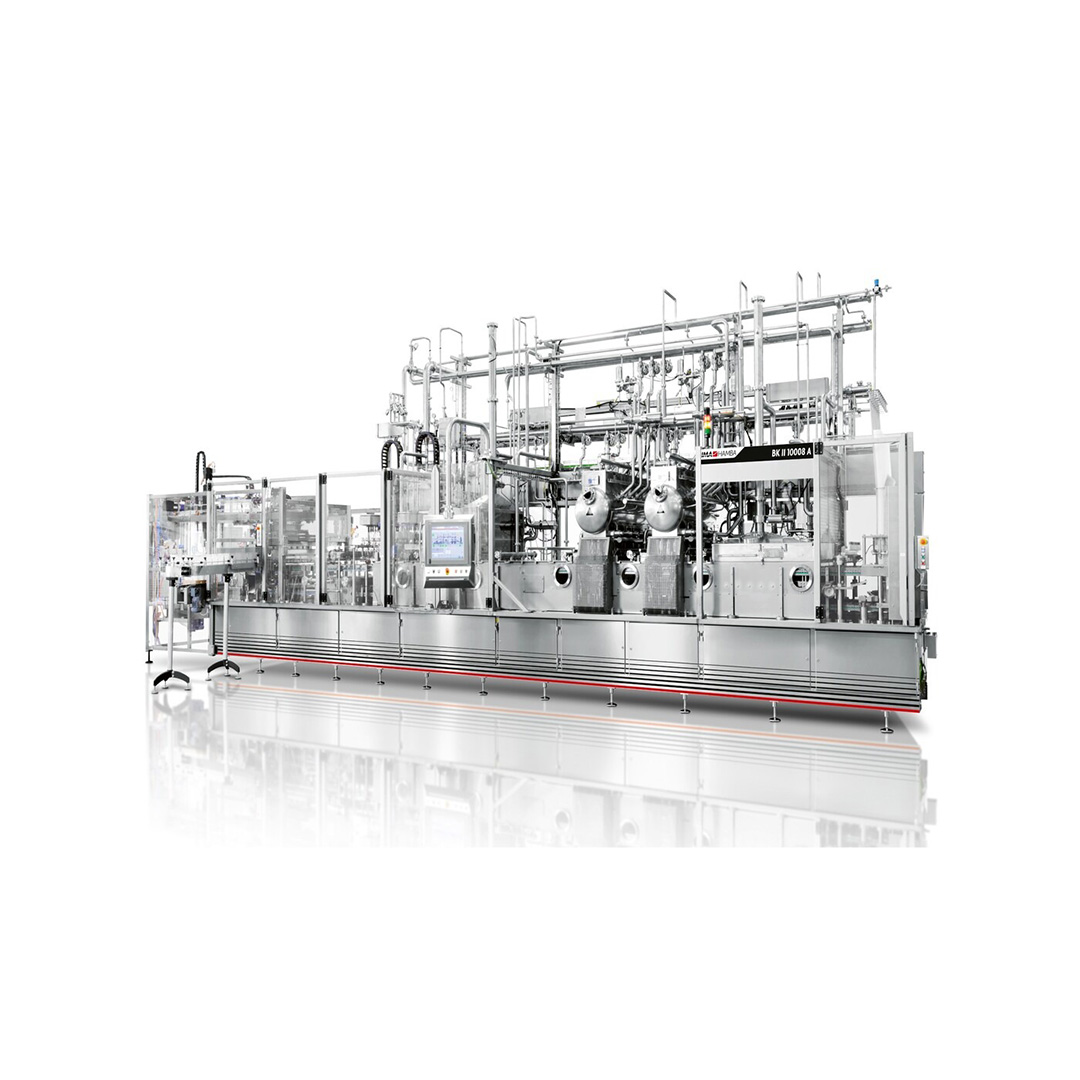

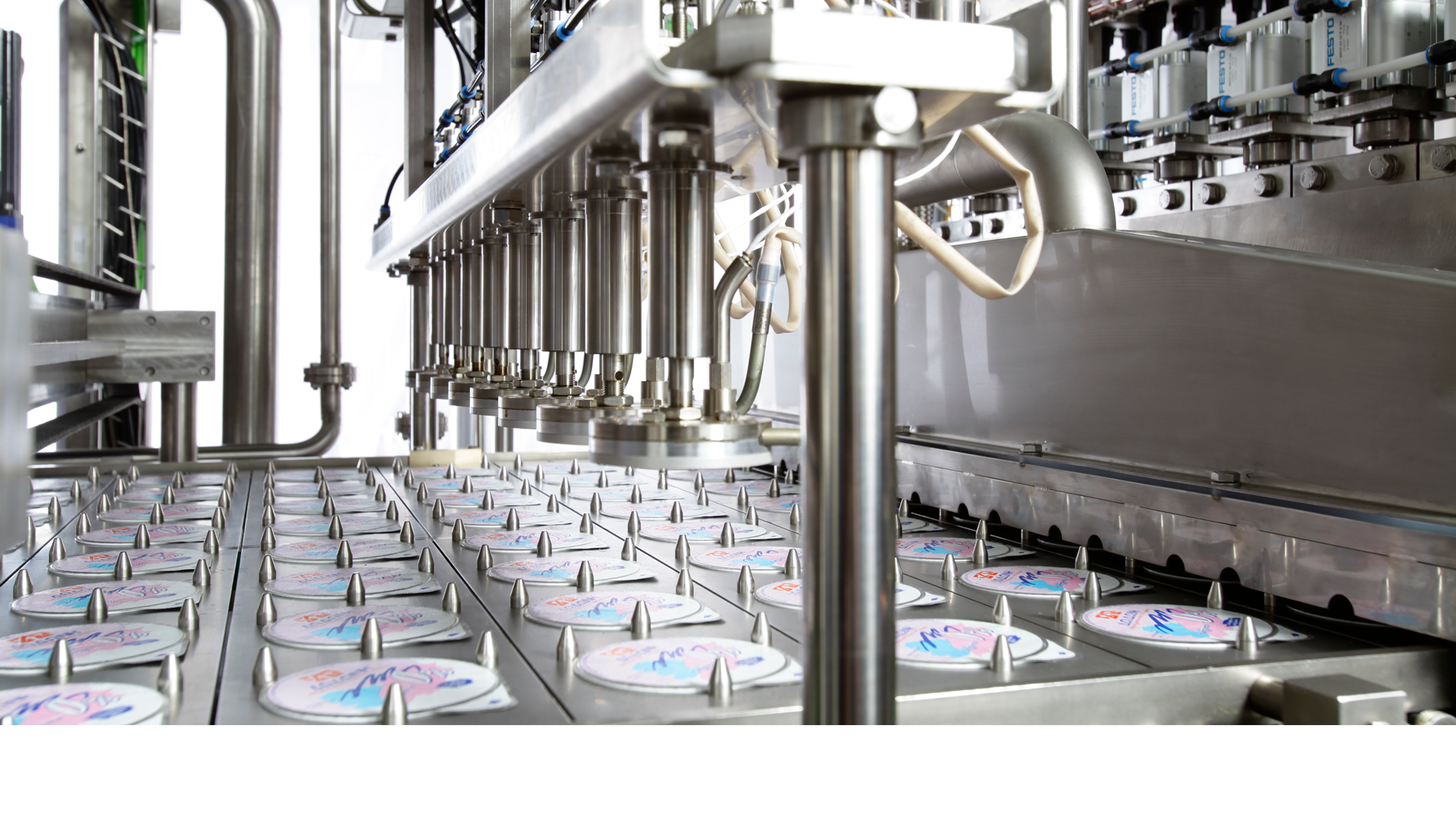

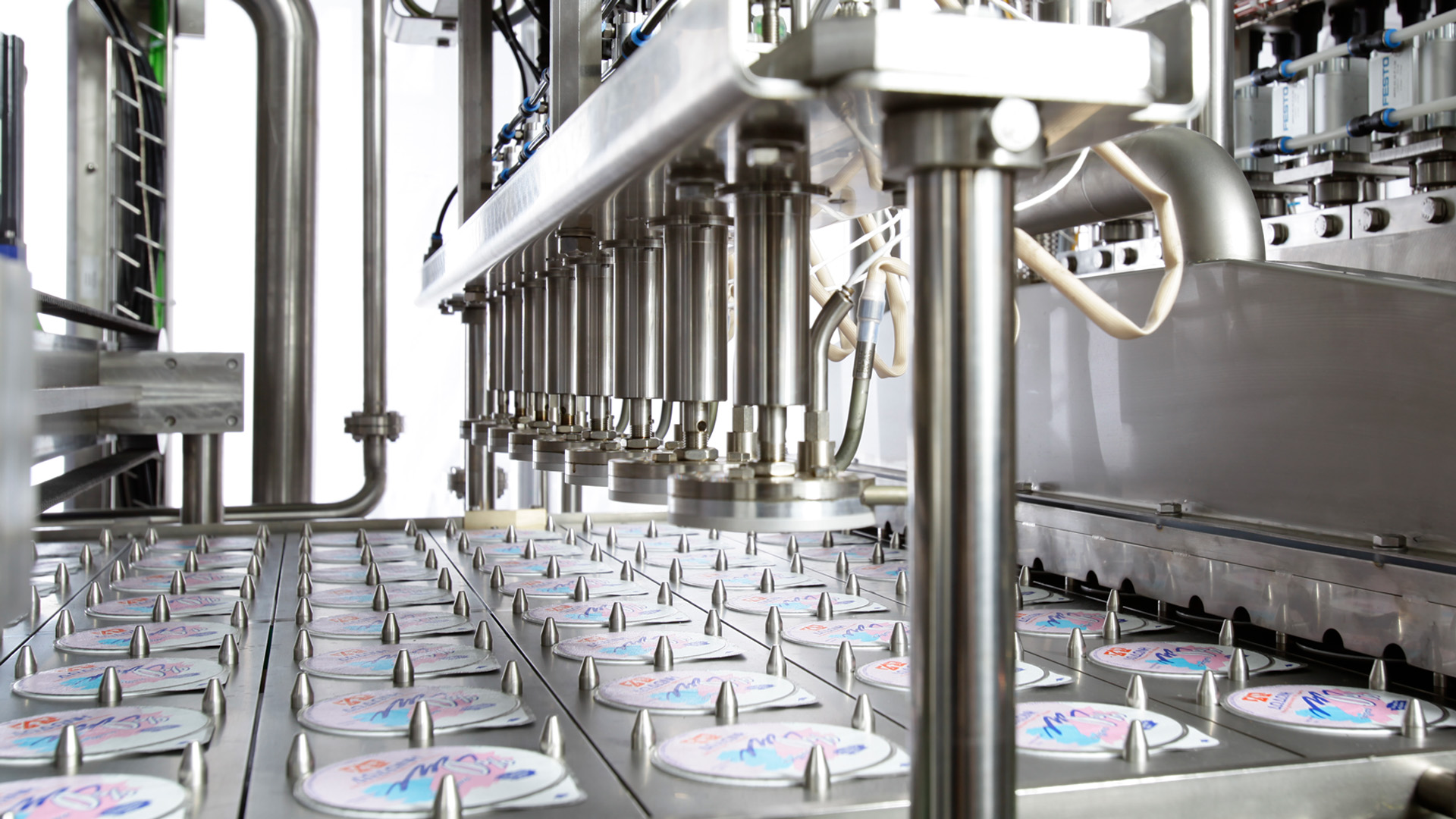

Based on the design of the proven HAMBA BK concept, this filling and sealing machine for pre-made cups stands for more efficiency, availability and flexibility. The BK II is controlled via a vertical shaft and curves. The machine can be designed with up to 12 lanes and is available as a single cycle, double cycle or even with two (2) preinstalled formats. The HAMBA BK II is also suitable for aseptic filling. Robustness and a compact design characterize this type of machine.
The HAMBA BK II handles all types of yoghurt, curd, aerated products, desserts, jelly-products and cereals.
When fitted with a special filling system, the HAMBA BK II also fills fat based products including margarine and spreads, while further food or non-food pasty products can be dealt with on demand.
Production plant
IMA Hassia
Machine highlights
-
1.
Inline machine with up to 12 lanes.
-
2.
Single or double lane versions available.
-
3.
High format flexibility based on servo-driven movements and adjustments related to cup height.
-
4.
Available for CLEAN, ULTRA CLEAN and ASEPTIC hygienic standards.
-
5.

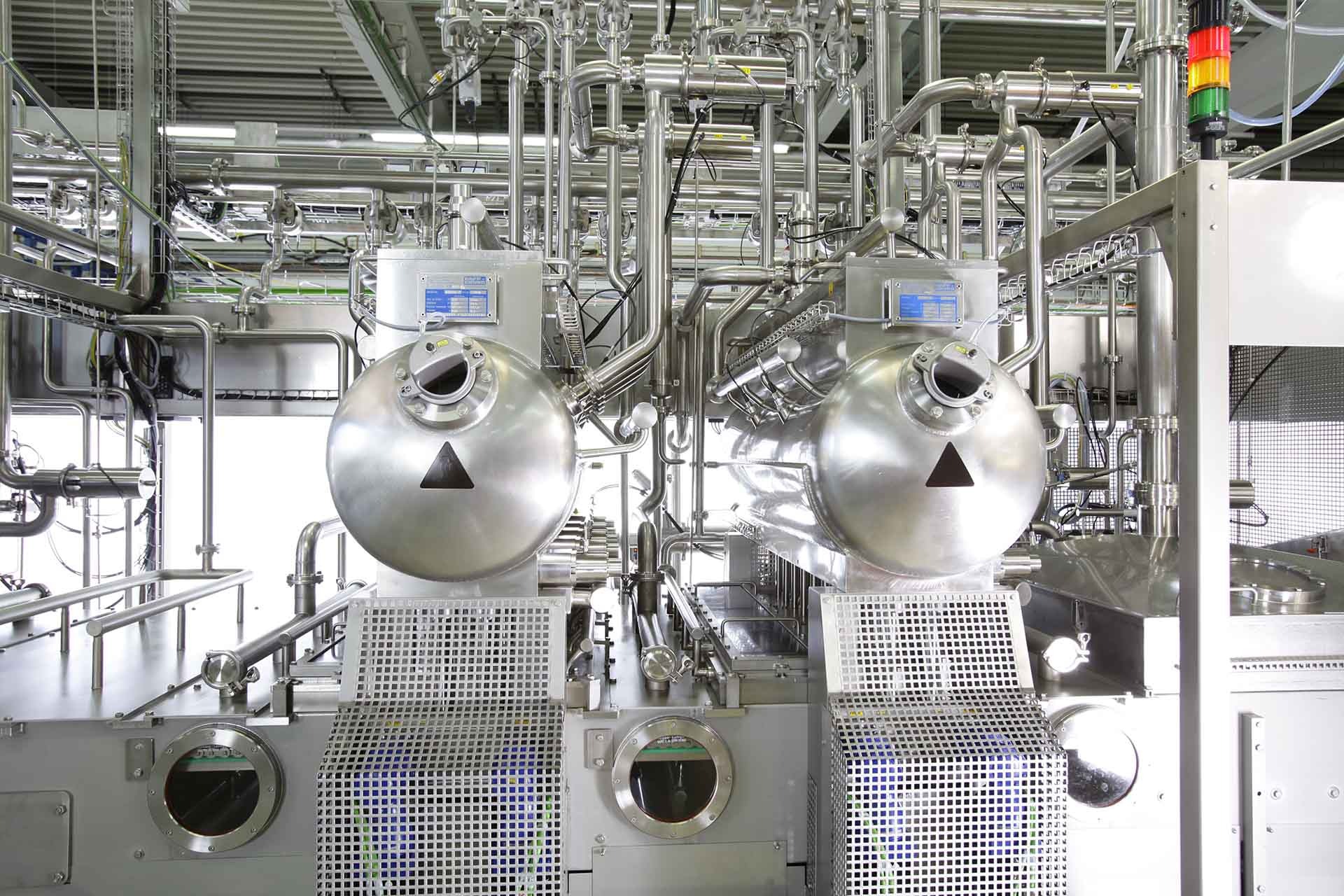

Multiple filling systems.
Machine details
Technical information
| Technical information | ||||
| Model | Cups per cycle | Round (Ø max.) | Height (max.) | Nominal output (at 40 cycles/min) |
| 01-6 | 6 | 150 mm | 130 mm | up to 14.400 cups/h |
| 01-8 | 8 | 116 mm | 130 mm | up to 19.200 cups/h |
| 01-10 | 10 | 85 mm | 130 mm | up to 24.000 cups/h |
| 01-12 | 12 | 130 mm | 130 mm | up to 28.800 cups/h |
| 02-6 | 12 | 95 mm | 130 mm | up to 28.800 cups/h |
| 02-8 | 16 | 95 mm | 130 mm | up to 38.400 cups/h |
| 02-10 | 20 | 95 mm | 130 mm | up to 48.000 cups/h |
| 02-12 | 24 | 75 mm | 130 mm | up to 57.600 cups/h |
*Square and rectangular cups possible*

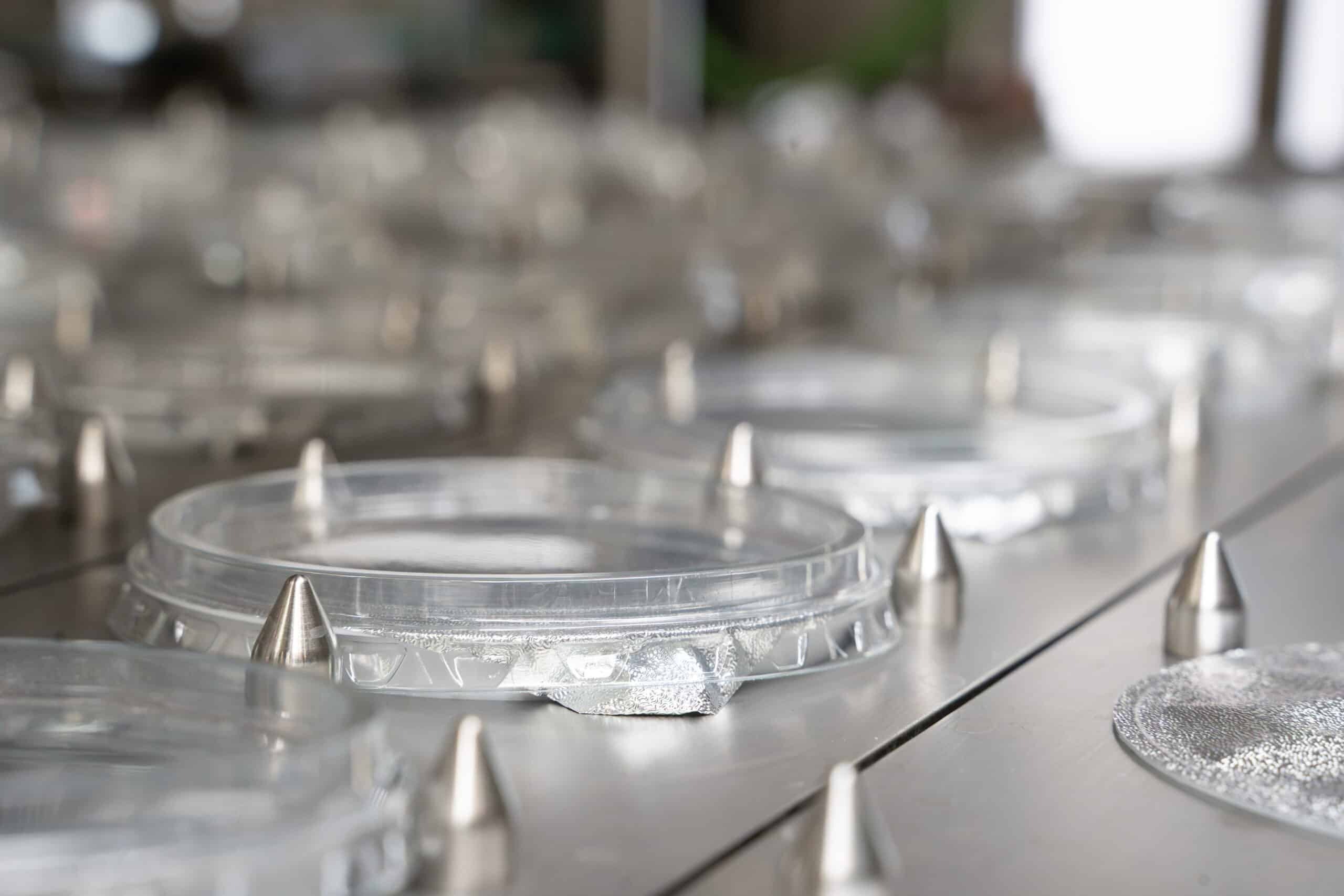

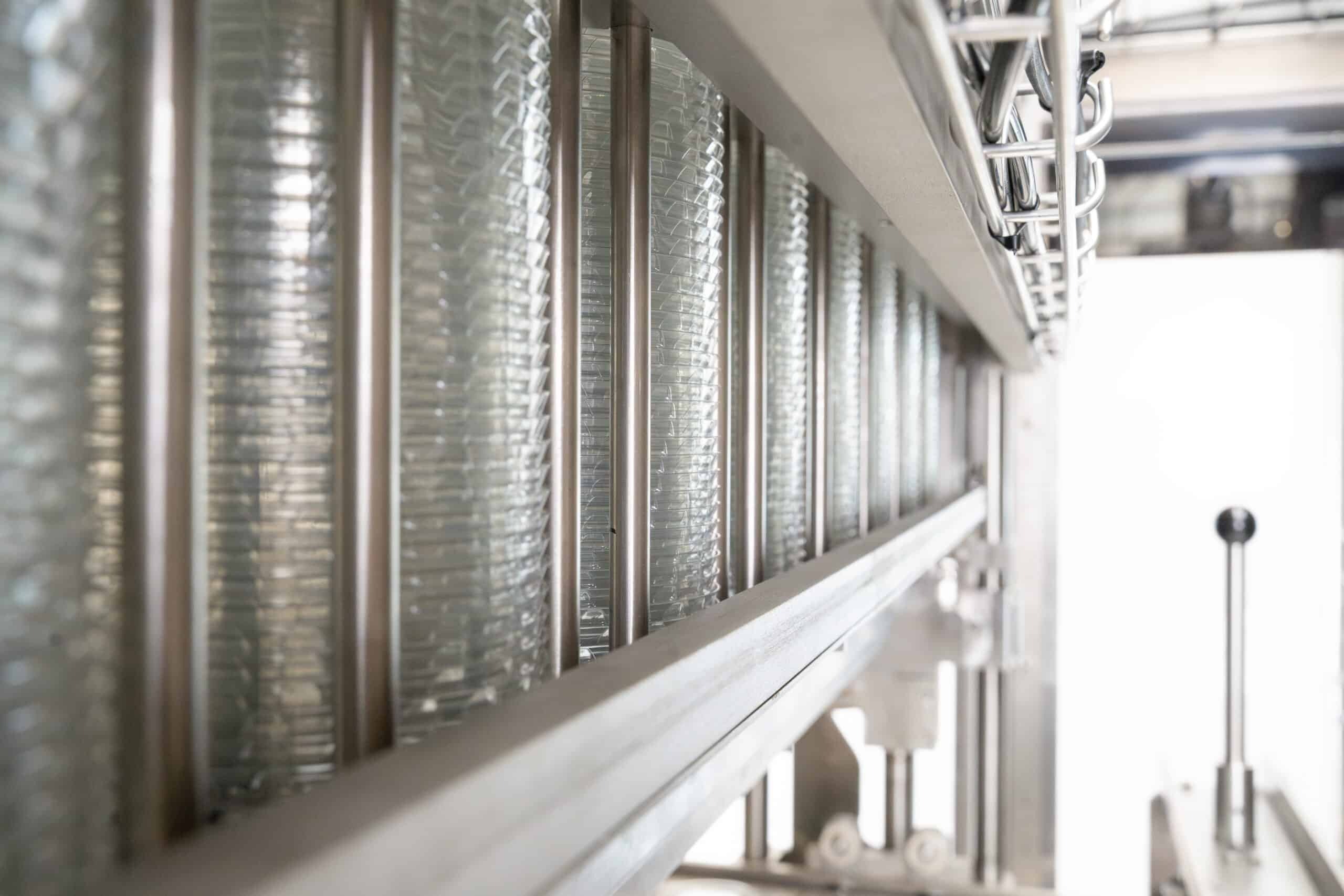

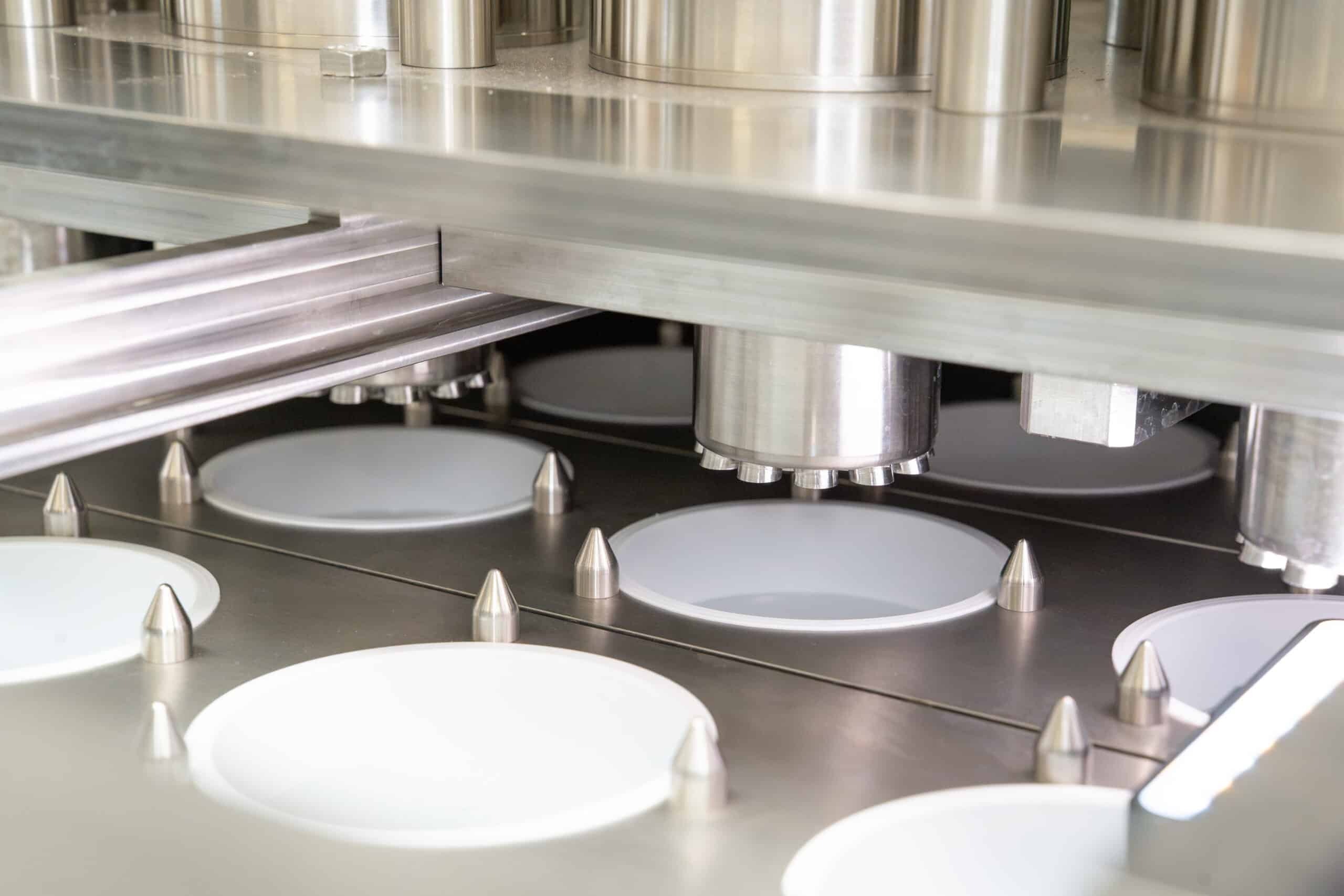

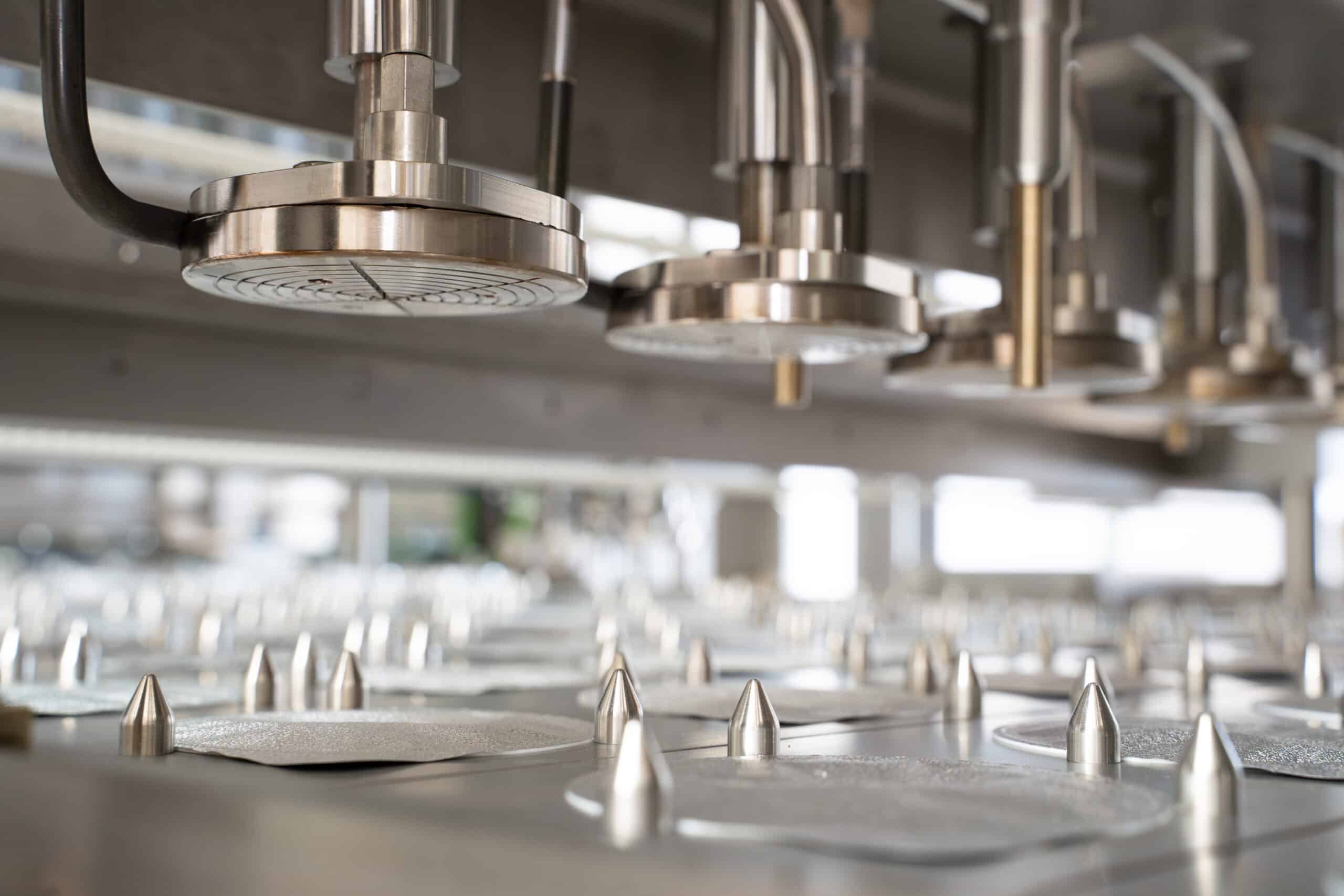

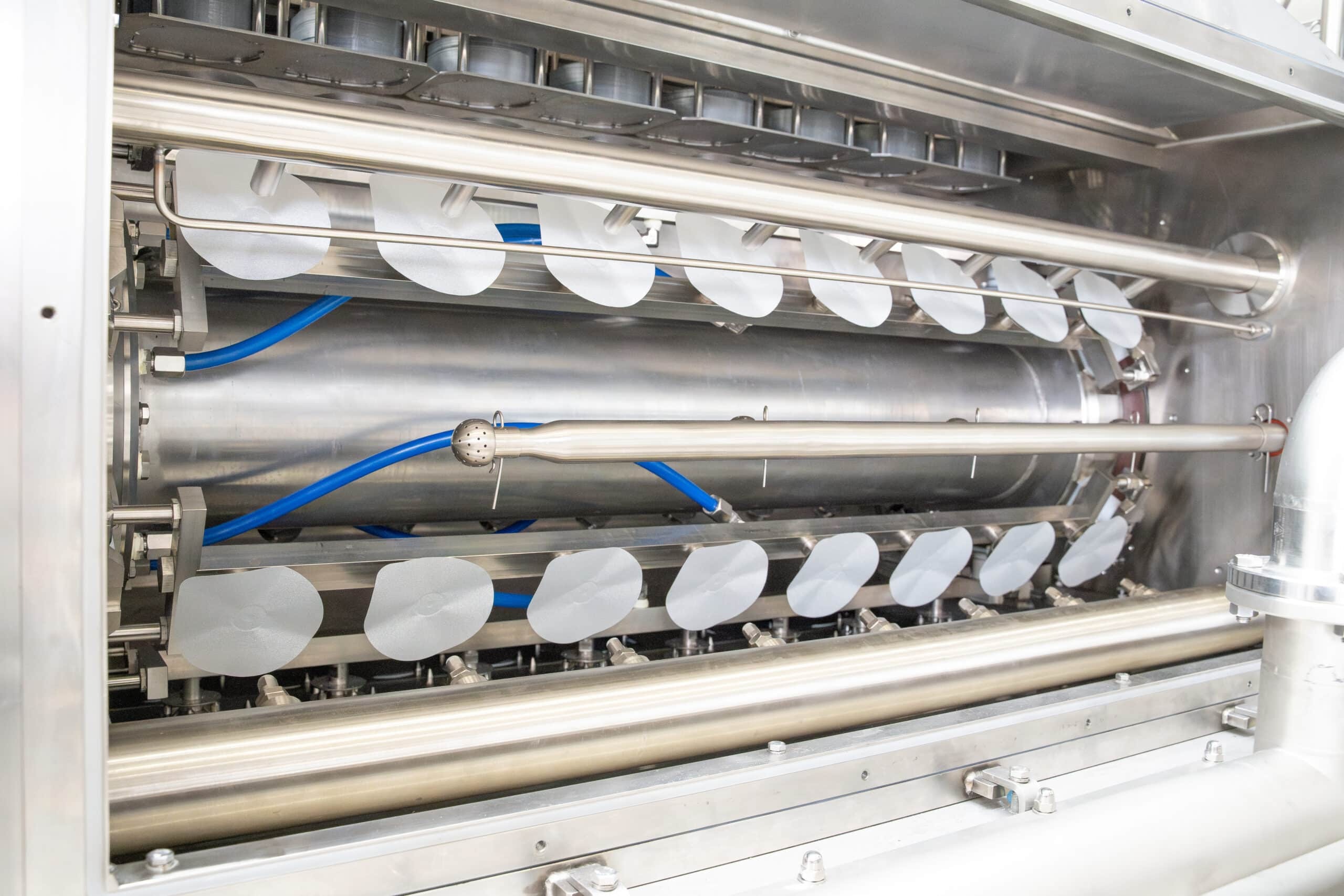

| MATERIALS | |
| Cups | Pre-made cups made of Paper, PET, PP, PS, K3® or compound materials* |
| Lids | Pre-cut lids made of aluminium foil or made of PET or PP* |
| Snap-on lids | Pre-made snap-on lids made of PET, PP, PS or filled snap-on lids* |
| *Other material combinations on request | |
| STANDARD EQUIPMENT | |
| Control system | Schneider Motion/Logic Siemens |
| Cup feed and decontamination | Cup destacker, cup control, cup decontamination by means of H2O2, cup lifting/ejection and discharge onto conveyor (alternatively an integrated packer can be installed) |
| Filler | Free space for pre-filler, main filler CIP/SIP (nozzles, level controls) |
| Lid | Lid applicator with H2O2 decontamination and sealing station |
| Others | Cup tightness control, free space for coding (laser or linear unit for inkjet) |
| Hygiene class | Ultra-clean (VDMA III+IV) |
| OPTIONS | |
| Hygiene class | Aseptic (VDMA V) |
| Filler | Pre- and post-filler, side-by-side-filling, swirled, spot-filling |
| Control system | Rockwell Automation |
| Others | Cup pole feed in various designs and positions, particle extraction, sealing/punching of lidding material from the reel, coding, snap-on lid station and infeed, end-of-line packaging equipment |
