BETA Sachet Form Fill and Seal
Machine overview
The sachet machine you can rely on.

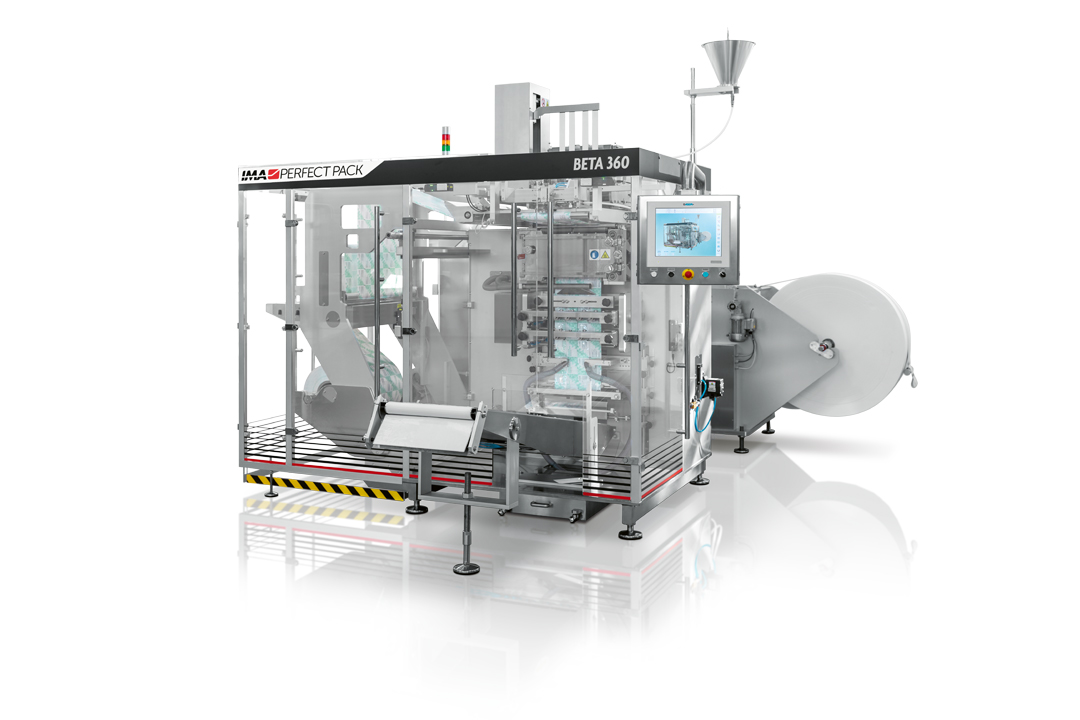

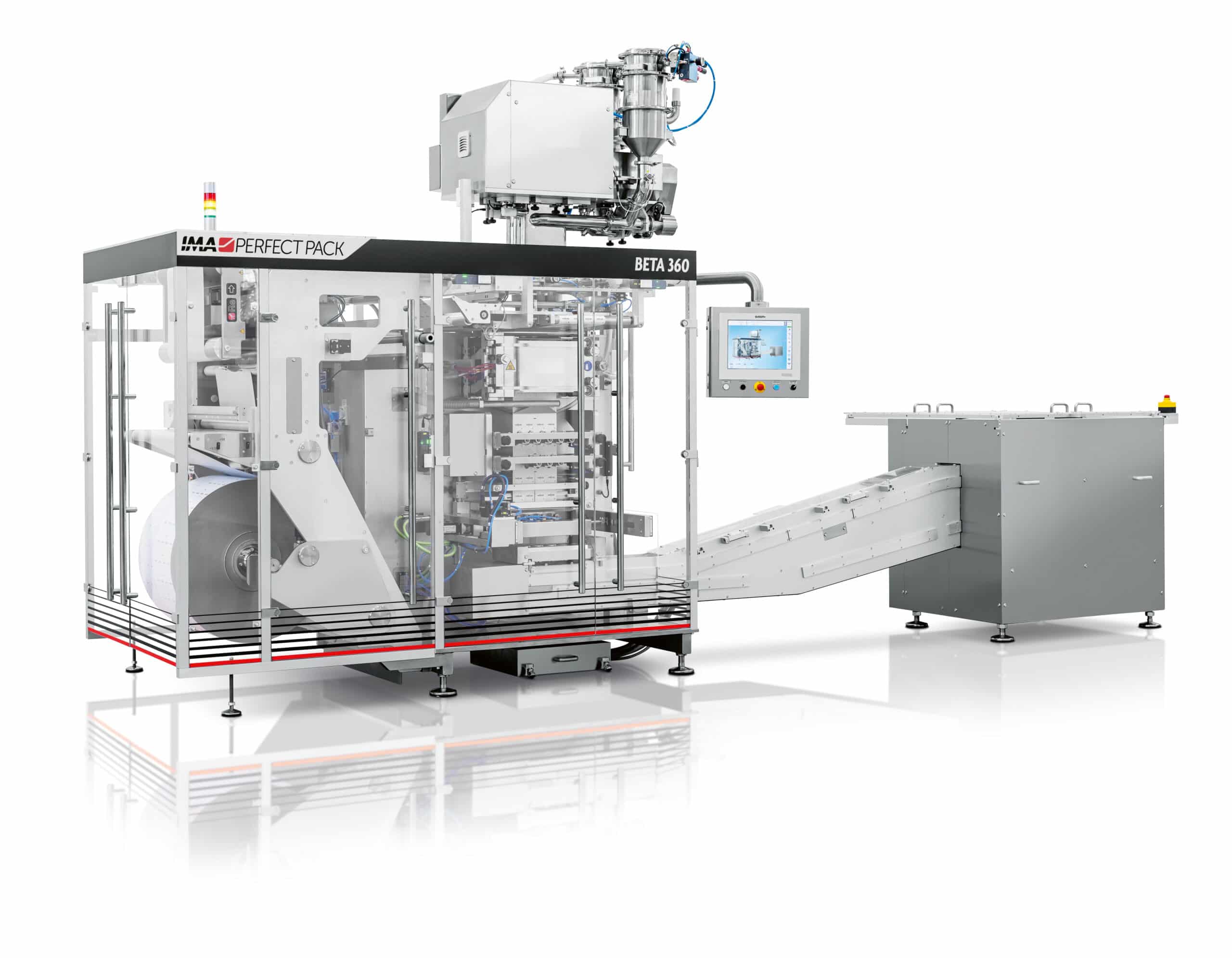

BETA 360 is a high-performance vertical sachet packaging machine for 4-seal sachets, able to handle all types of product from paste products to fluid products, powders, free and non-free-flowing products, objects and accessories such as wipes.
Thanks to its advanced technologies and maximum flexibility in terms of configurations and production outputs, BETA 360 represents a clear solution to customer needs, ensuring easy size changeovers for both sachet width and length. Multiple dosing systems can be installed for alternative productions and, in the case of powder packaging, a double auger can be used to dose different powders into the same sachet. High-quality, first-class looking sachets are produced as the seals are made during the stationary phase.
Production plant
Perfect Pack
Machine highlights
-
Standard or custom packaging
High quality and unique techniques make our equipment perfect for key industrial sectors: pharmaceutical, cosmetic etc. to produce both high-quality standard and customised packages.
-
Superior efficiency
Efficient operation, maximising output while minimising resource consumption or waste.
-
Machine accessibility
Extremely easy cleaning operations and quick size changeovers thanks to complete accessibility: BETA’s components can all be easily removed and replaced.
-
Layout flexibility
BETA machines are easily synchronised with downstream machines: complete lines can be supplied thanks to our CLA and CLF stacking and transfer systems, between primary and secondary packaging, we guarantee complete layout flexibility.
Machine details
Clean rooms
Clean rooms with controlled temperature and humidity are available to carry out tests and FATs, simulating the same conditions of the final production and working environment.
Technical information

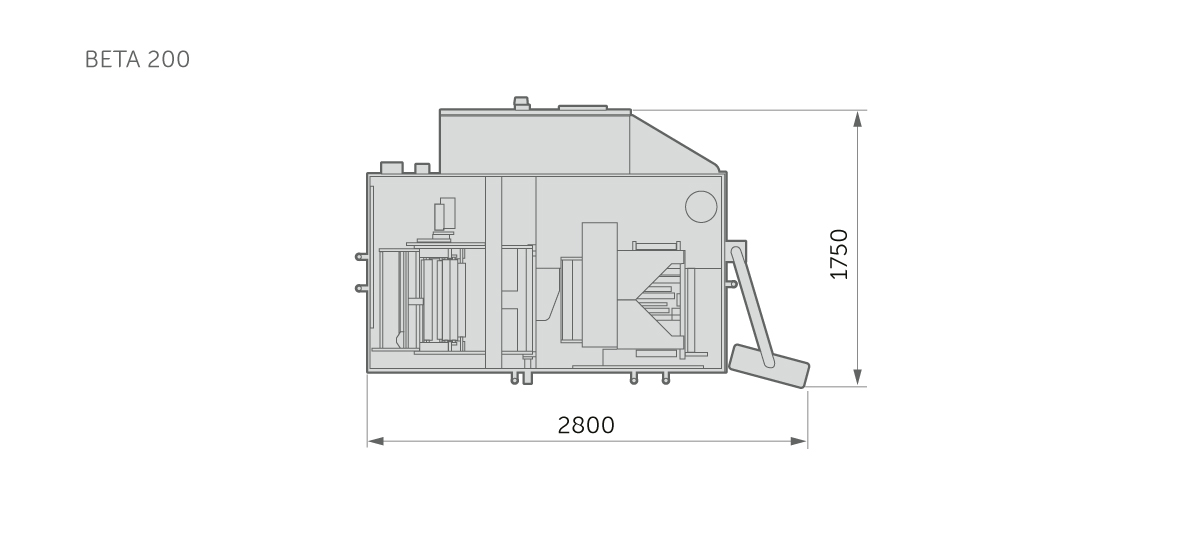

| TECHNICAL DATA BETA 200 | |||
| Width (mm) | Length (mm) | N. Lanes | Production output |
| min 100 – 200 max | min 50 – 170 max | 1 | Up to 280 sachets/min. |
| min 40 – 100 max | min 50 – 170 max | 2 | Up to 280 sachets/min. |
| min 40 – 50 max | min 50 – 170 max | 4 | Up to 280 sachets/min. |

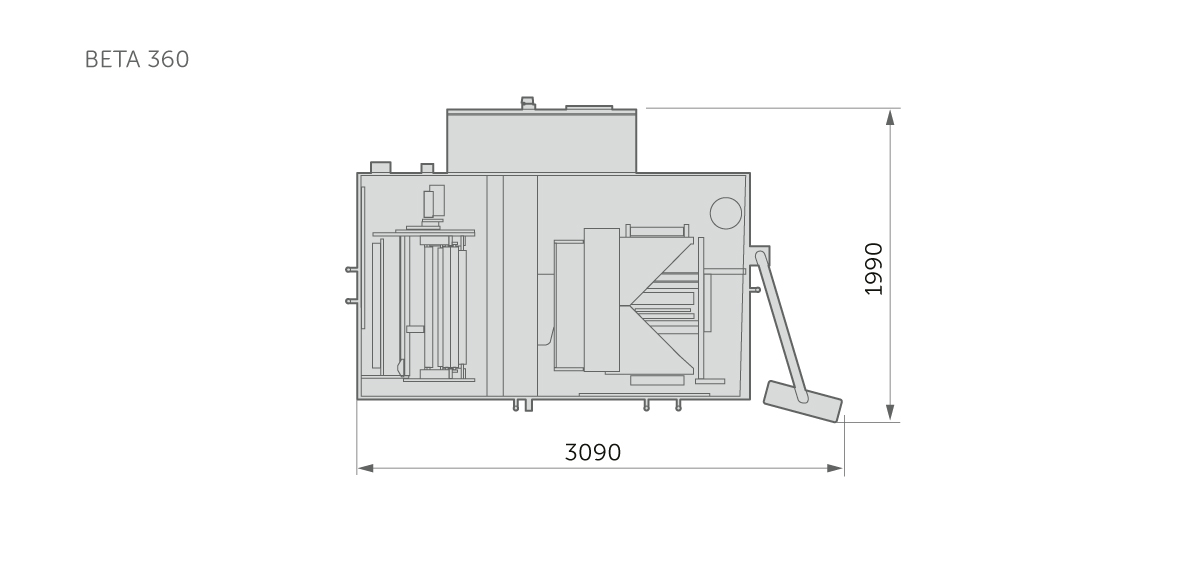

| TECHNICAL DATA BETA 360 | |||
| Width (mm) | Length (mm) | N. Lanes | Production output |
| min 40 – 90 max | min 50 – 170 max | 4 | Up to 450 sachets/min. |
| min 40 – 60 max | min 50 – 170 max | 6 | Up to 450 sachets/min. |

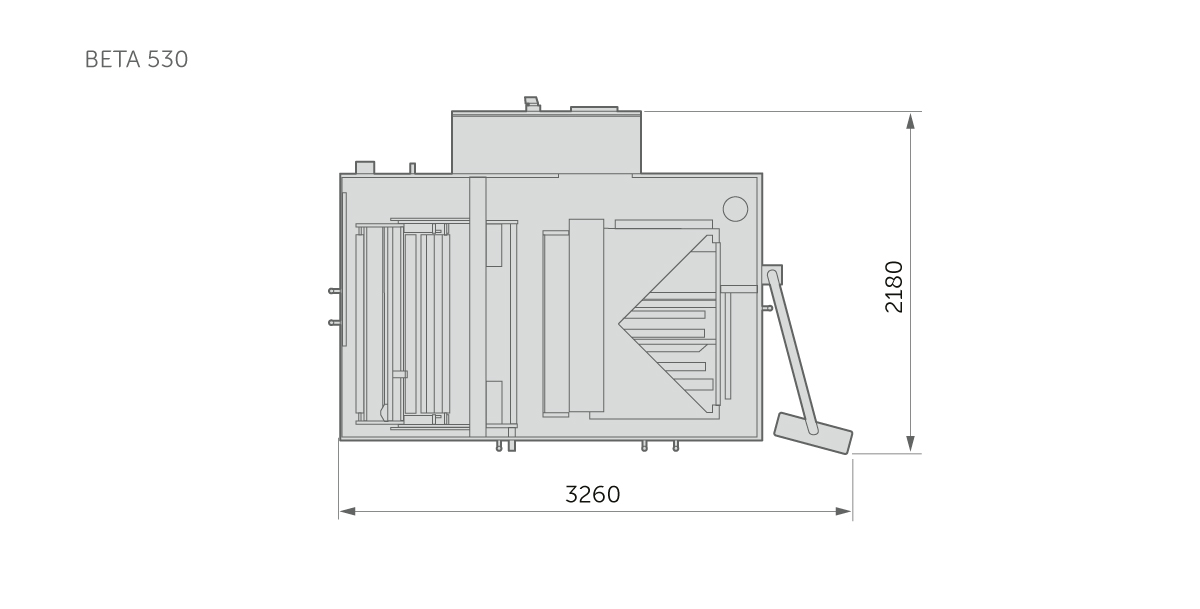

| TECHNICAL DATA BETA 530 | |||
| Width (mm) | Length (mm) | N. Lanes | Production output |
| min 40 – 85 max | min 50 – 170 max | 6 | Up to 700 sachets/min. |
| min 40 – 65 max | min 50 – 170 max | 8 | Up to 700 sachets/min. |
| min 40 – 50 max | min 50 – 170 max | 10 | Up to 700 sachets/min. |
Machine versions
BETA 200 – 360 – 530
BETA machines are available in different versions and configurations according to the output requested and the product characteristics.
Machine versions:
BETA 200: up to 280 sachets/min.
BETA 360: up to 450 sachets/min.
BETA 530: up to 700 sachets/min.
Machine configurations:

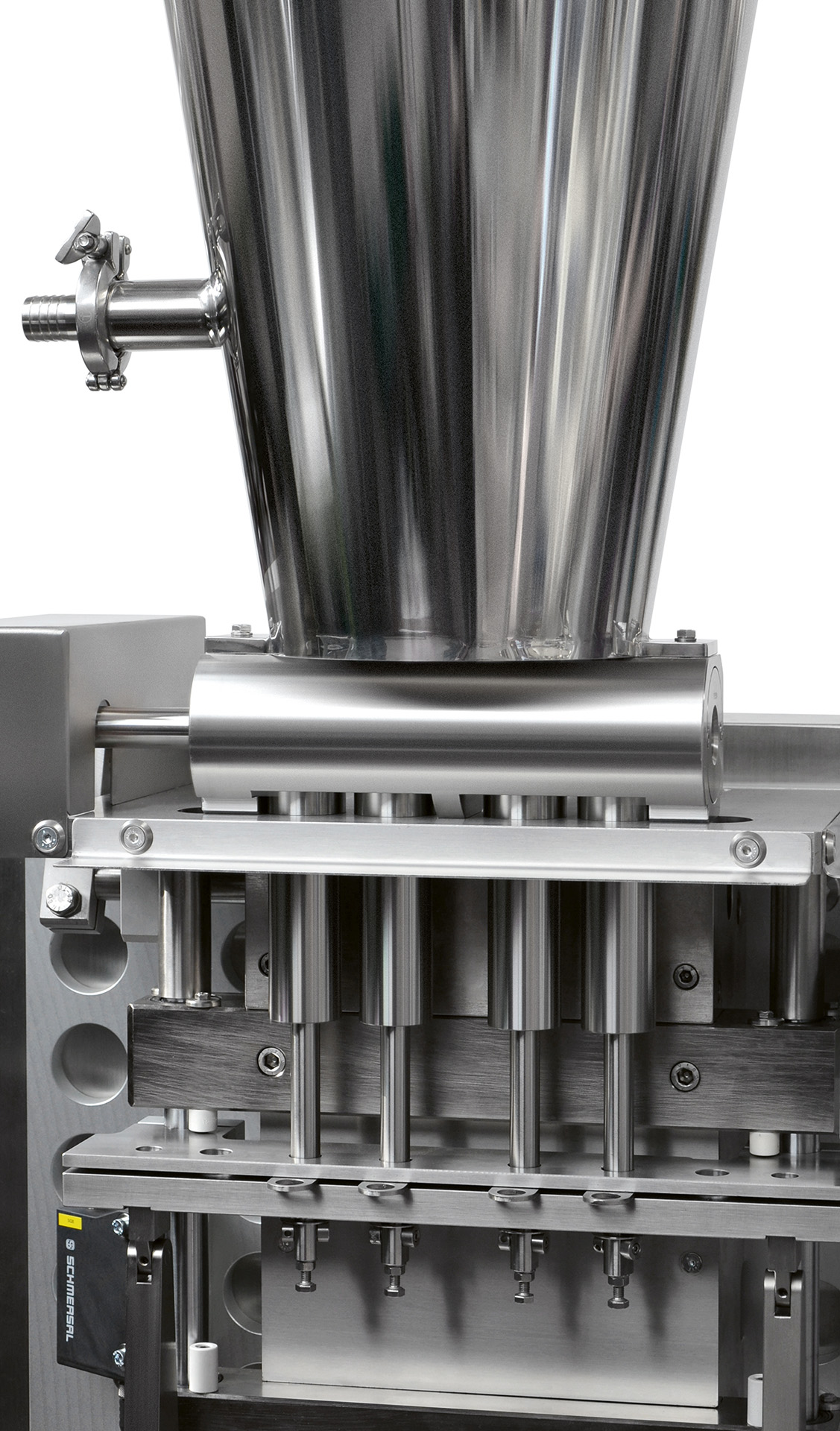

Configuration for dense and semi-dense products

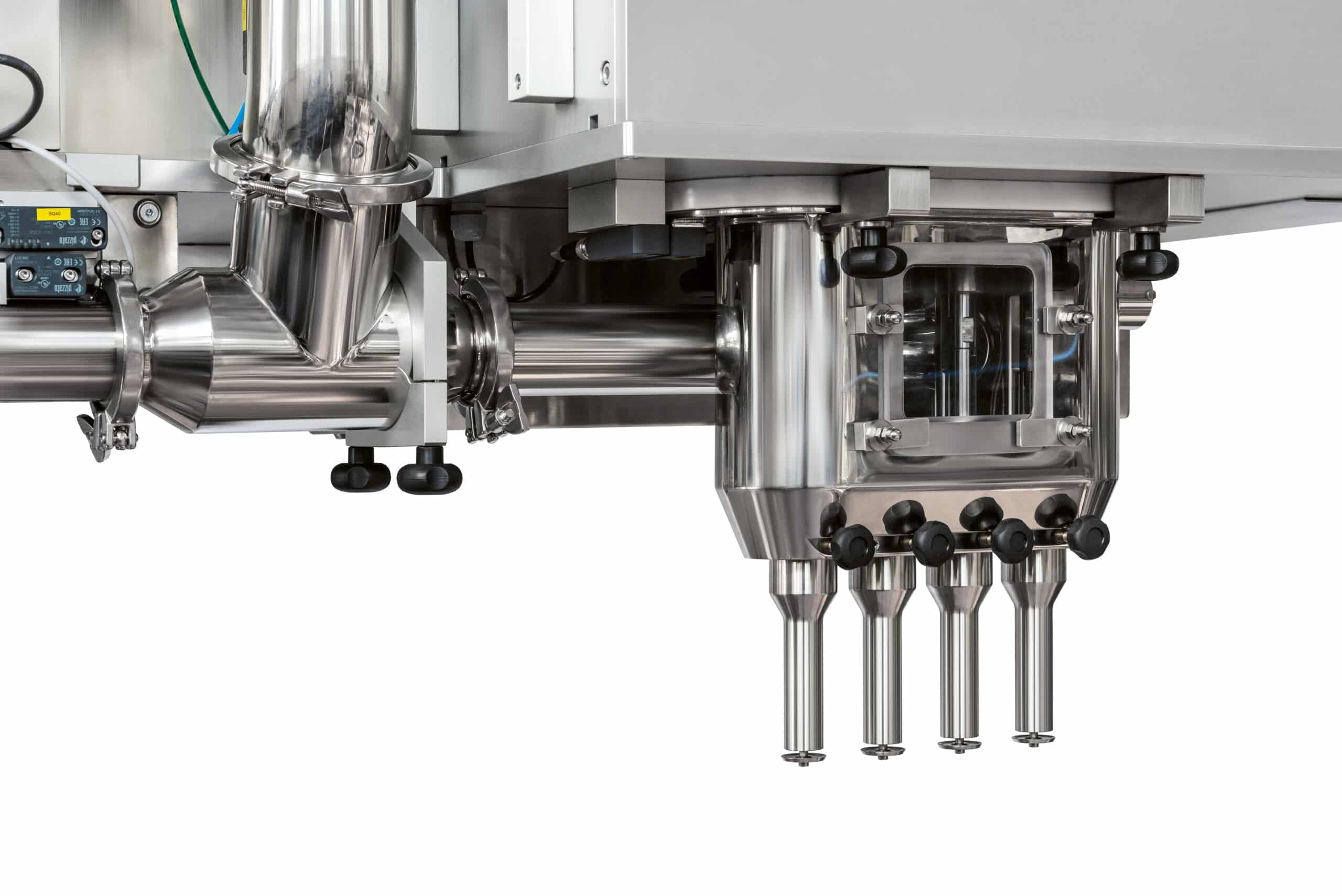

Configuration for powders, free and non-free-flowing products

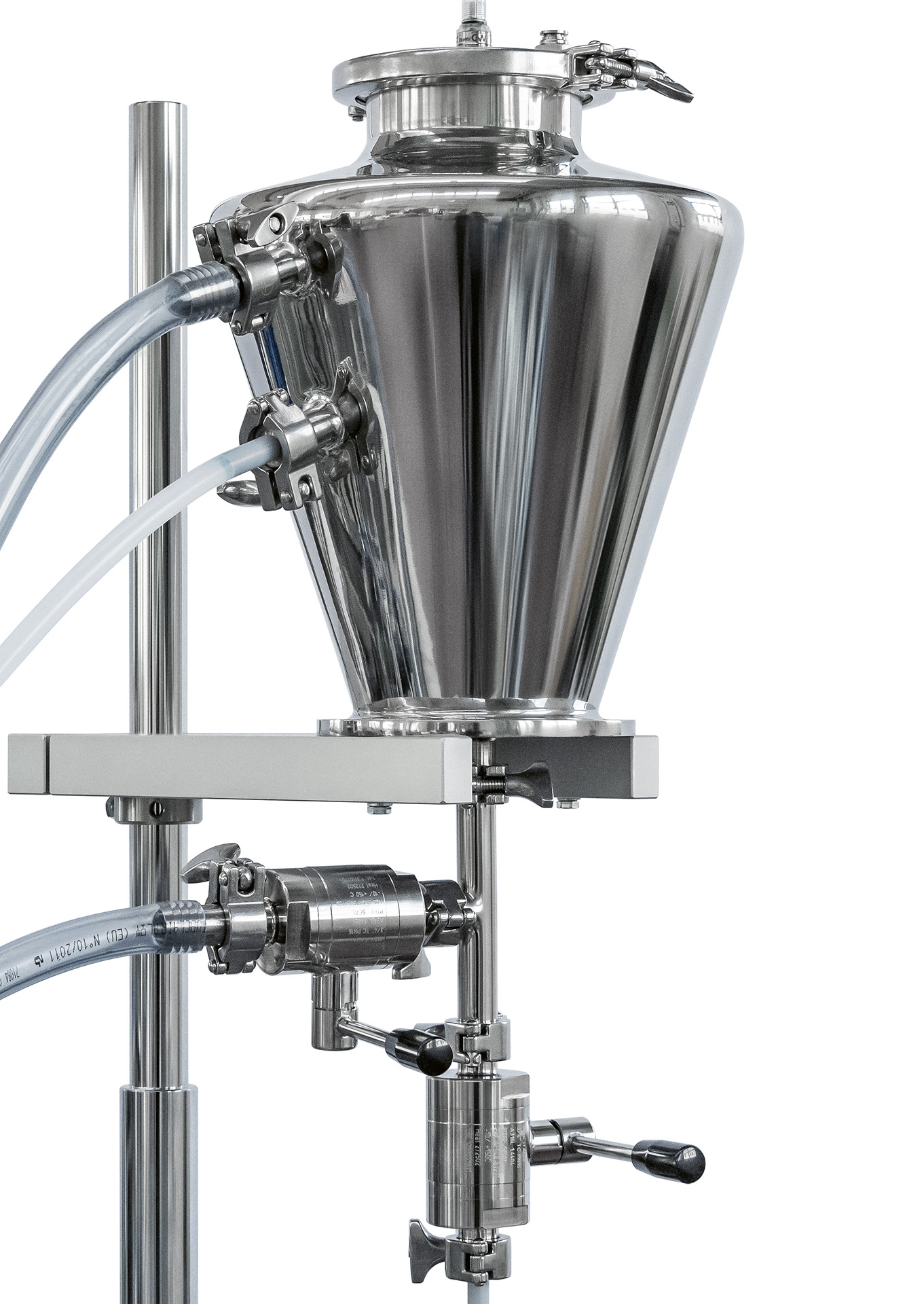

Configuration for fluid products and wet wipes
Configuration for tablets and capsules
Multiple dosing systems can be installed in the same machine, enabling alternative productions.
