A83 Cartoning

Machine overview

The best ally ever for your blister line.

Established technology makes the intermittent-motion cartoner A83 the most suitable blister-packaging solution on today’s market. Reliability, performance and quality are all achieved with medium speed processing of low-medium batches.
The machine’s balcony structure assures full visibility of the entire packaging flow as well as unhindered accessibility for the operator. Downtimes are reduced to a minimum, thanks to ease of use and both simple and fast changeovers.

Production plant

IMA Safe

Machine highlights

  1. Cost-efficiency

    Low maintenance cost.

  2. User-friendliness

    Intuitive use.

  3. Reliability

    Maximum reliability even when using recycled materials for cartons.

  4. Simplicity

    Simple size changeover.

A low investment and a machine suitable for semi-skilled operators as well: these are the central issues in the current marketing strategies of pharmaceutical companies. The A83’s established technology ensures these needs.

Machine details

Technical information

A83/A83S
Production output
A83/A83SUp to 160 cartons/min.
Production output
Width35-90 mm
Length75-150 mm
Depth14-90 mm

Machine Versions

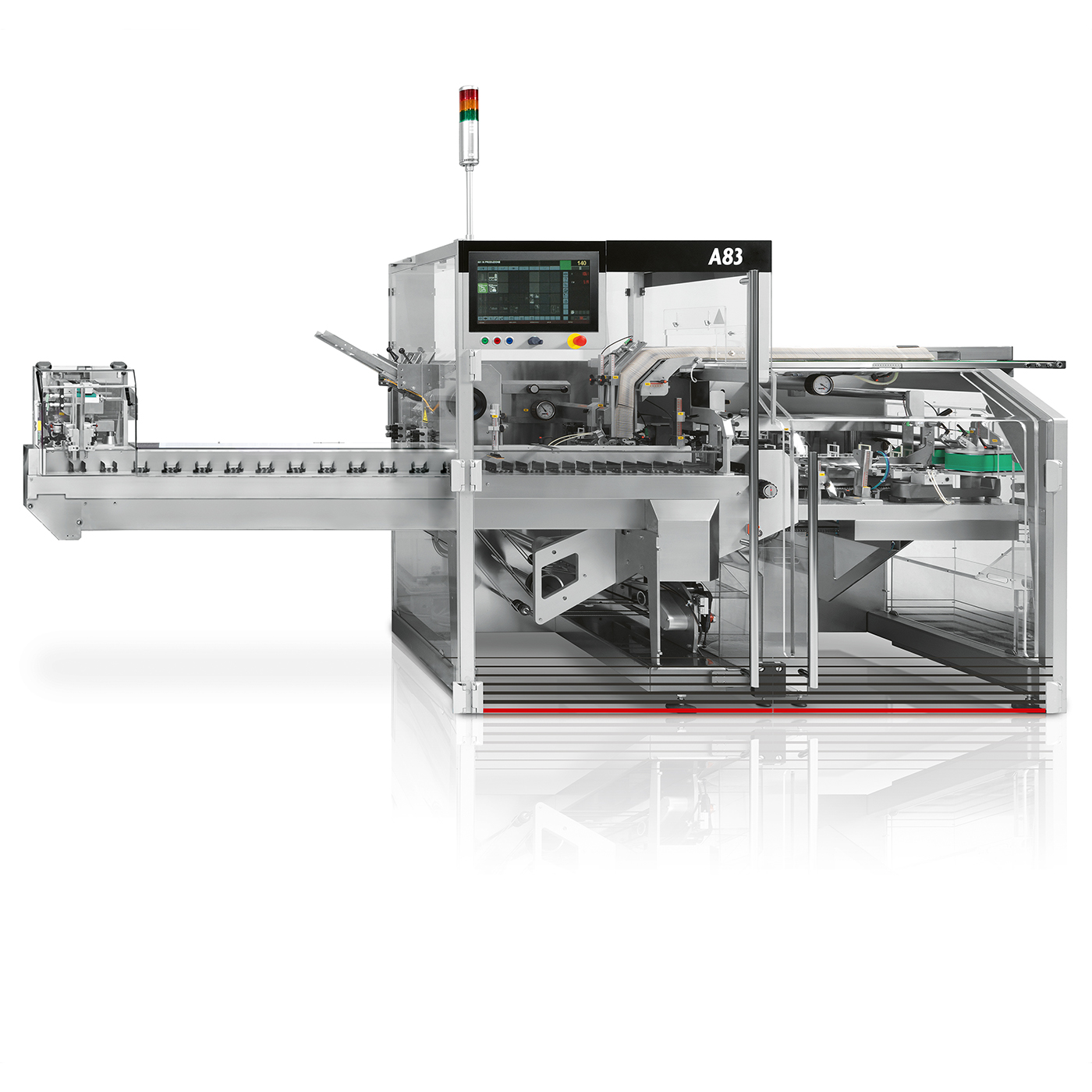

A83

Version designed for blister cartoning, capable of handling a wide range of blister formats, with a production speed of up to 160 cartons per minute.

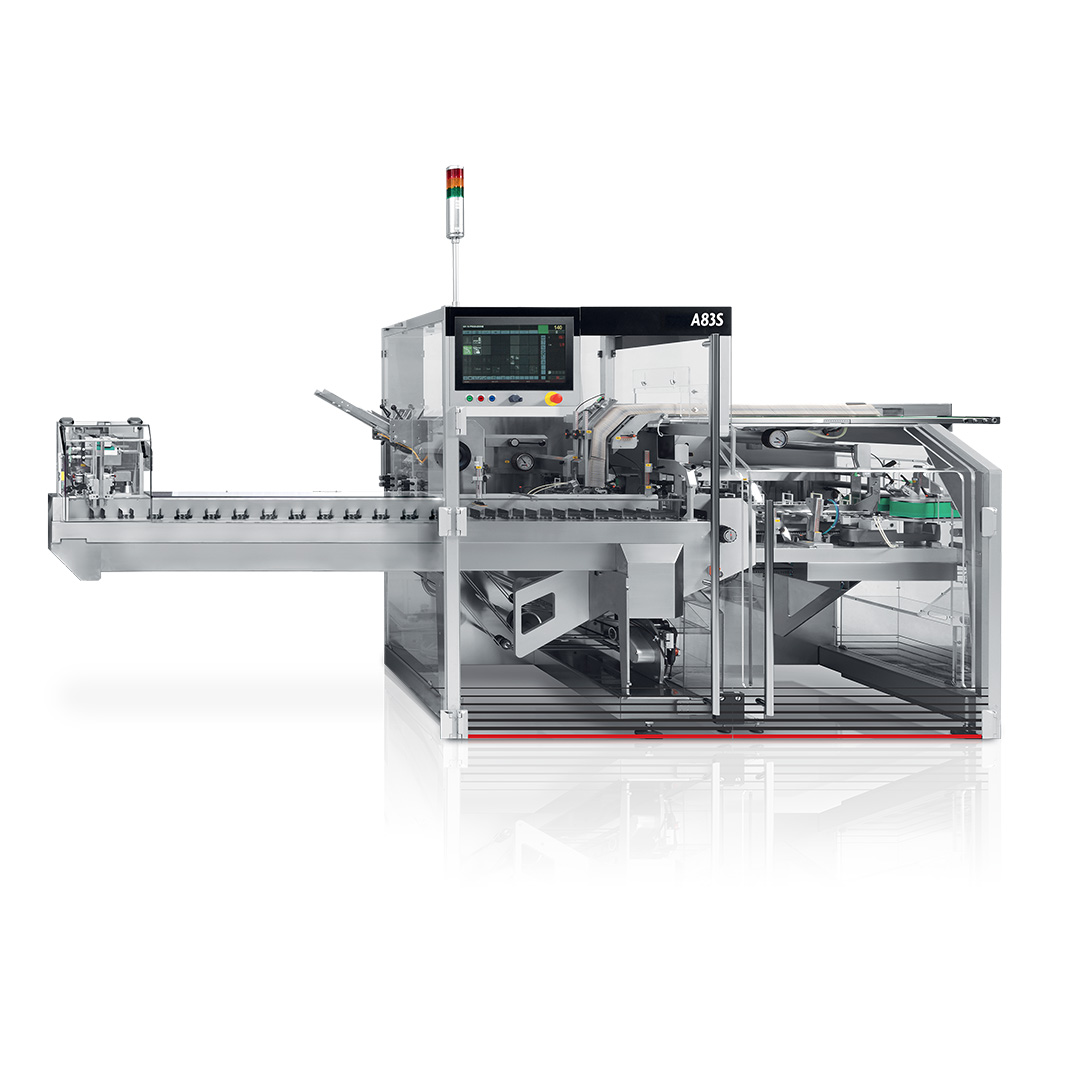

A83S

Version specifically developed for suppositories cartoning, ensuring gentle product handling and reliable performance, with a production speed of up to 160 cartons per minute.
