A100 Series Overwrapping
Machine overview
Innovative, high-performance over wrapping to cope with difficult or thin films

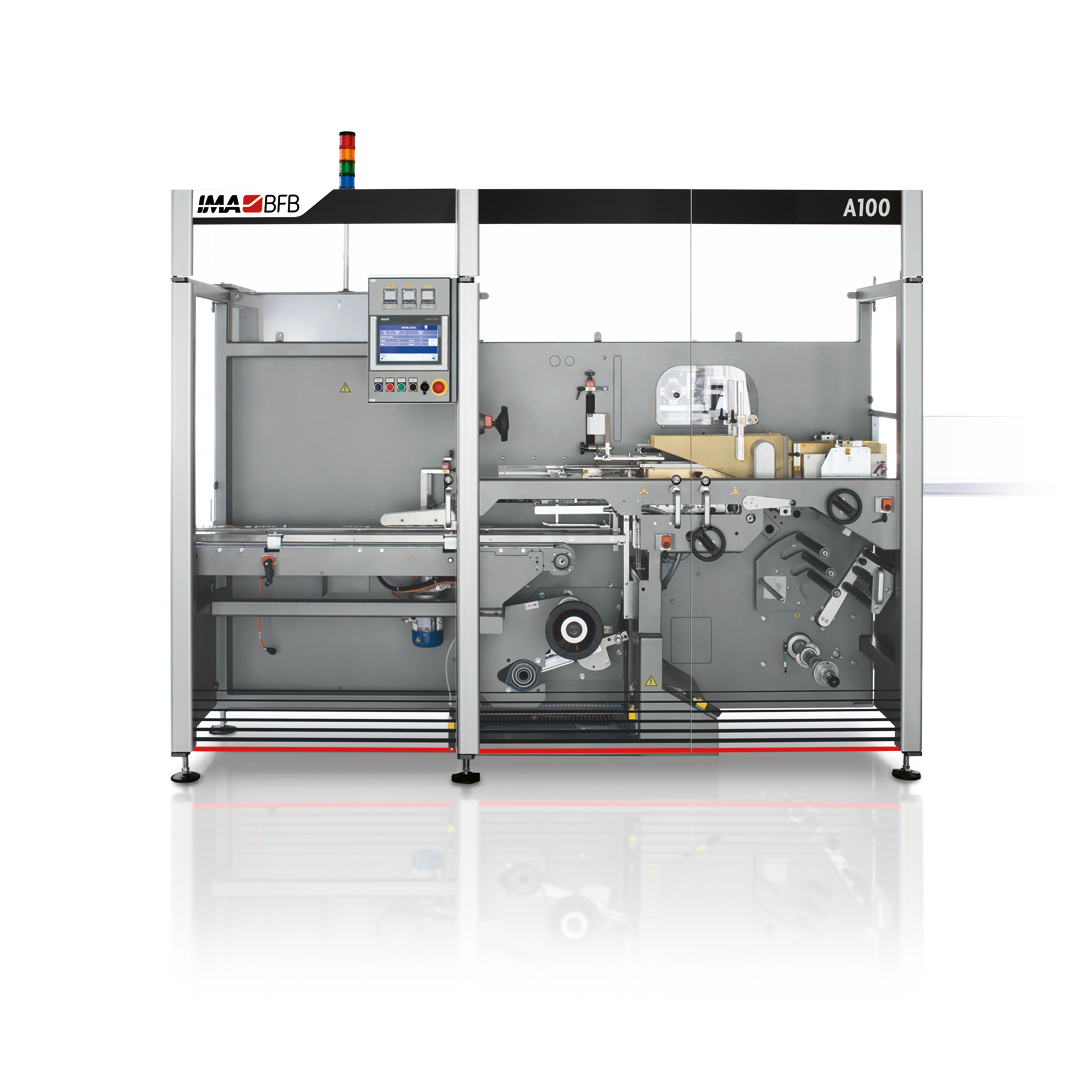

The A100 is an automatic, high-performance over wrapper which implements an innovative film transport system designed to cope with difficult and thin films.
Further to its consolidated reliability, the A100 offers excellent accessibility and simple changeover procedures to save time and increase productivity.
Running at 100 cycles/min., the A100 can benefit from a host of optional groups to respond to specific needs and enhance performance.
Production plant
IMA BFB
Machine highlights
-
Flexible sealing
Several different lateral sealing unit.
-
Controlled film unwinding
Film unwinding by means of driven drums to move film under guillotine knife.
-
Servo driven technology
Fully servo driven machine.
-
Easy opening
Tear tape unit available.
-
Printing unit
Film printing unit available.
-
Easy size changeover
Tool-free size changeover with digital indicator.
Machine details
Technical information

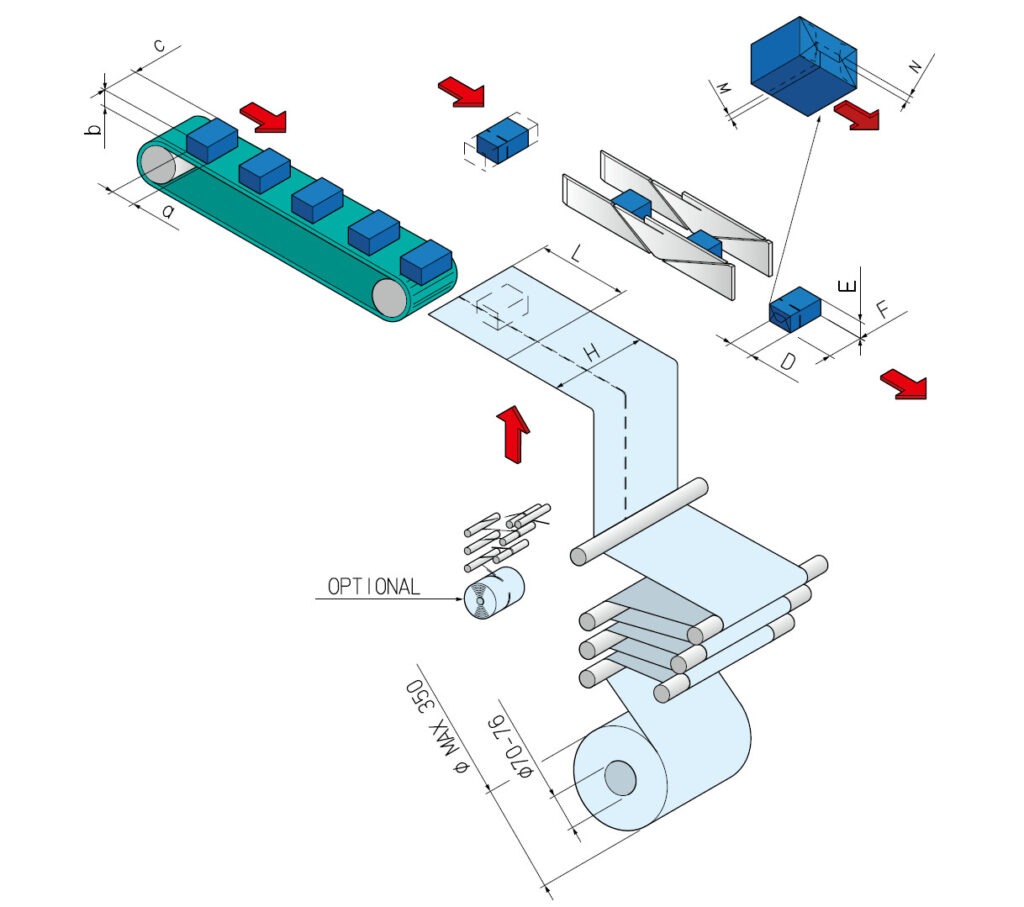

| A100 AB TECHNICAL DATA | ||||||||
| Product dimensions | A | B | C | D | E | F | H | L |
| Min. | 30 | 25 | 60 | 40 | 25 | 60 | 100 | 120 |
| Max. | 220 | 90 | 275 | 220 | 120 | 275 | 420 | 700 |
| Production capacity | Up to 60cycles/minute | |||||||
| A100 U TECHNICAL DATA | ||||||||
| Product dimensions | A | B | C | D | E | F | H | L |
| Min. | 30 | 25 | 60 | 30 | 25 | 60 | 100 | 120 |
| Max. | 220 | 120 | 280 | 220 | 120 | 280 | 420 | 700 |
| Production capacity | Up to 100 cycles/minute | |||||||
