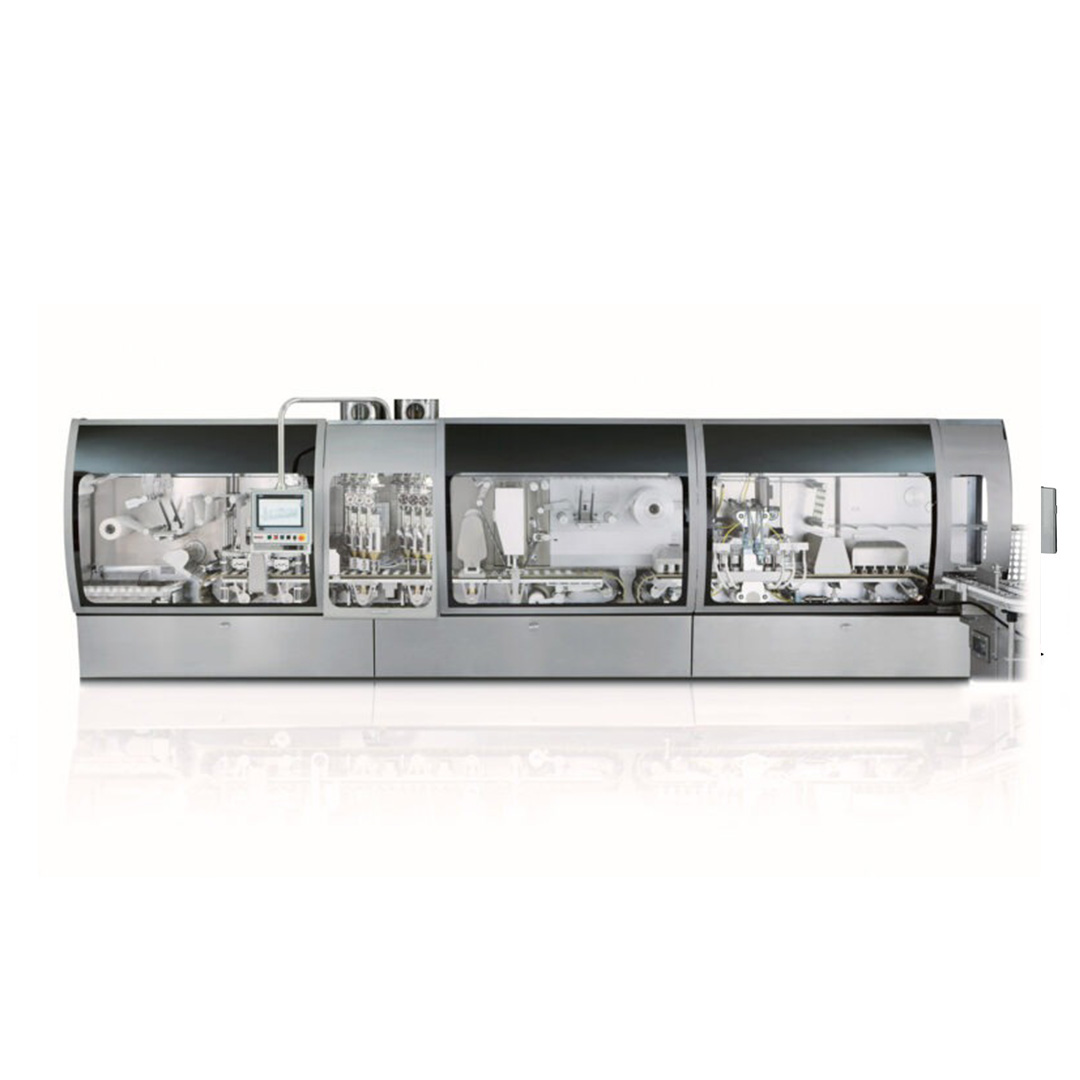

595 Series 595 Series
Machine overview
Any capsule you want, in less space
The 595 handles both injected and thermoformed capsules at speeds reaching 450 capsules/minute and easily integrates the required features to run all possible single serve capsule configurations available on the market today.

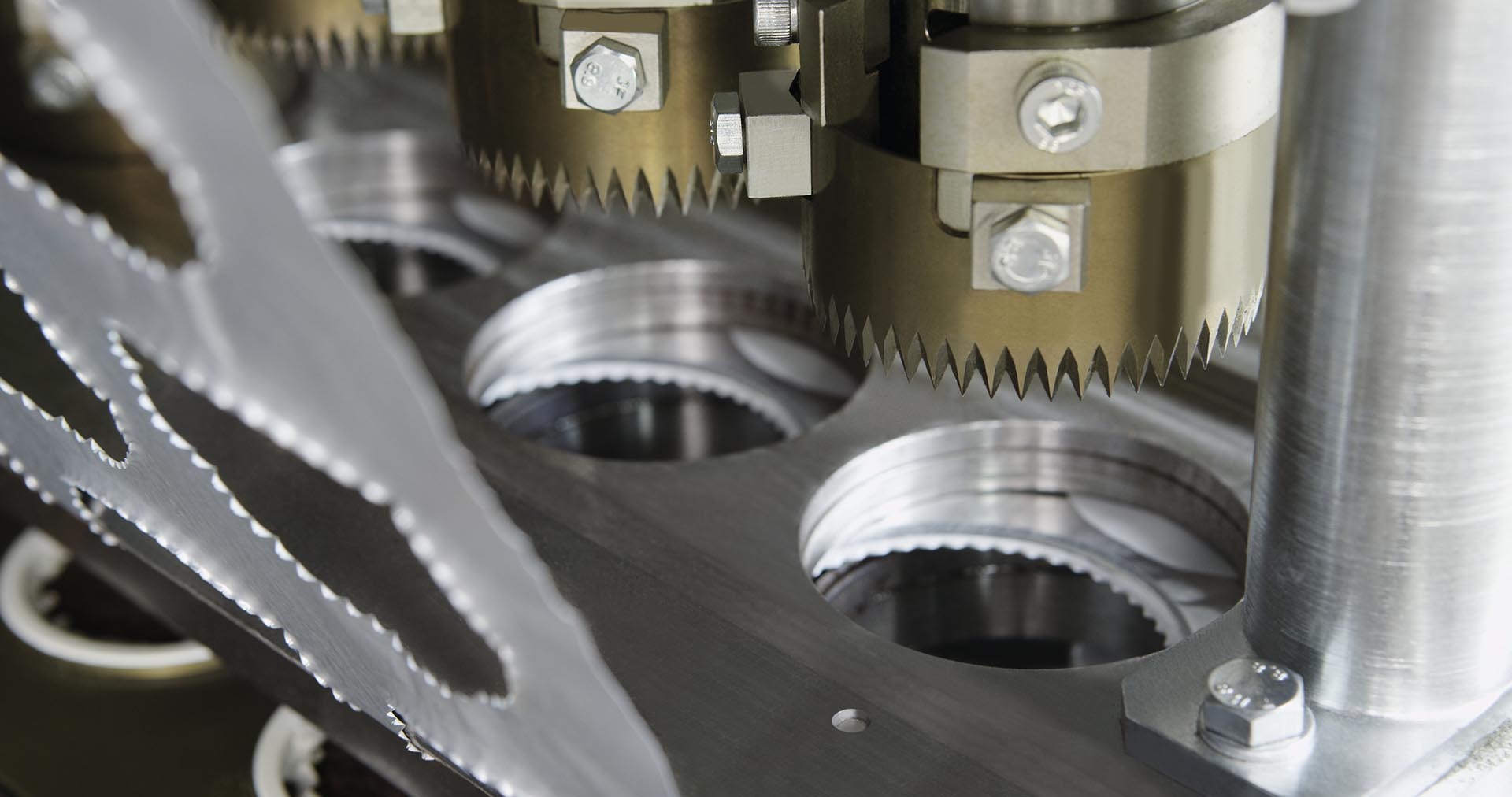

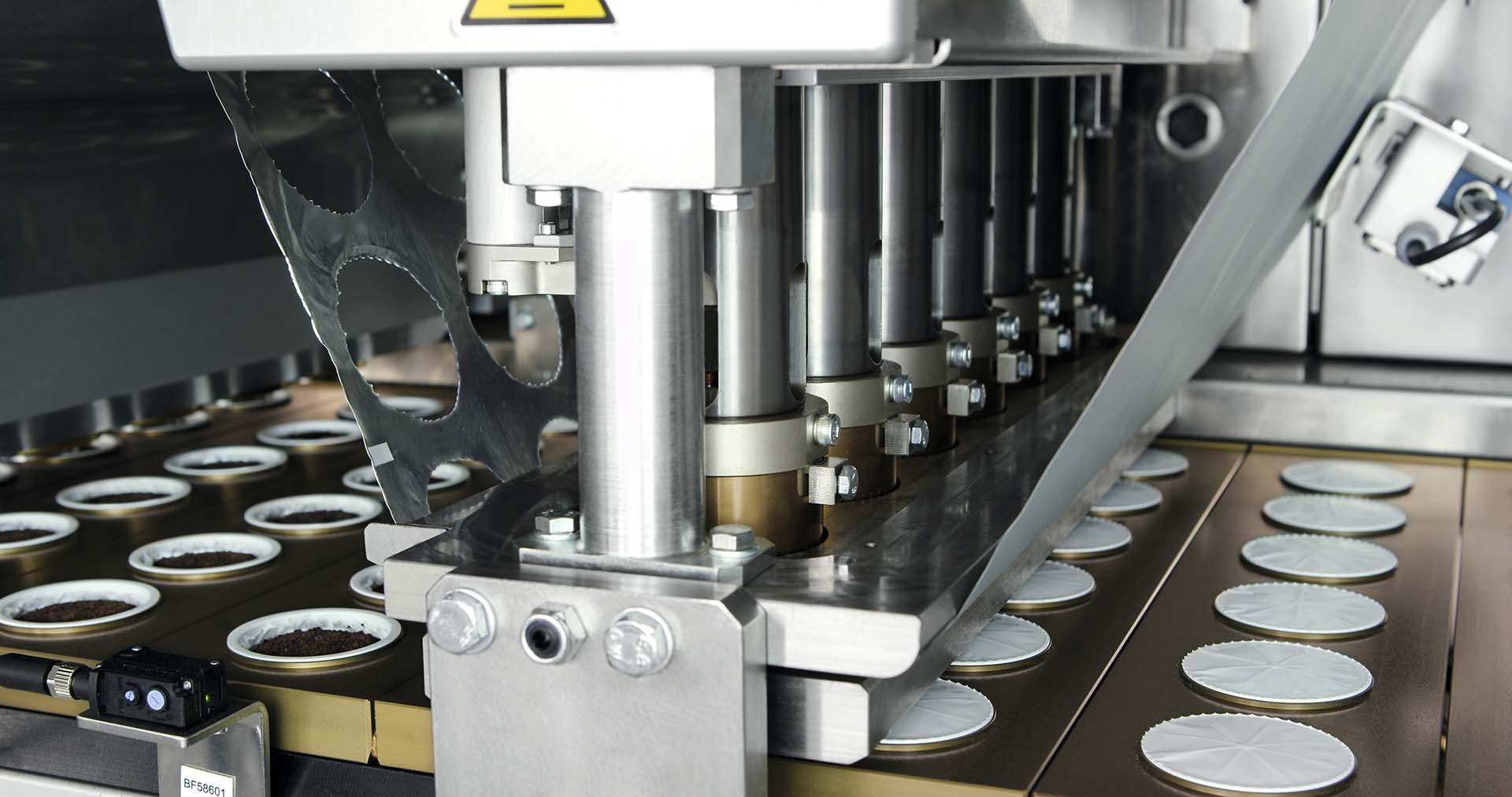

The machine’s modular design also allows for a variety of sealing systems according to capsule type, materials and dosed product: cut and thermosealing for lids; cut and ultrasonic sealing for lids; assembly and ultrasonic sealing for cap closures.

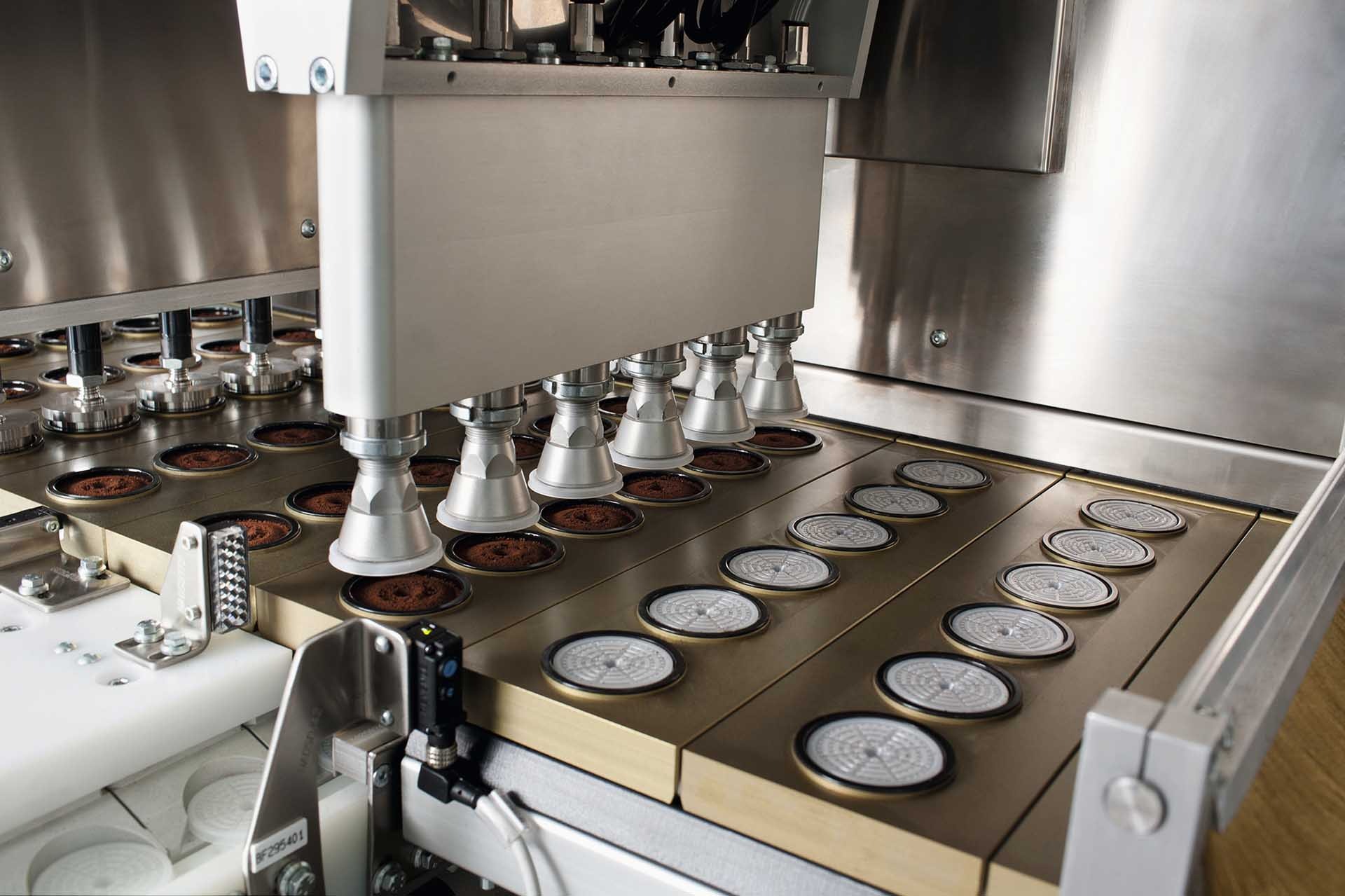

The machine handles inner components to be placed and sealed inside the capsule before dosing, such as plastic filters, paper filters and bottom lids. In the drip coffee configuration, the 595 is equipped with a filter paper feeding, cutting, punching, deep-drawn pleating and sealing unit to place a pleated paper filter into the capsule.
In the case of self-protected capsules, the 595 also works in modified atmosphere using a nitrogen chamber or an autoclave (596 module).
Production plant
IMA Coffee
Machine highlights
-
On-line weighing system for each filled capsule
Featuring real-time data feedback, automatic dosing adjustment, and highly accurate weight control.
-

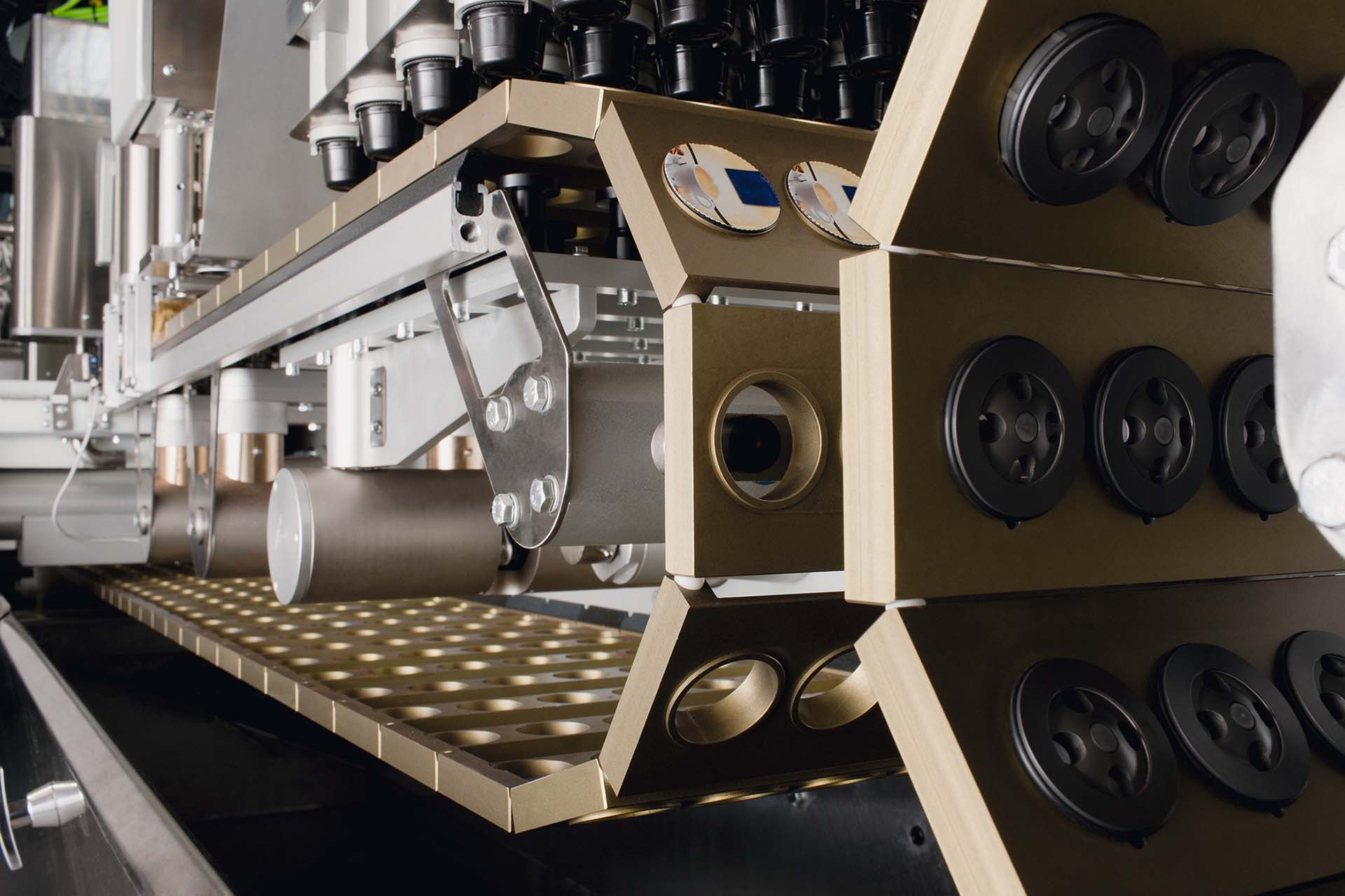

Instant rejection of out-of-spec capsules
Ensuring consistent quality and full compliance with production standards.
-
Cantilever machine design
For outstanding accessibilityfaster maintenance, and reduced downtime.
-

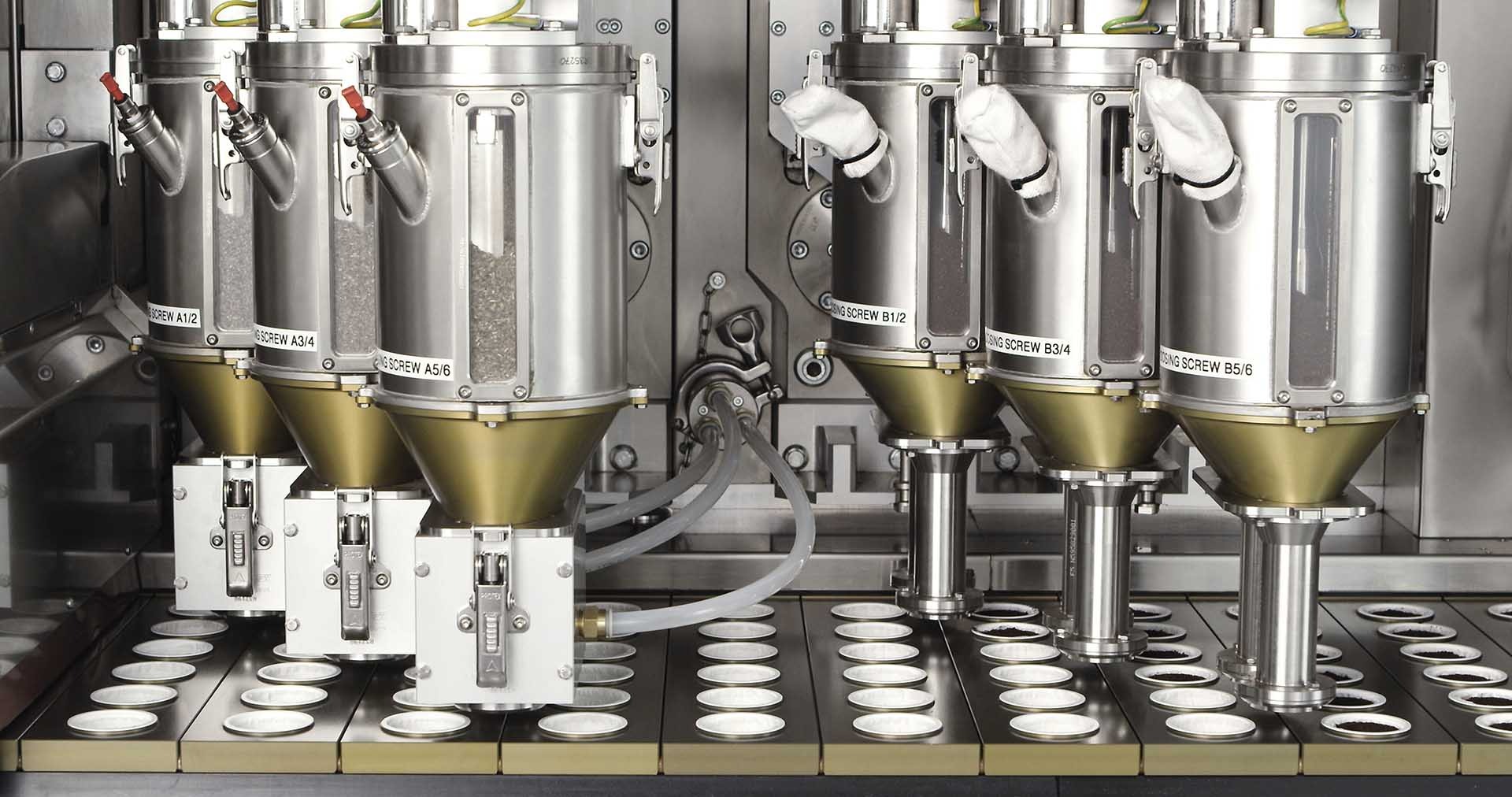

Extremely precise dosing performance
Combined with easy cleaning and quick product changeovers.
-
Advanced sealing technologies
For both inner components and lids, guaranteeing optimal freshness and hermetic integrity.

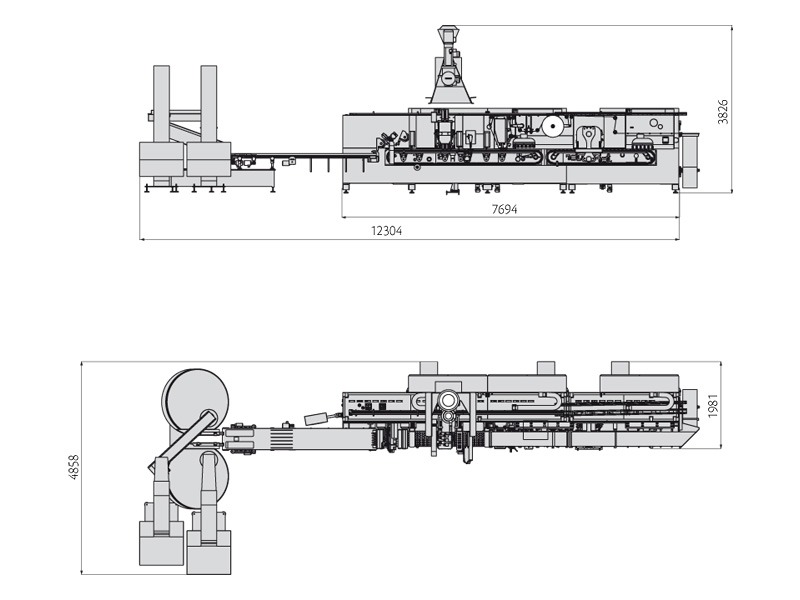

595-596

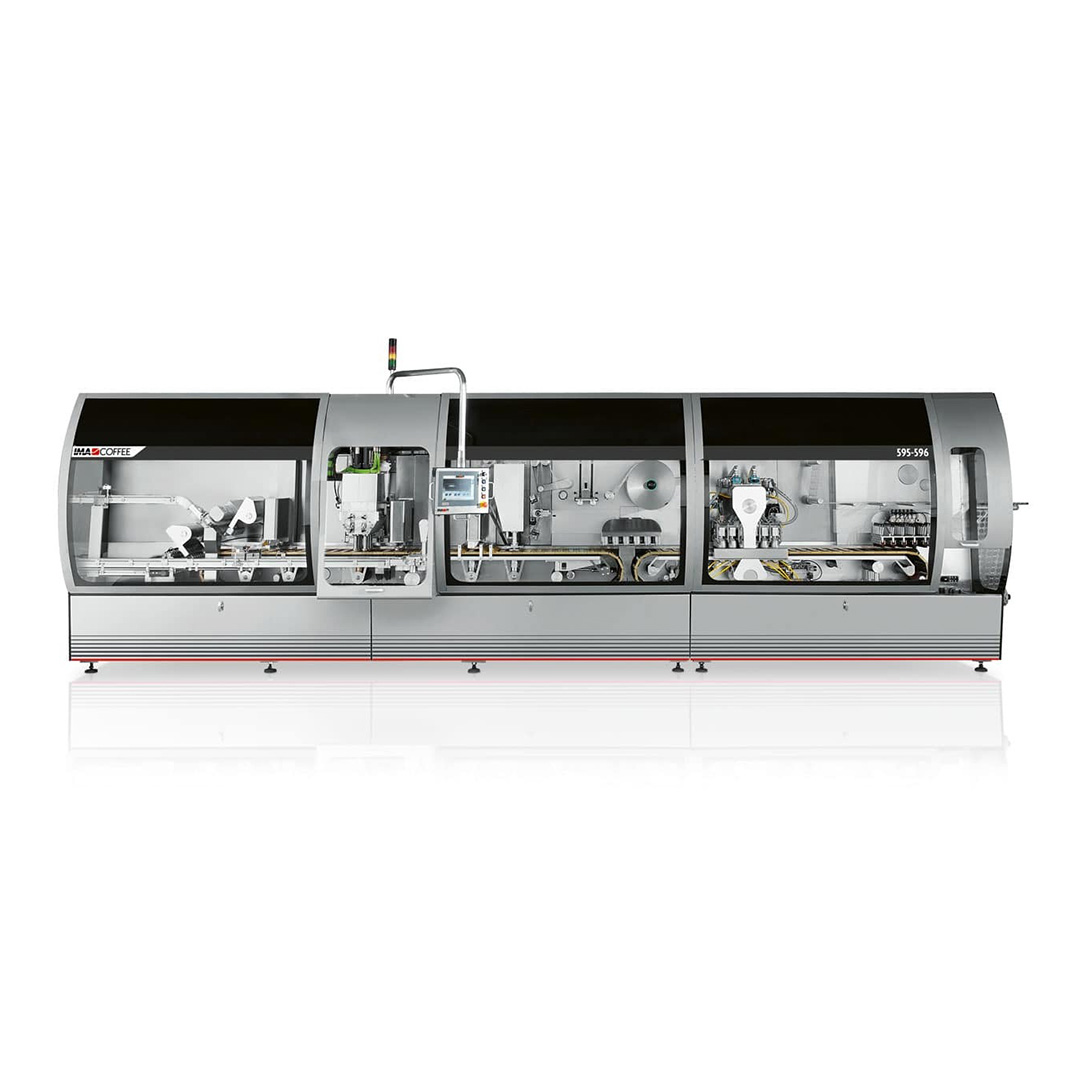

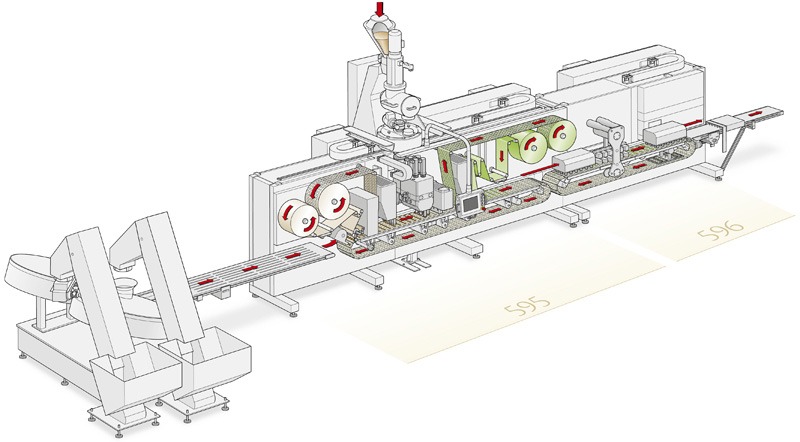

As an alternative to the nitrogen chamber, the 595 couples with the 596 oxygen extraction module, making it a compact solution with optimum machine accessibility and a hermetic chamber shaped around the capsules to assure minimum inert gas consumption.
Machine details
Technical information
| TECHNICAL DATA 595 | ||
| Model | 595-596 | 595 |
| Production speed (6 lanes) | 480 capsules/min. – 80 cycles/min. | |
| Power Consumption | 12 kW | 8 kW |
| Machine Weight | 10,000 Kg | 7,000 Kg |
| Nitrogen consumption | 110 Nl/min. | – |
| Compressed air consumption | 410 Nl/min. | 150 Nl/min. |
| Compressed air pressure | 6 bar | |
Filter paper reel | Max. outer diameter 500 mm – Max inner diameter 76 mm | |
