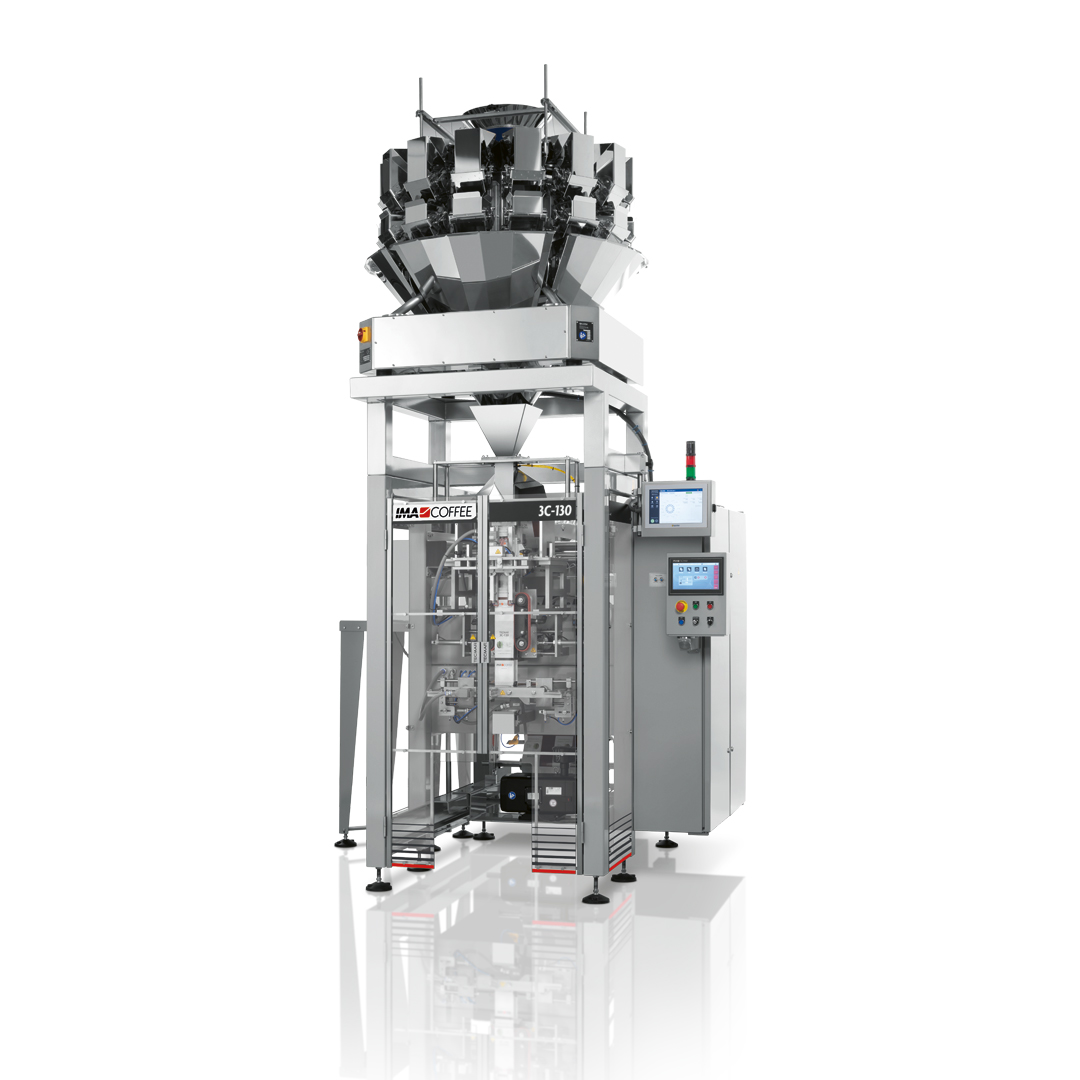

3C Series Vertical Form Fill and Seal
Machine overview
High-Performance 3SS Baggers for Ground Coffee and Beans Packaging.
The 3SS bagger models guarantee a high performance output in the packaging of ground coffee and beans.

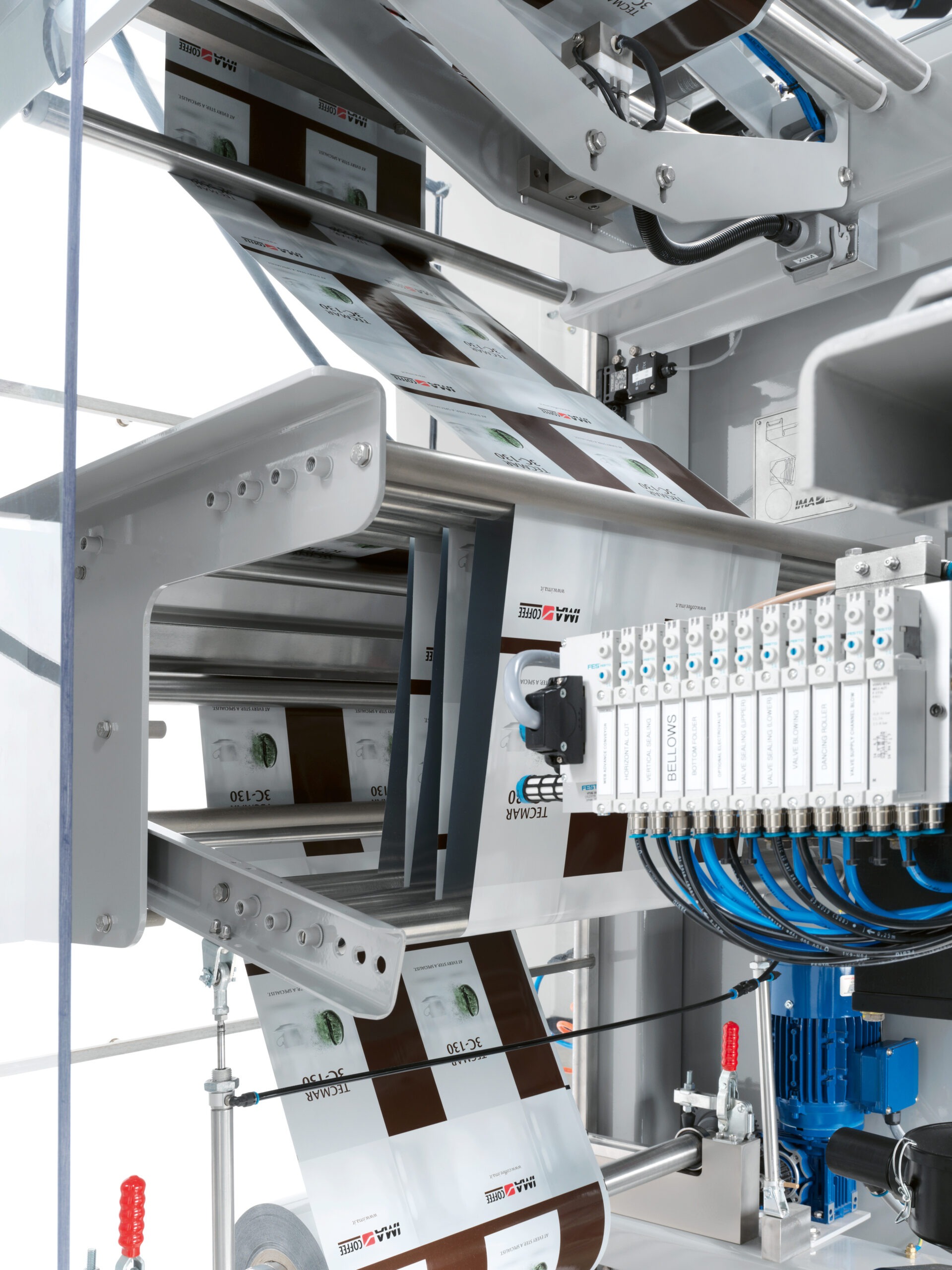

The design of the machines is based on an Open Frame architecture that provides easy cleaning and accessibility for maintenance and operational adjustments. The machines are controlled by a PLC and equipped with a user friendly HMI, a motorized film unwinding unit, a pneumatic film tension controller and a motorized film alignment system. The baggers, intermittent or continuous motion, including degassing valve applicator and N2 flushing system, are capable of producing and filling 3 side seal bags from 50 cc up to 5000 cc.
• 3C-130/OF intermittent or continuous motion – up to 150 p/min
• 3C-200/OF intermittent motion – up to 60 p/min
• 3C-360 intermittent motion – up to 15 p/min
• 3C-80 Dual intermittent motion – up to 70 p/min
• 3C-130 Twin intermittent motion – up to 80 p/min
• PRYSMA intermittent motion – up to 50 p/min
Production plant
IMA Tecmar
Machine highlights
-
Servo driven mechanisms
For high precision, smooth operation, and maximum reliability.
-
Design to handle laminated and PE packaging materials
Ensuring flexibility across a wide range of applications.
-
Simultaneous dosing of two or more products
Ideal for complex or multi-component packaging.
-

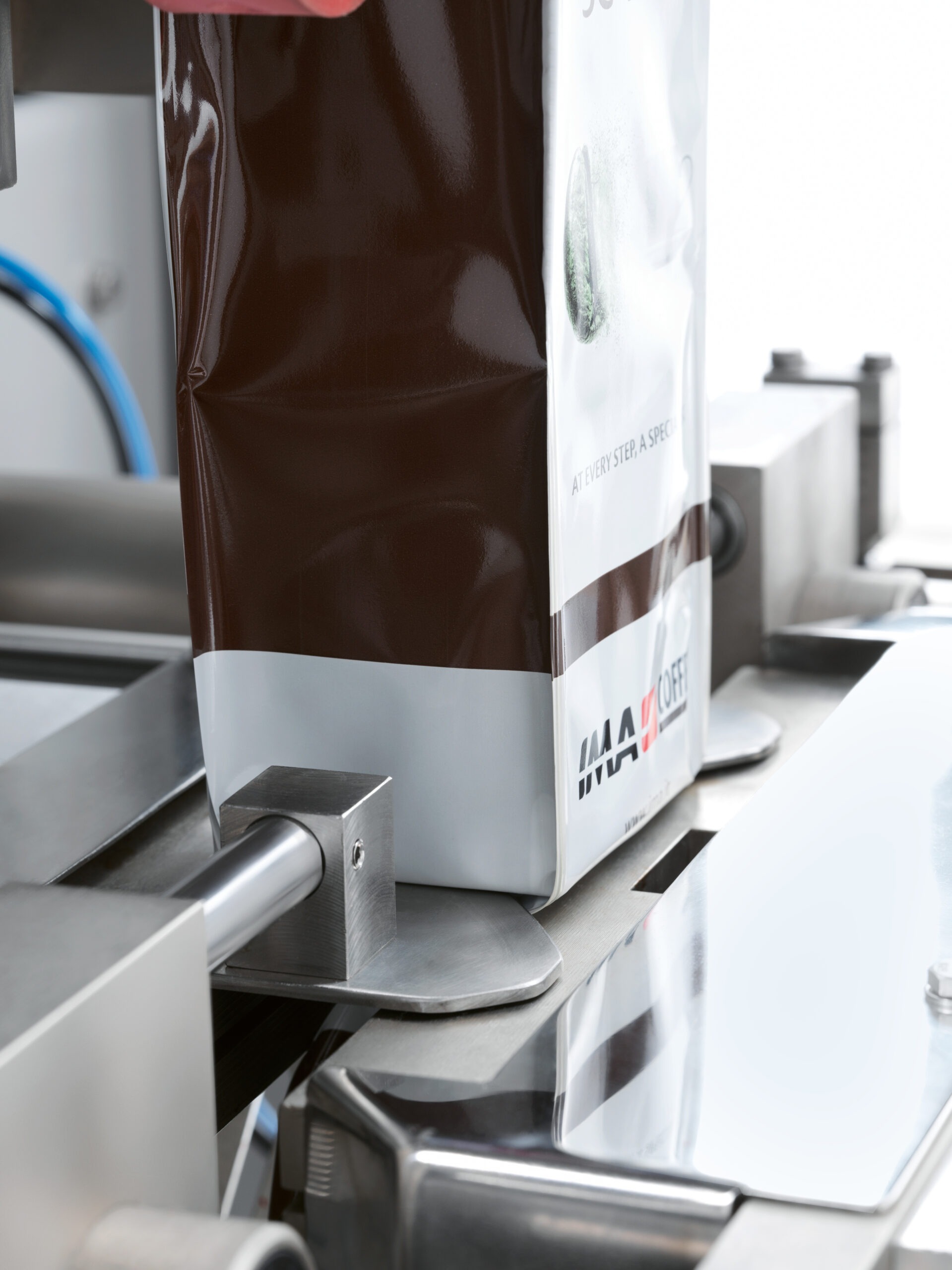

Configurable for multiple bag formats
Including gusseted bags, flat-bottom, flat-top, and stable pouches.
-
Fully integrated systems
With automatic collators, cartoning units, and complete end-of-line solutions.
-
Advanced in-line options
Such as weight control, coding systems, conveyors, product infeed chargers, inert gas flushing, and more.
-

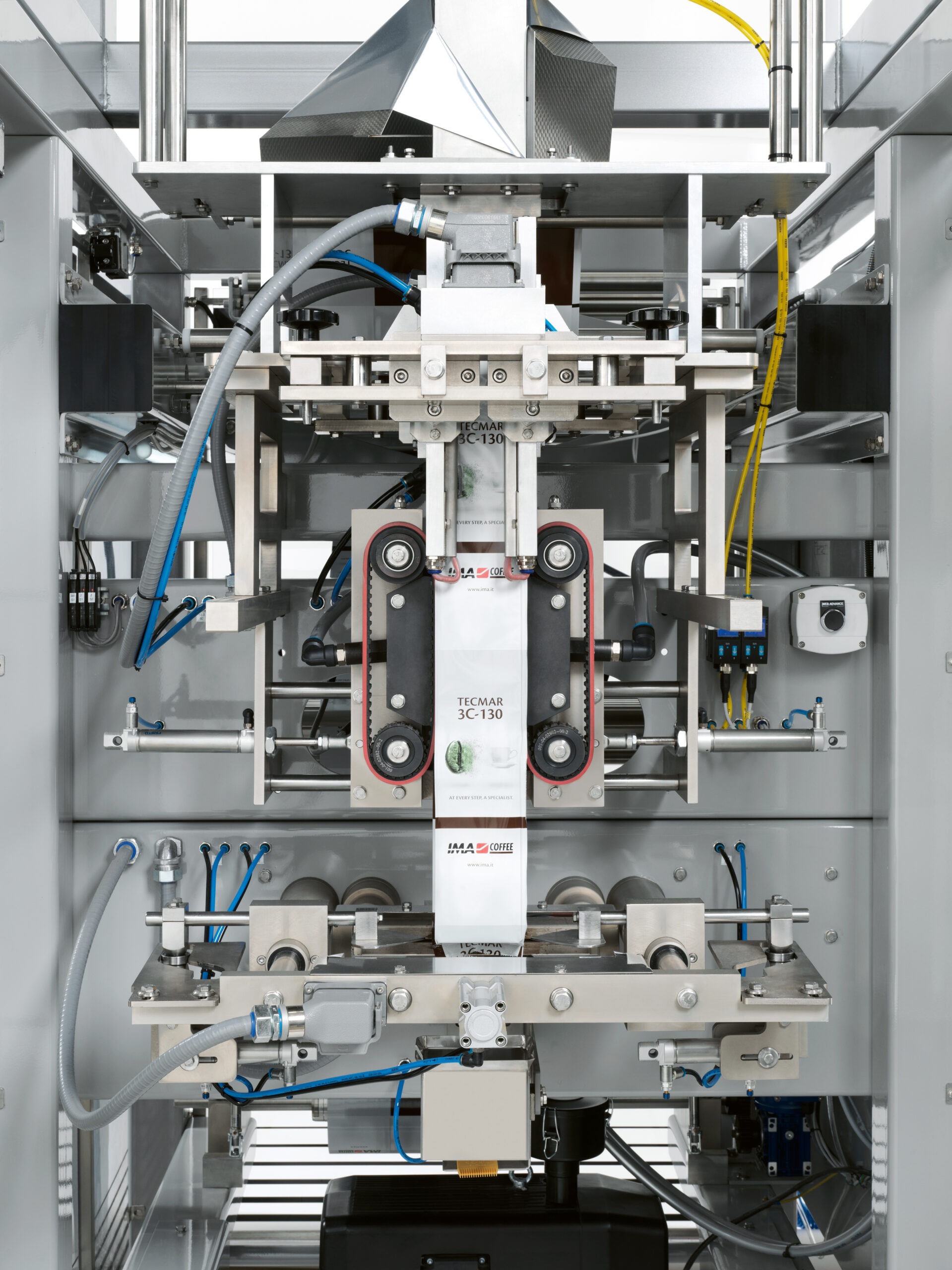

Vacuum-assisted film pulling system
For consistent material handling and superior pack quality.
-
Automatic reel splicer
To minimize downtime and ensure continuous production.
Machine details
Technical information
| Width | Length | Numb. Of lines | Reel | Speed Strokes/min | |
| INTERMITTENT MOTION | |||||
| 3C-130/OF | 65-235 mm | 100-410 mm | 1 | 505 mm | 100 |
| 3C-200/OF | 135-360 mm | 200-500 mm | 1 | 750 mm | 60 |
| 3C-360 | 250-500 mm | 500-800 mm | 1 | 1200 mm | 10 |
| 3C-80 DUAL | 65-125 mm | 100-225 mm | 2 | 540 mm | 70 |
| 3C-130 TWIN | 65-235 mm | 100-410 mm | 2 | (2x) 505 mm | 100 |
| PRYSMA (flat top) | 65-220 mm | 100-250 mm | 1 | 505 | 50 |
| CONTINUOUS MOTION | |||||
| 3C-130 C | 65-205 mm | 100-350 mm | 1 | 445 | 150 |
