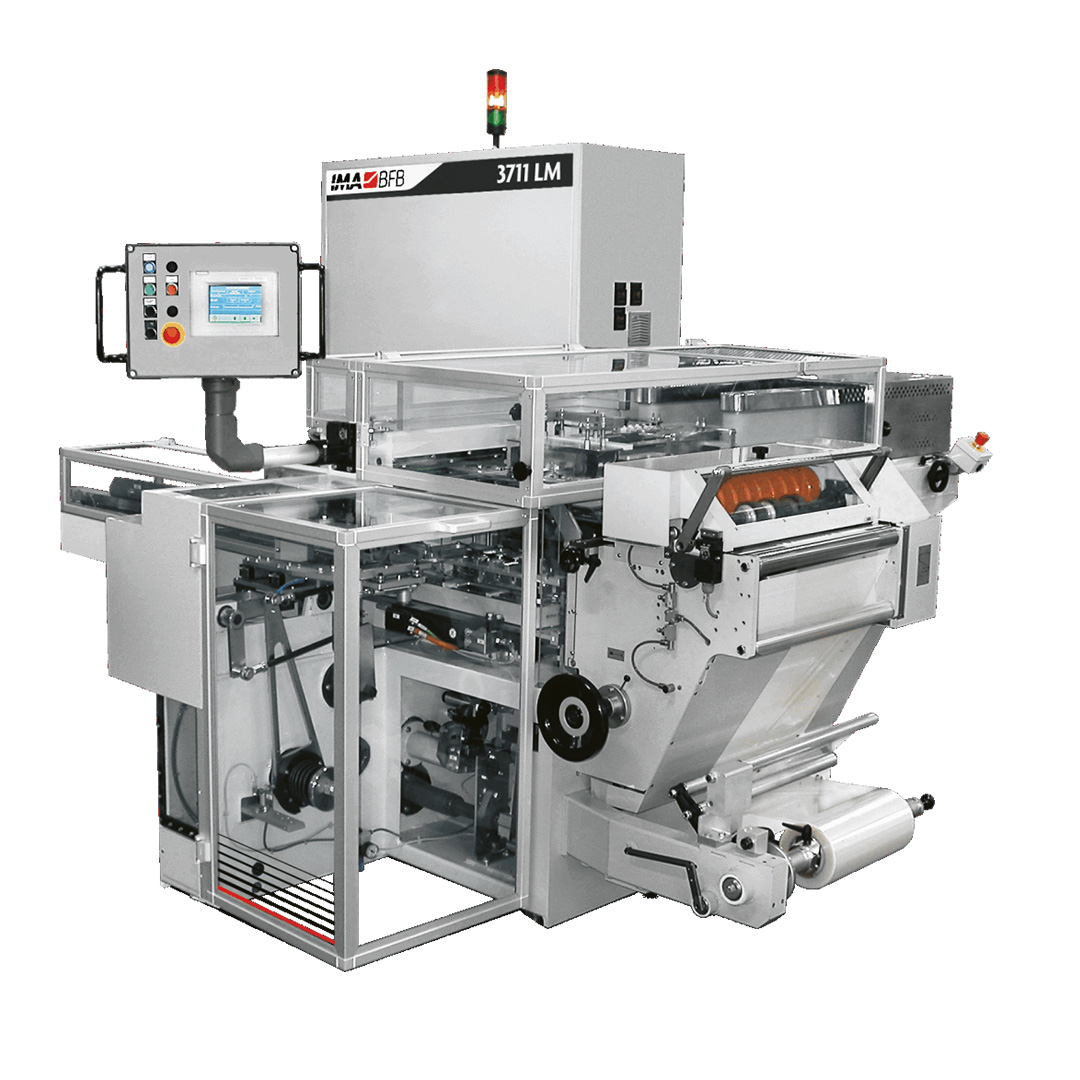

3711 LM Series Overwrapping
Machine overview
The best way to over wrap regular and irregular bar soaps.
Throughout all stages of bundling and over wrapping, the 3711 LM is in full control over all irregular shapes, thus making it the best solution for bar soap overwrapping.
Cellophane, PP and all other reel-fed, heat-sealable films are handled, and options include an additional reel holder, a film print registration unit, an automatic splicing unit and scissor knife and electronic unwinding system.
Production plant
IMA BFB
Machine highlights
-
Flexible product handling
Several infeed collating units to match different production range.
-
Steel frame
Oil-tight steel frame containing all mechanical motions.
-
Clever design
Clever machine design enables easy cleaning.
-
Lubrication
Oil bath lubrication.
Technical information
| TECHNICAL DATA 3711 LM | ||||
| Wrapping film | CELLOPHANE, PVC, PP, PE, KRAFT | |||
| Product dimensions | A | B | C | |
| 3711 LM FAST | Min. | 62 | 25 | 75 |
| Max. | 120 | 135 | 280 | |
| Max. speed | 105 cycles/min. | |||
| 3711 LM HS | Min. | 65 | 25 | 75 |
| Max. | 120 | 120 | 280 | |
| Max. speed | 110 cycles/min. | |||
| 3711 LM LA | Min. | 40 | 25 | 75 |
| Max. | 120 | 90 | 280 | |
| Max. speed | 110 cycles/min. | |||
