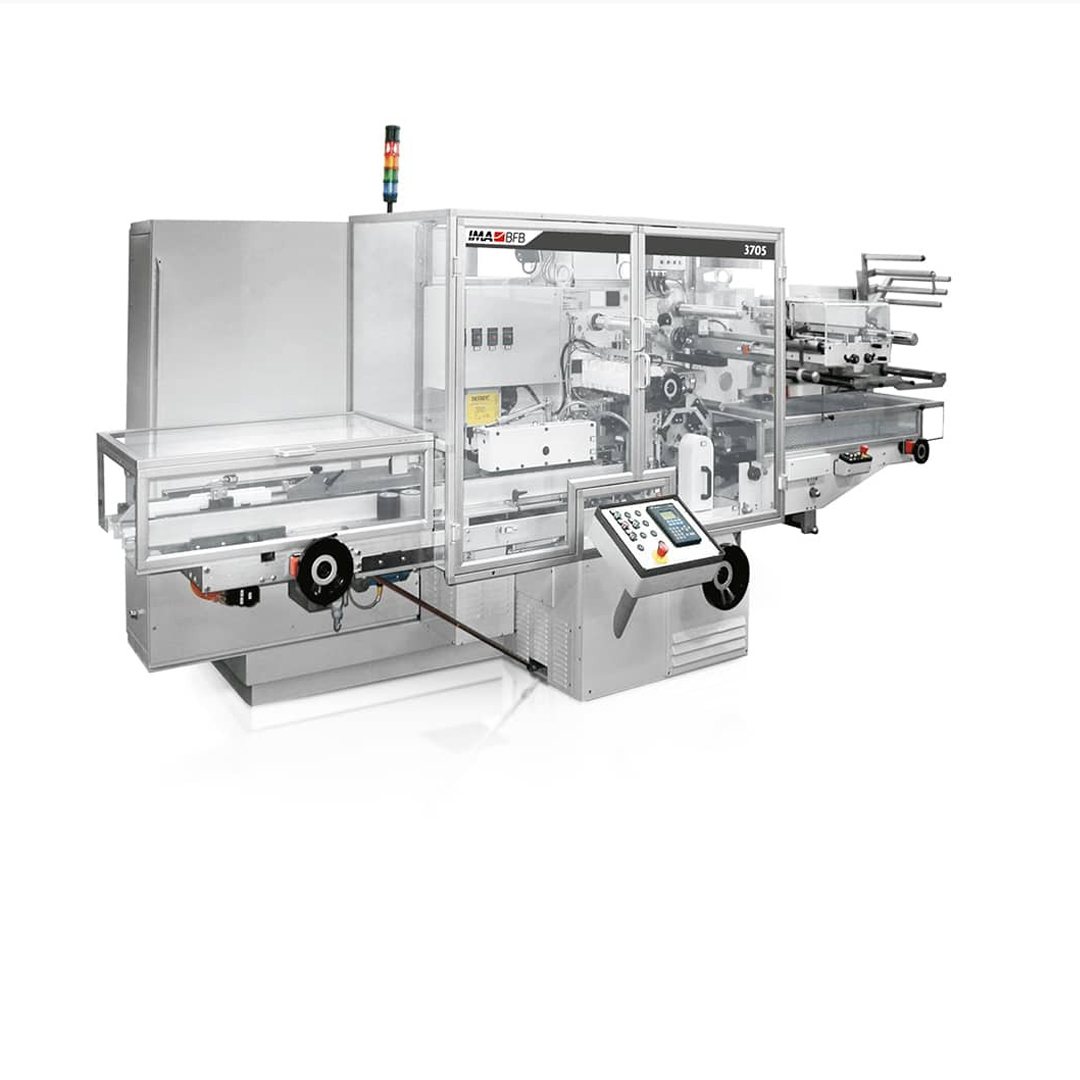

3705 Series Overwrapping
Machine overview
High-quality individual or multiple wrapping for regular products.
With an output of up to 300 bundles/min, the 3705 is a top-performing over wrapping machine for individual and/or multiple parallelepiped product packs.
With an oil-tight steel frame containing all motions, this machine benefits from the smooth speeds of a servo-controlled main motor which eliminates all abrupt stop-start issues. Changeover by replacement of pre-assembled and pre-adjusted groups is fast and easy, so as to avoid unwanted downtime.
Lorem ipsum
Production plant
IMA BFB
Machine highlights
-
Positive product handling
Positive product handling during operations cycle with several checking points.
-
Safety checks during wrapping phase
Wrapping film missing and tear tape missing detection.
-
Splicing unit
Automatic reel splicing device.
-
Lubrication
Oil forced circulation by motor-driven pump with safety pressure switch.
-
Easy opening
Tear tape unit available.
-
Printing unit
Film print unit available.
Technical information
| 3705 TECHNICAL DATA | ||||
| Wrapping film | CELLOPHANE.PE | |||
| Max. speed | 250/300 | |||

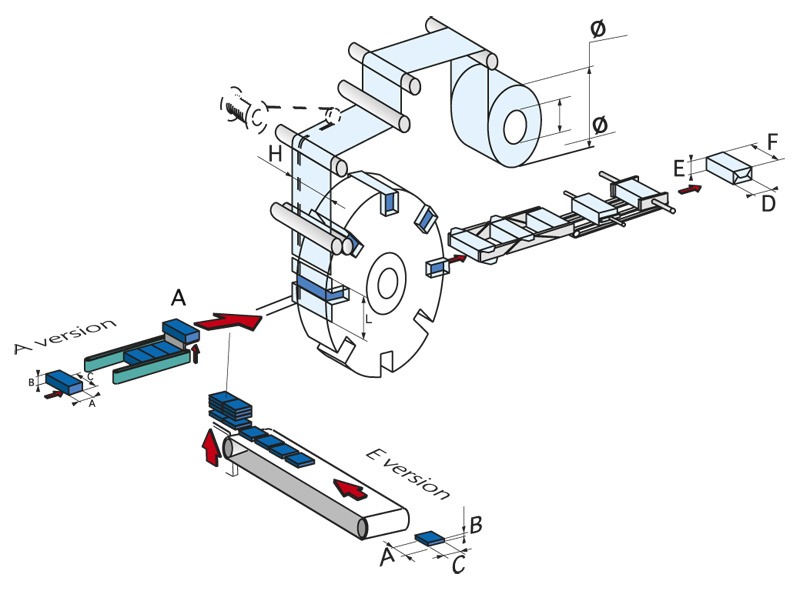

| Product dimensions | A | B | C | |
| 3705 A | Min. | 25 | 15 | 60 |
| Max. | 140 | 50 | 220 | |
| 3705 E | Min. | 45 | 15 | 60 |
| Max. | 80 | 50 | 210 | |
