3703 Series Overwrapping

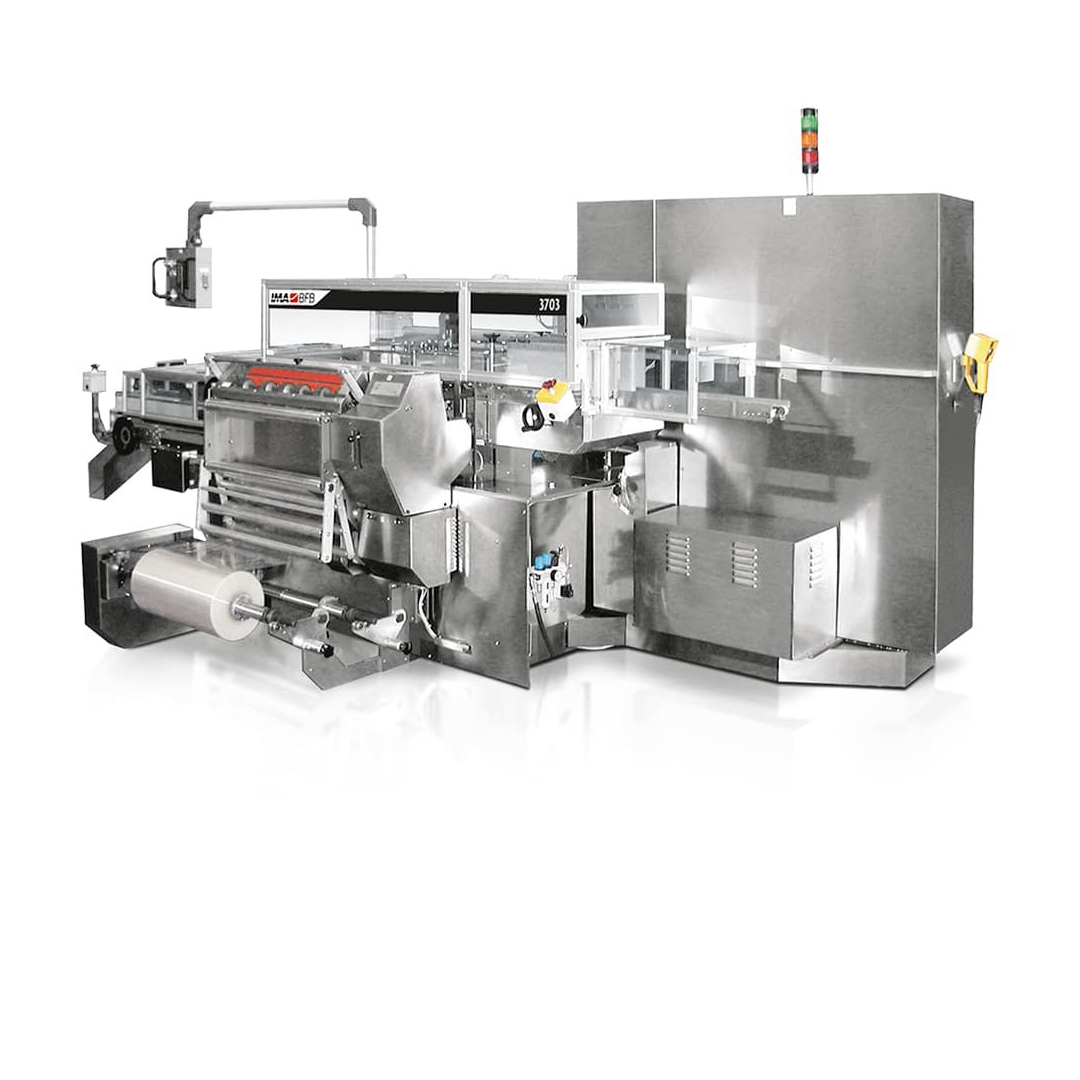

Machine overview
High speed over wrapping with all types of film.
With an output of up to 100 bundles/min., the 3703 can arrange the products wrapping it in one, two or three rows on a single layer.
Bundle collation occurs in line with product exit, but outside the wrapping area.

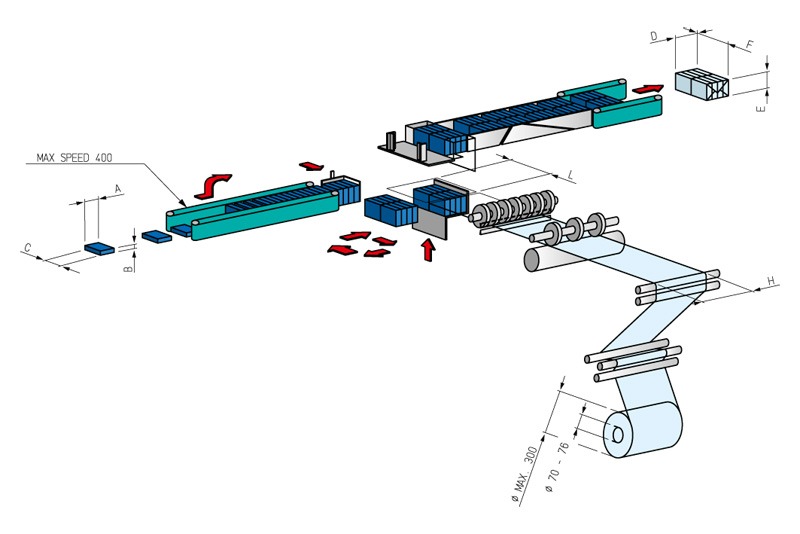

Product infeed is managed by lateral belts to avoid product sliding due to high feeding speeds and a driven star-wheel in order to turn on edge the incoming products. Final products configuration is achieved by means of a driven collating unit.
Changeover by replacement of pre-assembled and pre-adjusted groups is fast and easy, so as to avoid unwanted downtime.
Production plant
IMA BFB
Machine highlights
-
Flexible configuration
Machine can be supplied with right hand or left hand film feeding from product entrance.
-
Servo driven technology
All movements are servo driven, including bundle forming.
-
Lubrication
Oil forced circulation by motor-driven pump with safety pressure switch.
-
Wide range of options
Countless optional groups can be integrated for specific functions and enhanced performance.

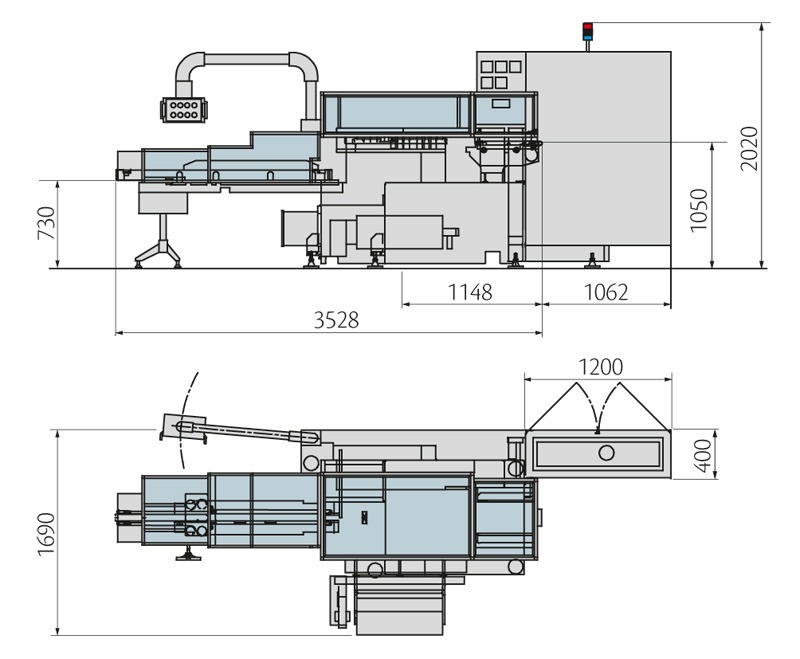

Technical information
| 3703 TECHNICAL DATA | ||||
| Max. Speed | Up to 100 cycles/min. | |||
| Product dimensions | A | B | C | |
| 3703BP | Min. | 60 | 23 | 60 |
| Max. | 260 | 100 | 260 | |
